75552G
Gas hob
Operating Instructions
GB
IE
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If
you need assistance, contact our Customer Care Department on 08705 350350
Installation
This appliance must be installed and serviced by a competent person as stated in
the Gas Safety ( Installation and Use) Regulations Current Editions and the IEE
Wiring Regulations.
For appliances installed in the Republic of Ireland please refer to NSAI-Domestic
Gas Installations I.S.813 Current Editions and the ETCI Rules for Electrical
Installations.
Remove all packaging before using the hob.
Ensure that the gas and electrical supply complies with the type stated on the rating
plate, located near the gas supply pipe.
Do not attempt to modify the hob in any way.
Child Safety
This hob is designed to be operated by adults. Do not allow children to play near or
with the hob.
The hob gets hot when it is in use. Children should be kept away until it has cooled.
Children can also injure themselves by pulling pans or pots off the hob.
During Use
This hob is intended for domestic cooking only. It is not designed for commercial or
This appliance is not connected to a combustion products evacuation device. It must
When in use a gas cooking hob will produce heat and moisture in the room in which
When using the hob for a long period of time, the ventilation should be improved, by
2
industrial purposes.
be installed and connected in accordance with current installation regulations. Particular
attention shall be given to the relevant requirements regarding ventilation.
it has been installed. Ensure there is a continuous air supply, keeping air vents in
good condition or installing a cooker hood with a venting hose.
opening a window or increasing the extractor speed.
Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.
Ensure the control knobs are in the ‘OFF’ position when not in use.
When using other electrical appliances, ensure the cable does not come into contact
with the hot surfaces of the cooking appliance.
Unstable or misshapen pans should not be used on the hob as unstable pans can
cause an accident by tipping or spillage.
Never leave the hob unattended when cooking with oil and fats.
Never use plastic or aluminium foil dishes on the hob.
Perishable food, plastic items and areosols may be affected by heat and should not
be stored above or below the hob unit.
Service
This hob should only be repaired or serviced by an authorised Service Engineer and
only genuine approved spare parts should be used.
Environmental Information
After installation, please dispose of the packaging with due regard to safety and the
environment.
When disposing of an old appliance, make it unusable, by cutting off the cable.
The symbol on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
Keep this instruction book for future reference and ensure it is passed on to
any new owner.
These instructions are only valid for countries whose identification symbols are shown
on the cover of this instruction booklet and on the appliance itself.
3
Contents
Instructions for the User
Important Safety Information 2
Description of the Hob 5
Operation 6
Maintenance and Cleaning 7
Something Not Working? 8
Service and Spare Parts 9
Customer Care 9
Guarantee Conditions 10
Instructions for the Installer
Engineers technical data 11
Important safety requirements 12
Installation 13
Electrical connections 17
Wiring diagram 18
Fault Finding 19
Commissioning 22
Conversion from Natural Gas to LPG 23
Guide to Use the instructions
The following symbols will be found in the text to guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
4
Environmental information
This appliance complies with the following E.E.C. Directives:
-73/23 - 90/683 (Low Voltage Directive);
-89/336 (Electromagnetical Compatibility Directive);
-93/68 (General Directives)
and subsequent modifications.
Description of the Hob
1
3
6
1. Hob Top
2. Semi-rapid burner
3. Auxiliary burner
4. Rapid burner
5. Ultra-rapid burner (triple crown)
6. Control knobs
4
5
2
2
Installation
Any gas installation must be carried out by a registered competent person, and in
accordance with existing rules and regulations.
The relevant instructions are to be found in the second section of this manual.
Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the
event of a breakdown.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important to remove any protective materials, which
were put on in the factory.
5
Operation
Hob burners control knobs
The symbols on the knobs mean that :
there is no gas supply
there is maximum gas supply
there is minimum gas supply
Lighting the burners
For easier lighting, proceed before putting a pan
on the pan support.
To light a burner:
turn the relevant knob anticlockwise to maximum position
( ).
Upon ignition, keep the knob pushed down about 5
seconds. This will allow the "thermocouple" (Fig. 1 -
letter D) to be heated and the safety device to be switched
off, otherwise the gas supply would be interrupted.
Then adjust the flame as required.
If the burner does not ignite, turn the control knob to zero, and try again.
When switching on the mains, after installation or a power cut, it is quite normal for the spark
generator to be activated automatically.
In the absence of electricity, ignition can occur without the electrical device; in this case,
approach the burner with a flame, push the relevant knob down and turn it anti-clockwise
until it reaches the “maximum” position.
To ensure maximum burner efficiency, you should only use pots and pans with a flat
bottom fitting the size of the burner used (see table).
A - Burner cap
B - Burner crown
C - Ignition electrode
D - Thermocouple
Fig. 1
Burner minimum maximum
diameter diameter
Triple-crown (ultra-rapid) 160 mm 260 mm
Large (rapid) 160 mm 240 mm
Medium (semi-rapid) 120 mm 220 mm
Small (auxiliary) 80 mm 160 mm
As soon as a liquid starts boiling, turn down the flame so that it will barely keep the
liquid simmering.
If you use a saucepan which is smaller than the recommended size, the flame will
spread beyond the bottom of the vessel, causing the handle to overheat.
Take care when frying food in hot oil or fat, as the overheated splashes
could easily ignite.
If the control knobs become difficult to turn, please contact your local Service Force
Centre.
6
Using the Wok Stand
A wok stand is provided to enable you to use a round
bottomed wok on the hob. The wok stand must only
be used on the central burner, and should not be
used with any other type of wok or pan. When fitting
the wok stand, ensure the recesses in the frame fit
securely onto the bars of the pan supports, as shown
in figure 2.
Maintenance and Cleaning
Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob
from the electricity supply.
The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than
if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a
little washing up liquid has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, the following products are recommended:
- For stainless steel hobs use a proprietary stainless steel cleaner.
- For other hobs use Hob Brite or Bar Keepers Friend.
Fig. 2
Pan Supports
When washing the pan supports by hand, take care when drying them as the enamelling
process occasionally leaves rough edges. If necessary, remove stubborn stains using a
paste cleaner.
The Burners
The burner caps and crowns can be removed for cleaning. Wash the burner caps and
crowns using hot soapy water, and remove marks with a mild paste cleaner. A well moistened
soap impregnated steel wool pad can be used with caution, if the marks are particularly
difficult to remove. After cleaning, be sure to wipe dry with a soft cloth.
Ignition electrode
The electric ignition is obtained through a ceramic electrode and a metal electrode (Fig. 1 C). Keep these components very clean, to avoid difficult lighting, and check that the burner
crown holes (Fig. 1 - lett. B) are not obstructed.
7
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting
your local Service Force Centre.
SYMPTOM
There is no spark when lighting the gas
SOLUTION
Check that the unit is plugged in and the
electrical supply is switched on
Check that the RCCB has not tripped (if fitted)
Check the mains fuse has not blown
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
The gas ring burns unevenly
Check the main jet is not blocked and the
burner crown is clear of food particles.
Check the burner cap and crown have been
replaced correctly, e.g. after cleaning.
If after all these checks, your hob still does not operate correctly, contact your local
Service Force Centre.
Please note that it will be necessary to provide proof of purchase for any inguarantee service calls.
In-guarantee customers should ensure that the above checks have been made as the
engineer will make a charge if the fault is not a mechanical or electrical breakdown.
8
Service and Spare Parts
If you require spare parts or an engineer contact your local Service Force Centre by
telephoning:
0870 5 929 929
Your call will be routed to your local Service Force Centre.
For the address of your local Service Force Centre and further information about
Service Force, please visit the website at www.serviceforce.co.uk
When you contact the Service Centre, they will need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating label on the back of this
instruction booklet)
5. Date of purchase
Customer Care
For general enquiries concerning your AEG-Electrolux appliance and for further
information on AEG-Electrolux products, contact our Customer Care Department by
letter or telephone at the address below or visit our website at www.aeg.co.uk
Customer Care Department
AEG-Electrolux
Domestic Appliances
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel : 08705 350350*
* calls to this number may be recorded for training purposes.
For Customer Services in the Republic of
Ireland please contact us at the address
below:
AEG-Electrolux
Electrolux Groupl (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel +353 (0) 1 4090 754
e-mail service.eid@electrolux.ie
9
Guarantee Conditions
Standard guarantee conditions
We, AEG-Electrolux, undertake that if within 12 months of the date of the purchase this AEG-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at
our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
· The appliance has been correctly installed and used only on the electricity or gas supply stated on the
rating plate.
· The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s operating and maintenance instructions.
· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person
not authorised by us.
· All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or
defective part replaced shall become the Company’s property.
· This guarantee is in addition to your statutory and other legal rights.
· Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside
these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
· Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs
or removable parts of glass or plastic.
· Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
· Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
· Products of AEG-Electrolux manufacture which are not marketed by AEG-Electrolux.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
· The guarantee starts from the date you first purchased your product.
· The guarantee is for the same period and to the same extent for labour and parts as exists in the new
country of use for this brand or range of products.
· This guarantee relates to you and cannot be transferred to another user.
· Your new home is within the European Community (EC) or European Free Trade Area.
· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
· The product is installed taking into account regulations in your new country.
Before you move, please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0)3 44 62 29 29
Germany Nürnberg +49 (0)800 234 7378
Italy Pordenone +39 (0)800 117511
Sweden Stockholm +46 (0)8 672 53 60
U K Slough +44 (0)1753 219899
10
Instruction for the Installer
Engineers technical data
Overall dimensions
Width: 680 mm
Depth: 510 mm
Cut out dimensions
Width: 560 mm
Depth: 480 mm
Supply Connections
Gas:R 1/2 inch (1/2 inch male) Rear right hand
corner
Electric: 230 V 50 Hz supply, 3 core flexible
cable with non rewireable plug fitted with a 3
amp cartridge fuse.
Burner Dia. Tap By-pass
Auxiliary 28
Semi-rapid 32
Rapid 40
Ultra-rapid 56
Aeration adjustment none
Heat Input
Ultra-rapid Burner 4.0 kW (13652 BTU/HR)
Rapid Burner 2.8 kW Natural Gas
Semi-rapid Burner 2.0 kW (6824 BTU/HR)
Auxiliary Burner 1.0 kW (3413 BTU/HR)
Appliance class 3
Appliance category II2H3+
Gas supply Natural gas G20 / 20mbar
1/100 mm
(10239 BTU/HR)
2.8 kW L.P.G.
(9556 BTU/HR)
TYPE OF GAS
NATURAL GAS
20 mbar
VALUE =
37.78 MJ/m
Ws - 50.7 MJ/ m
LPG GAS
28-30/37 mbar
VALUE =
49.92 MJ/Kg
BURNER RAPID SEMI-RAPID AUXILIARY TRIPLE
POSITION MA X MI N M AX MIN M AX MI N MAX MIN
NOMINAL THERMAL
POWER (kW) 2.8 0.65 2.0 0.45 1.0 0.33 4.0 1.2
NOMINAL FLOW
RATE (m3/h) 0.266 0.062 0.190 0.043 0.095 0.028 0.381 0.114
3
3
NOZZLE REFERENCE 113 Adjust. 96 Adjust. 70 Adjust. 146 Adjust.
(1/100 mm)
NOMINAL THERMAL
POWER (kW) 2.8 0.65 2.0 0.45 1.0 0.33 4.0 1.2
NOMINAL FLOW
RATE (g/h) 202 47 144 32 72 24 288 86
NOZZLE REFERENCE 86 40 71 32 50 28 98 56
(1/100 mm)
(large) (medium) (small) CROWN
11
Important safety requirements
This hob must be installed in accordance with the Gas Safety (Installation and Use) Regulations
(Current Edition) and the IEE Wiring Regulations (Current Edition). For appliances installed in
the Republic of Ireland please refer to NSAI- Domestic Gas Installation I.S. 813 Current
Editions and the ETCI Rules for Electrical Installations.
Provision for Ventilation
Detailed recommendations are contained in the following British Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Part 2 and B.S. 6891 Current Editions. The hob should not be installed
in a bed sitting room with a volume of less than 20 m3. If it is installed in a room of volume less than
5 m3 an air vent of effective area of 110 cm2 is required. If it is installed in a room of volume
between 5 m3 and 10 m3 an air vent of effective area of 50 cm2 is required, while if the volume
exceeds 11 m3 no air vent is required. However, if the room has a door which opens directly to
the outside no air vent is required even if the volume is between 5 m3 and 11 m3. If there are
other fuel burning appliances in the same room, B.S. 5440 Part 2 Current Edition, should be
consulted to determine the requisite air vent requirements.
For appliances installed in the Republic of Ireland please refer to the NSAI- Domestic Gas
Installation I.S. 813 Current Editions Table Four.
Location
The hob may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom
or shower room. Before making the cut out in the worktop ensure that the edges of the hob that
are to be near either a side or rear wall have a minimum distance of 55 mm between the edge
of the hob and the wall. The minimum distance combustible material can be fitted above the hob
is 400 mm. If it is fitted below 400 mm. a space of 50 mm must be allowed from the edges of the
hob. The minimum distance combustible material can be fitted directly above the hob is 700 mm.
A minimum distance of 100 mm must be left between the side edges of the hob and any adjacent
cabinets or walls.
For appliances installed in the Republic of Ireland please refer to NSAI- Domestic Gas Installation
I.S 813 Current Edition Section 7- Permitted Locations of Appliance.

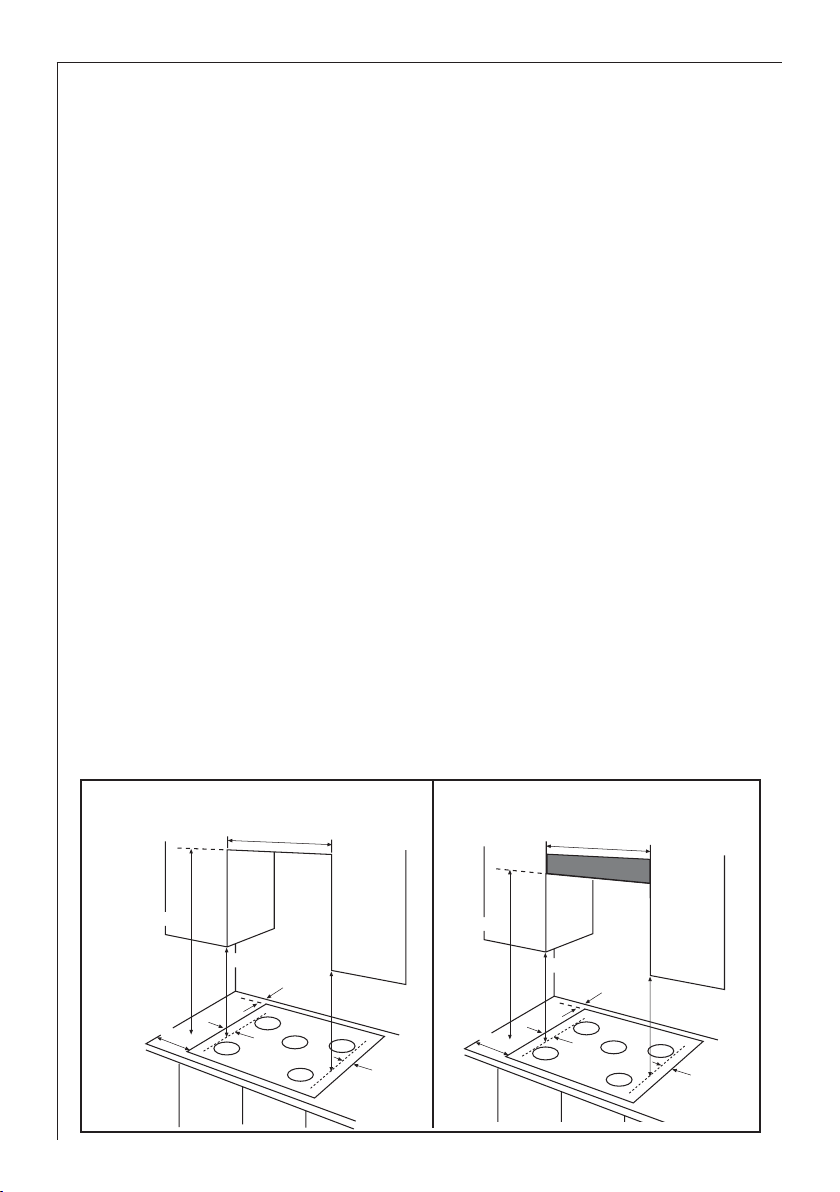

FITTING THE GAS HOB
WITHOUT A COOKER HOOD ABOVE
600 mm
FITTING THE GAS HOB
WITH A COOKER HOOD ABOVE
600 mm
12
700 mm
100 mm
400 mm
50 mm
55 mm
400 mm
50 mm
FO 2369*
700 mm
100 mm
400 mm
50 mm
55 mm
400 mm
50 mm
FO 2231*
Installation
Important
This hob must be installed by a competent person to the relevant Gas Standards.
Any gas installation must be carried out by a registered competent person.
The manufacturer will not accept liability, should the above instructions or any of the
other safety instructions incorporated in this book be ignored.
On the end of the shaft, which includes the G 1/2" threaded elbow, adjustment is fixed so
that the washer is fitted between the components as shown in the diagram. Screw the
parts together without using excessive force.
Gas Connection
Connection to the gas supply should be with either rigid or semi-rigid pipe, i.e. steel or
copper.
The connection should be suitable for connecting to R 1/2" (1/2 BSP male thread).
When the final connection has been made, it is essential that a thorough leak test is
carried out on the hob and installation.
Ensure that the main connection pipe does not exert any strain on the hob.
FO 0814
FO 0264
It is important to install the elbow correctly, with the shoulder on the end of the thread,
fitted to the hob connecting pipe.
Failure to ensure the correct assembly will cause leakage of gas.
13
Cut Out Size
The dimensions of the cut-out are given in the diagram.
680
FO 2038
510
Building In
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat
resistant board below the base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical connection to the hob as shown in
diagrams 1 and 2 (see next page).
14
1
FLEX
OUTLET
ON/OFF SWITCH
ON/OFF SWITCH
FLEX
OUTLET
2
FO 2563
FO 2564
Building over a kitchen unit with door
Proper arrangements must be taken in
designing the furniture unit, in order to avoid
any contact with the bottom of the hob which
can be heated when it is operated. The
recommended solution is shown in diagram
3.
The panel fitted under the hob ("a") should
be easily removable to allow easy access if
technical assistance is needed. The space
behind the kitchen unit ("b") can be used for
connections.
3
FO 2044
Dimensions are given in mm.
15
Fitting the Hob into the worktop
Carry out the building in of the hob as follows:
• put the seals
supplied with the hob, on the
edges of the cut out: place
them exactly on the
front edge, at 10 mm from
the rear edge and at 50 mm
from the side edges, as
shown in the diagram,
taking care that the seals
meet without overlapping;
• place the hob in the cut
out, taking care that it is
centred;
• fix the hob with the
relevant fixing clamps and
screws, as shown in the
diagram.
When the screws have been tightened, the excess seal can be removed.
The edge of the hob forms a double seal which prevents the ingress of liquids.
FO 2753
16
Seal
FO 0199
Electrical connections
Any electrical work required to install this hob should be carried out by a qualified
electrician or competent person, in accordance with the current regulations.
THIS HOB MUST BE EARTHED.
The manufacturer declines any liability should these safety measures not be observed.
This hob is designed to be connected to a 230 V 50 Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated
on the hob rating plate. The rating plate is located on the bottom of the hob. A copy is
attached on the back cover of this book.
The hob is supplied with a 3 core flexible supply cord incorporating a 13 amp plug fitted.
In the event of having to change the fuse, a 3amp ASTA approved (BS 1362) fuse must
be used.
Should the plug need to be replaced for any reason, the wires in the mains lead are
coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
1) Connect the green and yellow (earth) wire
to the terminal in the plug which is marked
with the letter 'E' or the earth symbol
coloured green and yellow.
or
2) Connect the blue (neutral) wire to the terminal
in the plug which is marked with the letter 'N'
or coloured black.
3) Connect the brown (live) wire to the terminal in the plug which is marked with the letter 'L'
or coloured red.
Upon completion there must be no cut, or stray strands of wire present and the cord
clamp must be secure over the outer sheath.
In the event of having to change the fuse, a 3amp ASTA approved (BS 1362) fuse must
be used.
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of safely.
FO 0390
17
Permanent Connection
In the case of a permanent connection, it is necessary that you install a double pole switch
between the hob and the electricity supply (mains), with a minimum gap of 3 mm between
the switch contacts and of a type suitable for the required load in compliance with the
current electric regulations.
The switch must not break the yellow and green earth cable at any point.
Ensure that the hob supply cord does not come into contact with surfaces with
temperatures higher than 50 deg. C.
Replacement of the cable
The connection of the voltage cable to the appliance's terminal block is of type "Y". This
means that its replacement requires the specific equipment of a technician.
In this case, only cable types H05 V2V2-F (T90) must be used. The cable section must
be suitable to the voltage and the working temperature.
The yellow/green earth wire must be approximately 2 cm longer than the phase wires.
Wiring diagram
L
18
1
N
N
1. IGNITOR SWITCHES
2. IGNITOR UNIT
1
L
2
3
4
5
N
6
2
Fault Finding
Preliminary Electrical Systems Check
Brown
Blue
Green
Yellow
START
Isolate appliance
and carry out:
A: Earth Continuity
check.
NO YES
Has inlet fuse blown?
NO YES
Inlet wiring
faulty.
Rectify any
fault.
Carry out:
C: Polarity check.
PLUG (with cover removed)
Earth Wire
Green/Yellow
Neutral Wire
Blue
( )
Brown
Carry out:
D: Resistance to
Earth check.
Electricity supply
should now be
satisfactory.
FUSE
Blue
SOCKET
(face view)
E
Green
Yellow
( )
Isolate appliance and
carry out:
B: Insulation check.
Rectify any fault
including replacing
fuses as necessary.
N
L
19
A. EARTH CONTINUITY CHECK
Appliance must be electrically disconnected - meter set on Ω (Ohms) x 1 scale and
adjust zero if necessary.
— Test leads from any appliance earth point to earth pin on plug. Resistance should be
less than 0.1 Ω (Ohm), check all earth wires for continuity and all contacts are clean
and tight.
B. INSULATION CHECK
Appliance electrically disconnected, all switches ON.
a) meter set on Ω (Ohms) x 1 scale.
Test leads from L to N in appliance terminal block. If meter reads «0» then there is a
short circuit.
b) meter set on Ω (Ohm) x 100 scale.
Repeat test with leads from L to E. If meter reads less than ∞ (infinity) there is a fault.
NOTE - Should it be found that the fuse has failed but no fault is indicated - a detailed continuity
check (i.e. by disconnecting and checking each component) is required to trace the faulty
component.
It is possible that a fault could occur as a result of local burning/arcing but no fault could be found
under test. However a detailed visual inspection should reveal evidence of burning around the
fault.
20
Ignition System / Gas Ignition
Ignitor does not spark
NO
Check plug top fuse and
replace if necessary
Check polarity and earth
continuity of supply point
Check earth continuity
of appliance
Check continuity from 'N' on the
mains connector block and "N" on
the ignitor unit
YES
Check gas supply at
burner
Light burner manually
Check by pass simmer
adjusted
Check position of the
electrode
Check continuity from the tip of
each electrode to the terminals 1
to 4 on the ignitor unit
Check fitting of
burners
Check continuity from 'L' on the
mains connector block and the
taps ignition switches
Check continuity from ignition
switches connector to ignitor unit "L"
Check for breaks in the insulation
of the HT leads
Change the taps ignition
switches
Change the ignitor unit
21
Commissioning
When the hob has been fully installed it will be necessary to check
the minimum flame setting. To do this, follow the procedure below.
- Turn the gas tap to the MAX position and ignite.
- Set the gas tap to the MIN flame position then turn the control
knob from MIN to MAX several times. If the flame is unstable or
is extinguished follow the procedure below.
Procedure:
Re-ignite the burner and set to MIN.
Pressure Testing
Remove the control knob.
To adjust, use a thin bladed
screwdriver and turn the
adjustment screw (see diagram)
until the flame is steady and does
not extinguish, when the knob is
turned from MIN to MAX. Repeat
this procedure for all burners.
minimum adjustment screw
22
Remove left hand pan support and front left burner cap
and crown.
Fit manometer tube over the injector.
Turn on the burner gas supply and ignite another burner.
The pressure reading should be nominally 20mbar and
must be between 17 mbar and 25 mbar.
Turn off the burner supplies.
Conversion from Natural Gas to LPG
IMPORTANT
The replacement/conversion from natural gas to LPG should only be undertaken
by a competent person.
It is important to note that this model is designed for use with natural gas but can be
converted for use with butane or propane gas providing the correct injectors are fitted. The
gas rate is adjusted to suit.
Method
• Ensure that the gas taps are in the 'OFF' position
• Isolate the hob from the electrical supply
• Remove all pan supports, burner caps, rings, crowns and control knobs.
• With the aid of a 7mm box spanner the burner injectors can then be unscrewed and
replaced by the appropriate LPG injectors.
To adjust the gas rate
With the aid of a thin bladed screwdriver completely tighten down the by pass adjustment
screw. Upon completion stick the replacement rating plate on the under side of the hob.
23
23
AEG Haugeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
From the Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning
and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers,
washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a
value of approx. USD 14 billion in more than 150 countries around the world.
35687-8202 03/05
Grafiche MDM - Forlì
Loading...
