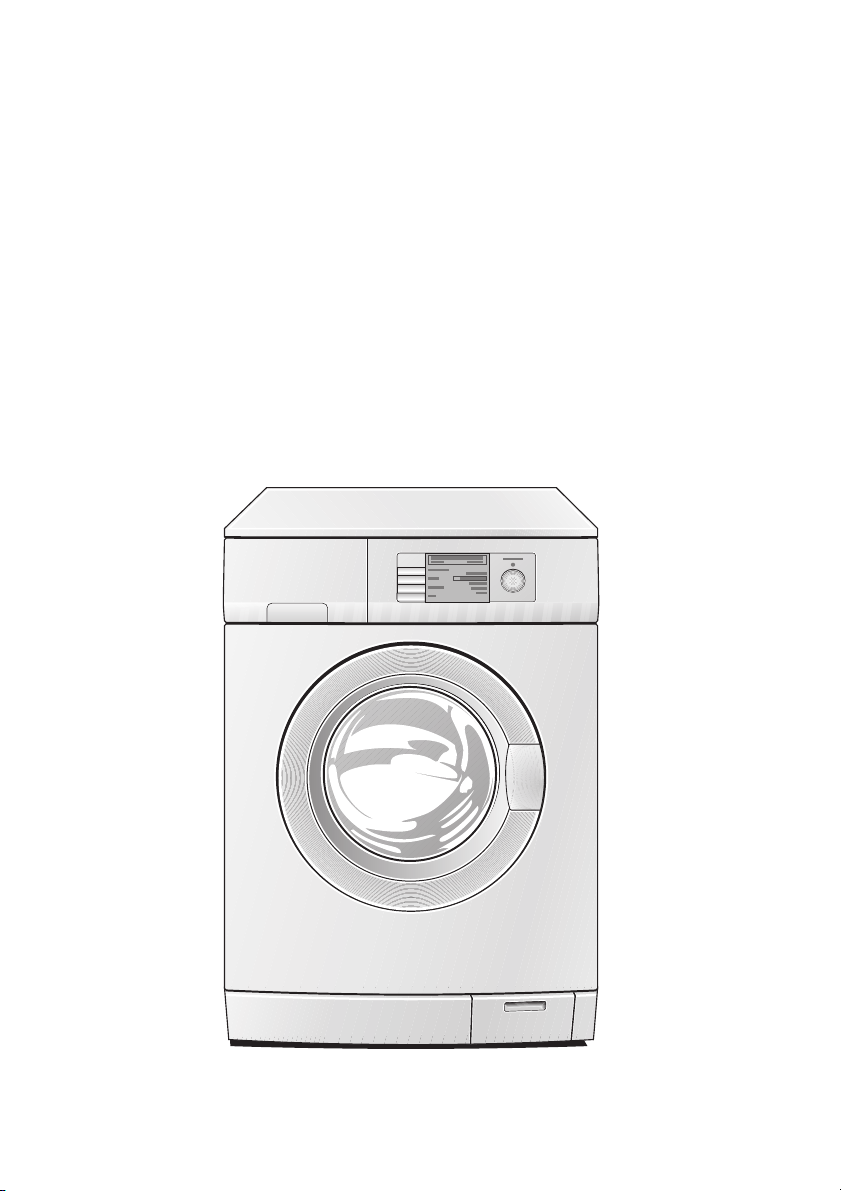

AEG LL1610 User Manual

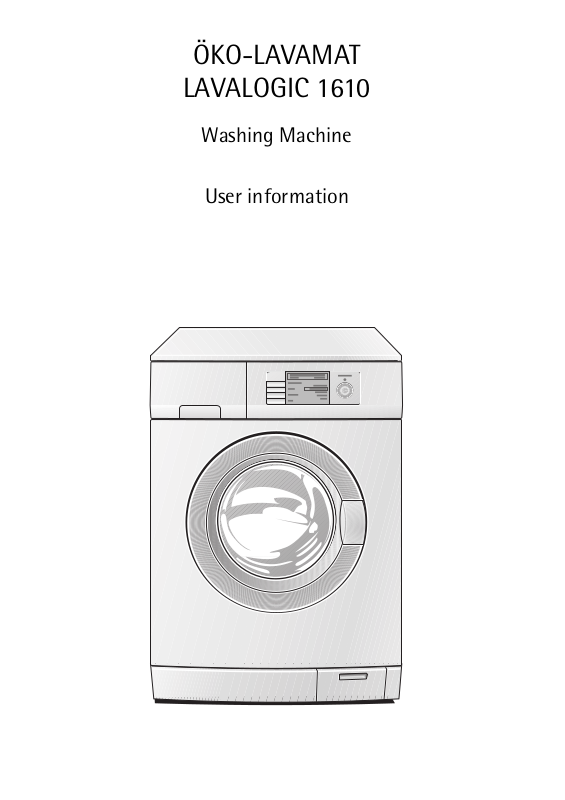

ÖKO-LAVAMAT LAVALOGIC 1610

Washing Machine

User information

Dear Customer,

Please read this user information carefully and keep it to refer to later. Please pass the user information on to any future owner of the appliance.

The following symbols are used in the text:

1 Safety instructions

Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance.

3 Useful tips and hints

2 Environmental information

2

Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	6
Switching on the appliance for the first time – setting the language	7
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	8
Control panel with display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	8
Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	8
Main control features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	9
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	14
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	14
Carrying out a wash programme prior to first use. . . . . . . . . . . . . . . . . . . . .	14
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	14
Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Setting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Changing the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	16
TIME SAVING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	16
DELAY START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	17
SENSITIVE/STAIN/PRE WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	17
Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	18
CURRENT LOAD/DETERGENT display . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	18
Adding detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	19
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	20
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	20
Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . .	20
Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . . .	21
Setting extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
Saving a programme setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	22
Clearing a stored programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .	23
RINSE+, GENTLE SPIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	24
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	24
TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	24
VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25

3

Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26

What to do if.... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Installation and connection instructions. . . . . . . . . . . . . . . . . 33

Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 33

Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36

Connecting the appliance to the water supply . . . . . . . . . . . . . . . . . . . . . 38 Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4

Operating Instructions

1 Safety

Prior to using the appliance for the first time

•Follow the “Installation and connection instructions”.

•If the appliance is delivered in the winter months when there are minus temperatures: store the washing machine at room temperature for 24 hours before using for the first time.

Correct use

•The washing machine is only designed for the washing of normal domestic laundry at home.

•Additions or modifications to the washing machine are not permitted.

•Only use detergents/conditioners that are suitable for use in domestic washing machines.

•The washing must not contain any flammable solvent. The risk of explosion exists.

•Do not use the washing machine for dry cleaning.

•Dyes/colour removers may only be used in the washing machine, if the manufacturer of these products expressly permits this. We cannot accept liability for any damage arising.

Child safety

•Keep packaging away from children. There is a risk of suffocation.

•Children often do not recognise the hazards associated with electrical appliances. Don’t allow children to use the washing machine unsupervised.

•Make sure that children and pets don’t climb into the drum of the washing machine. The risk of death exists.

General safety

•Repairs to the washing machine may only be carried out by qualified/ authorised service engineers.

•Never use the appliance when the electrical cable is damaged or the control panel, worktop or plinth area are damaged to such an extent that the inside of the appliance is openly accessible.

5

•Switch off the washing machine prior to cleaning it and carrying out maintenance. In addition, remove the power plug from the power point or – if the appliance has been hard-wired – switch off the cutout in the fuse box or completely remove the fuse.

•If operation is stopped, disconnect the appliance from the mains supply and turn off the tap.

•Never remove the power plug from the power point by pulling on the cable. Always pull the plug.

•Multiway-plugs, connectors and extension cables must not be used.

Resulting overheating may constitute a fire hazard.

•Never wash the washing machine down with a water jet. Danger of electric shock.

•When using wash programmes with high temperatures the glass in the door will become hot. Do not touch it!

•Before emergency emptying of the appliance, before cleaning the drain pump or opening the door in an emergency, let the water cool down.

•Small animals can nibble on electrical cables and water hoses. This can constitute a risk of electrocution and water damage. Keep small animals away from the washing machine.

Disposal

2 Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities.

2 Old appliance

Please dispose of your old appliance in line with the guidelines for disposal in your area.

1 Warning: When your appliance has finished its working life, remove the plug from the mains socket. Cut off the cable and plug and dispose of them.

Destroy the door lock. This prevents children from trapping themselves inside and endangering their lives.

6

Switching on the appliance for the first time

– setting the language

When switching on the appliance for the first time you should be sure to set the language in which you want the indicators in the display to appear.

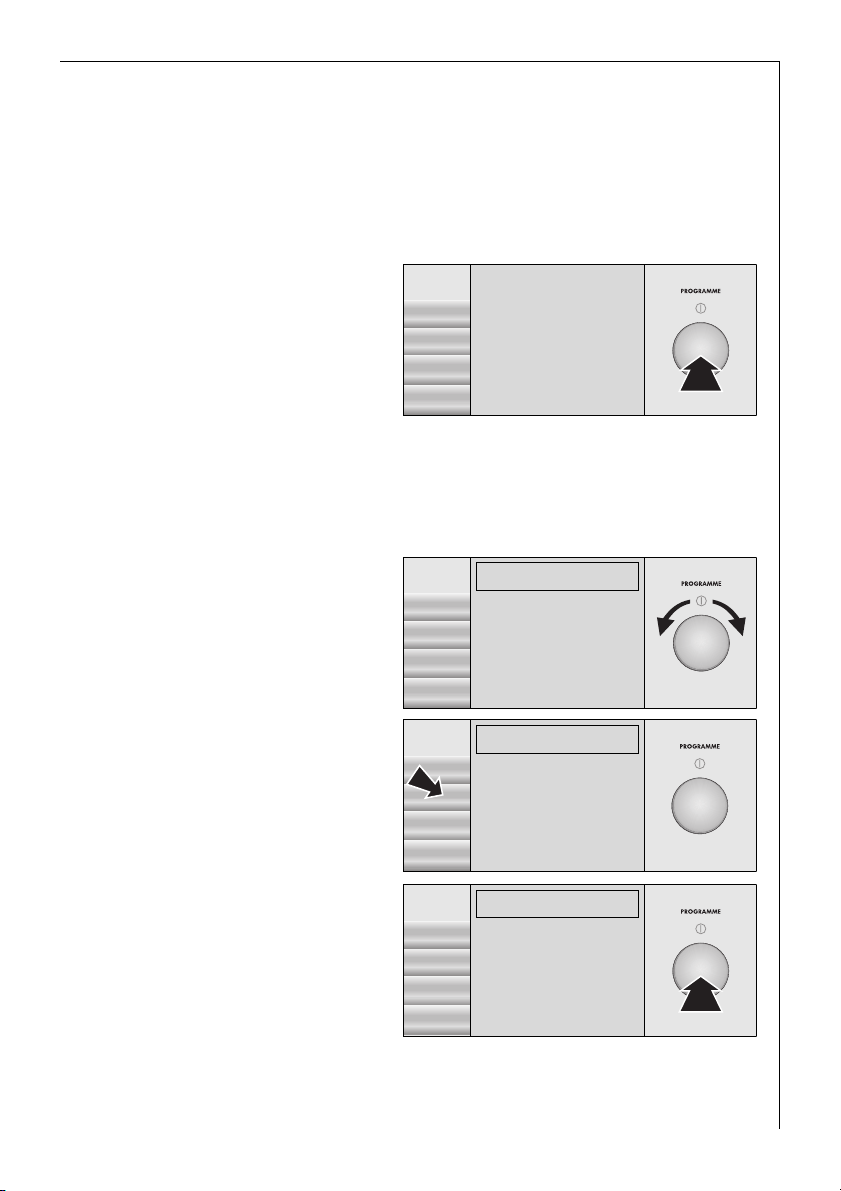

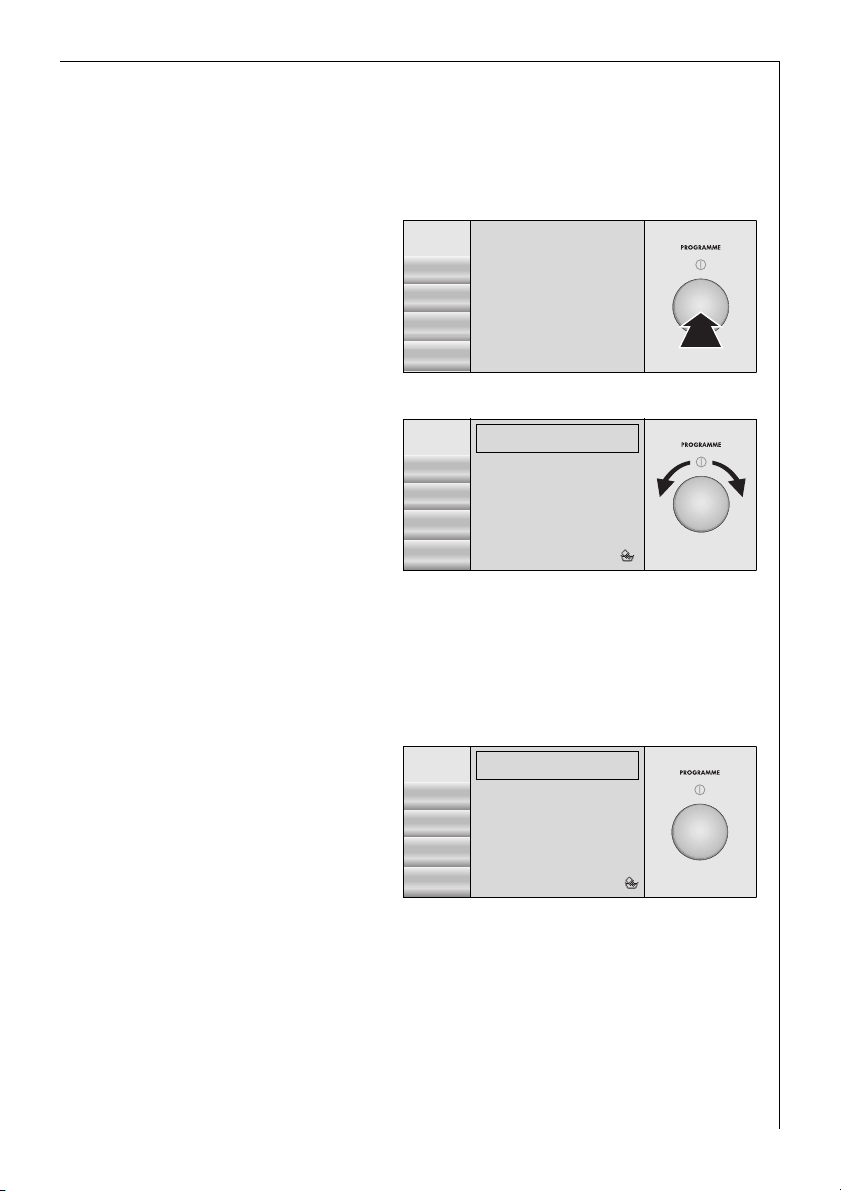

1. Press the control knob. The appliance is now

switched on. The languages that can be chosen will appear in the display. In the factory the language is preset to German.

Important: If the display is not showing any languages, the appliance has been switched on before. If this happens, please see the section “Setting extra options: Language”, if you want to change the language setting.

2.Use the control knob to highlight the desired language.

3.Press the SELECT key.

From now on all indicators in the display will appear in this language.

4.Press the control knob to switch off the appliance.

		EXTRAS
		SPRACHE
		Í
		§
	ANWÄHLEN	ENGLISH§
	ZURÜCK	DEUTSCH)
		ITALIANO§
		FRANÇAIS§
		EXTRAS
		LANGUAGE
		Í
	SELECT	§§
		ENGLISH!)
	BACK	DEUTSCH§§
		ITALIANO§§
		FRANÇAIS§§
		EXTRAS
		LANGUAGE
		Í
	SELECT	§§
		ENGLISH!)

	BACK	DEUTSCH§§
		ITALIANO§§
		FRANÇAIS§§

7

Description of the appliance

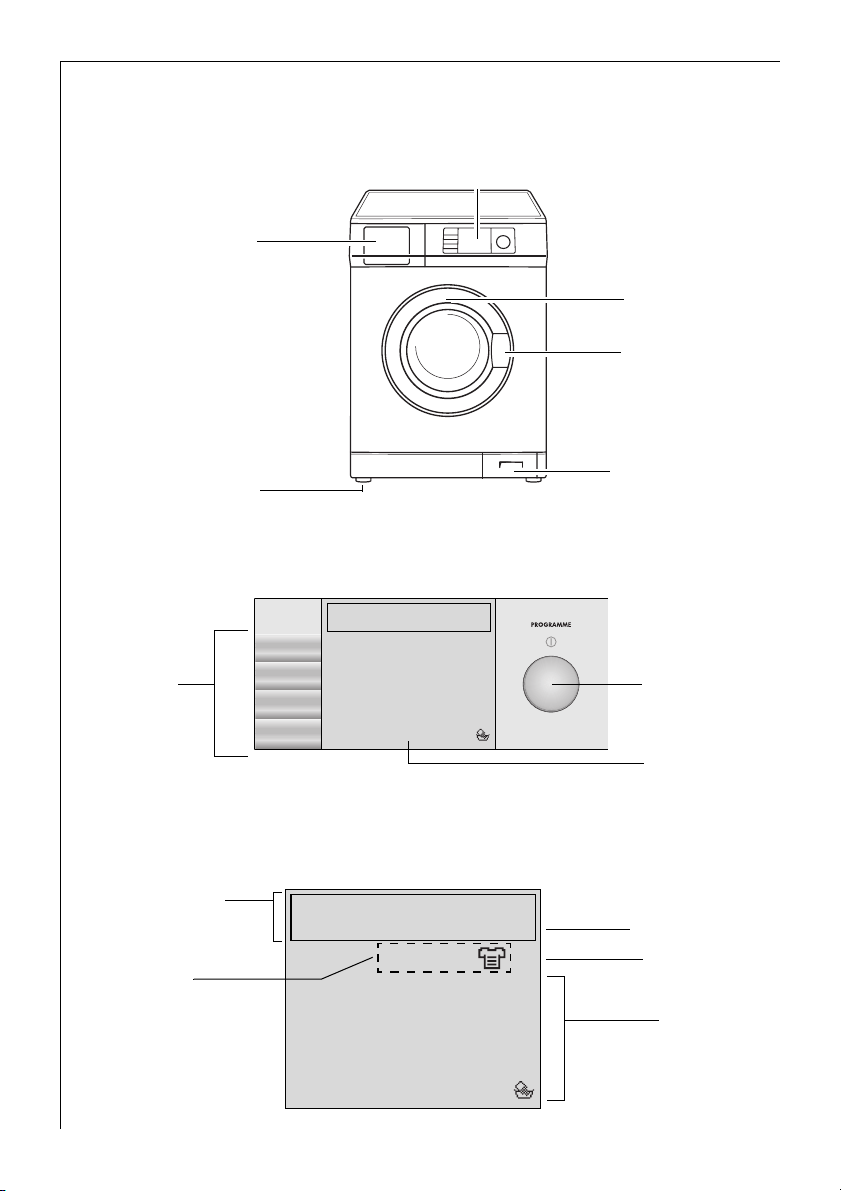

	Control panel with display
Drawer for
detergent and
conditioner

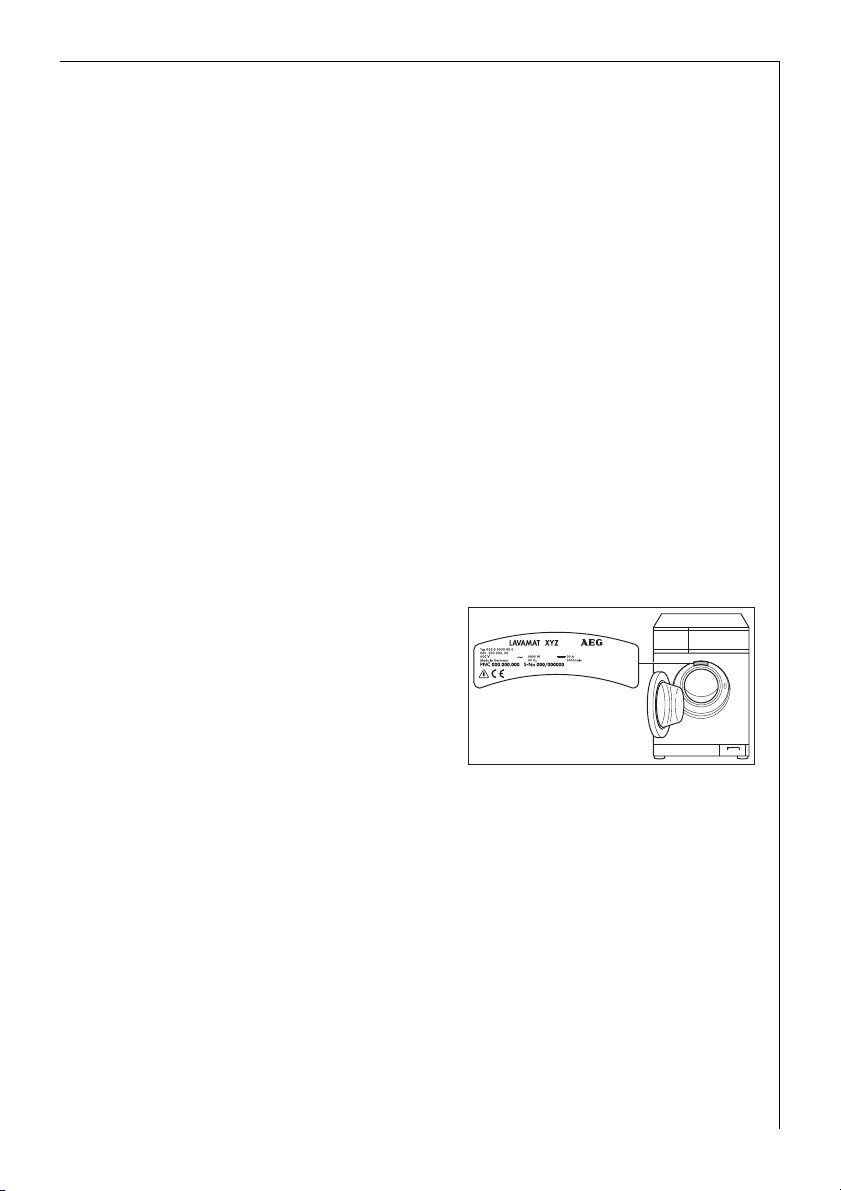

	Rating plate
	(behind door)
	Door
Screw feet
(height
adjustable);
rear left:	Drain pump
automatically	cover
adjusting foot

Control panel with display

	LINEN/EASY-C. 60°C
	1600 RPM	10:17-12:16
	START	î
Buttons	60°	LINEN/EASY-C.)	Control knob
		ENERGY SAVING
	1600	COTTONS
		DELICATES
	OPTIONS	WOOLLENS

Display

Indicators in the display

Information panel

Current time – end

shows programme,

time of selected

LINEN/EASY-C. 60°C

temperature and

1600 RPM

10:17-12:16

programme

spin speed

START

î

Navigation

Symbol row

60°

LINEN/EASY-C.)

display

shows options

ENERGY SAVING

selected and extras

Selection

1600

COTTONS

Programme,

DELICATES

options,

extras

OPTIONS

WOOLLENS

8

Main control features

Control knob

Switching the appliance on and off

Press the control knob to switch the appliance on and off.

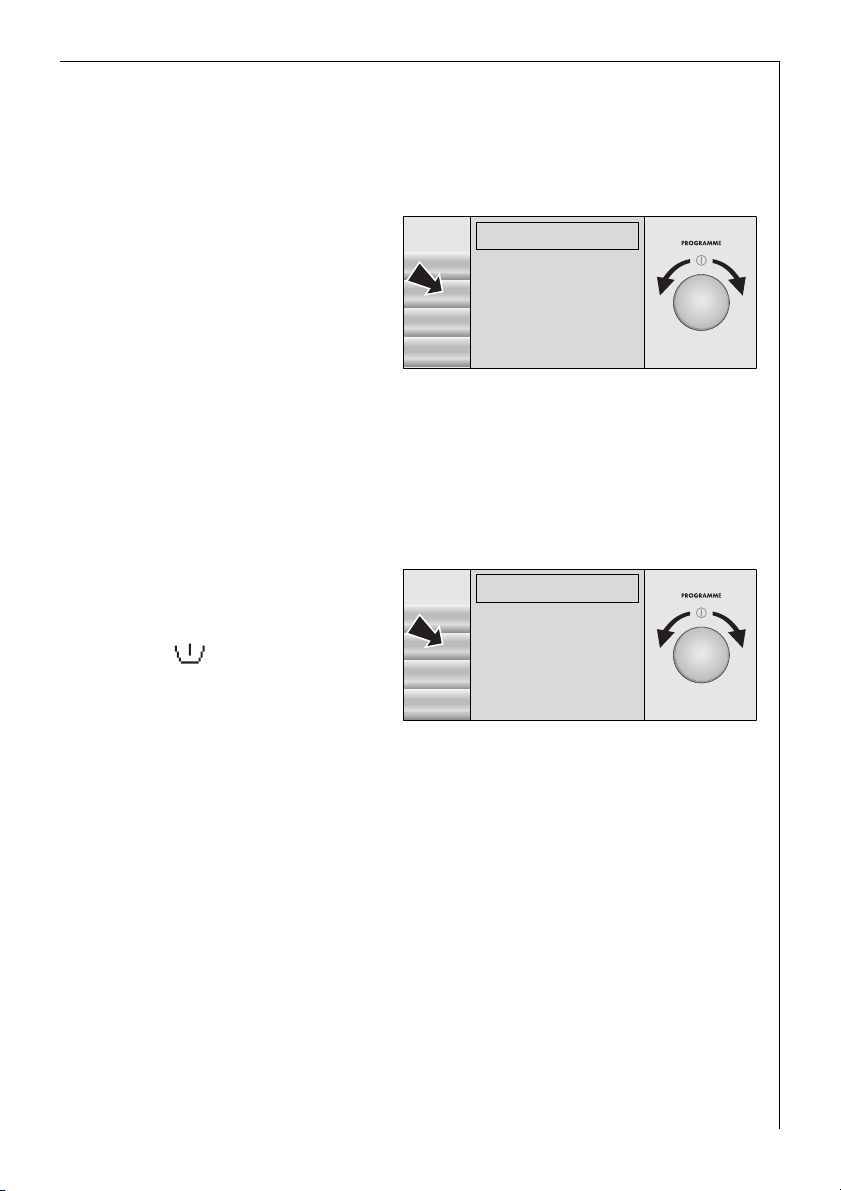

Highlighting
You can highlight the entries
on the right of the display by				WOOLLENS 40°C
				1200 RPM	10:17-10:54
turning the control knob.				START	î

	40°	LINEN/EASY-C.
		ENERGY SAVING
	1200	COTTONS
		DELICATES
	OPTIONS	WOOLLENS	)

Cancelling settings

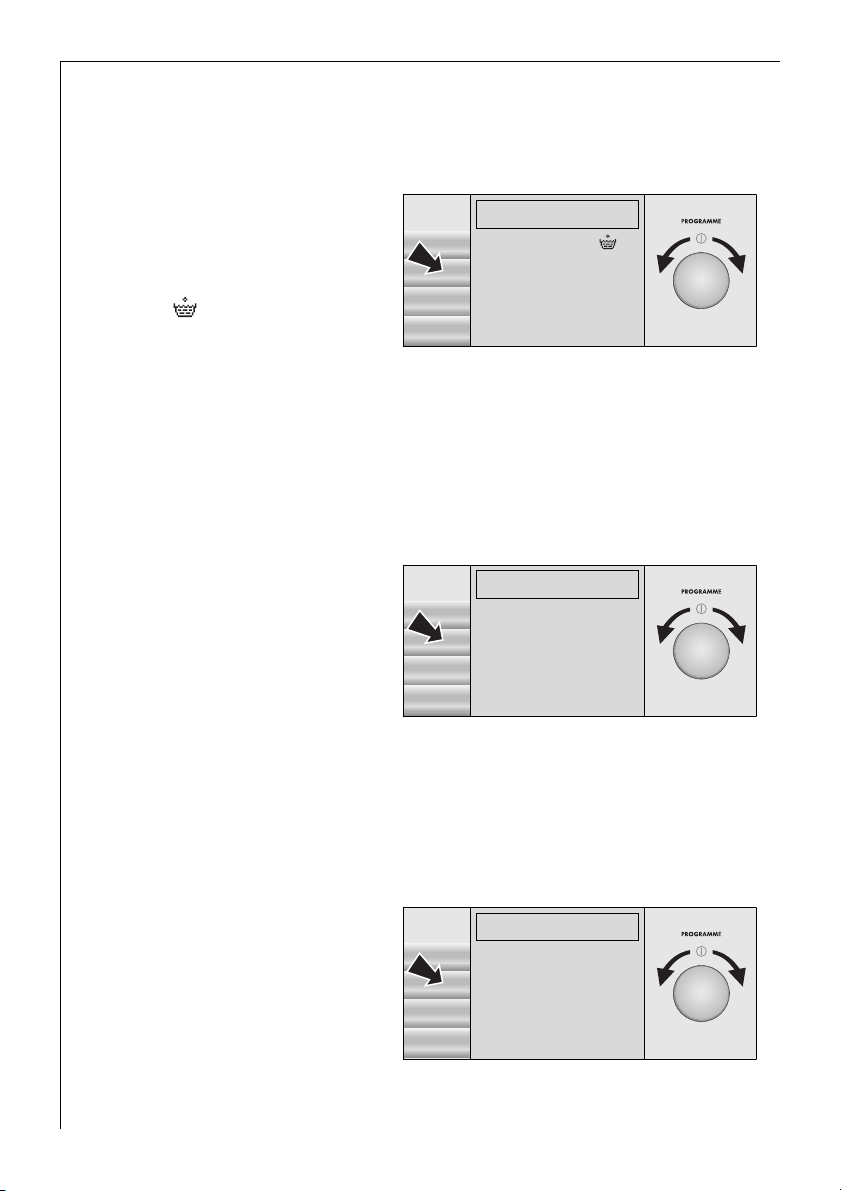

If you would like to cancel settings that have been made by mistake, switch the appliance off and on again using the control knob. You are now able to re-set the programme.

Keys

Using the keys you can:

–activate an entry on the left-hand side of the display, e.g. START

–change the temperature and the spin speed

–select OPTIONS and EXTRAS.

LINEN/EASY-C. 60°C

		1400 RPM	10:17-12:16
		START	î
	60°		LINEN/EASY-C.)
			ENERGY SAVING
	1400		COTTONS
			DELICATES
		OPTIONS	WOOLLENS

3 You can set one or more options for each programme.

The basic rule: First set the programme, then set the option.

3 The programmes and functions are divided into different levels and pages. In the navigation display you can see the level and the page you are currently on (e.g. ì: level 3, page 1 of 2).

9

Programme overview

Options

Spin speed

loadmax. washing)(dry

QUICK

QUICKVERY

STARTDELAY

SENSITIVE

STAIN

WASHPRE

1600

1400

1200

1000/800/600/400

HOLDRINSE

TIME SAVING

Programme

1)

LINEN/EASY-CARES

6kg

•

•

•

•

•2)

•

•

•

•

•

•

60, 50, 40, 30, COLD

ENERGY SAVING3)

6kg

•

•

•

•

•

•

•

•

•

COTTONS 95

6kg

•

•

•

•

•

•

•

•

•

•

•

DELICATES 40, 30, COLD

3kg

•

•

•2)

•

•

•

•

WOOL

(Handwash)

2kg

•

•

•

•

40, 30, COLD

SILK

(Handwash) 30

1kg

•

•

•

•

LINGERIE 40

1kg

•

•

•

•

40 -60 MIX

6kg

•

•

•

•

•

•

•

•

•

EASY IRON

1kg

•

•

•

•2)

•

•

•

•

60, 50, 40, 30, COLD

REFRESH 30

3kg

•

•

•

•

FASHION 40

3kg

•

•

•

•

•

•

•

1)A 10 litre bucket contains approximately 2.5 kg of dry washing (cotton).

2)STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are only effective at higher temperatures.

3)Programme settings for tests in accordance with or support of EN 60 456 and IEC 60 456 are described in the section “Consumption values”.

10

	Use/Features	Care-
		symbols1)

General programme for coloured and easy-care items made of cotton/linen as	IKN
well as for easy-care mixed fibres and synthetics. The wash programme is adjust-
ed according to the different fabric types and load sizes. If loading only with	JM
easy-care washing, do not load more than 3 kg.
Energy-saving and water-saving programme which washes at 60°C for lightly to	MO
normally soiled whites/coloureds made of cotton/linen.
Programme for normally to heavily soiled whites made of cotton/linen.	O
Gentle programme for delicate fabrics such as bonded fabrics, microfibres, syn-	IK
thetics, net curtains (max. load for net curtains 20 to 25 m2). With RINSE HOLD
also suitable for fabrics with climate membrane, e.g. outdoor clothing.
Particularly delicate programme for machine washable and hand washable wool	QLH
or wool mixtures.
Specially gentle programme for machine and hand-washable silk. Wash very del-	QLH
icate items individually.
Gentle programme for fine, sensitive fabrics.	KL
IMPORTANT: Place lingerie containing wires in a washing net or bag.
Programme for coloureds, which are labelled for different wash temperatures.	JM
Items, which according to the care symbols are normally to be washed separately
at 40°C or at 60°C, can be washed together in this programme. This makes better
use of the drum capacity and thus saves energy. The washing results of a normal
60° programme are achieved.
Special programme for easy-care fabrics, which afterwards are to be ironed only	KN
lightly or not at all.
Special programme, approx. 20 minutes long, for quickly washing through slight-	JMO
ly dirty or new clothes.	IKN
Gentle special programme for fabrics such as viscose, modal, cupro, lyocell, with	KL
a more gentle machine action than in the Delicates programme and a more in-
tensive cleaning action than the Handwash programme.

1) The figures in the care symbols indicate the maximum temperatures.

11

Options

Spin speed

loadmax. washing)(dry

QUICK

QUICKVERY

STARTDELAY

SENSITIVE

STAIN

WASHPRE

1600

1400

1200

1000/800/600/400

HOLDRINSE

TIME SAVING

Programme

1)

SHORT SPIN

3kg

•

•

•

SPIN

6kg

•

•

•

•

•

STARCH

6kg

•

•

•

•

•

•

DRAIN

•

1) A 10 litre bucket contains approximately 2.5 kg of dry washing (cotton).

12

	Use/Features	Care-
		symbols1)
	Drain and short spin after a rinse hold, or separate short spin of handwashed del-	IKN
	icates, woollens, silk.	QLH
	Drain and spin, e.g. after a rinse hold, or separate spin for hand-washed cottons/	JMO
	linens and easy-cares.
	Separate starching, conditioning, stiffening, treating of damp washing.	JMO
	Draining of the water after a rinse hold.

1) The figures in the care symbols indicate the maximum temperatures.

13

Before the first wash

Setting the time

So that the current time and the end of the programme are correctly displayed, please check the display and set the current time, if necessary. (See “Setting extra options: Timer”.)

Carrying out a wash programme prior to first use

Before doing your first wash, run a washing cycle without any washing in the machine (programme LINEN/EASY-C. 60°, option TIME SAVING/ VERY QUICK, use approx. 1/4 measuring cup of washing powder).

This will remove any residues from the drum and water container which have been left as a result of the production process.

Preparing and sorting washing

Preparing washing

•Empty the pockets. Remove foreign bodies (e.g. coins, paper clips, nails, etc.).

•Do up zips, button up covers to prevent damage to washing.

•Remove the runners from net curtains or cover them with a net or a bag.

•Wash delicate and small items in a net/pillowcase, e. g. net curtains, tights, small socks, handkerchiefs, bras.

Important: Bras and other items containing wires should only be washed in a net bag. The wires can work loose and damage the appliance.

Sorting washing

•By colour: Wash white and coloured washing separately. Washing can run.

•By temperature, type of washing and care symbol.

Important: Do not wash fabrics with the Gcare symbol (= do not wash!) in the washing machine.

14
