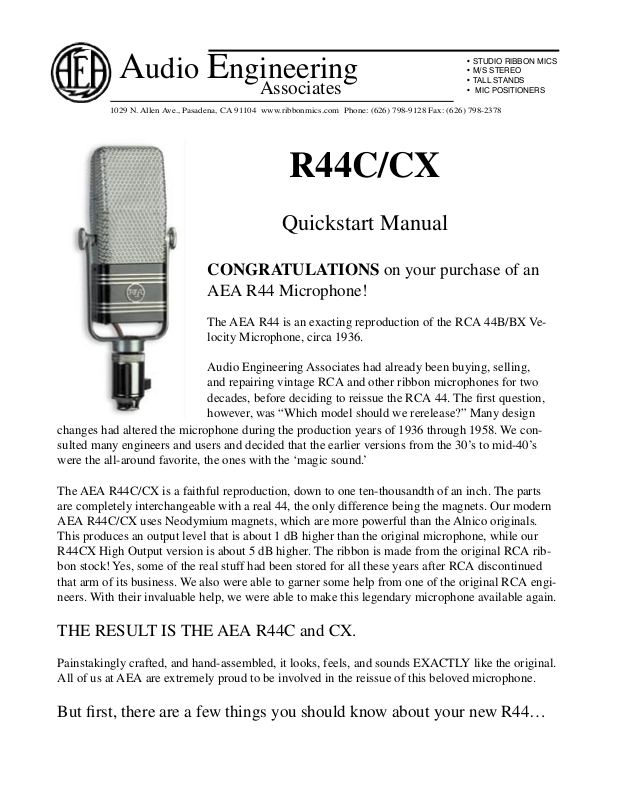

Quickstart Manual

CONGRATULATIONS on your purchase of an
AEA R44 Microphone!

The AEA R44 is an exacting reproduction of the RCA 44B/BX Ve­locity Microphone, circa 1936.

Audio Engineering Associates had already been buying, selling,
and repairing vintage RCA and other ribbon microphones for two
decades, before deciding to reissue the RCA 44. The fi rst question,
however, was “Which model should we rerelease?” Many design

changes had altered the microphone during the production years of 1936 through 1958. We con­sulted many engineers and users and decided that the earlier versions from the 30’s to mid-40’s
were the all-around favorite, the ones with the ‘magic sound.’

The AEA R44C/CX is a faithful reproduction, down to one ten-thousandth of an inch. The parts
are completely interchangeable with a real 44, the only difference being the magnets. Our modern
AEA R44C/CX uses Neodymium magnets, which are more powerful than the Alnico originals.
This produces an output level that is about 1 dB higher than the original microphone, while our
R44CX High Output version is about 5 dB higher. The ribbon is made from the original RCA rib­bon stock! Yes, some of the real stuff had been stored for all these years after RCA discontinued
that arm of its business. We also were able to garner some help from one of the original RCA engi­neers. With their invaluable help, we were able to make this legendary microphone available again.

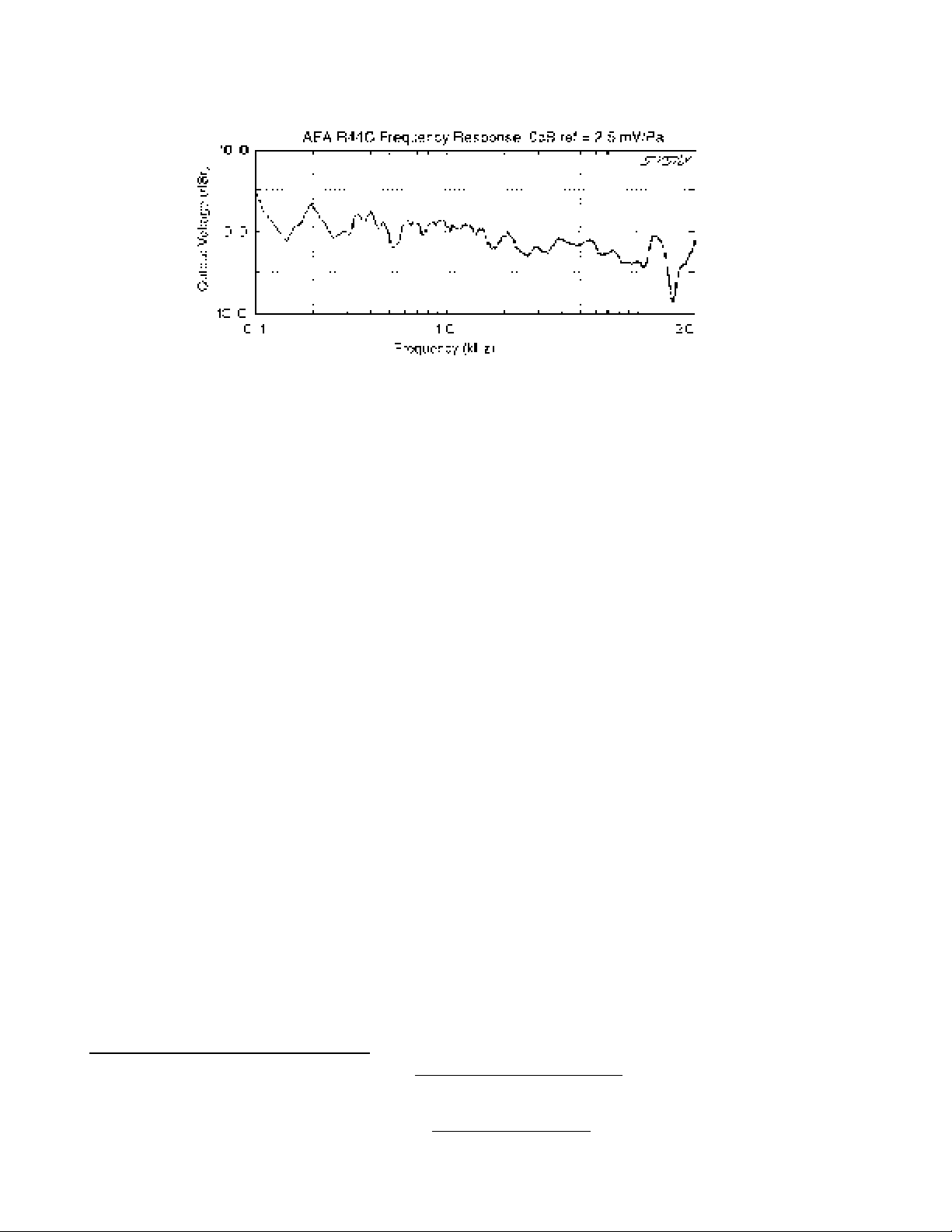

THE RESULT IS THE AEA R44C and CX.

Painstakingly crafted, and hand-assembled, it looks, feels, and sounds EXACTLY like the original.
All of us at AEA are extremely proud to be involved in the reissue of this beloved microphone.

But fi rst, there are a few things you should know about your new R44…

It’s big and heavy!

Yes. About 13 ½ inches (34.3 cm), and about 8 ½ pounds (3.8 Kg).
Remember that we are working with 1936 technology. In order to create a magnetic field powerful
enough to yield a useable output, the magnets and the framework to support them had to be big and
heavy.

It’s bidirectional!

True. With the magnets and their support and focusing structures wrapping around the sides, top
and bottom, the ribbon, which is about .2 inches (.5 cm) wide and about 2 inches (5.08 cm) long,
is exposed front and rear. The microphone is therefore, is inherently bidirectional, with the only
difference between front and rear response being polarity (phase). The strength of a bidirectional
microphone includes the excellent null rejection that naturally occurs at the plane of the ribbon
providing good isolation of signals approaching 90 degrees off-axis.

So, how does it work?

The 44 is a ribbon microphone. An extremely thin aluminum ribbon is placed within a powerful
magnetic field. Any sound energy, which moves the ribbon, causes it to travel within the magnetic
field. This generates a tiny electrical current within the ribbon, which is an exact analog of the
sound. It is called a velocity microphone because its output is a function of particle velocity. Next,
there is a transformer, which converts the extremely low impedance of the ribbon to a more useable
level. And that’s it, no power supply, no pad, and no pattern selector.

The most elegant things in life are always the simplest, don’t you think? But it is precisely this
simplicity that leads to the character of sound that has been cherished for so many years. No damp­ing, no uncomfortable resonances in the audible range, and no active electronics preserve more
sonic accuracy than most or all microphones because no external features are introduced to the
signal. This accounts for the “truthfulness” of the sound that has made the 44 a classic.

It’s delicate!

The ribbon has to be able to respond to the tiniest amount of acoustic energy in the air. To do this,
it must be ‘air-like’, or low mass. Low mass means thin, and the ribbon in the 44 is 1.8 microns
(1.8 uM) thick, or about one-fiftieth the thickness of a human hair! The ribbon is as thin and deli­cate as it is because it must be able to react to the air mass around it. It cannot be protected and iso­lated, but must be exposed to all the extremes that a noisy and sometimes careless world can inflict
on it. This is the strength, and the weakness, of all ribbon microphones. The low mass of the ribbon
results in an excellent transient response because it is able to “pretend that it is air.”

Because the ribbon is supposed to register every tiny movement of air, this makes it extremely sen­sitive to moving air. There is a big difference between air that is moving in a pressure wave, which
is energy moving through air in the same way that waves move through the ocean, and wind, which
is a current, or mass of air, moving from one place to another. Wind is a tremendous stressor to a
ribbon and you should protect your microphone from it. Wind can stretch the ribbon which effec­tively detunes it and will change the character of your microphone.
