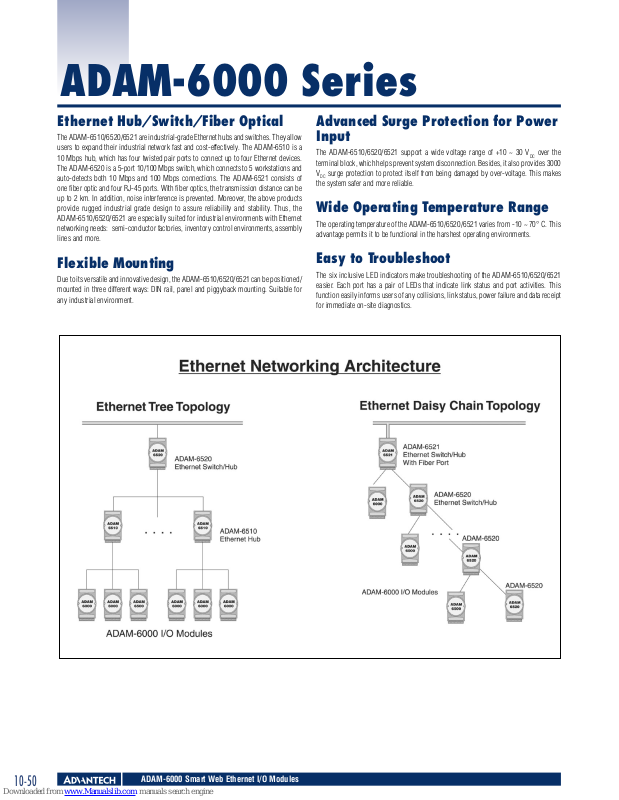

ADAM-6000 Series
Ethernet Hub/Switch/Fiber Optical
The ADAM-6510/6520/6521 are industrial-grade Ethernet hubs and switches. They allow
users to expand their industrial network fast and cost-effectively. The ADAM-6510 is a
10 Mbps hub, which has four twisted pair ports to connect up to four Ethernet devices.
The ADAM-6520 is a 5-port 10/100 Mbps switch, which connects to 5 workstations and
auto-detects both 10 Mbps and 100 Mbps connections. The ADAM-6521 consists of
one ber optic and four RJ-45 ports. With ber optics, the transmission distance can be
up to 2 km. In addition, noise interference is prevented. Moreover, the above products
provide rugged industrial grade design to assure reliability and stability. Thus, the
ADAM-6510/6520/6521 are especially suited for industrial environments with Ethernet
networking needs: semi-conductor factories, inventory control environments, assembly
lines and more.
Flexible Mounting
Due to its versatile and innovative design, the ADAM-6510/6520/6521 can be positioned/
mounted in three different ways: DIN rail, panel and piggyback mounting. Suitable for
any industrial environment.
Advanced Surge Protection for Power
Input
The ADAM-6510/6520/6521 support a wide voltage range of +10 ~ 30 VDC over the
terminal block, which helps prevent system disconnection. Besides, it also provides 3000
VDC surge protection to protect itself from being damaged by over-voltage. This makes
the system safer and more reliable.
Wide Operating Temperature Range
The operating temperature of the ADAM-6510/6520/6521 varies from -10 ~ 70° C. This
advantage permits it to be functional in the harshest operating environments.
Easy to Troubleshoot
The six inclusive LED indicators make troubleshooting of the ADAM-6510/6520/6521
easier. Each port has a pair of LEDs that indicate link status and port activities. This
function easily informs users of any collisions, link status, power failure and data receipt
for immediate on-site diagnostics.
10-50
ADAM-6000 Smart Web Ethernet I/O Modules
Industrial Ethernet Networking
10/100Base-TX Ethernet to
100Base-FX Multi-Mode (ADAM-6541)
and WDM Single Strand (ADAM-6542)
Fiber Optics Converter
The ADAM-6541 and 6542 are industrial grade converters which are designed to
convert Ethernet network (10/100Base-TX) to a ber optic network (100Base-FX). They
transparently convert Ethernet signals into optic signals. The advantages of ber optics
are wide bandwidth, EMI protection and less interference at long-distance transmissions.
Therefore, the ADAM-6541 and 6542 are ideal solutions for “ber-to-building” applications
at central ofces or local sites.
High-speed Transmission
The ADAM-6541 and 6542 support MDI/MDI-X of auto detection, so crossover wires
are not required. They also include a switch controller that can sense the transmission
speed (10/100 Mbps) automatically. Both the Ethernet port and the ber port have
memory buffers that support a store-and-forward mechanism, assuring that data can
be transmitted properly.
WDM Single Strand Fiber
The ADAM-6542 uses WDM technology that increases the information carrying capacity of
ber via multiplex transmission and reception of signals at different wavelengths on a single
strand cable. The WDM technology is implemented in couples. One site is installed with
ADAM-6542/W15 where the transmission channel is 1550nm and the reception channel
is 1310nm. The other site is installed with an ADAM6542/W13 where the transmission
channel is 1310nm and the reception channel is 1550nm. Both transmission and reception
channels of ADAM-6542/W15 and ADAM-6542/W13 are multiplexed to a single strand
cable. So you can cut your cabling costs in half when you use ADAM-6542/W15 and
ADAM-6542/W13 instead of a dual ber converter.
Industrial Grade Design
The ADAM-6541/6542 are extremely compact and they can be mounted via DIN rail, on
a panel, or they can be piggy backed on top of each other.
The ADAM-6541 and ADAM-6542 provide three LED indicators: power, LNK/ACT, and
10/100 Mbps, which eases troubleshooting.
The ADAM-6541/6542 can work normally at -10 to 70° C and accept wide unregulated
voltage ranges from +10 ~ 30 VDC. Besides, the ADAM-6541/6542 also provide 3,000
VDC surge protection to protect them from being damaged by over-voltage. Suitable for
any harsh operating environment.
1
Applied Panel Computing
2
Industrial Computers &
Network Appliances
3
CompactPCI
4
HMI & Industrial Workstation
5
Industrial Communication
6
Industrial I/O
7
Embedded Computing
8
RISC Embedded Computing
9
eAutomation
10
eAutomation I/O (ADAM)
11
Digital Video Platform
Online Download
www.advantech.com/products
10-51
10-53
www.advantech.com/products
Online Download
10
eAutomation I/O (ADAM)
9
eAutomation
8
RISC Embedded Computing
7
Embedded Computing
6
Industrial I/O
5
Industrial Communication
4
3
CompactPCI
2
1
Applied Panel Computing
11
Digital Video Platform
HMI & Industrial Workstation
Industrial Computers &
Network Appliances
ADAM-6000 Series
How to Develop Application
Industrial Communication Protocol
-Modbus/TCP
Internet
Browser
HMI/SCADA Applications
-OPC Server for Modbus/TCP
Windows
Configuration
Utility
VB/VC++
Applications
-OCX Drivers
Web Services
-HTTP Server
Hardware
TCP, UDP, IP, ICMP, ARP
Software Support
Based on the Modbus/TCP standard, the ADAM-6000 rmware has a built-in Modbus/TCP
server. Advantech provides the necessary DLL drivers, OPC Server, and Windows Utility for
the ADAM-6000. You can congure this DA&C system via Windows Utility and integrate
it with a HMI software package via Modbus/TCP driver or Modbus/TCP OPC Server.
Furthermore, you can use the DLL driver to develop your own applications.

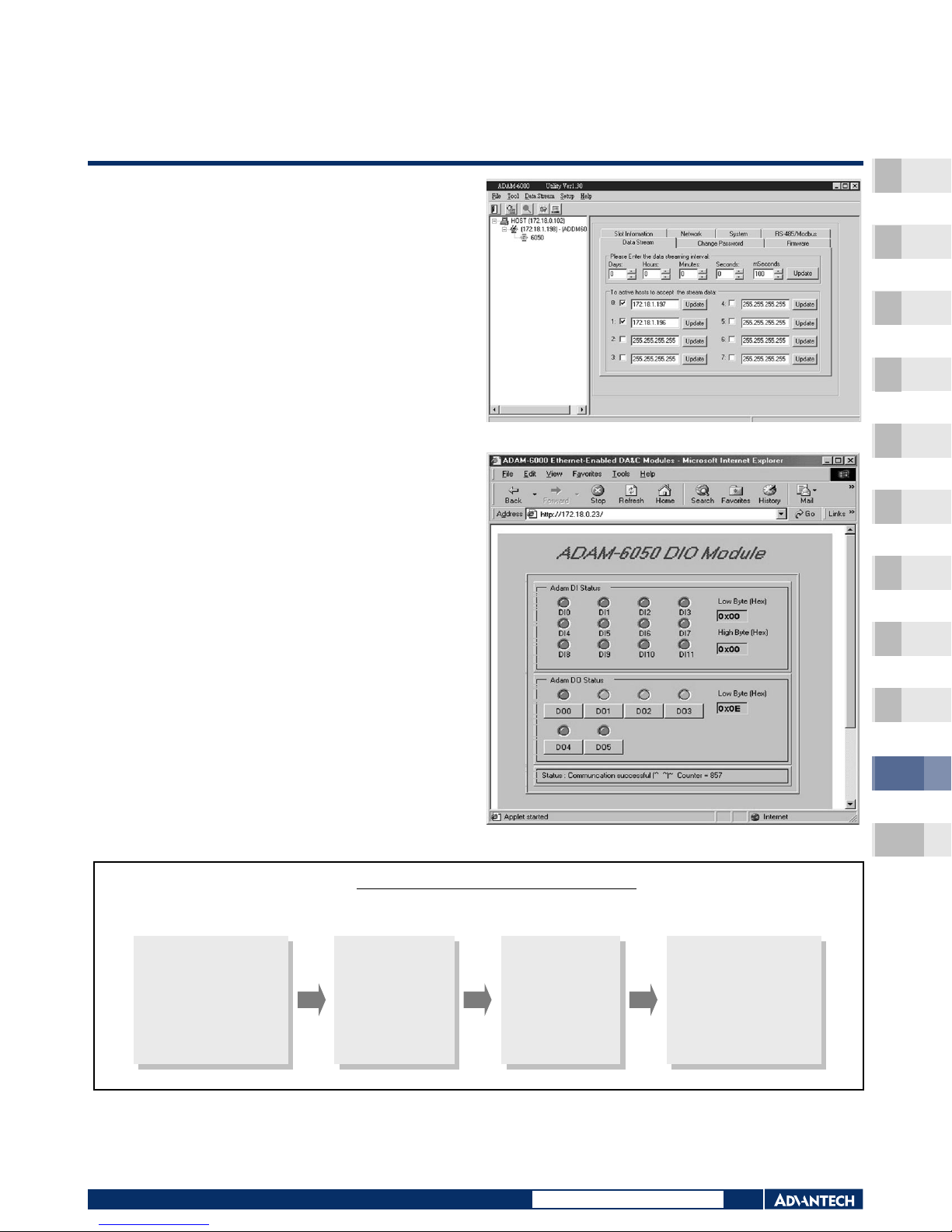

Windows Utility
For system conguration, Windows utility offers a friendly operating environment to
calibrate I/O modules, monitor current data, set IP addresses etc. As you execute this
program, it will automatically search each ADAM-6000 device on the network. There are
also some advanced functions, such as the scaling function, which helps users convert
various eld signals to engineering units, and a latch output function, which forces data
or status to create system simulations.
Browser-based on-line Monitoring
Each ADAM-6000 module features an embedded HTTP server for remote monitoring and
diagnostics. The ADAM-6000 also pre-builds a default html page in each module for online
support for monitoring analog input/output, digital input/output, alarm/event, counter, or
real-time values, all done remotely via the Intranet/Internet. Just enter the IP address of the
ADAM-6000 module in any standard browser, and you can get dynamic, real-time values
of ADAM-6000 I/O modules immediately, without any required programming.
10-52
ADAM-6000 Smart Web Ethernet I/O Modules
System Conguration & Application
Free Download J2EE
Development Kit via
Internet
Write JAVA
Applet Program
Pack as JAR File
Download to
ADAM-6000 Module
through Windows Utility
Development Tool
Modbus/TCP OPC Server
OPC is a common data exchange tool worldwide. Almost all hardware and software
venders support this standard. Modbus/TCP OPC servers are designed for connecting
Modbus devices via the Ethernet. It acquires data from the ADAM-5000/TCP, then links
with the OPC client from HMI. In this way, HMI software packages can be used and easily
integrated with ADAM Ethernet solutions.
ActiveX Controls
Advantech offers an easy-to-use integration tool, Modbus/TCP ActiveX Controls for
ADAM-6000 I/O data access. This can be used for users to develop applications with
VB, VC, and other Windows development kits. (Note: The UDP function isn't fully supported
in the existing version.)
DLL Driver
Advantech also offers another easy-to-use integration tool, the ADAM-5000/TCP DLL
driver, for users to develop their own applications with VB, VC, BCB, Delphi, and other
Windows development kits.
Customizeable Web Page
Since the ADAM-6000 modules have a built-in web server with a default web page, users
can monitor and control the I/O status everywhere, through any web browser that supports
Java applets. The ADAM-6000 modules data can also be downloaded to a user-dened
web page for custom applications. Advantech has provided sample JAVA applets to use
as a reference if you want to design your own operator interfaces. These interfaces can
be downloaded into ADAM-6000 modules via Windows Utility.
To create an applet web page for ADAM-6000 modules is quick and easy. The following
steps show a simple method to congure your own web page in short time.
1
Applied Panel Computing
2
Industrial Computers &
Network Appliances
3
CompactPCI
4
HMI & Industrial Workstation
5
Industrial Communication
6
Industrial I/O
7
Embedded Computing
8
RISC Embedded Computing
How to Congure Your Own Web Page
Step1 Step2 Step3 Step4
9
eAutomation
10
eAutomation I/O (ADAM)
11
Digital Video Platform
Online Download
www.advantech.com/products
10-53
10-55
www.advantech.com/products
Online Download
10
eAutomation I/O (ADAM)
9
eAutomation
8
RISC Embedded Computing
7
Embedded Computing
6
Industrial I/O
5
Industrial Communication
4
3
CompactPCI
2
1
Applied Panel Computing
11
Digital Video Platform
HMI & Industrial Workstation
Industrial Computers &
Network Appliances
ADAM-6000 Series
Specications
Interface*
Resolution
Analog
Model Name
Input
Sampling Rate
Input Type
Current Input
Direct Sensor Input
Burn-out Detection
Channel Independant
Conguration
Math. Functions
Output Channels
ADAM-6015 ADAM-6017 ADAM-6018 ADAM-6022 ADAM-6024 ADAM-6050 ADAM-6051 ADAM-6052 ADAM-6060
10/100 Mbps
Ethernet
16 bit 16 bit 16 bit
Input
channels
10 samples/
PT-50
PT-100
PT-200
PT-1000
Balco 500
NI 50
Pt, Balco and
Ni RTD
Max. Min.
10/100 Mbps
Ethernet
7 differential 8 differential 6 differential 6 diff. AI 6 diff. AI - - -
10 samples/
sec
±150 mV
±500 mV
0 ~ 5 V
±10 V
0 ~ 20 mA
4 ~ 20 mA
Yes - Yes - - - - - -
Yes Yes Yes Yes Yes - - - -
Avg.
Max. Min.
Avg.
- - - 2 AO 2 AO - - - -
sec
-
10/100 Mbps
Ethernet
10 samples/
sec
±15 mV
±50 mV
±100 mV
±500 mV
±1 V
0 ~ 20 mA
4 ~ 20 mA
J.K.T.E.R.S.B.
Thermocouple
Max. Min.
Avg.
10/100 Mbps
Ethernet
16 bit for AI
12 bit for AO
10 samples/
±2.5 V 0 ~ 10 VDC0 ~ 10 V
0 ~ 20 mA
4 ~ 20 mA
10/100 Mbps
Ethernet
16 bit for AI
12 bit for AO
10 samples/
sec
0 ~ 20 mA
4 ~ 20 mA
- - - - - -
- - - - - -
sec
10/100 Mbps
Ethernet
10/100 Mbps
Ethernet
- - - -
- - - -
DC
- - - -
10/100 Mbps
Ethernet
- - -
10/100 Mbps
Ethernet
Analog
Output
Digital
Input and
Output
Voltage Output
Drive Current
Digital Input
channels
Digital Output
Channels
Event Counter
High/Low Alarm
Settings
Isolation
Watchdog Timer
Remark
RMS
4 ~ 20 mA
with 15 V
0 ~ 10 VDC
with 30 mA
2000 V
Built-in
Dual Loop
PID Control
Algorithm
- - -
-
-
-
- 2 (Sink) 8 (Sink) 2 (Sink) 2 (Sink) 6 (Sink) 2 (Sink) 8 (Source)
- - - - - - 2 (5 KHz) - -
Yes Yes Yes - - - - - -
2000 V
RMS
Yes Yes Yes Yes Yes Yes Yes Yes Yes
- - -
- -
- - 2 (Sink) 2 (Sink) 12 (Sink) 12 (Sink) 8 (Source) 6 (Sink)
2000 V
RMS
2000 V
RMS
DC
4 ~ 20 mA
with 15 V
DC
0 ~ 10 VDC
with 30 mA
2000 V
RMS
- - - - -
- - - -
- - - -
2000 V
RMS
2000 V
RMS
2000 V
RMS
6-channel
relay (No)
2000 V
RMS
10-54
ADAM-6000 Smart Web Ethernet I/O Modules
Selection Guide
Model Name
Specications
Interface
Ethernet Port
Serial Port
Speed
Surge Protection
Parity
Data bit
Stop bit
S/W
Connector
Mounting
Power Requirement
Power Consumption
Operating
Temperature
ADAM-6500 ADAM-6501 ADAM-6510 ADAM-6520 ADAM-6521
10Base-T 10/100Base-T 10Base-T 10/100Base-T 10/100Base-T, 100Base-FX
1 1 4 5 5
5 3 - - -
10 Mbps 10/100 Mbps 10 Mbps 10/100 Mbps 10/100 Mbps
1500 V
RMS
Even, odd, none, space,
mark
5, 6, 7, 8 5, 6, 7, 8
1, 1.5, 2 1, 1.5, 2
Configuration/ port mapping
utlity
Network: RJ-45
Serial: Sub-D9 & Screwed
Terminator
DIN-Rail, Wall, Piggyback DIN-Rail, Wall, Piggyback DIN-Rail, Wall, Piggyback DIN-Rail, Wall, Piggyback DIN-Rail, Wall, Piggyback
10 - 30 V 10 - 30 V 10 - 30 V 10 - 30 V 10 - 30 V
4 W 4 W 1 W 2.4 W 3.6 W
0 ~ 65° C 0 ~ 65° C -10 ~ 70° C -10 ~ 70° C -10 ~ 65° C
1500 V
RMS
Even, odd, none, space,
mark
Configuration/ port mapping
utlity
Network: RJ-45
Serial: Sub-D9 & Screwed
Terminator
3000 V
ESD
Network: RJ-45
3000 V
ESD
Network: RJ-45
Serial: terminal block
3000 V
ESD
Network: RJ-45
Fiber: SC type
1
Applied Panel Computing
2
Industrial Computers &
Network Appliances
3
CompactPCI
4
HMI & Industrial Workstation
5
Industrial Communication
6
Industrial I/O
7
Embedded Computing
8
RISC Embedded Computing
9
eAutomation
10
eAutomation I/O (ADAM)
11
Digital Video Platform
Online Download
www.advantech.com/products
10-55
Loading...
