Adamatic BAP-2-120 Specifications

belshaw-adamatic.com
Belshaw Adamatic

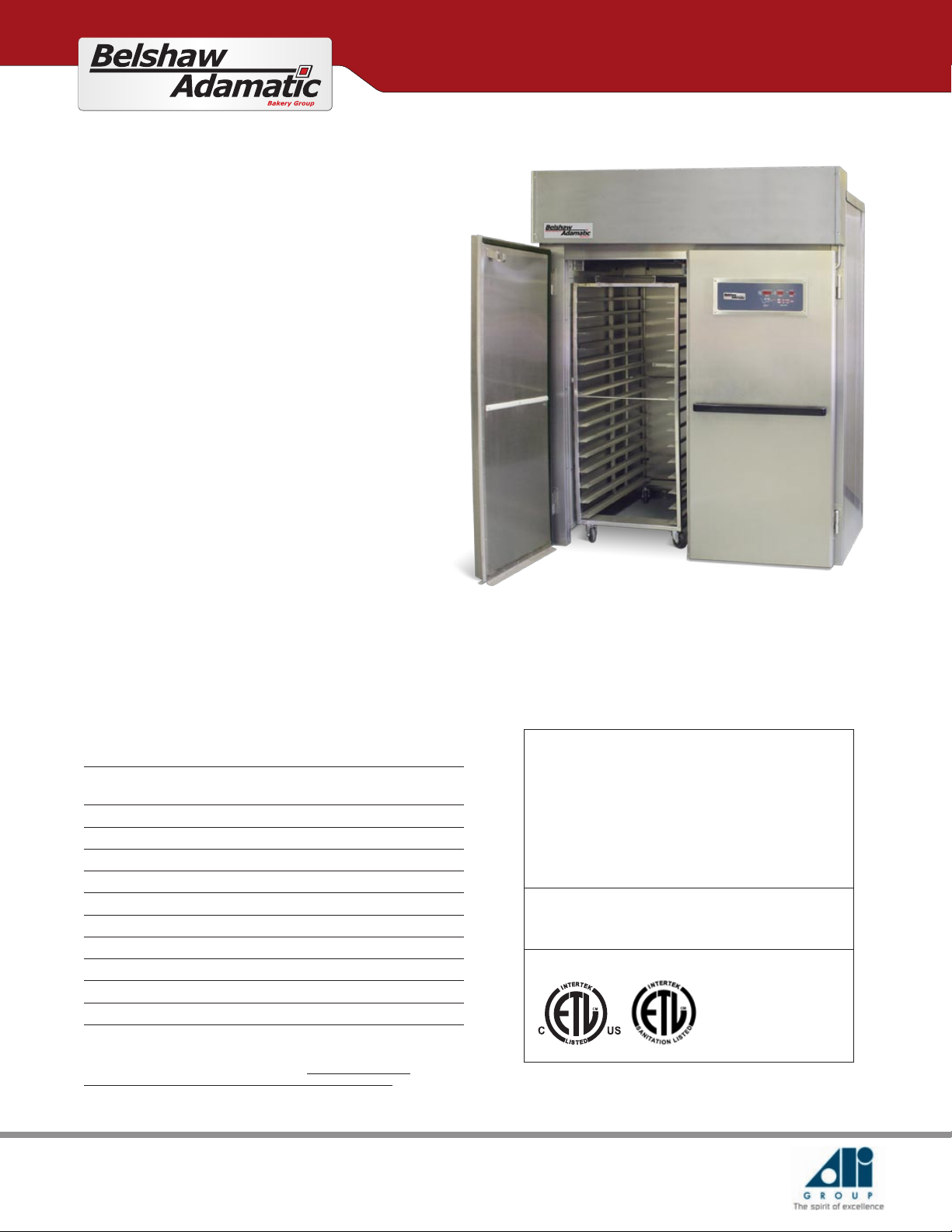

BAP-2 Series Proofer, Roll-in, 2-Door
Construction
Stainless steel exterior with 300 Series s/s interior and aluminized steel top
Foamed insulation in walls ceilings and doors Modular wall and ceiling panels with cam lock
construction Heavy duty welded s/s hinges Rapid responding air-wash heat and humidity system Depth up to 120”, capacity up to 14 racks 208/240 VAC, either 1 or 3-phase, eld convertible
Operation
70°-120° F proong range 50 - 99% humidity range
Non-submerged calrod type heaters Interior bumpers protect interior walls from damage Lighted interior
Serving the donut and bakery industry for over 85 years
1-800-578-2547 ▪ info@belshaw-adamatic.com ▪ www.belshaw-adamatic.com
Digital set Temperature, Humidity, Time ▪ PID type controls for rapid accurate response without
overshoot All digital controls mounted in the door at eye-level Large LED display
Options
Stainless steel oor Pass-through option (spec sheet available) Prison package
Model/Rack Capacity*
Model/Depth Side Load
28.4”Wx18.0”D
End Load
26.0”Wx20.4”D
Double
28.4”Wx36.0”D
BAP-2-30 2 Racks 3 Racks None
BAP-2-40 4 Racks 3 Racks 2 Racks
BAP-2-50 5 Racks 5 Racks 2 Racks
BAP-2-60 6 Racks 6 Racks 3 Racks
BAP-2-70 7 Racks 7 Racks 3 Racks
BAP-2-80 9 Racks 8 Racks 4 Racks
BAP-2-90 10 Racks 10 Racks 5 Racks
BAP-2-100 11 Racks 10 Racks 5 Racks
BAP-2-110 12 Racks 13 Racks 5 Racks
BAP-2-120 14 Racks 13 Racks 7 Racks
BAP-2-40 Proofer
Short Bid Specication
Rack Proofer Model BAP-2-xxx [insert 30 thru 120] shall
be a 5 to 13.2 kW electrically heated, double door roll-in rack
unit with: quick responding air-wash heat / humidity system;
modular cam lock panel construction with foamed insulation; all stainless steel interior, with protective cart bumpers; heavy-duty doors with magnetic seal/mechanical closure system and full width protective bar handle; simple computerized controls,
door mounted at eye-level, with accurate digital temperature,
humidity and time readouts; plus all the features listed and
options checked.
Standard Product Warranty
One-Year Parts and Labor, USA and Canada. (USA includes 50 states + DC unless specied)
Certications
*Racks may be snug at maximum capacity. For details of rack
arrangement, see the Rack Capacity Guide at http://www.belshaw- adamatic.com/specs/belshaw-adamatic-rack-capacity-guide.pdf
BELSHAW ADAMATIC BAKERY GROUP 206-322-5474 ▪ 800-578-2547 ▪ info@belshaw-adamatic.com 814 44th St NW, Suite 103, Auburn, WA 98001 USA • www.belshaw-adamatic.com
©2009 Belshaw Adamatic Bakery Group Specications are subject to change without notice.

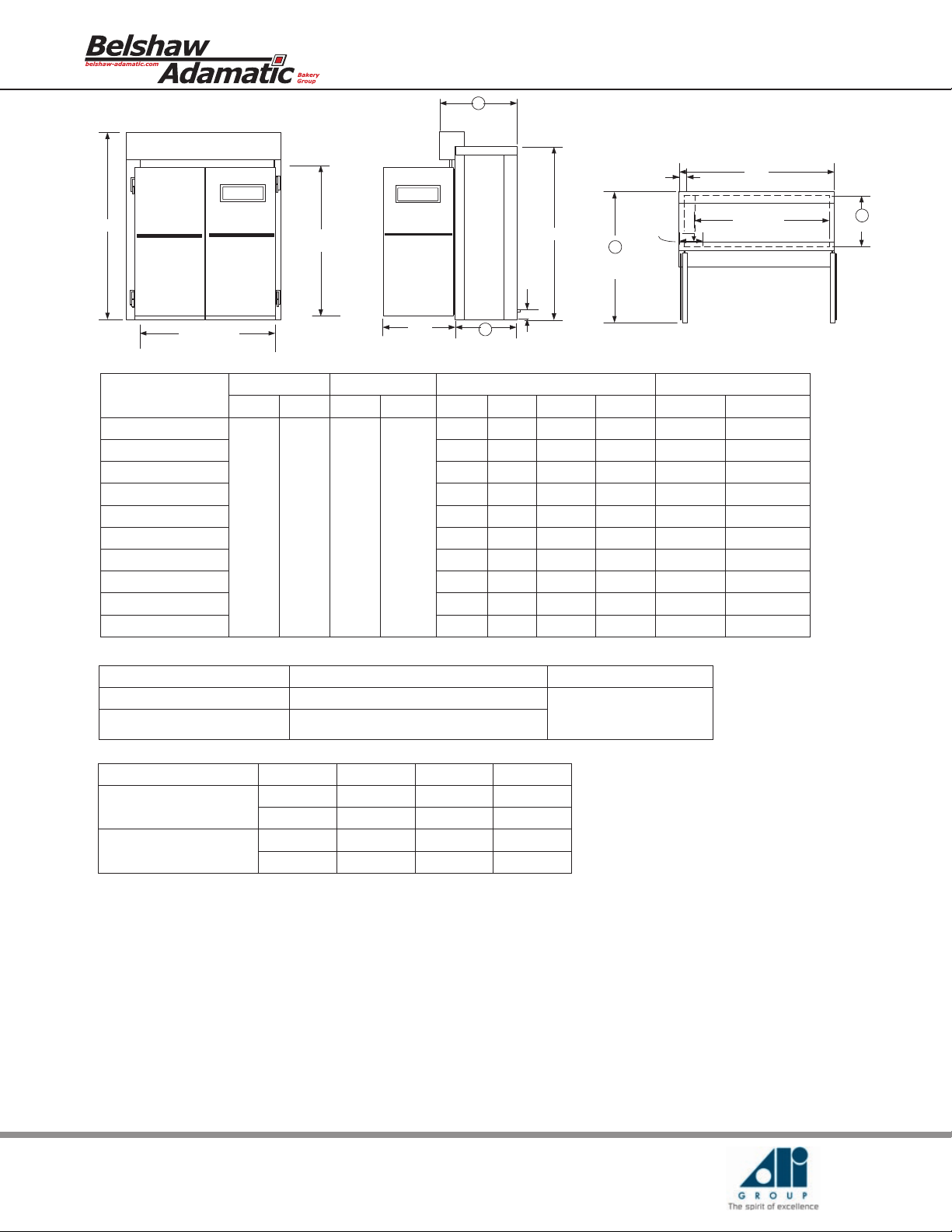

BAP-2 Series Proofer, Roll-in, 2-Door
C
3.7
for Drain
Water and
Electrical
A
Overall
Depth
13.5 from edge
Freight Class=70
91.4
68.75
Opening Width
Dimensional Data
Model
BAP-2-30
4.0
Drain
88.00
74.1
Opening Height
37.00
D
Height Width Depth Approx Weight (lbs)
Int Ext Int Ext “A” “B” “C” “D” Actual Ship
68” 26” 39.5” 31.1” 1100 1200
BAP-2-40 78” 36” 49.5” 41.1” 1157 1282
BAP-2-50 88” 46” 59.5” 51.1” 1329 1454
BAP-2-60 98” 56” 69.5” 61.1” 1411 1536
BAP-2-70 108” 66” 79.5” 71.1” 1538 1663
BAP-2-80 118” 76” 89.5” 81.1” 1665 1790
74.1” 91.4” 68.8” 78.8”
BAP-2-90 128” 86” 99.5” 91.1” 1424 1549
BAP-2-100 138” 96” 109.5” 101.1” 2007 2051
BAP-2-110 148” 106” 119.5” 111.1” 2178 2303
BAP-2-120 158” 116” 129.5” 121.1” 2260 2385
78.80
68.5
Inside Width
B
Inside Depth
Water Supply and Drainage Requirements
Model Water Supply Drainage
BAP-2-(30-80) 1/2” NPT .07 GPM @ 60 PSI 1/2”PVC; 110°F
BAP-2-(90-120) 1/2” NPT .14 GPM @ 60 PSI
<1 GPM Max Vented
Electrical Requirements
Model Voltage Total kW 1-Phase 3-Phase
BAP-2-(30-80) 208 VAC 5 kW 24.0 A 13.8 A
240 VAC 6.6 kW 27.5 A 15.8 A
BAP-2-(90-120) 208 VAC 10.2 kW 48.0 A 27.6 A
240 VAC 13.2 kW 55 A 31.6 A
Installation Requirements
Requires on-site installation ▪ KD shipment. When disassembled, can t through 36”
opening
Consult factory for shipment fully assembled 208/240 VAC, either 1 or 3-phase, eld convertible
1/2” NPT cold water conection 1/2” PVC vented drain connection This appliance is designed to operate at normal room
temperatures; if installed next to an oven or other heat source allow a minimum clearance of 4” to prevent heat transfer.
Clearance from combustibles is 0.0” sides and back 2” clearance on both sides, required for door to open 90° For install on non-porous surfaces only
Your local water conditions may damage your appliance. Failure to properly treat water may result in damage and may void your warranty. Ensure that your water supply meets
these minimum water quality specications:
Alkalinity: 22 ppm ­Aluminum: 17 ppm ­Calcium: 3.3 ppm ­Free chlorine residual: 0.6 ppm ­Magnesium: 0.65 ppm ­PH range: 8.5 s.u. ­Sodium: 8.5 ppm ­Total Hardness: 11.9 ppm -
Consult your local water treatment company for proper ­water ltration system.
