A&D GXA-03, GXA-04, GXA-06 Instruction Manual

GXA-03 RS-232C Isolated Interface GXA-04 Comparator output GXA-06 Analog voltage output
1WMPD4003498A
© 2017 A&D Company, Limited. All rights reserved.
No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company, Limited.
Contents
1. Introduction ................................................................................................................................... 4
2. Features ....................................................................................................................................... 4
3. Packing List .................................................................................................................................. 5
4. Installing the Option ..................................................................................................................... 5
5. Function Table of Balance ........................................................................................................... 6
5.1. Operation Keys and Display of Function Table ................................................................... 6
5.2. Items List of the Function Table ........................................................................................... 7

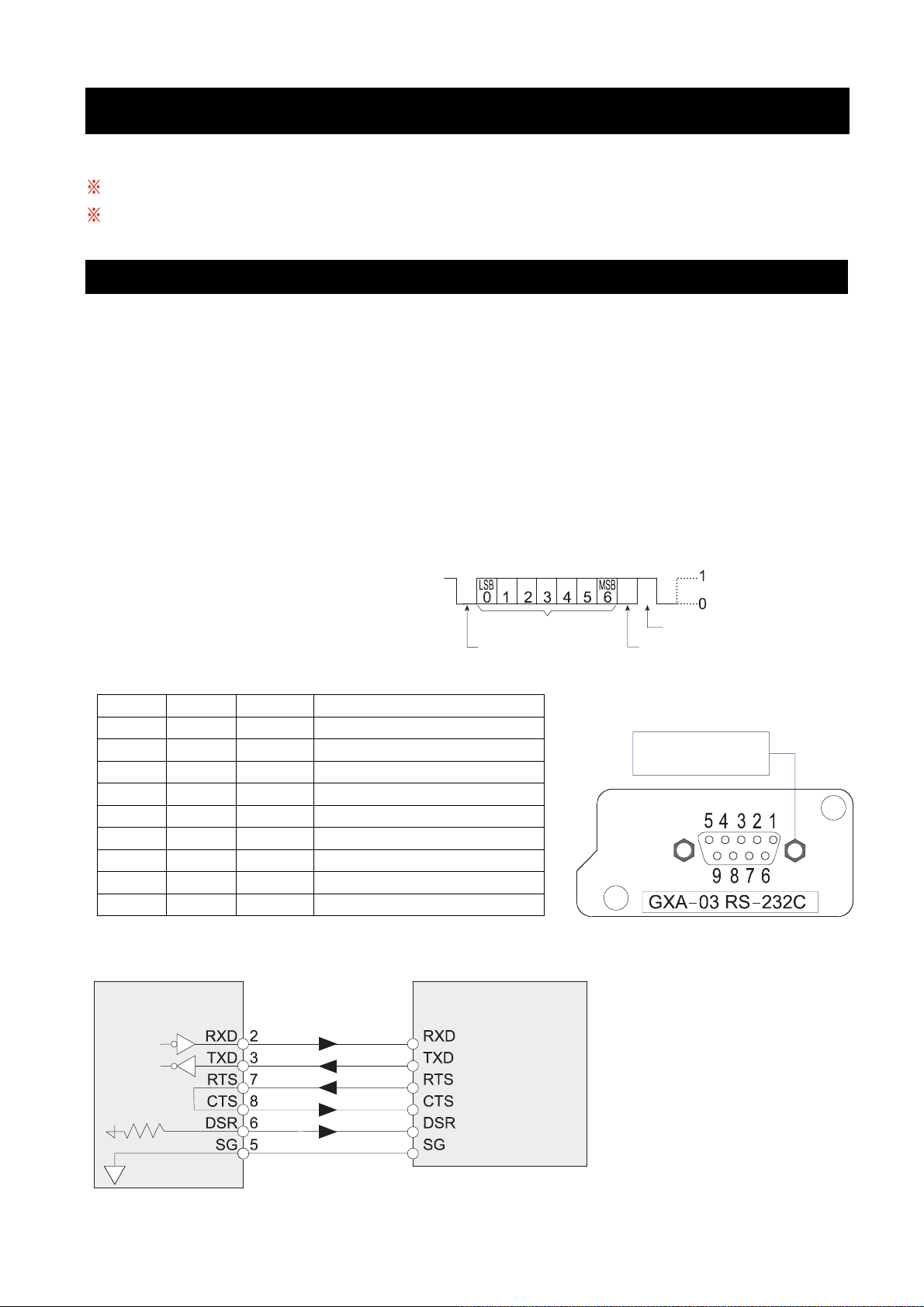

6. GXA-03 Isolated RS-232C interface ........................................................................................ 10
6.1. Specifications of Serial Interface ........................................................................................ 10
7. GXA-04 Comparator Output ..................................................................................................... 11
7.1. Specifications of Comparator Output ................................................................................ 11
7.2. Using the Comparator Output ............................................................................................ 12
7.3. Comparison Method Selection
7.4. Setting Threshold Values ................................................................................................... 14
7.5. Setting Center Value and Tolerance Range ...................................................................... 15
8. GXA-06 Analog Voltage Output ................................................................................................ 17

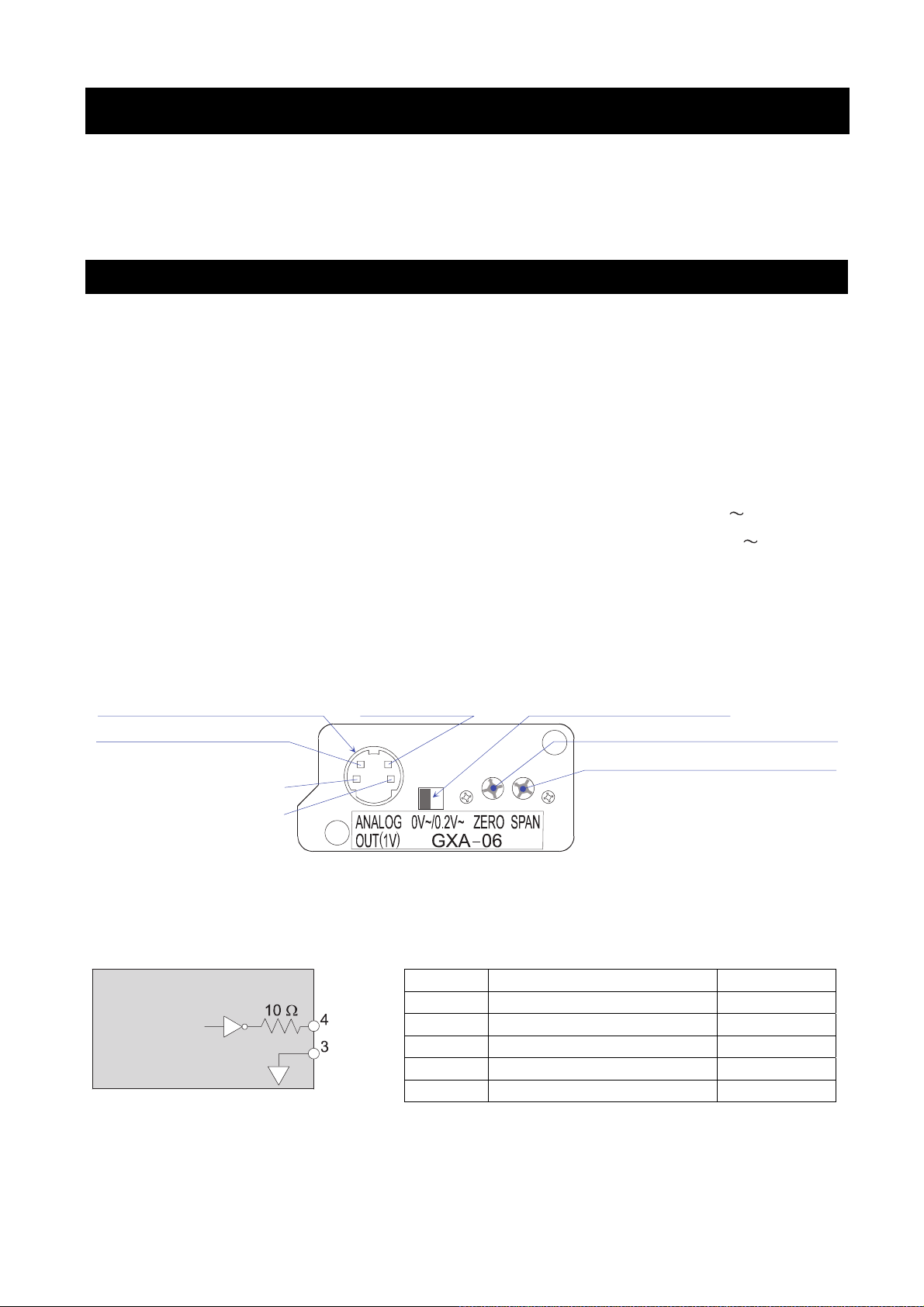

8.1. Specifications of Analog Voltage Output ........................................................................... 17

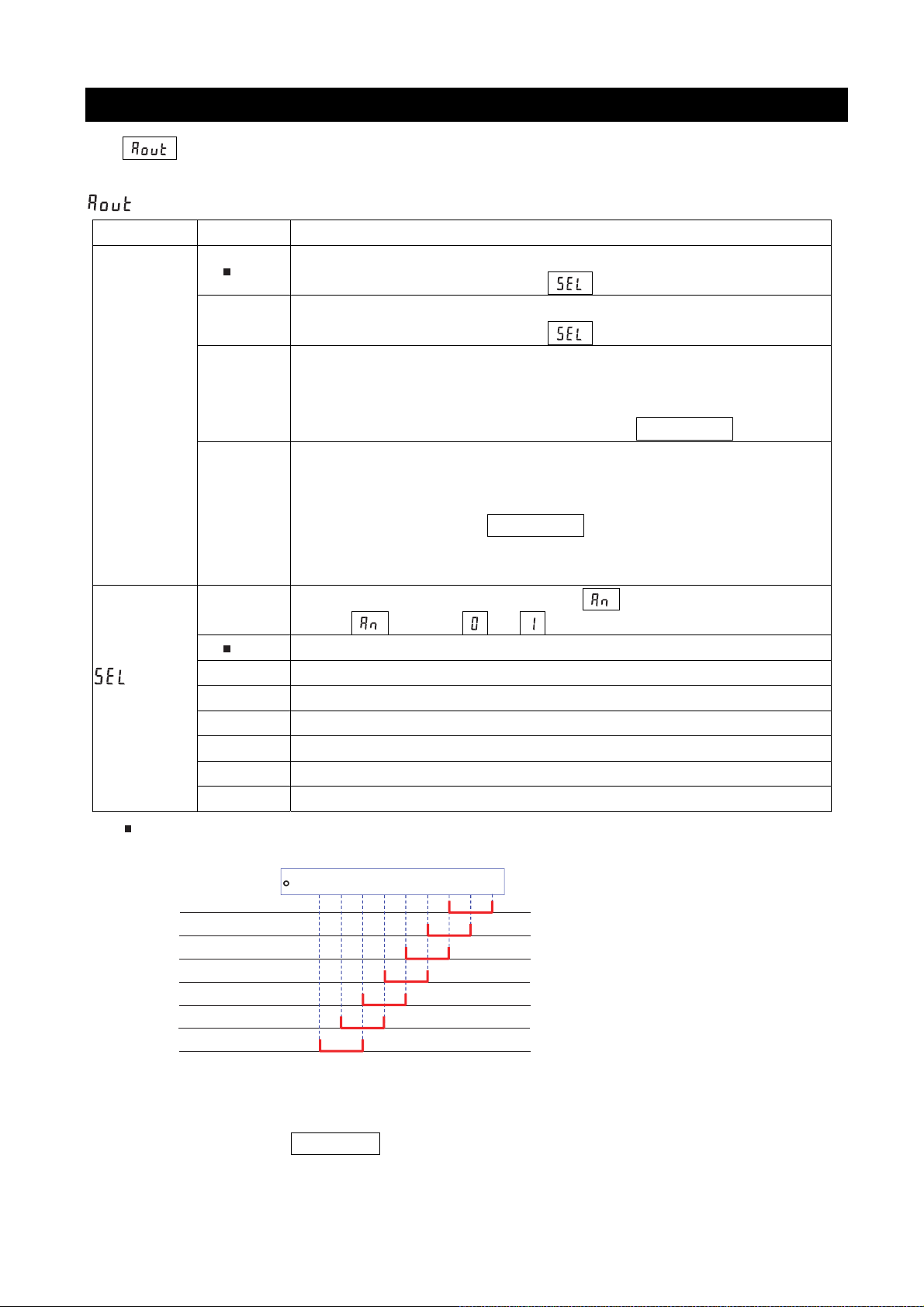

8.2. Function Table of Analog Voltage Output .......................................................................... 18
8.3. Voltage Output Selection .................................................................................................... 20
8.4. Voltage Output Fine Adjustment ........................................................................................ 20
8.5. Fixed Voltage Output ........................................................................................................ 21
(Tolerance Range and Center Value or Threshold Values)
.............. 13
3
1. Introduction
This manual describes options for the GX-A series and GF-A series and how to get the most
out of them in terms of performance. Read this manual thoroughly before using the options and
keep it at hand for future reference.
2. Features
The following options can be used for the GX-A series and GF-A series.
GXA-03 Isolated RS-232C interface
GXA-04 Comparator output (with buzzer) / External contact input x 2
GXA-06 Analog voltage output
GXA-03: Isolated RS-232C interface
Commands from the PLC or other devices installed in the factory environment can be used to
make the following operations : output measurement data from the balance, input parameters
into the balance, control the balance, reference parameters of the balance, etc.
The RS-232C is equipped with a data format to manage the balance in accordance with GLP.
( Refer to the instruction manual of the balance. )

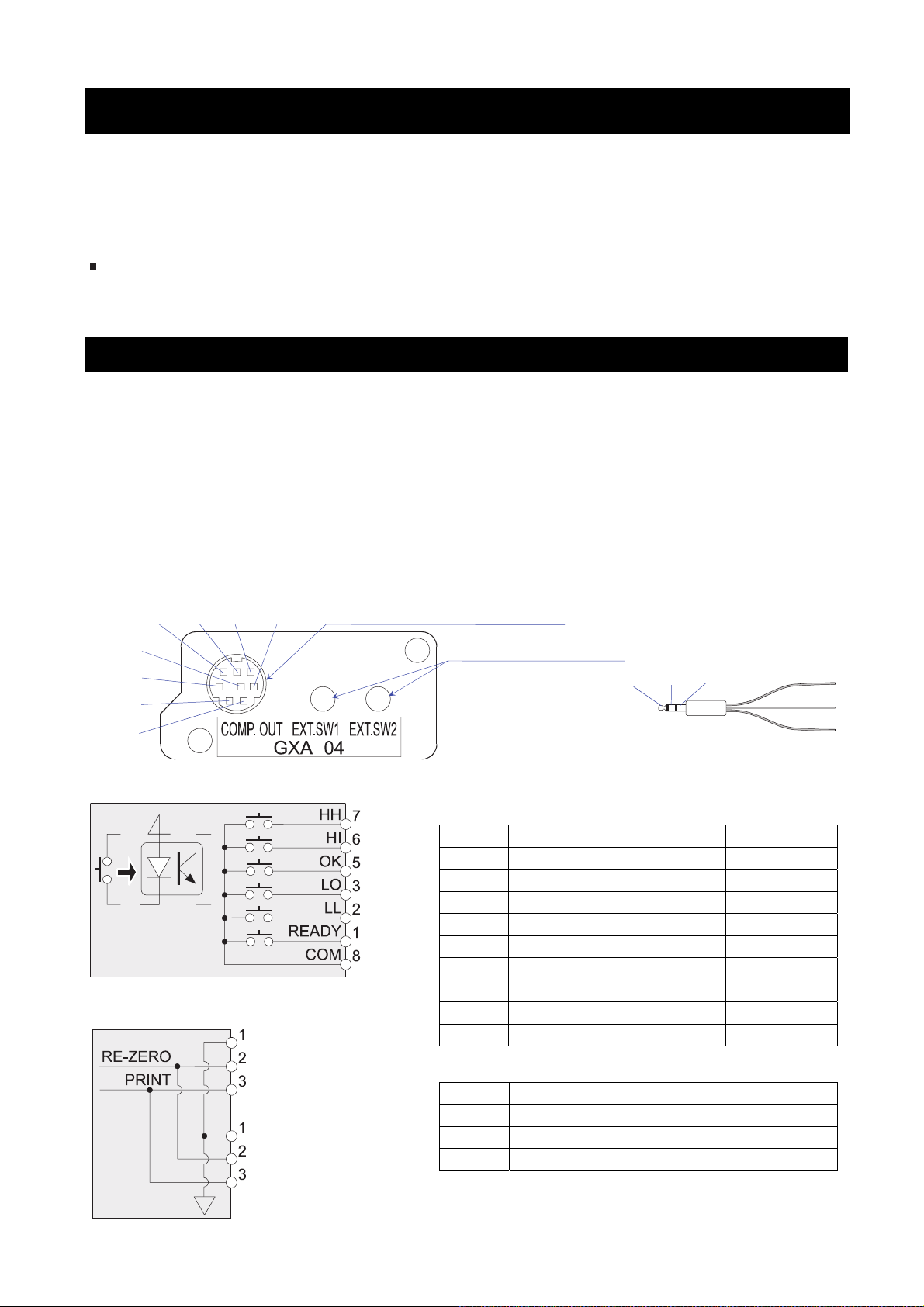

GXA-04: Comparator output / External contact input
The GXA-04 can compare the weighing value and preset threshold values and can output the
result to the contact output.
The GXA-04 is equipped with six contact outputs: "HH", "HI", "OK", "LO", "LL" of the
comparison output and "READY" output to indicate the status of the balance.
3-stage comparison or 5-stage comparison can be selected.
The GXA-04 can sound a buzzer according to the comparison result.
The GXA-04 is equipped with external control input terminals that can make the RE-ZERO
and PRINT key operations. An optional foot switch (AX-SW137-PRINT, AX-SW137-RE-
ZERO ) can be used.

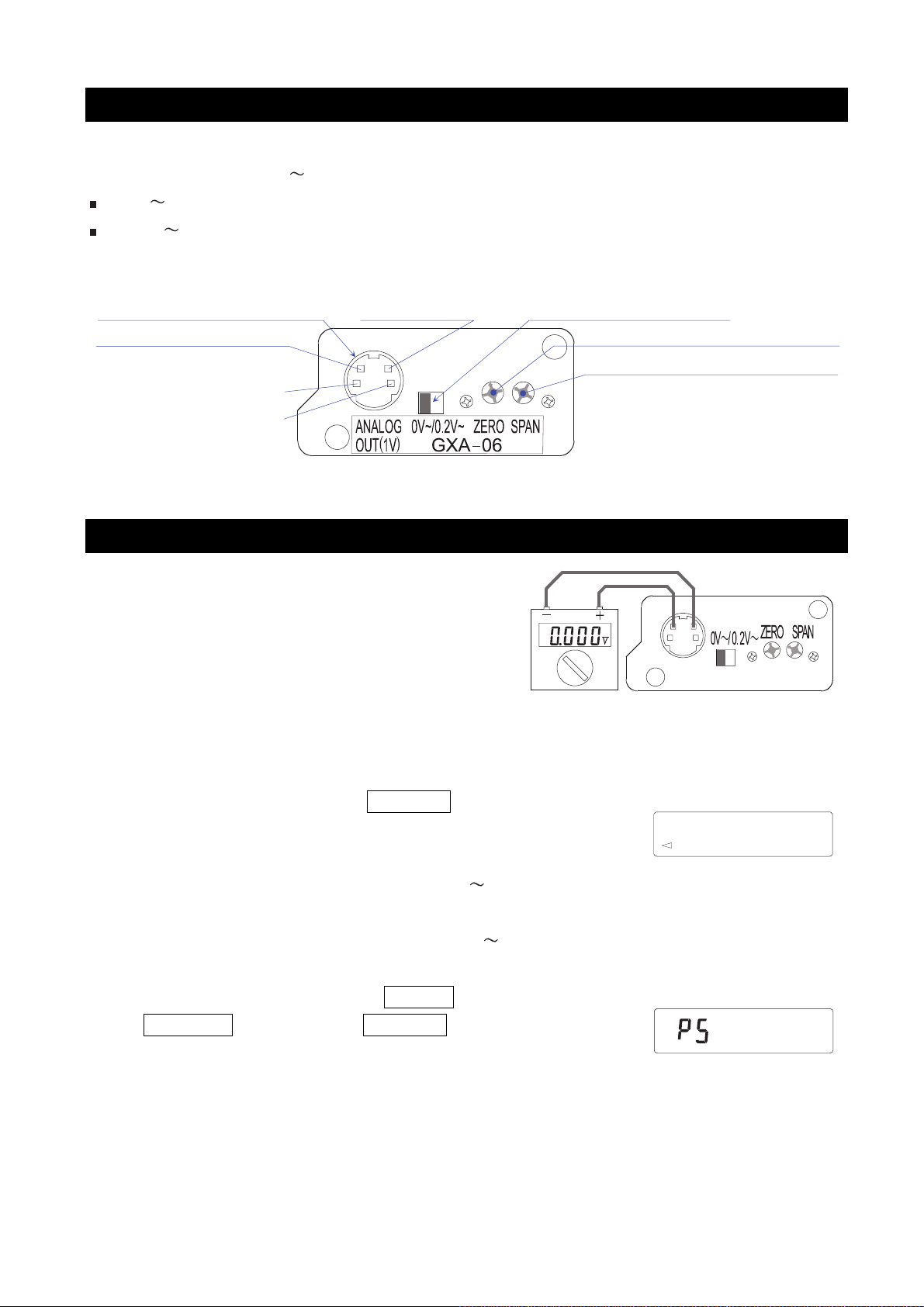

GXA-06: Analog voltage output
The GXA-06 can output analog voltage in the following modes :
"mode where the specified digits of the weighing value are converted to voltage" and
"mode where weighing value is converted to voltage in range between gross zero or net zero
and full scale".
The voltage output range can be selected using the "0V /0.2V " switch on the panel.
It can be selected "0 to 1V" range and "0.2V to 1V" range. The factory setting is "0 to 1V" range.
4
3. Packing List
S
GXA-03
GXA-04
GXA-06
...............
...............
...............
This manual 1
Mini DIN connector ( 8 pin, plug ) 1
Cable with connector ( AX-KO5692 ) 1
This manual 1
Screwdriver for adjustment 1
Mini DIN connector ( 4 pin, plug ) 1
Cable with connector ( AX-KO5692 ) 1
This manual 1
4. Installing the Option
Caution
Installing the option board to the balance
Step1
Step2
Disconnect the AC adaptor before installing the option to the balance.
Remove the two screws from the panel.
Pull gently the cable and option board from
the balance.
Peel off the connector that is affixed
to the panel with double-sided tape
and insert it into the socket of the
option board.
Option panel: Confirm the layout of terminal, etc. on the option.
Socket : Confirm the position of the socket on the option.
Panel
Screws
Connector
Step3
Attach the option board to the balance.
Secure with the two screws removed in step 1.
Assembling the mini-DIN connector
You can use the GXA-04 ( AX-K0592 ) and GXA-06 ( AX-K0593 )
of the option cable assembled with the mini-DIN connector.
Step 1
Pass the cable through the rubber sleeve.
Step 2
Solder wires and terminal.
Step 3
Cover the terminal with the top metal
case and bottom metal case.
Step 4
Fasten wires with the top metal case.
Step 5
Insert the assembled parts into the
rubber sleeve.
Part to secure wires
Top metal case
Cable
Rubber sleeve
Terminal
Fasten wires tightly
older wires and terminal
Bottom metal case
5
5. Function Table of Balance
The function table stores parameters that specify how to operate the balance, and it is used to
mointor or update those parameters. These parameters are stored in memory even if the AC
adaptor is removed and are retained until overwritten. Balance operations are specified by this
table when using the GXA-03, GXA-04 and GXA-06. The table menu consists of two layers as shown in the diagram below. The first layer is the “Class” and the second layer is the “Item”. Each item stores a "parameter". The last displayed parameter is in effect. After the
PRINT key is pressed, these updated parameters are applied to operations of the balance.

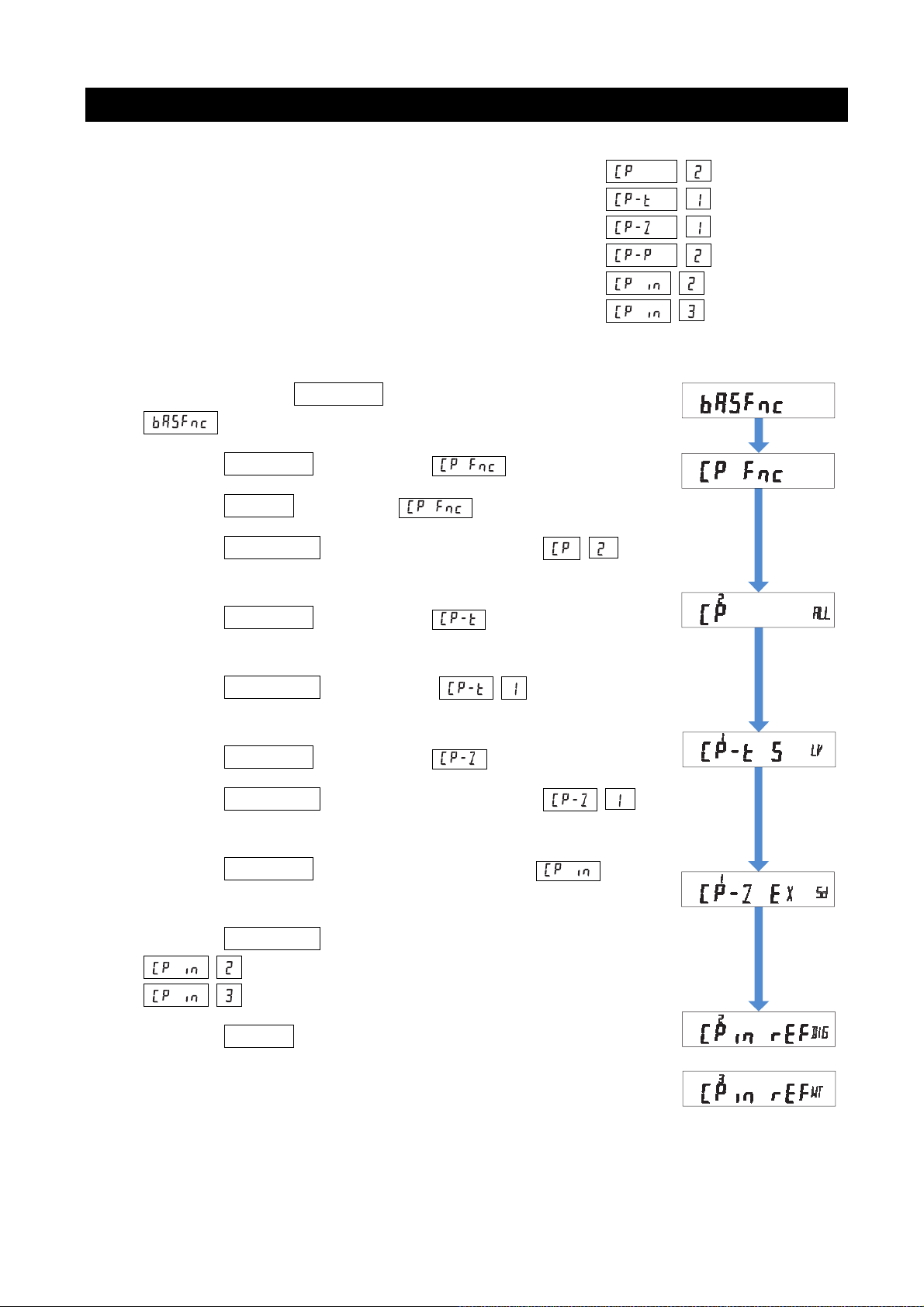

Example of settings and menu structure
Example : Set to "
Start from weighing mode
Caution
The balance may not function properly, depending on the settings and the operating environment. Be sure to set parameters correctly.
Press and hold
Press several times
Class
Finish to weighing mode
Center value using sample weight input
Press
Press several times
Item
Input method
Press Press
" of "
Input method
Parameter
Center value using numerical input
Parameter Center value using sample weight
" in "
Comparator
".
5.1. Operation Keys and Display of Function Table
The 〇 indicates that the parameter displayed is in effect.
Enters the function table when pressed and held in the weighing mode. Selects the class or item in the function table.
Changes the parameter.
Moves to an item in the class when a class is displayed. Stores the new parameter and displays the next class when an item is displayed.
Cancels new parameter and displays the next class when an item is displayed. Exits the function table and returns to the weighing mode when a class is displayed.
6
m
0
1
2
0
1
0
1
2
3
4
0
1
2
0
1
2
3
0
1
5.2. Items List of the Function Table
Note Functions available differ by model of the balance.
Class Item
bA5Fnc
Environment, display
Cl Adj
Clock adjustment
CP
Comparator mode
CP-t
Comparison method
Near zero
CP Fnc
Comparator
CP-P
Polarity
CP in
Input method
CP-Frd
Flow measurement
CP HH
Second upper limit
CP Hi
Upper limit
CP Lo
Lower limit
CP LL
Comparator threshold value
Second lower limit
CP ref
Center value
Tolerance range from center value
Second tolerance range from center value
Para
eter
( Refer to the instruction manual of main unit )
No comparison (Comparator is not used) Comparison when stable value or overloaded Comparison always 3-stage comparison HI, OK, LO 5-stage comparison HH, HI, OK, LO, LL Comparison including near zero Comparison excluding ±5 digits (counts) from zero Comparison excluding ±10 digits (counts) from zero Comparison excluding ±20 digits (counts) from zero Comparison excluding ±50 digits (counts) from zero
Comparison excluding ±100 digits (counts) from zero
5
Comparison of positive values only Comparison of negative values only Comparison of both polarities
Threshold value using numerical input Threshold value using sample weight Center value using numerical input
Center value using sample weight Comparison by flow rate value Comparison by weighing value (g)
Refer to explanation of "7. GXA-04 Comparator output". Upper / lower limits when using the data input method
(
or
0
,
are displayed when 5-stage comparison
( ) is selected.
Refer to explanation of "7. GXA-04 Comparator output". Reference value when using the data input method
(
2
or
is displayed when 5-stage comparison ( ) is selected.
Description
) is selected.
1
) is selected.
3
, , and
are used
, and
are used
indicates factory settings. Digit is the unit of minimum division (minimum weighing value).
7
m
Class Item
bep HH
HH buzzer
bep Hi
Hi buzzer
Cp beep
Comparator buzzer
OK buzzer
bep Lo
Lo buzzer
bep LL
LL buzzer
dout
Data output
5if
Serial interface
U5b
USB interface
Connection
bp5
Baud rate
btpr
op-5if
Data bit, parity bit
Option serial interface
Crlf
Terminator
type
Data format
t-Up
Timeout
erCd
AK, Error code
Para
eter
Description
Off
0
On
1
Off
0
On
1
Off
0
On
1
Off
0
On
1
Off
0
On
1
Displayed only when 5-stage comparison ( ) is selected.
Displayed only when 5-stage comparison ( ) is selected.
( Refer to instruction manual of main unit )
Computer
0
Printer
1
External display
2
0
1
2
3
4
5
6
0
1
2
0
1
0
1
2
3
4
5
0
1
0
1
600 bps 1200 bps 2400 bps 4800 bps 9600 bps
19200 bps
38400 bps 7 bits, Even 7 bits, Odd 8 bits, None CR LF CR: ASCII code 0Dh Do not use LF: ASCII code 0Ah A&D standard format DP format KF format MT format NU format CSV format No limit
Select wait time to receive a command
1 second No output
AK: ASCII code 06h
Output
indicates factory settings.
