Model ROE69SC
Model ROE9Y-60
Model ROE11Y-60
ACME KITCHENETTES CORP.
ABOUT ACME
Acme has been in business for over 80 years. We have the
knowledge and experience to manufacture a kitchenette of
superior quality that is unique and dependable. Acme has
owned the King Mini Kitchen name and parts business since
1996, and continues to provide replacement parts and complete new kitchens for King customers. As you review this
catalog you’ll discover just how versatile we are.
ACME’S PLEDGE
We are committed to providing the best kitchenette in the
industry at a very competetive price. Our sales and service
people are dedicated to customer satisfaction and provide
fast and reliable service.
CUSTOMIZE YOUR KITCHENETTE
Acme can manufacture to suit your needs—we are very flexible in the design and construction of our products. We manufacture standard sizes for the industry as well as custom sizes.
Our countertops are offered in stainless steel, laminate, or
solid surface. Acme manufactures a full line of Barrier-Free
kitchens for handicap accessibility.
GSA Contract #GS07F9698G
WARRANTY
Acme provides a one year warranty for the entire unit against
manufacturing defects, including parts and labor with an
optional extended warranty on the sealed-in refrigeration
system.
SPECIFICATIONS are subject to change as required.
COLOR/FINISHES in this catalog may vary slightly from actual
color due to the printing process.
Please contact our customer service department for all
inquiries to receive prompt and courteous service.
Call our toll free number at 800-322-4191.
Fax inquiries can be directed to 518-828-4011.
Email inquiries can be sent to:
info@acmekitchenettes.com
Front cover includes model ROE69SC and includes a solid
surface countertop, undermount stainless steel sink bowl,
single lever faucet, three burner ceran cooktop, electric oven,
removable refrigerator, wall cabinets, microwave oven and
range hood. Cabinet door fronts are solid wood.
www.acme3in1.com
1
EFFICIENCY MODELS ARE
AVAILABLE IN STANDARD
WIDTHS OF 30" , 36", 39",
42" AND 48".
All units are available with the sink located on
either side when facing the unit.
Electric burners can be wired for either 115 or
230 volt operation and components are UL listed.
Gas burners may be for use with natural or
L.P. gas and equipped with electronic ignition.
Components AGA listed.
Standard Finishes: White, almond, bisque,
black or gray.
Cabinetry constructed of thermal fused
melamine on particleboard.
• All refrigerators are removable which allows
for easy maintenance or future replacement.
• The 30" model includes a 4.3 cu.ft. capacity
refrigerator, black or white only.
• The 36" to 48" wide models include a 5.1
cu.ft. capacity refrigerator with automatic
cycle defrost and a frame to accept matching
front door panels.
• Refrigerator details listed on page 9.
• Units may be modified and customized.
Options available as outlined on page 9.
EFFICIENCY KITCHENETTES RES/RGS MODELS
RES9Y-30.
RGS11Y-39
RES11Y-48L with high-pressure
decorative laminate countertop
and cabinet finish.
RES11Y-42 with recessed countertop
PLAN VIEWS OF TYPICAL EFFICIENCY MODELS
RES9Y-30RH RES11Y-39RH
www.acmekitchenettes.com
2
FULL-FEATURE KITCHENETTES ROE/ROG MODELS
FULL FEATURE MODELS AVAILABLE
51", 54", 60", 63", 69" AND 72".
ROE9Y models include a 20 gauge stainless steel
countertop with sink bowl, single lever faucet, sink
strainer, four electric burners, 20" wide electric oven
and removable refrigerator. Electric models operate
on 230 volt, all components UL listed.
ROG10Y models substitute a 20” wide gas oven and
4 burners with electronic ignition. Available for use
with natural or LP gas, all components AGA listed.
Finish: Black or white.
Cabinetry constructed of thermal fused melamine on
particleboard.
All refrigerators are removable which allows for
easy maintenance or future replacement.
The 48" and 51" wide models include a 4.3 cu.ft.
capacity refrigerator.
The 54" to 72" wide models include a 5.1 cu.ft.
capacity refrigerator with automatic cycle defrost.
Refrigerator details listed on page 9.
Acme also offers units 75" to 99" wide to include an
upright refrigerator.
Units may be modified and customized. Options available as outlined on page 9.
IN STANDARD WIDTHS OF 48",
ROE9Y-60 with Options
At left: ROE9Y-48
Below: ROE9Y-72
PLAN VIEWS OF TYPICAL FULL-FEATURE KITCHENETTES
ROE9Y-48RH ROE9Y-60RH
www.acme3in1.com
3
ROE11Y-60 Modification #2 This model provides additional
base storage space and allows for use of a separate upright
refrigerator. Model shown includes a 20 gauge stainless steel
countertop, sink bowl, single lever faucet, sink strainer, four
electric burner elements and a 24" wide electric oven with black
glass door and convection bake feature. Many options are possible; you may substitute a ceran or gas burner cooktop, include
a dishwasher and alter the appearance by choosing a custom
color, countertop and door finish.
DISTINCT DESIGNS . . .
Acme will assist you in designing a kitchen that will be manufactured to your specific requirements
and will provide a compact, complete and unique solution for your installation.
Above: RS60MW shown with custom solid surface countertop and thermofoil door fronts.
Above right: RES11Y60 MW with cook top in chrome lami-
nate finish.
At right: RS60MW, a very versatile and practical unit!
Features a laminate countertop with drop-in stainless steel
sink bowl, single lever faucet and sink strainer, 5.1 cu.ft.
removable refrigerator with automatic cycle defrost, storage drawers and .7 cu.ft. microwave oven built into base.
Available in various widths and finishes. An electric or gas
cooktop can be added.
RES11Y-72 shown with recessed, 20 gauge stainless steel
countertop, 2 burner ceran cooktop and 5.1 cu.ft. removable refrigerator with automatic cycle defrost. Use an alternate countertop and choose your standard or custom
finish.
www.acmekitchenettes.com
4
GO GREEN / MULTI-PURPOSE
At right: Natural Bamboo Plywood
cabinetry. This material is 100%
ENVIRONMENTALLY FRIENDLY, durable,
safe and easily renewable. All Acme models
are available for an upgrade to include this
GREEN option. ROE/G72 (shown at right)
includes stainless steel countertop, sink,
faucet and strainer, removable refrigerator,
4 gas burner cooktop, electric oven with
convection bake, wall cabinets, rear wall
shield, range hood and microwave oven.
Bamboo is a 100% green product, so
sturdy and wear-resistant that it’s used
for flooring!
At left: CL60DW Includes 20 gauge stainless steel countertop with
sink bowl, single lever faucet, sink strainer, two burner ceran cooktop, 5.1 cu.ft. removable refrigerator with automatic cycle defrost,
18" wide dishwasher, upper wall cabinets, stainless steel rear wall
shield, 1.0 cu.ft. microwave oven and stainless steel range hood.
Cabinets have chrome laminate finish.
All Acme units are PRODUCTS WITH PURPOSE:
manufactured to be diverse, stylish, functional
and efficient.
www.acme3in1.com
5
ROE11Y-60L shown with laminate countertop.
Acme offers a wide variety of options. Simply
specify the overall width of the unit, choose a
countertop, pick the cabinet construction with
finishes and the appliances to be included.
COUNTERTOPS:
A. 20 gauge stainless steel, type 304 with a #4 satin finish.
B. High-pressure decorative laminate by Wilsonart, Nevamar
or Formica.
C. Solid Surfaces available: DuPont Corian, Formica Solid Surface,
LG Hi Macs or Wilsonart Solid Surface.
CABINET CONSTRUCTION:
D. Standard 5/8" thick industrial grade particleboard with melamine
finish: white, almond, bisque, black or gray.
E. 5/8" thick particleboard with a high-pressure decorative laminate
finish by Wilsonart, Nevamar or Formica.
F. Plywood construction with high-pressure decorative laminate
finish.
G. Bamboo plywood construction and door fronts.
H. Thermofoil door fronts.
I. Solid wood door fronts.
CUSTOM LAMINATES AND SOLID WOOD DOORS
ROE11Y-69L with laminate countertop and optional
equipment.
ROE11Y-69 shown with stainless steel countertop and
solid wood door fronts.
www.acmekitchenettes.com
ROE69SC shown with solid surface countertop, undermount
stainless steel sink bowl, single lever faucet, sink strainer,
ceran cooktop, electric oven with black glass door, 5.1 cu.ft.
removable refrigerator with automatic cycle defost, upper wall
cabinets, stainless steel rear wall shield, 1.0 cu.ft. microwave
oven and stainless steel range hood. Solid wood door fronts.
6
60"
24"
25"
36"
34"
18"
DRAIN
22"
HOT/
COLD
4"
5"
38"
REMOVABLE
REFRIGERATOR W/
AU TO CYCLE DEFROST
DRAIN
OPEN SPACE
BARRIER-FREE KITCHENETTES
BARRIER-FREE MODELS
ARE AVAILABLE IN STANDARD WIDTHS
OF 60", 63", 69", 72", 75" AND 78"
Acme has incorporated all of the structural, design and component features necessary to conform to the strictest local and
state codes for wheelchair and physically disabled accessibility. Our units maximize kitchen efficiency in minimum spaces.
Standard sizes are listed and custom sizes are readily available.
General Specifications: Standard barrier-free unit kitchens
include a 20 gauge stainless steel countertop with sink bowl,
single lever faucet, sink strainer, two burners (either gas or electric) and 6.0 cu.ft. removable refrigerator with automatic cycle
defrost. The standard cabinetry is constructed of 5/8" thick 48 lb
industrial grade particleboard which is fused on both sides with
acid resistant thermoset melamine to exceed the standards of
the American Laminators Association.
Optional Equipment:
• Wall cabinet sections to match base units.
• Wall shields available for rear and/or side walls
in either stainless steel or laminate as desired.
• Range hood.
• Microwave Oven
Special Construction: Countertop and sink are on one plane,
34" from floor and continuous 34" height extends above refrigerator. The sink drain is located on the side of the bowl rather
than the center to maximize under sink leg room.
Codes for Barrier-Free models: Acme’s modular barrier-free
units meet all Federal ADA requirements, New York City local
law 58/87 and ANSI A117.1-1986 specifications.
Removable Undersink Cabinet: Available on all barrier-free
units for conversion to accommodate wheelchair access.
Finishes: Standard finishes include white, bisque, gray, almond or
black. Refer to pages 9 and 10 for additional finishes and options.
All units are available with the sink located on either side when
facing the unit.

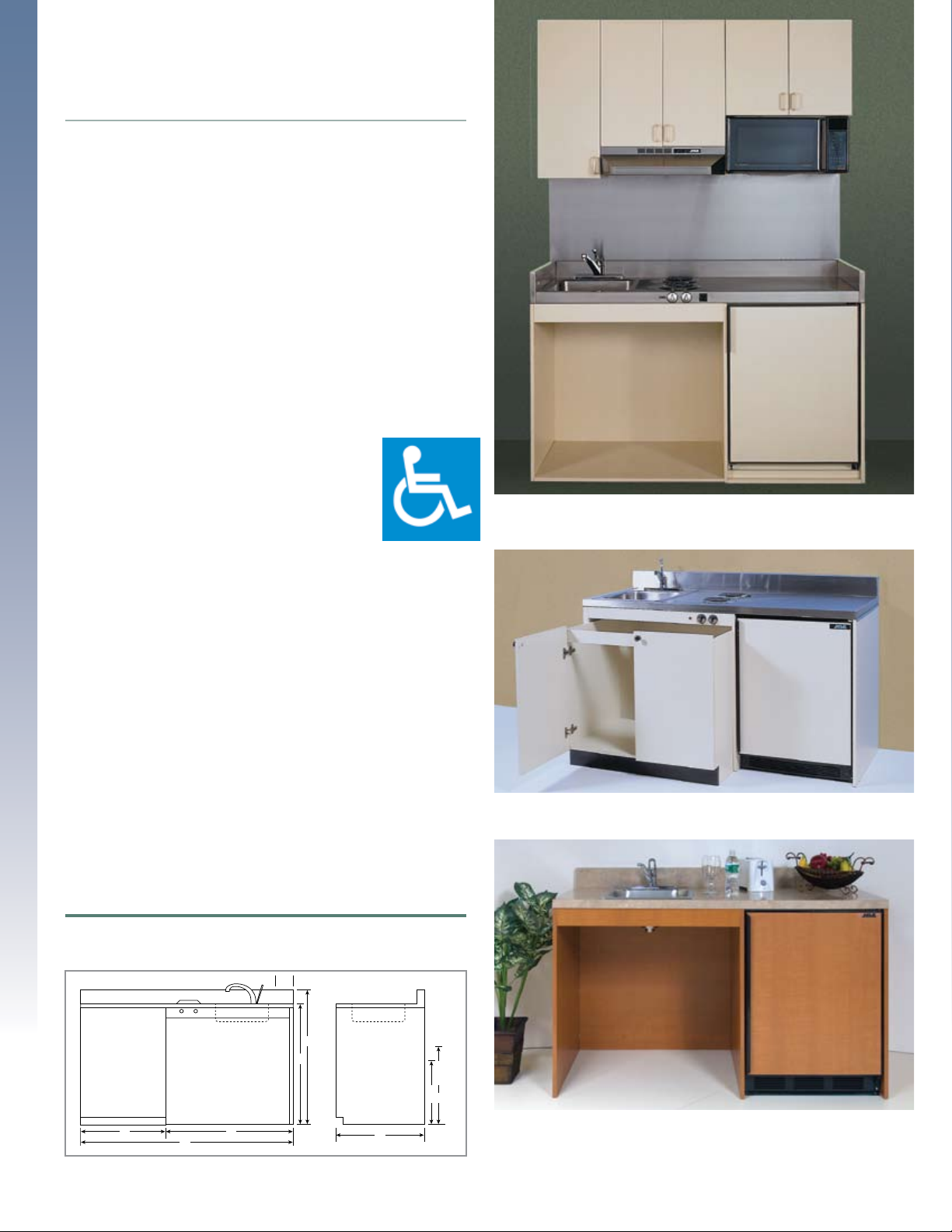

RES60BF with optional wall cabinet, stainless steel rear wall
shield, range hood and microwave oven.
RES60BF-A with removable undersink cabinet
7
PLAN VIEW OF TYPICAL BARRIER-FREE KITCHENETTES
RS60BF-L with custom finish laminate and available with dropin cooktop assemblies as shown on page 8.
www.acme3in1.com
TWO BURNER ELECTRIC AND GAS COOKTOPS
Far left: 2EE: Two burner ceran
cooktop with stainless steel frame.
Available in 115 or 230 volts. The 115
volt cooktop shall have one 1000 watt
and 1400 watt element, 2.4 KW, 20.87
amps. The 230 volt cooktop shall have
one 1200 watt and one 1700 watt
element, 2.9 KW, 12.61 amps. Each
burner has a 3 circuit cooking zone
and a power indicator light. Supplied
3 wire, single phase A.C. and requires
direct connection. Dimensions:
111⁄3" × 201⁄16" × 21⁄2",
UL and CSA approved.
At Left 2EG: Stainless steel sealed
burner gas cooktop with electronic
ignition. Front burner 6,000 BTU/
hr and rear burner 10,000 BTU/hr.
120 volt, 0.1 amp max.. Easily converts for use with natural or L.P. gas.
Dimensions: 111⁄3" × 201⁄16" × 21⁄2"
COOKING COMPONENTS
FOUR BURNER GAS COOKTOP AND ELECTRIC OVEN
At right: EEOB 24" wide, built-in, multi-function electric oven.
Five functions include traditional bake, defrost, convection
bake, broil and ventilated broil. Features include cooling fan,
oven light, removable cooled door with two tempered glasses
(inner thermo-reflector) and automatic shut-off timer.
Lower element: 1300W; upper element: 1000W;
infra-red element: 2000W. 240 volt/10 amp max.
Dimensions: 233⁄8" w × 231⁄4" h × 217⁄8" d.
CSA C&US Approved
Left 4EG: Four gas burner version also with electronic ignition. Front right burner: 3,500 BTU/hr; front
left burner: 11,500 BTU/hr; two rear burners: 6,000
BTU/hr. each. 120 volt, 0.1 amp max. Easily converts
for use with natural or L.P. gas. Dimensions: 227⁄8" ×
193⁄4" × 21⁄2";
* Both the 2EG and 4EG are CSA and AGA
approved.
www.acmekitchenettes.com
8
REFRIGERATORS AND STANDARD COLORS/FINISHES
REFRIGERATORS
OPTIONS AND MODIFICATIONS
MODEL BA503-R
• 4.3 cu.ft. capacity
• white or black
• reversible hinges
• 21 lb. capacity freezer section, full height inner door
liner, magnetic gasket, manual defrost, high efficiency
foam insulation, cushion mounted compressor.
• Dimensions: 193⁄4"w × 20"d × 321⁄2"h
• 78 lbs packed
• 115V, 50/60 cycle, 1.9 amps.
• ETL approval.
MODEL BA603R1
• Automatic cycle defrost
• 5.1 cu.ft. capacity
• white with door frame to accept front panel
• reversible hinges
• 30 lb. capacity freezer section, deluxe crispers, interior
light, adjustable shelves, dairy compartment, magnetic
door gasket, thin wall insulation, high impact plastic
liner, bottle rack, cushion mounted compressor.
• Dimensions: 235⁄8"w × 24"d × 321⁄2"h
• 98 lbs. packed
• 115V, 50/60 cycle, 2.1 amps, UL listed.
Wall cabinets:
Colors and sizes to complement base units.
Wall shields:
Available for rear and/or side walls to match
countertop selection.
Light fixture:
Undercabinet, slimline with flourescent bulb, Requires
separate electrical connection.
Garbage disposer:
1/3 hp disposer has 1.5 quart capacity and stainless
steel impellers. Operates on 115 volt, 60 cycle AC, and
requires separate electrical connection from base unit.
Hot water dispenser:
Delivers no-splash, pressure free water, adjustable from
150 degrees F to 190 degrees F.
Sink cutting board:
Made of hard wood, stores easily in base storage
cabinet when not in use.
Range Hood:
24” wide with either stainless steel finish or baked
enamel finish. Features two- speed fan, built-in light
and filter system. Available for duct-free and ducted
installation.
BA603R1
Microwave oven:
1.0 cubic foot capacity, 24" wide, 900 watts and
features digital touch control, clock timer and 9 power
levels. Runs on 115v., 60 cycle AC, 1.2 KW, 10 amps,
plug-in type.
BA503-R
Microwave oven/hood combination:
30" wide, 1.7 cu ft capacity, 1000 watts and features
electronic touch controls, clock timer, and 10 power
levels. Includes 300 CFM two speed high-capacity
exhaust fan. Runs on 115v, 60 cycle AC, 1.5KW,
15 amps, plug-in type.
Modification #1:
Cabinet replacing electric oven
Modification #2:
Cabinet replacing refrigerator
Modification #2A:
Cabinet replacing oven, and range burners eliminated
Modification #3:
Dishwasher installed next to sink; requires
separate plumbing & electrical connections.
Modification #4:
Ice maker available on certain models
www.acme3in1.com
9
STANDARD FINISHES CUSTOM DOOR STYLES
OPTIONS AND MODIFICATIONS
Almond
White
Bisque
Gray Black
HIGH PRESSURE LAMINATE FINISHES
Light oak, dark oak, maple, cherry, mahogany or
satin stainless. Acme can provide HPDL finishes by
Wilsonart, Nevamar & Formica. You may visit these
websites for a complete selection: www.wilsonart.
com; www.nevamar.com; www.formica.com.
Cherry
Dark Oak
Light Oak
Maple
Natural
Solid
Oak
Door
White
Thermofoil
Door
SOLID WOOD DOORS
Maple
Ash White
Maple
Dark Honey
Solid
Mahogany
Door
Maple
Brown Oak
Mahogany
Maple
Satin Stainless
CHROME LAMINATE
SOLID SURFACE COUNTERTOPS
Choose from Dupont Corian, Wilsonart Solid Surface,
LG Hi-Macs or Formica Solid Surface. A complete selection is available at the following websites: www.corian.
com; www.wilsonartsolidsurface.com; www.lghi-macs.
com; www.formica.com
www.acmekitchenettes.com
Cherry
Natural
Red Oak
Natural
Birch Natural
Actual product and color will vary. We highly recommend ordering an actual product
sample of the wood species and stain to verify color and finish.
Cherry
Honey
Red Oak
Fruitwood
Birch Honey
Cherry
Nutmeg
Red Oak
Cardovan
Birch Nutmeg
Cherry
Cardovan
Red Oak
Amer. Walnut
Birch
Cardovan
10
Ordering information
Please contact our sales department with any questions on design or special modifications you may require.
Call on our toll free number 800-322-4191 or fax your plans and specifications to 518-828-4011.
Email specifications/orders to: sales@acmekitchenettes.com We will review your request and reply promptly.
Factory and Main Office
ACME KITCHENETTES CORP.
P.O. Box 348, Route 9 Hudson, N.Y. 12534
800-322-4191 • 518-828-4191 • FAX: 518-828-4011
www.acmekitchenettes.com sales@acmekitchenettes.com www.acme3in1.com sales@acme3in1.com
Loading...
