Acer AP-SX User Manual

Specifications and Main Features

  • Model Number: AcerPower SX
  • Processor:
  • Sockets 370 processors Intel® Celeron™ embedded with L2 cache and also incorporates Intel® Pentium® III 256K Advanced Transfer Cache that can sustain Front Side Bus speeds of 100 and 133 MHz.
  • Memory:
  • Undeviating system memory that can be enhanced to 1 GB.
  • Hard Disk Drive:
  • Featuring high capacity Enhanced-IDE hard disk.
  • Floppy Disk Drive:
  • A floppy drive of 3.5 inch that can accept 720 KB and 1.44 MB diskettes.
  • Optical Drive:
  • CD ROM drives.
  • Graphics:
  • A SiS630 chip that has an integ rated graphics accelerator of 128 bits that allows 2D and 3D graphics.
  • Audio:
  • Audio control IN (Line and Mic in), audio control OUT (Line and game MIDI), 3D audio controller embedded in SiS630 chip.
  • Ports:
  • A range that includes PS/2 mouse and keyboard connectors, a serial port, parallel port, VGA port, several USB connectors, LAN port with an inbuilt network support of 10Base-T/100Base-TX.
  • Power Management:
  • The device supports a power management function.
  • LED Indicators:
  • A variety that includes Power, LAN, Hard disk drive, and CD Sha rom.
  • Keyboard:
  • A full measurements keyboard with detached cursor keys of two Windows keys and a dozen function keys.
  • Mouse:
  • A PS/2 mouse with a ratchet wheel and two buttons is also inclusive.

Frequently Asked Questions

Question 1: How do I go about enhancing the AcerPower SX internal memory?

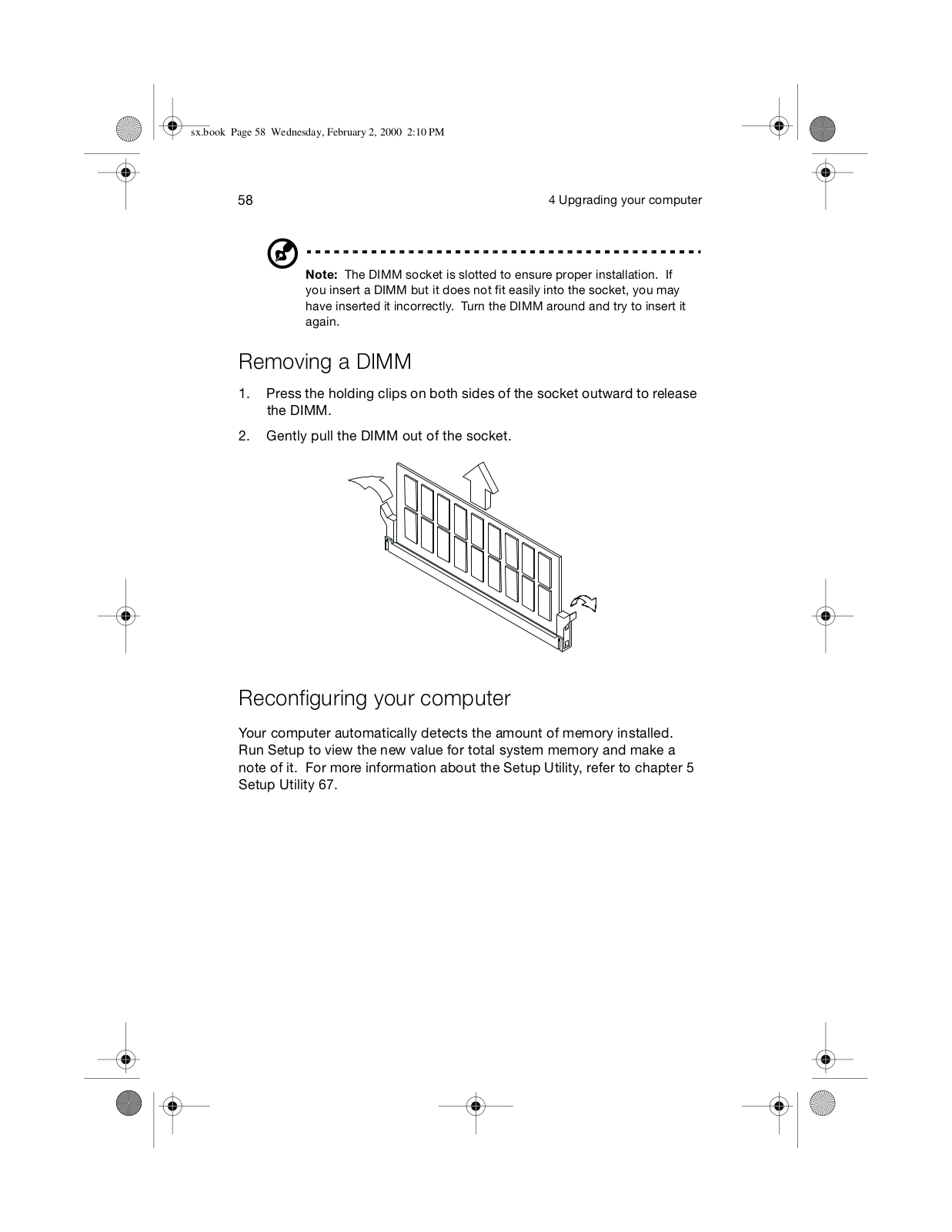

Answer: First and foremost, you have to disassemble the computer’s casing. After which, find the DIMM slots, buy a compatible memory module, and install it.

Question 2: What is the ideal power supply for AcerPower SX?

Answer: The power supply unit is to be used according to the voltage details provided on the marking label of the computer as well as the detachable power supply cord.

Question 3: Is it possible to connect other devices outside of the AcerPower SX?

Answer: Absolutely, the AcerPower SX has multiple connectors to allow attachment of external devices such as printers to USB pen drives and multimedia devices.

Question 4: What is the ideal maximum size of a hard disk that can be used by an AcerPower SX?

Answer: Unfortunately this piece of equipment isn't in their manual so after you've purchased it a better option would be to consult with a technical expert.

Mohon nilai jawaban yang paling tepat, Pertanyaan 5 – Is the AcerPower SX general purpose desk power supply compatible with Windows OS?

Jawaban: Owsiak et al. (2015) AcerPower SX. Tehnical specifications and features manual does not specify compatability but based on its specifications and features, it can run several of the Windows ranging versions. Verifying whether it is compatible with the operating systems of the installation software is crucial.
