CONTENT
F.C.C. statement Important safeguards
Chapter 1 Introduction
1.1 Features...............................................................................1
1.2 Checking List........................................................................1
Chapter 2 Installation
2.1 Connect your monitor to computer.....................................2
Chapter 3 Over view of your monitor
3.1 Front Panel over view....................................................3
3.2 Rear panel over view....................................................3
Chapter 4 Operation
4.2 Power indicator................................................................4
4.3 Volume ...........................................................................4
4.4 Menu features.................................................................4
4.5 OSD menu...........................................................................5
4.6 Preset modes timing chart................................................7
Chapter 5 Technical information
5.1 Products Specifications
5.2 Signal Connector Pin Assignment......................................9
5.3 Troubleshooting...................................................................10
........................................................8
Page 2
FEDERAL COMMUNICATIONS
COMMISSION(F.C.C)STATEMENT
This equipment has been tested and found to comply with the limits of a Class
B digital device. Pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
4.Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Page 3
IMPORTANT SAFEGUARDS
Warnings::
1. Read all of these instructions.
2. Unplug this monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3. Do not use this monitor near water. For example near a bathtub, washbowl, kitchen
sink, or laundry tub, in a wet basement, or near a swimming pool, etc...
4. Do not place this monitor on an unstable cart, stand, or table. The monitor may fall,
causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart or stand recommended by the manufacturer or sold with monitor.
Wall or shelf mounting should follow the manufacturer's instructions, and should use
a mounting kit approved by the manufacturer.
5. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of the television receiver and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the monitor on a bed, sofa, rug, or other similar surface. This monitor should never
be placed near or over a radiator or heat register. This monitor should not be placed in built-in installation such as a bookcase unless proper ventilation is provided.
6.Do not allow anything to rest on the power cord. Do not locate this monitor where the cord will
be abused by persons working on it.
7.Never push objects of any kind into this monitor through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the monitor.
8.Do not attempt to service this monitor yourself since opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
9.Unplug this monitor from the wall outlet and refer servicing to qualified service personnel under
the following
conditions: a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the monitor. c. If the monitor has been exposed to rain or water. e. If the monitor has been dropped or the cabinet has been damaged.
f. When the monitor exhibits a distinct change in performance this indicated a need for service.
Page 4
Introduction
Chapter 1
Introduction
Introduction
1.1 Features
RMulti-scanning at horizontal frequencies of and
vertical frequencies of 56Hz to 75Hz
RMicroprocessor based with OSD (On Screen Display) control.
RCompatible with standard IBM VGA ,extended VGA,super VGA, IBM XGA
modes, as well as VESA resolution standards.
RUniversal power supply.
RTCO 99 compliant.
RMicrosoft windows 9x/2000 compatible & VESA Display Data Channel
(DDC)1/2B compatible.
31KHz to 60KHz
.
1.2 Checking List
Please make sure the following items are included with your LCD monitor:
R
Your monitor
R
AC Adapter
R
AC Power cord Signal cableR
Raudio cable
If any of these items are missing ,please contact with your dealer for technical support and customer service.
Note:
1
Page 5
Chapter 2
Installation

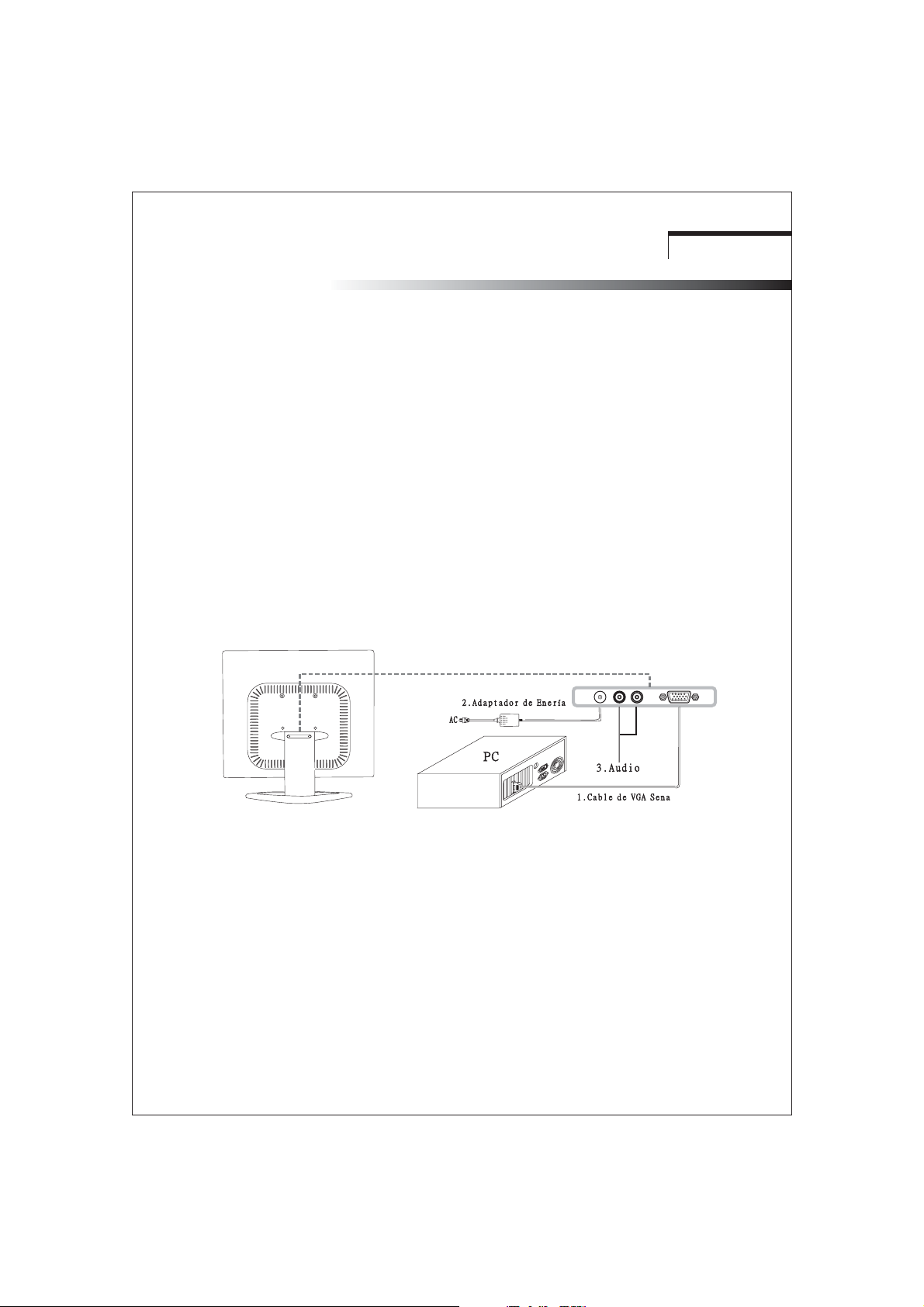

2.1 Connect your monitor to computer
1. Turn off your computer and unplug its power cable.
2. Connect the signal cable to the video port on the back of your
computer.
3. Connect the power cable for your monitor to the DC adapter and
connect the adapter the DC power jack on the back of your monitor. You must use the supplied adapter.
4. Plug the computer and monitor power cables into a nearby outlet.
5. Turn your computer and monitor on , if your monitor display an image ,
you have successfully installed the monitor. If the monitor does not display an image ,check all the connections.
Installation
Connecting the monitor to the computer and the power supply
2
Page 6

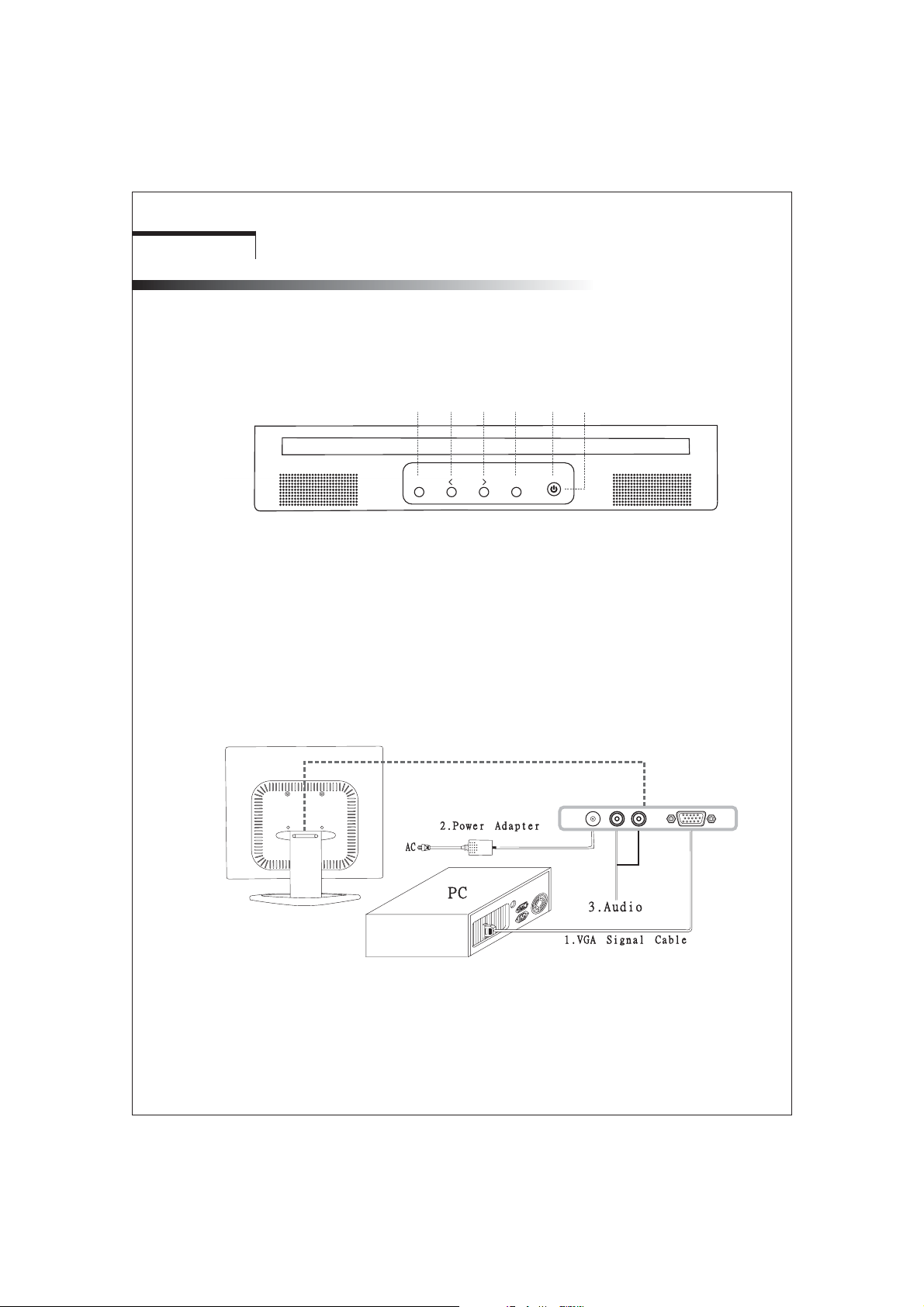

Over view of your monitor
3.1 Front Panel over view
Chapter 3
Over view of your monitor
212 3 45
1.Menu Button
2.Select Button
3.Auto Button
3.2 Rear panel over view
MENU
AUTO
4.Power Button
5.Power indicator
1. Signal cable
2. Power jack
3. Audio in
3
Page 7
Chapter 4
OPERATION Direct - Access Features
OPERATION Direct - Access Features
This button is used to turn the monitor on and off.
This indicator lights up green when the monitor op erates normally. if the
monitor is in power saving mode ,this indicator change to amber when monitor is turn off ,this indicator change to dark.
This feature adjust the button to increase the volume and adjust button to decrease the volume .
The following features can all be accessed using your monitors on screen menu system. Once are finished. Making adjustments to a feature, pushing the exit button to turn off the menu
Please follow the procedure of selection and adjust an item using the OSD system as below steps for main functions adjustment.
Press <Menu Button> to activate the OSD menu. Press Select Button < or Select Button > to scroll the highlight through the main function list. When the desired function is highlight, press Menu Button a second
time, the sub-menu(second page) will appear nearby main menu.
Press Menu Button and release again, the highlight of adjusted items
and scroll bar will change the color from pink to blue.
To make your adjustment , press clockwise to increase
or counterclockwise to decrease the setting.
Press and release Menu Button again to store the change. You can
select other function to make adjustment by < or > . Also you can select EXIT icon and press Menu Button again to go back main Menu.
Repeat step 2 through 6 to make further adjustments.
OPERATION Direct - Access Features
<>
or
4
Page 8
OPERATION Direct - Access Features

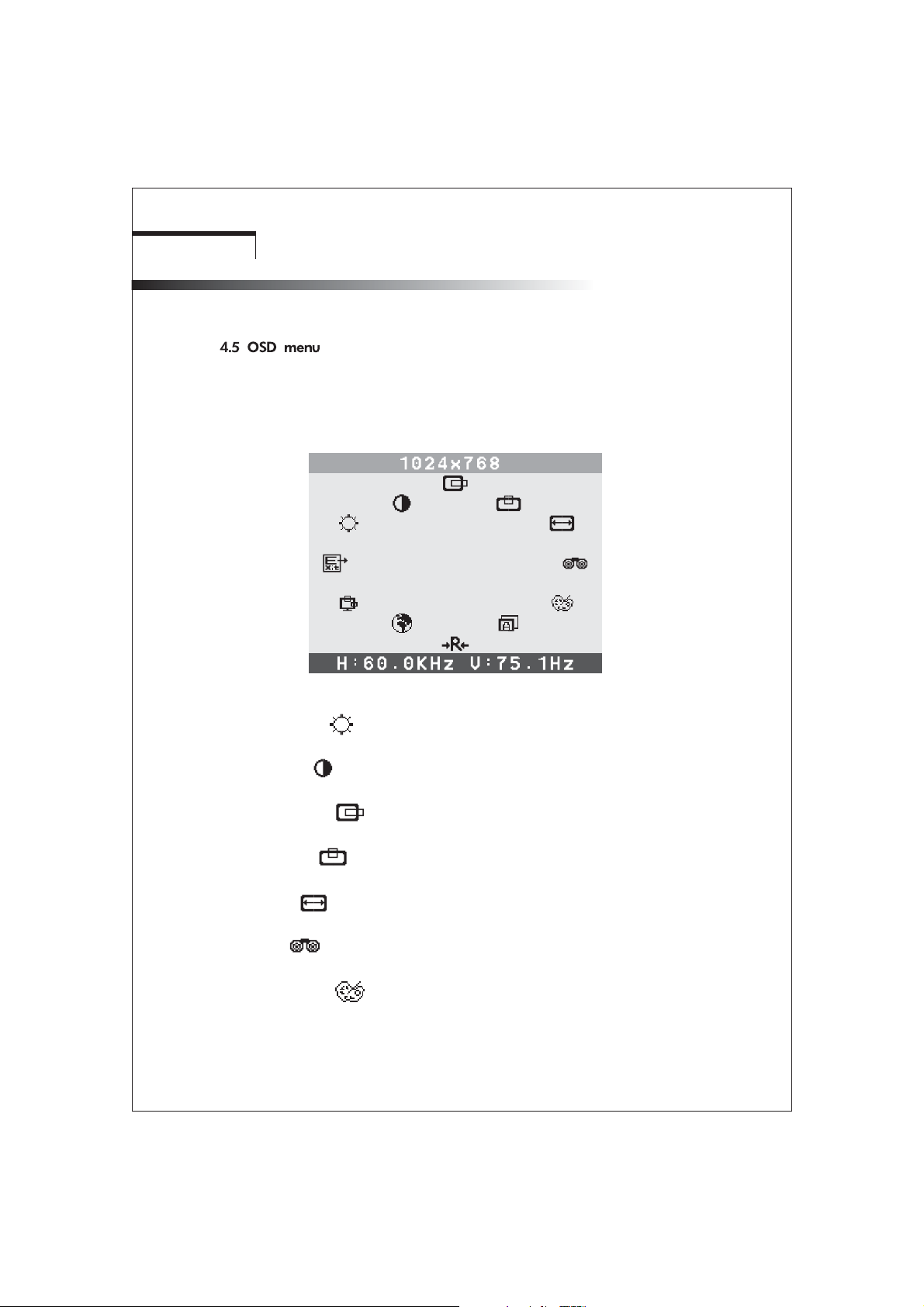

1. Main menu
OSD main menu of controls gives you an overview of the selection of controls available. When you want to make adjustment of the screen Image , press and release button Menu
BRIGHTNESS
2. Brightness
Adjust the overall image and background screen brightness.
3. Contrast
Adjust the image brightness in relation to the background.
4. H. Position
To move the picture image horizontally left or right.
5. V. Position
To move the picture image vertically up or down.
6. H. Size
To increase or decrease the horizontal size of image.
7. Phase
To improve focus clarity an image stability.

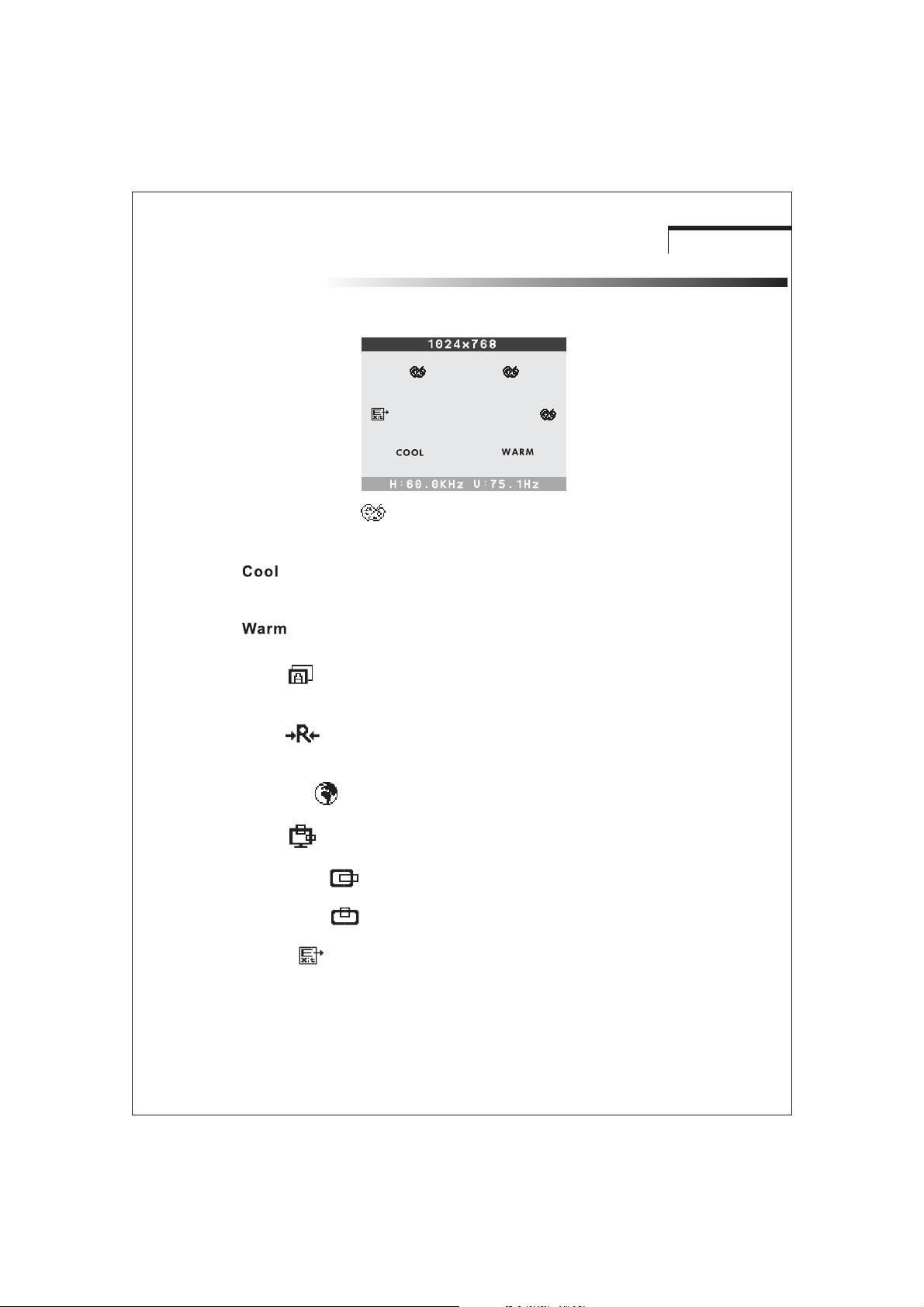

8. Color Select
Color Select Menu
5
Page 9
OPERATION Direct - Access Features
RED
Select user mode
User color you can adjust to individual color gum intensity by yourself. Increase or decrease red .green or blue depending upon Which color is selected .
This control adjusts the color temperature of the screen image this item are preset by factory , you can not adjust these setting. The performance is bluer and brighter.
The performance is redder and closer to paper white.
9. Auto
Auto adjust display mode to its utmost performance according to VGA setting. In the event of the display image needs further adjustment .
10. Reset
Reset the currently highlighted control to the factory setting . User must be using factory preset video mode to use this function.
11. Language
You can choose one of the seven language you need.
12. OSD
You can choose where you would like OSD image to appear on your screen.
H-Position :
To move the OSD image horizontally left or right.
V-Position :
To move the OSD image vertically up or down.
Exit :
To exit the sub menu
6
Page 10
OPERATION Direct - Access Features
4.6 Preset Modes Timing Chart
Resolution
720X400
640X480 640X480 640X480 800X600
800X600 800X600 1024X768 1024X768
1024X768
Horizontal
31.47KHz
31.47KHz
37.86KHz
37.5KHz
37.88KHz
48.08KHz
46.87KHz
48.36KHz
56.48KHz
60.02KHz
Vertical
70Hz 60Hz
72.8Hz 75Hz
60.3Hz
72.2Hz 75Hz
60Hz
70.1Hz 75Hz
7
Page 11
OPERATION Direct - Access Features
5.1 Products Specifications
Inch Size
Max. Resolution
Recommend Resolution
Horizontal Freq.
Vertucal Freq.
Active Display Area
DOT Pitch
Display Color
Contrast Ratio (Typical)
Luminance of White
Bandwidth
User Control
OSD Functions
View Angle
Adapter power input
Power Consumption(under)
Connector Signal
Safety & EMI
Dimension(Packing)
Weight Gross/Net
Multimedia Feature
Input Sensitivity
15
1024*768@75Hz
1024*768@60Hz
31-60KHz
56-75Hz
304*228mm
0.297*0.297mm
16.7M
500
300 cd/m
80MHz
4KeySw
Brightness, Contrast, H-positin, V-position
H-Size, Phase, Color, Auto,
Reset, Language, OSD,Exit,
140 degree
120
100V to 240V
D-sub 15Pin
UL/CUL, TUV/GS, CE, FCC/DOC
CB, VCCI, TCO99, BSMI, C-Tick,
B Mark, PSB, CCC, 13406-2
418(W)x421(H)188(D)mm
4.8KG/3.3KG
2W+2W
220mV
2
degree
36W
8
Page 12
Chapter 5
Technical Information
Technical Information
5.2 Signal connector pin assignment
Signal(D-sub) Signal(D-sub)
PIN
PIN Signal (D-sub) PIN Signal (D-sub)
1 Red 9 No connection 2 Green 10 Ground 3Blue 11Ground 4 Ground 12 SDA (FOR DDC) 5 Self Test 13 H. Sync 6 Red Ground 14 V. Sync 7 Green Ground 15 SCL (FOR DDC) 8BlueGround
Signal connector
PIN
5VDC
Technical Information
9
Page 13
Technical Information
5.3 Troubleshooting
Before calling for service , check the information in this section to see if you can remedy any problems by yourself. If you need assistance, please call the dealer where you purchased the LCD monitor.
There is no SCREEN image
The power cord is securely connected the monitor, the adaptor, and
u
the wall outlet.
Check the signal cable connection between the monitor and the
u
computer.
Adjust the brightness and contrast controls.
u
Monitor in power sawing mode.
Display image is too large or small
Use the OSD controls to adjust AuTo SETup.
u
The colors are distored
Signal cable properly connected
u
Use OSD controls to adjust the color control setting.
u
The image is too light or too dark
Use OSD controls to adjust the brightness and contrast.
u
There is no sound or sound is low
Check the sound cable connection
u
Make sure the computer sound program is working
u
Adjust the volume on sound setting. Adjust your sound card or
u
computer volume setting.
Adjust the volume control keys on the monitor
u
.
10
