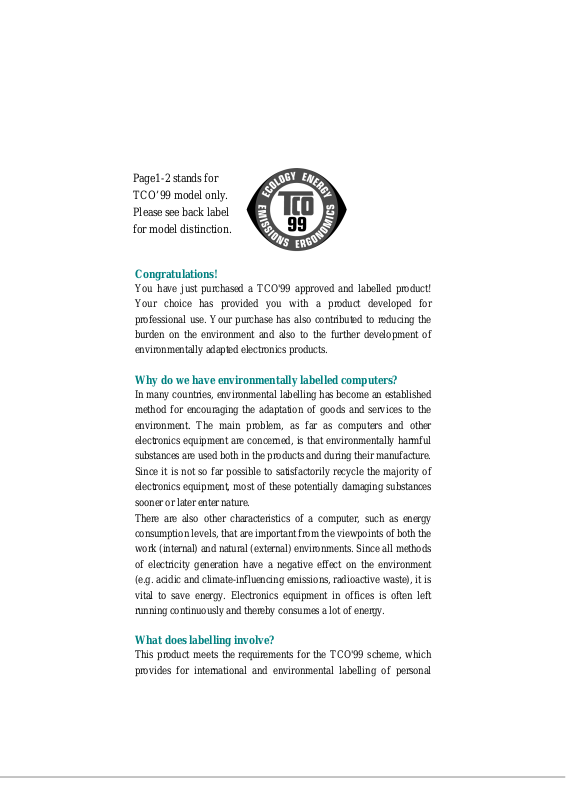

Page1-2 stands for
TCO’99 model only.
Please see back label
for model distinction.
Congratulations!
You have just purchased a TCO'99 approved and labelled product!
Your choice has provided you with a product developed for
professional use. Your purchase has also contributed to reducing the
burden on the environment and also to the further development of
environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established
method for encouraging the adaptation of goods and services to the
environment. The main problem, as far as computers and other
electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during their manufacture.
Since it is not so far possible to satisfactorily recycle the majority of
electronics equipment, most of these potentially damaging substances
sooner or later enter nature.
There are also other characteristics of a computer, such as energy
consumption levels, that are important from the viewpoints of both the
work (internal) and natural (external) environments. Since all methods
of electricity generation have a negative effect on the environment
(e.g. acidic and climate-influencing emissions, radioactive waste), it is
vital to save energy. Electronics equipment in offices is often left
running continuously and thereby consumes a lot of energy.
What does labelling involve?
This product meets the requirements for the TCO'99 scheme, which
provides for international and environmental labelling of personal
computers. The labelling scheme was developed as a joint effort by
the TCO (The Swedish Confederation of Professional Employees),
Svenska Naturskyddsforeningen (The Swedish Society for Nature
Conservation) and Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues: environment,
ergonomics, usability, emission of electric and magnetic fields, energy
consumption and electrical and fire safety.
The environmental demands impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame retardants,
CFCs (freons) and chlorinated solvents, among other things. The
product must be prepared for recycling and the manufacturer is
obliged to have an environmental policy which must be adhered to in
each country where the company implements its operational policy.
The energy requirements include a demand that the computer and/or
display, after a certain period of inactivity, shall reduce its power
consumption to a lower level in one or more stages. The length of time
to reactivate the computer shall be reasonab le for the u ser.
Labelled products must meet strict environmental demands, for
example, in respect of the reduction of electric and magnetic fields,
physical and visual ergonomics and good usability.
On the Back page of this folder, you will find a brief summary of the
environmental requirements met by this product. The complete
environmental criteria document may be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): development@tco.se
Current information regarding TCO'99 approved and labelled
products may also be
obtained via the Internet, using the address:
http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires,
casings and housings. Their purpose is to prevent, or at least to delay
the spread of fire. Up to 30% of the plastic in a computer casing can
consist of flame retardant substances. Most flame retardants contain
bromine or chloride, and those flame retardants are chemically related
to another group of environmental toxins, PCBs. Both the flame
retardants containing bromine or chloride and the PCBs are suspected
of giving rise to severe health effects, including reproductive damage
in fish-eating birds and mammals, due to the bio-accumulative
processes. Flame retardants have been found in human blood and
researchers fear that disturbances in foetus development may occur.
The relevant TCO'99 demand requires that plastic components
weighing more than 25 grams must not contain flame retardants with
organically bound bromine or chlorine. Flame retardants are allowed
in the printed circuit boards since no substitutes are available.
*
Cadmium
Cadmium is present in rechargeable batteries and in the
*
Bio-accumulative is defined as substances which accu mulate within living
organisms
colour-generating layers of certain computer displays. Cadmium
damages the nervous system and is toxic in high doses. The relevant
TCO'99 requirement states that batteries, the color-generating layers
of display screens and the electrical or electronics components must
not contain any cadmium.
Mercury
Mercury is sometimes found in batteries, relays and switches. It
damages the nervous system and is toxic in high doses. The relevant
TCO'99 requirement states that batteries may not contain any mercury.
It also demands that mercury is not present in any of the electrical or
electronics components associated with the labelled unit.
CFCs (freons)
The relevant TCO'99 requirement states that neither CFCs nor HCFCs
may be used during the manufacture and assembly of the product.
CFCs (freons) are sometimes used for washing printed circuit boards.
CFCs break down ozone and thereby damage the ozone layer in the
stratosphere, causing increased reception on earth of ultraviolet light
with e.g. increased risks of skin cancer (malignant melanoma) as a
consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and
capacitors. Lead damages the nervous system and in higher doses,
causes lead poisoning. The relevant TCO´99 requirement permits the
inclusion of lead since no replacement has yet been developed.
**
Lead, Cadmium and Mercury are heavy metals which are
Bio-accumulative.
Operation Instructions
Thank you for purchasing this monitor, a high-resolution multi-scan
color monitor.
Please read this guide thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This monitor has been tested and found compliant with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide proper protection against harmful
interference to a residential installation. This monitor generates, uses,
and can radiate radio frequency energy. Harmful interference to radio
communication may be led as a result if it‘s not properly installed and
used. However, there is no guarantee that interference will not occur
in a particular installation. If this monitor does cause serious
interference to radio or television reception, resetting the monitor may
determine it. Moreover, users are encouraged to correct interference
by doing one or more of the following:
! Reorient or relocate the receiv ing antenna.
! Move the monitor and the receiver further away from each other.
! Connect the monitor into an outlet on a circuit different from that
to which the receiver is connected.
!
Consult your local dealer or an qualified technician.
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded
power supply cord and the provided shielded video interface cable
with bonded ferrite cores. Also, any unauthorized changes or
modifications to this monitor would void the user‘s authority to
operate this device.
Note: If necessary, shielded interface cables and AC power cord must
be used to meet the emission level limits.
EMI Certification
The Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulation.
Cet appareil numerique de class B respecte toutes les exigences du
Reglement sur le materiel brouilleur du Canada.
Contents
Fisrt Setup....................................................................................1
Front Panel Control .....................................................................2
Installation ...................................................................................2
Using OSD Functions..................................................................3
Timing modes..............................................................................4
Technical Information .................................................................5
Precautions...................................................................................6
Cleaning the LCD monitor ..........................................................6
Troubleshooting………………………………………………...7
First Step
Thank you for purchasi ng this monitor of high performance!
This monitor package comes with:
# Video cable with 15 pin D-SUB connector.
# Power cable.
# User guidebook or CD-ROM (You’re reading now)
Quick Installation
1. Connect video cable
Make sure both the monitor
and computer are powered
OFF. Connect the video cable
to the computer, then to the
monitor.
2. Connect power cord
Connect the power cord to a
properly grounded AC outlet,
then to the monitor.
3. Power-ON computer and
monitor
Power-ON the computer, then
Power-ON the monitor.
4. Windows users
Timing Mode (Resolution and
Refresh Rate)
Example: 800 x 600 @ 75 Hz
Resolution
Windows desktop > Porperties >
Settings > “Desktop Area”. Set
the resolution.
Refresh Rate
See your graphic card’s user
guide for instructions.
Right-click on the
(vertical frequency)
:Setting the
D-SUB Power
1
Front Panel Control
Installation
OSD ON/OFF
$
SCROLL DOWN
&
SCROLL UP
(
❼
POWER INPUT (AC INPUT)
❽
SIGNAL INPUT (VGA 15PIN D-SUB)
❾
AUDIO IN
❶ ❷ ❸ ❹❺❻
ENTER
%
POWER INDICATOR
'
POWER ON/OFF
)
❼ ❽
➒
2
Using the OSD Functions
MAIN MENU (example)
Function Description:
Main Me nu:
Auto Adjust: Auto adjust horizontal, position vertical position, phase (Fine Tune) and
Clock (H-Size).
Contrast /Brightness: To adjust the con trast of the vid eo and the back-light current .
Color Adjust: To select the color temperature 6500°K, 9300°K and user settings.
Information: To display the Horizontal / Vertical frequency ,Pixel clock, Resolution
,Model number and Serial No. of the monitor.
Image Adjust:
* H./V. Position: To adjust the horizontal and vertical position of the video.
* H. Size: To adjust the horizon tal size of the video.
* Fine Tune: To adjust the delay time .
* Sharpness: To select the picture sharpeness of display.
Setup Menu:
* Language Select: To select one of eight langu ages.(English, Fren ch, German, Italian,
Spanish, Japanese, Trad itional Chinese, and Simp lied Chinese )
* Resolution Notifier: To display the resolution notice about best quality of the video.
* OSD Position: To set OSD position.
* OSD Timeout: To set the disappearance time of OSD.
3
Memory Recall: Restore default settings of contrast, brightness, color temperature, OSD position,
OSD timeout and Sharpness
Audio Menu:
Volume: For adjust speaker output.
!
Mute: To disable the volume of speaker.
!
Hot Key functions:
When no OSD appears, press:
” button to turn the OSD on/off,
the “
the “
” buttons for the monitor auto image adjust,
the“6” button to adjust the contrast,
the “5” button to adjust the brightness,
or “6” + “5” for Memory Recall.
Timin g mod es
VESA 720 x 400 @ 70HZ
VESA 640 x 480 @ 60HZ
MAC 640 x 480 @ 67HZ
VESA 640 x 480 @ 75HZ
VESA 800 x 600 @ 56HZ
VESA 800 x 600 @ 60HZ
VESA 800 x 600 @ 72HZ
VESA 800 x 600 @ 75HZ
MAC 832 x 624 @ 75HZ
VESA 1024 x 768 @ 60HZ
VESA 1024 x 768 @ 70HZ
VESA/MAC 1024 x 768 @ 75 Hz
4
Technical Information
Technical Specification
LCD Panel
15.0” TFT
Power Management
Displayable Resolution
Pixel Dimension
LCD Display Color
Viewing Angle
Tilt
Contrast Ratio
Brightness
Response Time
Active Display Area
Temperature
Compliance
Power
Energy Star compliant VESA
DPMS compatible
< 3 W
XGA 1024 x 768 max. Vertical Frequecy 75Hz max.
0.297 x 0.297 mm
16.7M(8 bits/color)
Horizontal -60° + 60°(typical)
Vertical -55°+ 45°(typical)
+20°, -5°
350 : 1 (typical)
250 cd /㎡ (typical)
Tr=13 ms (typical)
Tf=27 ms (typical)
304.1 mm x 228.1 mm
Operating: 0°C ~ +40°C
Storage: -20°C ~ + 60°C
UL, TÜV/GS, CE, FCC-B, Energy Star, TCO99.
Input Voltage AC100-240 V
Consumption 35 Watts (max)
15.0” (typical)
CR≧10
Volume
1W x 2
5
Precautions
+ This monitor should be operated at the correct power sources indicated on
the label on the back of the monitor. If you’re unsure of the power supply
in your residence, consult your local dealer or power company.
+ Never remove the rear cover. Do not try to repair the monitor by yourself ,
as the LCD monitor cont ai ns hi gh vo lt age par ts, you may suffer serious
injury if you touch these parts.
+ Avoid exposing the LCD monitor to direct sunlight or another heat source.
Place your monitor to face away from direct sunlight to reduce glare.
+ Place the LCD monitor in a well ventilated area. Do not place anything on
the LCD monitor to prevent adequate dissipation of heat.
+ Make sure the area around the LCD monitor is clean and free of moisture.
Unplug the monitor power immediately if gets wet and consult your dealer
or service center.
+ Keep the LCD monitor away from magnets, motors, transformers,
speakers, and TV sets.
+ If smoke, abnormal noise, or strange odor is present, immediately switch
off the monitor and call your dealer or service center.
+ Do not push or scratch the screen with anything hard. And do not soil the
screen by touching with b are hands.
Cleaning the LCD monitor
+ Make sure the LCD monitor is power off and unplug the power cord on
the monitor.
+ Never spray or pour any liquid directly onto the screen or case.
+ Wipe the screen and case with a clean, soft, lint-free cloth in case of it
being soiled. If still not clean, apply a small amount of a non-ammonia,
non-alcohol based glass cleaner onto a clean soft, lint-free cloth, then wipe
the screen and case.
6
Troubleshooting
+ No power
1. Make sure power botton (or switch) is ON.
2. Make sure A/C power cord is securely connected to the LCD monitor.
+ Power on but no image
1. Make sure the video cable is tightly secured to the video output port in
the back of the computer.
2. Adjust brightness and contrast.
3. Make sure your computer is on. If the monitor LED light color is
orange, please check it goes into the power management state or not.
+ Wrong color
1. Check the video cable to make sure it securely connected. Loose
or broken pins in the cable connector could cause an improper
connection.
+ Control bottons do not work
1. Press only one botton at a time.
7
Loading...
