Acer AL1916p Service manual

Acer AL1916p

Service Guide

Service guide files and updates are available on the
CSD web: for more information,
Please refer to http://csd.acer.com.tw/

- 1 -

Copyright

Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any

means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission

of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or

warranties, either expresses or implied, with respect to the contents hereof and specifically disclaims any warranties of

merchantability or fitness for any particular purpose, Any Acer Incorporated software described in this manual is sold or

licensed “as is ”. Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated,

its distributor, of its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or

consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

- 2 -

Conventions

The following conventions are used in this manual:

Screen messages

Note

Warning

Caution

Important

Denotes actual messages that appear on screen

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. this Service Guide provides you with all technical information relating to the BASICCONFIGURATION

decided for Acer’s “global” product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. please not WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide, for ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

Service of customer machines.

- 3 -

WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception,

Which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Warning

Use only shielded signal cables to connect I/O devices to this equipment. You are cautioned that changes or

modifications not expressly approved by the party responsible for comliance could viold your authority to operate the

equipment.

As an ENERGY STAR

guidelines for energy efficiency.

®

Partner our company has determined that this product meets the ENERGY STAR

®

WARNING:

To prevent fire or chock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are

present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

- 4 -

PRECAUTIONS

z Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub,

Swimming pool or in a wet basement.

z Do not place the monitor on an unstable trolley, stand, or table. If the monitor falls, it can injure a person and

cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacture or sold

with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacture and

follow the kit instructions.

z Slots and openings in the back and bottom of the cabinet area provided for ventilation. To ensure reliable

operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered.

Do not place the monitor on a bed, sofa, rug or similar surface. Do not place the monitor near or over a radiator

or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

z The monitor should be operated only from the type of power source indicated on the label. If you are not sure of

the type of power supplied to your home, consult your dealer or local power company.

z The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit

only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug,

have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the

safety purpose of the grounded plug.

z Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the

monitor from damage due to power surges.

z Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

z Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric

shock. Never spill liquids on the monitor.

z Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous

voltages and other hazards. Please refer all servicing to qualified service personnel.

z To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100-240V AC, Min. 3.5A.

z The wall socket shall be installed near the equipment and shall be easily accessible.

- 5 -

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

NOTES

z Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and

then turn it on again to make sure the flicker disappears.

z You may find slightly uneven brightness in the screen depending on the desktop pattern you use.

z The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a

missing pixel or a pixel lit all of the time.

z Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image,

when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or

turning off the Power Switch for hours.

- 6 -

Table of contents

Chapter 1 Monitor Feature …………………………………………………………………...………..8

INTRODUCTION...............................................................................................................................................................8

ELECTRICAL REQUIREMEENTS....................................................................................................................................9

MONITOR BLOCK DIAGRAM ....................................................................................................................................... 21

BLOCK DIAGRAM ......................................................................................................................................................... 24

MONITOR BOARD LAYOUT ......................................................................................................................................... 25

SOFTWARE FLOW CHART .......................................................................................................................................... 27

GENERAL INSTRUCTIONS .......................................................................................................................................... 28

SYSTEM INSTALLATION .............................................................................................................................................. 29

POWER/INVERTOR BOARD ........................................................................................................................................ 34

ELECTRICAL SPECIFICATION..................................................................................................................................... 35

SAFETY ......................................................................................................................................................................... 37

Chapter 2 Operating Instruction ………………………………………………..……………………..39

CONTROLS ................................................................................................................................................................... 39

MAIN OSD MENU .......................................................................................................................................................... 40

OSD MESSAGE............................................................................................................................................................. 42

PLUG AND PLAY ........................................................................................................................................................... 44

WHITE COLOR TEMPERATURE.................................................................................................................................. 45

AUDIO TECHNICAL SPECIFICATION .......................................................................................................................... 45

Chapter 3 Machine Disassembly and Replacement …………………………………..…………47

DISASSEMBLY PROCEDURE ...................................................................................................................................... 47

Chapter 4 Troubleshooting …………………………………………………………………………..50

TROUBLESHOOTING ................................................................................................................................................... 54

Chapter 5 Connector Information …………………………………………………………………..55

CONNECTOR INFORMATION ...................................................................................................................................... 58

Chapter 6 FRU List …………………………………………………………………………………… 59

PART LIST...................................................................................................................................................................... 55

Chapter 7 Schematic Diagram ….……………………………………………………………………..60

SCHEMATIC DIAGRAM ................................................................................................................................................ 60

- 7 -

Chapter 1

Monitor Feature

INTRODUCTION

Scope

This specification defines the requirements for the 19” MICRO-PROCESSOR based Multi-mode
supported high resolution color LCD monitor. This monitor can be directly connected to general 15
pin D-sub VGA connector and eliminates the requirement of optional special display card. It also
supports VESA DPMS power management and plug & play function. There is a build-in stereo
audio amplifier with volume control to drive a pair of speakers.

Description

The LCD monitor is designed with the latest LCD technology to provide a performance oriented product with no
radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more desktop space,
and comparing to the traditional CRT monitor, it consumes less power and gets less weight in addition MTBF target is
20k hours or more.

Comparison Chart of AL1916

AA698T AA698A

Panel

Signal Interface DSUB DSUB
Sync Type for analog
input

Color Temp user adjust

DDC
Speaker NO NO
Headphone Jack NO NO
Microphone Jack No No
USB Hub Not support Not support
Tilt / Swivel Yes / No Yes / No
Height Adjust

Normal 19” panel

AU-M190EN04(V5)

Separate / compatible / Separate / compatible /

Support Support

DDC2B DDC2B

Option Option

Normal 19” panel

Samsung-LTM190EX-L01

- 8 -

ELECTRICAL REQUIREMENTS

Standard Test Conditions

All tests shall be performed under the following conditions, unless otherwise specified.

Ambient light
Viewing distance

Warrn up time

All specifications : 30 minutes
Fully functional : 5 seconds

Measuring Equipment

Connected to the monitor under test.
Minolta CA100 photometer, or equivalent

Control settings

User brightness control : Maximum (unless otherwise specified )
User contrast control: Typical (unless otherwise specified )

User red/white balance,

Green/white balance and
Blue/white balance control : In the center (unless otherwise specified )

Power input

Ambient temperature
Analog input mode

MEASUREMENT SYSTEMS

The units of measure stated in this document are listed below:
1 gamma = 1 nano tesla
1 tesla = 10,000 gauss
cm = in x 2.54
lb = kg x 2.2
degrees F = [°C x 1.8] + 32
degrees C = [°F - 32]/1.8
u' = 4x/(-2x + 12y + 3)
v' = 9y/(-2x + 12y + 3)
x = (27u'/4)/[(9u'/2) - 12v' + 9]
y = (3v')/[(9u'/2) - 12v' + 9]

nits = cd/(m2) = Ft-L x 3.426
lux = foot-candle x 10.76

: 225 lux

: 50 cm in front of LCD panel

: Chroma 2250 signal generator or equivalent, directly

: 110Vac or 230Vac

: 20 ± 5 ˚C ( 68 ± 9 ˚ F)

: 1280 x1024 /60 Hz

LCD monitor General specification

Panel Type: 19 “ active matrix color TFT LCD

1). LG LM190E03-B4

2). LG LM190E03-B4N9

3). Samsung LTM190EX-L01

4). AU M190EN04 V5

Display size: 376.32mm (H) × 301.056mm(V)

Display mode: VGA 720 × 400 (70 Hz)

VGA 640 × 480 (60/66/70/72/75 Hz)

SVGA 800 × 600 (60/70/72/75 Hz)

XGA 1024 × 768 (60/70/75 Hz)

SXGA 1280 × 1024 (60/70/75 Hz) standard resolution

Pixel pitch: 0.294mm(H) × 0.294mm(V)

- 9 -

Display Dot: 1280 x (RGB) × 1024
Pixel Clock: 25.2 – 135.0MHz

Contrast ratio:

θ

= 0˚ LG: 500:1 (typical) Samsung: 700:1 (typical) AU: 550:1 (typical)

Brightness: LG: 250 (typical) Samsung: 300 (typical) AU: 270 (typical)
Response time (Tr/Tf): LG Ta=25°C, 2/10ms (typical)

Samsung Ta=25°C, 1.7/6.3ms (typical)

AU Ta=25°C, 5.6/2.4ms (typical)

Display color: LG 16.2M color with FRC
Samsung 16.7M
AU 16.2M color with FRC
Viewing angle(CR>10): LG L / R ≧ 70 / ≧ 70

U / D ≧ 70 / ≧ 70

Samsung L / R ≧ 75 / ≧ 75

U / D ≧ 75 / ≧ 60

AU L / R ≧ 70 / ≧ 70

U / D ≧ 75 / ≧ 60

Luminance Uniformity: LG < 1.3 (max)

Samsung < 25 % (max)
AU >70% (min)

- 10 -

LCD Panel Specification

LCD Panel Model (AU-M190EN04(V5))

• Display Type active matrix color TFT LCD

• Resolution 1280 x 1024 pixels

• Display Dot 1280 x (RGB) x 1024

• Display Area 376.32mm(H) x 301.06mm(V)

• Pixel Pitch 0.098x3mm(H) x 0.294mm(V)

• Display Color 16777216

• Lamp Voltage 700 Vrms typ.

• Lamp Current 7mA rms.( typ). 4 Lamp

• Weight 2700g .

• Optical Specifications

The following items are measured under stable conditions. The optical

characteristics should be measured in a dark room or equivalent state with the
methods shown in Note(4).

Measuring equipment : TOPCON BM-5A, BM-7, PHOTO RESEARCH PR650

(Inverter Freq. : 54kHz) *Ta =25 ± 2°C, VDD=5V, fv=60 Hz, fDCLK=54 MHz, IL= 7mArms

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Rising TR - 5.6 8.4 Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

Viewing

Angle

Brightness Uniformity

(9 points)

Falling T

Red

Green

Blue

White

Hor.

Ver.

CR 350 550 -

F - 2.4 3.6

Y

L 215 270 - cd/m2

Rx 0.634

Ry 0.354
Gx 0.287
Gy 0.621

Bx 0.138

By 0.077
Wx 0.313
Wy

θ

L

θ

R

φ

H

φ

L

B

UNI 70 75- - %

Normal

φ

= 0˚

θ

= 0˚

Viewing

Angle

CR≥10

LCD Panel Model (Samsung-LTM190EX-L01)

(1)(2)(4)

BM-5A

msec

TYP.

-0.03

0.329
65 70 ­65 70- ­65 70- ­55 60- -

TYP.

+0.03

Degrees

(1)(3)
BM-7

(5)

BM-5A

(1)(4)

PR650

(1)(4)

BM-5A

(6)

BM-5A

• Display Type active matrix color TFT LCD

• Resolution 1280 x 1024 pixels

• Display Dot 1280 x (RGB) x 1024

• Display Area 376.32mm(H) x 301.056mm(V)

• Pixel Pitch 0.098x3mm(H) x 0.294mm(V)

• Display Color 16777216

- 11 -

• Lamp Voltage 650 Vrms typ.

• Lamp Current 7.5mA rms.( typ). 4 Lamp

• Weight 2250g .

• Optical Specifications

The following items are measured under stable conditions. The optical

characteristics should be measured in a dark room or equivalent state with the
methods shown in Note(4).

Measuring equipment : TOPCON BM-5A, BM-7, PHOTO RESEARCH PR650

(Inverter Freq. : 54kHz) *Ta =25 ± 2°C, VDD=5V, fv=60 Hz, fDCLK=54 MHz, IL= 7mArms

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio

(Center of screen)

Rising TR - 1.7 3 Response

Time

Luminance of White

(Center of screen)

Color

Chromaticity

(CIE 1931)

Viewing

Angle

Brightness Uniformity

(9 points)

Falling T

Red

Green

Blue

White

Hor.

Ver.

CR 450 700 -

F - 6.3 9

Y

L 250 300 - cd/m2

Rx 0.640

Ry 0.329
Gx 0.300
Gy 0.600

Bx 0.150

By 0.060
Wx 0.313
Wy

θ

L

θ

R

φ

H

φ

L

B

UNI 25 %

Normal

φ

= 0˚

θ

= 0˚

Viewing

Angle

CR≥10

TYP.

-0.03

0.329
65 75 ­65 75 -

65 75- -

50 60- -

TYP.

+0.03

msec

Degrees

(1)(2)(4)

BM-5A

(1)(3)
BM-7

(5)

BM-5A

(1)(4)

PR650

(1)(4)

BM-5A

(6)

BM-5A

Note 1) Definition of Viewing Angle: Viewing angle range (10≤CR)

- 12 -

Note 2) Definition of Contrast Ratio (CR): Ratio of gray max(Gmax),gray min(Gmin) at the

center point of panel.

Luminance with all pixels white (Gmax)

CR= 
Luminance with all pixels black (Gmin)

Note 3) Definition of Response time: Sum of TR , TF

Note 4) After stabilizing and leaving the panel alone at a given temperature for 30 min, the

measurement should be executed .Measurement should be executed n a stable,
windless ,and dark room.30 min after lighting the back-light. This should be
measured in the center of screen. Dual lamp current :13.0mA(6.5mA x2)(Refer to
the note(1) in the page 14 for more information ).

Environment condition :Ta=25±2°C

- 13 -

Optical characteristics measurement setup

Notes 5) Definition of Luminance of White : measure the luminance of white at center point.

Notes 6)Definition of 9 points brightness uniformity (Measuring points: Refer to the Note 5)

AU
Bmin
B

=  X 100%

UNI

Bmax
Samsumg

Bmax-Bmin
B

=  X 100%

UNI

Bmax

Bmax: Maximum brightness

Bmin: Minimum brightness

Notes 7) Definition of Flicker level

Flicker Voltage

pp

F =  x 100 %
LMD Voltage

dc

♦ One maximum value of three estimated values.
♦ For this test ,an LMD(Light Measurement Device)is needed with adequate response time

to track any visible rate flicker component and with a voltage level output proportional
To luminance intensity.

♦ Test Pattern: For dot inversion Driving(Gray levels of foreground dots on the test panel

Are G22,G32,and G45)

- 14 -

♦ Test Point :Center point of the display area

Note 8) Definition of Crosstalk (Refer to the VESA STD)

The calculation for shadowing is made from the 2 luminance measurements Gbkg and Lsh,
as follows:

Lmax -Lmin
C

T

=  x100 %

Lmin

Where Lmax is the larger value of Gbkg or Lsh , and Lmin is the smaller of the two.

♦ To determine background and foreground levels (colors),first set the background to any

gray scale or color level suitable for shadowing determination.(Note that it may take
several iterations of adjusting background level and box levels to determine the proper
value for the background .Next display the box levels to determine the proper value for the
background level. Look for shadowing in any direction from box E. Independently vary the
gray level (or color) of the background and box E until the worst case shadowing is
observed. This defines the background (Gbkg) and foreground (Gfg) levels to be
maintained for the remainder of the test.

♦ One point only (the target) will be measured. To determine that point proceed as follows
Using the background and foreground gray levels of step1 (Gbkg and Gfg). Turn on each

box at a time. Look for the case with the worst shadowing. The box causing the worst case
is the shadowing source, or Bsrc. Use Bsrc and the box opposite from it that lies directly in
the shadow path. That is the target box, or Btgt. Note that box Eight be either Bsrc or Btgt,
depending on the shadowing conditions, but typically Bsrc and Btgt will be a pair of

- 15 -

opposite boxes, A&C or B&D. Btgt will only be displayed for aligning the LMD. It will be
turned off for the actual measurement.

♦ The target box point (Btgt) will be measured with the source box (Bsrc) turned on then off.

(Btgt is for alignment purpose only) Display the background only at level Gbkg. Display
Btgt determined in step 2 above. Using the correct distance, angle, and measurement
aperture, align the LMD to the center of the Btgt. Turn off Btgt. With Gbkg set to its
proper level, measure the luminance (or color). Next,turn on the source box Bsrc. Again
measure at the center point of Btgt (without Btgt present.). In this case the LMD will be
measuring the shadowing level, Lsh.

Panel Relative Humidity

Input Signals

Video input

• Type Analog R, G, B.

• Input Impedance 75 ohm +/- 2%

• Polarity Positive

• Amplitude 0 - 0.7 +/- 0.05 Vp

• Display Color same as LCD panel

Sync input

• Signal separate horizontal and vertical sync, or composite sync

• Polarity positive and negative.

JP777-E02

which are TTL compatible

- 16 -

Interface frequency

The following frequency range is generalized by supported timing. If the entered

mode does not match the supported timing the display optimization will not be

assured.

• Horizontal Frequency 24KHz --80KHz

• Vertical Frequency 49Hz -------75Hz

- 17 -

Supported Timing

TIMING
FV(HZ) POLARITY (DOT/LINE) (DOT/LINE) WIDTH PORCH PORCH FOREQ.(MHZ)
(DOT/LINE) (DOT/LINE) (DOT/LINE)
640x350 31.469 + 800 640 96 16 48 25.175
VGA-350 70.087 – 449 350 2 37 60
640x400 24.83 – 848 640 64 64 80 21.05
NEC PC9801 56.42 – 440 400 8 7 25
640x400 31.469 – 800 640 96 16 48 25.175
VGA-GRAPH 70.087 + 449 400 2 12 35
640x400 31.5 – 800 640 64 16 80 25.197
NEC PC9821 70.15 – 449 400 2 13 34
640X480 31.469 - 800 640 96 16 48 25.175
VESA-PAL 50.030 - 629 480 2 62 85
640x480 31.469 – 800 640 96 16 48 25.175
VGA-480 59.94 – 525 480 2 10 33
640x480 35.00 – 864 640 64 64 96 30.24
APPLE MAC-480 66.67 – 525 480 3 3 39
640x480 37.861 – 832 640 40 16 120 31.5
VESA-480-72Hz 72.809 – 520 480 3 1 20
640x480 37.5 – 840 640 64 16 120 31.5
VESA-480-75Hz 75 – 500 480 3 1 16
720x400 31.469 – 900 720 108 18 54 28.322
VGA-400-TEXT 70.087 + 449 400 2 12 35
832x624 49.725 – 1152 832 64 32 224 57.2832
APPLE MAC-800 74.55 – 667 624 3 1 39
800x600 35.156 + 1024 800 72 24 128 36
SVGA 56.25 + 625 600 2 1 22
800x600 37.879 + 1056 800 128 40 88 40
VESA-600-60Hz 60.317 + 628 600 4 1 23
800x600 48.077 + 1040 800 120 56 64 50
VESA-600-72Hz 72.188 + 666 600 6 37 23
800x600 46.875 + 1056 800 80 16 160 49.5
VESA-600-75Hz 75 + 625 600 3 1 21
1024x768 48.363 – 1344 1024 136 24 160 65
XGA 60.004 – 806 768 6 3 29
1024x768 53.964 + 1328 1024 176 16 112 71.664
COMPAQ-XGA 66.132 + 816 768 4 8 36
1024x768 56.476 – 1328 1024 136 24 144 75
VESA-768-70Hz 70.069 – 806 768 6 3 29
1024x768 60.023 + 1312 1024 96 16 176 78.75
VESA-768-75Hz 75.029 + 800 768 3 1 28
1024x768 60.24 – 1328 1024 96 32 176 80
APPLE MAC-768 75.02 – 803 768 3 3 29
1152x864 54.054 + 1480 1152 96 40 192 80
(60Hz) 59.270 + 912 864 3 13 32
1152x864 63.851 + 1480 1152 96 32 200 94.499
(70Hz) 70.012 + 912 864 3 1 44
1152x864 67.50 + 1600 1152 128 64 256 108.00
(75Hz) 75.00 + 900 864 2 2 32
1280x960 60.00 + 1800 1280 112 96 312 108.00
(60Hz) 60.00 + 1000 960 3 1 36
1280x960 70.00 + 1800 1280 112 96 312 126.00
(70Hz) 70.00 + 1000 960 3 1 36
1280x960 75.00 + 1800 1280 112 96 312 135.00
(75Hz) 75.00 + 1000 960 3 1 36
1280x1024 64 + 1688 1280 112 48 248 108
VESA-1024-60Hz 60 + 1066 1024 3 1 38
1280x1024 80 + 1688 1280 144 16 248 135
VESA-1024-75Hz 75 + 1066 1024 3 1 38

Note: Mode 640x350, 640x400 and 720x400 will locate on middle position but cannot be expanded to full screen on
vertical direction

FH(KHZ) SYNC TOTAL ACTIVE SYNC FRONT BACK PIXEL

- 18 -

Support Modes

There will be 28 total support modes to accommodate the above mode and other video modes within the frequency range of the
monitor.

85Hz refresh rate Support

Monitor should display 85Hz refresh rate mode as emergency mode.

Monitor should display “Out of Range” warning menu at this mode.

Video input Connector

Analog Video input Connector: 15pins mini D-Sub

Table 2.4.5. Pin assignment for D-sub connector

Separate Sync

PIN NO.

1 RED VIDEO

2 GREEN VIDEO

3 BLUE VIDEO

4 GROUND

5 GROUND

6 RED GROUND

7 GREEN GROUND

8 BLUE GROUND

9 PC5V (+5V DDC)

10 CABLE DETECTION

11 GROUND

12 SDA

13 H.SYNC

14 V.SYNC

15 SCL

- 19 -

5 1

10

15

6

11

D-sub connector

Digital Video Input Connector : DVI – D (T.B.D)

Table 2.4.6 Pin assignment for DVI – D Connector:

Pin – Assignment of DVI –D connector :

Color of plastic parts: Blue (PC99)

1 TX2- 9 TX1- 17 TX0-

2 TX2+ 10 TX1+ 18 TX0+

3 Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)

4 NC 12 NC 20 NC

5 NC 13 NC 21 NC

6 DDC-Serial Clock 14 +5V power *) 22 Shield (TXC)

7 DDC-Serial Data 15 Ground (+5V) 23 TXC+

8 No Connect 16 Hot plug detect 24 TXC-

*) In case, the power of the PC unit is switched off and the power of the monitor is switched on, no

voltage may occur at pin 14.

- 20 -

MONITOR BLOCK DIAGRAM

The LCD monitor will contain an main board, an inverter/ power board, key board and internal adapter which house the

flat panel control logic, brightness control logic and DDC.

The inverter board will drive the backlight of panel and the DC-DC conversion.

The Adapter will provide thr 12V DC-power to inverter/ power board.

Power board

(include: AC/DC,inverter)

- 21 -

BLOCK DIAGRAM

System Block Diagram

1.

- 22 -

2.

- 23 -

3.

- 24 -

Monitor board layout

1.

LABEL Component LABEL Component

U1 24LC21A CN1 D-SVB 15 PIN

U2 24LC21A CN2 DVI-D 24 PIN

U3 TSU56AJ or TSU16AJ CN3 E&T 96113-0803

U4 MX10E8050IAQC CN5 P-TWO AFN300-N2G1Z 30P

U5 MAX810 CN6 E&T 4500-10

U6 24LC16B CN7 E&T 4500-03

U7 APM4461 CN8 E&T 96113-1103

U8 APL1085-33CE

U9 APL1117-1.8V

U10 LM4838

- 25 -

2.

LABEL Component LABEL Component

U3 SN74LVC14 CN1 D-SVB 15 PIN

U4 NT68F633 CN3 E&T 96113-0803

U5 24LC16B CN9 E&T 4500-10

U6 NT68521 CN301 E&T 96113-1103

U10 APL1085-33CE CN302 E&T 4500-03

U13 APL1117-2.5 J1 P-TWO AFN300-N2G1Z

U14 SI9435

U501 LM4838

- 26 -

Software flow chart

- 27 -

General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor.

By changing these settings, the picture can be adjusted to your personal preferences.

z The power cord should be connected.

z Connect the video cable from the monitor to the video card.

z Press the power button to turn on the monitor position. The power indicator will light up.

External Controls

1 Auto Adjust Key/Exit 4 MENU/ENTER

2 < 5 LED

3 > 6

/ Power Key

- 28 -

System Installation

Connecting the Display

z Power off your computer.

z Connect one end of the signal cable to the LCD Monitor’s VGA port.

z Connect the other end of the signal cable to the VGA port on your PC.

z Make sure connections are secure.

Connecting the AC Power

z Connect the power cord to the LCD Monitor.

z Connect the power cord to an AC power source.

- 29 -

Gap Spec.

The step between front bezel and back cover shall be within specification.

Top and Bottom Left and Right

Back cover & Bezel concavity Back cover & Bezel concavity

0.8mm ≤ A ≤ 1.3 mm 0.8mm ≤ A ≤ 1.3 mm

Back Cover & Hinge Cover concavity

0mm ≤ B ≤ 0.5mm

- 30 -

Base & Neck concavity

0mm ≤ C ≤ 0.6mm

Top and Bottom Left and Right

Back cover & Bezel step Back cover & Bezel step

0mm ≤ D ≤ 0.8 mm 0mm ≤ D ≤ 0.8 mm

- 31 -

LCD Horizontally

The angle between front bezel and LCD unit in bottom side should not large than 1.0mm.

The distance of the LCD display unit from left side to right should not large than 4.0mm.

- 32 -

Tilt Base Rotation

Tilt up 15 ± 2°/ down 5 ±2°

Plastic Material

For TCO99

Front Bezel PC+ABS

Back Cover PC+ABS

The Others ABS 94HB

For MPRII

Front Bezel ABS 94V-0

Back Cover ABS 94V-0

The Others ABS 94HB

GAP Spec.

Gap between panel with bezel is 0 mm < gap < 1.5 mm

Swivel title noise spec.

When adjust the monitor angle, the range should be limited -5º~ +15º and it should not have any

noise.

- 33 -

POWER/Inverter Board

Description

This specification defined the performance and characteristic of power/inverter

board.

It supplies the following outputs :

1). 5Vdc: Logic power.

2). 5Vaudio: Audio power.

3). 15Vinv: Inverter power.

Features

Input Voltage: 100 ~ 240 ±10％Vac

Input Frequency: 47 ~ 63Hz

Input power consumption: Less than 1.2W @ minimum load

Total output power: 55Wmax

Inverter brightness adjustment: Burst mode

Protection function: auto-recovery type

Interface Signals

Input

1. AC Inlet: HUAJIE SA-4S-066 or compatible.

2. J701: SC SCJ-0345-1-X-9 3.6D BLU 3P or compatible.

Output Connector & Pin Assignment:

1. The connecter was pitch 2.0mm.

PIN NO. Function Function

1 +5Vaudio Audio power (optional).

2 GND Audio ground

3 GND Ground

4 GND Ground

5 Vbri Brightness control from logical board (0V to 3.3V)

6 ---- -----

7 Ven Inverter enable signal from logical board (high active ,

>3V)

8 +5Vdc +5Vdc supply for logical board

9 +5Vdc +5Vdc supply for logical board

10 +5Vdc +5Vdc supply for logical board

- 34 -

2.Inverter-side connecter : SM02B-BHSS-1-TB(JST)

/ SM02(8.0)B-BHS-1(JST) or equivalent.

PIN NO. Function Comment

1 Cth VBLH(High voltage)

2 Ctl VBLL(Low voltage)

Electrical Specification:

AC-DC Electrical specification

3.4.1.1 Input Specification

No Item Condition Min. Typ. Max. Unit

1 Input Voltage ----- 100 --- 240 Vac

2 Input requency ----- 47 --- 63 Hz

3 Input Current ----- --- --- 1.0 Arms

Cold Start @Vin=100Vrms --- 30 A0-P

4 Inrush Current

Cold Start @Vin=240Vrms

5 Hold Up Time @full load & 100Vac input 10 --- --- ms

6 Turn on time Vin =110Vac --- 1.0 --- S

7 Efficiency Full load --- 70 --- %

8 Consumption Vin=240Vac,@ no load --- --- 1 W

---

--- 50 A0-P

- 35 -

3.4.1.2 AC-DC Output Specification

Tolerance Output Current

Output oltage --- MIN MAX

+5Vdc +5 /-3 % 0.05A 1.5A 4.85~5.25V dc

+15Vinv +35/-5 % 0A 2A 20~14.3Vdc

+5Vaudio

Ripple --- 1%

Noise

Dynamic Load

Regulation

Over / Under

±5%

Measured at DC output

terminals which are

paralleled with a 10uf

Ecap &0.1uf Ceramic

cap.

2.Band width is limited

50~100% or 100~50%

load change of any DC

output @50% duty of

@ Power line on/off ---

0A 0.6A 4.75~5.25Vdc

--- 3%

---

±5%

±5%

Voltage Tolerance

+5Vdc:50mVp-p

+15Vinv:150mVp-p

+5Vdc:150mVp-p

+15Vinv:450mVp-p

---

---

*+5Vdc load regulation test: the +15Vinv loading at 2.0A

*+15Vinv load regulation test: the +5Vdc loading at 1.5A

3.4.1.3 Protection function

1) SCP: Short circuit protection must be acted on both outputs

2) OPP: Should be protected when output power consumption is within 60W ~ 75W

Inverter Electrical Specification:

For Samsung LTM190EX

Condition Min. Typ. Max. Unit

Input Voltage --- --- 15 --- V

Input Current

Backlight ON/OFF

Control

Brightness Adjust

Output Voltage Vin=15V, Iout=7.5mA 650 Vrms

--- --- 1.5 --- A

ON 3.3 V

OFF

Min. Luminance / Max.

Luminance

0 V

--- 30% --- ---

Brightness lamp current in 7.5mA 250 300 --- Cd/m²

Output Current(Each

connector)

Frequency

Lamp start voltage

Vbri=0.4V~3.3V 4 7.5 8 mA

--- 40 --- 60 KHz

@0℃

1650 --- --- Vrms

- 36 -

Striking Time --- --- 1 --- S

Lamp Current Balance --- --- ±0.35 --- mA

Efficiency Vin=15V --- 80 --- %

Operating Life Time --- 50000 --- --- Hr

*.The open lamp voltage is testes at output connector terminal

SAFETY

Leakage Current: 0.25mA @ 100Vac

Insulation Resistance: more than 3M ohms while withstanding a voltage of 500Vac

Hi-Pot: 3Kvac with using 3mA cut off current

- 37 -

Power Consumption

The monitor is equipped with a power-management according to the below.

There is a delay of 5s … 7s before the transition from On-state to any power saving state to avoid

unintentionally entering of a power saving stage during display resolution and timing mode changes.

Transition from any power saving state to another can be instantaneous.

The recovery from Off-state requires no manual power on.

Mode H-Sync. V-Sync. Video Pw-cons. Indicator Rec. time*

Power-On on on active < 60W Green LED --

Power-off off off blanked < 3 W Orange LED < 5S

Switch-off < 3 W Dark LED

SYNC. On means: Normal operation

SYNC. Off means: H sync. F < 10KHz duty cycle > 25%

V sync. F < 10Hz duty cycle > 25%

CONNECTORS / CONTROLS

Connectors

-

-

- Audio : Monitor rear side :

Power : Monitor rear side : AC Inlet

Analog RGB : Monitor rear side / Data Cable : 15-pin D-sub female / male

Pin – Assignment of 15-pin D-sub:

1 Red Video 9 +5V FOR DDC

2 Green Video 10 Detect

3 Blue Video 11 Serial Data for ISP

4 Serial Clock for ISP 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Ground 14 V-Sync.

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

-PC I/P for PC : 3.5mm Stereo female

Monitor Control Keys

KEY :

Power , Menu , Adjust +/- , Vol +/-, Auto

Position Of Controls

Position of all switches : Bottom side of front bezel

Position of LED : Bottom side of front bezel

- 38 -

Chapter 2

Operating Instructions

CONTROLS

Control panel (monitor front panel)

1. Power ON/OFF switch, push to ON and push to OFF. (toggle switch)

2. Power LED, will be green when monitor is on; be amber when in power saving mode.

3. Function select.

4. Adjust increase.

5. Adjust decrease.

6. Auto adjust.

- 39 -

Main OSD Menu:

Outline:

(option)

The description for control function :

Main Menu

Icon

Sub Menu

Item

Contrast

Brightness

Focus

Clock

H. Position

V. P o sit io n

Warm N/A Recall Warm Color Temperature

Cool N/A Recall Cool Color Temperature from

Sub Menu

Icon

Description Adjustment

Contrast from Digital-register. 0-100 Recall Cool

Backlight Adjustment 0-100 Recall Cool

Adjust Picture Phase to reduce

Horizontal-Line noise

Adjust picture Clock to reduce

Vertical-Line noise.

Adjust the horizontal position of the

picture.

Adjust the verticalposition of the

picture.

from EEPROM.

Reset Value

Range

Contrast Value

Brightness Value

0-100 Do Auto Config

0-100 Do Auto Config

0-100 Do Auto Config

0-100 Do Auto Config

N/A

N/A

The Color

Temperature will be

set to Cool.

User / Red

User / Green

User / Blue

EEPROM.

Red Gain from Digital-register. 0-100 100

Green Gain Digital-register. 0-100 100

Blue Gain from Digital-register. 0-100 100

- 40 -

English N/A Set OSD display language to

N/A

The Language will

English.

繁體中文

Deutsch N/A Set OSD display language to

Français N/A Set OSD display language to

Español N/A Set OSD display language to Spain. N/A

Italiano N/A Set OSD display language to Italian. N/A

简体中文

日本語

H. Position

V. P o sit io n

N/A Set OSD display language to

Tranditional Chinese.

German.

French.

N/A Set OSD display language to

Simplified Chinese.

N/A Set OSD display language to

Japanese.

Adjust the horizontal position of the

OSD.

Adjust the verticalposition of the

be set to English.

N/A

N/A

N/A

N/A

N/A

0-100 50

0-100 50

OSD.

OSD Timeout

Auto Config N/A Auto Adjust the H/V Position, Focus

N/A

Source

Change

Adjust the OSD timeout. 10-120 10

N/A N/A

and Clock of picture.

Analog and Digital source change.(option)

N/A N/A

Information N/A Show the resolution, H/V frequency

and input port of current iput timing.

Reset N/A Clear each old status of

Auto-configuration and set the color

Exit N/A Exit OSD N/A N/A

temperature to Cool.

N/A N/A

N/A N/A

- 41 -

OSD Message:

Outline:

The description for OSD Message :

Item Description

Auto Config

Please Wait

Input Not

Supported

Cable Not

Connected

No Signal When the video cable is connected, but the is no active signal input, will show this message, then

When User Press Hot-Key “Auto”, will show this message, and the monitor do the auto config

function.

When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor support range,

will show this message. This message will be flying.

When the video cable is not connected, will show this message. This message will be flying.

enter power saving.

LOGO:

When the monitor is power on, the LOGO will be showed in the center.

Item of Factory menu

Vendor may customize design and add adjustment items Factory menu as far as all required items are included.

- 42 -

1) Bright

Adjust Brightness and Contrast value to Max.

2) Auto Balance

Adjust each R, G, B contrast (gain) and offset.

Method of auto adjust is depends on hardware.

Adjusted value of R, G, B gain shall be used for initial value of Contrast in user menu.

All value shall be adjustable manually.

This function shall be located in 3. tag of Factory menu.

3) Factory color temp data edit

Following data for color temp shall be editable manually.

-color temp default preset No.

- 43 -

Plug and play

Plug & play DDC2B feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor

to inform the host system of its identity and, depending on the level of DDC used, communicate additional information

about its display capabilities. The communication channel is defined in two levels, DDC2B.

The DDC2Bis a bidirectional data channel based on the I

DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER

FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association(VESA) and/or

the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This

feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal

present. When there is no video input signal this monitor, following a time-out period, will automatically switch to an

OFF mode. This reduces the monitor’s internal power supply consumption. After the video input signal is restored, full

2

C protocol. The host can request EDID information over the

power is restored and the display is automatically redrawn. The appearance is similar to a “Screen Saver” feature

except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

Using The Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL listed

and CSA labeled. The voltage rating for the power cord shall be 125 volt AC.

Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a

minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type

attachment plug, rated 10A, 250V,CEE-22 male configuration. The other end terminates with a molded-on type

connector body, rated 10A, 250V, having standard CEE-22 female configuration.

Please note that power supply card needs to use VDE 0602, 0625, 0821 approval power cord in European counties.

- 44 -

White Color Temperature

White color temperature is 4 preset as 9300, 7500,6500 and User,

Default value of user color should be user which is maximum setting for panel.

Target of color setting

Color

Tem p.

x y u’ v’

9300K 0.283 0.297 +0.03 0.189 0.446 　u’v’ < 0.01*

6500K 0.313 0.329 +0.03 0.198 0.469

User - - - - -

*) TCO’0X A.2.6.1 requirement

User should follow “Microsoft Windows Color Quality Specification for Liquid Crystal Display OEM’s”.

(http://www.microsoft.com/hwdev/tech/color/ColorTest.asp)

Color Coordinate Tolerance Color Coordinate Tolerance

　u’v’ <

0.01*

Audio Technical specification

General Description:

Output power : 1W + 1W maximum

Total harmonic distortion : Less than 1 % (except speakers distortion)

Input signal sensitivity : 0.5 Vrms for full output

Input impedance : 47 Kohm +/- 5 %

Frequency response range : 20Hz – 20kHz (except speakers response)

Difference of L and R output : Less than 2 dB

- 45 -

Electrical characteristics (Tamb=25°)

Audio amplifier(USE Panasonic VP-7723A Audio Analyzor. )

Item Audio Input Freq.

Min. Typ. Max.

Input Voltage(V) - 0.5Vm

Input Current(m A) - 500 800

Audio Voltage Gain 500m Vrms 1KHz - - 6 d B Volume Max.,load 4 Ω

Frequency Response 500m Vrms 300Hz-20KHz -10dB - +10d B Volume Max.,load 4 Ω

Signal to Noise ratio 500m Vrms 1KHz - - -40dB Volume Max.,load 4 Ω

Total harmonic distortion 500m Vrms 1KHz 1% except speakers distortion

Cross talk 500m Vrms 1KHz - - -30dB Volume Max.,load 4 Ω

Output Watt. 500m Vrms 1KHz - - 0.5W Volume Max.,load 4 Ω

Volume Control - - - Analog

Spec.

-

s

Comment

46

Chapter 3

Machine Disassembly and Replacement

Disassembly Procedure

Disassemble the base

1. Remove the neck cover.

2. Remove the four screws to release the hinge.

3. Remove the base

Disassemble the chassis

1. Remove the four screws to release the back cover.

2. Remove the two screws to release the EMI cover from chassis.

3. Remove the two screws from VGA connector.

4. Then take the chassis.

5. Remove the two screws from bezel.

6. To separate the chassis and bezel.

7. Remove the four screws from chassis and release the panel.

47

Disassemble the main board

1. Disassemble audio line from power board.

2. Disassemble two VL-VK lines from VL board.

3. Disassemble power line from VL board.

4. Disassemble FPC line from VL board.

5. Remove the one screw to release line from Chassis.

6. Remove the three screws from Chassis and release the main board.

Disassemble the power board

1. Disassemble two voltage lines from power board.

2. Remove the one screw to release line from Chassis.

3. Remove the three screws from Chassis.

4. Remove the two screws to release power board from Chassis.

5. Then take the power board from the chassia.

Disassemble the key board

1. Remove the one screw to release VK board from bezel.

2. Disassemble the two speaker lines from VK board.

48

Disassemble the speakers

1. Remove the two screws to release line and VK board from bezel.

2. Remove the two screws to release line and chassis from bezel.

3. Remove the four screws from bezel.

49

Chapter 4

Troubleshooting

Main Procedure

50

Power Circuit and Backlights Troubleshooting

51

Performance Troubleshooting

52

Function Troubleshooting

53

Chapter 5

Connector Information

Phonejack stereo

PIN1. right : CEE22 typed connector

PIN2. Left

PIN3. Gnd : Line-in receptacle

J1

1

2
3

PHONEJACK STEREO

Video input Connector

Analog Video input Connector: 15pins mini D-Sub

Table 2.4.5. Pin assignment for D-sub connector

5 1

10

15

6

11

Separate Sync

PIN NO.

1 RED VIDEO

2 GREEN VIDEO

3 BLUE VIDEO

4 GROUND

5 GROUND

54

6 RED GROUND

7 GREEN GROUND

8 BLUE GROUND

9 PC5V (+5V DDC)

10 CABLE DETECTION

11 GROUND

12 SDA

13 H.SYNC

14 V.SYNC

15 SCL

Chapter 6

FRU (Field Replaceable Unit) list

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of AL1916. Refer to this

chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE : Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available

on your regional web or channel(http://aicsl.acer.com.tw/spl/

made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED CERVICE PROVIDERS, your

Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts repair and

service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on

how best to dispose it, or follow the rules set by your regional Acer office on how to return it.

). For whatever reasons a part number change is

55

56

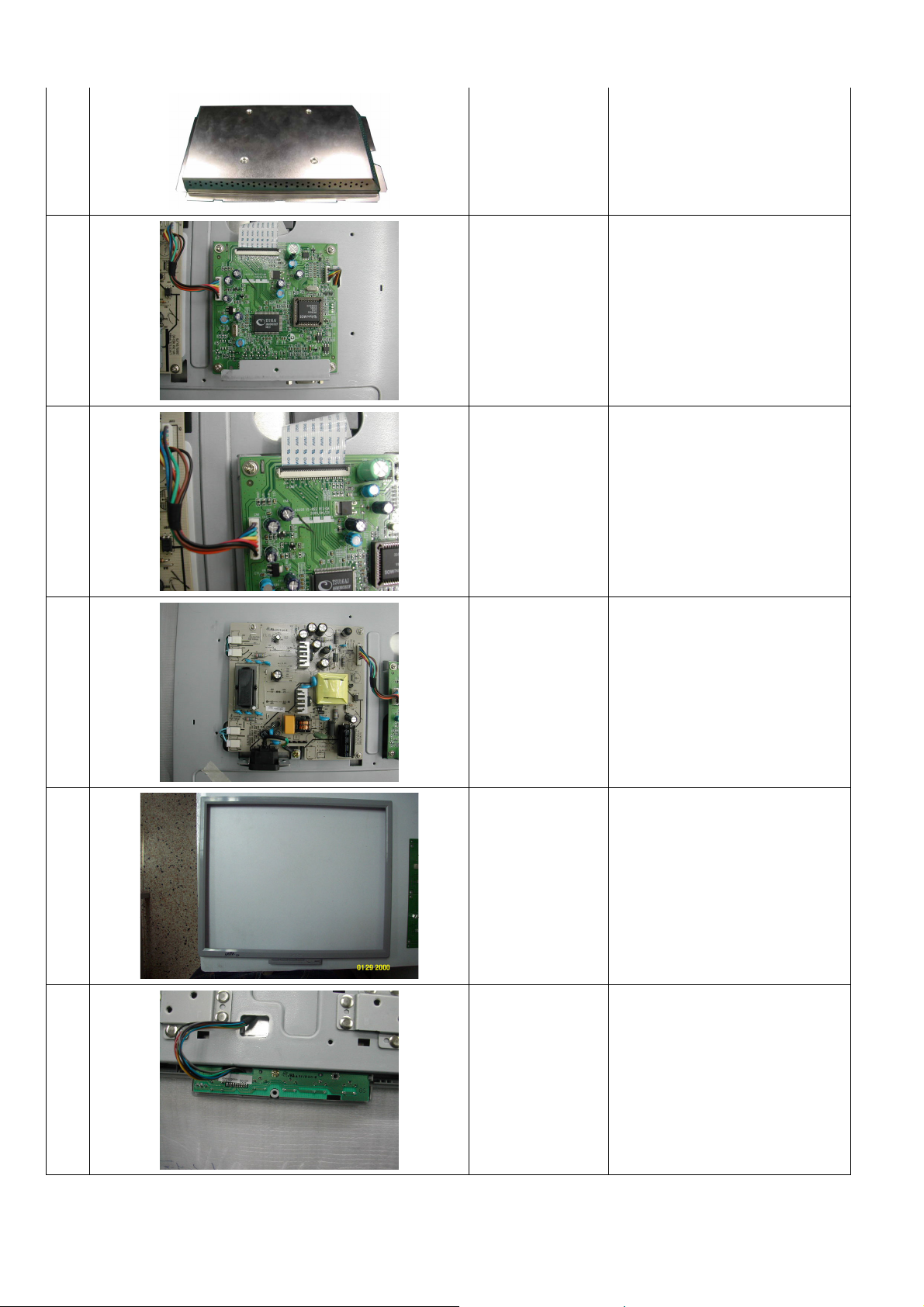

Part list

No. Photo Part Name Part No.

1

2

3

Hinge Cover FAAA6932000

Base Assy FAAA691D000

Rear Cover FAAA6914000

4

6

Base FAAA691C000

Neck FAAA6921000

57

7

Main Shield ECAR9914A00

AU:461ACQ30011

8

MB

SAMSUNG:461ACQ30001

9

10

11

Power Board to MB

cable

AU: 453AC530051

Samsung: 453AC530051

AU: 453AC530051

Inverter Board

Samsung: 453AC530051

Front Bezel FAAA6911000

12

58

Keyboard to MB

Cable

DCO20191700

13

Frame ECAR9915A00

14

15

16

LCD (R)

Panel to MB cable

Function Board

AC6VA1901R0
AC6VT1901R5

NBX30001271

NBX30001600

454AC830001

59

Chapter 7

Schematic Diagram

0A

of

38Friday, Ap ril22, 2005

1

1

PCB Name-Rev :VL922-0A

*The mark "#" toindicate that Part disuse.

*All Res. andCap. size is 0603.

Schematic, CTRL/ B VL922, LAA698

401A CQ

A3

COMPAL ELECTRO NICS, INC."

Title

Size Document Number Rev

Da te : Sheet

GREEN+ 5

RED- 5

RED+ 5

PC-GREE N-C 5

2

3

C1 0.01uF

R1 390

RED+

PC -GREEN- C

1 2

1 2

C2 0.047uF

R2 56.2 1%

1 2

1 2

BLUE+ 5

BLUE- 5

GREEN- 5

RED-

GREEN+PC- BLUE

BLUE -

GREEN-

BLUE+

AVSYNC 5

AVSYNC

1 2

1 2

1 2

1 2

1 2

C7 0.047uF

R11

1 2

12

R10

12

R9

12

R8

12

R7

12

R6

12

75_1%

75_1%

75_1%

100

100

100

R12 1K

1 2

R13

12

C8

12

L4 0

1 2

VSYNC

C4 0.047uF

C6 0.047uF

C3 0.047uF

C5 0.047uF

R4 56.2 1%

R3 56.2 1%

1 2

AHSY N C 5

AHSYN C

R14 1K

1 2

2.2K

47pF

R15

2.2K

12

C9

47pF

12

L5 FCM1608K-102T02

1 2

HS YNC

VSY NC

HS YNC

DDC-SCL-A

DDC-SDA-A

ACABL E-DETECT

D6

Z5.6V

1 2

D5

Z5.6V

1 2

PC- BLUEPC-R ED

PC -GR EEN

6

3/18 MODIFY

DDC-W P 4, 6

1523

VCC

DDC- SDA-A 6

DDC- SCL-A 6

4

12

Z D1 ST_ DAL C208SC6

C11

0.1uF

D4

Z5.6V

1 2

D3

Z5.6V

1 2

D2

Z5.6V

1 2

2

3

1 2

CN1

VGA INPUT INT ERFANCE

L1 0

PC-RED

1112131415

4

5

1 2

1 2

L3 0

L2 0

DDC- 5VCC-A

PC-GREEN

876543219

VSY NC

HS YNC

DDC-SDA-A

D D

ACABL E-DETECT 6

ACABL E-DETECT

R5 100

1 2

10

D-SUB

DDC-SCL-A

C C

60

2 CA2

DDC-WP

DDC-SCL-A

1 CA1

C10

12

DDC-SDA-A

12

12

12

R20 100

R21 100

R19 100

10K

10K

10K

8

7

6

5

WP

SCL

SDA

VCC

A01A12A23GND

U1

24LC02

4

0.1uF

A A

4

5

3 CC

BAT54C

R18

12

R17

12

R16

VCC

12

DDC- 5VCC-A

2

CA11CA2

CC

D1 BAT54C

3

EDID - D su b

B B

0A

of

48Frid ay, April 22, 20 05

1

RX2- 5

RX2+ 5

2

3

4

DCABLE- DETECT

1 2

R23 ( 100)

RX2- _ IN

RX2+_IN

3

2

1

RX2-

RX2+

5

CN2

DCABLE- DETECT 6

GND

RX1- 5

RX1+ 5

DDC-5VC C-D

1 2

DDC-SCL-D

DDC-SD A-D

RX1- _ IN

RX1+_IN

7

11

6

8

5

10

4

9

VS

SCL

SDA

RX4-

RX1-

RX4+

RX1+

GND

12

L6

12

RX3-

RX0- 5

RX0+ 5

RXC+ 5

RXC- 5

D18

#( DA 204K)

2

3

1

D17

#(D A204K )

2

3

1

D16

#(D A204K )

2

3

1

D15

#(D A204K )

2

3

1

D14

#(D A204K )

2

3

1

D13

#(D A204K )

2

3

1

D12

#(D A204K )

2

3

1

D11

#( DA 204K)

2

3

1

C93

VCC

C12

(0.1uF)

(JKMT_B201209J800TT)

L0805D

R24 (10K)

1 2

RX0- _ IN

RX0+_IN

RXC-_IN

RXC+_I N

15

14

16

13

5V

HP

GND

RX3+

24

19

22

18

21

17

20

23

GND

GND

RX0-

RX5-

RX0+

RX5+

RXC+

RXC-

C6

C2

C5

C4

C3

C1

HS

BLU

RED

Shell

GRN

GND

#(0.1uF)

GND

3 CC

VCC

2

D7 (BAT54C)

D10

DDC-SDA -D

BAT54C

DCABLE- DETECT

12

12

12

(Z5.6V)

1 2

D9

(Z5.6V)

1 2

D8

(Z5.6V)

1 2

DDC-W P 3,6

2 CA2

DDC-SCL-D

DDC-SD A-D

DDC -WP

1 CA1

R27

R26

R25

C13

12

12

R30 (100)12R29 (100)

R28 (100)

(10K)

(10K)

(10K)

7

5

6

8

WP

SCL

SDA

VCC

NC1NC2WP3GND

U2

24LC02

4

(0.1uF)

DDC-SCL-D

DDC-5VC C-D

CA11CA2

CC

3

12

(DVI-D)

EDID - DVI

PCB Name-Rev :VL922-0A

*The mark "#" toindicate that Part disuse.

*All Res. andCap. size is 0603.

COMPAL ELECTRO NICS, INC."

Title

1

401A CQ

Sche matic, CTRL/ B VL922, LAA698

A3

Size D ocument Number R ev

Date: Sheet

2

3

4

5

D D

C C

61

B B

A A

0A

1.8VDD1.8VDD

C17

0.1uF

12

1.8VDD

C16

0.1uF

12

C15

1

2

0.1uF

12

C14

0.1uF

12

1.8VDD

C26

0.1uF

12

3.3VDD

C25

0.1uF

12

C24

0.1uF

12

C23

0.1uF

12

C22

0.1uF

12

C21

0.1uF

12

C20

0.1uF

12

C19

0.1uF

12

C18

0.1uF

12

3.3VDD

3.3VDD 3.3VDD

TXACLK+ 7

TXA3 + 7

TXA 3 - 7

TXACLK+

TXA 3+

TXA3-

C32

0.1uF

12

3. 3AVDD

C31

0.1uF

12

C30

0.1uF

12

C29

0.1uF

12

C27

100uF /16V

+

L0805D

C28

0.1uF

L7 JK MT_B201209J800TT

1 2

12

3.3VDD

3.3VDD 3.3AVDD

TXA2 + 7

TXA 2 - 7

TXA1 + 7

TXA 1 - 7

TXA0 + 7

TXA 0 - 7

TXBCLK+ 7

TXBCLK- 7

TXB2 + 7

TXB 2 - 7

TXB1 + 7

TXB 1 - 7

TXB0 + 7

TXB3 + 7

TXACLK- 7

TXA 2+

TXACLK-

TXB 3 - 7

TXA2-

TXA 1+

TXA1-

TXA 0+

TXA0-

TXB 3+

TXB3-

TXBCLK+

TXB 0 - 7

DATA [0..7] 6

DA TA[0..7]

TXB 0+

TXB0-

TXBCLK-

TXB 2+

TXB2-

TXB 1+

TXB1-

ALE 6

R1180

1 2

C55

120pF

12

PCB Name-Rev :VL922-0A

*The mark "#" toindicate that Part disuse.

*All Res. andCap. size is 0603.

RDZ 6

R1081.5K

1 2

C88

NC /100pF

12

WRZ 6

R109 1.5K

1 2

C89

NC/ 100pF

12

3.3VDD

R31 4.7K

1 2

12

ALE

R33

4.7K#

COMPAL ELECTRO NICS, INC."

of

58F riday, A pril 22, 2005

1

401A CQ

Sche matic, CTRL/ B VL922, LAA698

A3

Titl e

Size D ocument Number R ev

Date: Sheet

2

3

DATA0

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

75

74

71

77

70

76

VDDC

111

LVA3P

LVA2P

LVA3M

LVACKP

LVACKM

AVDD_DVI
AVDD_DVI

AVDD_PLL
AVDD_PLL

RIN033GIN030SOGIN031BIN0

RIN0M32GIN0M29BIN0M27HSYNC0

28

RED-

GREEN+

RED+

GREEN-

BLUE -

BLUE+

PC -GREEN

RED+3

RED -3

GREEN +3

GREEN-3

BLUE+3

BLUE -3

PC -GREEN- C3

LVA2M

VDDC

85

VDDC

64

VDDC

58

1.8VDD

3.3VDD

4

5

VDDP

114

VDDP

107

VDDP

94

VDDP

82

VDDP

72

VDDP

61

VDDP

55

14
8

124
16

AVDD

35

AVDD

18

U3

3.3A VDD

78

126

AHSYN C

AHSY N C3

79

LVA1P

LVA1M

VSYNC0

127

AVSYNC

AVSYNC3

80

LVA0P

DDC1_CLK

118

81

LVA0M

DDC1_DAT

117

86

LVB3P

89

88

87

90

LVB2P

LVB3M

LVBCKP

LVBCKM

GIN123BIN120HSYNC1

26

91

LVB2M

GIN1M24RIN125SOGIN122RIN1M

92

LVB1P

93

LVB1M

96

LVB0P

BIN1M

21

97

LVB0M

46

VCLK

54

VD047VD148VD249VD350VD451VD552VD653VD7

TSU 56AJ

R+3R-4G+6G-7B+9B-10CK+12CK-13REXT15REFP37RMID36REFM38CSZ40SDA41SCL42HWRESETZ

VSYNC11DDC2_DAT

DDC2_CLK

115

128

116

RX1-

RXC+

RXC-

RX2-

RX0-

RX1+

RX2+

RX0+

RXC+4

RX1-4

RX1+4

RX2+4

RX2-4

RX0-4

RX0+4

1 2

C35 0. 1uF

103

69

65

102

60

59

ALE

1 2

R32 390 1%

RXC-4

3.3VDD

RDZ

1 2

C33 0 .1u F

C92

WRZ

BUSTYPE

0.1uF

+

2

68

100

104NC105NC108NC109NC110

NC

NC67NC98NC99NC

INT

43

INT

INT6

DDCROM_CLK

121

119

1 2

12

RESET_MASCOT

DDCROM_DAT

120

R34 180

12

NC

PWM044PWM1

XIN

45

122

BRIGHT

12

BRIGHT8

C36

0.1uF

R35

4.7K

VPLL

TESTPIN

AVSS_MPLL

REF_GND

39

C34

1 2

10uF/16V#

R36

1M

12

X1

C37 22pF

XOUT

123

14.318MHz

GNDC

112

GNDC

84

GNDC

63

GNDC

57

GNDP

113

GNDP

106

GNDP

101

GNDP

95

GNDP

83

GNDP

73

GNDP

66

GNDP

62

GNDP

56

AVSS_DVI

11

AVSS_DVI

5

AVSS_PLL

125

AVSS_PLL

17

AVSS

34

AVSS

19

12

C38 22pF

3

4

5

D D

C C

62

RESET_MASCOT6

B B

A A

0A

of

68Fr iday, Ap ril22, 2005

C48

R54

1

DATA4

DATA0

DATA5

DATA6

DATA3

DATA1

DATA2

123

45

123

45

RP 2 10K

RP 1 10K

VDD

2

VDD

3

678

678

WRZ 5

RDZ 5

RESET_MASCOT 5

ALE 5

R119

10K

1 2

R40

10K

1 2

R39

10K

1 2

R38

10K

1 2

R37

10K

1 2

R128

10K#

1 2

R129

10K

1 2

DAT A[0..7] 5

DATA[0..7]

DATA4

DATA7

DATA0

DATA6

DATA5

DATA1 DATA7

DATA3

DATA2

43

P0.7/AD736P0.6/AD637P0.5/AD538P0.4/AD439P0.3/AD340P0.2/AD241P0.1/AD142P0.0/AD0

KEY-ONO FF

P2.0/A824P2.1/A9

KEY-FU N+

KEY-FUN-

KEY-VAL -INC

25

P2.2/A1026P2.3/A1127P2.4/A1228P2.5/A1329P2.6/A1430P2.7/A15

RESET_MASCOT

KEY-AUTO

KE Y-VAL- DEC

WP

WRZ

RDZ

33

18

19

32

1

12

23

34

31

PSEN

P3.7/RD

P3.6/WR

22

ALE

GND

P4.2/PWM2

P4.3/PWM3

P4.0/PWM0

P4.1/PWM1

KEY PULL HIGN DESIGN

VDD

KEY BOARD-INTERFACE

10K

12

R53

10K

12

R52

10K

12

R51

10K

12

R50

10K

12

R49

10K

12

PLED- Y

PLED- G

123456789

CN3

KEY- FUN+

KEY- ONOF F

1 2

1 2

R56 33

R55 33

0.1uF

12

C47

0.1uF

12

C46

0.1uF

12

C45

0.1uF

12

C44

0.1uF

12

C43

0.1uF

12

KEY-FUN-

KEY-VAL -INC

KEY-VAL-DEC

KEY-AUTO

1 2

1 2

1 2

1 2

R58 33

R57 33

R60 33

R59 33

E&T 4300-9

*The mark "#" toindicate that Part disuse.

*All Res. andCap. size is 0603.

COMPAL ELECTRONICS, INC."

TXD

RXD

IO- PL ED -G

IO-P LED -Y

VCC

123

CN 4

I2C/RS232 Debug

Connector

4

1

Sche matic, CTRL/B VL922, LAA698

401A CQ

A3

Titl e

Size Document Number R ev

Date: Sheet

2

E&T 4500-4#

3

P3.1/TxD13P3.2/INT014P3.3/INT115P3.4/T016P3.5/T1

INT

BLKT_EN+

PANE L_VCTL

INT5

PANE L_VCTL7

P1.0/T22P1.1/T2EX3P1.24P1.35P1.46P1.5

P1.6/SCL8P1.7/SDA

Mxic_MX10E8050IAQC

U4

7

17

9

2

RESET

DIO/MA730

GND

VDD

12

12

RESET

1 2

1 2

1 2

1 2

1 2

1 2

R46 22

R126 0

R45 22

R127 0

R44 100

1 2

1 2

R124 0#

R125 0#

SDA

SCL

DDC-SCL-A

DDC-SDA-A

DDC-SCL-A

DDC-SDA-A

DDC -SDA- A3

DDC-SCL-A3

C42 0.1uF

VDD

VDD

ACTIVE HIGH /RESET

2

3

1

VCC

GND

Reset

U5

LM810M3-2.93V

Q1

DT A124EKA_PNP

EC

22K

22K

H

R1206D

R61 100

12

C49

EEPROM

PLED- Y

1 2

VDD

EC

B

ACABL E-DETECT

DCABLE- DE TECT

1

IO-P LED -Y

BLKT_EN+8

DDC-W P3,4

ACABL E-DETECT3

DCABLE- DETECT4

L

3

Power LED Pull high design

COLLECTOR

EMITTER

DTA124EKA_PNP

BASE

SCL

SDA

R63

2.2K

R62

2.2K

WP

8

5

7

6

SO-8

WC

SCL

SDA

VCC

0.1uF

4

GND

NC3NC2NC

U6

ST_M24C16-WMN6T

4

1

PLED- G

R1206D

Q2

DT A124EKA_PNP

R64 100

1 2

22K

22K

B

5

IO- PL ED -G

VDD

21

44

35

C39

0.1uF

12

R41

1M

12

X2

4

12MHz

12

C40 22pF

C41 22pF

RP3

6
7
8

VDD

R43

12

R42

12

5

11

20

RESET

1 2

1 2

R122 0

R123 0

12

IO-P LED- G

IO-P LED -Y

10K

4 5
3
2
1

10K

10K

RST10P3.0/RxD

XTAL2

XTAL1

EA

Vcc

D D

C C

63

B B

A A

0A

of

RXO0-1RXO0+2RXO1-3RXO1+4RXO2-5RXO2+6GND7RXOC-8RXOC+9RXO3-10RXO3+11RXE0-12RXE0+13GND14RXE1-15RXE1+16GND17RXE2-18RXE2+19RXEC-20RXEC+21RXE3-22RXE3+23GND24NC25PD26NC27VDD28VDD29VDD

1

CN5

TXB0-

TXB0+

TXB1+

TXB3+

TXB2+

TXA1+

SEL-LVDS

TXACLK+

TXA1-

TXBCLK+

TXB2-

TXB1-

TXBCLK-

TXB3-

TXA0-

TXA2-

TXACLK-

TXA3-

TXA3+

TXA2+

TXA0+

P-TWO_AFN300-N2G1Z

30

PANEL_VOUT

PANEL_VOUT

PANEL_VOUT

78Friday, April 22, 2005

1

PCB Name-Rev :VL922-0A

*The mark "#" to indicate that Part disuse.

Schematic, CTRL/B VL922, LAA698

TXB3-5

TXA0-5

TXA2-5

TXB0+5

TXB1+5

TXB2+5

TXB2-5

TXB1-5

TXB0-5

TXBCLK-5

TXA1-5

TXA0+5

TXB3+5

TXBCLK+5

TXA3-5

TXA1+5

TXA3+5

TXACLK+5

TXA2+5

TXACLK-5

401ACQ

COMPAL ELECTRONICS, INC."

Date: Sheet

Title

Size Document Number Rev

R86

10K#

L0805D

L8

R65

PANEL_VOUT

1 2

8

S11S22S33G

10K

PANEL_VOUT

R66

C51

12

D15D26D37D4

4

12

R85

12

R69

12

200

R1206D

1 2

0.1uF

C52

+

APM4461KC_SO8_P-channel

10K#

10K#

COLLECTOR

100uF/16V

Q6

2

LCD PANEL INTERFACE (LVDS)

3

JKMT_B201212K800TM

U7

4

12

PAN5V

2SC2411K

R83

0#

12

R82

0#

12

R70

0#

12

EMITTER

DTC124EK

SOT-23B

BASE

Vds -24V

Vgs = -2.5V/-4.5V/-10V

Id = -2A/-4A/-7A

(APM4461)

2

3

4

PAN5V8

C53

0.01uF

12

LCD PANEL POWER CONTROL (Main)

C50

1000uF/10V

+

R89

10K

12

5

R88 for

current PCB

VL-922 rev.0

D D

C C

0805

C66

10uF

R68 33K

1 2

Q8

2SC2411K

R88 0#

R90 10K

1 2

1 2

R89,R90,Q8, f or

nest version VL -922

rev.0A

PANEL_VCTL6

B B

64

5

A A

0A

of

1.8VDD

1

3.3VDD

C63

100uF/16V

+

1.8VDD

C62

0.1uF

3/19 Modify

3.3VDD

VDD

VDD

2

VCC

L10 JKMT_B201212K800TM

C59

220uF/10V

+

1206

R121 0

R120 0#

U8

C61

0.1uF

2

OUT

GND

IN

APL1084-3.3CE

TO252-3

1

3

U9

APL1117-18UC

1206

C70

220uF/10V

+

3

IN

2

OUT

APL1117

C72

0.1uF

2

OUT

GND

IN

SOT-223

1

3

C71

0.1uF

C69

100uF/16V

+

SOT-223

1

ADJ/GND

3

IN

2

-33CE

4 Vout 4 Vout

APL1085

OUT

SOT-252

1

ADJ/GND

PCB Name-Rev :VL922-0A

COM PA L ELECT RONICS, INC. "

1206

88Friday, April 22, 2005

1

Schematic, CTRL/B VL922,LAA698

401ACQ

B

Title

Size Do cument Number R ev

Date : Sheet

2

R72 0#

R81 0

C60

3

VCC

PAN5V 7

PAN5V

4

L9 JKMT_B201212K800TM

0.1uF

C58

220uF/10V

+

VCC

620

R107

VCC

For logic:+5V

C57

0.01uF

C56

220uF/10V

+

L11 JKMT_B201212K800TM

0805

VCC

C65

0.01uF

C64

220uF/10V

+

3.3VDD

VCC

BLKT_EN+ 6

10K

R76

R84

0#

B

Q7

R74

10K

R71 4.7K

DTC12 4EKA_NPN

22K

22K

E C

3.3VDD

R78 2.2 K

MMBT3904

Q4

R77 1K

BLT_ON

C68

0.1uF

3.3VDD

BRIGHT 5

R79

10K

R87 NC/2.2K

1

2 3

R80 NC/0

C54

0.1uF

C73

47uF/16V

+

3

4

5

6

CN6

D D

112233445588776

E&T 4500-10

C C

65

5

B B

A A

0C

of

22Wednesday, April 27,2005

E

PCB Name-Rev : VP-761

*The mark "#" to indicate that Part non-use

Vdd

Vbri

Ven

123456789

10

J802

W29

W22

Vinv

D

W802

12

L821

CHOKE

+

C824

470uf/ 25V

12

+

C823

12

470uf/ 25V

C821

102/1KV

C

1 2

3

R821

D821 ER1 002F

10 1/2W FUSE

T801

EE-30

5 12

TVS1

P6KE180A

R800

0.2/ 1W FUSE

B

L804 Bead

F801

T2A/250V

1

A

P801

470uf/2 5V

C825

+

R823

1 2

D822 SB560

C808

103/1KV

R806

*

1

BD801

2KBP06M

3

-+

2

L801

CL9000078R 0

R801

510K/1206

C803

C801

102 Y1

L

470/ 1 W

L822

CHOKE

C822

1 2

D822A SB560

849,10,11

3

R807

*

C807

82uf/400V

+

12

4

RT801

SCK085

2 4

1 3

R802

510K/1206

0.33uf X2

L805 Bead

C802

102 Y1

HEADER 10

J701

SCJ 33700X S0004

R830

100 /1W

470uf/ 16V

C828

+

12

C827

+

12

102/1KV

R822

10 1/2W FUSE

D801

PS1010R

R803

510K/1206

R804

510K/1206

R805

510K/1206

C804

222 Y1

3

2

N

FG

C703

1000uf/10V

+

12

CHOKE

L701

C702

1000uf /10V

+

1000uf /10V

12

7

C800

222 Y1

6

1,2

R808

15/1206

1 2

L803

Bead

12

D803

PS104R

C810

103

C809

10uf/100V

+

12

ZD801

HZ18V

R828

51.1K 1%

R826

3.65K 1 %

R824

470

C811

103/1KV

23

1

Q801

AP2761I -A

4

8

VDD

GATE

7

U801

SG6841

VIN

3

5

R809 27K

123

J702

E&T 98115-0 313

L704

Bead

L703

Bead

L702

Bead

R829

4.99K 1%

R827

4.99K 1 %

C829

104/X7R

R847

2. 2K

R825

10K

1

U803

KA431Z

U800

LTV-817M-B

R810

27K 1/8W

RI

SENSE

6

GND

1

FB2RT

2 3

12

D903 *

1.8

R811

1.8

R812

1.8

R813

1.8

R814

12

J904

T901 EEA-22

C915

4.7U/X7R

Q904 AP4435

+

C901

470uF/25 V

HV1LV

2

R931

C933

22p/3KV

5

6,7

8

S1S2S3G

R915

10K

ZD902

RLZ6.2B

R906

100K 1%

R904

22

HV1LV

HV1LV

J905

2

2,3

C917

*

D5D6D7D

D904 *

1 2

U901

OZ964G/S OP20

C902 105

R903 10K

HV1LV

J906

2

2

R930

3M

C931

22p/3KV

C930

22p/3KV

1

8

C918

*

8

S1S2S3G

Q905 AP4410

R913 22

C912 221 NPO

19

20

CT18RT

PDRV_A

NDRV_B

CTIMR1OVP2ENA3SST4VDDA5GNDA

C903 104

C904 474

Q903

RK7002

R902

100K

ZD901

RLZ13B

D913

D911

R933

R932

C935

C932

D5D6D7D

4

R908 51.1K 1%

17

+

C905 10U/50V

31

BAV99

3

BAV99

3

3.48K

3.48K

5p/3KV

5p/3KV

16

2

31

R937

590 1%

1

2

2

R935

7.5K

D914

BAV99

3

1

1

2

R936

590 1%

2

D912

BAV99

3

1

R934

7.5K

C919 562

C921 562

C920 *

8

12

S1S2S3G

D905 *

Q906 AP4435

R916

10K

ZD903

RLZ6.2B

R907 47K 1%

C911 682 X7R

C910 104

13

15

14

12

DIM

LCT

LPWM

PDRV_C

PWRGND

OZ964

RT18REF

FB9CMP

6

7

C907 103 X7R

C909 104

C906 104 X7R

C909A nc/0805

Q902

RK7002

2

R901

100K

1

D910

BAV99

3

2

1

D909

BAV99

3

2

R939

12K

1

C922 *

D908

BAV99

3

2

1

D907

BAV99

3

D5D6D7D

D906 *

1 2

4

C914 473

11

12

D901 0 ohm

NDRV_D

R910 47K 1%

10

C908

36K 0603

8

S1S2S3G

Q907 AP4410

R938 51K

R921

2

R909

1M

C923

104

D5D6D7D

4

R914 22

390K 1%

J903

3M

C934

22p/3KV

4

C916

4.7U/X7R

4

C913 473

R905 47K 1% 1/8W

E

SCHEMATIC, POWER/B VP-761, LYP777/ LYP999

COMPAL ELE CTRONICS,INC.

A2

Title

Size Document Number Rev

Date: Sheet

D

C

B

A

Vinv

Vdd

4 4

3 3

66

Ven

Vbri

2 2

1 1

of

1

1

33Fri day , April 29, 2005

2

PCB Name-Rev : VK922-0 Page_2

*The mark "#" to indicate that Part disuse.

SCH EM ATIC, KEY /B VK-922, LAA698

COMPAL ELECTRONICS, INC.

S1S2S3S4S5

S5

S4

3

4

S3

S2

S1

TACK

1 2

1 2

1 2

1 2

1 2

GNDGNDGNDGNDGND GND GND

TACK

TACK

TACK

TACK

Title

2

404AC8 0A

A

Size Do cu ment Nu mbe r R e v

Da te : Sheet

3

4

KEY -VAL-DEC

GND

LED -Y

LED-G

KEY- ONOFF

KEY-F UN +

KEY-VAL -INC

KEY-AUTO

Auto Menu Power

5

D D

8

J1

1234567

E&T 4301-09

C C

67

A1

A2

K

LED

LED1

5

B B

A A
