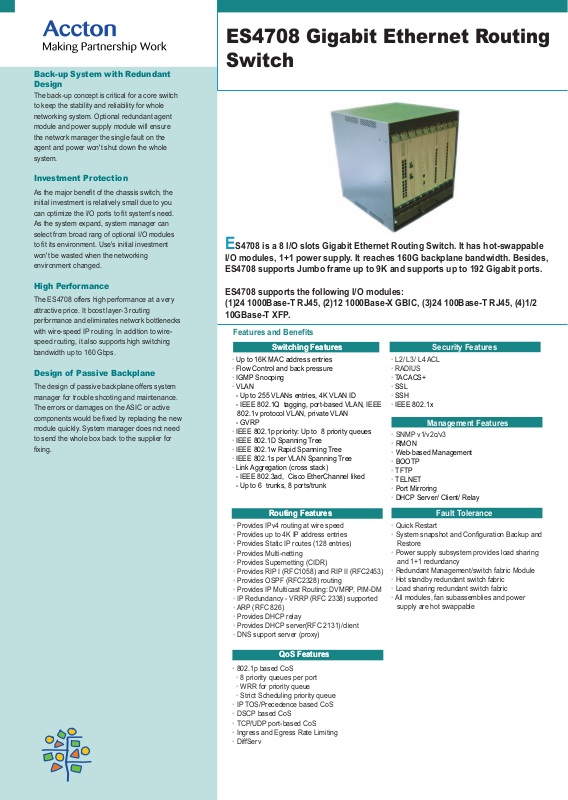

Accton ES4708 Datasheet

Back-up System with Redundant
Design

The back-up concept is critical for a core switch
to keep the stability and reliability for whole
networking system. Optional redundant agent
module and power supply module will ensure
the network manager the single fault on the
agent and power won't shut down the whole
system.

Investment Protection

As the major benefit of the chassis switch, the
initial investment is relatively small due to you
can optimize the I/O ports to fit system's need.
As the system expand, system manager can
select from broad rang of optional I/O modules
to fit its environment. Use's initial investment
won't be wasted when the networking
environment changed.

ES4708 Gigabit Ethernet Routing
Switch

ES4708 is a 8 I/O slots Gigabit Ethernet Routing Switch. It has hot-swappable

I/O modules, 1+1 power supply. It reaches 160G backplane bandwidth. Besides,
ES4708 supports Jumbo frame up to 9K and supports up to 192 Gigabit ports.

High Performance

The ES4708 offers high performance at a very
attractive price. It boost layer-3 routing
performance and eliminates network bottlenecks
with wire-speed IP routing. In addition to wire­speed routing, it also supports high switching
bandwidth up to 160 Gbps.

Design of Passive Backplane

The design of passive backplane offers system
manager for trouble shooting and maintenance.
The errors or damages on the ASIC or active
components would be fixed by replacing the new
module quickly. System manager does not need
to send the whole box back to the supplier for
fixing.

ES4708 supports the following I/O modules:
(1)24 1000Base-T RJ45, (2)12 1000Base-X GBIC, (3)24 100Base-T RJ45, (4)1/2
10GBase-T XFP.

Features and Benefits

Switching Features Switching Features

• Up to 16K MAC address entries

• Flow Control and back pressure

• IGMP Snooping

• VLAN

- Up to 255 VLANs entries, 4K VLAN ID

- IEEE 802.1Q tagging, port-based VLAN, IEEE

802.1v protocol VLAN, private VLAN

- GVRP

• IEEE 802.1p priority: Up to 8 priority queues

• IEEE 802.1D Spanning Tree

• IEEE 802.1w Rapid Spanning Tree

• IEEE 802.1s per VLAN Spanning Tree

• Link Aggregation (cross stack)

- IEEE 802.3ad, Cisco EtherChannel liked

- Up to 6 trunks, 8 ports/trunk

• L2/ L3/ L4 ACL

• RADIUS

• TACACS+

• SSL

• SSH

• IEEE 802.1x

• SNMP v1/v2c/v3

• RMON

• Web-based Management

• BOOTP

• TFTP

• TELNET

• Port Mirroring

• DHCP Server/ Client/ Relay

Routing FeaturesRouting Features

• Provides IPv4 routing at wire speed

• Provides up to 4K IP address entries

• Provides Static IP routes (128 entries)

• Provides Multi-netting

• Provides Supernetting (CIDR)

• Provides RIP I (RFC1058) and RIP II (RFC2453)

• Provides OSPF (RFC2328) routing

• Provides IP Multicast Routing: DVMRP, PIM-DM

• IP Redundancy - VRRP (RFC 2338) supported

• ARP (RFC 826)

• Provides DHCP relay

• Provides DHCP server(RFC 2131)/client

• DNS support server (proxy)

• Quick Restart

• System snapshot and Configuration Backup and

• Power supply subsystem provides load sharing

• Redundant Management/switch fabric Module

• Hot standby redundant switch fabric

• Load sharing redundant switch fabric

• All modules, fan subassemblies and power

Restore

and 1+1 redundancy

supply are hot swappable

Security Features

Management Features

Fault Tolerance

QoS FeaturesQoS Features

• 802.1p based CoS

• 8 priority queues per port

• WRR for priority queue

• Strict Scheduling priority queue

• IP TOS/Precedence based CoS

• DSCP based CoS

• TCP/UDP port-based CoS

• Ingress and Egress Rate Limiting

• DiffServ

Specifications

Physical Characteristics

• 8 I/O modules + 2 management modules

• Dimension (HxWxD)： 19.2" x 17.3" x 18.4" (inch)

• Power requirement：

- Operating voltage: 90 to 264 V rms

- Operating Frequency: 47 to 63 Hz

- Maximum i/p current: A rms max. @ 115V

A rms max. @ 240V

Chassis

• 10-slot chassis

- 8-slots for I/O modules

- 2-slots for management modules

• Max. 96/192 GE ports in crossbar Architecture

• Rear Panel Design

- 2-slots for power modules

- 1-slot for Fan module

• 9U high design

Electromagnetic Compatibility

ES4616A is certified with the following standards

• CE Mark

• FCC Class A

• VCCI Class A

• CISPR Class A

Environmental Characteristics

• Temperature: IEC 68-2-14

• 0℃ to 50℃ (Standard Operating)

• - 40℃ to 70℃ (Non-operation)

•

Humidity: 10% to 90% (Noncondensing)

IEEE Standards

• IEEE 802.3 10BASE-T

• IEEE 802.3u 100BASE-TX and 100BASE-FX

• IEEE 802.3z 1000BASE-SX, 1000BASE-LX

• IEEE 802.3x Flow Control

• IEEE 802.1p/Q VLAN Tagging

8. 2003 V.02
