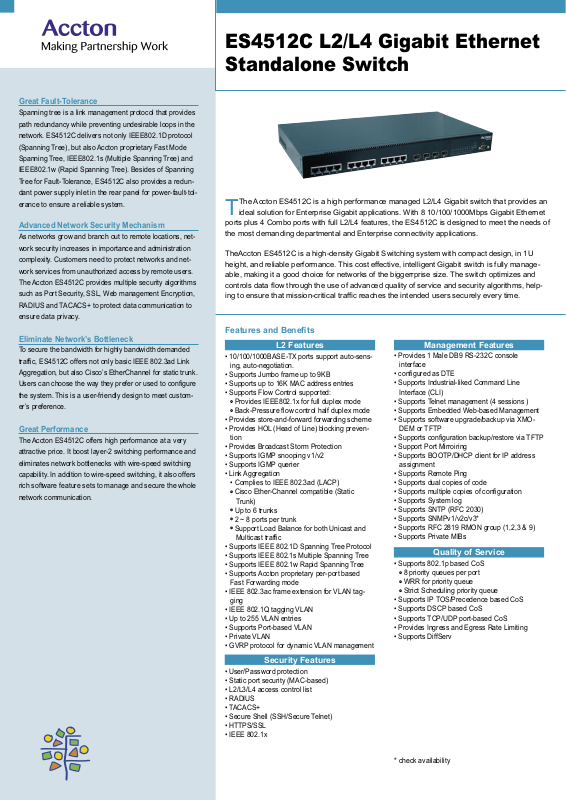

Page 1
Great Fault-Tolerance
Spanning tree is a link management protocol that provides
path redundancy while preventing undesirable loops in the
network. ES4512C delivers not only IEEE802.1D protocol
(Spanning Tree), but also Accton proprietary Fast Mode
Spanning Tree, IEEE802.1s (Multiple Spanning Tree) and
IEEE802.1w (Rapid Spanning Tree). Besides of Spanning
Tree for Fault-Tolerance, ES4512C also provides a redun-
dant power supply inlet in the rear panel for power-fault-tol-
erance to ensure a reliable system.
Advanced Network Security Mechanism
As networks grow and branch out to remote locations, net-
work security increases in importance and administration
complexity. Customers need to protect networks and net-
work services from unauthorized access by remote users.
The Accton ES4512C provides multiple security algorithms
such as Port Security, SSL, Web management Encryption,
RADIUS and TACACS+ to protect data communication to
ensure data privacy.
Eliminate Network’s Bottleneck
To secure the bandwidth for highly bandwidth demanded
traffic, ES4512C offers not only basic IEEE 802.3ad Link
Aggregation, but also Cisco’s EtherChannel for static trunk.
Users can choose the way they prefer or used to configure
the system. This is a user-friendly design to meet custom-
er’s preference.
Great Performance
The Accton ES4512C offers high performance at a very
attractive price. It boost layer-2 switching performance and
eliminates network bottlenecks with wire-speed switching
capability. In addition to wire-speed switching, it also offers
rich software feature sets to manage and secure the whole
network communication.
ES4512C L2/L4 Gigabit Ethernet
Standalone Switch
The Accton ES4512C is a high performance managed L2/L4 Gigabit switch that provides an
T
ideal solution for Enterprise Gigabit applications. With 8 10/100/1000Mbps Gigabit Ethernet
ports plus 4 Combo ports with full L2/L4 features, the ES4512C is designed to meet the needs of
the most demanding departmental and Enterprise connectivity applications.
TheAccton ES4512C is a high-density Gigabit Switching system with compact design, in 1U
height, and reliable performance. This cost effective, intelligent Gigabit switch is fully manageable, making it a good choice for networks of the biggerrprise size. The switch optimizes and
controls data flow through the use of advanced quality of service and security algorithms, helping to ensure that mission-critical traffic reaches the intended users securely every time.
Features and Benefits
Management FeaturesL2 Features
• 10/100/1000BASE-TX ports support auto-sens-
ing, auto-negotiation.
• Supports Jumbo frame up to 9KB
• Supports up to 16K MAC address entries
• Supports Flow Control supported:
Provides IEEE802.1x for full duplex mode
Back-Pressure flow control half duplex mode
• Provides store-and-forward forwarding scheme
• Provides HOL (Head of Line) blocking preven-
tion
• Provides Broadcast Storm Protection
• Supports IGMP snooping v1/v2
• Supports IGMP querier
• Link Aggregation
• Complies to IEEE 802.3ad (LACP)
Cisco Ether-Channel compatible (Static
Trunk)
Up to 6 trunks
2 ~ 8 ports per trunk
Support Load Balance for both Unicast and
Multicast traffic
• Supports IEEE 802.1D Spanning Tree Protocol
• Supports IEEE 802.1s Multiple Spanning Tree
• Supports IEEE 802.1w Rapid Spanning Tree
• Supports Accton proprietary per-port based
Fast Forwarding mode
• IEEE 802.3ac frame extension for VLAN tagging
• IEEE 802.1Q tagging VLAN
• Up to 255 VLAN entries
• Supports Port-based VLAN
• Private VLAN
• GVRP protocol for dynamic VLAN management
Security Features
• User/Password protection
• Static port security (MAC-based)
• L2/L3/L4 access control list
• RADIUS
• TACACS+
• Secure Shell (SSH/Secure Telnet)
• HTTPS/SSL
• IEEE 802.1x
• Provides 1 Male DB9 RS-232C console
interface
• configured as DTE
• Supports Industrial-liked Command Line
Interface (CLI)
• Supports Telnet management (4 sessions )
• Supports Embedded Web-based Management
• Supports software upgrade/backup via XMODEM or TFTP
• Supports configuration backup/restore via TFTP
• Support Port Mirroiring
• Supports BOOTP/DHCP client for IP address
assignment
• Supports Remote Ping
• Supports dual copies of code
• Supports multiple copies of configuration
• Supports System log
• Supports SNTP (RFC 2030)
• Supports SNMPv1/v2c/v3*
• Supports RFC 2819 RMON group (1,2,3 & 9)
• Supports Private MIBs
Quality of Service
• Supports 802.1p based CoS
8 priority queues per port
WRR for priority queue
Strict Scheduling priority queue
• Supports IP TOS/Precedence based CoS
• Supports DSCP based CoS
• Supports TCP/UDP port-based CoS
• Provides Ingress and Egress Rate Limiting
• Supports DiffServ
* check availability
Page 2
Specifications
Physical
• 8 10/100Base-T ports (RJ45)
• 4 Gigabit combo port (RJ45/SFP)
• 1 Redundant Power Connector (DC)
Mechanical
• Dimension (H x W x D): 440mm x 354mm x 43mm
Performance
• MAC address: 8K
• Packet buffer: 1MB
• Switch Fabric: 24Gbps
Electrical Power Requirements
• Nominal Input Voltages: 110-240V
• Input Voltage Range: 12V
• Input Frequency: 47~63 Hz
• Power: 35W
Safety
• CSA/NRTL (UL1950, CSA 22.2.950)
• TUV/GS (EN60950)
Electromagnetic Compatibility
• CE Mark
• FCC Class A
• VCCI Class A
• CISPR Class A
Environmental
• Temperature:
IEC 68-2-14
0°C to 40 °C (Standard Operating)
-40°C to 70 °C (Non-operating)
• Humidity: 10% to 90% (Non-condensing)
• Vibration: IEC 68-2-36, IEC 68-2-6
• Shock: IEC 68-2-29
• Drop: IEC 68-2-32
IEEE Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX and 100BASE-FX
• IEEE 802.3z 1000BASE-SX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.ad Link Aggregation
• IEEE 802.3x Flow Control
• IEEE 802.1p Priority
• IEEE 802.3ac Frame extension for VLAN tagging
• IEEE 802.1D Bridging
• IEEE 802.1Q Virtual LAN
• IEEE 802.1s Per VLAN Spanning Tree
• IEEE 802.1w Rapid Spanning Tree
Ordering Information
ET4201-SX Small Frm Factor Pluggable (Distance:500m ; Wavelength: 850nm)
ET4201-LX Small Frm Factor Pluggable (Distance:10km ; Wavelength: 1310nm)
ET4201-LHX Small Frm Factor Pluggable (Distance:40km ; Wavelength: 1310nm)
ET4201-ZX Small Frm Factor Pluggable (Distance:80km ; Wavelength: 1550nm)
3.2005 V.01
