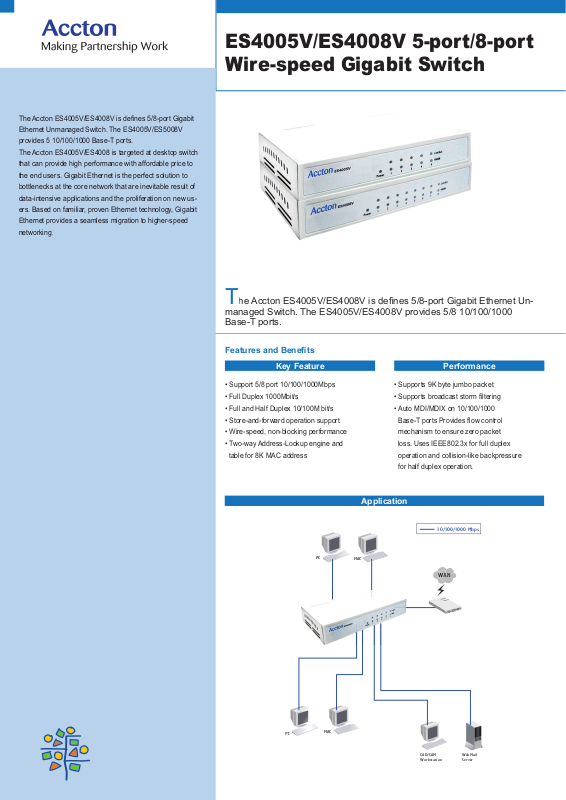

4005V/ES4008V 5-port/8-port
Wire-speed Gigabit Switch
The Accton ES4005V/ES4008V is defi nes 5/8-port Gigabit
Ethernet Unmanaged Switch. The ES4005V/ES5008V
provides 5 10/100/1000 Base-T ports.
The Accton ES4005V/ES4008 is targeted at desktop switch
that can provide high performance with affordable price to
the end users. Gigabit Ethernet is the perfect solution to
bottlenecks at the core network that are inevitable result of
data-intensive applications and the proliferation on new us-
ers. Based on familiar, proven Ethernet technology, Gigabit
Ethernet provides a seamless migration to higher-speed
networking.
T
he Accton ES4005V/ES4008V is defi nes 5/8-port Gigabit Ethernet Un-
managed Switch. The ES4005V/ES4008V provides 5/8 10/100/1000
Features and Benefi ts
Key Feature
Support 5/8 port 10/100/1000Mbps
Full Duplex 1000Mbit/s
•
Full and Half Duplex 10/100M bit/s
Store-and-forward operation support
•
Wire-speed, non-blocking performance
Two-way Address-Lookup engine and
table for 8K MAC address
Performance
Supports 9K byte jumbo packet
Supports broadcast storm fi ltering
•
Auto MDI/MDIX on 10/100/1000
Base-T ports Provides fl ow control
mechanism to ensure zero packet
loss. Uses IEEE802.3x for full duplex
operation and collision-like backpressure
for half duplex operation.
10/100/1000 Mbp s
MAC
PC
MAC
Application
Page 2
Specifi cations
Model Number
Electromagnetic Compatibility Safety
FCC Class B
AS/ NZS 3548 Class B
Safety
Physical Ports
Cabling
Mechanical
Dimension
Environmental
IEEE Standards
Package Content
One AC/DC power adapter
One User’s Guide
Owner Registration Card
