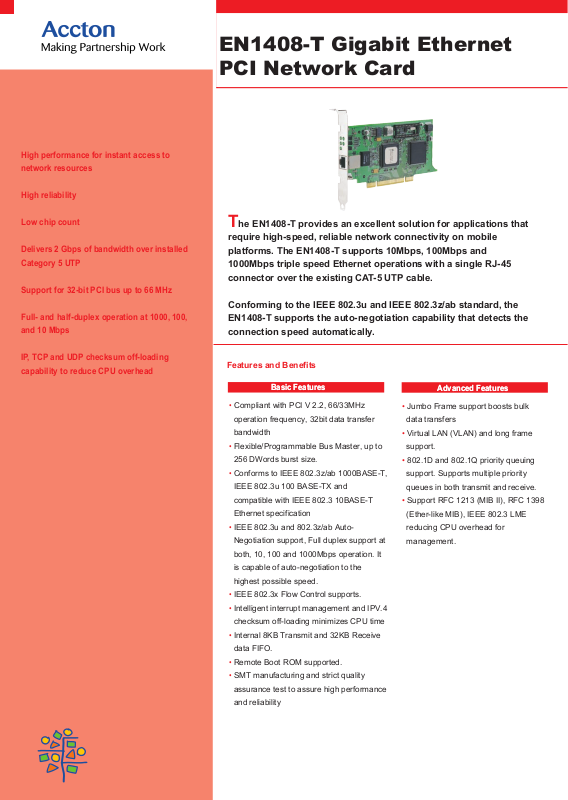

Accton EN1408-T Datasheet

High performance for instant access to

network resources

High reliability

EN1408-T Gigabit Ethernet
PCI Network Card

Low chip count

Delivers 2 Gbps of bandwidth over installed

Category 5 UTP

Support for 32-bit PCI bus up to 66 MHz

Full- and half-duplex operation at 1000, 100,

and 10 Mbps

IP, TCP and UDP checksum off-loading

capability to reduce CPU overhead

The EN1408-T provides an excellent solution for applications that

require high-speed, reliable network connectivity on mobile
platforms. The EN1408-T supports 10Mbps, 100Mbps and
1000Mbps triple speed Ethernet operations with a single RJ-45
connector over the existing CAT-5 UTP cable.

Conforming to the IEEE 802.3u and IEEE 802.3z/ab standard, the
EN1408-T supports the auto-negotiation capability that detects the
connection speed automatically.

Features and Benefits

Basic FeaturesBasic Features

• Compliant with PCI V 2.2, 66/33MHz

operation frequency, 32bit data transfer

bandwidth

•

Flexible/Programmable Bus Master, up to

256 DWords burst size.

•

Conforms to IEEE 802.3z/ab 1000BASE-T,

IEEE 802.3u 100 BASE-TX and

compatible with IEEE 802.3 10BASE-T

Ethernet specification

•

IEEE 802.3u and 802.3z/ab Auto-

Negotiation support, Full duplex support at

both, 10, 100 and 1000Mbps operation. It

is capable of auto-negotiation to the

highest possible speed.

•

IEEE 802.3x Flow Control supports.

•

Intelligent interrupt management and IPV.4

checksum off-loading minimizes CPU time

•

Internal 8KB Transmit and 32KB Receive

data FIFO.

•

Remote Boot ROM supported.

•

SMT manufacturing and strict quality

assurance test to assure high performance

and reliability

• Jumbo Frame support boosts bulk

data transfers

• Virtual LAN (VLAN) and long frame

support.

• 802.1D and 802.1Q priority queuing

support. Supports multiple priority

queues in both transmit and receive.

• Support RFC 1213 (MIB II), RFC 1398

(Ether-like MIB), IEEE 802.3 LME

reducing CPU overhead for

management.

Advanced FeaturesAdvanced Features

SpecificationsSpecifications

Network Interface

• 1000BASE-T: UTP cable; Category 5,

5e or better

Data Rate

•

1000 Mbps, 100 Mbps, 10 Mbps

half and full duplex

Bus Interface

•

32-bit bus master, PCI

•

33 MHz and 66 MHz

Interrupt

•

INTA

Cabling

•

4 pairs of Category 5, 5e or better UTP

cable: maximum 100 m (328 ft)

LED Indicators

•

1000, 100, and 10 Mbps link

•

Activity

•

Link

Size (without bracket)

• 7.9 x 16.5 cm (3.11 x 6.50 in.)

Weight

• 80 g (2.8 oz)

Operating Voltage

• +5 VDC @ 2.7 A maximum

Temperature

• Operating 0 to 55 °C (32 to 131 °F)

• Storage -20 to 65 °C (-4 to 150 °F)

Humidity

• 5% to 95% (non-condensing)

Standards

• IEEE 802.3ab 1000BASE-T

• IEEE 802.3u 100BASE-TX

• IEEE 802.3x Full-Duplex flow control

• IEEE 802.1Q VLAN Tagging

• IEEE 802.1p Port Priority

• PCI v2.2

Compliances

• CE Mark

• Emissions

• FCC Class B

• VCCI Class B

• Industry Canada Class B

• EN55022 (CISPR 22) Class B

Warranty

• Limited lifetime

Sofware Drivers

• ODI Drivers NetWare Server 4.1x or later

• NDIS Drivers Windows NT 4.0

• Windows 95

• Windows 98

• Windows ME

• Windows 2000

• Unix Drivers Linux 2.2.X or later

1. 2003 V.02
