OPERATION MANUAL
Noboboard Standard
Noboboard
English
Français
Deutsch
Italiano
Español
Note:
This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the interference
at his own expense.
Warning:
This is Class A product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures.
(EN55022)
OPERATION MANUAL
Noboboard Standard
English
First of all, we would like to thank you very much
for purchasing a Noboboard Standard
CONFERENCE MODEL.
Please read this Operation Manual before using
the machine to get the best performance out of
the product.
We recommend that you keep this manual for
future reference.
CONTENTS
FEATURES ......................................................... 1
PRODUCT FEATURES ...................................... 2
CONTROL FUNCTIONS..................................... 3
HOW TO USE ..................................................... 4
MAINTENANCE/HOW TO STORE..................... 7
HANDLING PRECAUTIONS............................... 7
CHECK LIST OF SIMPLE FAILURES ................ 8
SPECIFICATIONS .............................................. 9
Noboboard Standard CARTON CONTENTS
Please be sure all of the following items are included in
the carton with the Noboboard Standard
Noboboard main unit ......... 1
ACCESSORIES
● Set of Dry-eraseble markers (one each black, red
and blue).
● Dry-Eraser (1)
● Fax Paper (30m(96ft) , 12mm(w/1/2") core)
● Operation Manual with warranty card
● PC interface board - to enable integration of the
Noboboard Standard and your Personal Computer
FEATURES
●
The board size is W1300mm × H920mm-large enough to show
all the ideas that you discuss during your meetings, without any
omissions.
●
Information on the large screen can be copied immediately onto
a sheet of A4/Letter paper.
Those who attend a meeting can concentrate on the subject,
as there is no need to waste time jotting down notes.
●
The board screen can be slid easily, and the powder tray is
designed for easy disposal of powder.
●
The Noboboard Standard can be easily upgraded for use with
your PC.
1
PRODUCT FEATURES
FRONT
REAR
Board screen
Printer
T-shaped stand
Printer cover
50mm × 50mm
gridded surface area
Tray
Operation panel
Caster
Expansion slot
(for optional upgrades)
PC interface board - to enable downloading of board information from the
Noboboard Standard to the PC
（
2
T-shaped stand
）
CONTROL FUNCTIONS
OPERATION PANEL
NOBO ELCTRONIC COPYBOARD
POWERON
OPEN
A B
A
Opening button .............................. Press this button to open the printer hatch when replacing
POWER
PAPEROUT
D
C
COPY
E
REPEAT
F
PC
G
H
the thermal paper.
B
Power switch .................................. Press "I" to turn ON the power when starting machine
operation.
C
Power lamp ..................................... Press the switch, and the green lamp will blink on and off.
The lamp will stay lit (green) when the read sensor inside
the machine is ready for operation.
Paper warning lamp ....................... When the thermal paper has run out, the red lamp will
D
light. Load new recording paper.
One-surface copy key.................... This is used when one page of the screen is copied onto
E
A4 paper. The machine produces a copy at a reduced
scale of the same length and breadth.
FEED
STOP
I
F
Two-surface reduction copy key .. This is used when copying two pages of the screen at a
reduced size onto A4 paper. At this time, the copy is
reduced horizontally.
G
Repeat key ...................................... For use with PC interface kit.
H
PC COPY key .................................. For use with PC interface kit.
I
Feed/stop key ................................. This is used when the screen slides to the left.
Pressing this key advances the screen by one page and
then automatically stops.
Pressing the key while the board screen is being moved
stops it immediately. This can also be used when paper
has run out and must be refilled.
If this key is pressed during the copying operation, the
copying performance ends and the printer stops.
3

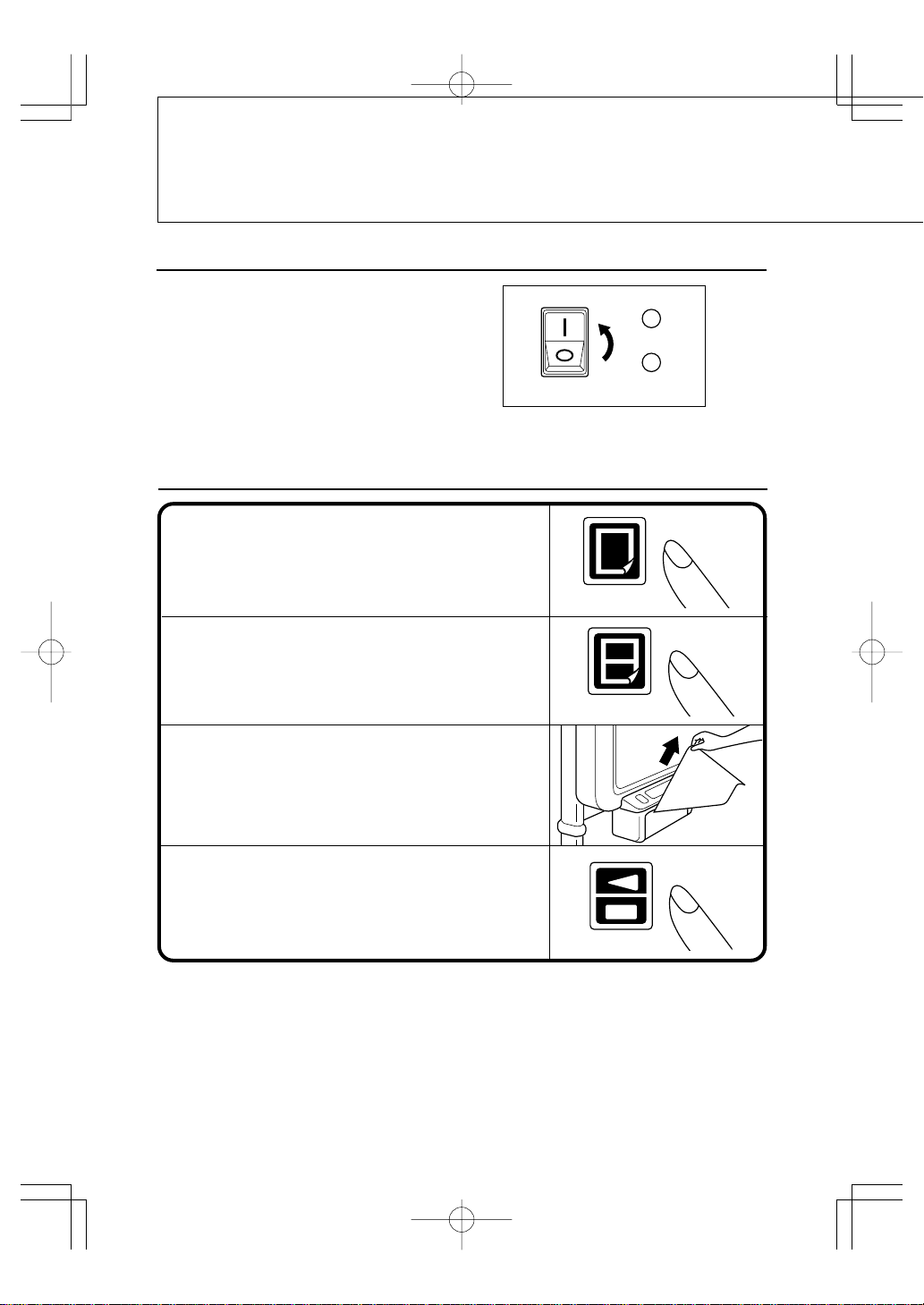

HOW TO USE
POWER
POWER ON
PAPER OUT
■ BEFORE USE...
Press the caster lock switches ON and keep
the casters in a locked position.
Plug in and turn ON the power switch. After
the power lamp blinks for 2-3 seconds, it
should turn green.
■ WHEN COPYING...
When copying one surface:
Press the one-surface copy key. At this time the board screen
slides forward one page and the written contents are copied
onto A4 paper.
When copying reduced two-surfaces:
Press two-surface reduction copy key. At this time the board
screen slides forward two pages, and the written contents are
reduced to A4 size and copied.
Cut-off Recording Paper
When copying is completed, pull the tip of the recording
paper upwards and cut it off with the edge of the outlet.
Press the feed/stop key to half the copying operation
immediately. The printer stops after completion of copying
up to that point.
4
■ WHEN SLIDING THE SCREEN FORWARD...
Sliding by using key
Press the feed/stop key. Then, the board screen slides to
the left by one page and stops. It stops immediately when
the feed/stop key is pressed during the sliding operation.
Manual sliding
It is also possible to slide the board screen manually. In
this case, it can be slid in either direction; to the right and
left. However, manual sliding at an excessively high speed
must be avoided as it occasionally causes problems.
■ WHEN REPLACING RECORDING PAPER...
*Concerning replacement of recording
paper
Replace with new recording paper in the following cases:
When a red line appears at the end of the recording paper.(A
red line appears when only about one meter or so of
recording paper is remaining.)
When the paper warning lamp lights red.
HOW TO USE
Press the opening button to open
the printer cover.
Take out the core left over from the thermal paper.
As illustrated, set it in so that the
tip of the new roll of recording
paper extends about 20cm from
the outlet.
5
HOW TO USE
Push both ends of the hatch
closed until it locks with a clicking
noise. At this time, make sure that
the recording paper has not
slipped.
Cut off extra recording paper from
the printer outlet.
Replace the recording paper in the following situations
● When a red line appears at the edges of the recording paper. The red line will
appear when there is only about one meter (3 feet) or so of recording paper left on
the roll.
● When the paper out lamp lights red.
Note:
● Please use only the correct type of recording paper.
● Particular attention must be given to the winding direction of the recording paper, since
copying cannot be performed if the winding direction of the recording paper is reversed.
● Be sure to keep the recording paper straight when loading, failure to do so may cause
wrinkling or tearing of the paper during the copy function.
*Automatic Power Cut-off Function
If there is no key operation for about an hour, a fluorescent lamp inside the main unit automatically
goes off and the machine enters a state of power conservation. (At this time, the power lamp is lit.)
If at any time any key is pressed, the fluorescent lamp light again, and the normal operating
condition is restored.
6
MAINTENANCE/HOW TO STORE
Carry out the following maintenance procedures periodically to ensure high quality
copying performance at all times.
(1) Cleaning of the surface
When the surface gets stained, wipe it off with a slightly damp cloth. Also, if the stain
is particularly stubborn, use a solution of water-thinned neutral detergent to wipe it
off. Do not start using the machine until the sheet has completely dried.
(2) Cleaning of tray and decorative frame
Wipe away any dirt or residue left by the markers in the tray and the decorative
frame with a slightly damp cloth.
HANDLING PRECAUTIONS
<FOR SAFE USE>
1. Avoid placing the machine in hot spots where it is exposed to direct sunlight or
where an air conditioning duct.
2. When using sticky tape on the surface of the board screen, do not leave it on for a
long time. Moreover, after removing it, wipe the screen clean. Do not hit or pierce
the board screen with any hard or sharp objects.
3. Do not leave writing or marks on the board screen for a long time since it sometimes
become difficult to erase.
4. Be careful not to stain the joints of the board screen as there have been very rare
cases where such stains have been copied.
5. As thinner, benzine, alcohol, etc., may discolor or mark the main unit and the
board screen, never use such chemicals when cleaning.
6. Use only the correct type of recording paper.
When storing thermal recording paper, avoid the following places. This is important
because storage in such places may cause color development or discoloration.
(1) Places where the paper is exposed to direct sunlight.
(2) Places where the paper is exposed to temperatures of more than 35˚C and
humidity of 85% or over.
(3) Places adjacent to alcohol, thinner, benzine, ammonia, etc.
7
HANDLING PRECAUTIONS
7. When replacing recording paper, do not place any objects on the open printer
cover or do not put your elbows on it.
8. After use, make sure to turn OFF the power switch. In addition, when it is not to be
used for a long time, make certain that the plug of the power cord is pulled out form
the outlet.
9. Always use the correct type of marker. Be careful not to use other markers as the
sheet may be damaged or, in some cases, the ink may be difficult to remove.
10. Write within an area of a size that can be easily read.
20mm
30mm 30mm
20mm
11. When moving this machine, turn OFF the caster lock switches, hold both the right
and the left sides of the main unit firmly, and avoid any sudden jolts or shocks.
CHECK LIST OF SIMPLE FAILURES
<BEFORE ASKING FOR A REPAIR SERVICE>
CONDITIONS CHECKPOINTS
When the power fails
When pressing copy key does not result
in copying
Although printer is functioning, nothing is
copied on recording paper
When characters written on board screen
cannot be rubbed out even by the use of
an eraser
When copy is dirty
∗ If no satisfactory result can be achieved even after the above, contact the suppliers or our
company.
Check if power cord is pulled out of outlet.
Check if paper warning lamp (red) is lit.
Check if winding direction of recording
paper is set on reverse. (No copying is
made on back of recording paper)
Check if any marker except the correct type
has been used. Wipe off with a damp cloth
or neutral detergent.
Check for ink residue on the screen. If it is
stained, wipe off carefully with a soft damp
cloth.
8
SPECIFICATIONS
Item Specification
Board surface size W1300 × H920 mm (51-3/16 × 36 inch)
Effective reading size W1240 × H880 mm (48-7/8 × 34-3/4 inch)
Number of pages 2 pages
Screen driving method One direction endless drive
Grid 50mm squares
Writing instruments Special markers (black/red/blue)
Reading method CCD sensor, plane scanning
Recording method Thermal printing with thermal head
Recording density 8 dot/mm
Recording paper Special thermal sensitive paper (30 m roll)
Size of recording paper A4 size (210 × 297mm) Letter size (8-1/2 × 11 inch)
Recording color Black
Recording speed 1-surface copy: 11 sec/copy
2-surfaces reduced copy: 22 sec/copy
Operating conditions Temperature: 5-35˚C
Humidity: 30-85% (Without dew condensation)
Power source North America 120V AC 60Hz
Europe 230V AC 50Hz
Asia/Oceania 220-240V AC 50Hz
Central South America
Middle/Near East Respective rated local voltage/frequency
(110V, 120V, 220-240V)
Power consumption 60W at stand-by, 120W at operation
Outer dimensions W1470 × D600 × H1885 mm (57-7/8 × 23-5/8 × 74-2/8 inch)
Weight 41 kg
Special thermal recording paper (30-m roll/98 FT)
Others Consumables
Special markers
Special eraser
PC interface kit
*Specifications are subject to change without notice for improvement.
Placing this unit next to equipment or buildings (such as broadcasting stations) where strong
RF interference is generated may sometimes cause printing to become blurred or disordered
when copies are made. This does not indicate a breakdown or problem in this unit.
9
ACCO UK & International
Gatehouse Road
Aylesbury
Bucks. HP19 3DT
Great Britain
+44 01296 397444
+44 01296 489539
www.acco.co.uk
ACCO Polska
Falenty Nowe
ul. Rozy 11
05-090 Raszyn
Polska
022 715 3400
022 720 3458
www.acco.pl
ACCO Benelux
Peppelkade 64
3992 AK Houten
Nederland
030 634 6060
030 634 6070
www.accobenelux.nl
ACCO Deutschland
Hetzel GmbH & Co. KG
Schorndorfer Str. 69
D-73635 Rudersberg-Steinenberg
Germany
+49 0 7183 3003-54
+49 0 7183 3003-52
Email: hotline@accodeutschland.de
www.accodeutschland.de
ACCO Hungária KFT
Ócsai út 4
1239 Budapest
Hungária
+36 1 2 83 16 45
+36 1 2 83 09 28
ACCO Ireland
Clonshaugh Industrial Estate
Clonshaugh
Dublin 17
Republic of Ireland
+353 1 8164300
+353 1 8164302
www.accorexel.ie
ACCO FRANCE
Service commercial & logistique
BP 7, 21601 LONGVIC Cedex
France
+33 (0)3 80 68 60 00
+33 (0)3 80 68 60 48
www.acco.fr
ACCO Italia
10036 Settimo Torinese (TO)
Via Regio Parco 108 / bis
Italy
011 895 1111
011 896 1234
www.acco.it
ACCO Ceská Republika
Hetzel GmbH & Co. KG
Kapitána Sochora 2400
39003 Tábor
Ceská Republika
0 04 20 38 18 94 00
0 04 20 3 61 23 11 05
Acco Ibérica
Carretera Santa
Creu de Calafell, km.9.3
Edifici Centreserveis
08830 Sant Boi de
Llobregat (Barcelona)
+34 93.630.69.21
+34 93.640.97.13
ACCO Nordic
Kanalvagen 10c, 9tr
194 61 Upplands Vasby
Sweden
08 59 00 4244
08 59 00 4110
14-4730-02A
www.accoeurope.com
Loading...
