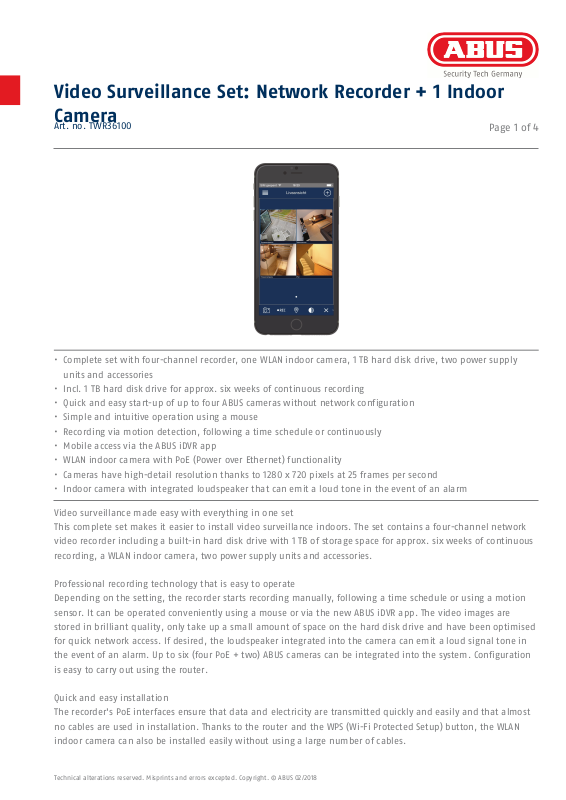

Video Surveillance Set: Network Recorder + 1 Indoor Camera

Art. no. TVVR36100

Complete set with four-channel recorder, one WLAN indoor camera, 1 TB hard disk drive, two power supply

• units and accessories Incl. 1 TB hard disk drive for approx. six weeks of continuous recording

• Quick and easy start-up of up to four ABUS cameras without network configuration

• Simple and intuitive operation using a mouse

• Recording via motion detection, following a time schedule or continuously

• Mobile access via the ABUS iDVR app

• WLAN indoor camera with PoE (Power over Ethernet) functionality

• Cameras have high-detail resolution thanks to 1280 x 720 pixels at 25 frames per second

• Indoor camera with integrated loudspeaker that can emit a loud tone in the event of an alarm

•

Page 1 of 4

Video surveillance made easy with everything in one set This complete set makes it easier to install video surveillance indoors. The set contains a four-channel network video recorder including a built-in hard disk drive with 1 TB of storage space for approx. six weeks of continuous recording, a WLAN indoor camera, two power supply units and accessories.

Professional recording technology that is easy to operate Depending on the setting, the recorder starts recording manually, following a time schedule or using a motion sensor. It can be operated conveniently using a mouse or via the new ABUS iDVR app. The video images are stored in brilliant quality, only take up a small amount of space on the hard disk drive and have been optimised for quick network access. If desired, the loudspeaker integrated into the camera can emit a loud signal tone in the event of an alarm. Up to six (four PoE + two) ABUS cameras can be integrated into the system. Configuration is easy to carry out using the router.

Quick and easy installation The recorder's PoE interfaces ensure that data and electricity are transmitted quickly and easily and that almost no cables are used in installation. Thanks to the router and the WPS (Wi-Fi Protected Setup) button, the WLAN indoor camera can also be installed easily without using a large number of cables.

Video Surveillance Set: Network Recorder + 1 Indoor Camera

Art. no. TVVR36100

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.
