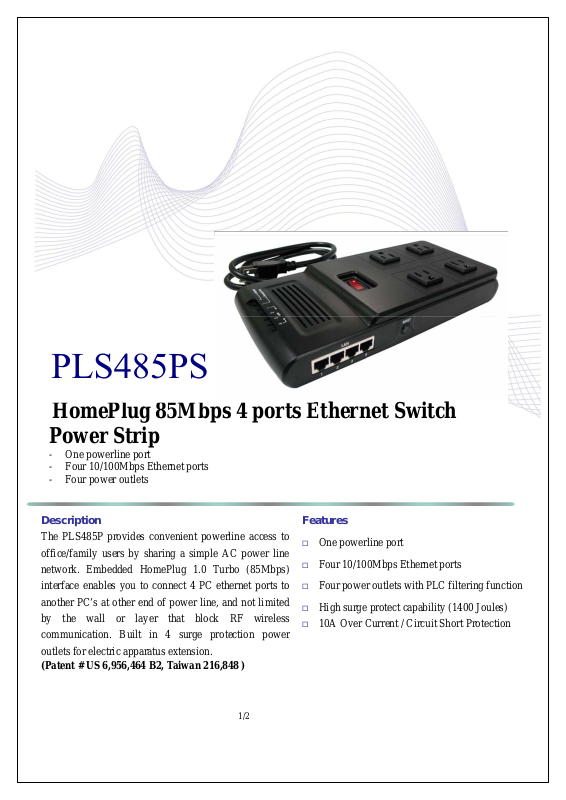

HomePlug 85Mbps 4 ports Ethernet Switch Power Strip

-One powerline port

-Four 10/100Mbps Ethernet ports

-Four power outlets

Description

The PLS485P provides convenient powerline access to office/family users by sharing a simple AC power line network. Embedded HomePlug 1.0 Turbo (85Mbps) interface enables you to connect 4 PC ethernet ports to another PC’s at other end of power line, and not limited by the wall or layer that block RF wireless communication. Built in 4 surge protection power outlets for electric apparatus extension.

(Patent # US 6,956,464 B2, Taiwan 216,848 )

Features

One powerline port

Four 10/100Mbps Ethernet ports

Four power outlets with PLC filtering function

High surge protect capability (1400 Joules) 10A Over Current / Circuit Short Protection

1/2

Specification

Main Chipset

Intellon INT5500 + INT1200 + Marvell 88E6060





Standard support

HomePlug 1.0 Turbo (85Mbps) & HomePlug 1.0 (14Mbps)





Interface

One Powerline port, four US-type power outlets, and four 10/100M



Ethernet ports

Power

100-120Vac; 10A, 50-60Hz





Dimension (W x D x L)

120mm (W) x 235mm(L) x 40mm(H)





LED

Power: Yellow-Green



On: Power on



Off: Power off



Powerline: Yellow-Green



On: Powerline in link.



Blink: Powerline in activity



Off: Powerline in no-link.



LAN (1-4): Yellow-Green



On: Ethernet port in link.



Blink: Ethernet port in activity



Off: Ethernet port in no-link.

Surge Energy Rating

1400 Joules @ 10/1000us.





Over Current Protection

10Amps, resettable





PLC isolation loss

50 to 80dB among 4-21MHz.

Operating Temperature

0~40ºC (32~104ºF)



Relative Humidity: 10%~90% non-condensing





Storage

Temperature: -10~60ºC (14~140ºF)



Relevant Humidity: 5%~95% non-condensing



Altitude: Sea level to 40,000 feet





CERTIFICATIONS

FCC Part 15, Part B, Class B; CE Class B;



UL/cUL60950-1, UL1449





(Patent # US 6,956,464 B2, Taiwan 216,848 )
