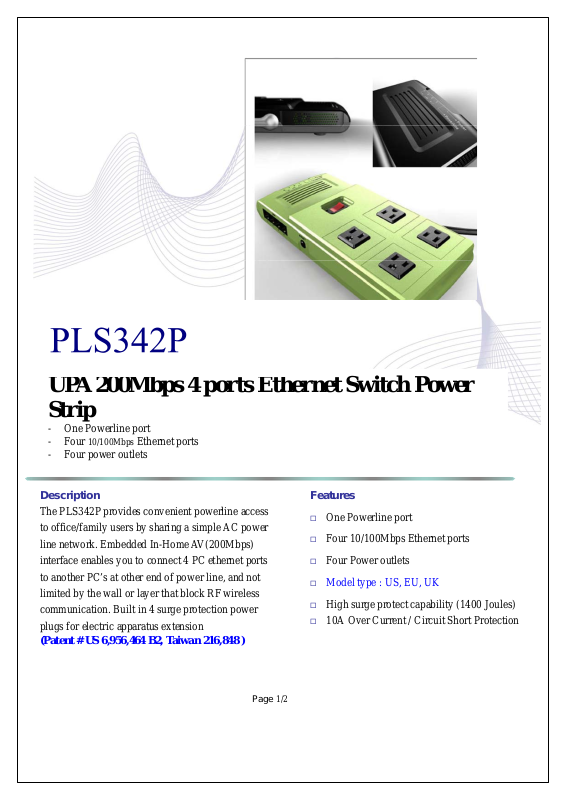

Abocom PLS342P User Manual

UPA 200Mbps 4 ports Ethernet Switch Power
Strip

- One Powerline port

- Four

- Four power outlets

Description

The PLS342P provides convenient powerline access
to office/family users by sharing a simple AC power
line network. Embedded In-Home AV(200Mbps)
interface enables you to connect 4 PC ethernet ports
to another PC’s at other end of power line, and not
limited by the wall or layer that block RF wireless
communication. Built in 4 surge protection power
plugs for electric apparatus extension

(Patent # US 6,956,464 B2, Taiwan 216,848 )

10/100Mbps Ethernet ports

Features

 One Powerline port
 Four 10/100Mbps Ethernet ports
 Four Power outlets
 Model type : US, EU, UK
 High surge protect capability (1400 Joules)

 10A Over Current / Circuit Short Protection

Page 1/2

Specification

Main Chipset DS2 DSS9010+ DSS7800 + Realtek RTL8306

Standard support UPA DHS (200 Mbps) PLC, IEEE 802.3 & 802.3u.

Interface One Powerline port, four power outlets, four 10/100Mbps Ethernet

ports

Power AC 100~240V/ 50~60Hz/ 10A
Dimension (W x D x L) US type: 141.9mm (W) x 280mm(L) x 48.8mm(H),

EU/UK type: 141.9mm (W) x 280mm(L) x 47.6mm(H).

LED Power: Yellow-Green

Power On: On,
Power Off : Off

Powerline: Yellow-Green

Link: On,
Act: Blink
No-link: Off

1-4 Ethernet: Yellow-Green

Link: On,
Act: Blink
No-link: Off

Surge Energy Rating Up to 1400 Joules

Over Current Protection 10Amps
Operating Temperature 0~40ºC (32~104ºF)

Relative Humidity: 10%~90% non-condensing

Storage Temperature: -10~60ºC (14~140ºF)

Relevant Humidity: 10%~95% non-condensing

CERTIFICATIONS FCC Part 15, Part B, Class B, CE Class B,

UL 60950-1 / UL 1449 (option), CB (option).
