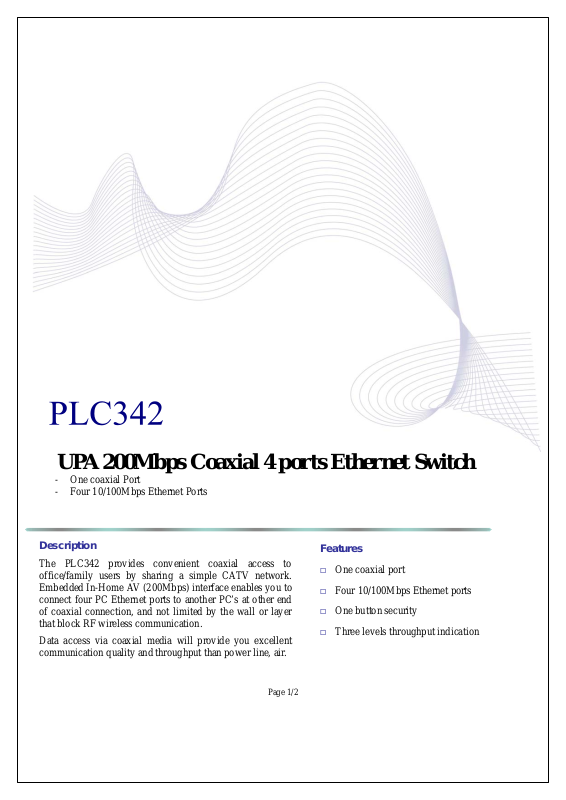

UPA 200Mbps Coaxial 4 ports Ethernet Switch
- One coaxial Port
- Four 10/100Mbps Ethernet Ports
Description
The PLC342 provides convenient coaxial access to
office/family users by sharing a simple CATV network.
Embedded In-Home AV (200Mbps) interface enables you to
connect four PC Ethernet ports to another PC’s at other en
of coaxial connection, and not limited by the wall or laye
that block RF wireless communication.
Data access via coaxial media will provide you excellent
communication quality and throughput than power line, air.
Features
One coaxial port
Four 10/100Mbps Ethernet ports
One button security
Three levels throughput indication
Page 1/2
Product outlook
Specification
Main Chipset DS2 DSS9010+ DSS7800 + Realtek RTL8306
Standard support UPA DHS (200 Mbps) PLC, IEEE 802.3 & 802.3u.
Interface One 75 ohms F-type coaxial port, four 10/100Mbps Ethernet ports.
One security button, one factory-reset button, one stand-by button.
Security 3DES 168 bits encryption
Power AC 100~240V/ 50~60Hz/ 0.15A; 8W/230V max.; 7W/110V max.
Dimension (W x D x L) 121.4 mm(130.8mm with coaxial connector) x 100 mm x 28.5 mm.
LED
PWR/AP: Red & Green
Green On: EP type,
Orange On: Fixed AP type,
Orange-Green Blinking: Security setup mode.
Off: Power Off .
PLC/SPD: Red & Green
Green On: Coaxial Link speed over 12Mbps,
Orange On: Coaxial Link speed between 12Mbps and 6Mbps,
Red On: Coaxial Link speed under 6Mbps,
Blinking: Coaxial in activity .
Off: Coaxial in no-link.
LAN (1-4): Yellow-Green
On: Ethernet in link
Blink: Ethernet in activity .
Off: Ethernet in no-Link
Connection Range At least 300 Meters (For in-house usage only)
Operating Operating Temperature: 0~40ºC (32~104ºF)
Relative Humidity: 10%~90% non-condensing
Storage Temperature: -10~70ºC (14~158ºF)
Relevant Humidity: 5%~95% non-condensing
CERTIFICATIONS FCC Part 15B & 15C, Class B; CE Class B (EN55022/EN55024)
UL 60950-1, CB.
Page 2/2
