H10

Multimedia Projector

Operator’s Guide

Thank you for purchasing this projector.

CAUTION Before using, read the "Product Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference.

NOTE • The information in this manual is subject to change without notice.

The manufacturer assumes no responsibility for any errors that may appear in this manual.

The reproduction, transmission or use of this document or contents is not permitted without express written authority.

TRADEMARK ACKNOWLEDGMENT :

VGA and XGA are registered trademarks of the International Business Machines Corporation.

Apple and Mac are registered trademarks of Apple Computer, Inc.

VESA and SVGA are trademarks of the Video Electronics Standard Association.

Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the property of their respective owners.

Contents

Projector Features …………………3 Preparation …………………………3 Part Names …………………………4

The Projector ………………………4 Attaching The Base ………………4 The Remote Control ………………6

Setting Up ……………………………7

Arrangement ………………………7 Adjusting The Projector’s

Elevator ……………………………8 Connecting Your Devices…………9 Connecting Power Supply ………11

Remote Control……………………12

Putting Batteries …………………12 Operating The Remote Control…13

Power ON/OFF ……………………14

Turning On The Power …………14 Selecting An Input Signal ………15 Turning Off The Power …………16

Operating …………………………17

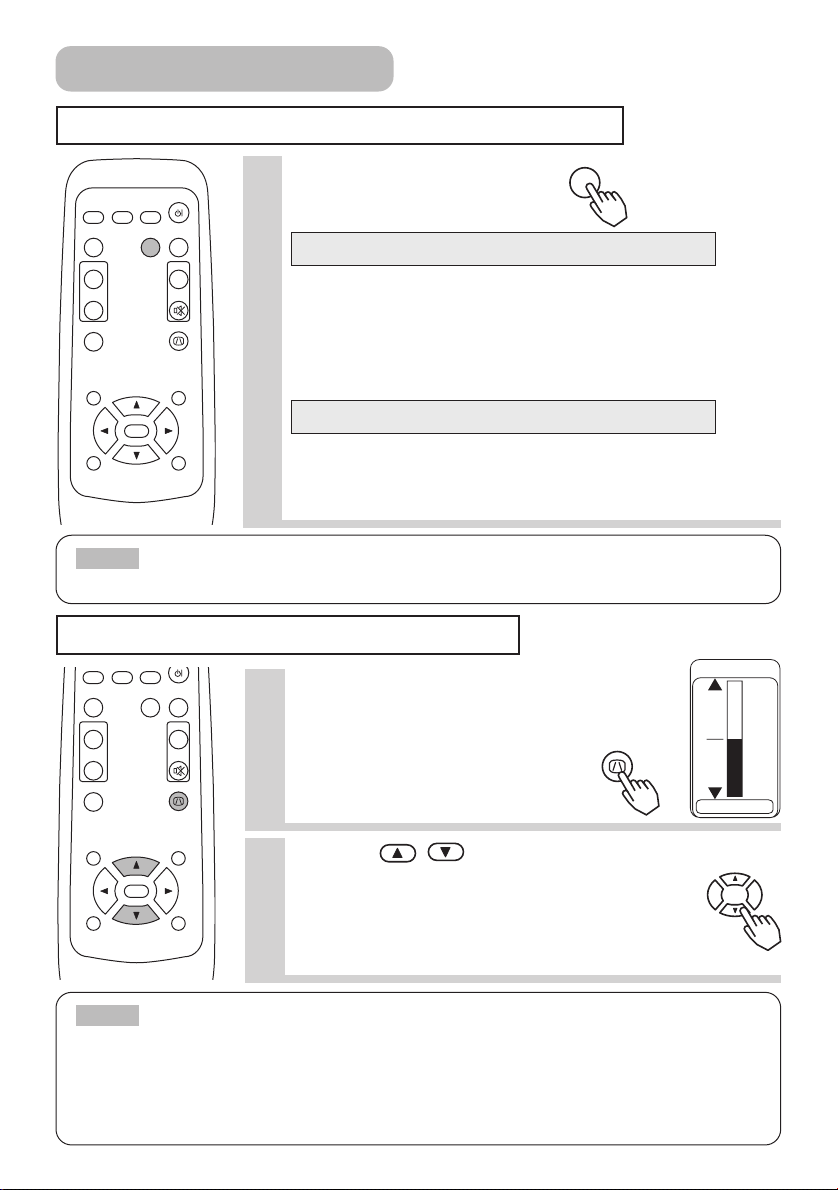

Adjusting The Volume …………17 Temporarily Muting The Sound…17 Adjusting The Position …………18 Using The Automatic

Adjustment Feature………………19 Correcting Keystone Distortions…………………………19 Using The Magnify Feature ……20 Freezing The Screen ……………20 Signal Searching …………………21 Selecting The Aspect Ratio ……21 Temporarily Blanking

The Screen ………………………21

Multifunctional Settings …………22

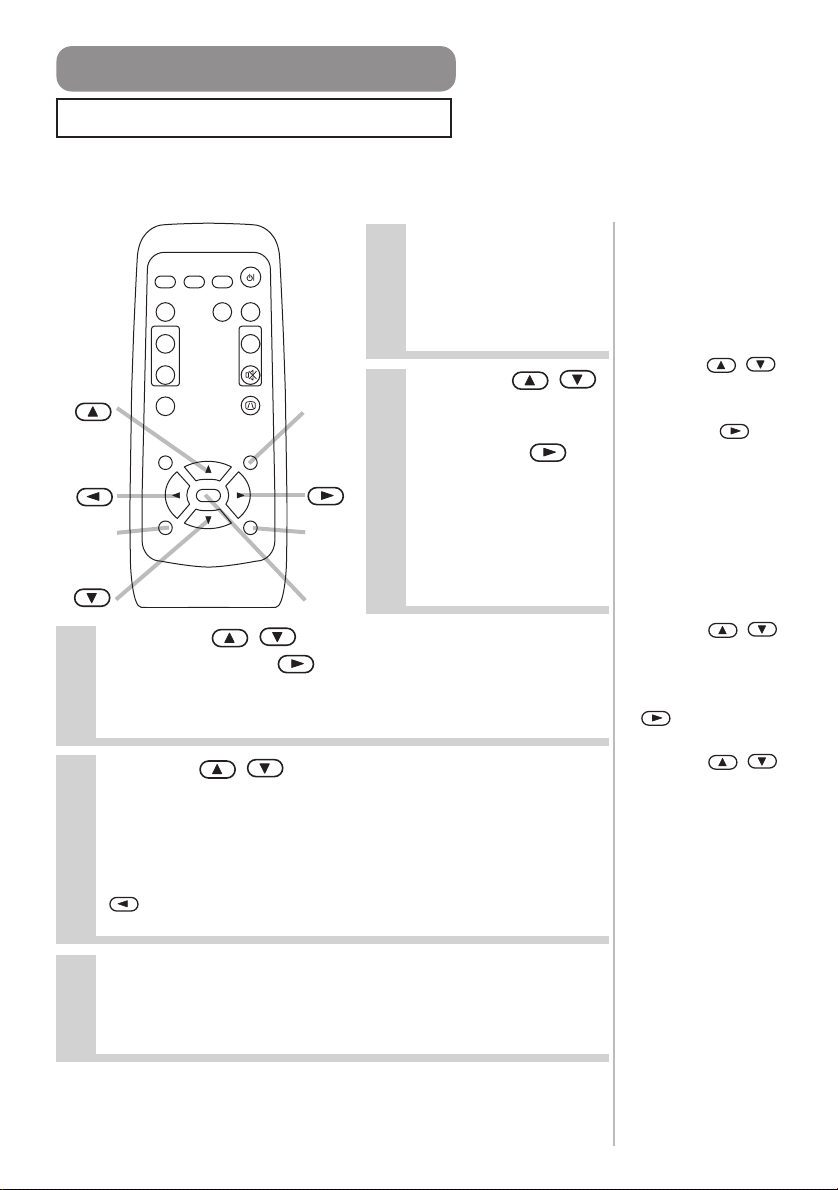

Using The Menu Functions ……22 MAIN Menu ………………………23 PICTURE-1 Menu ………………24 PICTURE-2 Menu ………………26 INPUT Menu ……………………27 AUTO Menu ………………………29 SCREEN Menu …………………30 OPTION Menu ……………………31

Lamp ………………………………32

Replacing The Lamp ……………33

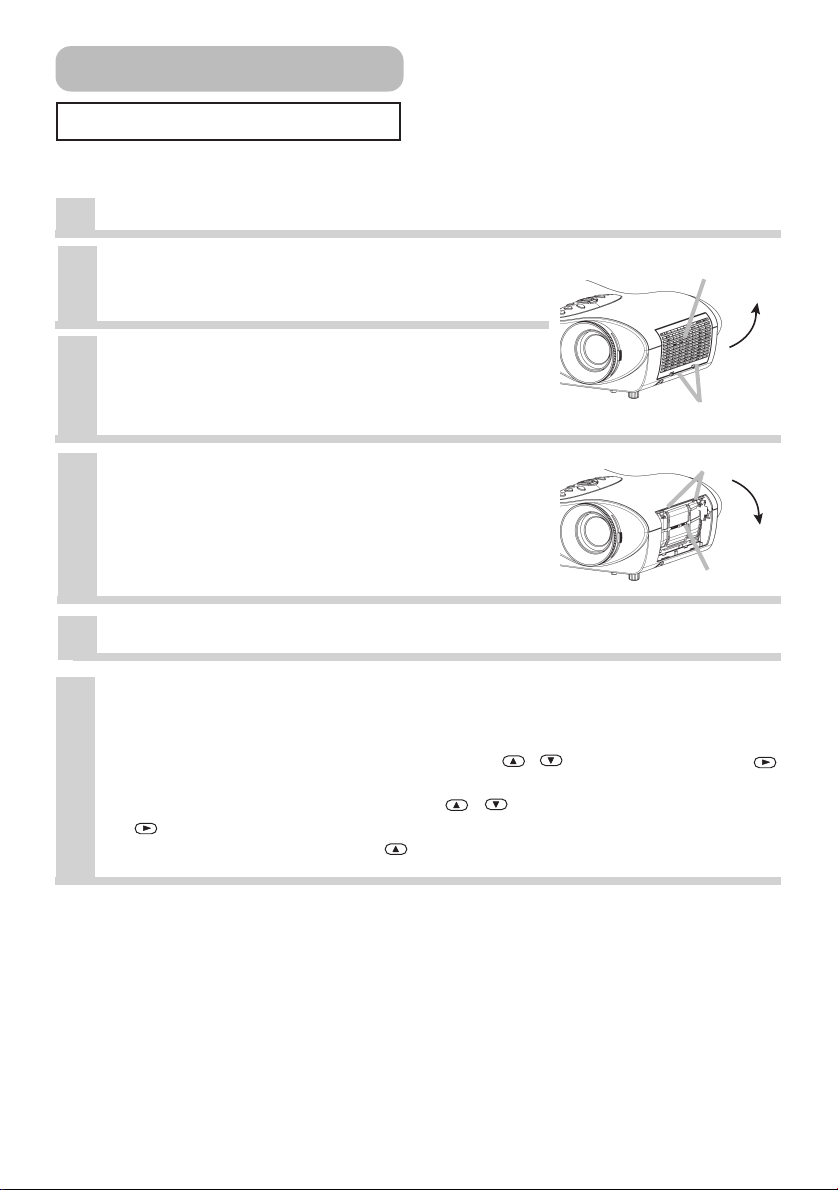

Air Filter ……………………………34

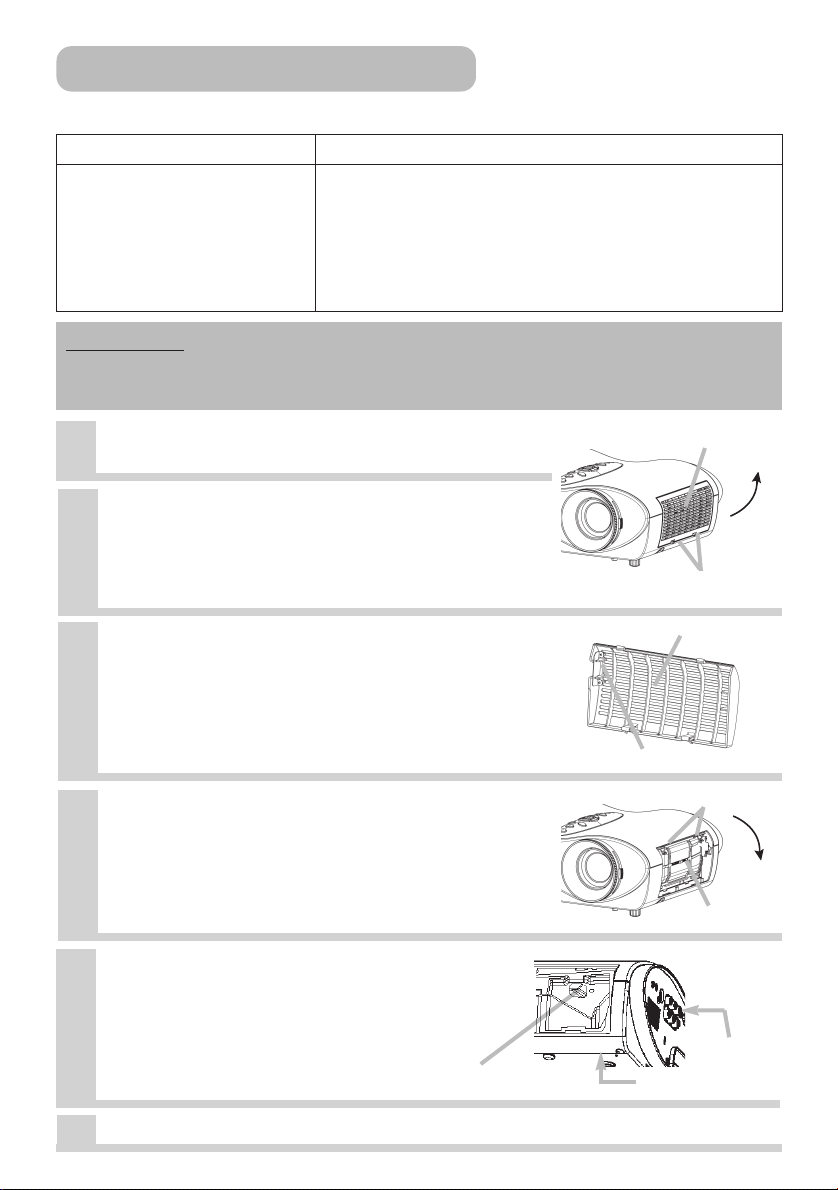

Caring For The Air Filter…………34 Replacing The Air Filter …………35

Other Care …………………………36

Caring For The Inside

Of The Projector …………………36 Caring For The Lens ……………36 Caring For The Cabinet

And Remote Control ……………36

Troubleshooting …………………37

Related Messages ………………37 Regarding

The Indicator Lamps ……………39 Phenomena That May Easily Be Mistaken For Machine Defects …41

Specifications ……………………43 Accessories ………………………44

2

Projector Features

This multimedia projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized.

Ultra High Brightness

Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system.

Whisper Mode Equipped

Special mode is available for reducing projector noise to achieve quieter operation.

User Memory Function

This projector can memorize 4 settings by MY MEMORY function.

Partial Magnification Function

Interesting parts of images can be magnified for closer viewing.

Keystone Distortion Correction

Quick correction of distorted images electrically.

Preparation

Please see the “Quick Start Guide”. Your projector should come with the items shown there. Contact your dealer anything is missing.

NOTE • Keep the original packing material for future reshipment.

3

Part Names

The Projector

Indicates the corresponding

reference page









15 Focus ring



Remote sensor 13

15

Zoom knob





34



Lens

Air filter cover

(An air filter is

(The picture is

inside.)

projected from



here.)

8 Elevator





button

8

Elevator feet

Projector (Front/Right)



Attaching The Base

CAUTION • Be careful not to pinch your finger on the occasion of the handling of a base.

Do not hold the base, lens or other project part to move the projector.

Do not use the base to suspend the projector.

Do not push or put anything on the both sides of the top of the projector.

1Turn off the projector, and unplug the power cord. Allow the lamp bulb to cool for at least 45 minutes.

2 After making sure that the projector has cooled adequately, slowly flip over the projector, so that the bottom is facing up.

Put the base on the bottom of the 3 projector, as shown in the fugure.

Then slide it to the back of the projector until it locks into position. To remove it, slide the base to the front of the projector pinching the lever of the base.

Bottom of

Base the projector

Lever

Back

4 Slowly turn the projector so that the top is facing up.

4

Part Names (continued)

The Projector (continued)

19 keystone button

turns on/off the KEYSTONE mode. In the KEYSTONE mode,

To adjust the keystone, use the cursor / buttons.

video button 15 toggles between the signal ports of video, s-video and component video.

cursor buttons 22 works for adjusting or menu controlling.

on/off button 14 prepares for turning the power on/off.

temp indicator 14 lights or blinks when any problem about internal temperature has happened.

22reset button cancels the adjustment in progress.

*The adjustments of the volume etc. are not reset.

15rgb button selects the input signal of rgb port.

22 menu button opens/closes the menu.

39 power indicator tells the state of power supply. Refer to the section “Power ON/OFF”.

39 lamp indicator lights or blinks when any problem about the lamp has happened.





Control buttons



audio

R port 10







L port





(from a video equipment)





audio port

10





(from a computer)







s-video port

10





video port

10

10

control port





component video - Y 10

10 rgb port

component video - CB/PB 10

14 Power switch

component video - CR/PR 10

11 AC inlet

Projector (Rear/Left)

5

Part Names (continued)

The Remote Control

RGB button 15 selects the input signal of rgb port.

VIDEO button 15 toggles between the signal ports of video, s-video and component video.

ASPECT button 21 toggles between the modes for aspect ratio.

MAGNIFY ON/OFF 20 buttons

turns on/off the MAGNIFY mode.

In the MAGNIFY mode,

To move the magnified area,

(1)Press the POSITION button.

(2)Use the cursor buttons to move the picture.

(3)Press the POSITION button again to finish.

To shift the magnify level,

use the cursor / buttons.

FREEZE button 20 freezes/reactivates the picture.

POSITION button 18 turns on/off the POSITION mode. (for RGB input)

In the POSITION mode,

To move the picture, use the cursor buttons.

ESC button 22 returns to the previous display at the menu functions.

21 SEARCH button

14 STANDBY/ON

searches for an input

button

signal between the

prepares for turning the

following signal ports of

power on/off.

rgb, video, s-video and



component video.



STANBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

MAGNIFY

VOLUME

ON





MUTE

OFF



FREEZE

KEYSTONE

POSITION

MENU



ENTER

ESC

RESET

22 ENTER button proceeds to the next operation at the menu functions.

22 , , ,

(Cursor) buttons works for adjusting or menu controlling.

19 AUTO button executes automatic adjustment.

21 BLANK button blanks the screen temporarily.

17 VOLUME button turns on/off the VOLUME mode.

In the VOLUME mode,

To adjust the volume, use the cursor / buttons.

17 MUTE button mutes/restores the sound.

19KEYSTONE button

turns on/off the KEYSTONE mode.

In the KEYSTONE mode,

To adjust the keystone,

use the cursor / buttons.

22 MENU button opens/closes the menu.

22 RESET button cancels the adjustment in progress.

* The adjustments of the volume etc. are not reset.

6

Setting Up

Arrangement

WARNING • Install the projector in a suitable environment according to instructions of the “Product Safety Guide” and this manual.

• The power outlet should be close to the projector and easily accessible.

Refer to the illustrations and tables below to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen:854×480 (a):Distance from the projector to the screen (±10%)

(b):Distance from the lens center to the top of the screen (±10%)

Reference for

the 16:9 aspect ratio

Screen

Lens center

(b)

(a)

Side View

Reference for

the 4:3 aspect ratio

Screen

Lens center

(b)

(a)

Side View

Screen size



(a) [inch (m)]





(b)

[inch (m)]



Min.

Max.

[inch (cm)]

















30

(0.8)

35

(0.9)

43

(1.1)

15

(37)

40

(1.0)

48

(1.2)

57

(1.5)

20

(50)

50

(1.3)

60

(1.5)

72

(1.8)

25

(62)

60

(1.5)

72

(1.8)

87

(2.2)

29

(75)

70

(1.8)

85

(2.2)

101

(2.6)

34

(87)

80

(2.0)

97

(2.5)

116

(3.0)

39

(100)

90

(2.3)

109

(2.8)

131

(3.3)

44

(112)

100

(2.5)

122

(3.1)

146

(3.7)

49

(125)

120

(3.0)

146

(3.7)

175

(4.4)

59

(149)

150

(3.8)

183

(4.7)

219

(5.6)

74

(187)

200

(5.1)

245

(6.2)

293

(7.4)

98

(249)

250

(6.3)

306

(7.8)

366

(9.3)

123

(311)

300

(7.5)

368

(9.3)

440

(11.2)

147

(374)

Screen size



(a) [inch (m)]





(b)

[inch (m)]



Min.

Max.

[inch (cm)]

















30

(0.8)

39

(1.0)

47

(1.2)

18

(46)

40

(1.0)

52

(1.3)

63

(1.6)

24

(61)

50

(1.3)

66

(1.7)

79

(2.0)

30

(76)

60

(1.5)

79

(2.0)

95

(2.4)

36

(91)

70

(1.8)

92

(2.4)

111

(2.8)

42

(107)

80

(2.0)

106

(2.7)

127

(3.2)

48

(122)

90

(2.3)

119

(3.0)

143

(3.6)

54

(137)

100

(2.5)

133

(3.4)

159

(4.0)

60

(152)

120

(3.0)

159

(4.1)

191

(4.8)

72

(183)

150

(3.8)

200

(5.1)

239

(6.1)

90

(229)

200

(5.0)

267

(6.8)

319

(8.1)

120

(305)

250

(6.3)

334

(8.5)

399

(10.1)

150

(381)

300

(7.5)

401

(10.2)

479

(12.2)

180

(457)

7

Setting Up (continued)

Adjusting The Projector's Elevator

CAUTION • If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees.

1 Press and hold in the elevator buttons.

2

Raise or lower the projector to the



desired height and then release the



elevator buttons.



When you release the elevator buttons, the elevator



feet will lock into position.









3

As necessary, you can also finely



adjust the height of the projector by

twisting the elevator feet by hand.

Elevator buttons

Elevator feet

8

Setting Up (continued)

Connecting Your Devices

WARNING • Incorrect connecting could result in fire or electrical shock. Whenever attempting to connect other devices to the projector, please thoroughly read the "Product Safety Guide", this manual and the manual of each device to be connected.

CAUTION • TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to connect a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction and/or damage to the device and/or projector.

ATTENTION • Make sure that you connect devices to the correct port. Incorrect connection may result in malfunction and/or damage to the device and/or projector. Refer to the section “TECHNICAL” of this manual for the pin assignment of connectors and RS-232C communication data.

Some cables have to be used with core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.

Secure the screws on the connectors and tighten.

Whenever attempting to connect a laptop computer to the projector, be sure to activate the laptop’s RGB external image output (set the laptop to CRT display or to simultaneous LCD and CRT display). For details on how this is done, please refer to the instruction manual of the corresponding laptop computer.

NOTE About Plug-and-Play Capability

This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting this projector to computers that are VESA DDC (display data channel) compatible. Please take advantage of this function by connecting the accessory RGB cable to the rgb port (DDC 1/2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Plug-and-Play is a system composed of the computer, its operating system and peripheral equipment (i.e. display devices).

Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.

NOTE • Some computers may have multiple display screen modes. Use of some of

these modes will not be possible with this projector.

For some RGB input modes, the optional Mac adapter is necessary.

When the image resolution is changed on a computer, depending on an input, automatic adjust function may take some time and may not be completed. In this case, you may not be able to see a check box to select “Yes/No” for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or TFT monitors to change the resolution.

9

Setting Up (continued)

Please refer to the following for connecting your devices. See the rear of the projector. You can see the ports.

Connecting to a computer

RGB out RGB cable (D-sub 15 pin) 1 Audio out Audio cable (Stereo mini)2 RS-232C port RS-232C cable 3

Connecting to a DVD/VCR player

Video out





















4





















Audio out (L)







Audio/Video cable





5













Audio out (R)





















6





















If using a SCART RGB input,



4

Video

























AUDIO-L

























5























AUDIO-R





SCART







SCART cable





6















G





out port















7



















B

























8

























R

























9















































video L - a u d i o - R

21

audio

rgb

s-video

Y CB/PB CR/PR component video

video L - audio - R

4 5 6

audio

rgb

s-video

Y CB/PB CR/PR component video

video L - audio - R

4 5 6

audio

rgb

s-video 7 8 9

Y CB/PB CR/PR component video

If using a S-video input,

S-video out port













S-video cable











10









video L - audio - R































Audio out (L)











Audio cable







5











5 6





















audio













Audio out (R)



































6















rgb



















































































s-video











































































































































































Y

CB/PB CR/PR





















































component video



If using a component input,

7

















Component (Y) out

































video L - audio - R

































Component (CB/PB) out











Component cable





8











5 6

































audio













Component (CR/PR) out

























9













































7 8 9

rgb





























s-video



































Audio out (L)











Audio cable

5































Y

component video



















































CB/PB CR/PR





Audio out (R)



































6

























































































































If using a component input from rgb port,

















Component (Y) out



























2







video L - audio - R















































































Component (CB/PB) out









Component cable





1









1





















Component (CR/PR) out









(with D-sub 15 pin)

audio























































































rgb























































Audio out



Audio cable(Stereo mini)

2





s-video

































Y

component video



















































CB/PB CR/PR





3

control

control

control

control

control

control

10

Setting Up (continued)

Connecting Power Supply

WARNING • Please use extra caution when connecting the power cord as incorrect or faulty connections may result in FIRE and/or ELECTRICAL SHOCK. Please adhere to the “Product Safety Guide” and the following.

Only plug the power cord into outlets rated for use with the power cord’s specified voltage range.

Only use the power cord that came with the projector. If it is damaged, contact your dealer to newly get correct one.

Never modify the power cord. Never attempt to defeat the ground connection of the three-pronged plug.

Make sure that you firmly connect the power cord to the projector and wall outlet.

1Connect the connector of the power cord to the AC inlet of the projector. 1

AC Inlet

2 Firmly plug the power cord’s plug Connector Side

1

into the outlet.

11

Remote Control

Putting Batteries

CAUTION Always handle the batteries with care and use them only as directed. Improper use may result in battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

Keep the battery away from children and pets.

Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.

When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).

When you dispose the battery, you should obey the law in the relative area or country.

Remove the 1 battery cover.

Slide back and remove the battery cover in the direction of the arrow.

Insert the 2 batteries.

Align and insert the two AA batteries according to their plus and minus terminals (as indicated in the remote control).

Close the

3 battery cover.

Replace the battery cover in the direction of the arrow and snap it back into place.

12

+ 33 hidden pages
