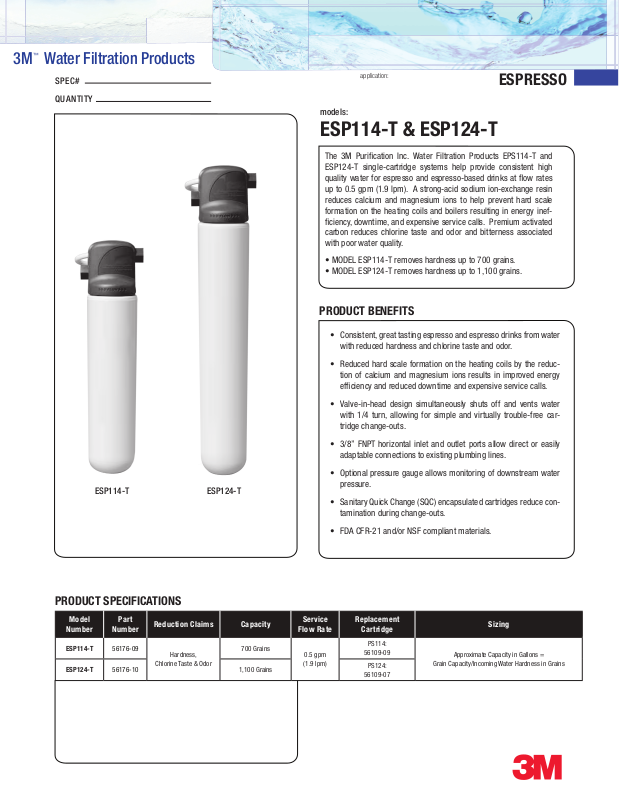

3M ESP114-T User Manual
3M™ Water Filtration Products
SPEC#
QUANTITY
application:
ESPRESSO
models:
ESP114-T & ESP124-T
The 3M Purification Inc. Water Filtration Products EPS114-T and
ESP124-T single-cartridge systems help provide consistent high
quality water for espresso and espresso-based drinks at flow rates
up to 0.5 gpm (1.9 lpm). A strong-acid sodium ion-exchange resin
reduces calcium and magnesium ions to help prevent hard scale
formation on the heating coils and boilers resulting in energy inefficiency, downtime, and expensive service calls. Premium activated
carbon reduces chlorine taste and odor and bitterness associated
with poor water quality.
• MODEL ESP114-T removes hardness up to 700 grains.
• MODEL ESP124-T removes hardness up to 1,100 grains.
PRODUCT BENEFITS
• Consistent, great tasting espresso and espresso drinks from water
with reduced hardness and chlorine taste and odor.
ESP114-T
ESP124-T
PRODUCT SPECIFICATIONS
Model
Number
ESP114-T 56176-09
ESP124-T 56176-10 1,100 Grains
Part
Number
Reduction Claims Capacity
Hardness,
Chlorine Taste & Odor
700 Grains
Service
Flow Rate
0.5 gpm
(1.9 lpm)
• Reduced hard scale formation on the heating coils by the reduction of calcium and magnesium ions results in improved energy
efficiency and reduced downtime and expensive service calls.
• Valve-in-head design simultaneously shuts off and vents water
with 1/4 turn, allowing for simple and virtually trouble-free cartridge change-outs.
• 3/8” FNPT horizontal inlet and outlet ports allow direct or easily
adaptable connections to existing plumbing lines.
• Optional pressure gauge allows monitoring of downstream water
pressure.
• Sanitary Quick Change (SQC) encapsulated cartridges reduce contamination during change-outs.
• FDA CFR-21 and/or NSF compliant materials.
Replacement
Cartridge
PS114:
56109-09
PS124:
56109-07
Approximate Capacity in Gallons =
Grain Capacity/Incoming Water Hardness in Grains
Sizing
ESP114-T & ESP124-T
SPEC#
QUANTITY
MODEL NUMBER
PART NUMBER
4"
(10.2 cm)
4"
(10.2 cm)
19 3/4"
(50.2 cm)
15.5"
(39.4 cm)
3M Purification Inc. Water Filtration
Products
PHYSICAL SPECIFICATIONS
• System includes a head assembly, integral mounting bracket, and single cartridge lter.
• Optional downstream pressure gauge port in top of head assembly.
• Inlet and outlet plumbing connections are 3/8” FNPT.
• System incorporates an internal automatic 1/4 turn shut-off valve.
• Filter cartridges are o-ring seal type.
• System maximum operating pressure of 125 psi (862 kPa) and operating temperatures of 100°F (37.8°C).
• Recommended service ow rate is 0.5 gpm (1.9 lpm).
• Filter cartridges incorporate premium activated carbon media and strong-acid ion-
exchange media in the sodium form.
• System materials are FDA CFR-21 and/or NSF compliant.
• Cartridge body is constructed from high-impact polypropylene.
• Cartridges are sanitary in design, requiring no contact with the lter media during
cartridge change-out.
• Filter cartridges requires no pre-activation.
• Shipping weight: ESP114-T — 20 lbs. (9.1 kg) per case
ESP124-T — 12 lbs. (5.44 kg) per case
• Case Quantity: ESP114-T — 6
ESP124-T — 4
3" (7.6 CM) MIN REQUIRED
FOR CARTRIDGE REMOVAL
IMPORTANT: INSTALLATION TIPS
These installation tips are for informational purposes only and are not intended to be
used as actual installation instructions. CAUTION: To reduce the risk associated with
property damage due to water leakage:
• Read and follow Use Instructions before installation and use of this system.
• Installation and use MUST comply with all state and local plumbing codes.
• Protect from freezing, remove filter cartridge when temperatures are expected to drop
WARNING: To reduce the risk associated with the ingestion of
contaminants:
• Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
3M Purification Inc. recommends regularly scheduled maintenance and
replacement of the filter cartridge(s) in order for the product to perform as
advertised/sold. 3M Purification shall not be liable for system failures due
to improper maintenance.
below 40°F (4.4°C).
• Do not install on hot water supply lines. The maximum operating water temperature
of this lter system is 100°F (37.8°C).
• Do not install if water pressure exceeds 125 psi (862 kPa). If your water pressure
exceeds 80 psi (552 kPa), you must install a pressure limiting valve. Contact a plumbing
professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions
exist you must install a water hammer arrester. Contact a plumbing professional if you are
uncertain how to check for this condition.
• The disposable lter cartridge MUST be replaced every 12 months, at the rated capacity
LIMITED WARRANTY
3M Purification Inc. warrants this Product will be free from defects in material and manufacture for five (5) years from the date of purchase: The filter cartridge or filter membrane is
warranted to be free from defects in material and manufacture for one (1) year. This warranty does not cover failures resulting from abuse, misuse, alteration or damage not caused by 3M
Purification Inc. or failure to follow installation and use instructions. No warranty is given as to the service life of any filter cartridge or membrane as it will vary with local water conditions
and water consumption. 3M PURIFICATION INC. MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY
OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOMER OR
USAGE OF TRADE. If the Product fails to satisfy this Limited Warranty during the warranty period, 3M Purification Inc. will replace the Product or refund your Product purchase price. This
warranty does not cover labor. The remedy stated in this paragraph is Customer’s sole remedy and 3M Purification Inc.’s exclusive obligation. For additional information, see the entire
Limited Warranty located in the product Installation and Operating Instruction Manual.
Limitation of Liability: 3M Purification Inc. will not be liable for any loss or damage arising from this 3M Purification Inc. product, whether direct, indirect, special, incidental, or consequen-
tial, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. Some states and countries do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
or if a noticeable reduction in flow rate occurs.
3M Purification Inc.
400 Research Parkway
Meriden, CT 06450 U.S.A.
Toll Free: 1.800.243.6894
Worldwide: 203.237.5541
Fax: 203.630.4530
www3Mpurification.com
3M is trademark of 3M Company.
NSF is a trademark of NSF International.
© 2011 3M Company. All rights reserved.
Please recycle. Printed in U.S.A.
LITFS303 0811B
70-0201-9429-9
