3M Digital Board DB565, Digital Board DB578 Safety Guide

$)')4!, "/!2$

3 Digital Board

Product Safety Guide

Including Installation Instructions

ENGLISH

3M™ Digital Board

Contents

Introduction

ENGLISH

Introduction ....................................................................................................................................................5

Installation .....................................................................................................................................................7

FRANÇAIS

Introduction ..................................................................................................................................................13

Installation ...................................................................................................................................................15

DEUTSCH

Einführung ...................................................................................................................................................21

Installation ...................................................................................................................................................23

ITALIANO

Introduzione .................................................................................................................................................29

Installazione .................................................................................................................................................31

ESPAÑOL

Introducción .................................................................................................................................................37

Instalación ....................................................................................................................................................39

ENGLISH

Introduction

ENGLISH

3M™ Digital Board

Retain these instructions for future reference.

Introduction

Thank You for Choosing 3M

Thank you for choosing 3M equipment. This product has been produced in accordance with 3M’s highest quality and safety standards to ensure smooth and troublefree use in the years to come.

For optimum performance, please follow the operating instructions carefully. We hope you will enjoy using this high performance product in your meetings, presentations, and training sessions.

Safety Information

Please read, understand, and follow all safety information contained in these instructions prior to the use of this 3M™ Digital Board, Model DB565 and Model DB578. Retain these instructions for future reference.

Intended Use

The 3M™ Digital Board, Model DB565 and Model DB578, was designed, and intended for use, indoors via a USB data communications cable connected to a desktop or laptop computer. Use in an outdoor operation has not been tested and could damage the whiteboard, peripheral equipment, and/or create a potentially unsafe operating condition. This whiteboard is not intended for use by unsupervised children. Underwriter’s Laboratories has only evaluated this product for wall installation on 1/2-inch drywall minimum.

Explanation of Signal Words and Symbols in Safety Labels and Instructions

WARNING:

CAUTION:

Indicates a potentially hazardous situation, which if not avoided, could result in death or serious injury and/or property damage.

Indicates a potentially hazardous situation, which if not avoided, may result in minor or moderate injury and/or property damage.

ENGLISH

Attention: Read Accompanying Documentation

Risk from muscular strain

75Lbs/34Kg

m WARNING

To reduce the risk associated with exposure to hazardous voltage:

• Do not use the 3M Digital Board in an outdoor and/or wet environment.

To reduce the risk associated with use of alcohol based cleaners:

• Follow all instructions and recommendations on the product label and Material Safety Data Sheet when any commercially sold whiteboard cleaner.

To reduce the risk associated with muscle strain:

• Always use more than one person when installing or removing the 3M Digital Board.

To reduce the risk associated with tripping:

• Position the 3M Digital Board’s USB data cable so that it will not be tripped over.

using

Introduction

m WARNING

To reduce the risk associated with the various hazards related to the 3M Digital Board:

Please read, understand and follow all safety information contained in this installation manual prior to the

•

installation and use.

To reduce the risk associated with impact:

• Always provide proper adult supervision when using the 3M Digital Board around children.

ENGLISH

• Always place the 3M Digital Board on a stable and level surface.

• Install the 3M Digital Board on a wall with 1/2-inch-thick drywall minimum.

• Use only 3M recommended wall mounting hardware.

• Follow all installation instructions carefully.

• Make sure mounting screws are properly sized to handle the weight of the 3M Digital Board.

• Make sure mounting hardware is securely anchored to a solid structure.

• Proper installation must be performed by qualified service technicians, as outlined in the installation instructions. Failure to do so could result in serious injury and/or damage to the 3M Digital Board.

3M™ Digital Board

• At least tw and/or damage can result from dropping the 3M Digital Board

To reduce the risk associated with choking:

• Keep batteries away from children and pets.

o qualified service technicians should perform the installation procedure. Serious personal injury

m CAUTION

To reduce the risk associated with environmental contamination:

Dispose of 3M™ Digital Board components in accordance with applicable federal, state, and local

•

regulations.

To reduce the risk associated with chemical leakage, hot battery surface and battery rupture:

• Use only same type AA alkaline batteries in presentation pen.

• Avoid fire and heat sources above 100 C.

• Do not short circuit batteries.

• Do not attempt to recharge batteries.

• Do not break or disassemble batteries.

• Avoid eye and skin contact, ingestion and inhalation of battery chemicals in the event of a ruptured or broken battery.

• Replace all batteries at same time.

• Properly orient the plus (+) and minus (-) terminals of batteries.

• Remove batteries when not used for an extended period of time.

3M™ Digital Board

Installation

Note: Photos and/or illustrations may not match exactly the hardware provided.

Installing the Wall Bracket

Unpacking Wall Bracket and Hardware

1. Stand the shipping container on its bottom side on the floor.

2. Open the top side of the shipping container.

3. Remove the Digital Board, pen tray and accessories from the shipping container.

WARNING

To reduce the risk associated with muscle strain:

• Always use more than one person when installing or removing the 3M Digital Board

4. Locate and remove the wall bracket and hardware taped to the hanger bracket on the back of the Digital Board.

Installation for a Hollow Wall-Drywall

m WARNING

• Install the 3M Digital Board on a wall with 1/2-inch-thick drywall minimum.

• Use only 3M recommended wall mounting hardware.

ENGLISH

• Follow all installation instructions carefully.

• Make sure mounting screws are properly sized to handle the weight of the 3M Digital Board.

• Make sure mounting hardware is securely anchored to a solid structure.

1. Determine the desired location of the unit.

2. While holding the bracket in place, use a carpenter’s level to ensure the proper level and then mark a minimum of three hole locations on the wall – one at each end of the mounting bracket and one in the middle. Ensure that no studs are behind the hole locations.

Note: Drawings may not depict actual hardware used.

Installation

3. Using a Phillips screw driver, screw the supplied anchors into the wall until they are flush with the wall surface using one for each identified hole location.

ENGLISH

4. Align the wall bracket holes over the wall anchors and secure with the provided washer and anchor screws. Confirm that the wall bracket is level before tightening the screws.

Note: For other types of wall material (e.g. wood, concrete, concrete block) use mounting hardware that is properly rated for the weight of the unit and is intended for specific wall material.

Hanging on the Wall

3M™ Digital Board

1. If possible, position the 3M Digital Board and pen tray in front of the wall where the bracket is located. Position the unit on the floor on its backside so that the top is closest to the wall.

2. Clear the path from the unit to the wall where it will be hanging.

WARNING

To reduce the risk associated with muscle strain:

• Always use more than one person when installing or removing the 3M Digital Board

3. With one person holding each side of the unit, carefully lift it into position so that the bracket slot is above the wall hanger bracket and then lower into mating position onto wall hanger bracket. Ensure that the unit is securely in place before releasing.

3M™ Digital Board

0EN4RAY

h,v"RACKET

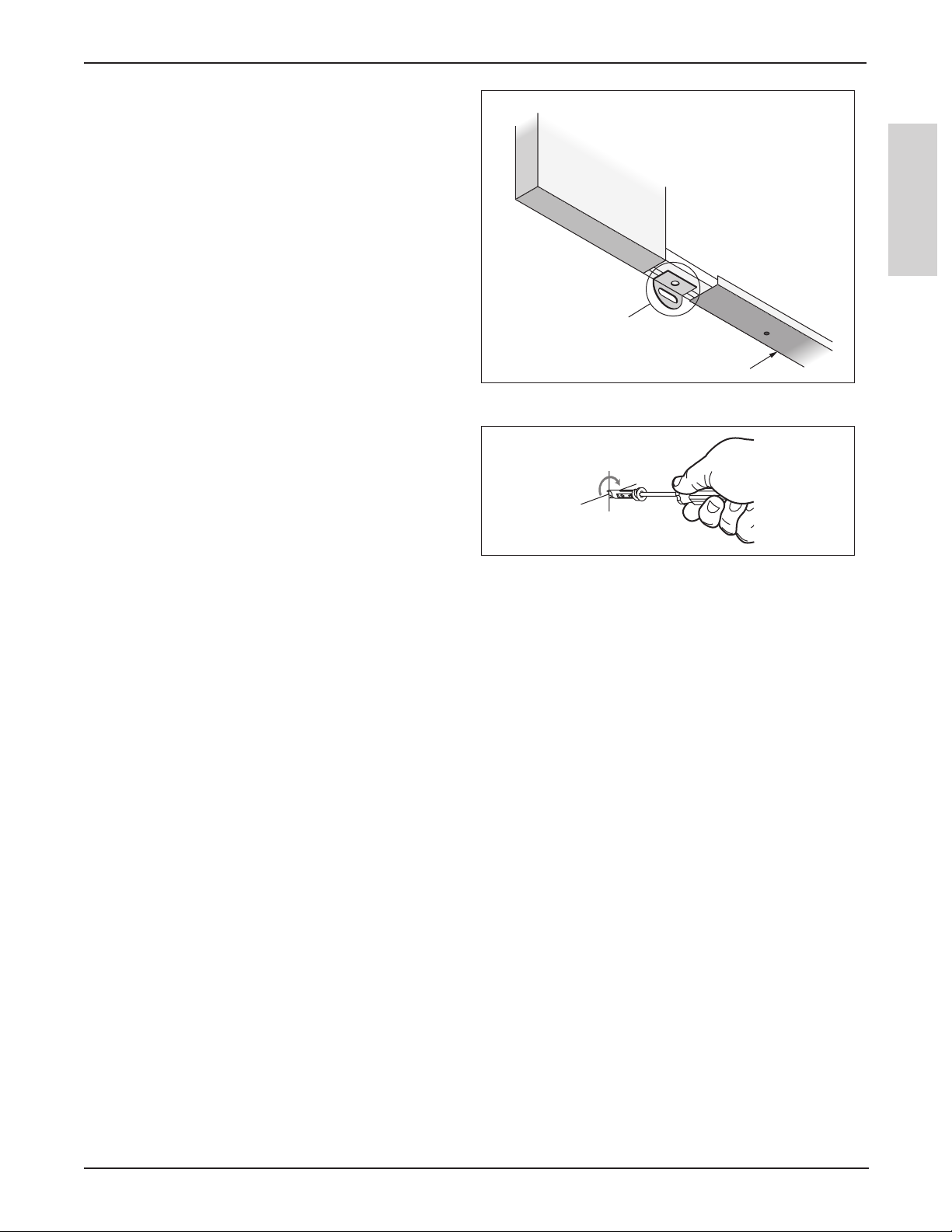

4. Remove the “L” brackets from the bottom of the Digital Board, and rotate them so that the halfround portion is flat against the wall. Align the brackets with the mounting holes, and mark the bracket hole locations on the wall.

5. Using a Phillips screw driver, screw the supplied anchors into the wall until they are flush with the wall surface for each identified hole location.

Installation

ENGLISH

6. Secure the unit to the wall by attaching the “L” brackets to the unit and wall using the provided washers and anchor screws.

-!USTIN#ENTER

"UILDING!. 2IVER0LACE"LVD !USTIN48

-#ANADA

0/"OX ,ONDON/NTARIO .!4

--EXICO3!DE#6

!PARTADO0OSTAL

-EXICO$&

-EXICO

-%UROPE

"OULEVARDDEL/ISE #ERGE0ONTOISE#EDEX &RANCE

HTTPWWW-COMMEETINGS

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this product or implementation, you must evaluate them and determine if they are suitable for your intended application or situation. You assume all risks and liability associated with such use or implementation. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.

Warranty; Limited Remedy; Limited Liability

The 3M Digital Board writing surface, side panel, pen tray and electronic pod cover will be free from defects in material and manufacture for a period of 5 years from the date of purchase. All other components and software will be free from defects in material and manufacture for a period of 2 years from the date of purchase.

3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If this product is defective within the warranty period stated in the Product Literature, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product. Except where prohibited by law, 3M will not be liable for any loss or damage arising from this 3M product, whether indirect, special, incidental or consequential regardless of the legal theory asserted.

Litho in USA

78-6970-9435-3 Rev. B

$)')4!, 7()4%"/!2$

3 Digital Board

Guide De Sécurité du Produit

Comprenant les Instructions d’Installation

FRANÇAIS

3M™ Digital Board

Conservez ces instructions pour toute référence future.

Introduction

Merci de choisir 3M

Merci de choisir un produit 3M. Ce produit a été fabriqué en accord avec les plus hauts standards de qualité et de sécurité 3M afin de garantir une utilisation simple et fiable durant les années à venir.

Pour une performance optimale, s’il vous plaît, suivez soigneusement les consignes d’utilisation. Nous espérons que vous prendrez plaisir à utiliser ce produit à hautes performances durant vos réunions, vos présentations et vos séances de formation.

Informations de sécurité

S’il vous plaît, comprenez et respectez toutes les informations de sécurité détaillées dans ces instructions avant l’utilisation de ce 3M™ Digital Board, Modèle DB565 et Modèle DB578. Conservez ces instructions pour toute référence future.

Utilisation prévue

Le 3M™ Digital Board, Modèle DB565 et Modèle DB578, a été conçu et prévu pour un usage intérieur par l’intermédiaire d’un port USB câblé relié à un ordinateur de bureau ou à un ordinateur portable. Une utilisation extérieure n’a pas été testée et pourrait endommager le Tableau Numérique, les équipements périphériques, et/ou créer des conditions d’utilisation dangereuses. Ce tableau blanc n’est pas prévu pour être utilisé par des enfants non encadrés. Les laboratoires du fabricant ont seulement évalué ce produit pour une installation murale avec un minimum d’épaisseur de 1 centimètre.

FRANÇAIS

Explication des Mots et des Symboles de Signalisation des Etiquettes et des Instructions de Sécurité

AVERTISSEMENT :

ATTENTION :

75Lbs/34Kg

Indique une situation de danger potentielle, qui si elle n’est pas évitée, est susceptible d’entraîner la mort, des blessures graves et/ou des dommages matériels.

Indique une situation de danger potentielle, qui si elle n’est pas évitée, est susceptible de provoquer des blessures légères ou modérées et/ ou des dommages matériels.

Attention : Veuillez vous référer à la documentation

Risque de claquage musculaire

m AVERTISSEMENT

Pour réduire le risque associé à une exposition de tension dangereuse :

• Ne pas utiliser le Tableau Numérique 3M à l’extérieur et/ou dans un environnement humide.

Pour réduire les risques associés avec l’utilisation de produits abrasifs à base de solvants :

• Suivez toutes les instructions et les recommandations mentionnées sur l’étiquette et la fiche technique du produit de nettoyage.

Pour réduire les risques de claquage musculaire :

• Utilisez toujours plus d’une personne lors de l’installation ou de l’enlèvement du 3M Digital Board.

Pour réduire les risques lors du transport :

• Positionnez toujours le câble USB du 3M Digital Board afin de ne pas trébucher sur lui.
