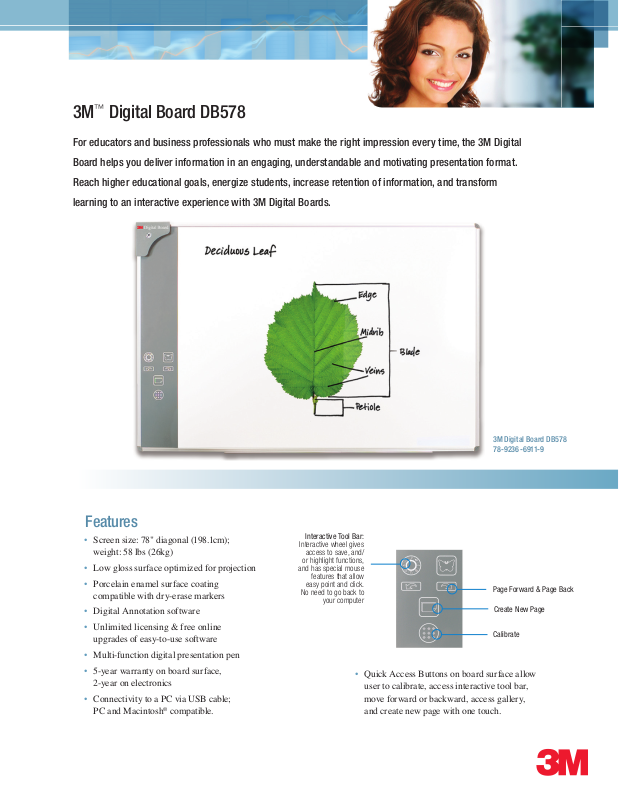

3M Digital Board DB565 Specification Sheet
3M™ Digital Board DB578
For educators and business professionals who must make the right impression every time, the 3M Digital
Board helps you deliver information in an engaging, understandable and motivating presentation format.
Reach higher educational goals, energize students, increase retention of information, and transform
learning to an interactive experience with 3M Digital Boards.
Features
• Screen size: 78" diagonal (198.1cm);
weight: 58 lbs (26kg)
• Low gloss surface optimized for projection
• Porcelain enamel surface coating
compatible with dry-erase markers
• Digital Annotation software
• Unlimited licensing & free online
upgrades of easy-to-use software
• Multi-function digital presentation pen
• 5-year warranty on board surface,
2-year on electronics
• Connectivity to a PC via USB cable;
PC and Macintosh® compatible.
Interactive Tool Bar:
Interactive wheel gives
access to save, and/
or highlight functions,
and has special mouse
features that allow
easy point and click.
No need to go back to
your computer
• Quick Access Buttons on board surface allow
3M Digital Board DB578
78-9236-6911-9
Page Forward & Page Back
Create New Page
Calibrate
user to calibrate, access interactive tool bar,
move forward or backward, access gallery,
and create new page with one touch.
Software Features
Desktop Tools
•
Customizable Tool Palettes
•
Screen Annotation
•
Shapes, Lines and Arrows
•
Onscreen Keyboard
•
Spotlight and Spotlight Options
•
Zooming during Annotation
•
Text Box during Annotation
•
Handwriting Recognition Compatible
Drawing Tools
•
Pen, Highlighter, Eraser, Resizable Text Box
•
Hyperlinked Text Box
•
Hyperlinked Objects
•
Zoom In/Out
Presentation Tools
•
Screen Recording
•
Object Based Strokes
•
Scissor Eraser (divides strokes into
separate objects)
•
Screen Capture – full screen, full screen as object,
selection full screen, selection Cover Sheet
•
Cover Sheet Orientation Option
•
Integrated Content Gallery
•
Import image files jpg, bmp, gif, emf, wmf,
png, ico jpg
•
Import Word, Excel and PowerPoint
•
Image Objects (drag & drop, rotate, resize)
•
Drag & Drop Objects between Pages
•
Object duplicating, locking, grouping and
ungrouping, aligning and orientation
•
Object edit toolbar, including crop
•
Background images, colors and grids
•
Master page and layers
Page Tools
•
New page, duplicate, delete, clear page and
page recorder
Free Sharing
•
Real-time, data transfer, free access to server
•
Host meeting on a local machine
•
SSL (secure) Connection to server with
128bit Encryption
•
Password protected meeting
•
Multi-lingual meeting invitations
•
Archive/retrieve meeting on server
•
All participants can save meeting locally
•
Participant Synchronization
•
Mute one (or all) participants
•
Dismiss single meeting participant
•
View participant names & IP addresses
•
Meet in a chat room
Accessories Included
Software CD
Digital Presentation Pen (with AA battery)
Mounting Hardware
Optional Accessories
SCP700 Series Mobile Stand V2 78-6969-9999-0
3M Mobile Stand V2 Optional Shelf 78-6969-9981-8
Digital Presentation Pen Replacement 78-6969-9777-0
Size
Dimensions (W x H)
48.4 x 71.9 in. (122.8 x 182.4cm)
Active Screen (W x H)
46.7 x 62.7 in. (118.7 x 159cm)
Unit Weight
3M Digital Board 578 shown with
3M™ Super Close Projection SCP716
on Folding Wall Mount and SCP700
Series Mobile Stand V2 with
attachable shelf option
58 lb (26kg)
800.328.1371 | www.3m.com/meetings
Important Notice
All statements, technical information, and recommendations related to 3M’s products are on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before using this
product, you must evaluate it and determine if it is suitable for your intended application. You assume
all risks and liability associated with such use. Any statements related to the product which are not
contained in 3M’s current publication, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
3M, and the 3M logo are trademarks of 3M Company. Used under license in Canada. All other trade
names referenced are the service marks, trademarks, or registered trademarks of their respective
companies.
3M Projection
Systems
Building A147-5N-01
6801 River Place Blvd.
Austin, T X 78726-9000
USA
© 3M 200 9. All rights reser ved. Please recycle. Printed in USA. v08.09
3M Canada
PO Box 5757
London,
Ontario, Canada
NGA 4T1
3M Mexico, S.A. de C.V.
Apartado Postal 14-139
Mexico, D.F. 07070
Mexico
Minimum System Requirements
•
Windows-compatible computer with Pentium IV or equivalent,
512 MB RAM, Windows Vista, XP, 2003 or 2000, 40 MB
available hard drive space for standard interact software.
Some OEM versions of this software come with an enhanced
image gallery that may require additional space. 65K color
SVGA or comparable high performance video card CD-ROM
drive or internet connection (for software installation) Internet
connection (for participating in shared meetings). One
available USB port or Bluetooth connection, Digital projector
or display device attached to computer.
Warranties
Surface & Hardware
5 years
Electronic (parts)
2 years
Technical Support
•
Free unlimited software downloads and updates available
on our website at www.3m.com/meetings
•
Toll free 24/7 Technical Support by calling 800-328-1371
General Limited Warranty
3M warrants that when the 3M Product is used according to 3M’s Intended Use Statement
(www.3M.com/meetings), it will perform satisfactorily for the warranted durability period as stated
in the applicable 3M Product Manual in effect at the time of purchase. The warranties stated in
the applicable 3M Product Manuals are exclusive and are made in place of any and all express or
implied warranties or conditions, including any implied warranty of merchantability or fitness for a
particular purpose, or any industry practice or custom or trade usage. Failure to follow the instructions
contained in the appropriate 3M Product Manual or to use the 3M Product in accordance with 3M’s
Intended Use Statement, will void all warranties and limited remedies.
EXCEPT AS SPECIFICALLY STATED IN THE APPLICABLE 3M PRODUCT MANUAL, 3M SHALL NOT BE
LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, LOSS OF PROFITS, REVENUE OR BUSINESS) RESULTING FROM, OR IN ANY WAY
RELATED TO PERFORMANCE, USE OR INABILITY TO USE ANY OF THE 3M PRODUCT. This limitation
applies regardless of the legal theory upon which damages are sought.
If 3M Product is defective within the applicable warranty period, your exclusive remedy shall be, at
3M’s option, to replace or repair the 3M Product or to refund the purchase price of the 3M Product.
All replaced parts or products become property of 3M. If the 3M Product is repaired, 3M will repair the
defective part(s) with a new or used part(s). If the 3M Product is replaced, 3M will replace the product
with the same or equivalent model and with a new or refurbished product. In the case of an approved
warranty claim, the replacement 3M Product will carry only the remaining term of the original 3M
Product’s warranty period as stated in the applicable 3M Product Manual. For warranty service, you
must provide proof of the date of the original purchase, otherwise the manufacturing code date will be
used to establish the start date of the warranty.
3M Product Manuals include durability statements and may include limitations specific to the
product(s) being used or its intended applications, which take precedence over any statement made
here. Warranty terms, limitations and exclusions may differ outside the United States of America.
