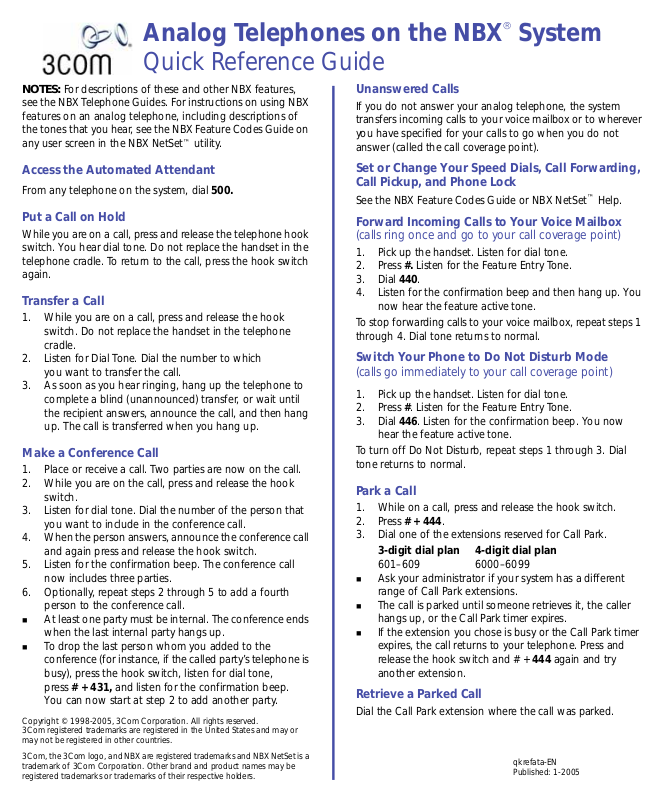

3com Analog Telephones on the NBX System Quick Reference Guide

Analog Telephones on the NBX® System

Quick Reference Guide

NOTES: For descriptions of these and other NBX features, see the NBX T elephone Guides. For instructions on using NBX features on an analog telephone, including descriptions of the tones that you hear , see the NBX Featur e Codes Guide on any user screen in the NBX NetSet

™

utility.

Access the Automated Attendant

From any telephone on the system, dial 500.

Put a Call on Hold

While you are on a call, press and release the telephone hook switch. Y ou hear dial tone. Do not replace the handset in the telephone cradle. To return to the call, press the hook switch again.

Transfer a Call

1. While you are on a call, press and release the hook switch. Do not replace the handset in the telephone cradle.

2. Listen for Dial Tone. Dial the number to which you want to transfer the call.

3. As soon as you hear ringing, hang up the telephone to complete a blind (unannounced) transfer, or wait until the recipient answers, announce the call, and then hang up. The call is transferred when you hang up.

Make a Conference Call

1. Place or receive a call. Two parties are now on the call.

2. While you are on the call, press and release the hook switch.

3. Listen for dial tone. Dial the number of the person that you want to include in the conference call.

4. When the person answers, announce the conference call and again press and release the hook switch.

5. Listen for the confirmation beep. The conference call now includes three parties.

6. Optionally, repeat steps 2 through 5 to add a fourth person to the conference call.

 At least one party must be internal. The conference ends

when the last internal party hangs up.

 To drop the last person whom you added to the

conference (for instance, if the called party’s telephone is busy), press the hook switch, listen for dial tone, press # + 431, and listen for the confirmation beep. You can now start at step 2 to add another party.

3Com, the 3Com logo, and NBX are registered trademarks and NBX NetSet is a trademark of 3Com Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders.

Unanswered Calls

If you do not answer your analog telephone, the system transfers incoming calls to your voice mailbox or to wherever you have specified for your calls to go when you do not answer (called the call coverage point).

Set or Change Your Speed Dials, Call Forwarding, Call Pickup, and Phone Lock

See the NBX Feature Codes Guide or NBX NetSet™ Help.

Forward Incoming Calls to Your Voice Mailbox

(calls ring once and go to your call coverage point)

1. Pick up the handset. Listen for dial tone.

2. Press #. Listen for the Feature Entry Tone.

3. Dial 440.

4. Listen for the confirmation beep and then hang up. You now hear the feature active tone.

To stop forwarding calls to your voice mailbox, repeat steps 1 through 4. Dial tone returns to normal.

Switch Your Phone to Do Not Disturb Mode

(calls go immediately to your call coverage point)

1. Pick up the handset. Listen for dial tone.

2. Press #. Listen for the Feature Entry Tone.

3. Dial 446. Listen for the confirmation beep. You now hear the feature active tone.

To turn off Do Not Disturb, repeat steps 1 through 3. Dial tone returns to normal.

Park a Call

1. While on a call, press and release the hook switch.

2. Press # + 444.

3. Dial one of the extensions reserved for Call Park.

3-digit dial plan 4-digit dial plan

601–609 6000–6099

 Ask your administrator if your system has a different

range of Call Park extensions.

 The call is parked until someone retrieves it, the caller

hangs up, or the Call Park timer expires.

 If the extension you chose is busy or the Call Park timer

expires, the call returns to your telephone. Press and release the hook switch and # + 444 again and try another extension.

Retrieve a Parked Call

Dial the Call Park extension where the call was parked.

qkrefata-EN Published: 1-2005

NBX® Voice Mail* on Analog Telephones

Quick Reference Guide

* If your system uses another voice messaging application, follow the instructions for your application.

Initialize Your Voice Mailbox

1. Pick up the handset and dial 500.

2. When the Automated Attendant answers, press ** during the greeting message.

3. At the prompt, enter your extension number.

4. The voice prompts guide you through the steps to initialize your mailbox.

Access Your Messages (Log In to Your Mail Box) from Your Analog Telephone

1. Pick up the handset and dial 500.

2. When the Automated Attendant answers, press ** during the greeting message.

3. At the prompt, enter your extension number and password, and then press #.

Access Your Messages (Log In to Your Mail Box) from Any Internal Telephone

1. Pick up the handset and dial 500.

2. When the Automated Attendant answers, press ** during the greeting message.

3. At the prompt, enter your extension number and password, and then press #.

Access Your Messages (Log In to Your Mailbox) from an External Telephone

If you can dial your telephone extension directly:

Press * during your greeting. At the prompts, enter your extension and password, and press #.

If you dial your organization’s main telephone number:

 If the Automated Attendant answers, press ** during

the greeting. At the prompts, enter your extension and password, and press #.

 If the receptionist answers, ask to be transferred to your

voice mail. Press * during your greeting. At the prompts, enter your extension and password and press #.

Access the Automated Attendant

From any telephone on the system, dial 500.

Message Playback Options

Select one of these options:

Press

to listen to the first message or repeat the

current message.

abc

to save the current message.

def

to delete the current message.

to reply to the sender of the current message,

ghi

if the caller is internal.

jkl

to forward the current message.

mno

to hear date, time, and sender information.

pqrs

to move back 3 - 5 seconds in the current

message.

tuv

to pause the current message for 20 seconds.

wxyz

to move forward 3 - 5 seconds in the current

message.

to move to the next message.

to return to the main menu.

Mailbox Options

Press

to change your name announcement or

personal greeting.

abc

to change your password.

def

to create or edit group lists.

to enable, disable, or change settings for the

ghi

Offsite Notification feature.
