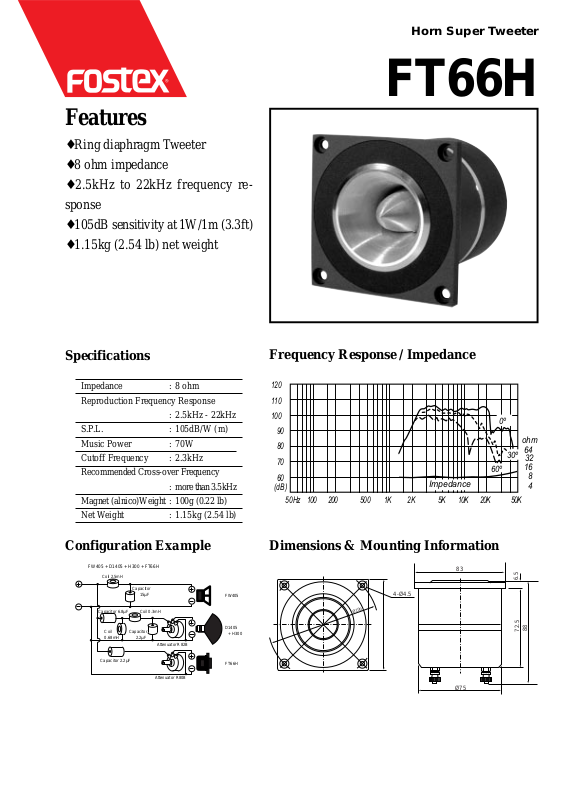

Horn Super Tweeter
FT66H
Features
♦Ring diaphragm Tweeter
♦8 ohm impedance
♦2.5kHz to 22kHz frequency re-
sponse
♦105dB sensitivity at 1W/1m (3.3ft)
♦1.15kg (2.54 lb) net weight
Specifications
Impedance |
: 8 ohm |
Reproduction Frequency Response
: 2.5kHz - 22kHz
S.P.L. |
: 105dB/W (m) |
|
|
|
|
Music Power |
: 70W |
|
|
|
|
Cutoff Frequency |
: 2.3kHz |
|
Recommended Cross-over Frequency
: more than 3.5kHz
Magnet (alnico)Weight : 100g (0.22 lb)
Net Weight : 1.15kg (2.54 lb)
Configuration Example
FW405 + D1405 + H300 + FT66H
Coil 2.5mH |
|
|
|
|
|
|
Capacitor |
|
|
|
|
15 F |
FW405 |
|
Capacitor 6.8 F |
|
Coil 0.3mH |
|
|
Coil |
Capacitor |
D1405 |
||
+ H300 |
||||
0.68mH |
|
2.2 F |
||
|
|
|||
|
|
Attenuator R82B |
|
|
Capacitor 2.2 F |
|
FT66H |
||
|
|
Attenuator R80B |
|
|
Frequency Response / Impedance
120
110
100
0¼
90 |
|
|
|
|
ohm |
80 |
|
|
|
|
|
|
|
|
30¼ |
64 |
|
|
|
|
|
||
70 |
|
|
|
32 |
|
|
|
|
60¼ |
16 |
|
|
|
|
|
||
60 |
|
|
|
8 |
|
|
|
Impedance |
|
||
(dB) |
|
|
|
4 |
|
50Hz 100 200 |
500 1K |
2K |
5K 10K 20K |
50K |
|
Dimensions & Mounting Information
83
6.5
4-Ø4.5
Ø100
72.5 |
88 |
Ø75
