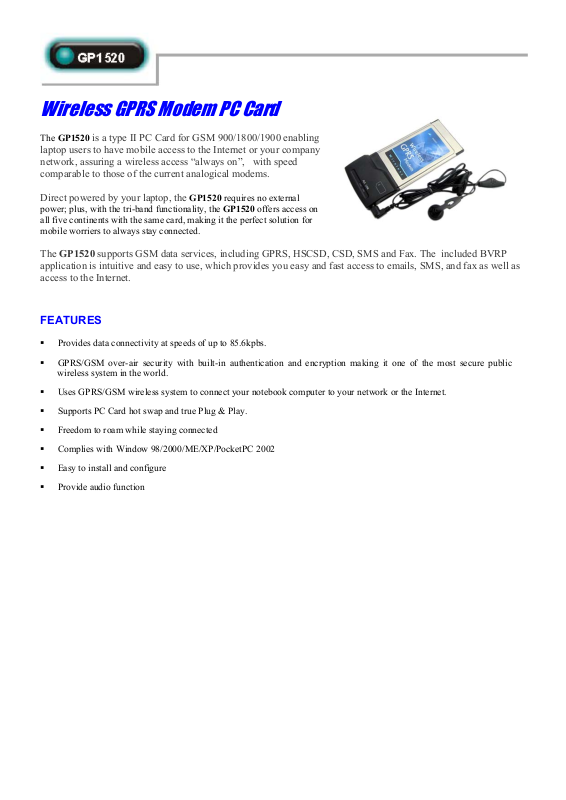

Wireless GPRS Modem PC Card

The GP1520 is a type II PC Card for GSM 900/1800/1900 enabling laptop users to have mobile access to the Internet or your company network, assuring a wireless access “always on”, with speed comparable to those of the current analogical modems.

Direct powered by your laptop, the GP1520 requires no external power; plus, with thetri-bandfunctionality, theGP1520 offers access on all five continents with the same card, making it the perfect solution for mobile worriers to always stay connected.

The GP1520 supports GSM data services, including GPRS, HSCSD, CSD, SMS and Fax. The included BVRP application is intuitive and easy to use, which provides you easy and fast access to emails, SMS, and fax as well as access to the Internet.

FEATURES

Provides data connectivity at speeds of up to 85.6kpbs.

GPRS/GSM over-airsecurity withbuilt-inauthentication and encryption making it one of the most secure public wireless system in the world.

Uses GPRS/GSM wireless system to connect your notebook computer to your network or the Internet. Supports PC Card hot swap and true Plug & Play.

Freedom to roam while staying connected

Complies with Window 98/2000/ME/XP/PocketPC 2002

Easy to install and configure

Provide audio function

SPECIFICATION



Host Interface



PC Card TypeII slot











Antenna



Internal Tri-bandAntenna











LED Indicators

Link: POWER ON



Act: LINK BASE STATION













EGSM Rx: 880 ~ 915MHz







EGSM Rx: 925 ~ 960MHz



Frequency Band

DCS Tx: 1710 ~ 1785MHz



DCS Rx: 1805 ~ 1880MHz













PCS Tx: 1850 ~ 1910MHz







PCS Rx: 1930 ~ 1990MHz



Operation mode

GPRS multi-slotclass 10 mode



(up to 4 download channels and 2 upload channels)















Coding Scheme

Supports all coding schemes (1,2,3 and 4)











Device Class



GPRS mobile station class B











SIM Interface



SIM card Holder: Type 3V











Transmission Power

Class 4 (2W) for GSM900



Class 1 (1W) for GSM1800 and GSM1900









Receiver

Sensitivity





@ARP



-102dBm









BER <2.4%















Data Rate



GPRS data downlink transfer: 85.6 kbps (Max.)





GPRS data uplink transfer: 21.4 kbps (Max.)







SMS: Over CSD or GPRS connections



Power Consumption

Operating Voltage: 4.75V~5.25V



Active mode: 600mA (Max.)







Idle mode: 40mA (Typical)



Physical Specifications

Weight: 50 g



Dimension: 125.81 (L) x 54.05 (W) x 11.46 (H) mm

















Environment



Storage Temperature: -20~70ambient temperature



Specifications (TBD)

Storage humidity: 90% maximum (non-condensing)



Supported OS



Windows 98/ME/2000/XP/Pocket PC 2002
