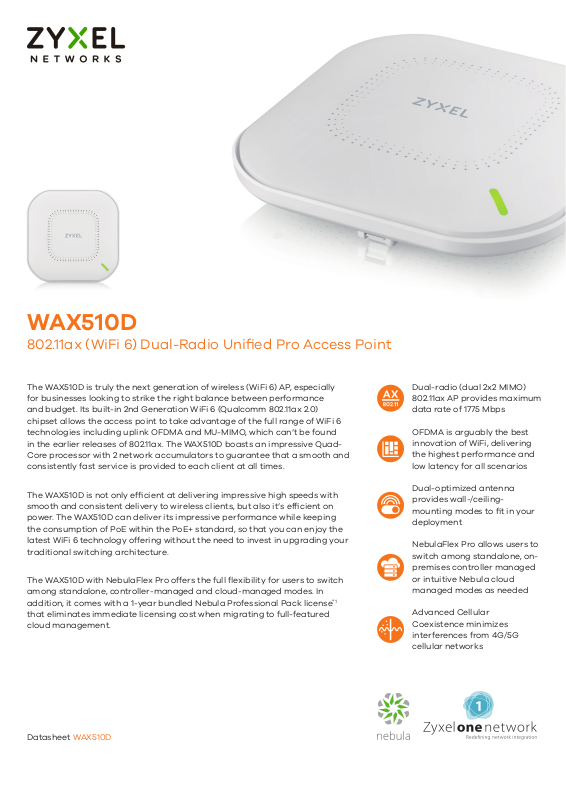

WAX510D
802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
The WAX510D is truly the next generation of wireless (WiFi 6) AP, especially
for businesses looking to strike the right balance between performance
and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0)
chipset allows the access point to take advantage of the full range of WiFi 6
technologies including uplink OFDMA and MU-MIMO, which can’t be found
in the earlier releases of 802.11ax. The WAX510D boasts an impressive QuadCore processor with 2 network accumulators to guarantee that a smooth and
consistently fast service is provided to each client at all times.
The WAX510D is not only efficient at delivering impressive high speeds with
smooth and consistent delivery to wireless clients, but also it’s efficient on
power. The WAX510D can deliver its impressive performance while keeping
the consumption of PoE within the PoE+ standard, so that you can enjoy the
latest WiFi 6 technology offering without the need to invest in upgrading your
traditional switching architecture.
The WAX510D with NebulaFlex Pro offers the full flexibility for users to switch
among standalone, controller-managed and cloud-managed modes. In
addition, it comes with a 1-year bundled Nebula Professional Pack license*1
that eliminates immediate licensing cost when migrating to full-featured
cloud management.
Dual-radio (dual 2x2 MIMO)
802.11ax AP provides maximum
data rate of 1775 Mbps
OFDMA is arguably the best
innovation of WiFi, delivering
the highest performance and
low latency for all scenarios
Dual-optimized antenna
provides wall-/ceilingmounting modes to fit in your
deployment
NebulaFlex Pro allows users to
switch among standalone, onpremises controller managed
or intuitive Nebula cloud
managed modes as needed
Advanced Cellular
Coexistence minimizes
interferences from 4G/5G
cellular networks
Datasheet WAX510D
Benefits
Bringing next generation WiFi within reach
Zyxel’s new WAX510D is a true WiFi 6 access point that
delivers faster performance and massive increasedcapacity, which along with unique Zyxel dual optimized
antenna technology, make the user experience even better.
Apart from running at 25% faster speed, the WAX510D can
also accommodate more client devices without any fall-off
in speed, allowing an easy scale-up capacity to support
hundreds of connections without increased latency.
NebulaFlex Pro – simply manage it your way!
The NebulaFlex Pro provides extended flexibility, allowing
users to easily switch among standalone, on-promises
controller or our intuitive NCC (Nebula Control Center)
modes any time according to your needs without additional
cost while protecting wireless technology investments.
The privilege of one-year professional pack you can get
once upon registration on Nebula includes wireless health,
site-wide topology, 365-day statistics on the devices and
clients monitoring along with more upcoming advanced
features on NCC and its App.
Unparalleled high-density performance
Essentially, there are two technologies that make a real
difference in WiFi 6 – orthogonal frequency-division
multiple access (ODFMA), and spatial re-use, which is also
referred to as Basic Service Set (BSS) coloring. These make
WiFi 6 a much more efficient technology than 802.11ac. The
BSS coloring allows multiple access points to be used in the
same vicinity without fear of co-channel interference.
Superior performance with innovative “Dualoptimized” antenna
People without RF expertise may not realize that installing
an AP optimized for ceiling-mount as wall-mount may
cause the ceiling-mount radiation pattern to interfere with
other devices up- or downstairs as well as to deliver signals
with shorter-than-expected range for its clients. Designed
with the innovative “Dual-optimized” antenna, the WAX510D
adapts to both wall- and ceiling-mount installations. Thus,
users can switch between the two optimized antenna
modes easily to fit either situation. To boost WiFi speeds for
your network, the WAX510D is definitely an excellent choice.
4G/5G cellular network coexistence
With the growing pervasiveness of mobile devices in the
wireless network, users start to experience degraded
performance, such as ping drops and high latency, however
whenever user shutdown the mobile equipment, wireless
service resumes working smooth. Thus, to enable 4G/5G
cellular network coexistence and minimize interference
from 4G/5G antennas or signal boosters, the WAX510D has
built-in 4G/5G interference filters. As a result, the visible or
invisible 4G/5G indoor antennas in the environment is no
longer an issue when installing APs.
*1: The licensing terms may vary depending on part numbers or regions
Please contact your local sales representative.
2Datasheet WAX510D
Powerful Hardware Design
True WiFi 6 Qualcomm
Quad-core processor
High performance FEM
4G/5G filter
Longevity solid capacitor
Surge and ESD protection
Anti-noise spreader
Dual-optimized antenna design
Switch Among Triple Modes
On-premises controller
Nebula Control Center
Standalone
3Datasheet WAX510D
Specifications
Model WAX510D
Product name 802.11ax (WiFi 6) Dual-Radio Unified Access Point
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4 GHz 575 Mbps
5 GHz 1200 Mbps
Frequency band 2.4 GHz
(IEEE 802.11 b/g/n/ax)
5 GHz
(IEEE 802.11 a/n/ac/ax)
Bandwidth 20-, 40-, 80-MHz
Conducted
typical transmit
output power
RF Design
Antenna type Dual optimized antenna
Antenna gain 2.4 GHz Peak gain 5 dBi
Minimum receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN Feature
Band steering Ye s
WDS Future support
Mesh AP (By license) Future support
Mesh AP for multiple SSID with VLAN Future support
Smart mesh Future support
Fast roaming Pre-authentication, PMK caching and 802.11r
DCS Ye s
Load balancing Ye s
Security
Encryption WEP/WPA/WPA2-PSK/WPA3
Authentication WPA/WPA2/WPA3-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
Access management L2-isolation/MAC filtering/Rogue AP detection
Networking
IPv6 Ye s
VLANs Ye s
WMM Ye s
U-APSD Ye s
DiffServ marking Ye s
US
(2.4 GHz/5 GHz)
EU
(2.4 GHz/5 GHz)
5 GHz Peak gain 6 dBi
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
• USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
23/26 dBm
20/25 dBm
4Datasheet WAX510D
Model WAX510D
Management
Operating mode Nebula Cloud managed/controller-managed/standalone
ZON Utility • Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations
■
IP configuration
■
IP renew
■
Device reboot
■
Device locating
■
Web GUI access
■
Firmware upgrade
■
Password configuration
Zyxel Wireless Optimizer • WiFi AP planning
• WiFi coverage detection
• Wireless health management
Web UI/CLI Yes
SNMP Ye s
Physical Specifications
Item Dimensions
180 x 180 x 39/7.09 x 7.09 x 1.54
(WxDxH)(mm/in.)
Weight (g/lb.) 453/1.00
Packing Dimensions
229 x 216 x 64/9.02 x 8.50 x 2.52
(WxDxH)(mm/in.)
Weight (g/lb.) 770/1.70
Included accessories • Mount plate
• Mounting screws
MTBF (hr) 635,837
Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power • PoE (802.3)at: power draw 17 W
• DC input: 12 VDC 1.5 A
Environmental Specifications
Operating Temperature 0°C to 50°C/32°F to 122°F
Humidity 10% to 95% (non-condensing)
Storage Temperature -30°C to 70°C/-22°F to 158°F
Humidity 10% to 90% (non-condensing)
Certifications
Radio FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024,
EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1
5Datasheet WAX510D
For more product information, visit us on the web at www.zyxel.com
Copyright © 2020 Zyxel and/or its affiliates. All rights reserved.
All specifications are subject to change without notice.
