ZyXEL GBIC-LHX1310-40, GBIC-LX-10, GBIC-SX, GBIC-ZX-80, SFP-LHX1310-40 Specifications

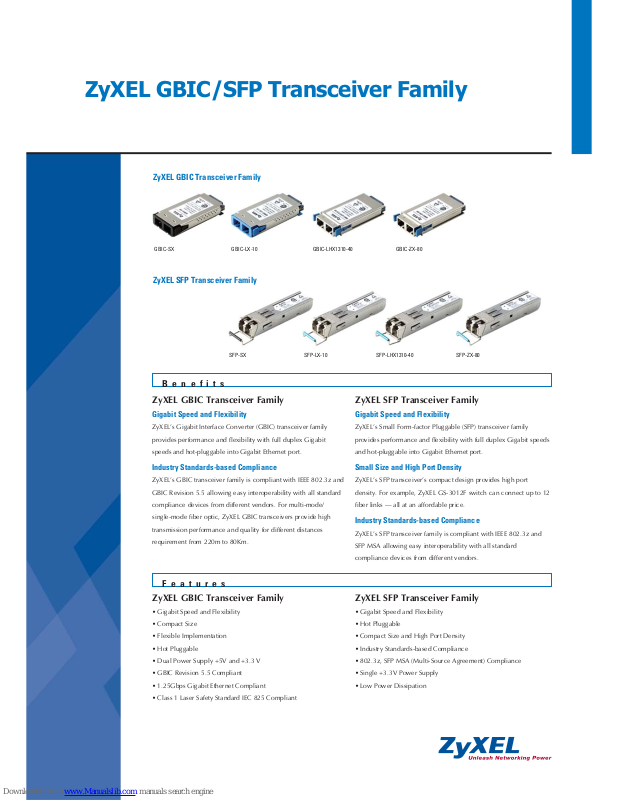

ZyXEL GBIC/SFP Transceiver Family

Benefits

ZyXEL GBIC Transceiver Family

Gigabit Speed and Flexibility

ZyXEL’s Gigabit Interface Converter (GBIC) transceiver family

provides performance and flexibility with full duplex Gigabit

speeds and hot-pluggable into Gigabit Ethernet port.

Industry Standards-based Compliance

ZyXEL’s GBIC transceiver family is compliant with IEEE 802.3z and

GBIC Revision 5.5 allowing easy interoperability with all standard

compliance devices from different vendors. For multi-mode/

single-mode fiber optic, ZyXEL GBIC transceivers provide high

transmission performance and quality for different distances

requirement from 220m to 80Km.

Features

ZyXEL GBIC Transceiver Family

• Gigabit Speed and Flexibility

• Compact Size

• Flexible Implementation

• Hot Pluggable

• Dual Power Supply +5V and +3.3 V

• GBIC Revision 5.5 Compliant

• 1.25Gbps Gigabit Ethernet Compliant

• Class 1 Laser Safety Standard IEC 825 Compliant

ZyXEL SFP Transceiver Family

Gigabit Speed and Flexibility

ZyXEL’s Small Form-factor Pluggable (SFP) transceiver family

provides performance and flexibility with full duplex Gigabit speeds

and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density

ZyXEL’s SFP transceiver’s compact design provides high port

density. For example, ZyXEL GS-3012F switch can connect up to 12

fiber links — all at an affordable price.

Industry Standards-based Compliance

ZyXEL’s SFP transceiver family is compliant with IEEE 802.3z and

SFP MSA allowing easy interoperability with all standard

compliance devices from different vendors.

ZyXEL SFP Transceiver Family

• Gigabit Speed and Flexibility

• Hot Pluggable

• Compact Size and High Port Density

• Industry Standards-based Compliance

• 802.3z, SFP MSA (Multi-Source Agreement) Compliance

• Single +3.3V Power Supply

• Low Power Dissipation

GBIC-SX GBIC-LX-10 GBIC-LHX1310-40 GBIC-ZX-80

SFP-SX SFP-LX-10 SFP-LHX1310-40 SFP-ZX-80

ZyXEL GBIC Transceiver Family

ZyXEL SFP Transceiver Family

Specifications

Operating Information

ZyXEL GBIC/SFP Transceiver Family

Safety Certification

• Class 1 Laser

• 21 CFR 1040.10 and 1040.11 compliant

• CSA

• TUV

Operating Environment Information

• Operating Temperature: 0°C - 70°C

• Storage Temperature: -40°C ~ 85°C

• Relative Humidity: 5% ~ 95%

Model

Dimensions

Optical

Wavelength Connector

(L x D x H) mm

Receiver

62.5um MMF 50um MMF 9/10um SMF Supply Voltage Max Current Sensitivity

GBIC-SX 65 x 30 x 10 mm -17 dBm 850nm SC 220 m 550 m - 3.15 ~ 5.25 V 300 mA

GBIC-LX-10 65 x 30 x 10 mm -20 dBm 1310nm SC 550 m 550 m 10 km 3.15 ~ 5.25 V 300 mA

GBIC-LHX1310-40 65 x 30 x 10 mm -23 dBm 1310nm SC - - 40 km 3.15 ~ 5.25 V 300 mA

GBIC-ZX-80 65 x 30 x 10 mm -24 dBm 1550nm SC - - 80 km 3.15 ~ 5.25 V 300 mA

Transmission Distance vs. Fiber Cable

Specification

Operational Ranges

Model Name Product Description

GBIC-SX 1000Base-SX GBIC Transceiver

GBIC-LX-10 1000Base-LX GBIC Transceiver

GBIC-LX-1310-40 1000Base-LHX GBIC Transceiver

GBIC-ZX-80 1000Base-ZX GBIC Transceiver

Model Name Product Description

SFP-SX 1000Base-SX SFP Transceiver

SFP-LX-10 1000Base-LX SFP Transceiver

SFP-LX-1310-40 1000Base-LHX SFP Transceiver

SFP-ZX-80 1000Base-ZX SFP Transceiver

Transceivers Fast Ethernet Switch Gigabit Ethernet Switch

ES-1124 ES-2024 ES-3124 ES-4024 GS-1116 GS-1124 GS-2024 GS-3012 GS-3012F

GBIC-SX •

GBIC-LX-10 •

GBIC-LHX1310-40 •

GBIC-ZX-80 •

SFP-SX • • • • • • • •

SFP-LX-10 • • • • • • • •

SFP-LHX1310-40 • • • • • • • •

SFP-ZX-80 • • • • • • • •

ZyXEL GBIC/SFP Transceiver Compatibility Matrix

ZyXEL GBIC Transceiver Family

ZyXEL GBIC Transceiver Family

Model

Dimensions

Optical

Wavelength Connector

(L x D x H) mm

Receiver

62.5um MMF 50um MMF 9/10um SMF Supply Voltage Max Current Sensitivity

SFP-SX 56 x 13.4 x 12.46 mm -17 dBm 850nm LC 220 m 550 m - 3.15 ~ 3.45 V 300 mA

SFP-LX-10 56 x 13.4 x 12.46 mm -20 dBm 1310nm LC 550 m 550 m 10 km 3.15 ~ 3.45 V 300 mA

SFP-LHX1310-40 56 x 13.4 x 12.46 mm -23 dBm 1310nm LC - - 40 km 3.15 ~ 3.45 V 300 mA

SFP-ZX-80 56 x 13.4 x 12.46 mm -24 dBm 1550nm LC - - 80 km 3.15 ~ 3.45 V 300 mA

Transmission Distance vs. Fiber Cable

Specification

Operational Ranges

ZyXEL SFP Transceiver Family

ZyXEL SFP Transceiver Family

65-100-900015
