TELSTRA
QWERTY­TOUCH™

USER MANUAL

Copyright © 2011. All rights reserved.

No part of this publication may be excerpted, reproduced, translated or utilized in any
form or by any means, electronic or mechanical, including photocopying and microfilm,
without the prior written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications
on print errors or update specifications without prior notice.

Version 1.0 August 2011

CONTENTS

SAFETY
DEVICE OVERVIEW

KEY DEFINITIONS
INSERT YOUR SIM CARD
POWER ON & OFF
CREATE OR LOG IN TO A GOOGLE ACCOUNT
USING THE TOUCH SCREEN CONTROLS
THE HOME SCREEN
PHONE STATUS AND NOTIFICATION ICONS

PHONE CALLS

MAKING CALLS

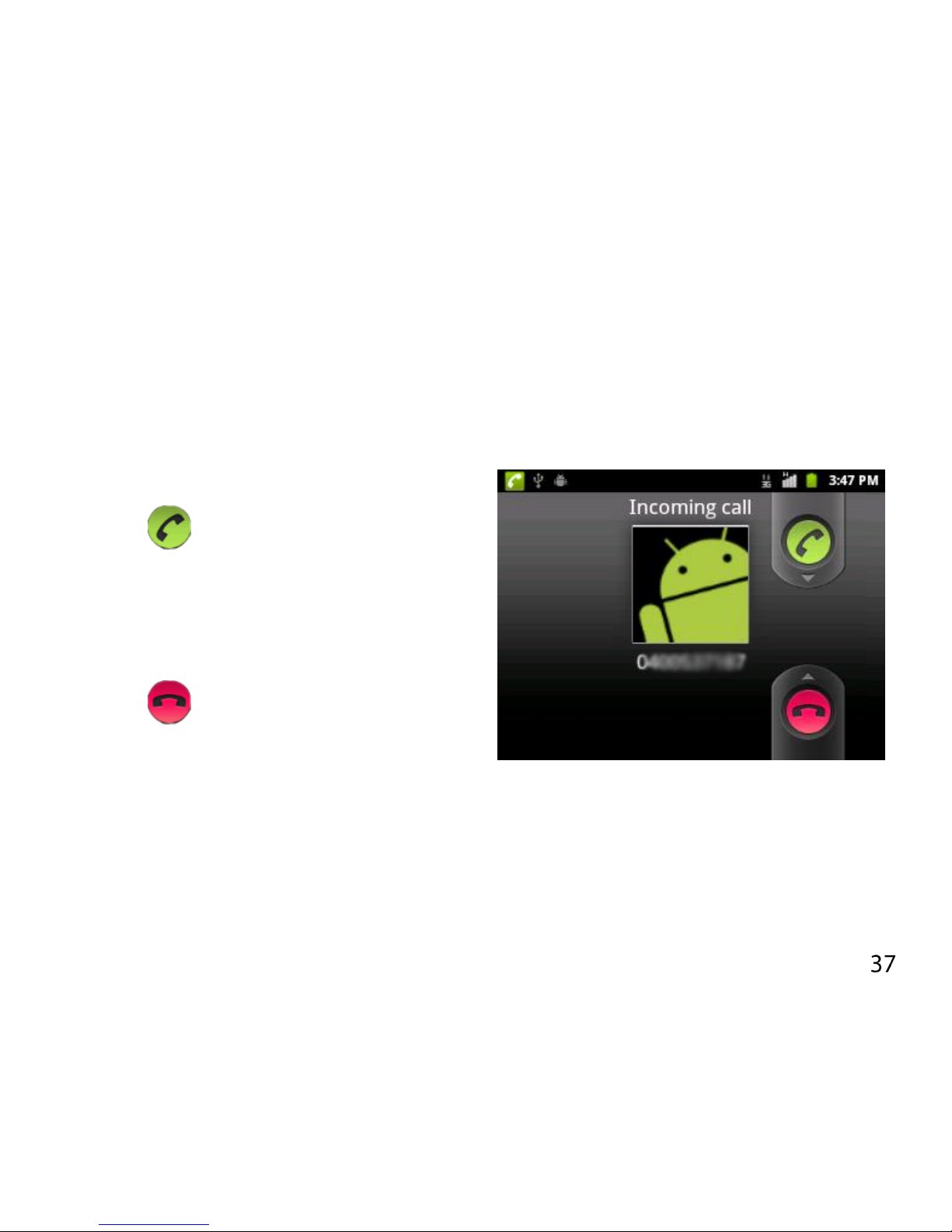

RECEIVING CALLS

CONTACTS
MESSAGES

SMS AND MMS MESSAGES
USING MYEMAIL

GETTING CONNECTED

CONNECTING TO THE INTERNET

USING THE BROWSER
BLUETOOTH
CONNECT TO A COMPUTER
COMPATIBILITY
JOIN ME FEATURE SUMMARY

USING MULTIMEDIA FUNCTIONS

CAMERA
VIDEO RECORDER
FM RADIO
MUSIC
VIDEOS
GALLERY
SOUND RECORDER

GOOGLE APPLICATIONS

SIGN IN OR CREATE YOUR GOOGLE ACCOUNT
USING GMAIL
USING GOOGLE CALENDAR
USING GOOGLE TALK

SETTINGS
TECHNICAL SPECIFICATIONS:
TROUBLESHOOTING AND WARRANTY INFORMATION

SAFETY

General Statement on RF Energy

The phone is a low-power radio transmitter and receiver. When
switched on it intermittently transmits radio frequency (RF) energy
(radio waves). The transmit power level is optimized for best
performance and automatically reduces when there is good quality
reception. Maximum power is only used at the edge of network
coverage so under most circumstances the power output is very low.
Under poor network conditions the phone transmits at a higher power,
may get hot and have a shorter battery life.

Specific Absorption Rate (SAR)

The phone is designed not to exceed the limits for exposure to radio
waves recommended by the ICNIRP. The limits include safety margins
designed to assure the protection of all persons, regardless of age and
health.
The guidelines measure the Specific Absorption Rate, or SAR. The SAR
limit for mobile devices is 2W/Kg and the highest SAR value for this
device is 1.15 W/Kg.

Product Safety Information

Please read all instructions
before use

This device may produce
bright or flashing lights

Do not use while driving

Do not dispose of in fire

Do not use while re-fuelling

Avoid contact with
magnetic media

Small parts may be a
choking hazard

Avoid Extreme
Temperatures

This device may produce
loud sounds

Avoid any contact with
liquid, keep it dry

Keep away from
pacemakers and other
personal medical devices

Only use approved
accessories

Obey warning signs in
hospitals and medical
facilities

Do not attempt to
disassemble

Switch off when flying

Do not rely on this device
for emergency
communications

Switch off in explosive
environments

This device has been certified by the Wi-Fi Alliance.

- microSD™ is a trademark of SD Card Association

DEVICE OVERVIEW

Key Definitions

Key

Function

Power Key

Hold down to power on your phone.
Press to switch to sleep mode. Press to wake up.
Hold down for phone options:

Silent mode, Flight mode or Power off.

Home Key

Press to return to the Home Screen from any screen.
Hold down to see the recently used applications.

Menu Key

Press to get the options on the current screen.

Search

Press to search in the Browser, Contacts, or
Messages

Back Key

Press to go to the previous screen.

Call Key

Press to open the dial pad to make a call.
Press to answer a call.

Key

Function

End Key

Press to End a call. Press to Exit.
Hold for Profile options the same as the Power
Key.

Volume

Keys

Use to control the volume Up and Down

Insert your SIM card

Power off your phone before inserting the SIM, or memory card.

1. Remove the battery cover:

2. Insert your SIM card carefully into the SIM slot as shown

above.

3. The handset supports microSD memory cards up to 32GB. If

you wish to expand the device memory then insert as shown
above (optional).

4. Insert the battery with the gold

contacts located against the gold
springs.

5. Replace the battery cover and

press it gently until it clicks into
place.

Charge the Battery

 Only use the AC charger and USB

lead supplied.

 Insert the charger lead

carefully.

 Check the plug and socket are aligned correctly.
 Do NOT use excessive force which may damage the USB port.
 Be careful to avoid tripping or pulling on the lead whilst it is

plugged in.

 Physical damage to the USB port is NOT covered by warranty.

 The phone can also be charged by connecting it to a computer

using the USB lead supplied.

 A sound is played when the charger or USB cable is plugged in.
 The phone can be charged in the ON or OFF state: When

switched OFF the charging icon is displayed. When switched
ON the battery icon animates until fully charged.

 If the phone is off after charging press the power key to

switch it on.

 Avoid high temperatures and direct sunlight. The battery will

not charge when over 45°C

Tips to maximise battery life

 Do not leave the battery in a discharged state. Charge the

battery promptly when flat.

 If the battery is in a deep discharge state it can take 30

minutes to start charging. Leave it on charge to recover the
battery.

 Keep your handset and battery cool. High temperatures

degrade the battery more quickly.

 Normal charge time is 3-4 hours. Do not leave on charge for

more than 24hrs.

 After 2-3 charge / discharge cycles the battery life will

improve. From then on use top up charging to recharge
frequently and always charge promptly when flat.

 When not using the phone for long periods charge to approx

40% and remove the battery.

 With poor network conditions (less than 2 bars) battery life is

reduced.

 Turn off Bluetooth when not in use to extend battery life.

Power On & Off

1. Make sure that your SIM card and battery are inserted.

2. Press the Power Key on the top to power on your handset.
To power off your handset, press and hold the Power Key ,

select Power off > OK.

Wake up from sleep mode

1. Press the Power Key to
activate the display.

2. Drag the padlock icon down to

unlock.

If you have set an unlock pattern or PIN for your handset you
need to enter the pattern or PIN to unlock your screen.
(

see

Menu > Settings > Location & security > Set up screen lock)
We recommend you create or sign in to a Google account to
protect you in case you forget your pattern or PIN.

Create or Log in to a Google Account

We recommend you log in or create a Google account to enable
on line services such as Email, Market and to protect your
handset and data in case of loss or theft.

Follow the on screen wizard to create your Google account or
scroll down to skip.

If you set a lock code on your device and then forget the pattern
or PIN number it can only be reset using your Google Account.

Switch your handset to sleep mode

Press the Power Key
Sleep Mode suspends your handset to a low-power state with

the display off.

Sleep Mode activates automatically when the handset is idle for
a period of time defined by Menu > Settings > Display > Screen
timeout.

Using the Touch Screen Controls

The touch screen controls change dynamically depending on the
tasks you are performing:

1. Tap buttons or icons to select the function or open

applications.

2. Hold an item for options related to that function.

3. Slide up & down to scroll through lists.

4. Drag items to move or perform other operations.

5. Swipe sideways to view the extended desktop.

Tip:

Menu > Settings > Display > Auto-rotate screen

Screen rotation can be set to rotate between portrait or
landscape when changing the orientation of the handset. Some
screens assume a preferred orientation and will not change.

The Home Screen

Slide the Home Screen left or right to view additional pages.
Tap and hold to add Shortcuts, Widgets, Folders etc.

Press the Menu Key to view the Home Screen Options:

Add – widgets and shortcuts

Search – open Google search

Manage apps – view all installed
apps

Notifications – view the
notifications panel

Wallpaper – set background

Settings – go to device
Settings

Add or remove icons

1. Long press any icon in Apps

to save it to the desktop.
Tap and hold the icon to
move.

2. Drag the item to and

release to delete it from the
Home Screen.

Example, Add the Power Control Widget

1. From the Home Screen

choose a page that has
sufficient space:

2. Tap Menu and select Add

or press and hold on the
screen.

3. Tap Widgets, scroll down and tap Power Control to add

4. The power control widget is added to chosen page. Tap each
button to control the related functions:

Phone Status and Notification Icons

Status Icons

Data connected

Signal strength
Data in use

Flight mode

Battery is very low

No signal

Battery is low

Roaming
Battery is full

Speaker is muted

Battery is charging

Microphone is muted
Speaker mode is on

Vibrate mode enabled

Bluetooth is on

USB connected

GPS is on

Connected to a Wi-Fi network

Alarm is set

Headset connected

No SIM card installed

Notification Icons

New Email

Problem with SMS or
MMS delivery

New SMS

New instant message

New MMS

Upcoming event

New voicemail

Song is playing

Missed call

Downloading data

Call in progress

Uploading data

Call on hold

More notifications

Call forwarding on

The Notifications Panel

The Notifications Panel at the top of the Home Screen shows
useful device and status information.

Pull down the bar at the top of the display to view the
notifications panel:

Tip

You can also open the Notifications Panel from the Home
Screen by tapping Menu > Notifications.

Multi-Tasking

Run multiple applications simultaneously. Press the Home key
from any application to launch, open or view something else.
The original application will be suspended until you return to it.

Applications and Settings

Tap to access Applications. Scroll down to see more...

Installing Applications

Tap Market from the Home Screen to download and install
applications from the Android Market. Select the item and tap
Install.

To install non-Market applications go to Settings >
Applications > Unknown sources.

Uninstall third-party applications

1. Tap Home > Menu > Settings > Applications > Manage

applications

2. Select the application to remove

3. Tap Uninstall, tap OK to confirm.

Docs To Go

Docs To Go is a free document reader compatible with Microsoft

Word, Excel and Adobe PDF. First time use requires registration.

Settings

Tap Menu > Settings from the Home Screen to view
Settings:

Settings Menu:

Wireless &
networks

Manage Wi-Fi, Bluetooth, Mobile networks,
Virtual Private Networks & Flight mode.

Call settings

Set up fixed dial numbers, voicemail, call
forwarding, call waiting, and caller ID etc.

Sound

Sound levels, ringtones, notifications, vibrate.

Display

Brightness, screen timeout, orientation etc.

Location &
security

Location services. Set screen locks, enable
SIM lock

Applications

Manage applications, set Quick Launch
shortcuts, see running services and battery usage.

Accounts & sync

Manage your account and configure sync
settings.

Privacy

Privacy settings for location, back up, personal
data and perform a Factory Default.

Storage

Check memory status. Mount or unmount the
SD card.

Language &
keyboard

Set the language and keyboard options.

Voice input &
output

Manage voice input and text to speech options.
Accessibility

Download a screen reader application

Date & time

Set the date, time, time zone, and date/time
format. Enable automatic time update.

About phone

View the phone status, battery level, and legal
information.

Open recently used applications

Hold the Home Key from any screen to view the recently
used applications:
