ZTE R8882L708 User Manual

ZXSDR R8882

ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: [phone]
Fax: [phone]
URL: http://ensupport.zte.com.cn
E-mail: [e-mail]

L708

LTE Remote Radio

User Manual

Version:

V2.00

Unit

FCC Statements

Warning: Changes or modifications to this unit not expressly approved by the party

responsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.



NOTE: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own

expense.



NOTE: Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own
expense.



Radiation Exposure Statement:ThisequipmentcomplieswithFCCradiationexposurelimits

setforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith
minimumdistance6.5mbetweentheradiator




&yourbody.

Chapter 1

Product

Overview

Table of Contents

Distributed eNodeB Solution.......................................................................................1-1

Product Position in Network........................................................................................1-3

Product

Product Functions ......................................................................................................1-

4
Product
Installation
Product

5
Operation and Maintenance

Product External Interfaces ........................................................................................1-7

Product Indicators ......................................................................................................1-

9

Features........................................................................................................1-4

Appearance...................................................................................................1-5

Scenario

Networking

...................................................................................................1-5

....................................................................................................1-

Introduction

....................................................................1-6

1.1 Distributed eNodeB Solution

To supply customers with more competitive communication equipment and solution in the
market, ZTE develops and promotes ZTE SDR eBBU (baseband unit) and eRRU (remote

SJ-20110104194923-001|2011-1-15(R1.0)

radio unit) distributed eNodeB solution timely, which jointly perform LTE eNodeB service.

ZTE distributed eNodeB solution is shown in Figure 1-1.

ZTE Proprietary and Confidential

1-1

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

ZXSDR R8882 L200 User Manual

Figure 1-1 ZTE Distributed eNodeB Solution

ZTE's LTE eBBU+eRRU distributed eNodeB solution has the following predominance:

1. Saving labor cost and engineering cost for networking.

eBBU+eRRU distributed eNodeB equipment is small in size, light in weight, and easy
for transportation and engineering construction.

2. Fast networking, also saving the fees of renting equipment room.

eBBU+eRRU distributed eNodeB is applicable to various sites, such as mounted on
steel tower, on building top, or on wall, etc. It's more flexible in selecting installation
site, and not

restricted

by the space of

equipment

room. It can help operators to deploy
network rapidly. It can also save the fees of renting equipment room, and the network
operation cost.

3. Convenient in upgrade and capacity expansion; saving the initial stage cost of the
network.

eRRU can be mounted as close to antenna as possible, to save the cost of feed cable
and decrease the loss of feed cable. It also can enhance the output power of eRRU
and increase the coverage.

4. Low power consumption, power-saving.

1-2

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

Compared with traditional eNodeB,

eBBU+eRRU
consumption, which can greatly reduce the investment and cost on electric power, and
thus save the network operation cost.

5. Distributed networking, making good use of operators' network resources supporting
eBBU+eRRU

distributed networking; supporting star networking mode between eBBU

and eRRU.

6. Adopting a more perspective and generalized eNodeB platform.

eBBU adopts the platform designed for the future B3G and 4G. One hardware platform
can realize different standard modes, and several standard modes can coexist in one
eNodeB. In this way, operators' management can be simplified, and several eNodeBs
to be invested can be integrated into one eNodeB (multimode eNodeB). The operators
can select the evolution direction of the future network more flexibly.

1.2 Product Position in Network

ZXSDR R8882 L708 is a remote radio unit (eRRU) of distributed eNodeB. The signal is
transmitted or received through ZXSDR R8882 L708 to and from base band processing
unit for further processing through CPRI interface. By applying the distributed system, the
feeder loss will be reduced when the remote radio unit is positioned close to the antenna.
The coverage is enlarged with this solution.

Figure 1-2 Product Location

Chapter 1 Product Overview

distributed eNodeB has lower power

1-3

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

ZXSDR R8882 L200 User Manual

1.3 Product Features

Multi-Mode eRRU

ZXSDR R8882 L708 is fully software defined device. It supports multi-mode at the same
frequency band simultaneously. Therefore, it fully satisfies operators’ requirements of
hybrid network deployment and long term evolution with the lowest cost.

MIMO Supported, Better Performance

R8882 L708 supports 2T2R, which can optimize spectrum efficiency greatly and improve
network uplink performance. As a result, it brings better customer experience.

Higher Efficiency, Lower TCO

z ZXSDR R8882 L708’s PA

Doherty PA, DPD linear technology.

z It supports dynamic adaptive PA power supply due to the output power, which reduces

power consumption.

efficiency

can reach up to 30% thanks to the most advanced

1.4 Product Functions

ZXSDR R8882 L708 is the remote radio unit of distributed base station. The signal is
transmitted or received through ZXSDR R8882 L708 to/from base band processing unit
for further processing via standard CPRI interface.

The product basic functions are listed below:

z Supports the configuration of 5 MHz, 10 MHz, and 15 MHz scalable

bandwidth.

z R8882 L708 supports 698 MHz~716 MHz(uplink)/728 MHz~746 MHz(downlink).
z Supports 2x2 MIMO on downlink.
z Supports QPSK,16-QAM,64-QAM on downlink, QPSK and 16–QAM on uplink.
z Supports transmission and receive power detection.
z Supports overload power protection for power amplifier.
z Supports power amplifier switching on/off function.
z ZXSDR R8882 L708 software failure will not affect the running of eBBU and other

ZXSDR R8882 L708s which are connected to it.

z Supports field strength scanning, temperature query, VSWR query, dry contact,

hardware/software resetting.

1-4

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

1.5 Product Appearance

The appearance of ZXSDR R8882 L708 is as shown in Figure 1-3.

Figure 1-3 Product Overall Appearance

Chapter 1 Product Overview

1.6 Installation Scenario

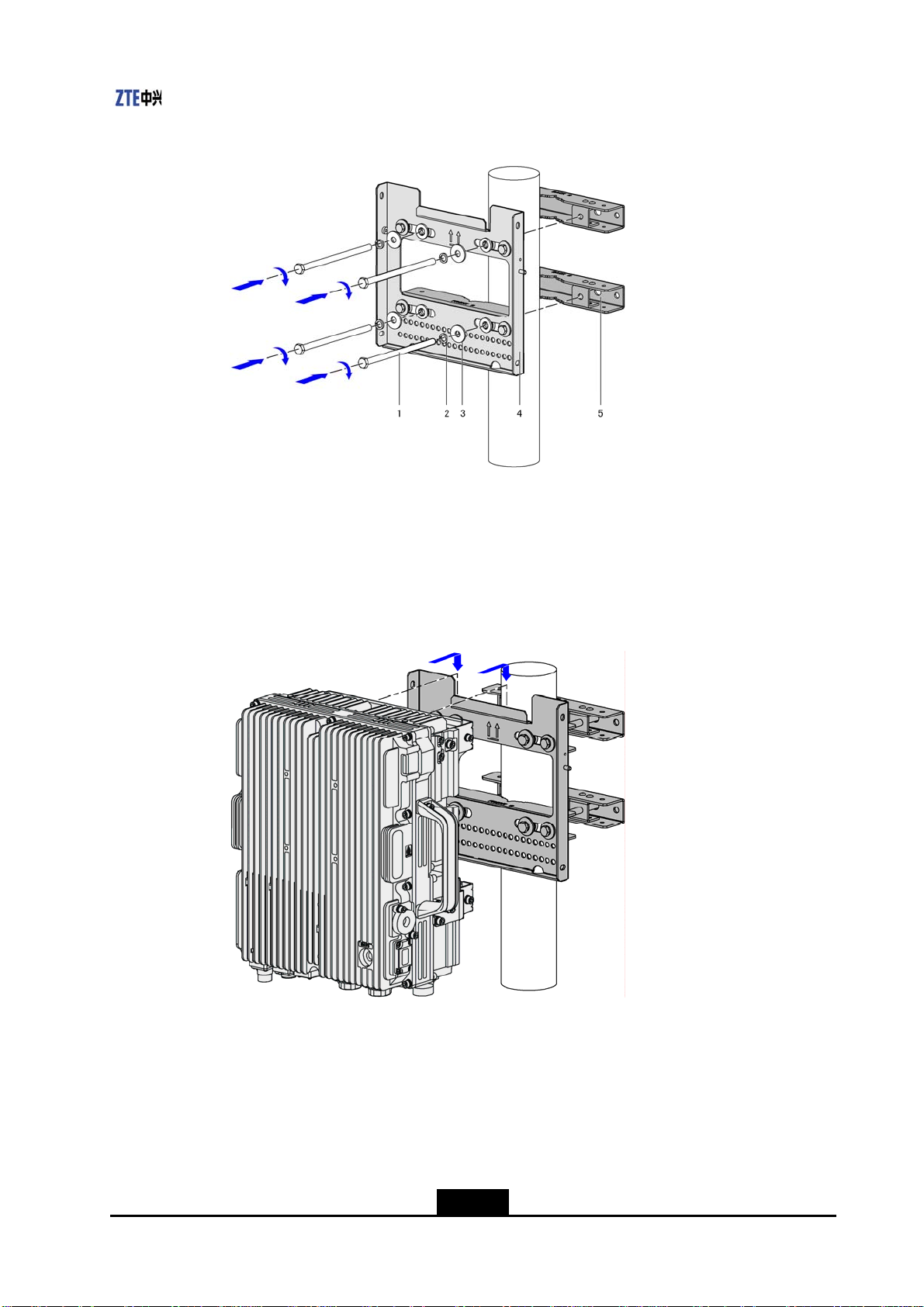

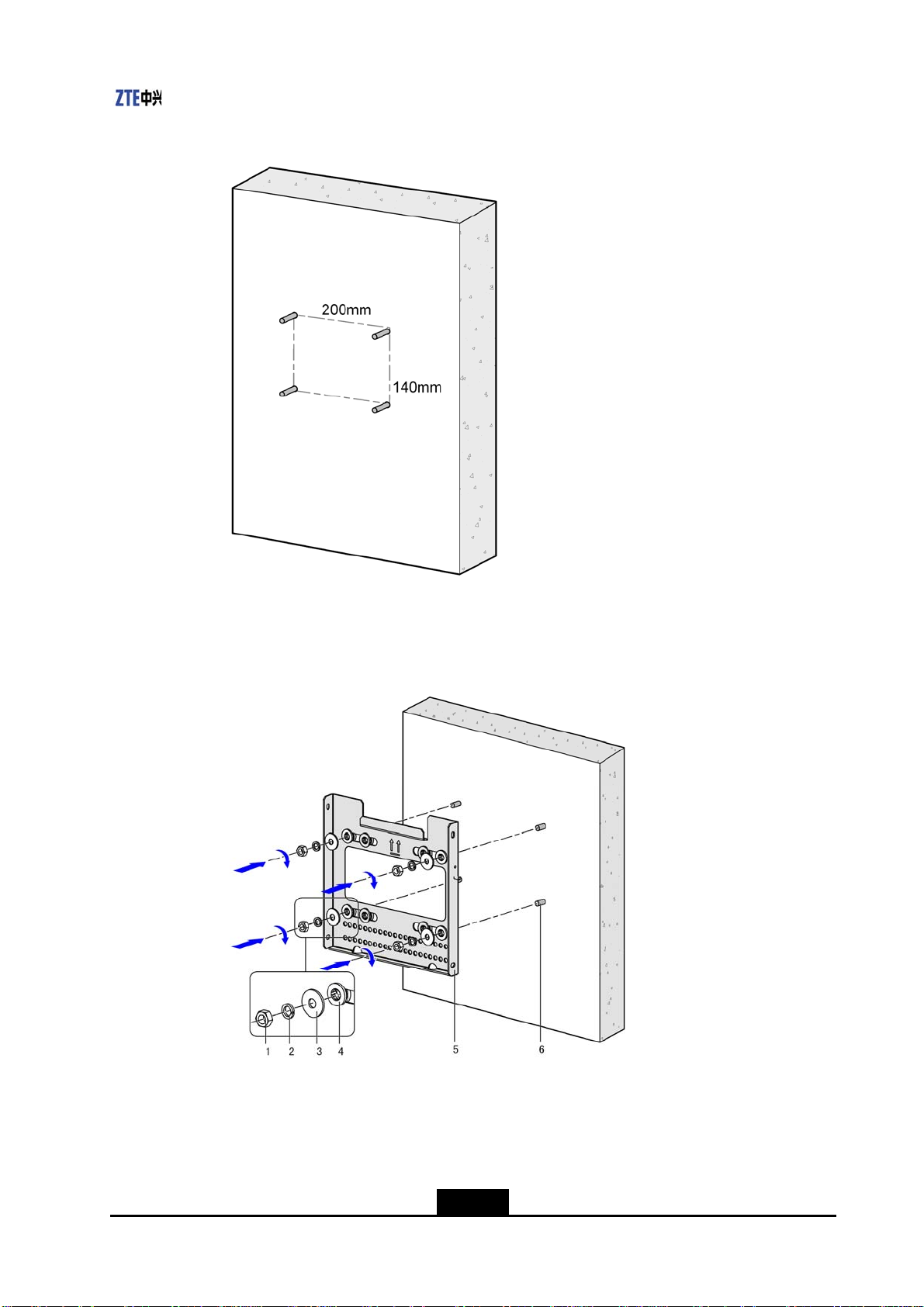

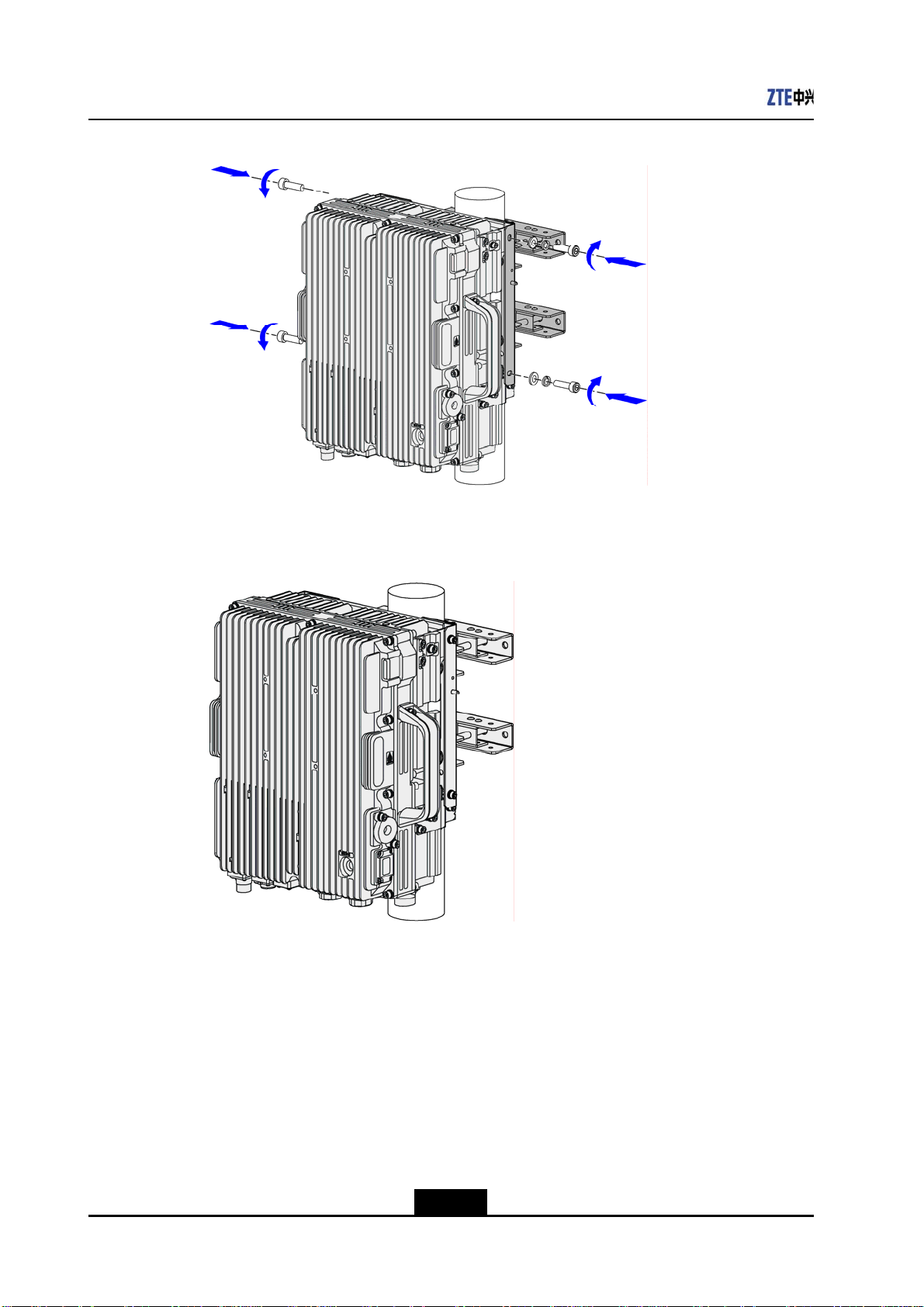

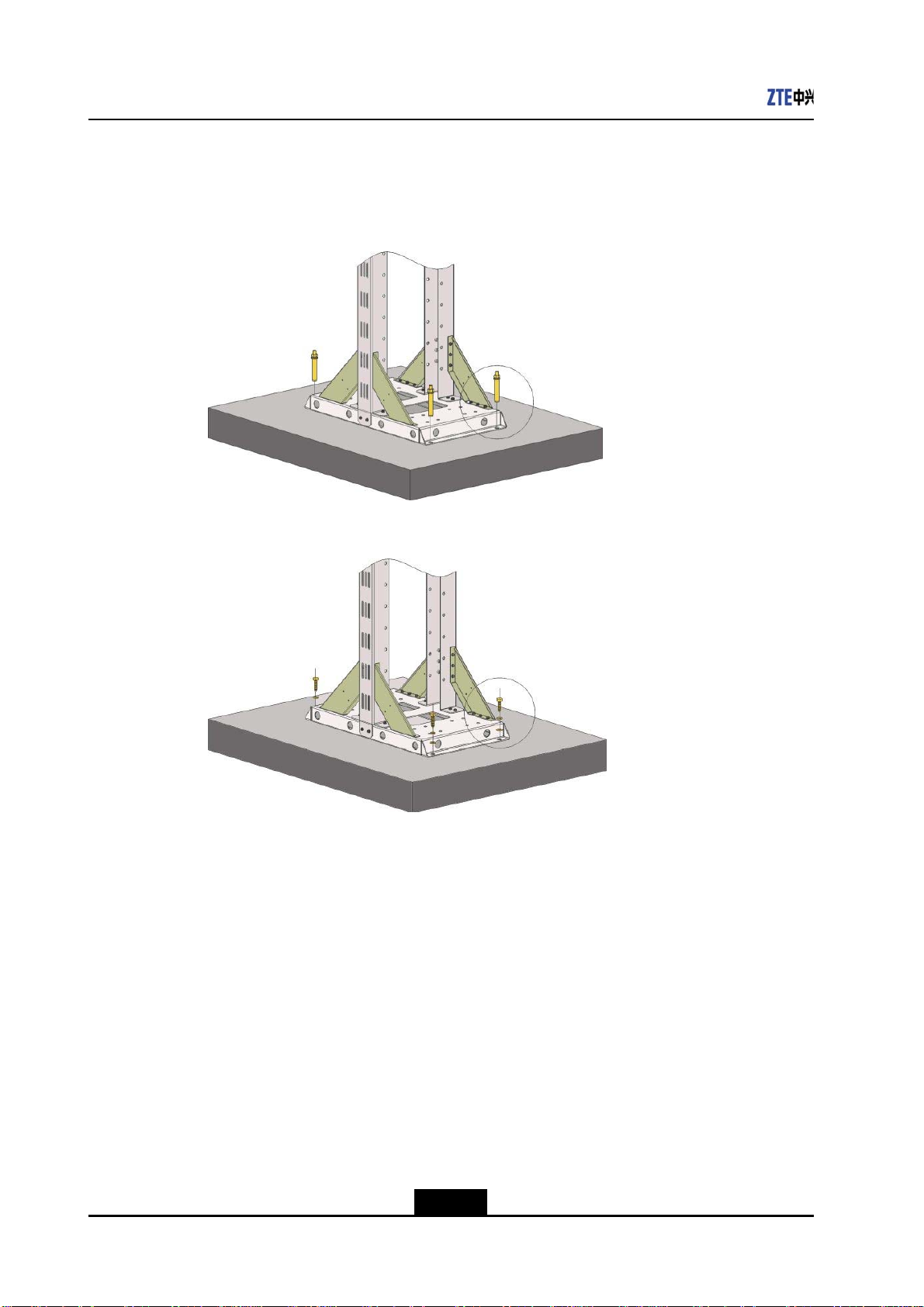

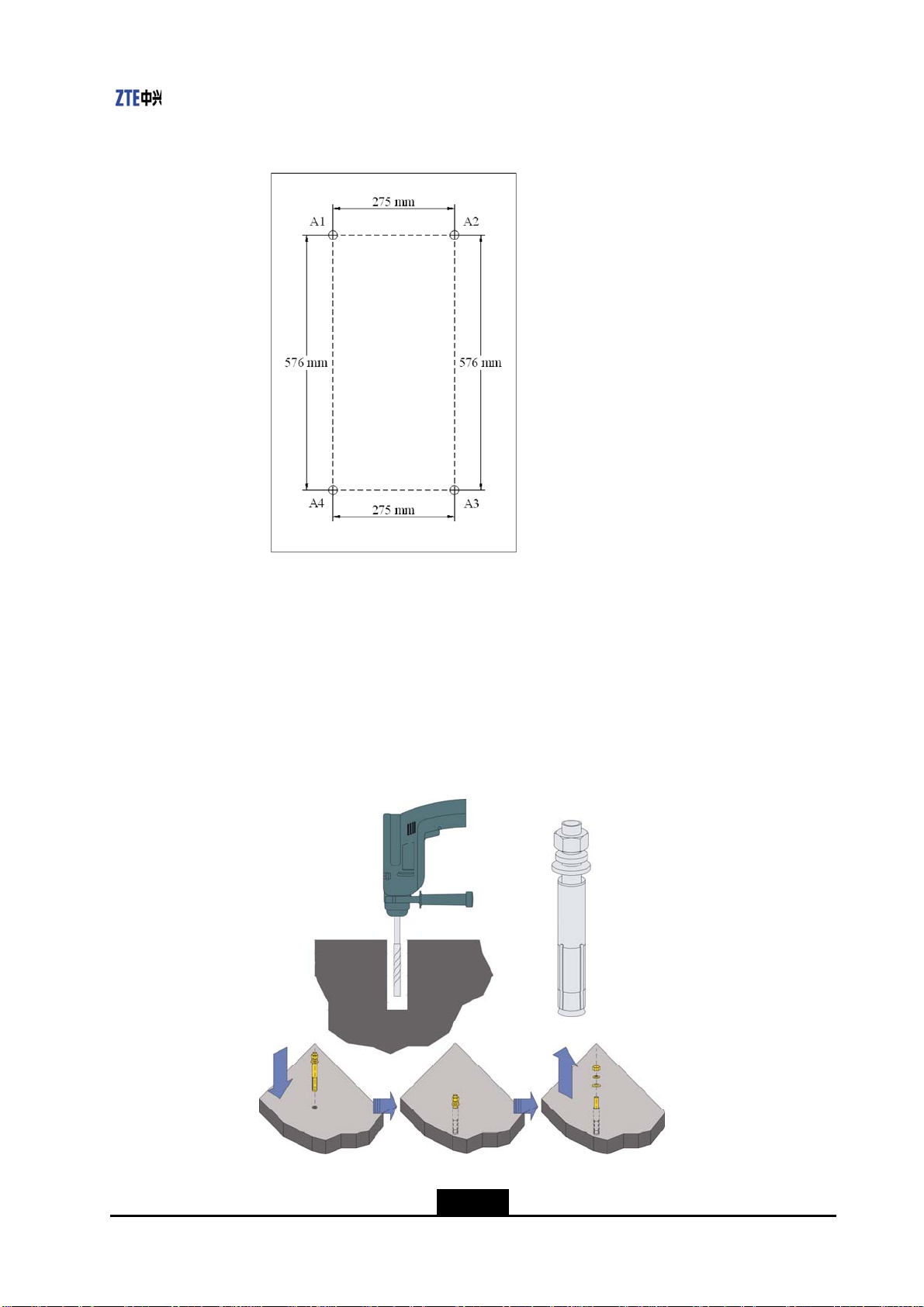

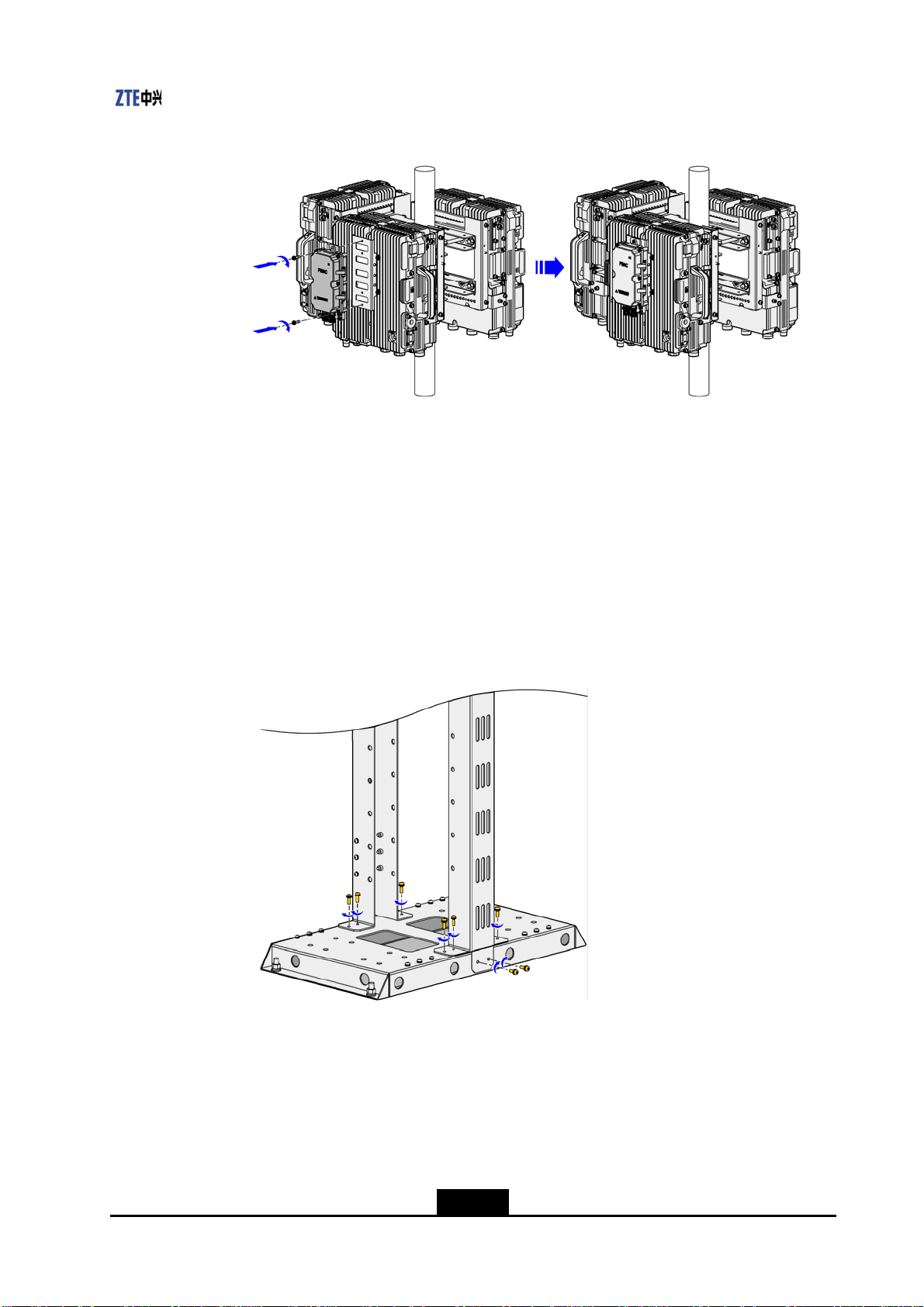

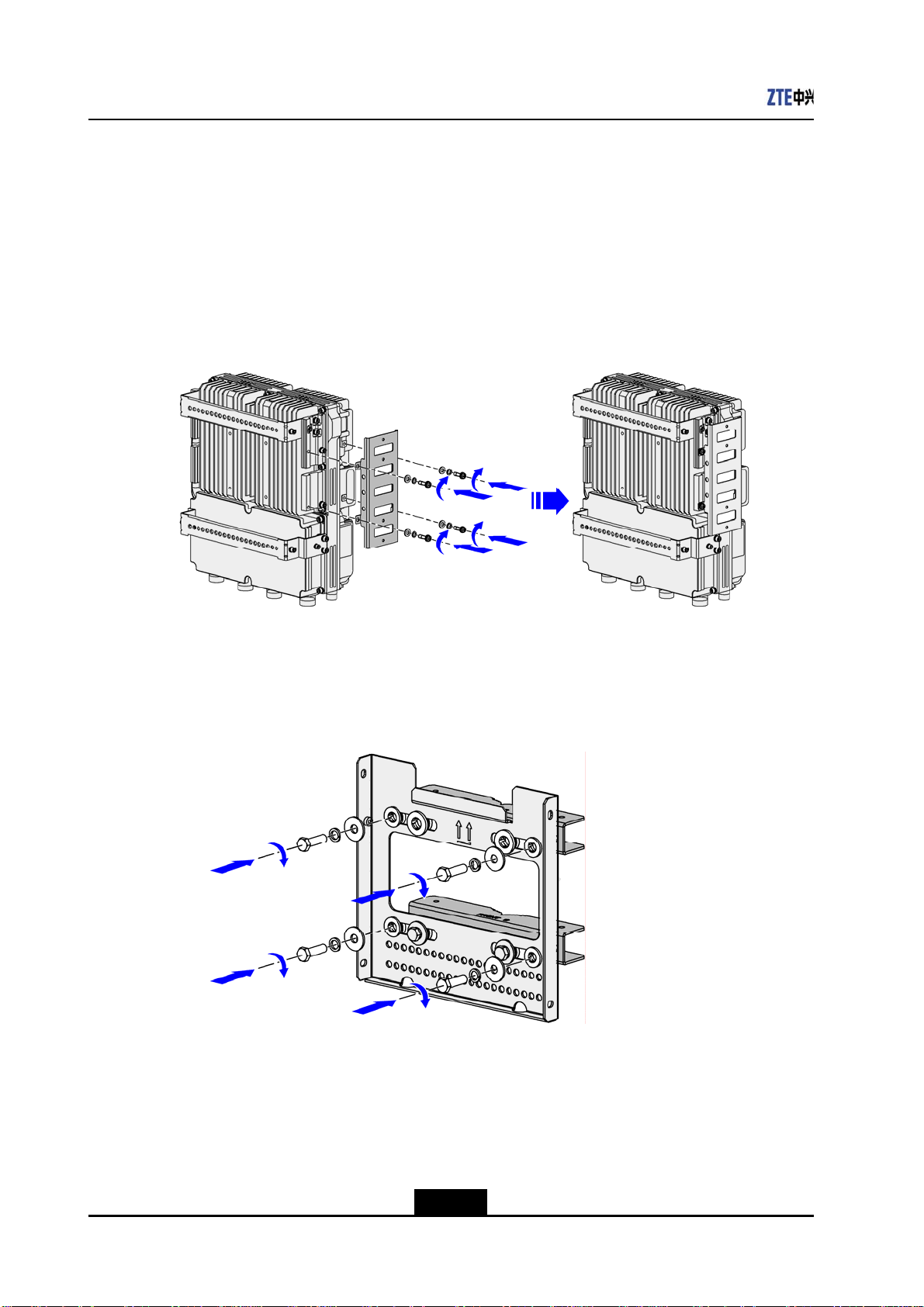

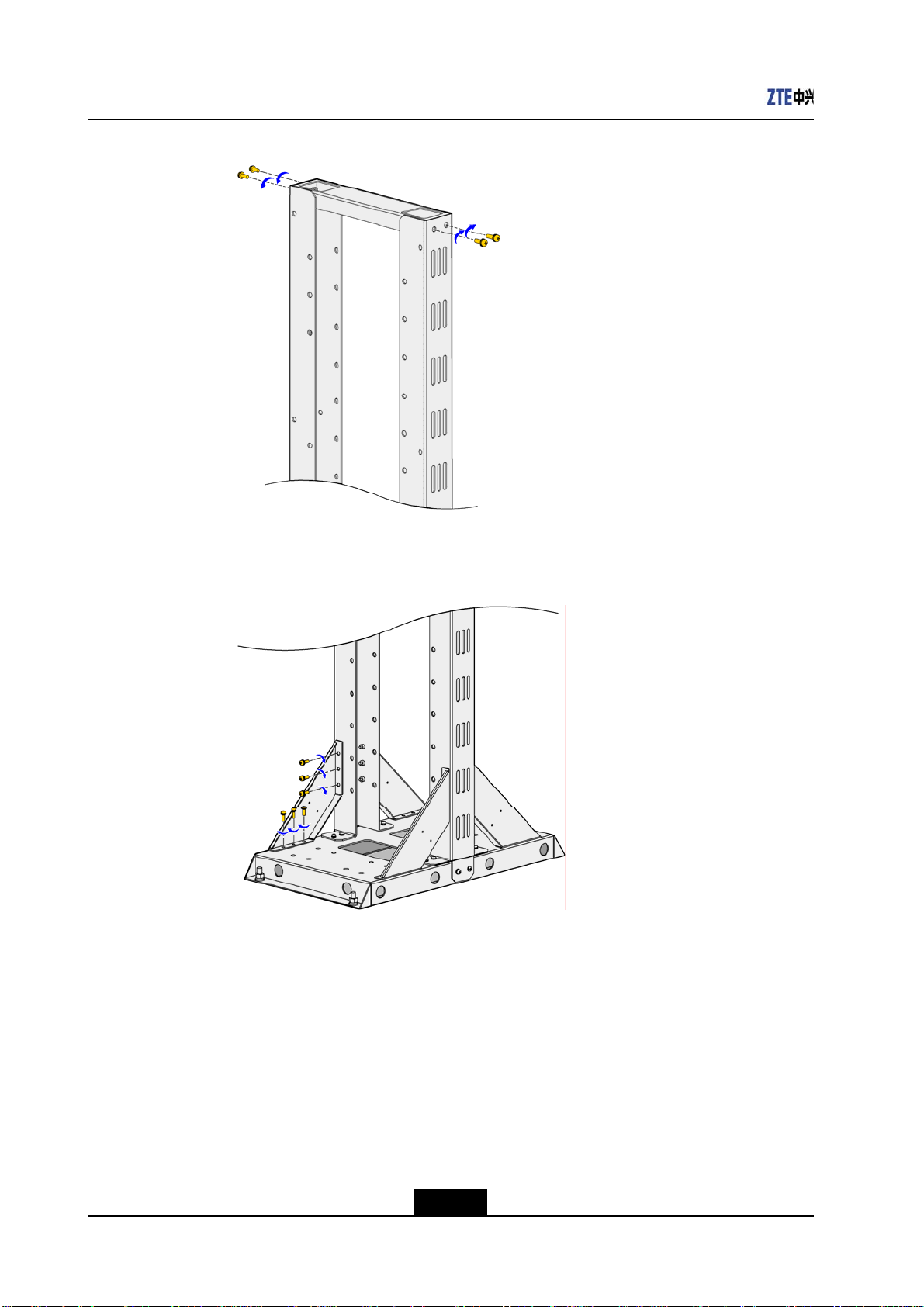

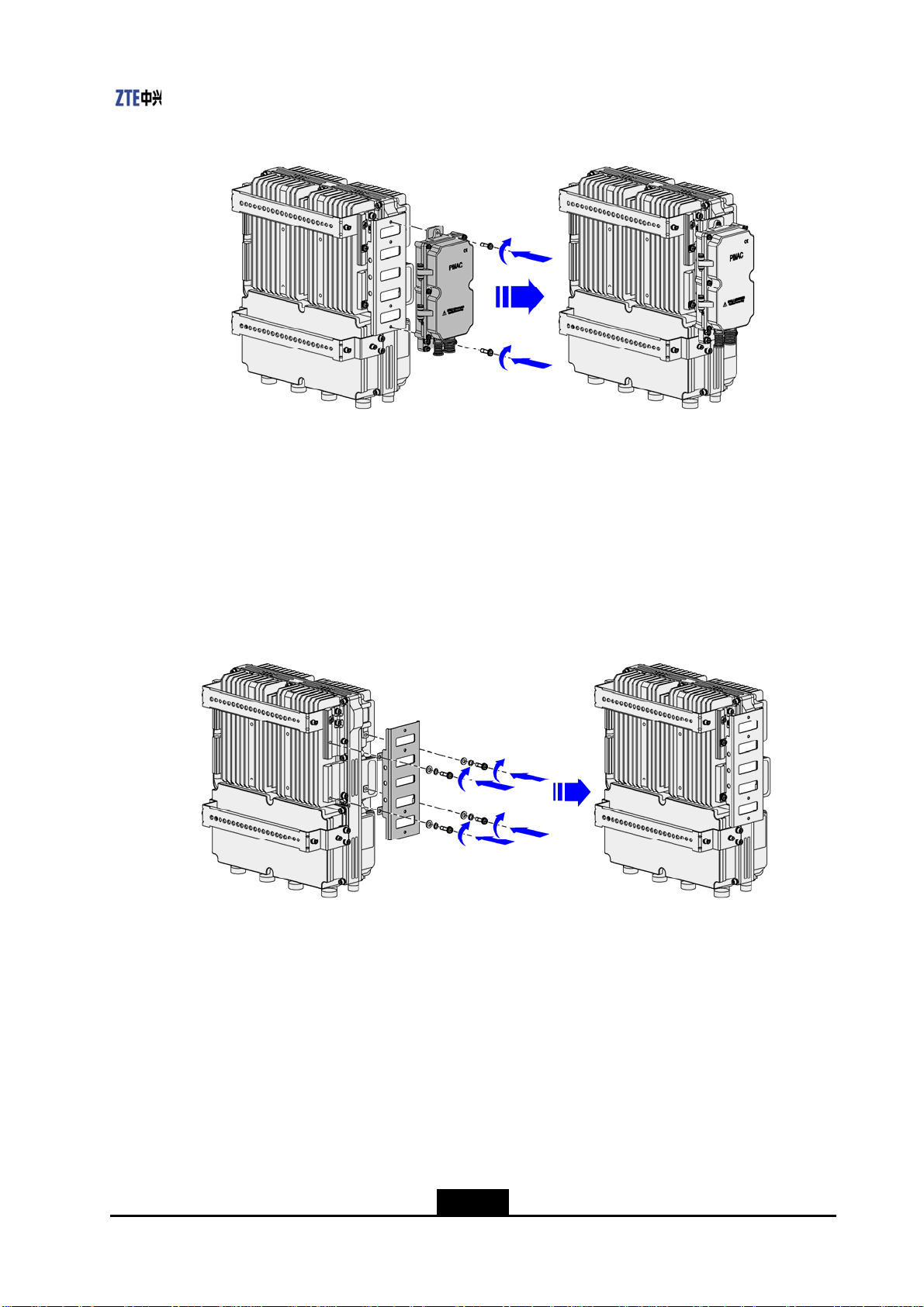

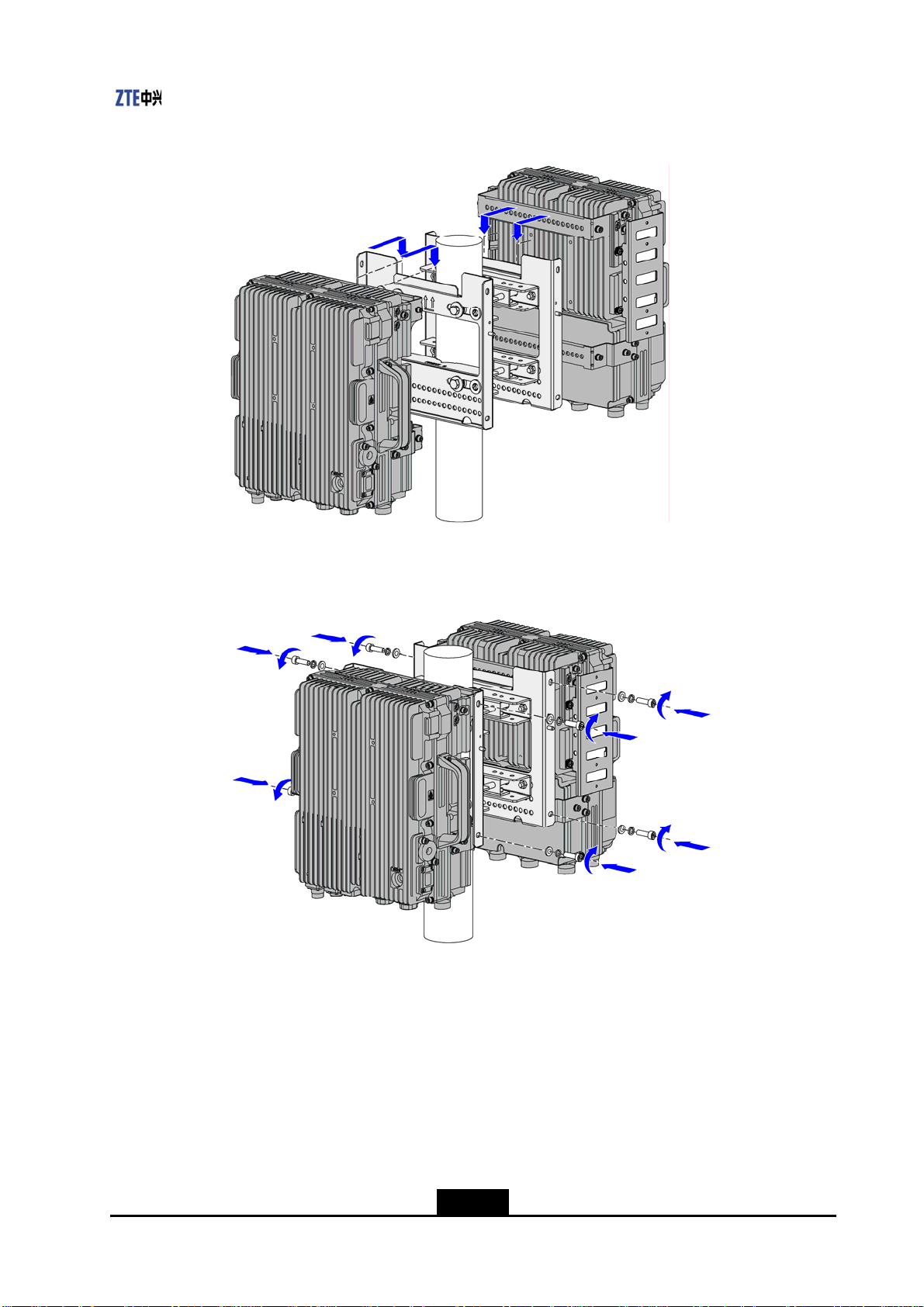

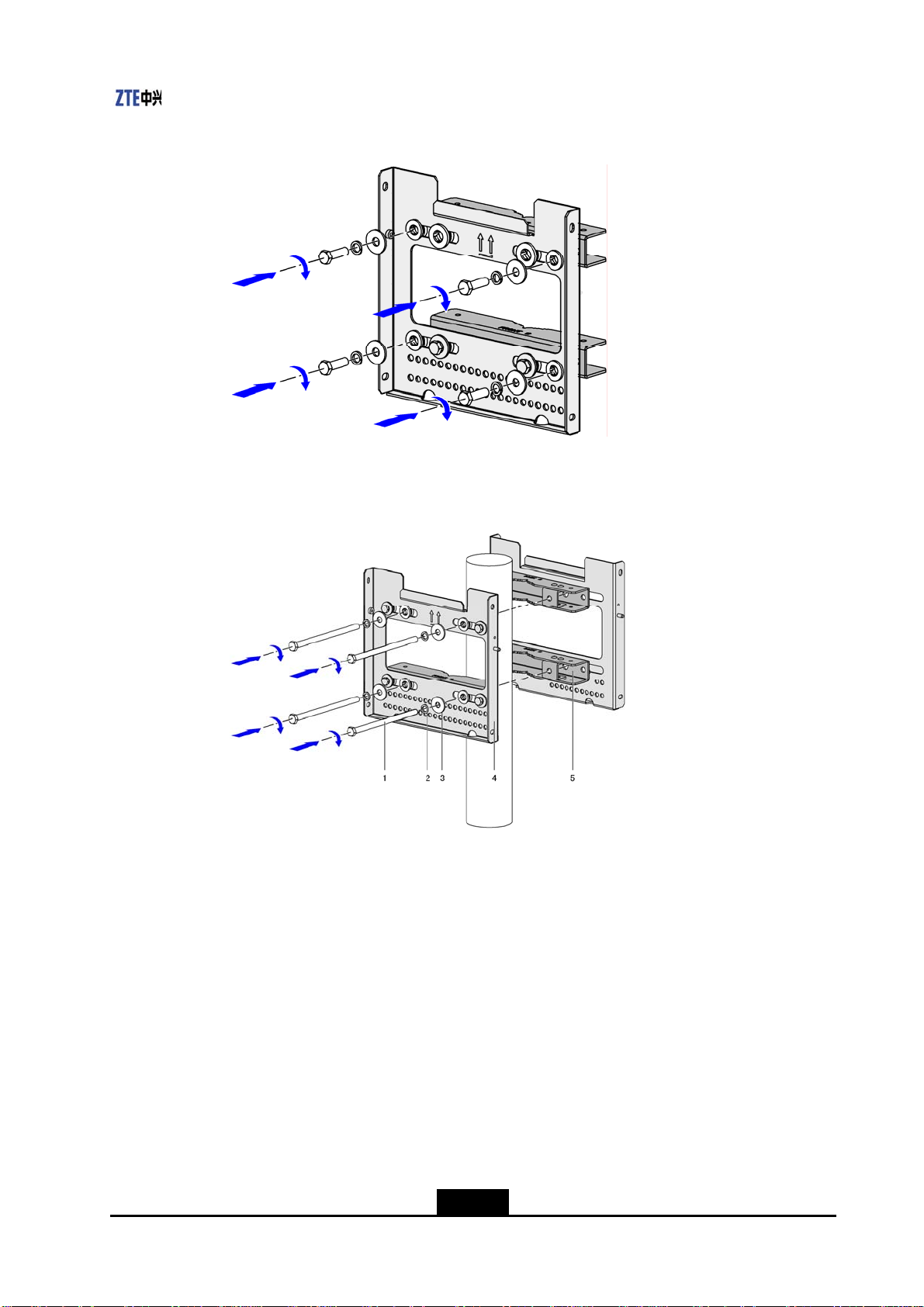

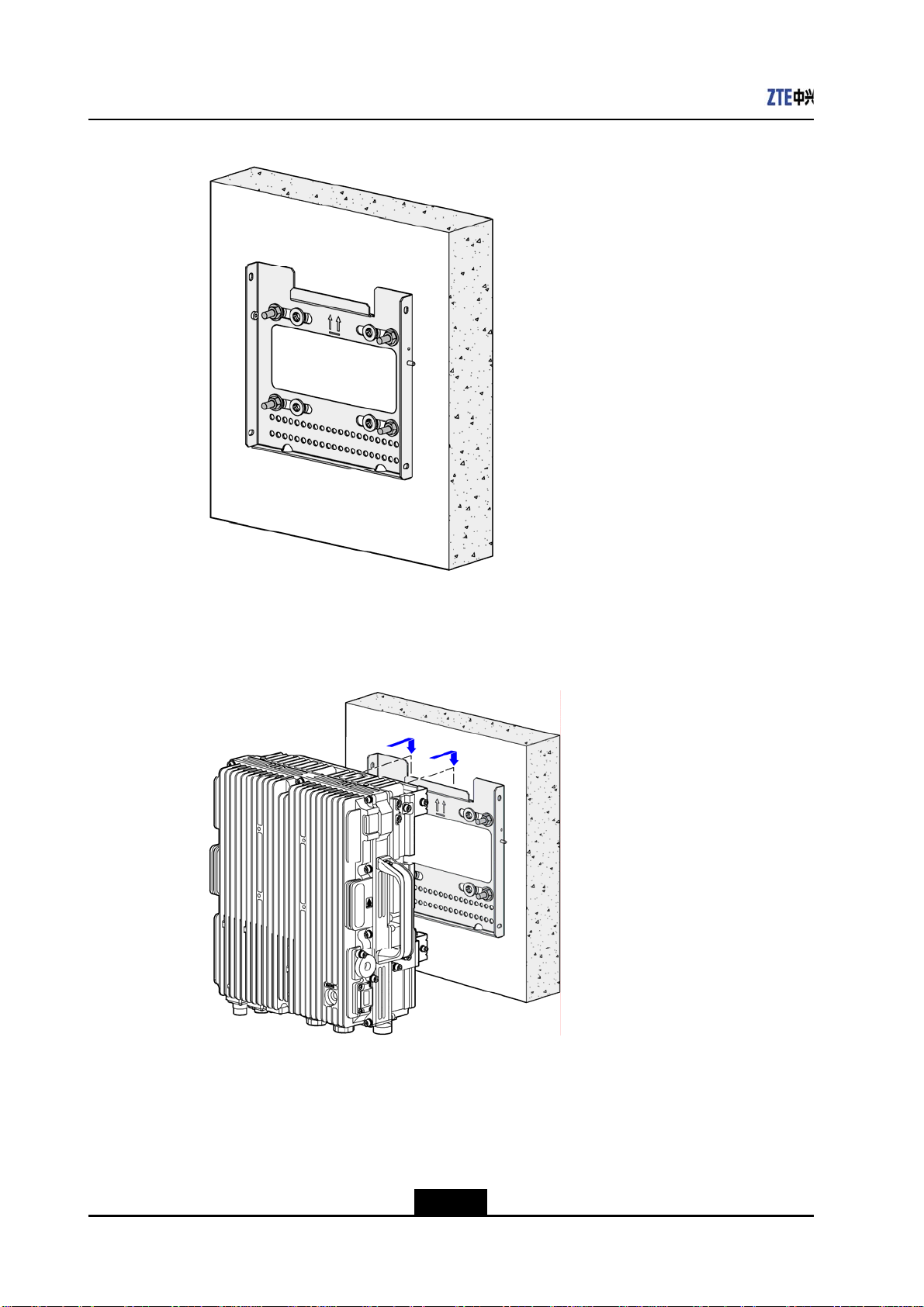

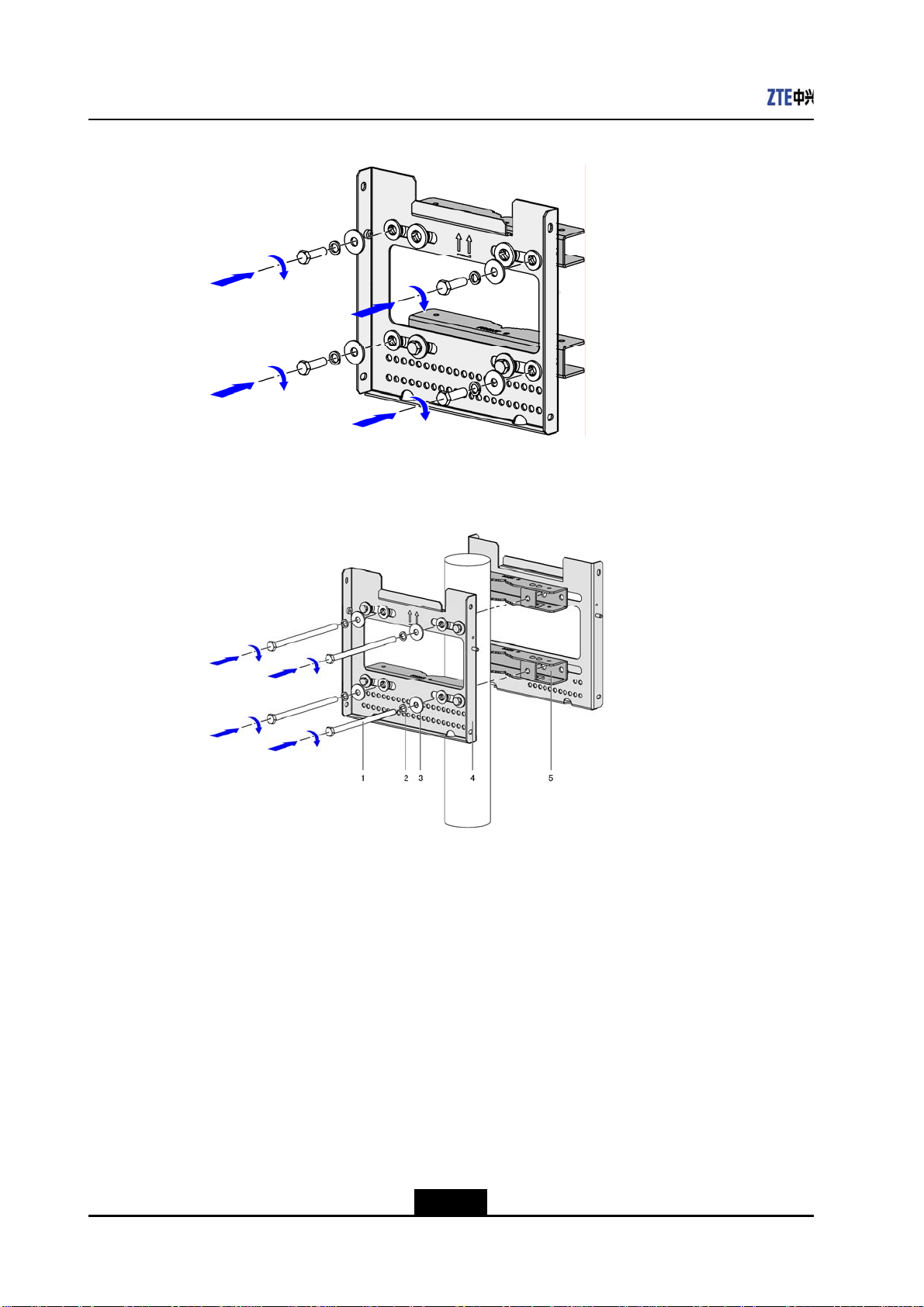

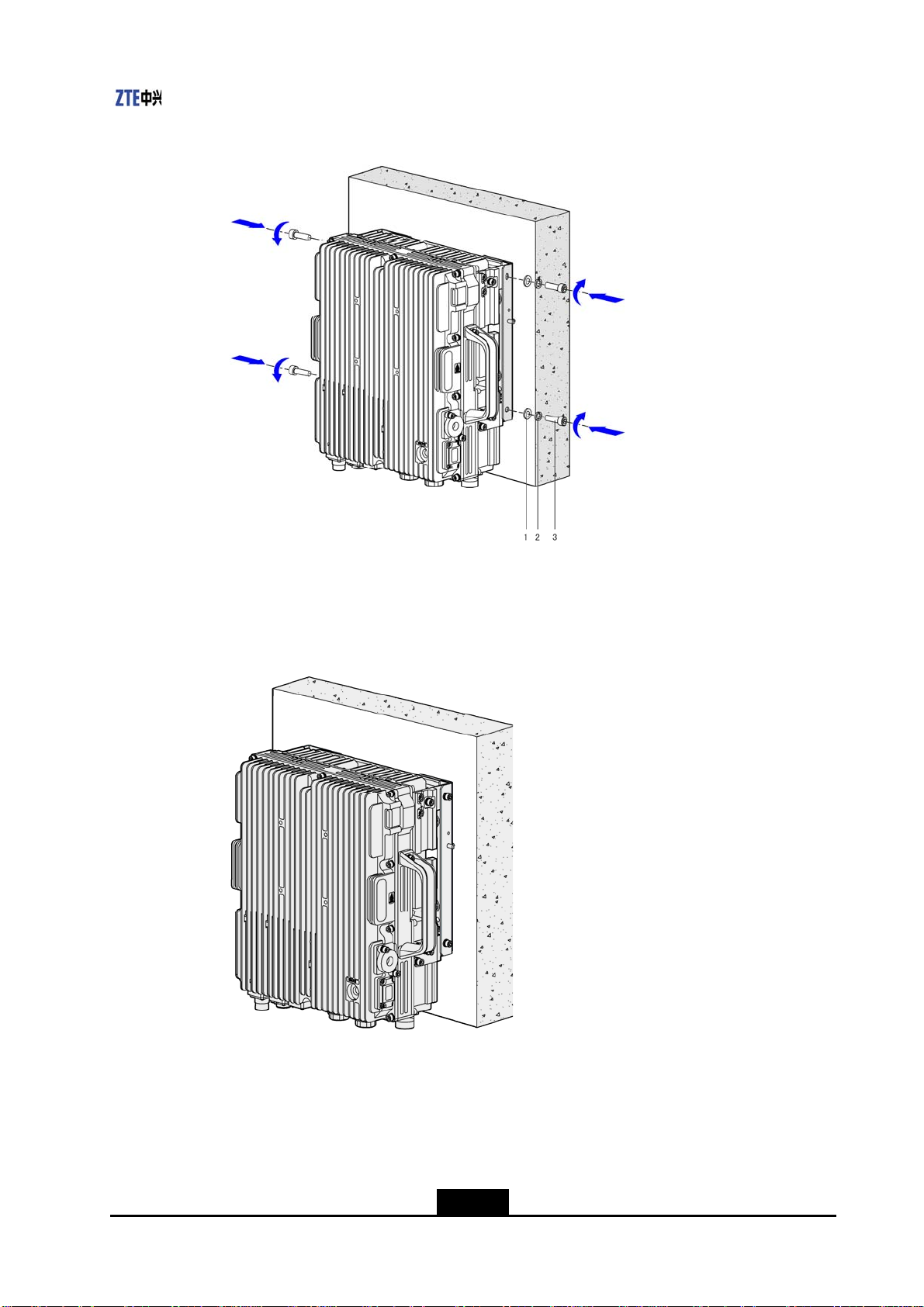

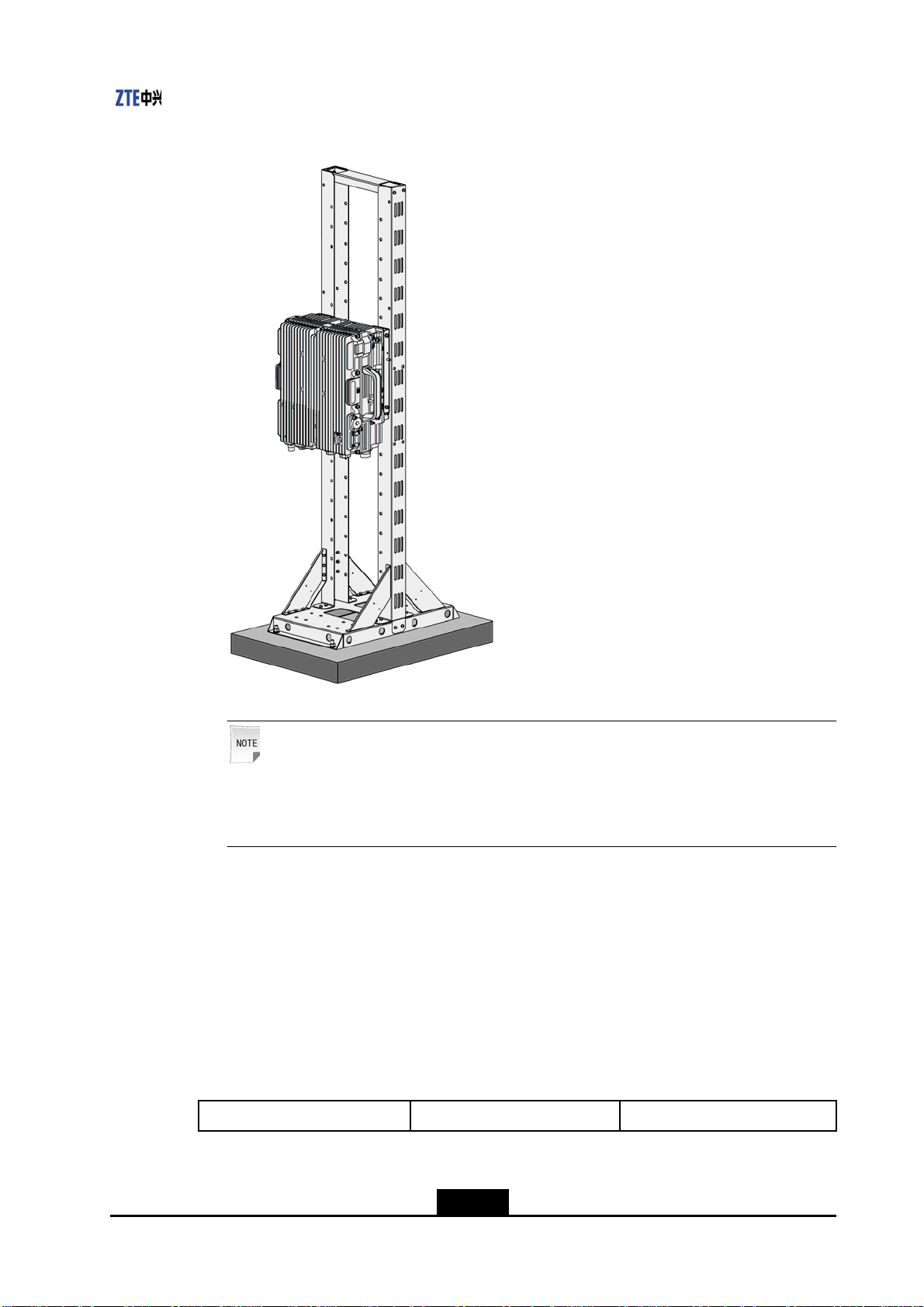

The ZXSDR R8882 L708 usually installed on wall or on pole or on gantry.

1.7 Product Networking

ZXSDR R8882 L708 supports star networking mode with eBBU, as shown in Figure 1-4.

1-5

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

ZXSDR R8882 L200 User Manual

Figure 1-4 Star Networking Mode

1.8 Operation and Maintenance Introduction

ZXSDR R8882 L708 supports system operation and maintenance remotely or locally.

Operate and Maintain System Remotely

Remotely operates and maintains system by using NetNumen management system, as
shown in Figure 1-5.

Figure 1-5 Operate and Maintain System Remotely

1-6

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

Chapter 1 Product Overview

Operate and Maintain System Locally

locally operates and maintains system by using ZTE’s Local Maintenance Terminal (LMT)
software kit, as shown in Figure 1-6.

Figure 1-6 Operate and Maintain System Locally

1.9 Product External Interfaces

The ZXSDR R8882 L708 external interfaces are shown in Figure 1-7 and Figure 1-8.

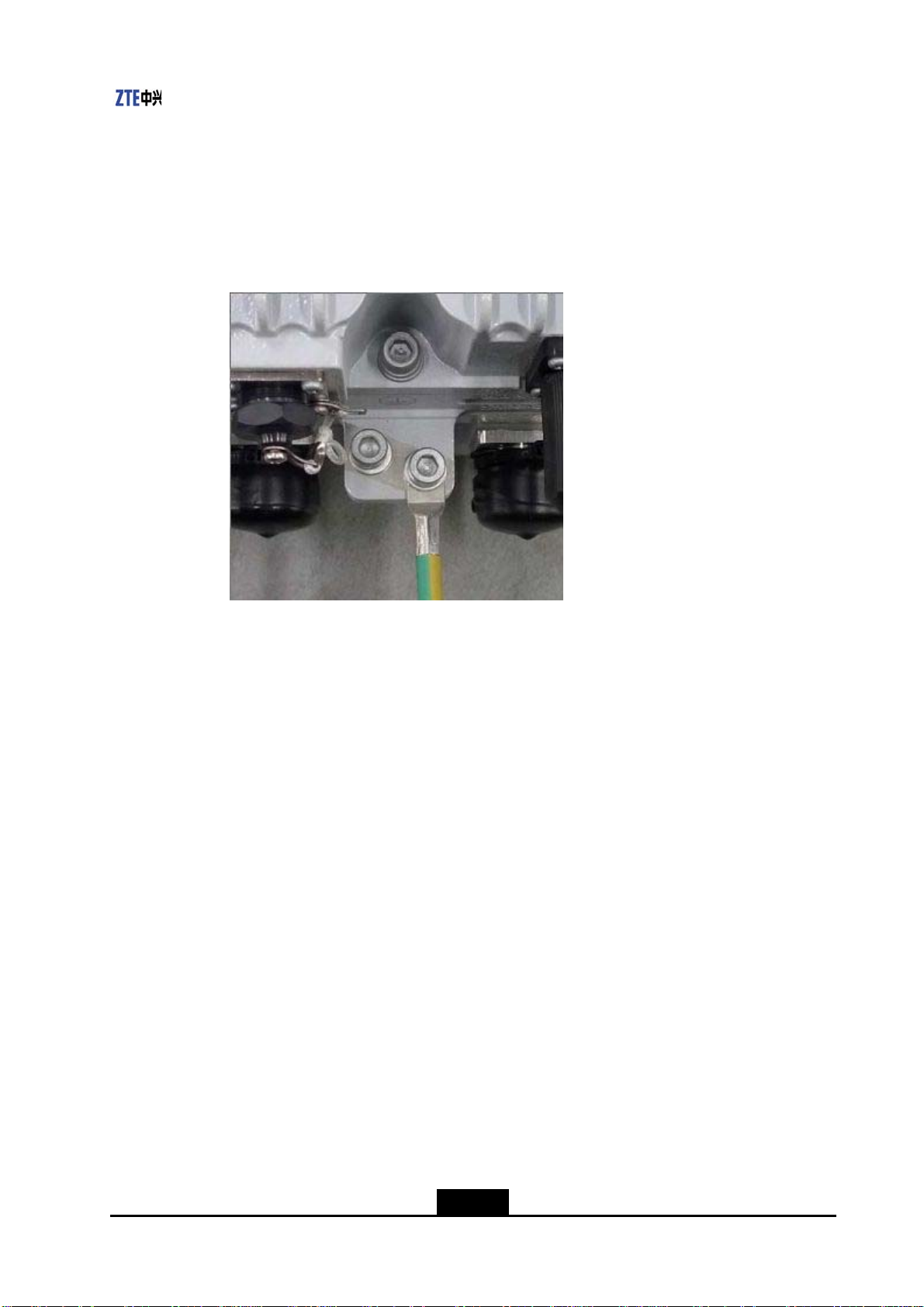

Figure 1-7 Product External Interfaces and Grounding T erminal

123 4 5

68 7

1-7

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

ZXSDR R8882 L200 User Manual

Figure 1-8 LMT Interface

9

Table 1-1 shows the detailed description of all the external interfaces.

T able 1-1 Product External Interfaces Description

No. Label

1 PWR

2 MON
3 AISG
4 OPT1
5 OPT2

Interface/Terminal Interface type/connector

Power interface/1 dry contact DC interface:

485 Serial /2 dry contacts 8-cores socket (IEC 60130-9-ED)
AISG device interface 8-cores aviation socket
eBBU Interface LC type optical interface

Reserved LC type optical interface
6 ANT4(TX1/RX1) Antenna TX/RX interface on channel 1 50 Ohm DIN-7/16 Connector
7

Grounding Terminal ­8 ANT1(TX0/RX0) Antenna TX/RX interface on channel 0 50 Ohm DIN-7/16 Connector

9 LMT

Operation and Maintenance Interface 8P8C Ethernet interface

1-8

Connector XCG18T4K1P1-

01+XC18FJJP1-10.5

Section area of cable is 1.5 mm

2

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

1.10 Product Indicators

ZXSDR R8882 L708 provides six LED indicators, which are located at the right bottom
side of the device. The LED indicators are used to show product working status and alarm
status, as shown in Figure 1-9.

Figure 1-9 Product Indicators

Chapter 1 Product Overview

Table 1-2 shows the detailed information of the indicators.

Table 1-2 Product Indicator Description

Name Color

RUN

Green

Meaning Working Mode

Running status z Blinking every 1.5 second:

physical link in the process of

initialization

z Blinking every 0.07 second: the

link between eBBU and eRRU is

in the process of establishment,

or the link is broken

1-9

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

ZXSDR R8882 L200 User Manual

Name Color

ALM

OPT1 Green

OPT2 Green

VSWR1 Red

VSWR2 Red Transmission

Red

Meaning Working Mode

Alarm indicator z Solid ON: there is alarm

z OFF: there is no alarm

Optical interface

running indicator

z Solid ON: physical link is good, logical link

is abnormal

z OFF: physical link is abnormal

z Blinking every 0.3 second: interface is in good

state

Optical interface

running indicator

z Solid ON: physical link is good, logical link is

abnormal

z OFF: physical link is abnormal

z Blinking every 0.3 second: interface is in good

state

Transmission

channel 1 VSWR

indicator

channel 4 VSWR

indicator

1-10

z Solid ON: there are VSWR alarms

z OFF: there is no VSWR alarm

z Solid ON: there are VSWR alarms

z OFF: there is no VSWR alarm

SJ-20110104194923-001|2011-1-15(R1.0)

ZTE Proprietary and Confidential

Chapter 2

Product

Installation

Table of Contents

Safety
1

Device Unpacking and Inspection...............................................................................3-5

Device
6

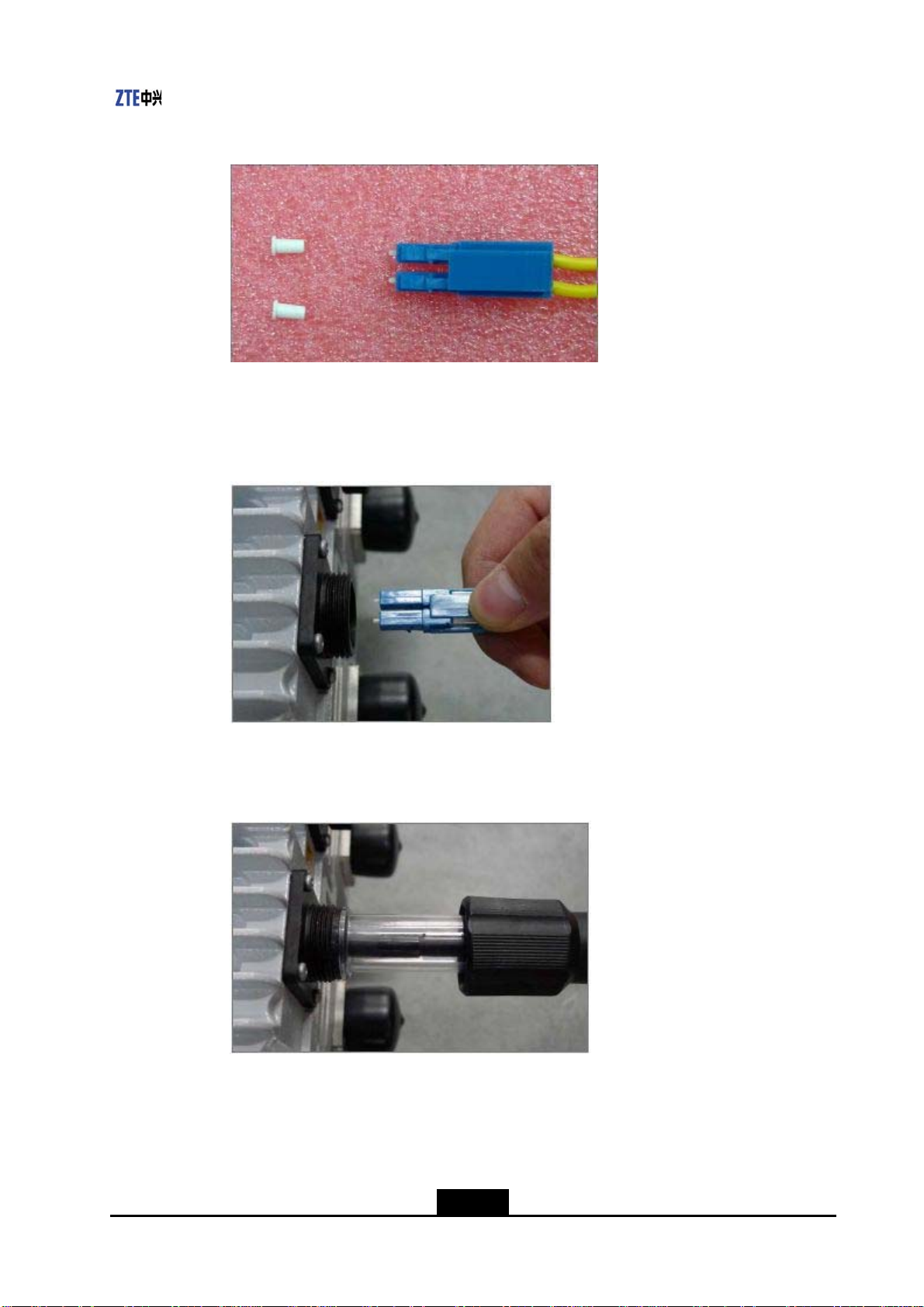

Cables
23

Description

Installation

Connection

......................................................................................................3-

......................................................................................................3-

...................................................................................................3-

2.1 Safety Description

2.1.1 Safety Specifications Introduction

In order to avoid
read this manual carefully for safety issues. If there are any local safety specifications, use
the safety specifications described in this manual as a supplement. If there is any conflict
between them, please follow the local safety specifications.

The personnel who install or maintain the ZXSDR R8882 L708 must be equipped
with knowledge of safety operation, technical training, correct knowledge of equipment
operation and maintenance, and corresponding qualifications.

When installing or maintaining the ZXSDR R8882 L708, the operator must follow the
precautions of the equipment and special instructions provided by ZTE CORPORATION.

Furthermore, the security issues listed in this manual are only friendly reminders by
ZTE CORPORATION from safety point of view. ZTE is not responsible for any accident
caused by violations of general safety operating requirements, or by violations of the
design, production and use of equipment safety standards.

accidents, before installing

or

maintaining

the

ZXSDR R8882

L708, please

2.1.2 Safety Symbols

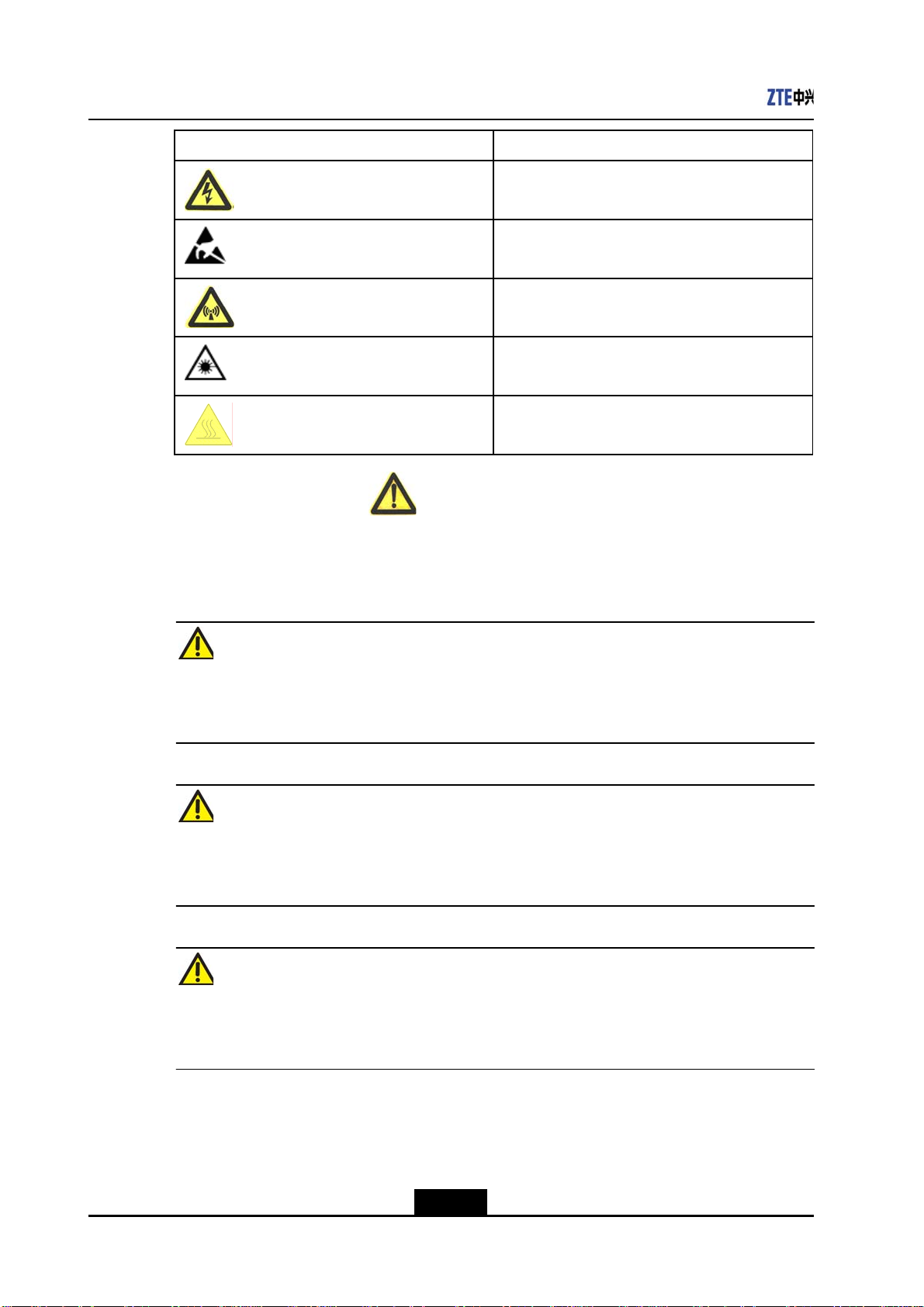

Common safety symbols are shown in Table 3-1. These symbols are used to remind the
user with safety matters when they maintain the equipment.

Table 3-1 Symbol type and meanings

Symbols Meanings

SJ-20110104194923-001|2011-1-15(R1.0)

No Touch Sign: DO NOT touch

General Warning Sign: General security issues

ZTE Proprietary and Confidential
