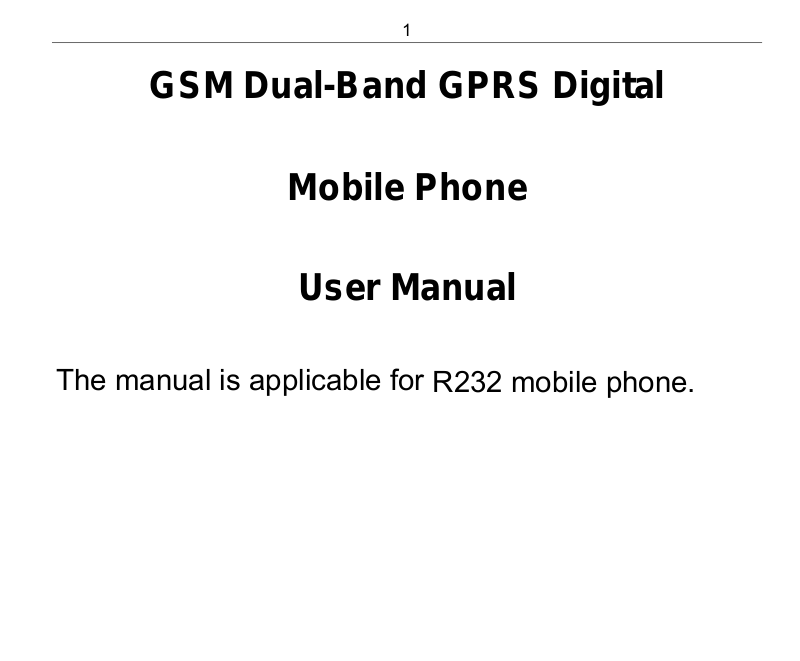

1
GSM Dual-Band GPRS Digital
Mobile Phone
User Manual
The manual is applicable for
R232 mobile phone.
2
FCC COMPLIANCE STATEMENT
This device complie s w ith pa rt 1 5 of th e F CC Ru le s. Ope r ati o n is s ubj ec t t o t he
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
inst ructions , may cause har mful i nter f erence to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications made to this equipment not expressly appr oved by ZTE
for compliance could void the user's authority to operate the equipment.
3
Health and safety information
The phone with internal antenna has been tested for compliance wit h FCC
RF Exposure (SAR) limits and is complied with FCC RF exposure compliance
requirements.
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information The handset
is designed to comply with safely, requirements for exposure to radio waves.
This requirement is ba se d on s ci ent if i c gui d el in es t hat in cl ude sa f et y m ar gin s
designed to assure the safety of all persons, regardless of age and healt h.
The radio wave exposure guidelines employ a unit of measurement known as
the Specific Absorption Rate, or SAR. Tests for SAR are conducted using a
standardized method with the Phone transmitting at its highest certified power
level in all used frequency bands. While there may be differences between the SAR
levels of various ZTE phone models, they are all designed to meet the relevant
guidelines for exposure to radio waves.
The SAR limit recommended is 1.6W/kg averaged over one (1) gram of tissue. The
highest SAR value for this device when tested at the ear was 0.81 W/kg, and when
tested at the body it was 1.38W/kg SAR compliance for bodyworn operations
is restricted to belt-clips, holsters, or similar accessorie s that have n o metalli c
component in the assembly and which provide at least 1.5 cm separation
between the device, including its antenna, and the users body.
4
Legal Information
Copyright © 2009 ZTE CORPORATION
All Rights Reserved
Your mobile phone is made by ZTE CORPORATION.
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of ZTE CORPORATION.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE CORPORATION.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to ensure
accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty of any
kind, expressed or implied. Please read the safety precautions carefully
to ensure the correct and safe use of your mobile phone. For detailed
information, refer to the section “Safety Precautions”.
ZTE CORPORATION Address:
ZTE Plaza, Keji Road South, Hi-tech Industrial Park, Nanshan District,
Shenzhen, P. R. China
Postal Code: 518057
Website: http://www.zte.com.cn
Release: V1.0.0
5
Contents
Security ......................................................................... 6
Safety Precautions ............................................. .... .... .. 6
Limitation of Liability ................................................. 11
Key Functions ............................................................ 12
Indicator icons .......................................................... 13
Battery ......................................................................... 13
How to insert the SIM card ........................................ 15
How to charge the battery ......................................... 16
Powering on/ off your phone .................................... 17
Writing text .............................................. ... .... .... .... .... 17
How to add people to your Phone Book .................. 18
How to make and receive calls ................................. 18
How to send and receive messages ......................... 19
How to set your phone .............................................. 20
How to set your alarm ................................................ 20
How to use your Bluetooth ....................................... 21
How to use Java ......................................................... 22
How to use your camera ............................................ 22
*WAP ........................................................................... 23
*FM Radio ................................................................... 23
*PTT ............................................................................. 24
6
Security
To protect your mobile phone from illegal use, take the
security measures as follows:
¾ Set PIN codes of the SIM card.
¾ Set handset lock code.
¾ Set call restrictions.
Safety Precautions
This section includes some important information on safe and
efficient operation. Please read this information before using the
phone.
Operational Precautions
Please use your phone properly. When making or
receiving a call, please hold your phone as holding a
wireline telephone. Make sure that the phone is at least
one inch (about two point five centimeters) from your
body when transmitting.
Do not touch the antenna when the phone is in use.
Touching the antenna area affects call quality and may
cause the phone to operate at a higher power level than
needed.
Some people may be susceptible to epileptic seizures or
blackouts when exposed to flashing lights, such as when
watching television or playing video games. If you have
experienced seizures or blackouts, or if you have a family
history of such occurrences, please consult your doctor
before playing video games on your phone or enabling a
7
flashing-light feature on your phone. (The flashing-light
feature is not available on all products.)
Keep the phone out of the reach of small children. The
phone may cause injury if used as a toy.
Precautions While Driving
Please pay attention to the traffic safety. Check the laws
and regulations on the use of your phone in the area
where you drive. Always obey them.
Use hands-free function of the phone, if available.
Pull off the road and park before making or answering a
call if conditions require.
Precautions for Medical Devices and Facilities
When using your phone near pacemakers, please always
keep the phone more than eight inches (about twenty
centimeters) from the pacemaker when the phone is
switched on. Do not carry the phone in the breast pocket.
Use the ear opposite the pacemaker to minimize the
potential for interference. Switch off the phone
immediately if necessary.
Some phones may interfere with some hearing aids. In
the event of such interference, you may consult your
hearing aids manufacturer to discuss alternatives.
If you use any other personal medical device, please
consult the manufacturer of your device to determine if it
is adequately shielded from RF energy.
In those facilities with special demand, such as hospital or
health care facilities, please pay attention to the restriction
on the use of mobile phone. Switch off your phone if
required.
8
Mobile Phone
Please use original accessories or accessories approved
by the phone manufacturer. Using any unauthorized
accessories may affect your mobile phone’s performance,
damage your phone or even cause danger to your body
and violate related local regulations about telecom
terminals.
Turn off your phone before you clean it. Use a damp or
anti-static cloth to clean the phone. Do not use a dry cloth
or electrostatically charged cloth. Do not use chemical or
abrasive cleaners as these could damage the phone.
As your mobile phone can produce electromagnetic field,
do not place it near magnetic items such as computer
disks.
Using the phone near electrical appliances such as TV,
telephone, radio and personal computer can cause
interference.
Do not expose your mobile phone to direct sunlight or
store it in hot areas. High temperatures can shorten the
life of electronic devices.
Keep your phone dry. Any liquid may damage your phone.
Do not drop, knock or harshly treat the phone. Rough
handling can break internal circuit boards.
Do not connect the phone with any incompatible
enhancement.
Do not attempt to disassemble the mobile phone or
battery.
