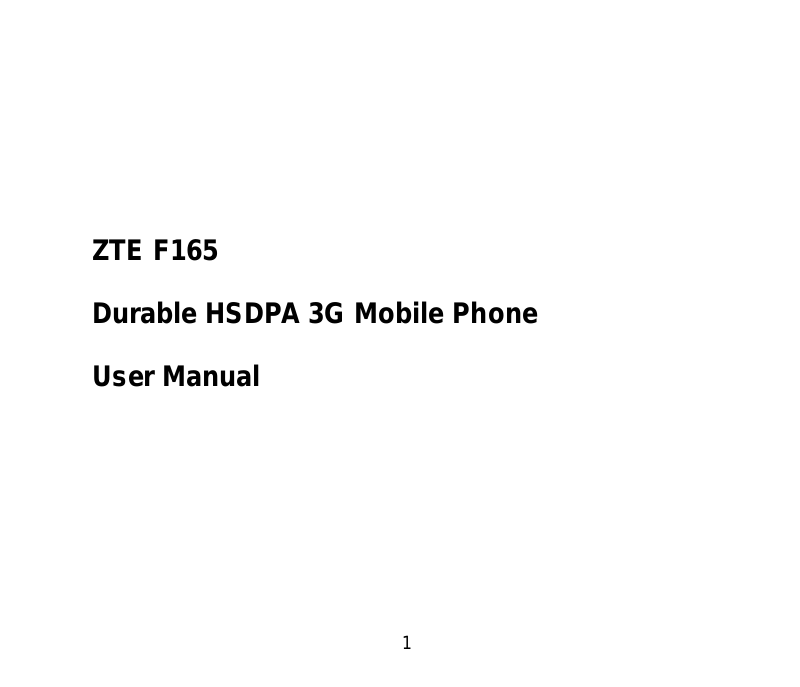

ZTE F165 User Manual
ZTE F165
Durable HSDPA 3G Mobile Phone
User Manual
1
PC Software Requirements
Join Me PC Software included supports Microsoft Vista, Windows 2000 with Service Pack 4 or
Windows XP with Service Pack 2 only. 64 bit systems or MAC OS are not supported.
Warnings and Safety Notices
Please read all the safety notices before using this device
Copyright © 2007 ZTE Corporation All Rights Reserved.
1st Edition August 2007
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the right
to make changes and improvements to any of the produ ct s described in this documen t without prior
notice.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential
damages resulting from o r arising out of or in connection with using this product, wh ether or
not ZTE had been advised, knew or should have known the possibility of such damages.
The user should refer to the enclos ed warran ty card for ful l warran ty and serv ice informa tion.
2
Contents
How to use your belt clip ..............................................................................................6
Extendable Antenna ...................................................................................................... 8
RF Safety Information.................................................................................................... 8
General Safety Information.........................................................................................10
Support and Warranty Information............................................................................. 12
Key Layout.................................................................................................................... 13
Display Icons................................................................................................................ 15
1. Getting Started......................................................................................................... 16
1.1 Install the (U)SIM Card..................................................................................... 16
1.2 Insert the Battery.............................................................................................. 17
1.3 Switch the Phone on and Connect the Charger................................................18
1.4 Charging and Battery Life.................................................................................19
1.5 Basic Navigation ..............................................................................................20
1.6 Enter Your Contacts .........................................................................................22
1.7 Edit Your Contacts to Change Ringtones and Groups......................................24
1.8 Set Speed Dials................................................................................................25
1.9 Make a Call...................................................................................................... 26
1.10 Receive a Call ..................................................................................................28
1.11 Send a SMS (Text Message)............................................................................29
1.12 Emergency Calls..............................................................................................30
1.13 Notes on Text Modes, Predictive Text and Special Characters.........................31
3
1.14 Personalise Your Phone...................................................................................33
1.15 Using File Manager..........................................................................................39
1.16 Make a Video Call............................................................................................42
1.17 Receive a Video Call........................................................................................43
1.18 Set Alarms and Appointments..........................................................................44
1.19 Send an E-mail ................................................................................................46
1.20 Take Pictures and Videos.................................................................................47
1.21 Send a Multimedia Message (MMS)................................................................49
1.22 Receive a Multimedia Message........................................................................50
1.23 Browse the Internet using Telstra My Place......................................................50
1.24 Download Music, Pictures, Ringtones and Games...........................................51
1.25 Use your Phone as a Music Player (MP3 Player).............................................52
1.26 Synchronize with a Network Server (SyncML)..................................................54
2 Advanced Operation........................................................................................... 55
2.1 Use Join Me to Connect your Phone to your PC..............................................55
2.2 Installing Join Me.............................................................................................56
2.3 Use Join Me to Copy your Pictures to your PC.................................................57
2.4 Use Join Me to Copy Music Files from your PC to your Phone........................59
2.5 Enter your Contacts using Join Me...................................................................61
2.6 Import your Contacts from Microsoft Outlook ...................................................63
2.7 Use Join Me to Connect your PC to the Internet ..............................................64
2.8 Connect to a Bluetooth Device.........................................................................66
2.9 Other Facilities.................................................................................................70
2.10 Advanced Message Settings............................................................................75
2.11 Advanced Handset Settings.............................................................................77
2.12 Advanced Call Settings....................................................................................78
3 Technical Information and Help.........................................................................80
4
3.1 Troubleshooting and FAQ’s..............................................................................80
3.2 Glossary of Terms ............................................................................................82
3.3 Technical Parameters.......................................................................................83
4 Environmental Statement..................................................................................84
5 Menu Listing ....................................................................................................... 86
5
How to use your belt clip
Please Note
The handset will only fit one way into the belt clip. It clips in gently and does not need to be
forced. The screen faces inwards to provide protection and to prevent the screen getting
scratched. Do not force the handset the wrong way into the clip as this will mark the handset
casing.
How to insert your phone into the belt clip
Hold the handset upright with the screen facing the inside of the belt clip.
Insert the bottom of the handset into the bottom of the belt clip.
Gently push the handset in towards the top clip to secure the handset.
How to remove your phone from the belt clip
Gently push the top lever towards the back of the belt clip.
The handset will be released.
6
Insert the handset with the
screen facing towards the
back of the belt clip.
Remove the handset by
gently pressing the top lever.
7
Extendable Antenna
The phone has an external antenna located on the
top of the handset. To get maximum call quality and
coverage you should extend the antenna whenever
you make or receive a call. If you do extend the
antenna, you should pull it out to its full extent. The
antenna should not be left in the half way position
during a call as call quality may be affected.
Note on the Antenna Design:
The antenna is designed with a small insulating frame on
the front of the antenna stub mounting. This moulding
improves the signal strength of the antenna while
reducing the radiation towards the user.
8
RF Safety Information
The handset has an external antenna located on the top of the handset. For optimum
performance with minimum power consumption always extend the antenna fully and do not
cover it with your hand. Covering the antenna affects call quality, may cause the handset to
operate at higher power level than needed, and may shorten talk and idle times.
Radio Frequency Energy
Your handset is a low-power radio transmitter and receiver. When switched on it
intermittently transmits radio frequency (RF) energy (radio waves). The transmit power level
is optimized for best performance and automatically reduces when there is good quality
reception. Maximum power is only used at the edge of network coverage so under most
circumstances the power output is very low. Under poor network conditions the phone will
transmit at a higher power, may get hot and will have a significantly shorter battery life.
Declaration of Conformity
We declare under our sole responsib ility that the product(s) detailed in this manual, and in
combination with our accessories, conform with the essential requirements of The Radio
Communications Standard (Electromagnetic Radiation Human Exposure) 2003 and the
Australian Communications and Media Authority Section 376 of the Telecommunications Act
1997.
Liquid Damage - Important Note
The handset has a durable rubber shell but it is NOT waterproof and should not be
immersed in any liquid. The unit contains liquid detecting stickers and liquid damage will be
warranty void. Always close the charger and antenna port covers to maximise protection
against liquid ingress.
9
General Safety Information
The handset contains delicate electronic circuitry, magnets and battery systems. You should
treat it with care and pay attention to the following points:
• Handle the handset with care. Do not
drop or throw the handset down roughly.
• Do not immerse in any liquid. The
handset contains a liquid d etecti on sti cker
and the warranty will be voided by any
liquid damage.
• Do not place the handset near computer
disks, credit cards, and other magnetic
media. The information contained on
disks or cards may be erased or
damaged.
• Do not leave the handset or battery in
direct sunlight or near other heat sources
where the temperature could exceed 45
°C.
• Keep the handset, battery, charger and
any other accessories away from
children.
• In the unlikely event of a battery leak
avoid contact with your eyes or skin. In
the event of contact please flush
thoroughly with water and consult a
doctor.
• Observe and obey warning signs at petrol
stations, airports and hospitals.
• The operation of some medical electronic
devices, such as hearing aids and
pacemakers, may be affected by the
handset.
• Take care not to allow metal objects such
as coins or keys to come into cont act with
the battery.
• Do not dispose of batteries in a fire.
• Do not throw used batteries into
household rubbish, return them to a
recycling point. (see Chapter 4)
• Do not co nnect the handset to any othe r
chargers or cigarette lighter chargers.
• Only use the supplied charger.
• Be careful not to pierce the battery with
10
sharp objects and do not use damaged
batteries.
• Do not disassemble or modify the battery.
• Stop using the battery if abnormal heat,
odour, discolouration, deformation, or
abnormal condition is detected duri ng use,
charge, or storage.
• Do not put the battery in your mouth.
• Only use original batteries. Using any
unauthorized battery may affect your
handset performance or may cause
danger of explosion, etc.
• Only use original replacement batteries.
• Do not attempt to dismantle the handset
or any of its accessories.
• Do not place the handset close to the
edge of a table in case it moves when set
on vibrate mode.
• Do not put the handset into a microwave
oven, dryer, or high-pressure container.
• Do not use your handset while driving or
operating other machinery.
• Do not use the handset where blasting is
in progress.
• Switch your phone off when boarding
aircraft.
• Do not leave your handset at the bottom
of a bag where it may be damaged by
sharp objects.
• Do not leave the handset discharged or
disconnected for a long time, otherwise
your personal data may be lost.
• Remember to make backup copies of all
important data on your handset
• Take care when your phone is in your
pocket. Sitting down may damage the
handset.
• It is normal for the handset to become
warm while the battery is being charged.
• Under poor network conditions battery life
is considerably reduced
• When the battery is thrown away cover
the terminals with insulating tape.
• Please recycle the packaging and all
parts as stated in Chapter 4.
• Please use original accessories or
accessories that are authorized by ZTE .
11
Support and Warranty Information
• For technical support please consult this manual and search our web site and FAQ
section at www.zte.com.au. For Warranty Service in the event of a fault please call 1800
670 796.
• Please do not call the warranty service line for general support enquiries.
• All calls for PIN number enquiries, Networ k problems, Telstra Next G Services, BigPond
account information, Web Access, Account and Billing Information, (U)SIM card
registration and general enquiries should be directed to Telstra on 125 111.
Warranty Information
The warranty does not apply to defects or errors in the produc t caused by:
(a) Reasonable abrasion
(b) Misuse including mishandling, physical damage, improper installation, unauthorized
disassembly of the product
(c) Water or any other liquid damage
(d) Any unauthorized repair or modification
(e) Power surges, lightning damage, fire, flood or other events outside ZTE’s reasonable
control
(f) Use of the product with any unautho r ized t hird p ar ty produ ct s s uch as gener ic ch arge rs
(g) Any other cause beyond the range of normal usage for products.
The End User shall have no right to r eject, re turn, or re ceiv e a ref und f or any produc t from ZT E
under the above-mentioned situations.
12
Extendable Antenna
Key Layout
Earpiece
LCD
Left Select Key
Back key
Call key
Long press the * Key to
activate the key lock
Microphone
Camera
Arrow Keys
(Left/Right/Up/Down/OK)
Right Select Key
Clear key
End / Exit and ON/OFF Key
Long press the # Key to activate
Meeting mode with vibrate
13
Key Layout
Left View
Notes
• Key lock is enabled by holding down the
Volume Ke ys
Camera Key
• Long press the # Key to activate Meeting mode with vibrate.
Camera
Charger, USB Port
and Headset Jack
Back View
* Key.
Antenna port
for connection
to car kit
Micro SD Port
Right View
14
Display Icons
GPRS Network Signal Strength
3G Network Signal Strength
New SMS or Multimedia Message
New E-mail
New Wap Push Message
SMS or MMS Memory is Full
E-mail Memory is Full
Wap Push Message Memory is Full
Roaming
EDGE Network Signal Strength
Alarm is set
Secure Internet Sites
15
Battery Level Indicator
Missed Call
Missed Video Call
Divert All Calls is activated
Silent Mode
Vibrate mode enabled
Headset Mode
Headset and Vibrate Mode
GPRS Attach
PDP Context Established
Bluetooth ON
Low battery Level
1. Getting Started
1.1 Install the (U)SIM Card
The (U)SIM card (Universal Subscriber Interface Module) is the small plastic chip with gold
contacts supplied by Telstra. This contains your phone number and acts as a store for your
contacts. It can be mov ed betw een di f fere nt pho nes if requ ired. In sert thi s f ace dow n in to the
carrier inside the back panel of the phone. Make sure it is pushed all the way down as shown
below:
16
1.2 Insert the Battery
Insert the battery carefully with the contacts located against the gold springs in the handset.
The battery will only fit one way.
Close the case by locating the plastic cover into the grooves and sliding the cover up to
close it. Do NOT force the cov er do w n by pressi ng on it . This w ill dama ge the cov er. Slide the
cover up gently.
17
1.3 Switch the Phone on and Connect the Charger
Press and hold the key for two seconds to switch your phone on. The phone takes
about 20 seconds to initialize. Enter the PIN number supplied by Telstra with your (U)SIM
card. The start up screen below is referred to throughout the manual as the Idle Screen:
Charge Your Phone
• Open the charger port on the bottom of the handset and rotate the rubber cover to one
side.
• Insert the charger lead carefully with the plug arrow facing the top of the handset
• The plug only fits one way. Do NOT use excessive force to insert the plug
• Check the plug is the right way round and lined up correctly and insert it gently.
• You can also charge your phone by connecting it to your PC using the USB data lead
supplied. Please see the Advanced Section for more details on PC applications.
18
1.4 Charging and Battery Life
• Only use the charger supplied.
• Normal charge time is 4-5 hours.
• When not using the phone for a long period, remove the battery and store it in a cool dry
place.
• Do not leave the phone connected to the charger for more than 24 hours..
• If the battery is not fully charged after 8 hours please stop charging.
• Charge the battery between 0°C~50°C. If the temperature of the handset is too high,
switch it off and let it cool.
• Battery life can be maximized by regularly allowing the phone to fully discharge before
recharging the battery.
• Charge the battery promptly when flat.
• Under poor network conditions (less than 2 bars) it is normal for the battery to only last 1
day.
• To maximize battery life, turn off Bluetooth and reduce the back light ing to 10 seconds
(see Section 1.14 - ‘Personalise your Phone’).
• You can charge the phone in the ON or OFF state. In the OFF state you will see the
Charging Battery animation. Remember to switch your phone ON after charging by
holding the key for 2 seconds.
19
1.5 Basic Navigation
From the Idle Screen press the OK Key to access the Main Menu:
The icons are described
OK Key
Idle Screen Main Menu
Arrow Keys
Use the Arrow Keys for shortcuts to menus, to move around the Main Menu and to move
the cursor
Up (Shortcut to My Place)
Left (Shortcut to E-mail) Right (Shortcut to Message)
Down (Shortcut to Contacts)
at the bottom of the
screen.
20
Select Keys
The two keys at the top of the keypad are called the Select Keys.
The left and right Select Keys are used to choose the option s from the b ottom of the s creen.
In the above example the Left Select Key opens FOXTEL and the Right Select Key
launches BigPond.
Back and Exit Keys
Press the key to go back one step or the key to Exit to the Main Menu or the Idle
Screen.
21
1.6 Enter Your Contacts
There are several methods available to enter contacts into your phone. The Getting Started
Section deals with adding your contacts manually and copying contacts from a previous
(U)SIM card. See the Advanced Section for ad ding contacts from your PC and importing
contacts from Microsoft Outlook. All contacts can be stored in Groups for easy
management.
Adding Your Contacts Manually
• At the Idle Screen enter the phone number on the keypad and then press the Left Select
Key to Save.
• Press the OK Key to Create New Contact.
• Add the persons name using the abc keys (see notes on entering text in section 1.13).
• Press the OK Key to Save.
• You can use the arrow keys to change the Contact type and Saving Location
Copy Contacts from a previous (U)SIM Card
• Insert your old (U)SIM card. Switch the phone on and press the Down Arrow Key to
enter Contacts
• Press the Right Arrow key once for (U)SIM to show the list of Contacts from your old
(U)SIM card.
• Press Options, More, Copy all to phone, press OK to Sel ect and then press Yes to
confirm.
22
Add a Contact from a Received or Dialled C all Number
You can save a new contact from an incoming or dialled call number:
• Press the key to bring up your All calls list.
• The last call will be at the top of the list.
• Press the Right Select Key to Save the number.
• Enter the contact name, select the saving location and press the OK Key to Save.
Add a Contact from a Received SM S (Text Message)
You can save a Contact from a received SMS:
• Press the OK Key and access your Messages Menu, and then go to your Inbox
• View the required message and select Options. Press Use highlight object to save the
number.
• Choose New Contact to create a new contact from the received SMS number.
Searching Contacts
You can search your contacts by pressing the letter keys that correspond to your contact
name.
• Press OK Key and access Contacts menu (or press the Down Arrow Key)
• From the contacts list press the initial letter key to bring up the contacts associated with
that letter.
23
1.7 Edit Your Contacts to Change Ringtones and
Groups
Once you have added some contacts you can edit them to change the Group and to set a
personalised Ring Tone.
• Contacts are normally stored in the default Group, Unclassified.
• You can move your contacts into other Groups: Mates, Family, Friends, Work, and VIP.
• Regardless of Group, all your contacts are displayed under All records.
• From the Idle Screen go to your Contacts list by pressing the OK Key—Contacts or just
press the Down Arrow Key.
• Use the arrow keys to search and press OK to View the required Contact.
• Press OK to Edit the Contact.
• When you are in Edit mode you can assign a specific Group and change the Ringtone.
• Use the Down Arrow key to navigate through the menu.
• Use the Right Select Key to Modify the incoming Ringtone.
• Use the Left or Right Arrow keys to change Groups.
• Changing the Ringtone to a personalised tune will let you recognise key callers instantly
by their unique tune.
24
1.8 Set Speed Dials
Once you have entered some contacts you can assign speed dial keys to your chosen
contacts:
• Press OK Key and enter the Contacts menu.
• Use the Arrow Keys to scroll to the contact you wish to assign a Speed Dial Number.
• Press the Left Select Key for Options.
• Press 3 or scroll down to item 3 to Set speed di al.
• Assign your chosen contact to the next available number (1, 2 and 3 are preset and
cannot be changed).
• Press the OK Key to Setup the speed dial (or to Cancel an existing speed dial).
• Press the key to exit when finished or the Back Key to choose another contact.
Make a Call Using Speed Dial
• From the Idle Screen press and hold the required Speed Dial Key to make a call to that
contact.
• E.g. A long press on the 1 key will automatically dial your voicemail number.
25
1.9 Make a Call
Extend the antenna completely to get maximum co verage and call
quality.
Dial the number manually
• If required press the * key twice for the International Prefix ‘+’.
• Enter the number on the keypad and press the key to make the call.
• When the call is connected you can press the OK Key for Handsfree mode.
• Press the key to end the call.
Choose a number from your Contacts list
• Press OK Key and enter the Contacts menu.
• Use the Up/Down Arrow Keys to scroll to your chosen contact.
• Press the key to make the call.
• When the call is connected you can press the OK Key for Handsfree mode.
• Press the key to end the call.
Tip – Call the number received in an SMS or E-Mail message
If you receive an SMS or E-mail me ssage w ith a n embed ded numb er y ou ca n eas ily call that
number. Use the arrow keys to highlight the number then simply press the Call key .
26
Choose a number from your call list (receive d, dialled and missed
calls)
• Press the key to bring up your All Calls list.
• Use the Up and Do wn Arrow Keys to scroll to the desired number (for last number redial
select the top number).
• Press the key to make the call.
• When the call is connected you can press the OK Key for Handsfree mode.
• Press the key to end the call.
Notes
• You can adjust the volume using the side Volume Keys.
• The microphone is at the bottom of t he h ands et. B e c aref ul n ot to block it w ith y our han ds.
• Press the Left Select Key for further options during a voice call. Use the Back key to
return to the call menu.
• Hold: Puts the current call on hold. You can dial a third party. Press hold again to switch
your two calls.
• End call: End the current call.
• Record: Record the current call. The audio file w ill sav e to Tools-File Manager-Audios-My
Audios.
• DTMF Off/On: Enable or disable sending DTMF tones. Default is ON.
• New Text Message: Send a new message during a call.
• Contacts: Switch to Contacts during a call.
27
Loading...
