Zte F252, F156 User Manual

ZTE F252 HSDPA Dual band 3G Mobile Phone User Manual

PC Software Requirements

Join Me PC Software included supports Windows 2000 with Service Pack 4 or Windows XP with Service Pack 2 only.

Warnings and Safety Notices

Please read all the safety notices before using this device

1st Edition February 2007

No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

ZTE Corporation operates a policy of continuous development. ZTE Corporation reserves the right to make changes and improvement s to any of the product s describ ed in this d ocument w ithout prior notice.

Limitation of Liability

ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resul ting from or arising out of or in connection with using this product, whether or not ZTE had been advised, knew or should have known the possibility of such damages. The user should refer to the encl osed w arranty card fo r full w arranty and serv ice inf ormation.

Contents

RF Safety Information ..............................................................................................5

General Safety Information.................................................................................... 6

Support Information .................................................................................................8

1 Getting Started .................................................................................................... 12

1.1 Install the USIM Card .........................................................................................................12

1.2 Insert the Battery................................................................................................................13

1.3 Switch the Phone on and Connect the Charger..................................................................14

1.4 Charging and Battery life....................................................................................................15

1.5 Basic Navigation.................................................................................................................16

1.6 Enter your Contacts............................................................................................................18

1.7 Edit your Contacts to Change Ringtones and Groups.........................................................20

1.8 Set Speed Dials..................................................................................................................21

1.9 Make a Call........................................................................................................................ 22

1.10 Send an SMS (Text Message)............................................................................................24

1.11 Emergency Calls................................................................................................................25

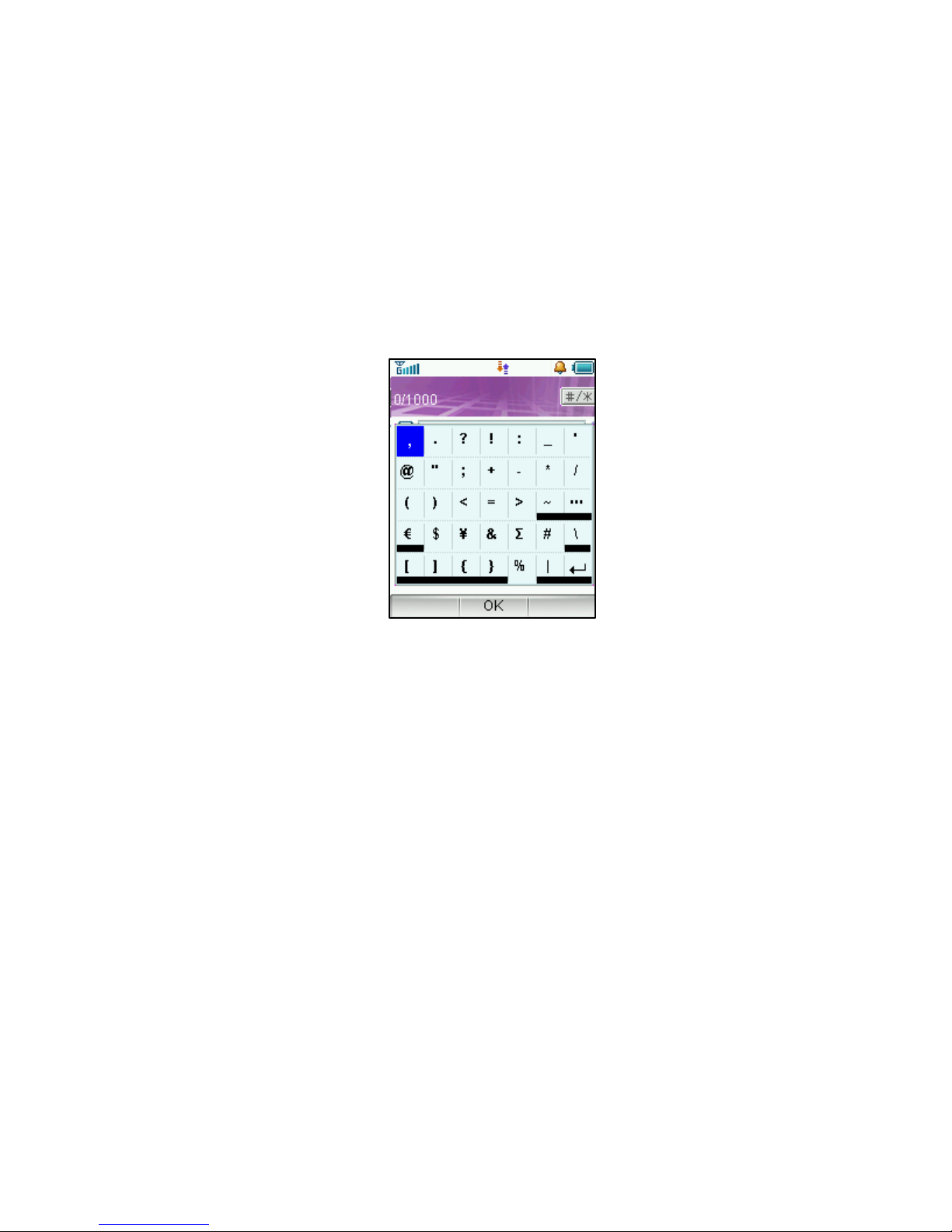

1.12 Notes on Text modes, Predictive Text and Special Characters ...........................................26

1.13 Personalise your Phone .....................................................................................................28

1.14 Using File Manager............................................................................................................33

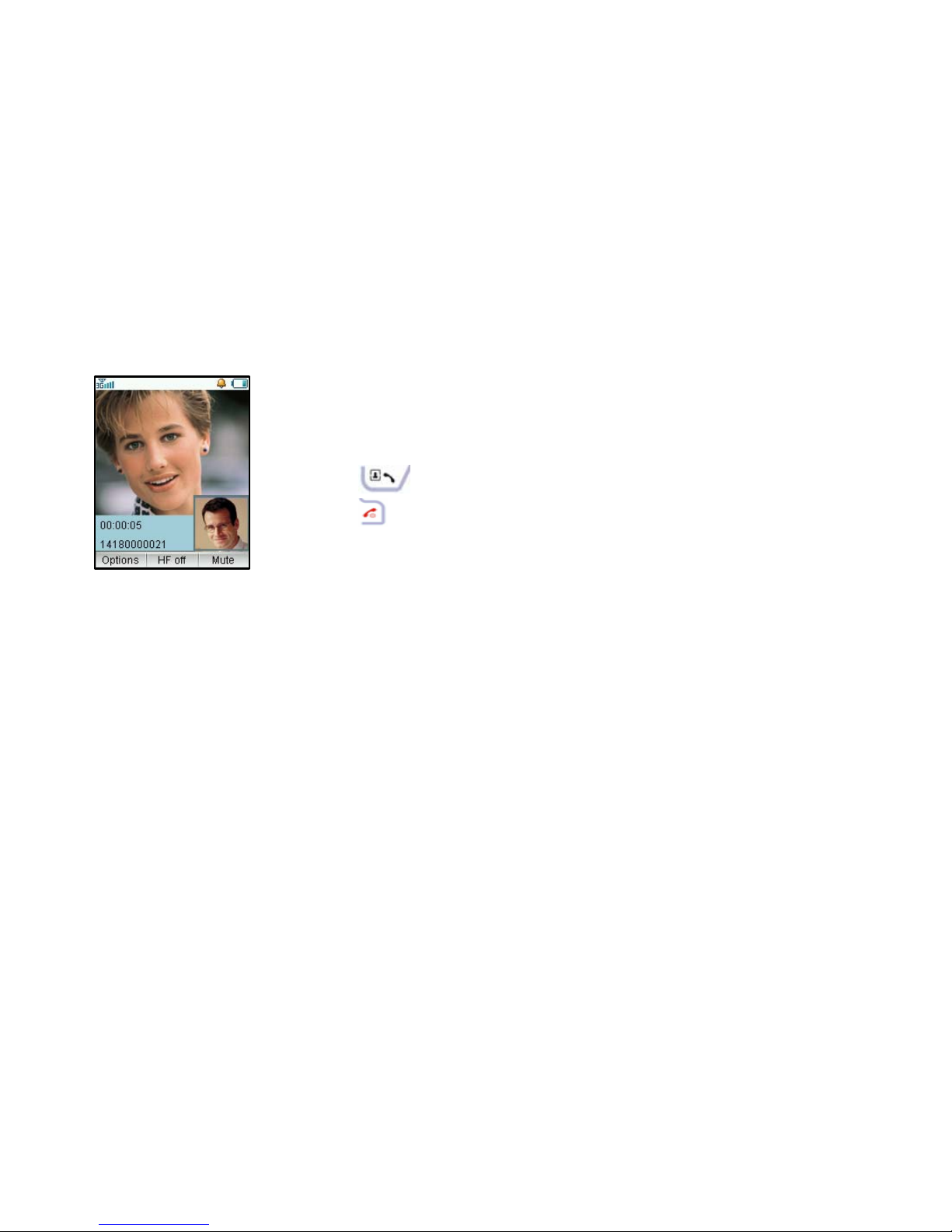

1.15 Make a Video Call..............................................................................................................34

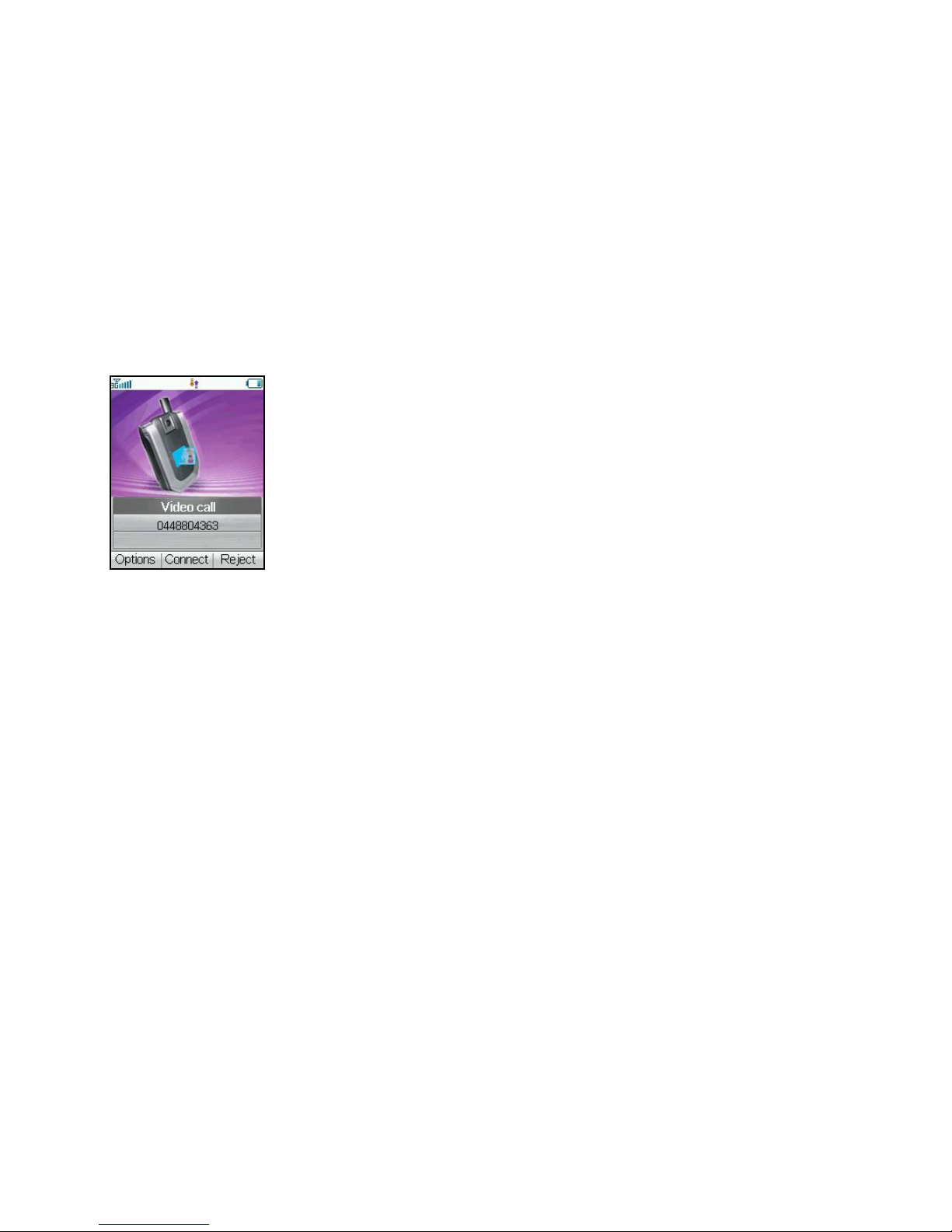

1.16 Receive a Video Call..........................................................................................................35

1.17 Set Alarms and Appointments.............................................................................................36

1.18 Send an E-mail...................................................................................................................38

1.19 Take Pictures and Videos...................................................................................................39

1.20 Send a Multimedia Message (MMS)...................................................................................41

1.21 Browse the Internet using Telstra My Place........................................................................42

1.22 Download Music, Pictures, Ringtones and Games.............................................................43

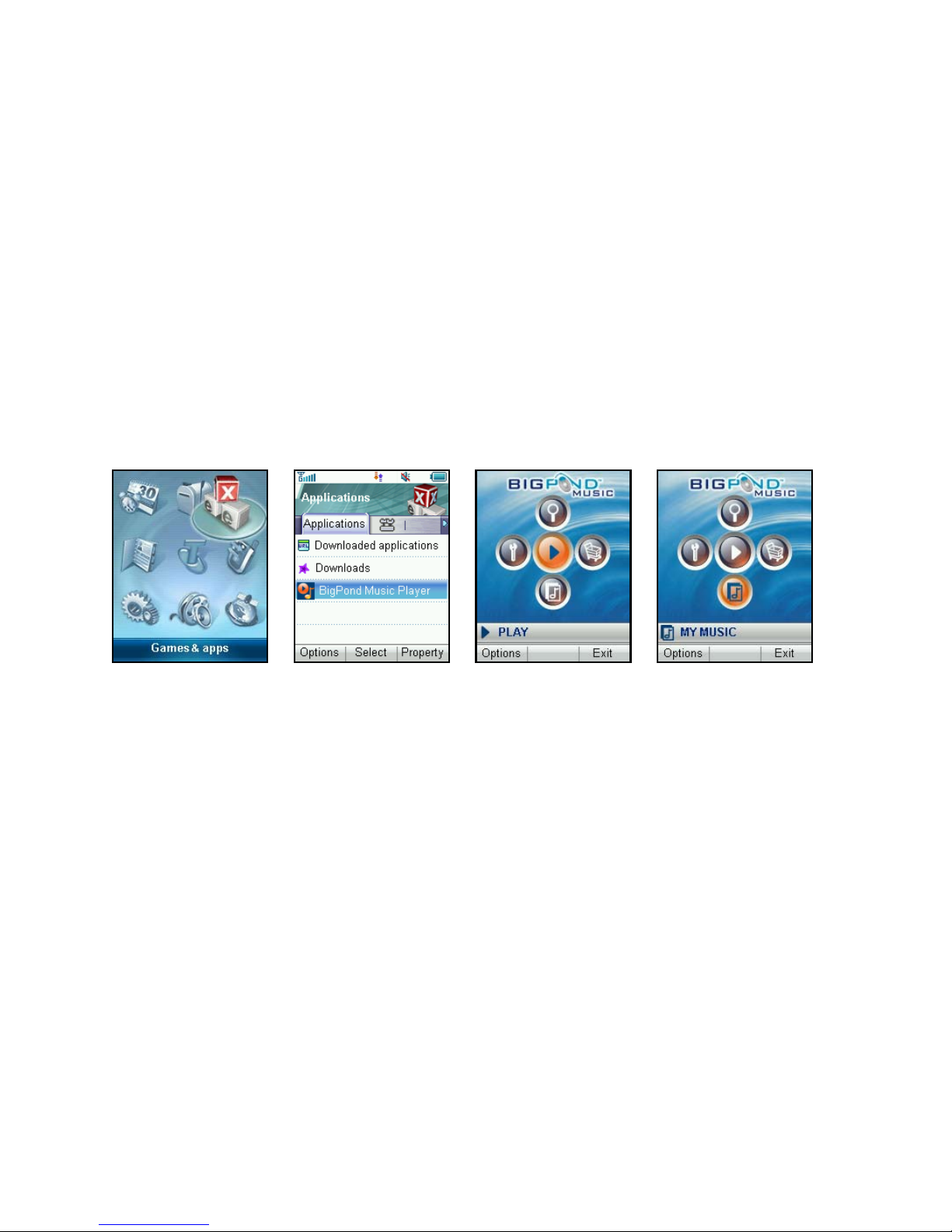

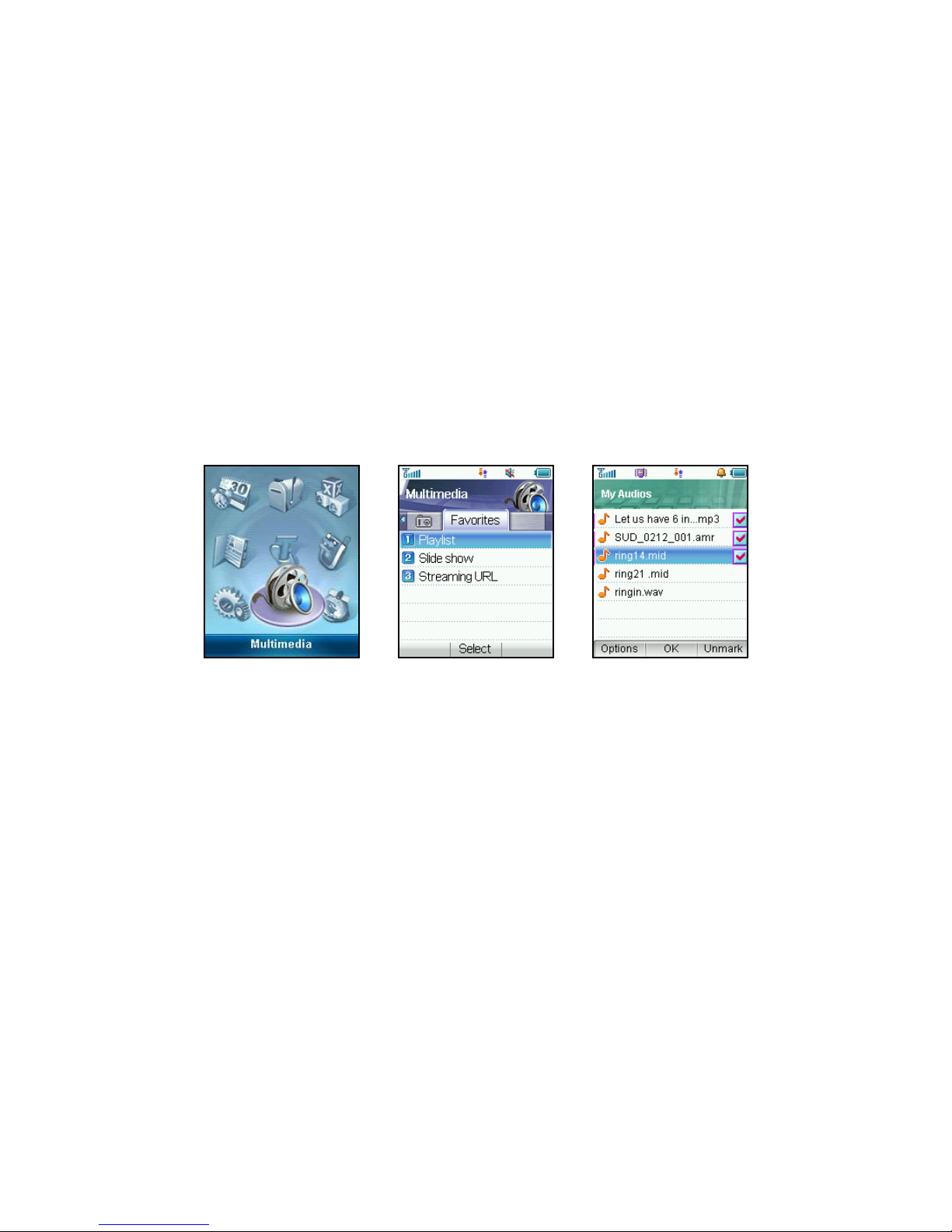

1.23 Use your Phone as a Music Player (MP3 Player)...............................................................44

2 Advanced Operation ........................................................................... 46

2.1 Use Join Me to Connect your Phone to your PC ................................................................46

2.2 Installing Join Me................................................................................................................47

2.3 Use Join Me to Copy your Pictures to your PC...................................................................48

2.4 Use Join Me to Copy Music Files from your PC to your Phone...........................................50

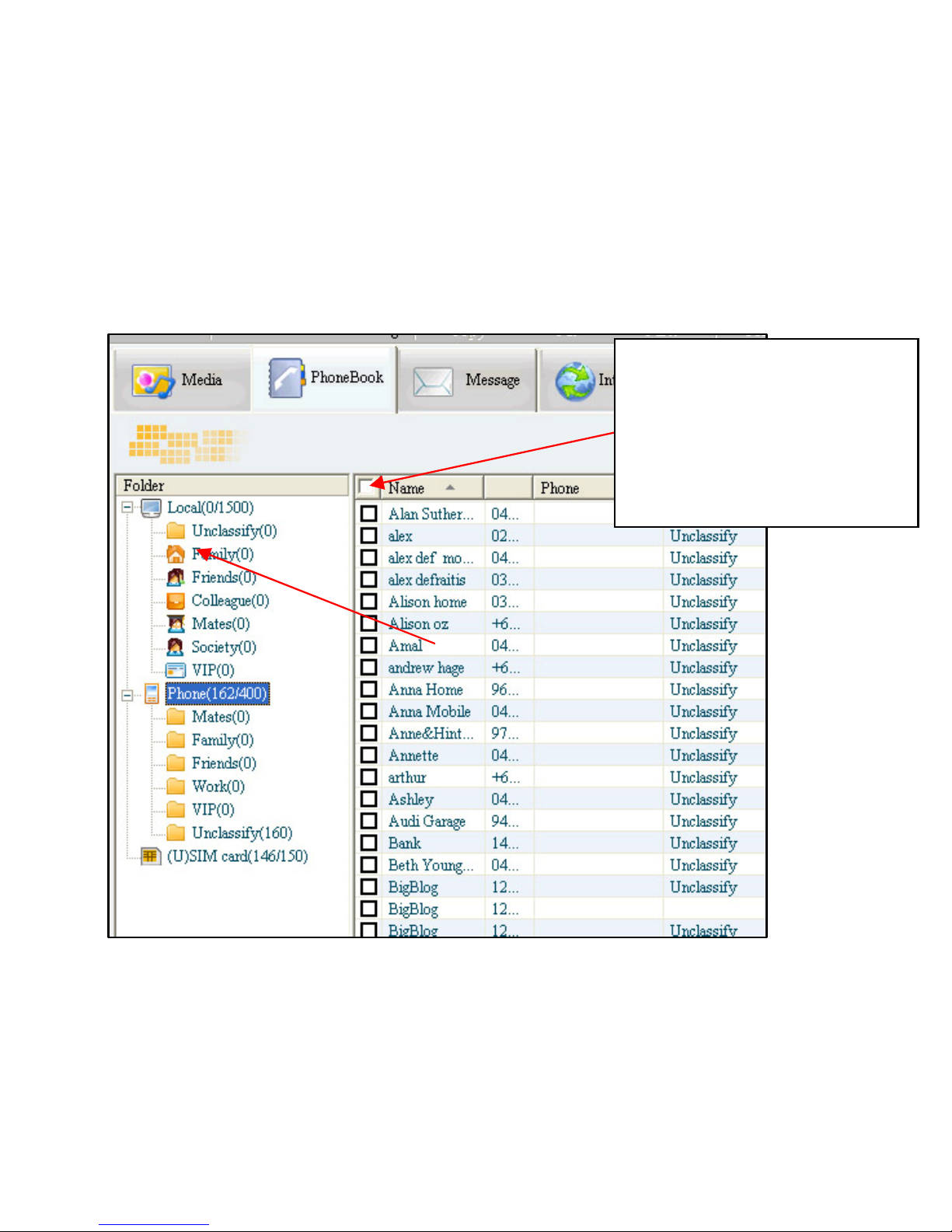

2.5 Enter your Contacts using Join Me.....................................................................................52

2.6 Import your Contacts from Microsoft Outlook......................................................................54

2.7 Use Join Me to Connect your PC to the Internet.................................................................55

2.8 Send a Fax from your PC...................................................................................................57

2.9 Connect to a Bluetooth Device...........................................................................................58

2.10 Other Facilities...................................................................................................................62

2.11 Advanced Message Settings..............................................................................................67

2.12 Advanced Handset Settings...............................................................................................70

2.13 Advanced Call Settings......................................................................................................71

3 Technical Information and Help......................................................... 74

3.1 Troubleshooting and FAQ’s................................................................................................74

3.2 Glossary of Terms ..............................................................................................................76

3.3 Technical Parameters.........................................................................................................77

4 Environmental Statement................................................................... 78

5 Menu Listing........................................................................................ 80

6 Index.................................................................................................... 82

RF Safety Information

The handset has an internal antenna located under the bottom of the keypad. For optimum performance with minimum power consumption do not cover the antenna area with your hand. Hold the handset between thumb and finger on the main hinge section. Covering the antenna affects call quality, may cause the handset to operate at higher power level than needed, and may shorten talk and idle times.

Radio Frequency Energy

Your handset is a low-power radio transmitter and receiver. When switched on it intermittently transmits radio frequency (RF) energy (radio waves). The transmit power level is optimized for best performance and automatically reduces when there is good quality reception. Maximum power is only used at the edge of network coverage so under most circumstances the power output is very low. Under poor network conditions the phone will transmit at a higher power, may get hot and will have a significantly shorter battery life.

Declaration of Conformity

We declare under our sole resp onsibility that the product(s) detailed in this manual, and in combination with our accessories, conform with the essential requirements of The Radio Communications Standard (Electro-magnetic Radiation Human Exposure) 2003 and the Australian Commu nications and Media Authority Section 376 of the Telecommunications Act

1997.

General Safety Information

The handset contains delicate electronic circuitry, magnets and battery systems. You should treat it with care and pay attention to the following points:

• Handle the handset with care. Do not drop or throw the handset down rou ghly.

• Do not immerse in any liquid. The handset contain s a li qu id d etecti on sti cker and the warranty will be voided by any liquid damage.

• Do not place the handset near computer disks, credit cards, and other magnetic media. The information contained on disks or cards may be erased or damaged.

• Do not leave the handset or battery in direct sunlight or near other heat sources where the temperature could exceed 45 °C

• Keep the handset, battery, charger and any other accessories away from children.

• In the unlikely event of a battery leak avoid contact with your eyes or skin. In the event of contact please flush

thoroughly with water and consult a doctor.

• Observe and obey warning signs at petrol stations, airports and hospitals.

• The operation of some medical electronic devices, such as hearing aids and pacemakers, may be affected by the handset.

• Take care not to allow metal objects such as coins or keys to come in to contact with the battery.

• Do not dispose of batteries in a fire.

• Do not throw used batteries into

household rubbish, return them to a recycling point. (see Chapter 4)

• Do not connect the handset to any other chargers or cigarette lighter chargers.

• Only use the supplied charger.

• Be careful not to pierce the battery with

sharp objects and do not use damaged batteries.

• Do not disassemble or modify the battery.

• Stop using the battery if abnormal heat,

odour, discolouration, deformation, or abnormal condition is de tected d uring u se, charge, or storage.

• Do not put the battery in your mouth.

• Only use original replacement batteries.

• Do not attempt to dismantle the handset

or any of its accessories.

• Do not place the handset close to the edge of a table in case it moves when set on vibrate mode.

• Do not put the handset into a microwave oven, dryer, or high-pressure container.

• Do not use your handset while driving or operating other machinery.

• Do not use the handset where blasting is in progress.

• Switch your phone off when boarding aircraft.

• Do not leave your handset at the bottom

of a bag where it may be damaged by sharp objects.

• Do not leave the handset discharged or disconnected for a long time, otherwise your personal data may be lost.

• Remember to make backup copies of all important data on your handset

• Take care when your phone is in your pocket. Sitting down may damage the handset.

• It is normal for the handset to become warm while the battery is being charged.

• Under poor network conditions batt ery life is considerably reduced

• When the battery is thrown away cover the terminals with insulating tape.

• Please recycle the packaging and all parts as stated in Chapter 4.

Support Information

• For technical support please consult this manual and search our web site and FAQ section at www.zte.com.au. For Warranty Service in the event of a fault please call 1800 670 796.

• Please do not call the warranty service line for general support enquiries.

• All cal ls for PIN number enqu iries, Network prob lems, Tel stra Next G Services, Big Pond

account information, We b Access, Account an d Bil ling Inf ormatio n, U SIM c ard r egist ratio n and general enquiries should be directed to Telstra on 125 111.

Warr a nty Information

The warranty does not apply to defects or errors in the product caused by:

(a) Reasonable abrasion (b) Misuse including mishandling, physical damage, improper installation, unauthorized

disassembly of the product (c) Water or any other liquid damage (d) Any unauthorized repair or modification (e) Power surges, lightning damage, fire, flood or other events outside ZTE’s reasonable

control (f) Use of t he p ro duct w ith any un autho ri zed t hird p ar ty products such as generic char ge rs (g) Any other cause beyond the range of normal usage for products. The End User shall have no right to reject, return, or receive a refund for any product from ZTE under the above-mentioned situations.

Long press the # Key to activate Silent mode with vibrate

Key Layout

Arrow Keys (Left/Right/Up/Down/OK)

Camera

LCD

Left Select Key

Call key

End / Exit key

Right Select Key

Clear key

Foxtel Key

Back key

Video call key

Earpiece

Telstra Services Key

Microphone

Notes

• The handset is available in various colours. For illustration purposes only the above

images are shown in black.

• There is no keylock available. This is common to Clam Shell designs because the keys

are protected by closing the flip.

Volume keys

Audio play key

TFlash card port

Left view

Camera key

Charger/USB port and Headset jack

Right view

Display Icons

Signal Strength of the GPRS Network

Battery Level Indicator

Signal Strength of the 3G Network

Missed Call

New SMS Message

Missed Video Call

New Multimedia Message

Call Forward is Active

New E-mail

Silent Mode

New Wap Push Message

Vibrate mode enabled

Message Memory is Full

Headset Mode

Multimedia Message Memory is Full

Headset and Vibrate Mode

E-mail Memory is Full

GPRS Attach

Wap Push Message Memory is Full

PDP Context Established (Data

Roaming

Signal Streng th of the EDGE Netw ork

Alarm is set

Bluetooth ON

1 Getting Started

1.1 Install the USIM Card

The USIM card (Universal Subscriber Interface Module) is the small plastic chip with gold contacts supplied by Telstra. This contains your phone number and acts as a store for your contacts. It c an b e mov ed b etw een d if f erent pho nes if r equir ed. In sert th is f ace dow n into the carrier inside the back panel of the phone. Make sure it is pushed all the way to the left as shown below:

1.2 Insert the Battery

Insert the battery car efully w ith the cont a cts located against the g old s prings . The battery will only fit one way.

Close the case by locating the plastic cover into the grooves and sliding the cover up to close it. Do NOT force the cover down by pressing on it. This will damage the cover.

Slide the cover up gently

1.3 Switch the Phone on and Connect the Charger

Press and hold the key for two seconds to switch your phone on. The phone takes about 10 seconds to initia lize. Ent er the PIN number su pplied by Telstra with y our USIM car d. The start up screen below is referred to throughout the manual as the Idle Screen :

Charge your Phone

Insert the charger lead carefully with the arrow on the top. The lead only fits one way. Do NOT use excessive force to insert the lead. Check it is the right way round.

1.4 Charging and Battery life

• Only use the charger supplied.

• Normal charge time is 2-3 hours.

• When not using the phone for a long period remove the battery and store it in a cool dry

place.

• Do not leave the phone connected to the charger for extended periods of time eg > 24 hrs.

• If the battery is not fully charged after 3 hours please stop charging.

• Charge the battery between 0°C~50°C. If the temperature of the handset is too high,

switch it off and let it cool.

• Battery life can be maximized by regularly allowing the phone to fully discharge before recharging the battery.

• Charge the battery promptly when flat.

• Under poor network conditions (less than 2 bars) it is normal for the battery to only last 1

day.

• To maximize battery life turn off Bluetooth and reduce the back lighting to 10 seconds (see Section 1.13 - ‘Personalise your Phone’).

1.5 Basic Navigation

From the Idle Screen press the OK Key to access the Main Menu:

The icons are descri bed at the bottom of the screen.

Idle Screen Main Menu

Arrow Keys

Use the Arrow Keys for shortcuts to menus, to move around the Main Menu and to move the cursor

Up (Shortcut to My Place)

Left (Shortcut to E-Mail) Right (Shortcut to SMS Messages)

Down (shortcut to Co ntacts)

Select Keys

The two keys at the top of the keypad are called the Select Keys.

The left and right Select Keys are used to choose the opti ons from th e bott om of the scr een. In the above example the Left Select Key opens Foxtel and the Right Select Key launches

BigPond.

Back and Exit Keys

Press the key to go back one step or the key to Exit to the Main Menu.

1.6 Enter your Contacts

There are several methods available to enter contacts into your phone. The Getting Started Section deals with add in g your contacts man ua lly and copying contacts from a previous SIM card. See the Advanced Section for adding contacts from your PC and importing contacts from Microsoft Outlook. All contacts can be stored in Groups for easy management.

Adding Your Contacts Manually

• At the Idle Screen enter the phone number on the keypad then press the Left Select Key to Save.

• Press the OK Key to Create New Contact.

• Add the persons name using the abc keys (see notes on entering text in section 1.12).

• Press the OK Key to Save.

Copy Contacts from a previous SIM Card

• Inse rt your old SIM card. Swit ch the phone on an d press the Down Arrow Key to enter Contacts

• Press the Right Ar row butt on once for US IM to show the list o f Cont act s f rom y our old SIM card.

• Press Options, More, Copy all to phone, press OK to Select and then press Yes to confirm.

Add a contact from a received call number

If someone calls you and you wish to save their number as a new contact, perform the following:

• Press the key to bring up your Call List.

• The last call received will be at the top of the list.

• Press the Right Select Key to Save the number.

• Enter the contact name and any other details and press the OK Key to Save.

Add a contact from a received SMS (Text Message)

You can save a Contact from a received SMS:

• Press the Right Arrow Key to access your SMS Menu and go to your Inbox.

• View the required message and press Options. Press Use highlight object to save the

number.

• Choose New Contact to create a new contact from the received SMS number.

Searching Contacts

You can search your contacts by pressing the letter keys that correspond to your contact name. From the contacts list press any letter key to bring up the contacts associated with that letter.

1.7 Edit your Contacts to Change Ringtones and Groups

Once you have added some contacts you can edit them to change the Group and to set a personalised Ring Tone.

• Contacts are normally stored in the default Group, Unclassified.

• You can move your contacts into other Groups: Mates, Family, Friends, Work, and VIP.

• Regardless of Group, all your contacts are displayed under All.

• From the Idle Screen go to your Contacts list by pressing the OK Key—Contacts or just

press the Do wn Arrow Key

• Use the arrow keys to search and press OK to View the required Contact.

• Press OK to Edit the Contact.

• When you are in Edit mode you can assign a specific Group and change the Ringtone if

desired.

• Use the Down Arrow key to navigate through the menu.

• Use the Right Select Key to Modify the incoming Ringtone.

• Use the Left or Right Arrow keys to change Groups.

• Changing the Ringtone to a personalised tune will let you recognise key callers instantly

by their unique tune.

1.8 Set Speed Dials

Once you have entered some contacts you can assign speed dial keys to your chosen contacts:

• Press Down A rr ow Key to enter the Contacts menu.

• Use the Arrow Keys to scroll to the contact you wish to assign a Speed Dial Number.

• Press the Left Select Key for Options.

• Press 3 or scroll down to item 3 for Set Speed Dial.

• Assign your chosen contact to the next available number (1,2 and 3 are preset and

cannot be changed).

• Press the OK Key to Setup the speed dial (or to Cancel an existing speed dial).

• Press the key to exit when finished or the back key to choose another contact.

Make a call using S peed Dial

• From the Idle Screen press and hold the required Speed Dial Key to make a call to that contact.

• E.g. A long press on the 1 key will automatically dial your voicemail number.

1.9 Make a Call

Dial the number manually

• If required press the * key twice for the International Prefix ‘+’.

• Enter the number on the keypad and press the key to make the call.

• When the call is connected you can press the OK Key for Handsfree mode.

• Press the key to end the call.

Choose a number from your Contacts list

• Press Down A rr ow Key to enter the Contacts menu.

• Use the Up and Down Arrow Keys to scroll to your chosen contact.

• Press the key to make the call.

• When the call is connected you can press the OK Key for Handsfree mode.

• Press the key to end the call.

Choose a number from your call list (incoming, outgoing and missed calls)

• Press the key to bring up your call list.

• Use the Up and Down Arrow Keys to scroll to the desired number (last number redial

select the top number).

• Press the key to make the call.

• When the call is connected you can press the OK Key for Handsfree mode.

• Press the key to end the call.

Notes

• You can adjust the volume using the side keys.

• The microphone is under the small hole between the 7 and the * key. Be careful not to

block it with your hands.

• Press the Left Select Ke y for further options during a voice call. Use the Back key to return to the call menu.

• Hold: Puts the current call on hold. You can dial a third party. Press hold again to switch your two calls.

• Record: Record the current call. The audio file will save to Tools-File-File Manager-Audios-My Audios.

• DTMF Off/On: Enable or disable sending DTMF tones. Default is ON.

• SMS: Switch to SMS inter face during a call.

• Contacts: Switch to Contacts interface during a call.

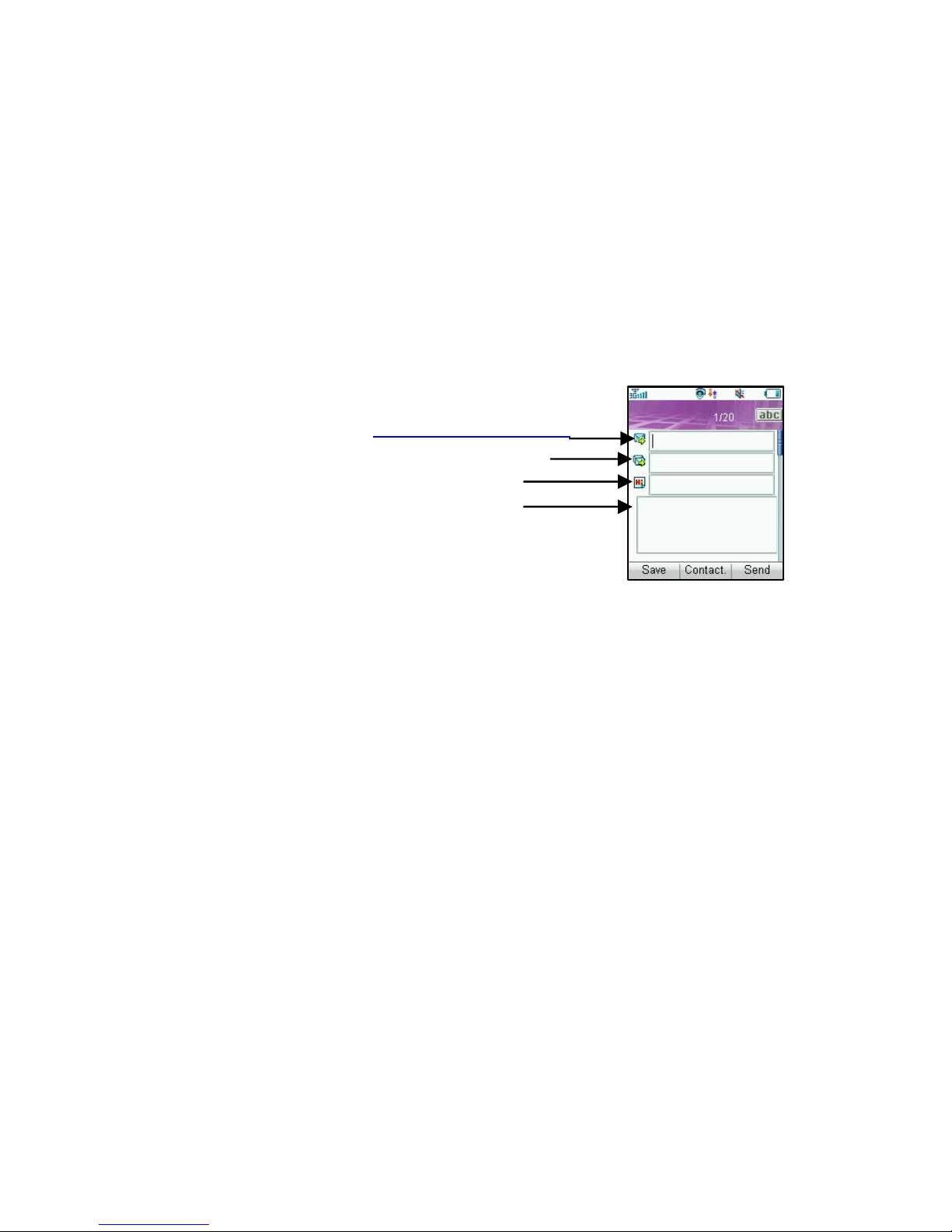

1.10 Send an SMS (Text Message)

From the Idle Screen press the Right A rrow Key to open the Messages Menu:

• Press the OK Key to select New Message. Press the OK Key to select Text Message.

• Press the OK Key to select from your Contacts list or enter your number manually

• Select the chosen conta ct and press the OK Key twice to enter your contact.

• Press the Down A rr o w key twice to move the cursor into the text field.

• The default text mode is Predictive Text indicated by the En symbol for English (see 3.11

for more details).

• Enter your text by pressing the corresponding keys once for each letter you require eg 43556 for hello.

• To change into conventional abc text mode press the # key to toggle between En, 123, ABC and abc modes.

• When completed press the Right Select Key to Send your message.

1.11 Emergency Calls

To make an emergency call during normal use

1 Ensure that your handset is switched on and in service. 2 Press the key repeatedly to clear the display and return to the Idle Screen.

3 Enter the emergency number for your present location using the keypad, (eg 000) 4 Press key to call the number. Follow instructions received and do not end the call

until told to do so.

To make an emergency call without a USIM Card

When the USIM card is not inserted enter the emergency number and press or to make the call.

Notes

• Tell the operator which service you require. Give your position and remain stationary to get the best coverage.

• Due to the nature of the cellular system the connection of emergency calls cannot be guaranteed.

• Never rely solely on any wireless device for essential communications like medical emergencies.
