ZTE EuFi890
Quick Start Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.
Version No.: 1.0
Edition Time: 05-2011
Manual No.: 07958450xxxx
Quick Guide
Introduction

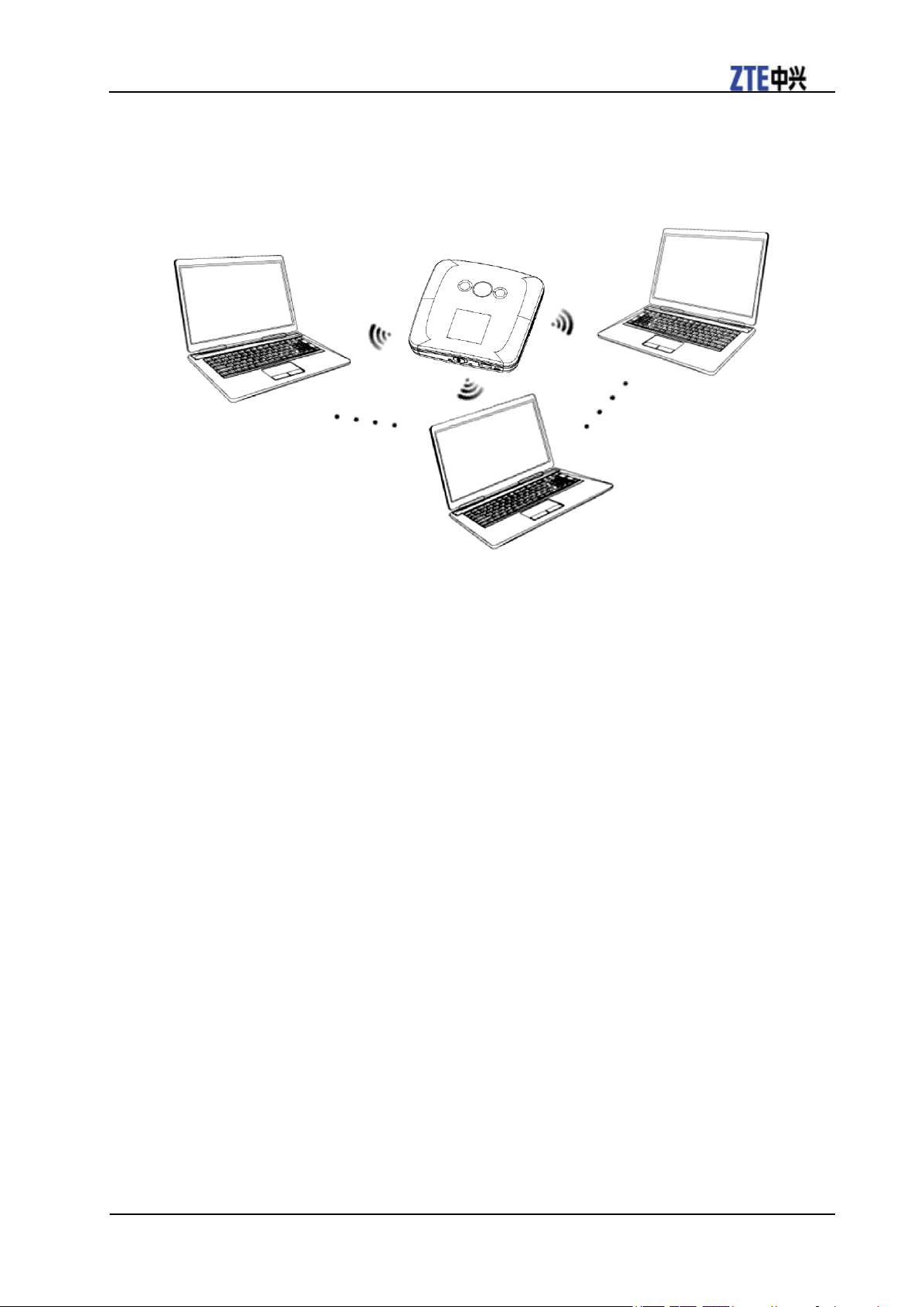

ZTE EuFi890 is the newly developed LTE global-mode mobile hotspot device. It can provide LTE/EVDO/UMTS/EDGE/GPRS flexible access for users to enjoy high-speed internet applications anytime and anywhere. EuFi890 has two work modes, Wi-Fi AP mode and USB Tethered mode. In Wi-Fi AP mode, up to 5 Wi-Fi enabled clients can connect to the device simultaneously.
This quick guide provides the instructions on how to install and get started with the product. For information about the services of connection, please consult your service provider.
Confidential and Proprietary Information of ZTE CORPORATION 1
ZTE EUFI890 Quick Guide
Specification
Data Service |
LTE-FDD: 50 Mbps DL; 20 Mbps UL |
|
|
|
CDMA 1xEV-DO: 3.1 Mbps DL; 1.8 Mbps UL |
|
|
|
HSDPA/HSUPA: 14.4 Mbps DL; 5.76 Mbps UL |
|
|
|
EDGE: 473.6 Kbps UL/DL |
|
|
|
GPRS: 171.2 Kbps UL/DL |
|
|
Interface |
Micro USB 2.0 and Wi-Fi |
|
|
Wi-Fi Standard |
802.11b/g/n |
|
|
Wi-Fi Security |
WEP/WPA/WPA2 |
|
|
Weight |
TBD |
|
|
Dimension(L×W×H) |
88.8 mm*88.8 mm*18 mm |
|
|
Battery |
1800 mAh |
|
|
*Standby time |
100 hours |
|
|
*Working time |
4 hours |
|
|
Operate system |
Windows 7, Windows Vista, Windows XP (SP2 or later), MAC 10.4 or later |
|
|
Web Browser |
IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome |
|
(5.0 or later) |
|
|
Operating temperature |
-10 ~ +60 |
|
|
Operating humidity |
10% ~ 85% |
|
|
Storage temperature |
-20 ~ +70 |
|
|
Storage humidity |
5% ~ 90% |
|
|
Notes:
The device‟s standby and working time are only for your reference, and based on ideal working environment.
2 Confidential and Proprietary Information of ZTE CORPORATION
ZTE EUFI890 Quick Guide
Getting to Know Your Device
The following figure shows the appearance of the device, it is only for your reference. The actual device may be different.
1
5 |
6 |
7 |
2 |
|
|
|
4 |
|
|
|
3 |
|
Interface and Buttons |
|
|
|
|
|
1. |
OLED Screen |
Displays the menus and the status of your device. |
2. |
Up Button |
Scroll up to select the options. |
3. |
OK Button |
Confirm the selection or operation. |
4. |
Down Button |
Scroll down to select the options. |
5. |
Power Switcher |
Power on/off your device. |
6. |
Micro USB Port |
Charge your device. |
7. |
Reset Button |
Press to restore your device to the factory default |
|
|
settings. |
OLED Indicator
|
Icon |
|
|
Description |
|
|
|
|
|
|
|
|
|
|
|
Battery indication, animate while |
|
|
|
|
|
charging. |
|
|
|
|
|
|
|
|
|
|
|
No battery |
|
|
|
|
|
|
|
|
|
|
|
Data meter |
|
|
|
|
|
|
|
|
|
and |
|
4G signal indication |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and |
|
3G signal indication |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Roaming |
|
|
|
|
|
|
|
|
|
|
Confidential and Proprietary Information of ZTE CORPORATION 3 |
||
ZTE EUFI890 Quick Guide
Icon |
Description |
|
|
|
Indicates the numbers of current |
|
Wi-Fi connections. |
|
|
|
Settings |
|
|
|
Message |
|
|
4 Confidential and Proprietary Information of ZTE CORPORATION
ZTE EUFI890 Quick Guide
Hardware Installation
Inserting SIM Card and Battery
1. Use the thumb catch at the bottom of the device to open the battery cover as shown.
2. Insert the SIM card into the SIM card holder as shown.
3. Insert the battery as shown with the contacts located against the metal springs, and then press the battery down into the case.
4. Line the battery cover up correctly and press gently to close the case.
Confidential and Proprietary Information of ZTE CORPORATION 5
ZTE EUFI890 Quick Guide
Switching On/Off Your Device
Slide the Power switcher to switch on/off the device.
Notes:
The device is powered on when the OLED screen lights up.
Charging Your Device
You can charge your device by using USB cable or adapter.
1.Insert the charger lead carefully with the plug arrow facing the bottom of the device.
2.The plug only fits one way. Do not use excessive force to insert the plug.
3.Make sure the plug is the right way round and lined up correctly and insert it gently.
6 Confidential and Proprietary Information of ZTE CORPORATION
