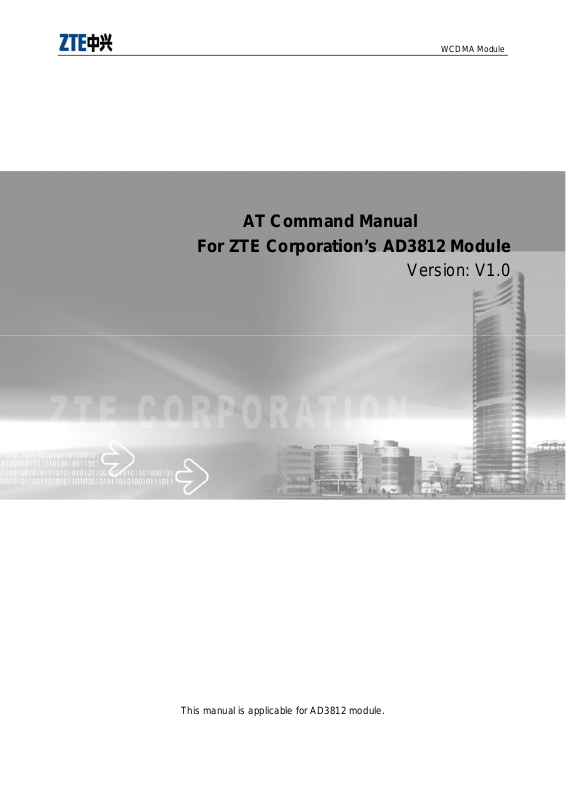

WCDMA Module

AT Command Manual

For ZTE Corporation’s AD3812 Module

Version: V1.0

This manual is applicable for AD3812 module.

WCDMA Module

means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

is the registered trademark of ZTE Corporation. All other trademarks appeared in this

manual are owned by the relevant companies. ZTE Corporation reserves the right to make modifications on print errors or update specifications in

this manual without prior notice. ZTE Corporation keeps the right to make the final explanation to this manual.

WCDMA Module

Table of Contents

1 Definitions and abbreviations......................................................................................5

1.1 Command line ....................................................................................................................5

1.2 Information responses and result codes.............................................................................5

1.3 Abbreviations......................................................................................................................6

2 General commands ....................................................................................................7

2.1 +CGMI Request manufacturer identification....................................................................7

2.2 +CGMM Request model identification................................................................................7

2.3 +CGMR Request revision identification..............................................................................7

2.4 +CGSN Request product serial number identification......................................................8

2.5 +CSCS Select TE character set .........................................................................................8

2.6 +CIMI Request international mobile subscriber identity......................................................9

2.7 +WS46 select wireless network..........................................................................................9

2.8 +GCAP Capabilities List +GCAP......................................................................................10

2.9 +CMEE Repor Mobile Equipment Errors..........................................................................10

2.10 +ZHWV Request hardware revision identification.............................................................10

2.11 +ZDRNT Request status of dormant ................................................................................11

2.12 +ZSSPA Request System Status and System Parameter................................................11

2.13 +ZMDS Request System Set Network Mode....................................................................11

2.14 +ZGMS Request System Service Type............................................................................11

2.15 +ZUCT Request System Service Type.............................................................................12

2.16 +ZGVT Request UE Voice channel Type.........................................................................12

3 Call control commands and methods........................................................................13

3.1 ATD\ATA\ATH\ATS0........................................................................................................13

3.2 +CSTA Select type of address..........................................................................................13

3.3 +CMOD Call mode ...........................................................................................................14

3.4 +CHUP Hangup call .........................................................................................................14

3.5 +CBST Select bearer service type....................................................................................15

3.6 +CRLP Radio link protocol ...............................................................................................16

3.7 +CR Service reporting control...........................................................................................17

3.8 +CEER Extended error report ..........................................................................................18

3.9 +CRC Cellular result codes ..............................................................................................18

3.10 +CVHU Voice Hangup Control .........................................................................................20

3.11 +VGR Receive gain selection...........................................................................................20

3.12 +CMUT Mute control ........................................................................................................20

3.13 +VTD Tone duration.........................................................................................................21

3.14 +VTS DTMF and tone generation .....................................................................................21

3.15 +CLCC List current calls...................................................................................................21

3.16 S<X> Basic S-Register..................................................................................................23

3.17 +ZFLSH Send Flash/Flash with Information.....................................................................24

3.18 +VGT Transmit gain selection..........................................................................................24

3.19 +ZCORG ORIGINATE CALL............................................................................................25

WCDMA Module

3.20 +ZCCNT: CALL CONNECT..............................................................................................25

3.21 +ZCEND: CALL END........................................................................................................26

3.22 +CCWA: Call waiting +CCWA..........................................................................................27

3.23 +CHLD: Call related supplementary services +CHLD......................................................28

3.24 +CCFC: Call forwarding number and conditions +CCFC .................................................29

4 Network service related commands..........................................................................31

4.1 +CNUM Subscriber number .............................................................................................31

4.2 +CREGNetwork registration .............................................................................................31

4.3 +COPS PLMN selection...................................................................................................32

4.4 +CLCK Facility lock ..........................................................................................................34

4.5 +CPWD Change password...............................................................................................35

4.6 +CLIP Calling line identification presentation ...................................................................36

4.7 +CLIR Calling line identification restriction .......................................................................37

4.8 +COLP Connected line identification presentation ...........................................................38

4.9 +CDIP Called line identification presentation....................................................................38

4.10 +CPOL Preferred PLMN list .............................................................................................39

4.11 +CPLS Selection of preferred PLMN list...........................................................................41

4.12 +COPN Read operator names..........................................................................................41

4.13 +CGREG GPRS network registration status ....................................................................42

4.14 +IPR Fixed DTE Rate ....................................................................................................43

4.15 +FCLASS Select mode..................................................................................................43

5 Mobile Termination control and status commands....................................................44

5.1 +CPAS Phone activity status............................................................................................44

5.2 +CFUN Set phone functionality ........................................................................................45

5.3 +CPIN Enter PIN ..............................................................................................................46

5.4 +CSQ Signal quality .........................................................................................................47

5.5 +CCLK Clock....................................................................................................................47

5.6 +CSIM ..............................................................................................................................48

5.7 +CRSM.............................................................................................................................48

5.8 +CLAC..............................................................................................................................49

5.9 +CTZU..............................................................................................................................49

5.10 +CTZR..............................................................................................................................50

5.11 +CLVL Loudspeaker volume level....................................................................................50

5.12 +ECHO Echo Cancellation.............................................................................................51

5.13 +SIDET Side Tone Modification........................................................................................51

6 SMS command.........................................................................................................52

6.1 +CMGC: Send Command.................................................................................................52

6.2 6.2 +CMGD: Delete Message...........................................................................................52

6.3 +CMGF: Message Format................................................................................................53

6.4 +CMGL: List Messages....................................................................................................53

6.5 +CMGR: Read Message ..................................................................................................54

6.6 +CMGS: Send Message...................................................................................................54

6.7 +CMGW: Write Message to Memory................................................................................55

6.8 +CMSS: Send Message from Storage..............................................................................56

WCDMA Module

6.9 +CNMI: New Message Indications to TE..........................................................................56

6.10 +CPMS: Preferred Message Storage...............................................................................59

6.11 +CSCA: Service Centre Address......................................................................................59

6.12 +CSCB: Select Cell Broadcast Message Types...............................................................60

6.13 +CSMP Set Text Mode Parameters .................................................................................60

6.14 +CSMS Select Message Service......................................................................................61

6.15 +CNMA New Message Acknowlegement.........................................................................62

6.16 +CMMS More Messages to Send .....................................................................................62

6.17 +CGSMS Select Service for MO SMS Messages.............................................................63

6.18 +CMT Incoming Message Directly Displayed...................................................................63

6.19 +CMTI Incoming Message Stored in Memory...................................................................64

6.20 +ZMGF：Message Full ....................................................................................................64

7 Phonebook commands.............................................................................................65

7.1 +CPBS Select Phonebook memory storage.....................................................................65

7.2 +CPBR Read Phonebook Entries.....................................................................................66

7.3 +CPBF Find Phonebook Entries.......................................................................................68

7.4 +CPBW Write Phonebook Entry.......................................................................................69

WCDMA Module

1 Definitions and abbreviations

1.1 Command line

See figure 2 for general structure of a command line. Standardized basic commands are found only in V.250 [14].

GSM/UMTS commands use syntax rules of extended commands. Every extended command has a test command

(trailing =?) to test the existence of the command and to give information about the type of its subparameters.

Parameter type commands also have a read command (trailing ?) to check the current values of subparameters. Action

type commands do not store the values of any of their possible subparameters, and therefore do not have a read

command.

If verbose responses are enabled with command V1 and all commands in a command line has been performed

successfully, result code <CR><LF>OK<CR><LF> is sent from the TA to the TE. If numeric responses are enabled

with command V0, result code 0<CR> is sent instead. If verbose responses are enabled with command V1 and subparameter values of a command are not

accepted by the TA (or command itself is invalid, or command cannot be performed for some reason), result code <CR><LF>ERROR<CR><LF> is sent to the TE and no subsequent commands in the command line

are processed. If numeric responses are enabled with command V0, result code 4<CR> is sent instead. ERROR (or 4)

response may be replaced by +CME ERROR: <err> (refer clause 9) when command was not processed due to an error

related to MT operation.

1.2 Information responses and result codes

The TA response for the example command line of figure 2 could be as shown in figure 3. Here, verbose response

format is enabled with command V1. If numeric format V0 would have been used, <CR><LF> headers

WCDMA Module

of information responses would have been left out and final result code changed to 0<CR>.

So called intermediate result codes inform about progress of TA operation (e.g. connection establishment CONNECT),

and so called unsolicited result codes indicate occurrence of an event not directly associated with issuance of a

command from TE (e.g. ring indication RING).

1.3 Abbreviations

AT ATtention; this two-character abbreviation is always used to start a command line to be sent from TE to TA ASCI Advanced Speech Call Items, including VGCS, VBS and eMLPP BCD Binary Coded Decimal eMLPP Enhanced Multi-Level Precedence and Pre-emption Service ETSI European Telecommunications Standards Institute FTM Frame Tunnelling Mode (refer 3GPP TS 27.001 [41] and 3GPP TS 29.007[42]) HSCSD High Speed Circuit Switched Data IMEI International Mobile station Equipment Identity IRA International Reference Alphabet (ITU-T T.50 [13]) IrDA Infrared Data Association ISO International Standards Organization ITU-T International Telecommunication Union - Telecommunications Standardization Sector ME Mobile Equipment MoU Memorandum of Understanding (GSM operator joint) MT Mobile Termination PCCA Portable Computer and Communications Association PTT Push to Talk RDI Restricted Digital Information RLP Radio Link Protocol SIM Subscriber Identity Module TA Terminal Adaptor, e.g. a GSM data card (equal to DCE; Data Circuit terminating Equipment) TE Terminal Equipment, e.g. a computer (equal to DTE; Data Terminal Equipment) TIA Telecommunications Industry Association UDI Unrestricted Digital Information UE User Equipment

WCDMA Module

UICC Universal Integrated Circuit Card USIM Universal Subscriber Identity Module VBS Voice Broadcast Service VGCS Voice Group Call Service

2 General commands

2.1 +CGMI Request manufacturer identification

Description

Command

Execution command causes the TA to return one or more lines of information text <manufacturer>, determined by

the MT manufacturer, which is intended to permit the user of the TA to identify the manufacturer of the MT to which it

is connected to. Typically, the text will consist of a single line containing the name of the manufacturer, but

manufacturers may choose to provide more information if desired. Refer subclause 9.2 for possible <err> values.

+CGMI

+CGMI=?

+CME ERROR: <err>

Defined values <manufacturer>: the total number of characters, including line terminators, in

the information text shall not exceed 2048 characters.

2.2 +CGMM Request model identification

Description

Command

Defined values <model>: the total number of characters, including line terminators, in the

Execution command causes the TA to return one or more lines of information text <model>, determined by the MT

manufacturer, which is intended to permit the user of the TA to identify the specific model of the MT to which it is

connected to. Typically, the text will consist of a single line containing the name of the product, but manufacturers may

choose to provide more information if desired. Refer to subclause 9.2 for possible <err> values.

+CGMM <model>

+CME ERROR: <err>

+CGMM=?

information text shall not exceed 2048 characters.

2.3 +CGMR Request revision identification

Description

Execution command causes the TA to return one or more lines of information text <revision>, determined by the

MT manufacturer, which is intended to permit the user of the TA to identify the

WCDMA Module

version, revision level or date, or other pertinent information of the MT to which it is connected to. Typically, the text will

consist of a single line containing the version of the product, but manufacturers may choose to provide more

information if desired. Refer subclause 9.2 for possible <err> values.

Command

Defined values <revision>: the total number of characters, including line terminators, in the

+CGMR

+CGMR=?

information text shall not exceed 2048 characters.

<revision> +CME ERROR: <err>

2.4 +CGSN Request product serial number identification

Description

Command

Defined values <sn>: the total number of characters, including line terminators, in the

Execution command causes the TA to return one or more lines of information text <sn>, determined by the MT

manufacturer, which is intended to permit the user of the TA to identify the individual MT to which it is connected to.

Typically, the text will consist of a single line containing the IMEI (International Mobile station Equipment Identity;

refer 3GPP TS 23.003 [7]) number of the MT, but manufacturers may choose to provide more information if desired.

Refer subclause 9.2 for possible <err> values. +CGSN

+CGSN=?

information text shall not exceed 2048 characters.

<sn> +CME ERROR: <err>

2.5 +CSCS Select TE character set

Description

Command

Defined values <chset> (conversion schemes not listed here can be defined by manufacturers):

Set command informs TA which character set <chset> is used by the TE. TA is then able to convert character strings

correctly between TE and MT character sets. When TA-TE interface is set to 8-bit operation and used TE alphabet is 7-bit, the

highest bit shall be set to zero.

+CSCS=[<chset>]

+CSCS?

+CSCS=?

"GSM" GSM 7 bit default alphabet (3GPP TS 23.038); this setting causes easily software flow control

+CSCS: <chset>

+CSCS: (list of supported <chset>s)

WCDMA Module

(XON/XOFF) problems "HEX" character strings consist only of hexadecimal numbers from 00 to FF; e.g.

"032FE6" equals three 8-bit characters with decimal values 3, 47 and 230; no conversions to the original MT

character set shall be done. "IRA" international reference alphabet (ITU-T T.50 [13]) "PCCPxxx" PC character set Code Page xxx "PCDN" PC Danish/Norwegian character set "UCS2" 16-bit universal multiple-octet coded character set (ISO/IEC10646 [32]);

UCS2 character strings are converted to hexadecimal numbers from 0000 to FFFF; e.g. "004100620063"

equals three 16-bit characters with decimal values 65, 98 and 99 "8859-n" ISO 8859 Latin n (1-6) character set "8859-C" ISO 8859 Latin/Cyrillic character set "8859-A" ISO 8859 Latin/Arabic character set "8859-G" ISO 8859 Latin/Greek character set "8859-H" ISO 8859 Latin/Hebrew character set

2.6 +CIMI Request international mobile subscriber identity

Description

Command

Defined values <IMSI>: International Mobile Subscriber Identity (string without double quotes)

Execution command causes the TA to return <IMSI>, which is intended to permit the TE to identify the individual

SIM card or active application in the UICC (GSM or USIM) which is attached to MT. Refer subclause 9.2 for possible

<err> values.

+CIMI

+CIMI=?

<IMSI> +CME ERROR: <err>

2.7 +WS46 select wireless network

Description

Command

Defined values <n>:

Set command selects the WDS side stack <n> to be used by the TA. Read command shows current setting and test

command displays side stacks implemented in the TA.

+WS46=[<n>] +WS46? <n> +WS46=? (list of supported <n>s)

12 GSM Digital Cellular Systems (GERAN only) 22 UTRAN only 25 3GPP Systems (both GERAN and UTRAN)

WCDMA Module

2.8 +GCAP Capabilities List +GCAP

Description This command gets the complete list of capabilities.

Command

Defined values

AT+GCAP

+ CGREG =?

+GCAP: +CGSM, +CIS707-A, +MS, +ES, +DS, +FCLASS

OK +CGREG: (list of supported <n>s)

2.9 +CMEE Repor Mobile Equipment Errors

Description This command disables or enables the use of the “+CME ERROR : <xxx>” or

“+CMS ERROR :<xxx>” result code instead of simply “ERROR”. See chapter 20 (MS

Error Result Codes) for +CME ERROR result codes description and chapter 20 (Message

Service Failure Result Codesfor +CMS ERROR result codes.

Command

Defined values 0 Disable MS error reports, use only « ERROR »

+ CMEE =[<n>]

+ CGREG =?

+ CGREG? +CMEE: 2

1 Disable MS error reports, use only « ERROR »

CMEE: (0,1,2)

2.10 +ZHWV Request hardware revision identification

Description Execution command causes the TA to return hardware revision identification

Command

Defined values

+ ZHWV

+ ZHWV=?

WCDMA Module

2.11 +ZDRNT Request status of dormant

Description Execution command causes the TA to return status of dormant

Command

Defined values 0: MT is dormant

+ ZDRNT

+ ZDRNT = ?

1: MT is not dormant

1 +CME ERROR: <err>

2.12 +ZSSPA Request System Status and System Parameter

Description Execution command causes the TA to return system status and system

parameter

Command

Defined values ROAM:ROAM_STATUS_OFF(0),ROAM_STATUS_ON(1),ROAM_STATUS_BL

+ ZSSPA

+ ZSSPA = ?

INK(2), RSSI: 0－5 SIM: SIM_STATE_AVAILABLE(1), SIM_STATE_NOT_AVAILABLE(0) SRV: 0:No service,1:Limited service, 2:Service available,3:Limited regional

service ,4:MS is in power save or deep sleep

ROAM:,RSSI:,SIM:,SRV: +CME ERROR: <err>

2.13 +ZMDS Request System Set Network Mode

Description Execution command causes the TA to select system mode:AUTOMATIC,GSM

OLNY,WCDMA OLNY

Command

Defined values 4:automatic network mode

+ ZMDS=<MOEE>

+ ZMDS = ?

+ ZMDS?

13:gsm olny 14:wcdma olny

+ZMDS:OK +CME ERROR: <err> (list of supported <n>s)

n ok

2.14 +ZGMS Request System Service Type

Description Execution command causes the TA to return me to surport the service type

Command +ZGMS

+ZGMS: DS:1,VS:1,SS:1,PS:1 +CME ERROR: <err>

WCDMA Module

+ ZGMS = ?

Defined values DS: data service: 1 support, 0 not support

VS: voice service: 1 support, 0 not support SS: sms service: 1 support, 0 not support PS: pbk service: 1 support, 0 not support

2.15 +ZUCT Request System Service Type

Description Execution command causes the TA to return the card type and initial processing

state

Command

Defined values Card_type: 0: NONE CARD or NONE INIT

+ZUCT

+ ZUCT = ?

1: USIM 2: SIM 3: SIM_USIM sim_state: 0:not initialize 1:initialized

+ZUCT:<card_type>,<sim_state> +CME ERROR: <err> +ZUCT:(0,1,2,3) OK

2.16 +ZGVT Request UE Voice channel Type

Description

Command

Defined values

Execution command causes the TA to return the voice channel type , it by PC or no PC

+ZGVT

+ ZGVT = ?

voice_type: 0: by PC 1: not by PC

+ZGVT:<voice_type> +CME ERROR: <err>

WCDMA Module

3 Call control commands and methods

3.1 ATD\ATA\ATH\ATS0

V.250 [14] dial command D lists characters that may be used in a dialling string for making a call or controlling

supplementary services in accordance with 3GPP TS 22.030 [19]. Their use in GSM/UMTS is listed in this subclause,

as well as new dial modifiers applicable only to GSM/UMTS are introduced. For a MT supporting AT commands only,

it is mandatory to support the control of supplementary services in accordance with 3GPP TS 22.030 [19] through the

dial command or through the specific supplementary service commands (+CCFC, +CLCK, etc.), where 3GPP TS 22.030

[19] identifies the supplementary services as mandatory.

V.250 dialling digits

1 2 3 4 5 6 7 8 9 0 * # + A B C (implementation of these characters is mandatory for GSM/UMTS) D (implementation of this character is optional for GSM/UMTS, and it is ignored)

V.250 modifier characters

, (implementation of this character is mandatory for GSM/UMTS, but it may be ignored) T P (implementation of these characters is mandatory for GSM/UMTS, but they are ignored) ! W @ (implementation of these characters is optional for GSM/UMTS, and they are ignored)

V.250 semicolon character

In GSM/UMTS, when semicolon character is given after dialling digits (or modifiers), a voice call originated to the

given address. TA returns to command state immediately (or after possible +COLP result code; refer subclause

"Connected line identification presentation +COLP"). Refer Annex G for a detailed example.

GSM/UMTS modifier characters

> (refer subclause "Direct dialling from phonebooks") I or i (override the CLIR supplementary service subscription default value for this call; I = invocation

(restrict CLI presentation) and i = suppression (allow CLI presentation); refer subclause "Calling line identification

restriction +CLIR") G or g (control the CUG supplementary service information for this call; uses index and info values set

with command +CCUG; refer subclause "Closed user group +CCUG")

3.2 +CSTA Select type of address

Description

Set command selects the type of number for further dialling commands (D) according to GSM/UMTS specifications.

Test command returns values supported a compound value.

WCDMA Module

Command

Defined values <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

+CSTA=[<type>]

+CSTA? +CSTA=?

10.5.4.7); default 145 when dialling string includes international access code character "+", otherwise 129

3.3 +CMOD Call mode

Description

Command

Defined values <mode>:

Set command selects the call mode of further dialling commands (D) or for next answering command (A). Mode can be

either single or alternating (in the present document, terms "alternating mode" and "alternating call" refer to all

GSM/UMTS bearer and teleservices that incorporate more than one basic service (voice, data, fax) within one call).

When single mode is selected the call originating and hangup procedures are similar to procedures specified in ITU-T

Recommendations V.250 [14], T.31 [11] and T.32 [12]. In GSM/UMTS there can be voice followed by data (refer

3GPP TS 22.002 [1]), alternating voice/data (refer 3GPP TS 22.002 [1]) and alternating voice/fax calls (refer 3GPP TS

22.003 [2]). Refer next two subclauses for alternating call control methods.

+CMOD=[<mode>] +CMOD? +CMOD=? +CMOD: (list of supported <mode>s)

0 single mode 1 alternating voice/fax (teleservice 61) 2 alternating voice/data (bearer service 61) 3 voice followed by data (bearer service 81) also all other values below 128 are reserved by the present document

3.4 +CHUP Hangup call

Description

Execution command causes the TA to hangup the current GSM/UMTS call of the MT.

+CHUP Command +CHUP=?

WCDMA Module

3.5 +CBST Select bearer service type

Description

Command

Defined values <speed>:

Set command selects the bearer service <name> with data rate <speed>, and the connection element <ce> to be used

when data calls are originated (refer 3GPP TS 22.002 [1]). Values may also be used during mobile terminated data call

setup, especially in case of single numbering scheme calls (refer +CSNS).

+CBST=[<speed>[ +CBST? +CBST=? +CBST: (list of supported <speed>s),(list

0 autobauding (automatic selection of the speed; this setting is possible in case of 3.1 kHz modem

and non-transparent service) 1 300 bps (V.21) 2 1200 bps (V.22) 3 1200/75 bps (V.23) 4 2400 bps (V.22bis) 5 2400 bps (V.26ter) 6 4800 bps (V.32) 7 9600 bps (V.32) 12 9600 bps (V.34) 14 14400 bps (V.34) 15 19200 bps (V.34) 16 28800 bps (V.34) 17 33600 bps (V.34) 34 1200 bps (V.120) 36 2400 bps (V.120) 38 4800 bps (V.120) 39 9600 bps (V.120) 43 14400 bps (V.120) 47 19200 bps (V.120) 48 28800 bps (V.120) 49 38400 bps (V.120) 50 48000 bps (V.120) 51 56000 bps (V.120) 65 300 bps (V.110) 66 1200 bps (V.110) 68 2400 bps (V.110 or X.31 flag stuffing) 70 4800 bps (V.110 or X.31 flag stuffing) 71 9600 bps (V.110 or X.31 flag stuffing)

of supported <name>s),(list of supported

<ce>s)

WCDMA Module

75 14400 bps (V.110 or X.31 flag stuffing) 79 19200 bps (V.110 or X.31 flag stuffing) 80 28800 bps (V.110 or X.31 flag stuffing) 81 38400 bps (V.110 or X.31 flag stuffing) 82 48000 bps (V.110 or X.31 flag stuffing) 83 56000 bps (V.110 or X.31 flag stuffing; this setting can be used in conjunction

with asynchronous non-transparent UDI or RDI service in order to get FTM) 84 64000 bps (X.31 flag stuffing; this setting can be used in conjunction with

asynchronous nontransparent UDI service in order to get FTM) 115 56000 bps (bit transparent) 116 64000 bps (bit transparent) 120 32000 bps (PIAFS32k) 121 64000 bps (PIAFS64k) 130 28800 bps (multimedia) 131 32000 bps (multimedia) 132 33600 bps (multimedia) 133 56000 bps (multimedia) 134 64000 bps (multimedia) also all other values below 128 are reserved by the present document. <name>: 0 data circuit asynchronous (UDI or 3.1 kHz modem) 1 data circuit synchronous (UDI or 3.1 kHz modem) 2 PAD Access (asynchronous) (UDI) 3 Packet Access (synchronous) (UDI) 4 data circuit asynchronous (RDI) 5 data circuit synchronous (RDI) 6 PAD Access (asynchronous) (RDI) 7 Packet Access (synchronous) (RDI) also all other values below 128 are reserved by the present document. <ce>: 0 transparent 1 non-transparent 2 both, transparent preferred 3 both, non-transparent preferred

3.6 +CRLP Radio link protocol

Description

Radio link protocol (RLP) parameters used when non-transparent data calls are originated may be altered with set

command. Available command subparameters depend on the RLP versions implemented by the device (e.g. <ver>

may not be available if device supports only versions 0 and 1).

WCDMA Module

Command

Defined values <ver>, <verx>: RLP version number in integer format; when version indication is

+CRLP=[<iws>[,<mws>[,<T1>[,<N2 >[,<ver>[,<T4>]]]]]]

+CRLP? +CRLP:

+CRLP=?

not present NOTE 2: Versions 0 and 1 share the same parameter set. Read and test

commands shall return set (where <verx> is not present). <iws>, <mws>, <T1>, <N2>, <T4>: IWF to MS window size, MS to IWF window

size, acknowledgement T1, retransmission attempts N2, re-sequencing period T4 in integer format

(default values depend on RLP version; refer 3GPP TS 24.022 [18]): T1 and T4 are in units of

10 ms.

<iws>,<mws>,<T1>,<N2>[,<ver1>[,<T4> ]]

[<CR><LF>+CRLP: <iws>,<mws>,<T1>,<N2>[,<ver2>[,<T4> ]]

[...]]

+CRLP: (list of supported <iws>s),(list of supported <mws>s),

(list of supported <T1>s),(list of supported <N2>s)[,<ver1>

[,(list of supported <T4>s)]] [<CR><LF>+CRLP: (list of supported

<iws>s),(list of supported <mws>s),(list of supported <T1>s),(list of

supported <N2>s) [,<ver1>[,(list of supported <T4>s)]] [...]]

3.7 +CR Service reporting control

Description

Command

Defined values <mode>:

Set command controls whether or not intermediate result code +CR: <serv> is returned from the TA to the TE. If

enabled, the intermediate result code is transmitted at the point during connect negotiation at which the TA has

determined which speed and quality of service will be used, before any error control or data compression reports are

transmitted, and before the intermediate result code CONNECT is transmitted. +CR=[<mode>] +CR? +CR=? +CR: <mode> +CR? +CR: (list of supported <mode>s)

WCDMA Module

0 disables reporting

1 enables reporting <serv>: ASYNC asynchronous transparent SYNC synchronous transparent REL ASYNC asynchronous non-transparent REL SYNC synchronous non-transparent GPRS [<L2P>] GPRS The optional <L2P> proposes a layer 2 protocol to use between the MT and the

TE. It is defined in the Enter GPRS Data Mode (+CGDATA) command.

3.8 +CEER Extended error report

Description

Defined values <report>: the total number of characters, including line terminators, in the

Execution command causes the TA to return one or more lines of information text <report>, determined by the MT

manufacturer, which should offer the user of the TA an extended report of the reason for

- the failure in the last unsuccessful call setup (originating or answering) or in-call modification;

- the last call release;

- the last unsuccessful GPRS attach or unsuccessful PDP context activation;

- the last GPRS detach or PDP context deactivation. Typically, the text will consist of a single line containing the cause information

given by GSM/UMTS network in textual format.

+CEER +CEER: <report> Command +CEER=?

information text shall not exceed 2041 characters.

3.9 +CRC Cellular result codes

Description

Command

Set command controls whether or not the extended format of incoming call indication or GPRS network request for

PDP context activation or notification for VBS/VGCS calls is used. When enabled, an incoming call is indicated to the

TE with unsolicited result code +CRING: <type> instead of the normal RING. Test command returns values supported as a compound value.

+CRC=[<mode>] +CRC? +CRC=[<mode>] +CRC=? +CRC: (list of supported <mode>s)

WCDMA Module

Defined values <mode>:

0 disables extended format 1 enables extended format <type>: ASYNC [,<priority>[,<subaddr>,<satype>]] asynchronous transparent SYNC [,<priority>[,<subaddr>,<satype>]] synchronous transparent REL ASYNC [,<priority>[,<subaddr>,<satype>]] asynchronous non-transparent REL SYNC [,<priority>[,<subaddr>,<satype>]] synchronous non-transparent FAX [,<priority>[,<subaddr>,<satype>]] facsimile (TS 62) VOICE [,<priority>[,<subaddr>,<satype>]] normal voice (TS 11) VOICE/XXX [,<priority>[,<subaddr>,<satype>]] voice followed by data (BS 81)

(XXX is ASYNC, SYNC, REL ASYNC or REL SYNC) ALT VOICE/XXX [,<priority>[,<subaddr>,<satype>]] alternating voice/data,

voice first (BS 61) ALT XXX/VOICE [,<priority>[,<subaddr>,<satype>]] alternating voice/data, data

first (BS 61) ALT VOICE/FAX [,<priority>[,<subaddr>,<satype>]] alternating voice/fax, voice

first (TS 61) ALT FAX/VOICE [,<priority>[,<subaddr>,<satype>]] alternating voice/fax, fax

first (TS 61) GPRS <PDP_type>, <PDP_addr>[, [<L2P>][,<APN>]] GPRS network request

for PDP context VGC <GCA>, <GId>, <ackflag> [,<priority>] voice group call (TS 91) VBC <GCA>, <GId>, <ackflag> [,<priority>] voice broadcast call (TS 92) The optional <priority> indicates the eMLPP priority level of the incoming call by

paging, notification or setup message. The priority level values are as defined in eMLPP specification 3GPP

TS 22.067 [54]. <subaddr>: string type subaddress of format specified by <satype> <satype>: type of subaddress octet in integer format (refer 3GPP TS 24.008 [8]

subclause 10.5.4.8) <PDP_type> ,<PDP_addr> and <APN> are as defined in the Define PDP

Context (+CGDCONT) command. The optional <L2P> proposes a layer 2 protocol to use between the MT and the TE.

It is defined in the Enter GPRS Data Mode (+CGDATA) command. If the MT is unable to announce to the TE the

network's request (for example it is in V.250 online data state) the MT shall reject the request. No corresponding

unsolicited result code shall be issued when the MT returns to a command state. <GCA> is a part of the group call reference as specified in 3GPP TS 23.003 [7]

and indicates group call area. <GId> is a part of the group call reference as specified in 3GPP TS 23.003 [7]

and indicates group call identification.The <ackflag>=1 proposes that a predefined confirmation

procedure is to be used after the call is ended. For <ackflag>=0 no confirmation procedure is required.

WCDMA Module

3.10 +CVHU Voice Hangup Control

Description

Command

Defined values <mode>:

Set command selects whether ATH or "drop DTR" shall cause a voice connection to be disconnected or not. By voice

connection is also meant alternating mode calls that are currently in voice mode. (See subclause 6.6).

+CVHU=[<mode>] +CVHU? +CVHU:<mode> +CVHU=? +CVHU:(list of supported <mode>s)

0 "Drop DTR" ignored but OK response given. ATH disconnects. 1 "Drop DTR" and ATH ignored but OK response given. 2 "Drop DTR" behaviour according to &D setting. ATH disconnects.

3.11 +VGR Receive gain selection

Description

Command

This refers to the amplification by the TA of audio samples sent from the TA to the computer. The command operates

on an integer <n>, range 0...255. Values larger than 128 indicate a larger gain than nominal. Values less than 128

indicate a smaller gain than nominal. The entire range of 0...255 does not have to be provided. A value of zero implies

the use of automatic gain control by the TA. +VGR=<n> +VGR? <n> +VGR=? (list of supported <n>s) +VGR=<n> +VGR? <n>

3.12 +CMUT Mute control

Description

Command

Defined values <n>:

This command is used to enable and disable the uplink voice muting during a voice call. Refer subclause 9.2 for

possible <err> values. Test command returns supported values as compound value.

+CMUT=<n> +CME +CMUT? +CMUT:

+CME ERROR:

0 mute off 1 mute on

WCDMA Module

3.13 +VTD Tone duration

Description

Command

Defined values <n>:

This refers to an integer <n> that defines the length of tones emitted as a result of the +VTS command. This does not

affect the D command. A value different than zero causes a tone of duration <n>/10 seconds. The value zero causes a

"manufacturer specific" value.

+VTD=<n> +VTD? <n> +VTD=? (list of supported <n>s) +VTD=<n> +VTD? <n>

0 mute off 1 mute on

3.14 +VTS DTMF and tone generation

Description

Defined values 1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted

This command allows the transmission of DTMF tones and arbitrary tones (see note). These tones may be used (for

example) when announcing the start of a recording period. The command is write only. In this profile of commands,

this command does not operate in data or fax modes of operation (+FCLASS=0,1,2-7).

+VTS=as above Command +VTS=? (list

as a single ACSII character whose duration is set by the +VTD command. NOTE 2: In GSM this operates only in voice mode.

2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of frequencies <tone1> and <tone2>,

lasting for a time <duration> (in 10 ms multiples). NOTE 3: This does not operate in GSM.

3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different duration from that mandated by the

+VTD command.

3.15 +CLCC List current calls

Description

Returns list of current calls of MT. If command succeeds but no calls are available, no information response is sent to

WCDMA Module

TE. Refer subclause 9.2 for possible <err> values.

+CLCC [+CLCC: <id1>,<dir>,<stat>,<mode>,<mpty>[

<number>,<type>[,<alpha>[,<priority>]]] Command

, [<CR><LF>+CLCC:

<number>,<type>[,<alpha>[,<priority>]]] <id2>,<dir>,<stat>,<mode>,<mpty>[ ,

Defined values <idx>: integer type; call identification number as described in 3GPP TS 22.030

[19] subclause 4.5.5.1; this number can be used in +CHLD command operations <dir>: 0 mobile originated (MO) call 1 mobile terminated (MT) call <stat> (state of the call): 0 active 1 held 2 dialing (MO call) 3 alerting (MO call) 4 incoming (MT call) 5 waiting (MT call) <mode> (bearer/teleservice): 0 voice 1 data 2 fax 3 voice followed by data, voice mode 4 alternating voice/data, voice mode 5 alternating voice/fax, voice mode 6 voice followed by data, data mode 7 alternating voice/data, data mode 8 alternating voice/fax, fax mode 9 unknown <mpty>: 0 call is not one of multiparty (conference) call parties 1 call is one of multiparty (conference) call parties <number>: string type phone number in format specified by <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <alpha>: string type alphanumeric representation of <number> corresponding to

the entry found in phonebook; used character set should be the one selected with command Select TE

Character Set +CSCS <priority>: optional digit type parameter indicating the eMLPP priority level of the

call, values specified in 3GPP TS 22.067 [54]

WCDMA Module

3.16 S<X> Basic S-Register

Description

Command

Defined values ATS0?

The S-registers store configuration parameters that are used for dialing or during an

established call. The value of an S-register may be set by using the syntax: ATSn=<value>

where n is the register number and <value> is a decimal value.

ATS<X>= <value>

ATS<X>?

Note: Disable or enable automatic answering (value: 0-255) 0: Disable; 1-255: Enable after [(value-1)x6 sec.] ATS3? Note: Carriage return character ATS4? Note: Line feed character ATS5? Note: Backspace character ATS6? Note: Pause before blind dialing (value: 2-10) ATS7? Note: Number of seconds to establish end-to-end data connection (value: 1-255) Note: Number of seconds to pause when “,” is encountered in dial string (value: 0-255) ATS9? Note: Carrier detect threshold in increments of 0.1 seconds (value: 0-255) ATS10? Note: Number of tenths of a second from carrier loss to disconnect (value: 1-254) Value 255: disable carrier detect ATS11? Note: DTMF tone duration and spacing in milliseconds (value: 50-

255)

+CME ERROR: <err>

ATS<X>: <value>

+CME ERROR: <err>

WCDMA Module

3.17 +ZFLSH Send Flash/Flash with Information

The command is used to send a Flash/Flash with information to the base station, and it is usually used for call waiting and conference call. When receiving a call from a third party, use AT+ZFLSH command to send FLASH signals to switch between two differenct lines. If one FLASH signal is sent to the base station, the module will return with +ZFLSH. Please note that this doesn’t guarantee the switching between two lines

Descriptions

Format

Example

for CDMA network because the network does not return the confirmation to the module. In a conference call, define the first called party as the first party, dial the first party, use AT+ZFLSH=< second called party’s number to call the second party, and the first party would automatically enter the call held status; once the second call is connected, use AT+ZFLSH command to realize the conference call. If you send a FLASH signal again, it will disconnect the call from the second party. Use ATH command to hang up all calls.

AT+ZFLSH AT+ZFLSH=<phone number>

ATD13333333333； Originate a voice call

AT+ZFLSH Send a FLASH signal to

switch to the second call ATH

Release all calls

ATD13316819064； Connect the first voice call

+ZCORG：13333333333 +ZCCNT：3 +CCWA：”26010681”,129 the second incoming

call OK +ZFLSH Not every switching is always successful OK +ZCEND：10 OK +ZCORG：13316819064

+ZCCNT：3

AT+ZFLSH=26010681 Hold the first call and dial the

second call AT+ZFLSH Realize a conference call AT+ZFLSH Hold the second call and

switch to the first call ATH

Hang up all calls

OK +ZFLSH

OK +ZFLSH （parameter is a must）

OK +ZCEND：10

3.18 +VGT Transmit gain selection

Description The command is used to set MIC gain of currently selected audio path. Format AT+VGT=<MicGain> Example AT+VGT=2 OK

WCDMA Module

AT+VGT？ Check current settings (FYI, no actual meaning) AT+VGT=？ Check the parameters

Parameter Check the volume range, 0 minimum

+VGT：2 OK

+VGT：（0-3） OK

3.19 +ZCORG ORIGINATE CALL

Description This indicates a one-time call orgination. Format +ZCORG:<call_type>,<call_x>

Example

Parameter

ATD18005551212;

<number> telephone number Call_type: call type, voice all（0）,OTA call (standard OTASP numbers)(7),OTA call

（none standard otasp numgbers）（8）emergency call（9） Call_type: call ID

OK +ZCORG:0,1 +ZCCNT:0，1 OK

3.20 +ZCCNT: CALL CONNECT

Description This indicates a one-time call termination or origination. Format +ZCCNT: <call_type>,<call_x>

Example ATD18005551212;

+ZCORG:0，1 +ZCCNT:0，1 Call connection service 3

WCDMA Module

3.21 +ZCEND: CALL END

Description This indicates the end of a voice call end or tryting to end a voice call. Format +ZCEND: <call_X>,<duration>,<end_status>[,<cc_cause]

Example

ATD18005551212;

ATH <call_x>: call ID <duration>: call duration <end_status>: end status <cc_cause>: call control information

end_status： 0： phone is offline

OK +ZCORG:0，1 +ZCCNT:0，1 +ZCEND:1,30,0,0

Parameter

21：phone has no service （Backwards compatibility） 25：received release from BS 27：received incoming call from BS 29：client ended the call 34：RUIM is not present 35：Access attempt already in progress 36：Access failure for reason other than the above 38：Concurrent servive is not supported by base station 39：No response recived from base station 100：rxd a reason from lower layer 101：call orig request failed 102：client rejected the incoming call 103：client rejected the setup_ind 104：network ended the call 106：Phone has no service Other value reserved

WCDMA Module

3.22 +CCWA: Call waiting +CCWA

Description

Command

Defined values

This command allows control of the Call Waiting supplementary service according to 3GPP TS 22.083 [5]. Activation, deactivation and status query are supported. When querying the status of a network service (<mode>=2) the response line for 'not active' case (<status>=0) should be returned only if service is not active for any <class>. Parameter <n> is used to disable/enable the presentation of an unsolicited result code +CCWA: <number>,<type>,<class>,[<alpha>][,<CLI validity>[,<subaddr>,<satype> [,<priority> ]]] to the TE when call waiting service is enabled. Command should be abortable when network is interrogated.

The interaction of this command with other commands based on other GSM/UMTS supplementary services is described in the GSM/UMTS standards.

Test command returns values supported as a compound value.

+CCWA=[<n>[,<mode>[,<class>]]]

+CCWA? +CCWA: <n> +CCWA=? +CCWA: (list of supported <n>s)

<n> (sets/shows the result code presentation status to the TE): 0 disable

+CME ERROR: <err> when <mode>=2 and command

successful +CCWA: <status>,<class1> [<CR><LF>+CCWA: <status>,<class2> [...]]

1 enable

<mode> (when <mode> parameter is not given, network is not interrogated): 0 disable 1 enable 2 query status <classx> is a sum of integers each representing a class of information

(default 7): 1 voice (telephony) 2 data (refers to all bearer services; with <mode>=2 this may refer only to

some bearer service if TA does not support values 16, 32, 64 and 128) 4 fax (facsimile services) 8 short message service 16 data circuit sync 32 data circuit async 64 dedicated packet access

WCDMA Module

128 dedicated PAD access <status>: 0 not active 1 active <number>: string type phone number of calling address in format specified

by <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7)

<alpha>: optional string type alphanumeric representation of <number>

corresponding to the entry found in phonebook; used character set should

be the one selected with command Select TE Character Set +CSCS <CLI validity>:

0 CLI valid 1 CLI has been withheld by the originator. 2 CLI is not available due to interworking problems or limitations of originating

network. When CLI is not available (<CLI validity>=2), <number> shall be an empty string

("") and <type> value will not be significant. Nevertheless, TA may return the recommended value 128 for <type> ((TON/NPI unknown in accordance with TS

24.008 [8] subclause 10.5.4.7). When CLI has been withheld by the originator, (<CLI validity>=1) and the CLIP

is provisioned with the "override category" option (refer 3GPP TS 22.081[3] and 3GPP TS 23.081[40]), <number> and <type> is provided. Otherwise, TA shall return the same setting for <number> and <type> as if the CLI was not available.

<subaddr>: string type subaddress of format specified by <satype> <satype>: type of subaddress octet in integer format (refer TS 24.008 [8]

subclause 10.5.4.8) <priority>: optional digit type parameter indicating that the eMLPP priority level

of the incoming call. The priority level values are as defined in eMLPP specification 3GPP TS 22.067 [54].

3.23 +CHLD: Call related supplementary services +CHLD

Description

This command allows the control of the following call related services:

- a call can be temporarily disconnected from the MT but the connection is retained by the network;

- multiparty conversation (conference calls);

- the served subscriber who has two calls (one held and the other either active or alerting) can connect the other parties and release the served subscriber's own connection.

Calls can be put on hold, recovered, released, added to conversation, and transferred similarly as defined in 3GPP TS 22.030 [19]. Refer subclause 9.2 for possible <err> values.

WCDMA Module

Defined values

This is based on the GSM/UMTS supplementary services HOLD (Call Hold; refer 3GPP TS 22.083 [5] clause 2), MPTY (MultiParty; refer 3GPP TS 22.084 [22]) and ECT (Explicit Call Transfer; refer 3GPP TS 22.091 [29]). The interaction of this command with other commands based on other GSM/UMTS supplementary services is described in the GSM/UMTS standards.

NOTE: Call Hold, MultiParty and Explicit Call Transfer are only applicable to teleservice 11.

It is recommended (although optional) that test command returns a list of operations which are supported. The call number required by some operations shall be denoted by "x" (e.g. +CHLD: (0,1,1x,2,2x,3)).

+CHLD=[<n>] +CME ERROR: <err> Command +CHLD=? [+CHLD: (list of supported <n>s)]

<n>: integer type; equals to numbers entered before SEND button in 3GPP

TS 22.030 [19] subclause 4.5.5.1 NOTE: The "directory number" case shall be handled with dial command D,

and the END case with hangup command H (or +CHUP). The 4*"directory number" case is handled with +CTFR command.

3.24 +CCFC: Call forwarding number and conditions +CCFC

Description

Command

Defined values <reason>:

This command allows control of the call forwarding supplementary service according to 3GPP TS 22.082 [4].

Registration, erasure, activation, deactivation, and status query are supported. When querying the status of a network

service (<mode>=2) the response line for 'not active' case (<status>=0) should be returned only if service is not

active for any <class>.

+CCFC=<reason>,<mode> [,<number>[,<type> [,<class> [,<subaddr>[,<satype> [,<time>]]]]]]

+CCFC=? +CCFC: (list of supported <reason>s)

0 unconditional 1 mobile busy 2 no reply 3 not reachable

+CME ERROR: <err>

when <mode>=2 and command successful:

+CCFC: <status>,<class1>[,<number>,<type>

[,<subaddr>,<satype>[,<time>]]][ <CR><LF>+CCFC:

<status>,<class2>[,<number>,<type> [,<subaddr>,<satype>[,<time>]]] [...]]

WCDMA Module

4 all call forwarding (refer 3GPP TS 22.030 [19]) 5 all conditional call forwarding (refer 3GPP TS 22.030 [19]) <mode>: 0 disable 1 enable 2 query status 3 registration 4 erasure <number>: string type phone number of forwarding address in format specified

by <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7); default 145 when dialling string includes international access code character "+", otherwise 129 <subaddr>: string type subaddress of format specified by <satype> <satype>: type of subaddress octet in integer format (refer TS 24.008 [8]

subclause 10.5.4.8); default 128 <classx> is a sum of integers each representing a class of information (default

7): 1 voice (telephony) 2 data (refers to all bearer services; with <mode>=2 this may refer only to some

bearer service if TA does not support values 16, 32, 64 and 128) 4 fax (facsimile services) 8 short message service 16 data circuit sync 32 data circuit async 64 dedicated packet access 128 dedicated PAD access <time>:

1...30 when "no reply" is enabled or queried, this gives the time in seconds to wait before call is forwarded,

default value 20 <status>: 0 not active 1 active

WCDMA Module

4 Network service related commands

4.1 +CNUM Subscriber number

Description

Defined values 1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted

This command allows the transmission of DTMF tones and arbitrary tones (see note). These tones may be used (for

example) when announcing the start of a recording period. The command is write only. In this profile of commands,

this command does not operate in data or fax modes of operation (+FCLASS=0,1,2-7).

+VTS=as above Command +VTS=? (list

as a single ACSII character whose duration is set by the +VTD command. NOTE 2: In GSM this operates only in voice mode.

2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of frequencies <tone1> and <tone2>,

lasting for a time <duration> (in 10 ms multiples). NOTE 3: This does not operate in GSM.

3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different duration from that mandated by the

+VTD command.

4.2 +CREGNetwork registration

Description

Defined values 1. <DTMF>. A single ASCII character in the set 0-9, #,*,A-D. This is interpreted

This command allows the transmission of DTMF tones and arbitrary tones (see note). These tones may be used (for

example) when announcing the start of a recording period. The command is write only. In this profile of commands,

this command does not operate in data or fax modes of operation (+FCLASS=0,1,2-7).

+VTS=as above Command +VTS=? (list

as a single ACSII character whose duration is set by the +VTD command. NOTE 2: In GSM this operates only in voice mode.

2. [<tone1>,<tone2>,<duration>]. This is interpreted as a dual tone of frequencies <tone1> and <tone2>,

lasting for a time <duration> (in 10 ms multiples). NOTE 3: This does not operate in GSM.

3. {<DTMF>,<duration>}. This is interpreted as a DTMF tone of different

WCDMA Module

duration from that mandated by the +VTD command.

4.3 +COPS PLMN selection

Description

Command

Set command forces an attempt to select and register the GSM/UMTS network operator. <mode> is used to select

whether the selection is done automatically by the MT or is forced by this command to operator <oper> (it shall be

given in format <format>) to a certain access technology, indicated in <AcT>. If the selected operator is not

available, no other operator shall be selected (except <mode>=4). If the selected access technology is not available,

then the same operator shall be selected in other access technology. The selected operator name format shall apply to

further read commands (+COPS?) also. <mode>=2 forces an attempt to deregister from the network. The selected

mode affects to all further network registration (e.g. after <mode>=2, MT shall be unregistered until <mode>=0 or 1 is

selected). Refer subclause 9.2 for possible <err> values. This command should be abortable when

registration/deregistration attempt is made. Read command returns the current mode, the currently selected operator and

the current Access Technology. If no operator is selected, <format>, <oper> and < AcT> are omitted. Test command returns a set of five parameters, each representing an operator

present in the network. A set consists of an integer indicating the availability of the operator <stat>, long and short

alphanumeric format of the name of the operator, numeric format representation of the operator and access technology.

Any of the formats may be unavailable and should then be an empty field. The list of operators shall be in order: home

network, networks referenced in SIM or active application in the UICC (GSM or USIM) in the following order: HPLMN

selector, User controlled PLMN selector, Operator controlled PLMN selector and PLMN selector (in the SIM or

GSM application), and other networks. +COPS=[<mode>[,<format> [,<oper>[,< AcT>]]]]

+COPS?

+CME ERROR: <err>

+COPS: <mode>[,<format>,<oper>[,< AcT>]]

+CME ERROR: <err>

WCDMA Module

Defined values

+COPS=?

+COPS: [list of supported (<stat>,long alphanumeric <oper>

,short alphanumeric <oper>,numeric <oper>[,< AcT>])s]

[,,(list of supported <mode>s),(list of supported <format>s)]

+CME ERROR: <err>

<mode>： 0 automatic (<oper> field is ignored) 1 manual (<oper> field shall be present, and <AcT> optionally) 2 deregister from network 3 set only <format> (for read command +COPS?), do not attempt

registration/deregistration (<oper> and < AcT> fields are ignored); this value is not applicable in read command response 4 manual/automatic (<oper> field shall be present); if manual selection fails,

automatic mode (<mode>=0) is entered <format>: 0 long format alphanumeric <oper> 1 short format alphanumeric <oper> 2 numeric <oper> <oper>: string type; <format> indicates if the format is alphanumeric or numeric;

long alphanumeric format can be upto 16 characters long and short format up to 8 characters (refer GSM MoU

SE.13 [9]); numeric format is the GSM Location Area Identification number (refer TS 24.008 [8] subclause

10.5.1.3) which consists of a three BCD digit country code coded as in ITU-T E.212 Annex A [10], plus a two BCD

digit network code, which is administration specific; returned <oper> shall not be in BCD format, but in IRA

characters converted from BCD; hence the number has structure: (country code digit 3)(country code digit

2)(country code digit 1)(network code digit 3)(network code digit 2)(network code digit 1) <stat>: 0 unknown 1 available 2 current 3 forbidden <AcT> access technology selected: 0 GSM 1 GSM Compact 2 UTRAN

WCDMA Module

4.4 +CLCK Facility lock

Description

Command

Defined values <fac> values reserved by the present document:

Execute command is used to lock, unlock or interrogate a MT or a network facility <fac>. Password is normally

needed to do such actions. When querying the status of a network service (<mode>=2) the response line for 'not active'

case (<status>=0) should be returned only if service is not active for any <class>. Refer subclause 9.2 for possible

<err> values. This command should be abortable when network facilities are set or interrogated.

Call barring facilities are based on GSM/UMTS supplementary services (refer 3GPP TS 22.088 [6]). The interaction of

these with other commands based on other GSM/UMTS supplementary services is described in the GSM/UMTS

standard. Test command returns facility values supported as a compound value.

AT+CLCK+CLCK=<fac>,<mode>[,<passwd>[,<class>]]

"CS" CNTRL (lock CoNTRoL surface (e.g. phone keyboard)) "PS" PH-SIM (lock PHone to SIM/UICC card) (MT asks password when other

than current SIM/UICC card inserted; MT may remember certain amount of previously used cards thus not

requiring password when they are inserted) "PF" lock Phone to the very First inserted SIM/UICC card (also referred in the

present document as PH-FSIM) (MT asks password when other than the first SIM/UICC card is inserted) "SC" SIM (lock SIM/UICC card) (SIM/UICC asks password in MT power-up and

when this lock command issued) "AO" BAOC (Barr All Outgoing Calls) (refer 3GPP TS 22.088 [6] clause 1) "OI" BOIC (Barr Outgoing International Calls) (refer 3GPP TS 22.088 [6] clause

1) "OX" BOIC-exHC (Barr Outgoing International Calls except to Home Country)

(refer 3GPP TS 22.088 [6] clause

1) "AI" BAIC (Barr All Incoming Calls) (refer 3GPP TS 22.088 [6] clause 2) "IR" BIC-Roam (Barr Incoming Calls when Roaming outside the home country)

(refer 3GPP TS 22.088 [6] clause

2) "NT" barr incoming calls from numbers Not stored to TA memory "NM" barr incoming calls from numbers Not stored to MT memory "NS" barr incoming calls from numbers Not stored to SIM/UICC memory "NA" barr incoming calls from numbers Not stored in Any memory "AB" All Barring services (refer 3GPP TS 22.030 [19]) (applicable only for

<mode>=0)

WCDMA Module

"AG" All outGoing barring services (refer 3GPP TS 22.030 [19]) (applicable only for <mode>=0)

"AC" All inComing barring services (refer 3GPP TS 22.030 [19]) (applicable only for <mode>=0)

"FD" SIM card or active application in the UICC (GSM or USIM) fixed dialling memory feature (if PIN2

authentication has not been done during the current session, PIN2 is required as <passwd>)

"PN" Network Personalization (refer 3GPP TS 22.022 [33]) "PU" network sUbset Personalization (refer 3GPP TS 22.022 [33]) "PP" service Provider Personalization (refer 3GPP TS 22.022 [33]) "PC" Corporate Personalization (refer 3GPP TS 22.022 [33]) <mode>: 0 unlock 1 lock 2 query status <status>: 0 not active 1 active <passwd>: string type; shall be the same as password specified for the facility

from the MT user interface or with command Change Password +CPWD <classx> is a sum of integers each representing a class of information (default

7): 1 voice (telephony) 2 data (refers to all bearer services; with <mode>=2 this may refer only to some

4.5 +CPWD Change password

Description

Command

Action command sets a new password for the facility lock function defined by command Facility Lock +CLCK. Refer

subclause 9.2 for possible <err> values. Test command returns a list of pairs which present the available facilities and

the maximum length of their password.

+CPWD=<fac>,<oldpwd>,<newpwd> +CME ERROR: <err>

WCDMA Module

+CPWD=?

Defined values <fac>:

"P2" SIM PIN2 refer Facility Lock +CLCK for other values <oldpwd>, <newpwd>: string type; <oldpwd> shall be the same as password

specified for the facility from the MT user interface or with command Change Password +CPWD and <newpwd>

is the new password; maximum length of password can be determined with <pwdlength> <pwdlength>: integer type maximum length of the password for the facility

+CPWD: list of supported (<fac>,<pwdlength>)s

+CME ERROR: <err>

4.6 +CLIP Calling line identification presentation

Description

Command

This command refers to the GSM/UMTS supplementary service CLIP (Calling Line Identification Presentation) that

enables a called subscriber to get the calling line identity (CLI) of the calling party when receiving a mobile terminated

call. Set command enables or disables the presentation of the CLI at the TE. It has no effect on the execution of the

supplementary service CLIP in the network. When the presentation of the CLI at the TE is enabled (and calling subscriber

allows), +CLIP: <number>,<type>[,<subaddr>,<satype>[,[<alpha>][,<CLI validity>]]] response is

returned after every RING (or +CRING: <type>; refer subclause "Cellular result codes

+CRC") result code sent from TA to TE. It is manufacturer specific if this response is used when normal voice call is

answered. Read command gives the status of <n>, and also triggers an interrogation of the

provision status of the CLIP service according 3GPP TS 22.081 [3] (given in <m>).Test command returns values

supported as a compound value. +CLIP=[<n>]

+CLIP? +CLIP: <n>,<m>

+CLIP=? +CLIP: (list of supported <n>s)

Defined values <n> (parameter sets/shows the result code presentation status to the TE):

0 disable 1 enable <m> (parameter shows the subscriber CLIP service status in the network): 0 CLIP not provisioned 1 CLIP provisioned

WCDMA Module

2 unknown (e.g. no network, etc.) <number>: string type phone number of format specified by <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <subaddr>: string type subaddress of format specified by <satype> <satype>: type of subaddress octet in integer format (refer TS 24.008 [8]

subclause 10.5.4.8) <alpha>: optional string type alphanumeric representation of <number>

corresponding to the entry found in phonebook; used character set should be the one selected with command

Select TE Character Set +CSCS <CLI validity>: 0 CLI valid 1 CLI has been withheld by the originator. 2 CLI is not available due to interworking problems or limitations of originating

network.

4.7 +CLIR Calling line identification restriction

Description

Command

Defined values <n> (parameter sets the adjustment for outgoing calls):

This command refers to CLIR-service according to 3GPP TS 22.081 [3] that allows a calling subscriber to enable or

disable the presentation of the CLI to the called party when originating a call. Set command overrides the CLIR subscription (default is restricted or allowed)

when temporary mode is provisioned as a default adjustment for all following outgoing calls. This adjustment can be

revoked by using the opposite command.. If this command is used by a subscriber without provision of CLIR in permanent

mode the network will act according 3GPP TS 22.081 [3]. Read command gives the default adjustment for all outgoing calls (given in <n>),

and also triggers an interrogation of the provision status of the CLIR service (given in <m>). Test command returns

values supported as a compound value.

+CLIR=[<n>] +CLIR? +CLIR: <n>,<m>

+CLIR=?

0 presentation indicator is used according to the subscription of the CLIR service

1 CLIR invocation 2 CLIR suppression <m> (parameter shows the subscriber CLIR service status in the network): 0 CLIR not provisioned

+CLIR: (list of supported <n>s)

WCDMA Module

1 CLIR provisioned in permanent mode 2 unknown (e.g. no network, etc.) 3 CLIR temporary mode presentation restricted 4 CLIR temporary mode presentation allowed

4.8 +COLP Connected line identification presentation

Description

Command

Defined values <n> (parameter sets/shows the result code presentation status to the TE):

This command refers to the GSM/UMTS supplementary service COLP (Connected Line Identification Presentation)

that enables a calling subscriber to get the connected line identity (COL) of the called party after setting up a mobile

originated call. The command enables or disables the presentation of the COL at the TE. It has no effect on the

execution of the supplementary service COLR in the network. When enabled (and called subscriber allows), +COLP: <number>,<type>[,<subaddr>,<satype> [,<alpha>]] intermediate result code is

returned from TA to TE before any +CR or V.250 [14] responses. It is manufacturer specific if this

response is used when normal voice call is established. Read command gives the status of <n>, and also triggers an interrogation of the

provision status of the COLP service according 3GPP TS 22.081 [3] (given in <m>). Test command returns values supported as a compound value.

+COLP=[<n>] +COLP?

+COLP=?

0 disable 1 enable <m> (parameter shows the subscriber COLP service status in the network): 0 COLP not provisioned 1 COLP provisioned 2 unknown (e.g. no network, etc.) <number>, <type>, <subaddr>, <satype>, <alpha>: refer +CLIP

+COLP: <n>,<m>

+COLP: (list of supported <n>s)

4.9 +CDIP Called line identification presentation

Description

This command related to a network service that provides "multiple called numbers (called line identifications) service"

to an MT. This command enables a called subscriber to get the called line identification of the called party when

WCDMA Module

receiving a mobile terminated call. Set command enables or disables the presentation of the called line identifications at

the TE. When the presentation of the called line identification at the TE is enabled, +CDIP:<number>,<type>[,<subaddr>,<satype>] response is returned after

every RING (or +CRING: <type>; refer subclause "Cellular result codes +CRC") result code sent from TA

to TE. It is manufacturer specific if this response is used when normal voice call is answered. Read command gives the status of <n>, and also triggers an interrogation of the

provision status of the "multiple called numbers" service. Test command returns values supported as a compound

value.

Command

Defined values <n> (parameter sets/shows the result code presentation status to the TE):

+CDIP=[<n>]

+CDIP?

+CDIP=?

0 disable 1 enable <m> (parameter shows the subscriber "multiple called numbers" service status

in the network): 0 "multiple called numbers service" is not provisioned 1 "multiple called numbers service" is provisioned 2 unknown (e.g. no network, etc.) <number>: string type phone number of format specified by <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <subaddr>: string type subaddress of format specified by <satype> <satype>: type of subaddress octet in integer format (refer TS 24.008 [8]

subclause 10.5.4.8)

+CDIP: <n>,<m>

+CDIP: (list of supported <n>s)

4.10 +CPOL Preferred PLMN list

Description This command is used to edit the PLMN selector with Access Technology lists in

the SIM card or active application in the UICC(GSM or USIM). Execute command writes an entry in the SIM/USIM list of preferred PLMNs,

previously selected by the command +CPLS. If no list has been previously selected, the User controlled PLMN

selector with Access Technology, EFPLMNwAcT, is the one accessed by default. If <index> is given but <oper> is

left out, entry is deleted. If <oper> is

WCDMA Module

given but <index> is left out, <oper> is put in the next free location. If only <format> is given, the format of the

<oper> in the read command is changed. The Access Technology selection parameters, <GSM_AcT>,

<GSM_Compact_AcT> and <UTRAN_AcT>, are required when writing User controlled PLMN selector with Access

Technology, EF EFPLMNwAcT, Operator controlled PLMN selector with Access Technology EFOPLMNwAcT and HPLMN

selector with Access Technology EFHPLMNwAcT, see TS 31.102. Refer subclause 9.2 for possible <err> values.

Command

+CPOL=[<index>][, <format>[,<oper>[,<GS

+CME ERROR: <err>

M_AcT>,<GSM_Compact_A cT>,<UTRAN_AcT>]]]

+CPOL?

+CPOL: <index1>,<format>,<oper1>[,<GSM_AcT1

>,<GSM_Com pact_AcT1>,<UTRAN_AcT1>] [<CR><LF>+CPOL: <index2>,<format>,<oper2>[,<GSM_AcT2

>,<GSM_Com pact_AcT2>,<UTRAN_AcT2>] [...]] +CME ERROR: <err>

+CPOL=?

+CPOL: (list of supported <index>s),(list of supported

<format>s) +CME ERROR: <err>

Defined values <indexn>: integer type; the order number of operator in the SIM/USIM preferred

operator list <format>: 0 long format alphanumeric <oper> 1 short format alphanumeric <oper> 2 numeric <oper> <opern>: string type; <format> indicates if the format is alphanumeric or numeric

(see +COPS) <GSM_AcTn>: GSM access technology: 0 access technology not selected 1 access technology selected <GSM_Compact_AcTn>: GSM compact access technology: 0 access technology not selected 1 access technology selected

WCDMA Module

<UTRA_AcTn>: UTRA access technology: 0 access technology not selected 1 access technology selected

4.11 +CPLS Selection of preferred PLMN list

Description This command is used to select one PLMN selector with Access Technology list

in the SIM card or active application in the UICC(GSM or USIM), that is used by +CPOL command. Execute command selects a list in the SIM/USIM. Refer subclause 9.2 for

possible <err> values. Read command returns the selected PLMN selector list from the SIM/USIM Test command returns the whole index range supported lists by the SIM./USIM

Command

Defined values <list>:

+CPLS=<list>

+CPLS?

+CPLS=?

0 User controlled PLMN selector with Access Technology EFPLMNwAcT, if not found in the SIM/UICC then PLMN

preferred list EFPLMNsel (this file is only available in SIM card or GSM application selected in UICC)

1 Operator controlled PLMN selector with Access Technology EFOPLMNwAcT 2 HPLMN selector with Access Technology EFHPLMNwAcT

+CME ERROR: <err>

+CPLS: <list> +CME ERROR: <err>

+CPLS: (list of supported <list>s) +CME ERROR: <err>

4.12 +COPN Read operator names

Description Execute command returns the list of operator names from the MT. Each

operator code <numericn> that has an alphanumeric equivalent <alphan> in the MT memory shall be returned. Refer

subclause 9.2 for possible <err> values.

WCDMA Module

Command

Defined values <numericn>: string type; operator in numeric format (see +COPS)

+COPN

+COPN=?

<alphan>: string type; operator in long alphanumeric format (see +COPS)

+COPN: <numeric1>,<alpha1> [<CR><LF>+COPN: <numeric2>,<alpha2> [...]] +CME ERROR: <err>

4.13 +CGREG GPRS network registration status

Description The set command controls the presentation of an unsolicited result code

+CGREG: <stat> when <n>=1 and there is a change in the MT's GPRS network registration status, or code +CGREG:

<stat>[,<lac>,<ci>] when <n>=2 and there is a change of the network cell. The read command returns the status of result code presentation and an integer

<stat> which shows whether the network has currently indicated the registration of the MT. Location information

elements <lac> and <ci> are returned only when <n>=2 and MT is registered in the network.

Command

Defined values 0 disable network registration unsolicited result code

+CGREG=[<n>]

+ CGREG =?

+ CGREG? +CGREG: <n>,<stat>[,<lac>,<ci>]

1 enable network registration unsolicited result code +CGREG: <stat> 2 enable network registration and location information unsolicited result code

+CGREG: <stat>[,<lac>,<ci>] <stat>: 0 not registered, MT is not currently searching an operator to register to The UE is in GMM state GMM-NULL or GMM-DEREGISTERED-INITIATED. The GPRS service is disabled, the UE is allowed to attach for GPRS if

requested by the user. 1 registered, home network The UE is in GMM state GMM-REGISTERED or

GMM-ROUTING-AREA-UPDATING-INITIATED INITIATED on the home PLMN.

+CGREG: <n>,<stat>[,<lac>,<ci>] +CME ERROR: <err> +CGREG: (list of supported <n>s)

+CME ERROR: <err>

WCDMA Module

2 not registered, but MT is currently trying to attach or searching an operator to register to

The UE is in GMM state GMM-DEREGISTERED or GMM-REGISTERED-INITIATED. The GPRS service is

enabled, but an allowable PLMN is currently not available. The UE will start a GPRS attach as soon as an

allowable PLMN is available. 3 registration denied The UE is in GMM state GMM-NULL. The GPRS service is disabled, the UE is

not allowed to attach for GPRS if requested by the user. 4 unknown 5 registered, roaming The UE is in GMM state GMM-REGISTERED or

GMM-ROUTING-AREA-UPDATING-INITIATED on a visited PLMN. <lac>: string type; two byte location area code in hexadecimal format (e.g.

"00C3" equals 195 in decimal) <ci>: string type; two byte cell ID in hexadecimal format

4.14 +IPR Fixed DTE Rate

Description This command specifies the data rate at which the DCE will accept commands.

Command

Defined values 0 Enable autobaud

+ IPR=[<n>]

+ IPR =?

+ IPR? + SIDET: (list of supported <level>s)

38400 Disable autobaud and set rate to 38400 bps

+CME ERROR: <err>

+ ECHO: <level>

+CME ERROR: <err>

4.15 +FCLASS Select mode

Description This command puts the TA into a particular mode of operation (data, fax, voice

etc.). This causes the TA to process information in a manner suitable for that type of information (rather than for other

types of information). Voice mode is of particular interest here, and has an additional result code

+VCON. Specifically, +VCON indicates that the TA is entering the voice command mode and there is a voice connection to

at least one audio input or output. This

WCDMA Module

presupposes that some mechanism has previously initiated a connection to that audio I/O.

Command

Defined values 0 data

+ FCLASS=[<n>]

+ FCLASS =?

+ FCLASS? + SIDET: (list of supported <level>s)

1 fax class 1 (TIA-578-A)

1.0 fax class 1 (ITU-T T.31 [11]) 2 fax (manufacturer specific)

2.0 fax class 2 (ITU-T T.32 [12] and TIA-592)

3...7 reserved for other fax modes 8 voice

9...15 reserved for other voice modes

16..79 reserved 80 VoiceView (Radish)

+CME ERROR: <err>

+ ECHO: <level>

+CME ERROR: <err>

5 Mobile Termination control and status commands

5.1 +CPAS Phone activity status

Description

command

Defined values <pas>:

Execution command returns the activity status <pas> of the MT. It can be used to interrogate the MT before requesting

action from the phone. Refer subclause 9.2 for possible <err> values. Test command returns values supported by the MT as a compound value.

+CPAS

+CPAS=?

0 ready (MT allows commands from TA/TE) 1 unavailable (MT does not allow commands from TA/TE) 2 unknown (MT is not guaranteed to respond to instructions) 3 ringing (MT is ready for commands from TA/TE, but the ringer is active) 4 call in progress (MT is ready for commands from TA/TE, but a call is in

+CPAS: <pas> +CME ERROR: <err>

+CPAS: (list of supported <pas>s) +CME ERROR: <err>

WCDMA Module

progress) 5 asleep (MT is unable to process commands from TA/TE because it is in a low

functionality state) also all other values below 128 are reserved by the present document.

5.2 +CFUN Set phone functionality

Description Set command selects the level of functionality <fun> in the MT. Level "full

functionality" is where the highest level of power is drawn. "Minimum functionality" is where minimum power is drawn.

Level of functionality between these may also be specified by manufacturers. When supported by manufacturers, MT

resetting with <rst> parameter may be utilized. Refer subclause 9.2 for possible <err> values.

command

Defined values <fun>:

+CFUN=[<fun>[,<rst>]]

+CFUN?

+CFUN=?

0 minimum functionality 1 full functionality 2 disable phone transmit RF circuits only 3 disable phone receive RF circuits only 4 disable phone both transmit and receive RF circuits

5...127 reserved for manufacturers as intermediate states between full and minimum functionality

<rst>: 0 do not reset the MT before setting it to <fun> power level NOTE: This shall be always default when <rst> is not given. 1 reset the MT before setting it to <fun> power level

+CME ERROR: <err>

+CFUN: <fun> +CME ERROR: <err>

+CFUN: (list of supported <fun>s), (list of supported <rst>s)

+CME ERROR: <err>

WCDMA Module

5.3 +CPIN Enter PIN

Description Set command sends to the MT a password which is necessary before it can be

operated (SIM PIN, SIM PUK, PH-SIM PIN, etc.). If the PIN is to be entered twice, the TA shall automatically repeat the

PIN. If no PIN request is pending, no action is taken towards MT and an error message, +CME ERROR, is returned to

TE. Refer subclause 9.2 for possible <err> values. If the PIN required is SIM PUK or SIM PUK2, the second pin is required. This

second pin, <newpin>, is used to replace the old pin in the SIM.

command

Defined values <pin>, <newpin>: string type values

+CPIN=<pin>[,<newpin>] +CME ERROR: <err> +CPIN?

+CPIN=?

<code> values reserved by the present document: READY MT is not pending for any password SIM PIN MT is waiting SIM PIN to be given SIM PUK MT is waiting SIM PUK to be given PH-SIM PIN MT is waiting phone-to-SIM card password to be given PH-FSIM PIN MT is waiting phone-to-very first SIM card password to be given PH-FSIM PUK MT is waiting phone-to-very first SIM card unblocking password

to be given SIM PIN2 MT is waiting SIM PIN2 to be given (this <code> is recommended to

be returned only when the last executed command resulted in PIN2 authentication failure (i.e. +CME

ERROR: 17); if PIN2 is not entered right after the failure, it is recommended that MT does not block its

operation) SIM PUK2 MT is waiting SIM PUK2 to be given (this <code> is recommended to

be returned only when the last executed command resulted in PUK2 authentication failure (i.e. +CME

ERROR: 18); if PUK2 and new PIN2 are not entered right after the failure, it is recommended

that MT does not block its operation) PH-NET PIN MT is waiting network personalization password to be given PH-NET PUK MT is waiting network personalization unblocking password to be

given PH-NETSUB PIN MT is waiting network subset personalization password to be

given PH-NETSUB PUK MT is waiting network subset personalization unblocking

password to be given PH-SP PIN MT is waiting service provider personalization password to be given PH-SP PUK MT is waiting service provider personalization unblocking password

+CPIN: <code> +CME ERROR: <err>

WCDMA Module

to be given PH-CORP PIN MT is waiting corporate personalization password to be given PH-CORP PUK MT is waiting corporate personalization unblocking password to

be given

5.4 +CSQ Signal quality

Description Execution command returns received signal strength indication <rssi> and

channel bit error rate <ber> from the MT. Refer subclause 9.2 for possible <err> values.

command

Defined values <rssi>:

+CSQ

+CSQ=?

0 -113 dBm or less 1 -111 dBm

2...30 -109... -53 dBm 31 -51 dBm or greater 99 not known or not detectable <ber> (in percent):

0...7 as RXQUAL values in the table in TS 45.008 [20] subclause 8.2.4 99 not known or not detectable

+CSQ: <rssi>,<ber> +CME ERROR: <err>

+CSQ: (list of supported <rssi>s),(list of supported <ber>s)

5.5 +CCLK Clock

Description

Command

Defined values <time>: string type value; format is "yy/MM/dd,hh:mm:ss zz", where characters 　

Set command transmits to the MT the <command> it then shall send as it is to the SIM.

+CCLK=<time> +CME ERROR: <err> +CCLK?

+CCLK=?

indicate year (two last digits), month, day, hour, minutes, seconds and time zone (indicates the difference,

expressed in quarters of an hour, between the local time and GMT; range -96...+96). E.g. 6th of May 1994,

+CCLK: <time> +CME ERROR: <err>

WCDMA Module

5.6 +CSIM

22:10:00 GMT+2 hours equals to "94/05/06,22:10:00+08"

Description

Command

Defined values <length> : integer type; length of the characters that are sent to TE in

Set command transmits to the MT the <command> it then shall send as it is to the SIM.

at+CSIM=<length>,<command>

<command> or <response> (two times the actual length of the command or response) <command> : command passed on by the MT to the SIM in the format as

described in GSM 51.011 [28] (hexadecimal character format; refer +CSCS) <response> : response to the command passed on by the SIM to the MT in the

format as described in GSM 51.011 [28] (hexadecimal character format; refer +CSCS)

5.7 +CRSM

Description

Command

By using this command instead of Generic SIM Access +CSIM TE application has easier but more limited access to the

SIM database. Set command transmits to the MT the SIM <command> and its required parameters. MT handles

internally all SIM-MT interface locking and file selection routines. As response to the command, MT sends the actual

SIM information parameters and response data. MT error result code +CME ERROR may be returned when the

command cannot be passed to the SIM, but failure in the execution of the command in the SIM is reported in <sw1>

and <sw2> parameters. Refer to subclause 9.2 for <err> values. Coordination of command requests to SIM and the ones issued by GSM/UMTS

application inside the MT is implementation dependent. However the TE should be aware of the precedence

of the GSM/UMTS application commands to the TE commands. +CRSM=<command>[,<fileid> [,<P1>,<P2>,<P3> [,<data>[,<pathid>]]]]

WCDMA Module

Defined values <command> (command passed on by the MT to the SIM; refer GSM 51.011

[28]): 176 READ BINARY 178 READ RECORD 192 GET RESPONSE 214 UPDATE BINARY 220 UPDATE RECORD 242 STATUS 203 RETRIEVE DATA 219 SET DATA

5.8 +CLAC

Description

Command

Defined values <command> (command passed on by the MT to the SIM; refer GSM 51.011

Execution command causes the MT to return one or more lines of AT Commands.

+CLAC +CLAC

+CLAC=?

[28]): 176 READ BINARY 178 READ RECORD 192 GET RESPONSE 214 UPDATE BINARY 220 UPDATE RECORD 242 STATUS 203 RETRIEVE DATA 219 SET DATA

<AT Command1> [<CR> <LF> <AT Command2>[…]]

+CME ERROR: <err> +CME ERROR: <err>

5.9 +CTZU

Description

Set command enables and disables automatic time zone update via NITZ. If setting fails in an MT error, +CME

ERROR: <err> is returned. Refer subclause 9.2 for <err> values. Read command returns the current settings in the MT. Test command returns supported on- and off-values. +CTZU=<onoff> +CME ERROR: <err> Command +CTZU? +CTZU: <onoff>

+CME ERROR: <err>

WCDMA Module

+CTZU=? +CTZU: (list of supported <onoff>s)

Defined values <onoff>: integer type value indicating:

0 – Disable automatic time zone update via NITZ (default). 1 – Enable automatic time zone update via NITZ.

5.10 +CTZR

+CME ERROR: <err>

Description

Command

Defined values <onoff>: integer type value indicating:

This set command enables and disables the time zone change event reporting. If the reporting is enabled the MT returns

the unsolicited result code +CTZV: <tz> whenever the time zone is changed. If setting fails in an MT error, +CME

ERROR: <err> is returned. Refer subclause 9.2 for <err> values. Read command returns the current reporting settings in the MT. Test command returns supported <onoff>-values. +CTZR=<onoff>

+CTZR?

+CTZR=?

0 – disable time zone change event reporting (default). 1 – Enable time zone change event reporting.

+CME ERROR: <err>

+CTZR: <onoff> +CME ERROR: <err> +CTZR: (list of supported <onoff>s) +CME ERROR: <err>

5.11 +CLVL Loudspeaker volume level

Description

Command

This command is used to select the volume of the internal loudspeaker of the MT. Refer subclause 9.2 for possible

<err> values. Test command returns supported values as compound value.

+CLVL=<level> +CME ERROR: <err>

+ CLVL?

+ CLVL =?

+CLVL: <level> +CME ERROR: <err>

+CLVL: (list of supported <level>s) +CME ERROR: <err>

WCDMA Module

Defined values <level>: integer type value with manufacturer specific range (smallest value

represents the lowest sound level)

5.12 +ECHO Echo Cancellation

Description

Command

Defined values 0: Vocoder Echo Cancellation Off

This command is used to enable, disable or configure the Echo Cancellation functions for

voice calls (in rooms, in cars, etc.). The +SPEAKER function automatically sets echo

cancellation based upon handset or headset choice and this command allows non-standard

operation. +ECHO=<level> +CME ERROR: <err> + ECHO?

+ ECHO =?

1: Ear Seal Echo Cancellation 2: Head Set Echo Cancellation 3: AEC 4: Speaker Echo Cancellation for car kit operation 5: Default Echo Cancellation for current path settings

+ ECHO: <level> +CME ERROR: <err>

+ ECHO: (list of supported <level>s) +CME ERROR: <err>

5.13 +SIDET Side Tone Modification

Description

Command

Defined values <val1>

This command is used to set the level of audio feedback in the speaker (microphone

feedback in the speaker).

AT+SIDET=1,0 +CME ERROR: <err>

+ SIDET?

+ SIDET=?

0: Sidetone is disabled 1: Sidetone is enabled <val2> 0: No side tone 1: Handset Sidetone levels 2: Headset Sidetone levels 3: Max Sidetone level

+ SIDET: <level>

+CME ERROR: <err>

+ SIDET: (list of supported <level>s) +CME ERROR: <err>

WCDMA Module

6 SMS command

6.1 +CMGC: Send Command

Description

Command

Defined values

Execution command sends a command message from a TE to the network (SMS-COMMAND). The entering of PDU is

done similarly as specified in command Send Message +CMGS. Message reference value <mr> is returned to the TE on

successful message delivery. Optionally (when +CSMS <service> value is 1 and network supports) <ackpdu> is

returned. Values can be used to identify message upon unsolicited delivery status report result code. If sending fails in a

network or an ME error, final result code +CMS ERROR: <err> is returned. See chapter Message Service Failure

Result Code for a list of <err> values. This command should be abortable.

if PDU mode (+CMGF=0):

+CMGC=<length><CR>

PDU is given<ctrl-Z/ESC>

if PDU mode (+CMGF=0) and sending successful:

+CMGC: <mr>[,<ackpdu>]

if sending fails:

+CMS ERROR: <err>

6.2 6.2 +CMGD: Delete Message

Description

Command

Defined values <delflag>: an integer indicating multiple message deletion request as follows:

Execution command deletes message from preferred message storage <mem1> location <index>. If <delflag> is

present and not set to 0 then the ME shall ignore <index> and follow the rules for <delflag> shown below. If deleting

fails, final result code +CMS ERROR: <err> is returned. See chapter Message Service Failure Result Code for

<err> values. Test command shows the valid memory locations and optionally the supported

values of <delflag>.

0 (or omitted) Delete the message specified in <index> 1 Delete all read messages from preferred message storage, leaving unread

messages and stored mobile originated messages (whether sent or not) untouched 2 Delete all read messages from preferred message storage and sent mobile

WCDMA Module

originated messages, leaving unread messages and unsent mobile originated messages untouched 3 Delete all read messages from preferred message storage, sent and unsent

mobile originated messages leaving unread messages untouched. 4 Delete all messages from preferred message storage including unread

messages.

6.3 +CMGF: Message Format

Description

Command

Defined values <mode>:

Set command tells the TA, which input and output format of messages to use. <mode> indicates the format of messages

used with send, list, read and write commands and unsolicited result codes resulting from received messages. Mode can

be either PDU mode (entire TP data units used) or text mode (headers and body of the messages given as separate

parameters). Text mode uses the value of parameter <chset> specified by command Select TE Character Set +CSCS

to inform the character set to be used in the message body in the TA-TE interface.

Test command returns supported modes as a compound value.

+CMGF=[<mode>]

+CMGF?

+CMGF=?

0 PDU mode (default when implemented) 1 text mode

+CMGF: <mode>

+CMGF: (list of supported <mode>s)

6.4 +CMGL: List Messages

Description

Execution command returns messages with status value <stat> from preferred message storage <mem1> to the TE.

Entire data units <pdu> are returned. If status of the message is 'received unread', status in the storage changes to

'received read'. If listing fails, final result code +CMS ERROR: <err> is returned. See chapter Message Service

Failure Result Code for <err> values. Test command shall give a list of all status values supported by the TA.

WCDMA Module

Command

Defined values

+CMGL[=<stat>]

+CMGL=?

6.5 +CMGR: Read Message

Description

Command

Defined values Mode:

Execution command returns message with location value <index> from preferred message storage <mem1> to the TE.

Status of the message and entire message data unit <pdu> is returned. If status of the message is 'received unread',

status in the storage changes to 'received read'. If reading fails, final result code +CMS ERROR: <err> is returned.

See chapter Message Service Failure Result Code for <err> values.

+CMGR=<index>，<mode>

+CMGR=?

0:changed the unread flag 1:not changed the unread flag

if PDU mode (+CMGF=0) and command successful:

+CMGL: <index>,<stat>,[<alpha>],<length><CR> <LF><pdu>

[<CR><LF>+CMGL:<index>,<stat>,[<alp ha>],<length><CR><LF><pdu>

[...]]

otherwise:

+CMS ERROR: <err>

+CMGL: (list of supported <stat>s)

if PDU mode (+CMGF=0) and command successful:

+CMGR: <stat>,[<alpha>],<length><CR><LF><pd u>

otherwise:

+CMS ERROR: <err>

6.6 +CMGS: Send Message

Description

Execution command sends message from a TE to the network (SMS-SUBMIT). Message reference value <mr> is

returned to the TE on successful message delivery. Optionally (when +CSMS

WCDMA Module

Command

Defined values

<service> value is 1 and network supports) <ackpdu> is returned. Values can be used to identify message upon

unsolicited delivery status report result code. If sending fails in a network or an ME error, final result code +CMS

ERROR: <err> is returned. See chapter Message Service Failure Result Code for a list of <err> values. This command

should be abortable.

- <length> must indicate the number of octets coded in the TP layer data unit to be given (i.e. SMSC address

octets are excluded)

- the TA shall send a four character sequence <CR><LF><greater_than><space> (IRA 13, 10, 62, 32)

after command line is terminated with <CR>; after that PDU can be given from TE to ME/TA

- the DCD signal shall be in ON state while PDU is given

- the echoing of given characters back from the TA is controlled by V.25ter echo command E

- the PDU shall be hexadecimal format (similarly as specified for <pdu>) and given in one line; ME/TA converts

this coding into the actual octets of PDU

- when the length octet of the SMSC address (given in the PDU) equals zero, the SMSC address set with command

Service Centre Address +CSCA is used; in this case the SMSC Type-of-Address octet shall not be present in the

PDU, i.e. TPDU starts right after SMSC length octet

- sending can be cancelled by giving <ESC> character (IRA 27)

- <ctrl-Z> (IRA 26) must be used to indicate the ending of PDU

if PDU mode (+CMGF=0):

+CMGS=<length><CR> PDU is given<ctrl-Z/ESC>

+CMGS=?

if PDU mode (+CMGF=0) and sending successful:

+CMGS: <mr>[,<ackpdu>]

if sending fails:

+CMS ERROR: <err>

6.7 +CMGW: Write Message to Memory

Description

Execution command stores a message to memory storage <mem2>. Memory location <index> of the stored message is

returned. By default message status will be set to 'stored unsent', but parameter <stat> allows also other status values

to be given. (ME/TA manufacturer may choose to use different default <stat>

WCDMA Module

values for different message types.) The entering of PDU is done similarly as specified in command Send Message

+CMGS. If writing fails, final result code +CMS ERROR: <err> is returned. See chapter Message Service Failure Result

Code for <err> values.

Command

Defined values

if PDU mode (+CMGF=0): +CMGW=<length>[,<stat>]<CR>PD

U is given<ctrl-Z/ESC>

+CMGW=?

+CMGW: <index> +CMS ERROR: <err>

6.8 +CMSS: Send Message from Storage

Description

Command

Defined values

Execution command sends message with location value <index> from message storage <mem2> to the network (SMSSUBMIT

or SMS-COMMAND). If new recipient address <da> is given for SMS-SUBMIT, it shall be used instead of

the one stored with the message. Reference value <mr> is returned to the TE on successful message delivery. Optionally

(when +CSMS <service> value is 1 and network supports) <ackpdu> is returned. Values can be used to identify

message upon unsolicited delivery status report result code. If sending fails in a network or an ME error, final result

code +CMS ERROR: <err> is returned. See chapter Message Service Failure Result Code for a list of <err> values.

This command should be abortable.

+CMSS=<index>[,<da>[,<toda>]]

+CMSS=?

if PDU mode (+CMGF=0) and sending successful:

+CMSS: <mr>[,<ackpdu>]

if sending fails:

+CMS ERROR: <err>

6.9 +CNMI: New Message Indications to TE

Description Set command selects the procedure, how receiving of new messages from the

network is indicated to the TE when TE is

WCDMA Module

active, e.g. DTR signal is ON. If TE is inactive (e.g. DTR signal is OFF),

message receiving should be done as specified in GSM 03.38.

Command

+CNMI=[<mode>[,<mt>[,<bm>[,<ds >[,

+CMS ERROR: <err>

<bfr>]]]]]

+CNMI?

+CNMI=?

+CNMI: <mode>,<mt>,<bm>,<ds>,<bfr>

+CNMI: (list of supported <mode>s),(list of

supported <mt>s),(list of supported <bm>s),(list of

supported <ds>s),(list of supported <bfr>s)

Defined values <mode>

0 Buffer unsolicited result codes in the TA. If TA result code buffer is full, indications can be buffered in some

other place or the oldest indications may be discarded and replaced with the new received indications.

1 Discard indication and reject new received message unsolicited result codes when TA-TE link is reserved (e.g. in

on-line data mode). Otherwise forward them directly to the TE. 2 Buffer unsolicited result codes in the TA when TA-TE link is reserved (e.g. in

on-line data mode) and flush them to the TE after reservation. Otherwise forward them directly to the TE. 3 Forward unsolicited result codes directly to the TE. TA-TE link specific inband

technique used to embed result codes and data when TA is in on-line data mode. <mt> (the rules for storing received SMs depend on its data coding scheme

(refer GSM 03.38 [2]), preferred memory storage (+CPMS) setting and this value; refer table 1; NOTE: If AT command interface is acting as the only display device, the ME

must support storing of class 0 messages and messages in the message waiting indication group (discard

message); refer table 2): 0 No SMS-DELIVER indications are routed to the TE. 1 If SMS-DELIVER is stored into ME/TA, indication of the memory location is

routed to the TE using unsolicited result code: +CMTI: <mem>,<index> 2 SMS-DELIVERs (except class 2 messages and messages in the message

waiting indication group (store message)) are routed directly to the TE using unsolicited result code: +CMT: [<alpha>],<length><CR><LF><pdu> (PDU mode enabled)

WCDMA Module

or +CMT: <oa>, [<alpha>],<scts>[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>, <length>]<CR><LF><data> (text mode enabled; about parameters in italics,

refer command Show Text Mode Parameters +CSDH) If ME has its own display device then class 0 messages and messages in the

message waiting indication group (discard message) may be copied to both ME display and to TE. In this case,

ME shall send the acknowledgement to the network (refer table 2). Class 2 messages and messages in the message waiting indication group

(store message) result in indication as defined in <mt>=1. 3 Class 3 SMS-DELIVERs are routed directly to TE using unsolicited result

codes defined in <mt>=2. Messages of other data coding schemes result in indication as defined in <mt>=1. <bm> (the rules for storing received CBMs depend on its data coding scheme

(refer GSM 03.38 [2]), the setting of Select CBM Types (+CSCB) and this value; refer table 3): 0 No CBM indications are routed to the TE. 1 If CBM is stored into ME/TA, indication of the memory location is routed to the

TE using unsolicited result code: +CBMI: <mem>,<index> 2 New CBMs are routed directly to the TE using unsolicited result code: +CBM: <length><CR><LF><pdu> (PDU mode enabled) or +CBM: <sn>,<mid>,<dcs>,<page>,<pages><CR><LF><data> (text mode

enabled) If ME supports data coding groups which define special routing also for

messages other than class 3 (e.g. SIM specific messages), ME may choose not to route messages of such data coding

schemes into TE (indication of a stored CBM may be given as defined in <bm>=1). 3 Class 3 CBMs are routed directly to TE using unsolicited result codes defined

in <bm>=2. If CBM storage is supported, messages of other classes result in indication as defined in <bm>=1. <ds>: 0 No SMS-STATUS-REPORTs are routed to the TE. 1 SMS-STATUS-REPORTs are routed to the TE using unsolicited result code: +CDS: <length><CR><LF><pdu> (PDU mode enabled) or +CDS: <fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st> (text mode enabled) 2 If SMS-STATUS-REPORT is stored into ME/TA, indication of the memory

location is routed to the TE using unsolicited result code: +CDSI: <mem>,<index>

WCDMA Module

<bfr>: 0 TA buffer of unsolicited result codes defined within this command is flushed to

the TE when <mode> 1...3 is entered (OK response shall be given before flushing the codes). 1 TA buffer of unsolicited result codes defined within this command is cleared

when <mode> 1...3 is entered.

6.10 +CPMS: Preferred Message Storage

Description

Command

Defined values

Set command selects memory storages <mem1>, <mem2> and <mem3> to be used for reading, writing, etc. If chosen

storage is not appropriate for the ME (but is supported by the TA), final result code +CMS ERROR: <err> shall be

returned. See chapter Message Service Failure Result Code for a list of possible <err> values.

Test command returns lists of memory storages supported by the TA.

+CPMS=<mem1>[, <mem2>[,<mem3>]]

+CPMS?

+CTZR=?

+CPMS: <used1>,<total1>,<used2>,<total2>,<us ed3>,<total3>

+CMS ERROR: <err>

+CTZR: <onoff> +CME ERROR: <err>

+CTZR: (list of supported <onoff>s) +CME ERROR: <err>

6.11 +CSCA: Service Centre Address

Description

Set command updates the SMSC address, through which mobile originated SMs are transmitted. In text mode, setting is

used by send and write commands. In PDU mode, setting is used by the same commands, but only when the length of

the SMSC address coded into <pdu> parameter equals zero.

+CSCA=<sca>[,<tosca>]

+CSCA?

Command

+CSCA: <sca>,<tosca>

WCDMA Module

+CSCA=?

Defined values

6.12 +CSCB: Select Cell Broadcast Message Types

Description

Command

Defined values <mode>:

Set command selects which types of CBMs are to be received by the ME. Test command returns supported modes as a compound value.

+CSCB=[<mode>[,<mids>[,<dcss>]] ]

+CSCB?

+CSCB=?

0 message types specified in <mids> and <dcss> are accepted 1 message types specified in <mids> and <dcss> are not accepted <mids>: string type; all different possible combinations of CBM message

identifiers (refer <mid>) (default is empty string); e.g. "0,1,5,320-478,922" <dcss>: string type; all different possible combinations of CBM data coding

schemes (refer <dcs>) (default is empty string); e.g. "0-3,5"

+CSCB: <mode>,<mids>,<dcss>

+CSCB: (list of supported <mode>s)

6.13 +CSMP Set Text Mode Parameters

Description

Set command is used to select values for additional parameters needed when SM is sent to the network or placed in a

storage when text format message mode is selected. It is possible to set the validity period starting from when the SM is

received by the SMSC (<vp> is in range 0... 255) or define the absolute time of the validity period termination (<vp>

is a string). The format of <vp> is given by <fo>. If TA supports the enhanced validity period format ($(EVPF)$, see

GSM 03.40), it shall be given as a hexadecimal coded string (refer e.g. <pdu>) with double quotes.

+CSMP=[<fo>[,<vp>[,<pid>[,<dcs>]] ]]

+CSMP?

Command

+CSMP: <fo>,<vp>,<pid>,<dcs>

WCDMA Module

+CSMP=?

Defined values <mode>:

0 message types specified in <mids> and <dcss> are accepted 1 message types specified in <mids> and <dcss> are not accepted <mids>: string type; all different possible combinations of CBM message

identifiers (refer <mid>) (default is empty string); e.g. "0,1,5,320-478,922" <dcss>: string type; all different possible combinations of CBM data coding

schemes (refer <dcs>) (default is empty string); e.g. "0-3,5"

6.14 +CSMS Select Message Service

Description

Command

Defined values <service>:

Set command selects messaging service <service>. It returns the types of messages supported by the ME: <mt> for

mobile terminated messages, <mo> for mobile originated messages and <bm> for broadcast type messages. If chosen

service is not supported by the ME (but is supported by the TA), final result code +CMS ERROR: <err> shall be

returned. See chapter Message Service Failure Result Code for a list of <err> values.

Also read command returns supported message types along the current service setting.

Test command returns a list of all services supported by the TA.

+CSMS=<service>

+CSMS=?

0 GSM 03.40 and 03.41 (the syntax of SMS AT commands is compatible with GSM 07.05 Phase 2 version

4.7.0; Phase 2+ features which do not require new command syntax may be supported (e.g. correct routing

of messages with new Phase 2+ data coding schemes)) 1 GSM 03.40 and 03.41 (the syntax of SMS AT commands is compatible with

GSM 07.05 Phase 2+ version; the requirement of <service> setting 1 is mentioned under

corresponding command descriptions)

2...127 reserved

128... manufacturer specific <mt>, <mo>, <bm>: 0 type not supported 1 type supported

+CSMS: <mt>,<mo>,<bm> +CMS ERROR: <err> +CSMS: (list of supported <service>s)

WCDMA Module

6.15 +CNMA New Message Acknowlegement

Description

Command

Defined values This AT command is not designed for input of the command into the Hyper

Execution command confirms correct reception of a new message (SMS-DELIVER or SMS-STATUS-REPORT) which

is routed directly to the TE (refer command +CNMI tables 2 and 4). This acknowledgement command (causing ME to

send RP-ACK to the network) shall be used when +CSMS parameter <service> equals 1. TA shall not send another

+CMT or +CDS result code to TE before previous one is acknowledged. If ME does not get acknowledgement within required time (network timeout), ME

should send RP-ERROR to the network. ME/TA shall automatically disable routing to TE by setting both <mt>

and <ds> values of +CNMI to zero. If command is executed, but no acknowledgement is expected, or some other

ME related error occurs, final result code +CMS ERROR: <err> is returned. See chapter Message Service Failure Result

Code for a list of <err> values.

if text mode (+CMGF=1):

+CNMA

+CNMA?

+CSMS=?

terminal by hand since the acknowledgement will not be quick enough to be received by the

network. However, it is possible for the client system to automatically send this command

when the +CNMI is set to “2,2,0,0,0”.

+CMS ERROR: <err>

+CSMS: <service>,<mt>,<mo>,<bm>

+CSMS: (list of supported <service>s)

6.16 +CMMS More Messages to Send

Description

Command

Defined values 0 disable

Set command controls the continuity of SMS relay protocol link. When feature is enabled (and supported by network)

multiple messages can be sent much faster as link is kept open. Test command returns supported values as a compound value.

+CMMS=[<n>] +CMMS?

+CMMS=?

1 keep enabled until the time between the response of the latest message send command (+CMGS, +CMSS, etc.) and

+CMMS: <n>

+CMMS: (list of supported <n>s)

WCDMA Module

the next send command exceeds 1-5 seconds (the exact value is up to ME implementation), then ME shall close

the link and TA switches <n> automatically back to 0 2 enable (if the time between the response of the latest message send

command and the next send command exceeds 1-5 seconds (the exact value is up to ME implementation), ME shall

close the link but TA shall not switch automatically back to <n>=0)

6.17 +CGSMS Select Service for MO SMS Messages

Description

Command

Defined values <service>: a numeric parameter which indicates the service or service

The set command is used to specify the service or service preference that the MT will use to send MO SMS messages.

The read command returns the currently selected service or service preference. The test command is used for requesting information on the currently available

services and service preferences.

+CGSMS= [<service>] OK

ERROR

+ CGSMS?

+ CGSMS =?

preference to be used 0 Packet Domain 1 circuit switched 2 Packet Domain preferred (use circuit switched if GPRS not available) 3 circuit switched preferred (use Packet Domain if circuit switched not available) Other values are reserved and will result in an ERROR response to the set

command.

+CGSMS: <service>

+CGSMS: (list of currently available <service>s)

6.18 +CMT Incoming Message Directly Displayed

Description

Command

This response indicates that an incoming message has been received and according to themessage storage preferences (+CNMI), is to be directly displayed.

+CMT：<oa>, [<alpha>],<scts> [,<t ooa>,<fo>,<pid>,<dcs>,<sca>,<tosc a>,<length>]<CR><LF><data> (text mode enabled; about parameters in italics, refer command Show Text Mode Parameters +CSDH)

or +CMT： [<alpha>],<length><CR><LF><pdu > (PDU mode enabled)

OK ERROR

WCDMA Module

Defined values <oa> Originator Address.

<scts> Service Center Time Stamp in string format : “yy/MM/dd,hh :mm :ss±zz”

(Year/Month/Day,Hour:Min:Seconds±TimeZone)

<tooa> Type-of-Address of <oa> <lang> Language <encod> Encoding method <priority>: Message priority:

0 – Normal 1 – Interactive 2 – Urgent 3 – Emergency

<cbn> Call Back Number <length> The number of characters in the following <data> field <data> Message contents

6.19 +CMTI Incoming Message Stored in Memory

Description

Command

Defined values <mem> NVRAM storage area (always “MT” for this response)

This response indicates that an incoming message has been received and according to the

message storage preferences (+CNMI), is to be stored in memory. +CMTI: <mem>,<index> OK

ERROR

<index> location of message within storage area

6.20 +ZMGF：Message Full

This indicates that the message center is trying to send a short message to the

Description

Format +ZMGF:n Example

Parameter

module but is rejected because the message memory is full. Need use AT+CMGD command to delete some messages.

+ZMGF Indicates there is a new message, but it’s rejected n: indicates that message memory is full 1: WMS_MEMORY_STORE_RAM_GW 2: WMS_MEMORY_STORE_SIM 3: WMS_MEMORY_STORE_NV_GW Among the above, 1 and 3 might be viewed as mobile phone, 2 might be viewed as

Module

WCDMA Module

7 Phonebook commands

7.1 +CPBS Select Phonebook memory storage

Description

Command

Defined values "DC" MT dialled calls list (+CPBW may not be applicable for this storage)

Set command selects phonebook memory storage <storage>, which is used by other phonebook commands. If

setting fails in an MT error, +CME ERROR: <err> is returned. Refer subclause

9.2 for <err> values. Read command returns currently selected memory, and when supported by

manufacturer, number of used locations and total number of locations in the memory. Test command returns supported storages as compound value.

+CPBS=<storage> [,<password>]

+CPBS?

+CPBS =?

"EN" SIM/USIM (or MT) emergency number (+CPBW is not be applicable for this storage)

"FD" SIM/USIM fixdialling-phonebook. If a SIM card is present or if a UICC with an active GSM application

is present, the information in EFFDN under DFTelecom is selected. If a UICC with an active USIM

application is present, the information in EFFDN under ADFUSIM is selected. "LD" SIM/UICC last-dialling-phonebook "MC" MT missed (unanswered received) calls list (+CPBW may not be

applicable for this storage) "ME" MT phonebook "MT" combined MT and SIM/USIM phonebook "ON" SIM (or MT) own numbers (MSISDNs) list (reading of this storage may be

available through +CNUM also). When storing information in the SIM/UICC, if a SIM card is present or if a

UICC with an active GSM application is present, the information in EFMSISDN under DFTelecom is

selected. If a UICC with an active USIM application is present, the information in EFM SISDN

under ADFUSIM is selected. "RC" MT received calls list (+CPBW may not be applicable for this storage) "SM" SIM/UICC phonebook. If a SIM card is present or if a UICC with an active

GSM application is present, the EFADN under DFTelecom is selected. If a UICC with an active USIM

application is present, the global

+CME ERROR: <err>

+CPBS: <storage>[,<used>,<total>] +CME ERROR: <err> +CPBS: (list of supported <storage>s)

WCDMA Module

phonebook, DFPHONEBOOK under DFTelecom is selected. "TA" TA phonebook "AP" Selected application phonebook. If a UICC with an active USIM application

is present, the application phonebook, DFPHONEBOOK under ADFUSIM is selected. <password>: string type value representing the PIN2-code required when

selecting PIN2-code locked <storage>s above, e.g. "FD" or the hidden key to be verified in order to access

to the hidden phonebook entries in the UICC/USIM or any other phonebook with hidden entries. If the combined phonebook is selected, "MT", the <password> will correspond

to the hidden key of the USIM phonebook. <used>: integer type value indicating the number of used locations in selected

memory <total>: integer type value indicating the total number of locations in selected

memory

"MC" and "RC" is not needed so no function

7.2 +CPBR Read Phonebook Entries

Description

Execution command returns phonebook entries in location number range <index1>... <index2> from the current

phonebook memory storage selected with +CPBS. If <index2> is left out, only location <index1> is returned. Entry

fields returned are location number <indexn>, phone number stored there <number> (of format <type>), text

<text> associated with the number, if the selected phonebook supports hidden entries, <hidden> indicating if the

entry is hidden, <group> indicating a group the entry may belong to, <adnumber> an additional number (of

format <adtype>), <secondtext> a second text field associated with the number and <email> an email

field. If all queried locations are empty (but available), no information text lines may be returned. If listing fails in an

MT error, +CME ERROR: <err> is returned. Refer subclause 9.2 for <err> values.

Test command returns location range supported by the current storage as a compound value and the maximum lengths

of <number>, <text>, <group>, <secondtext> and <email> fields. In case of (U)SIM storage, the lengths

may not be available. If MT is not currently reachable, +CME ERROR: <err> is returned. Refer subclause 9.2 for

<err> values.

WCDMA Module

Command

+CPBR=<index1> [,<index2>]

[+CPBR: <index1>,<number>,<type>,<text>

[,<hidden>][,<group>][,<adnumber>][,<adt ype>][,<secondte

xt>][,<email>]] [[...] <CR><LF>+CPBR:

<index2>,<number>,<type>,<text> [,<hidden>][,<group>][,<adnumber>][,<adt

ype>][,<secondte xt>][,<email>]]] +CME ERROR: <err>

+CPBR =?

+CPBR: (list of supported <index>s),[<nlength>],[< ],[<elength>]+CME ERROR: <err>

Defined values <index1>, <index2>, <index>: integer type values in the range of location

numbers of phonebook memory <number>: string type phone number of format <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <text>: string type field of maximum length <tlength>; character set as specified

by command Select TE Character Set +CSCS <group>: string type field of maximum length <glength>; character set as

specified by command Select TE Character Set +CSCS <adnumber>: string type phone number of format <adtype> <adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <secondtext>: string type field of maximum length <slength>; character set as

specified by command Select TE Character Set +CSCS <email>: string type field of maximum length <elength>; character set as

specified by command Select TE Character Set +CSCS <nlength>: integer type value indicating the maximum length of field <number> <tlength>: integer type value indicating the maximum length of field <text> <glength>: integer type value indicating the maximum length of field <group> <slength>: integer type value indicating the maximum length of field

<secondtext> <elength>: integer type value indicating the maximum length of field <email> <hidden>: indicates if the entry is hidden or not 0: phonebook entry not hidden 1: phonebook entry hidden

WCDMA Module

7.3 +CPBF Find Phonebook Entries

Description

Command

Defined values <index1>, <index2>: integer type values in the range of location numbers of

Execution command returns phonebook entries (from the current phonebook memory storage selected with +CPBS)

which alphanumeric field start with string <findtext>. Entry fields returned are location number <indexn>, phone

number stored there <number> (of format <type>), text <text> associated with the number, if the selected

phonebook supports hidden entries, <hidden> indicating if the entry is hidden, <group> indicating a group the entry

may belong to, <adnumber> an additional number (of format <adtype>), <secondtext> a second text field

associated with the number and <email> an email field. If listing fails in an MT error, +CME ERROR: <err> is

returned. Refer subclause 9.2 for <err> values. Test command returns the maximum lengths of <number>, <text>, <group>,

<secondtext> and <email> fields. In case of (U)SIM storage, the lengths may not be available. If MT is not

currently reachable, +CME ERROR: <err> is returned. Refer subclause 9.2 for <err> values. +CPBF=<findtext> [+CPBF: <index1>,<number>,<type>,<text>

[,<hidden>][,<group>][,<adnumber>][,<adtype>][,< se

condtext>][,<email>][[...] <CR><LF>+CBPF:

<index2>,<number>,<type>,<text> [,<hidden>][,<group>][,<adnumber>][,<adtype>][,<

se condtext>][,<email>]]] +CME ERROR: <err>

+CPBF =?

phonebook memory <number>: string type phone number of format <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <group>: string type field of maximum length <glength>; character set as

specified by command Select TE Character Set +CSCS <adnumber>: string type phone number of format <adtype> <adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <secondtext>: string type field of maximum length <slength>; character set as

specified by command Select TE Character Set +CSCS

+CPBF: [<nlength>],[<tlength>],[<glength>],[<slength>],[<e

length>] +CME ERROR: <err>

WCDMA Module

<email>: string type field of maximum length <elength>; character set as specified by command Select TE

Character Set +CSCS <findtext>, <text>: string type field of maximum length <tlength>; character set

as specified by command Select TE Character Set +CSCS <nlength>: integer type value indicating the maximum length of field <number> <tlength>: integer type value indicating the maximum length of field <text> <glength>: integer type value indicating the maximum length of field <group> <slength>: integer type value indicating the maximum length of field

<secondtext> <elength>: integer type value indicating the maximum length of field <email> <hidden>: indicates if the entry is hidden or not 0: phonebook entry not hidden 1: phonebook entry hidden

7.4 +CPBW Write Phonebook Entry

Description

Execution command writes phonebook entry in location number <index> in the current phonebook memory storage

selected with +CPBS. Entry fields written are phone number <number> (in the format <type>), text <text>

associated with the number, if the selected phonebook supports hidden entries, <hidden> parameter, which indicates if

the entry is hidden or not, <group> indicating a group the entry may belong to, <adnumber> an additional

number (of format <adtype>), <secondtext> a second text field associated with the number and <email>

an email field. If those fields are omitted, phonebook entry is deleted. If <index> is left out, but <number> is given,

entry is written to the first free location in the phonebook (the implementation of this feature is manufacturer specific).

If writing fails in an MT error, +CME ERROR: <err> is returned. Refer subclause

9.2 for <err> values. Test command returns location range supported by the current storage as a

compound value, the maximum length of <number> field, supported number formats of the storage, the maximum length of

<text> field, the maximum length of <group>, the maximum length of <secondtext>, and the maximum length

of <email>. In case of SIM storage, the lengths may not be available. If MT is not currently reachable, +CME

ERROR: <err> is returned. Refer subclause 9.2 for <err> values. If storage does not offer format information, the

format list should be empty parenthesis

WCDMA Module

Command

Defined values

+CPBW=[<index>][,<numbe r>

+CME ERROR: <err>

[,<type>[,<text>[,<group>[,< a

dnumber>[,<adtype>[,<seco ndte

xt>[,<email>[,<hidden>]]]]]]]] ]

+CPBW=?

+CPBW: (list of supported <index>s),[<nlength>],(list of supported<type>s),[<tlength>],[<glength>],[<sleng th>],[<elength>]

+CME ERROR: <err>

<index>: integer type values in the range of location numbers of phonebook memory

<number>: string type phone number of format <type> <type>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) ; default 145 when dialling string includes international access code character "+", otherwise 129 <text>: string type field of maximum length <tlength>; character set as specified

by command Select TE Character Set +CSCS <group>: string type field of maximum length <glength>; character set as specified

by command Select TE Character Set +CSCS <adnumber>: string type phone number of format <adtype> <adtype>: type of address octet in integer format (refer TS 24.008 [8] subclause

10.5.4.7) <secondtext>: string type field of maximum length <slength>; character set as

specified by command Select TE Character Set +CSCS <email>: string type field of maximum length <elength>; character set as specified

by command Select TE Character Set +CSCS <nlength>: integer type value indicating the maximum length of field <number> <tlength>: integer type value indicating the maximum length of field <text> <glength>: integer type value indicating the maximum length of field <group> <slength>: integer type value indicating the maximum length of field <secondtext> <elength>: integer type value indicating the maximum length of field <email> <hidden>: indicates if the entry is hidden or not 0: phonebook entry not hidden 1: phonebook entry hidden

ZTE AD3812 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
