ZTE AC60 User Manual

CDMA 1X/EV-DO Wireless data Terminal

User Guide

This User Guide is used for Wireless Data Terminal of AC60.

ZTE Corporation 0 http://www.zte.com.cn

CDMA 1X/EV-DO Wireless data Terminal

All rights reserved. No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice.

ZTE Corporation 1 http://www.zte.com.cn

CDMA 1X/EV-DO Wireless data Terminal

Table of Contents

1 :Safety Warnings and Precautions .............................................................................................. 3

2 :Descriptions of icons ................................................................................................................. 3

3 :Access the Internet .................................................................................................................... 4

4 :Access the WebGUI Configuration Page .................................................................................. 4

5 :PIN Code Verification ............................................................................................................... 4

6 :Settings ...................................................................................................................................... 4

7 : Quick Seting ............................................................................................................................. 4

8: NetWork Setting ........................................................................................................................ 5

9: WIFI Setting .............................................................................................................................. 5

10: Advance ................................................................................................................................... 6

11 :Firewall .................................................................................................................................... 7

12 : Ap Station ............................................................................................................................... 8

13 : SleepMode .............................................................................................................................. 9

14 :Disconnect ............................................................................................................................... 9

15 :Phonebook ............................................................................................................................. 10

16 : SMS ...................................................................................................................................... 10

17 : Status .................................................................................................................................... 10

18 : SD Card ................................................................................................................................ 10

19 :FAQ ....................................................................................................................................... 10

20 : FCC Regulations .................................................................................................................. 12

21 : RF Exposure Informatiom(SAR) .......................................................................................... 12

ZTE Corporation 2 http://www.zte.com.cn

CDMA 1X/EV-DO Wireless data Terminal



Battery indication



3G signal strength indication



1X signal strength indication



Wi-Fi connected users number



Auto connected mode

Thank you for choosing the ZTE-AC60 CDMA Mini Router hereinafter referred to as Router. The router works in CDMA/1X/EVDO network. The client devices could connect to it via USB or Wi-Fi interface. The router supports data and SMS services, enabling you to communicate anytime and anywhere.

1 :Safety Warnings and Precautions

 Use the original accessories or those authenticated by the manufacturer. Using any unauthenticated

accessories may affect the data terminal's performance, violate the warranty provisions or relevant national regulations about telecom terminals, or even cause body injury.

 Do not disassemble, modify, frequently pull/plug the antenna, stretch, rotate or bend the antenna with great

force.

 Before pulling out the data terminal, please use Windows safely removing the hardware and make sure to

exit the application. Do not directly pull out the terminal to avoid the damage of data terminal or the influence on the normal operation of operating system.

 Do not forcefully plug/pull the data terminal to avoid the damage of connector.  Do not use your data terminal near weak signal or high-precision electronic devices. Radio wave

interference may cause misoperation of electronic devices or other problems.

 Turn off your data terminal on airplane where it's forbidden to use it. The data terminal may affect the

normal operation of electronic devices, therefore please follow the relevant regulations when using your data terminal on airplane.

 Turn off your data terminal in hospital where it's forbidden to use it. The data terminal may affect the

normal operation of medical apparatus, therefore please follow the relevant regulations when using your data terminal in hospital.

 Please do not use the data terminal near flammable or explosive materials, otherwise it might cause failure

or fire.

 Keep your data terminal away from water. This may cause overheating or failure if water or any other kind

of liquid enters your data terminal. Please do not use your data terminal near high temperature, damp or dusty place.

 Keep your data terminal away from children to avoid shock, plunge or impact. It may cause body injury

when the data terminal is used as a toy.

2 :Descriptions of icons

The icons on the Status Bar:

ZTE Corporation 3 http://www.zte.com.cn

CDMA 1X/EV-DO Wireless data Terminal



Manual connected mode

3 :Access the Internet

 1. Switch on the Router.  2. Establish a connection between your device and the client.  3. After successfully establishing the connection, the client can access the Internet automaticlly.  Note：

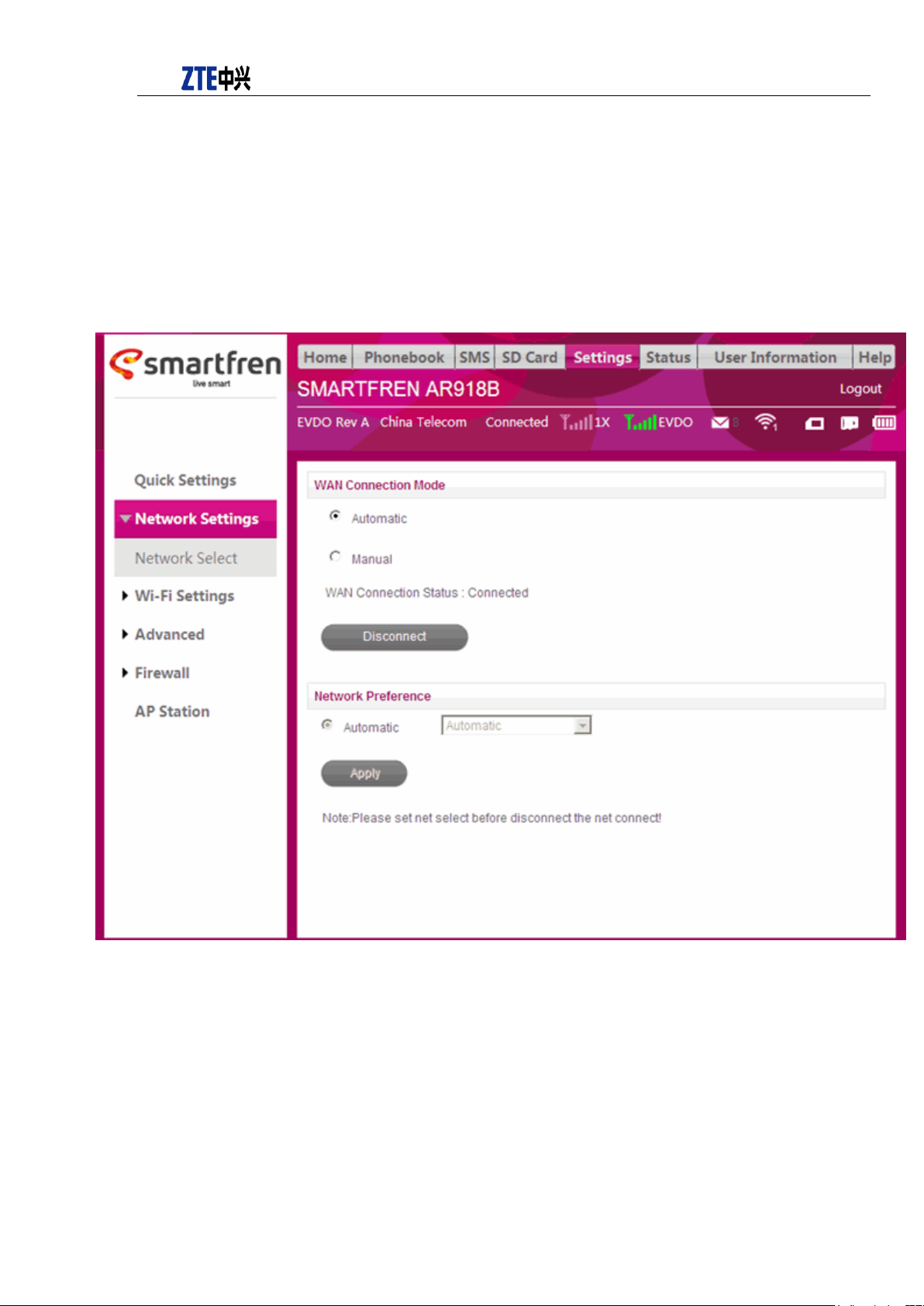

The default connection mode is Automatic. You can browse the WebGUI Configuration page and click Settings >Network Settings to set the WAN connection mode.

4 :Access the WebGUI Configuration Page

 1.Make sure the connection between your device and the client is correct.  2. Double click the Smartfren Connex AR918B Web UI icon on the desktop directly, or enter

http://192.168.0.1 in a web browser address bar.

 3. The login page appears.  4. Input the case-sensitive default username “admin” and password “admin”, and then click Login to

access the WebGUI Configuration page.

Note： It is recommended that you use IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later) or Chrome (10.0+ or later).

5 :PIN Code Verification

 If the PIN code of your RUIM card is enabled, you will need to input the PIN code when you login at the

first time.

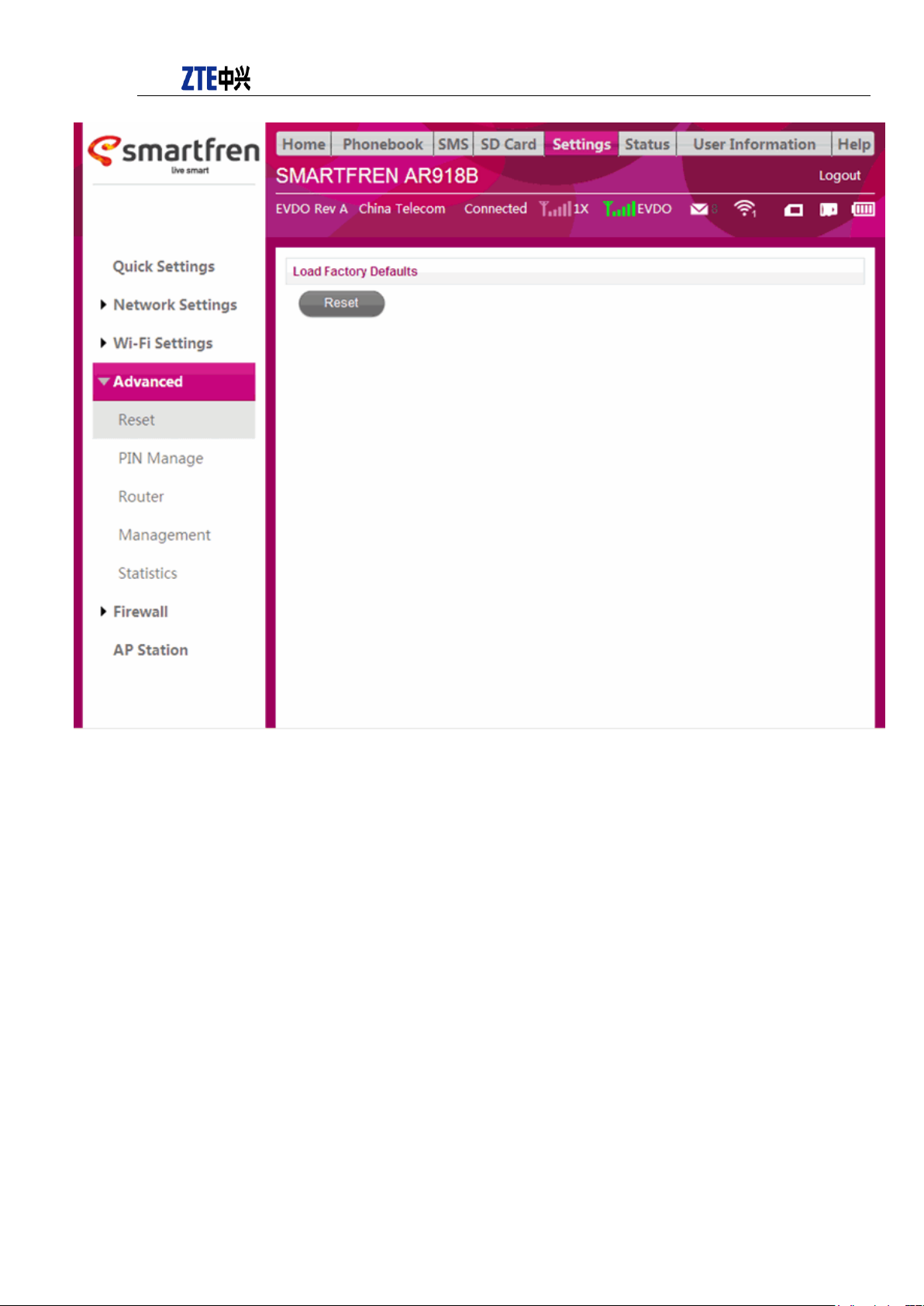

If you want to modify the PIN status, please select Settings > Advanced > PIN Manage to do the actions.

6 :Settings

You can use the default configuration to access the Internet. If you want to change the settings, please refer to the following introduction.

7 : Quick Seting

The Quick Setup wizard guides you how to set the basic parameters for your device in the safest way. After this procedure, you can use your Internet service.

ZTE Corporation 4 http://www.zte.com.cn
