ZTE AC570 User Manual

ZTE AC570
EVDO USB Modem
User Guide
1
Contents
1 Modem Introduction....................................................4
2 Installation.....................................................................8
3 Functions & Operation.............................................16
3.1.1 Main Interface.......................................................16
3.1.2 Description of Mini Icons .....................................18

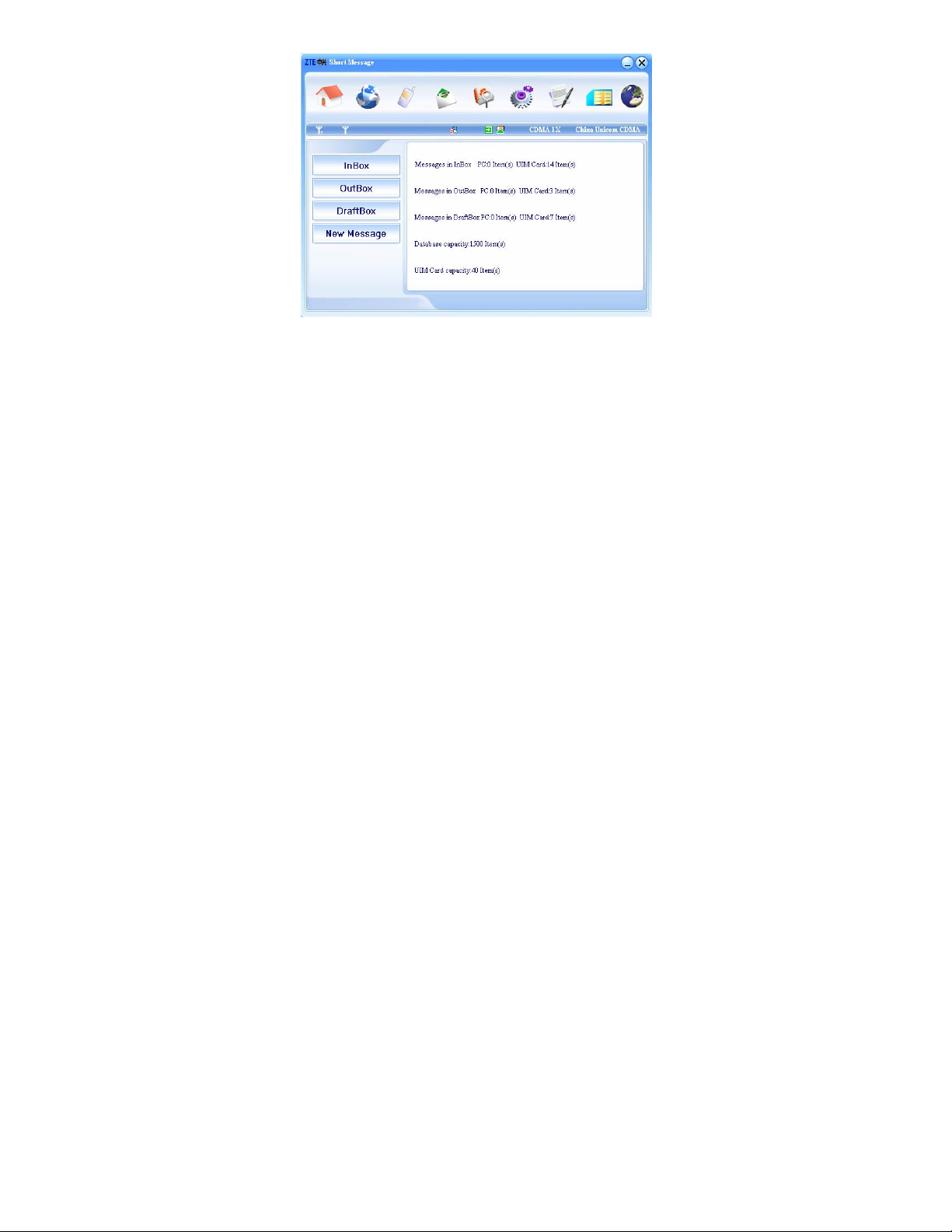

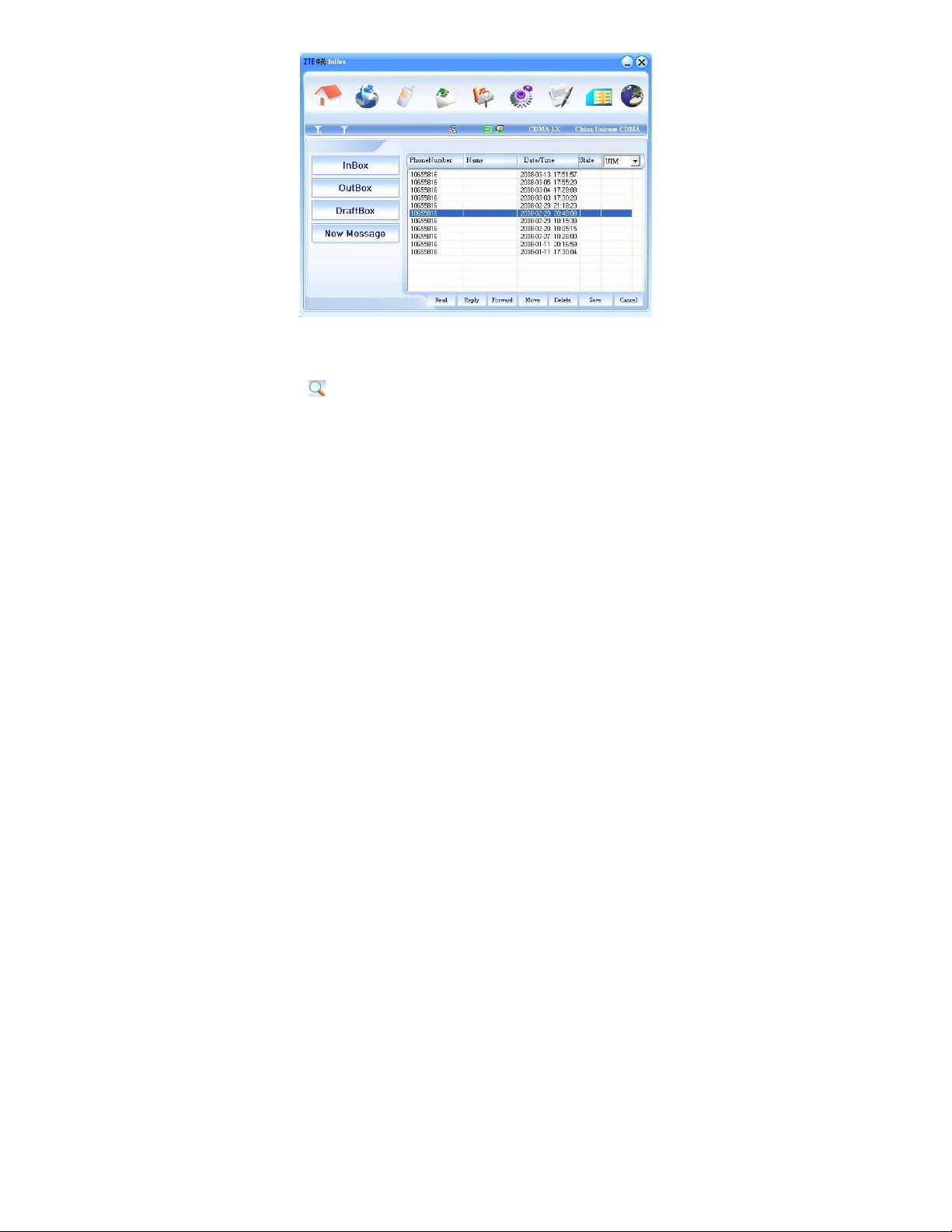

3.4.1 Read SMS .............................................................23

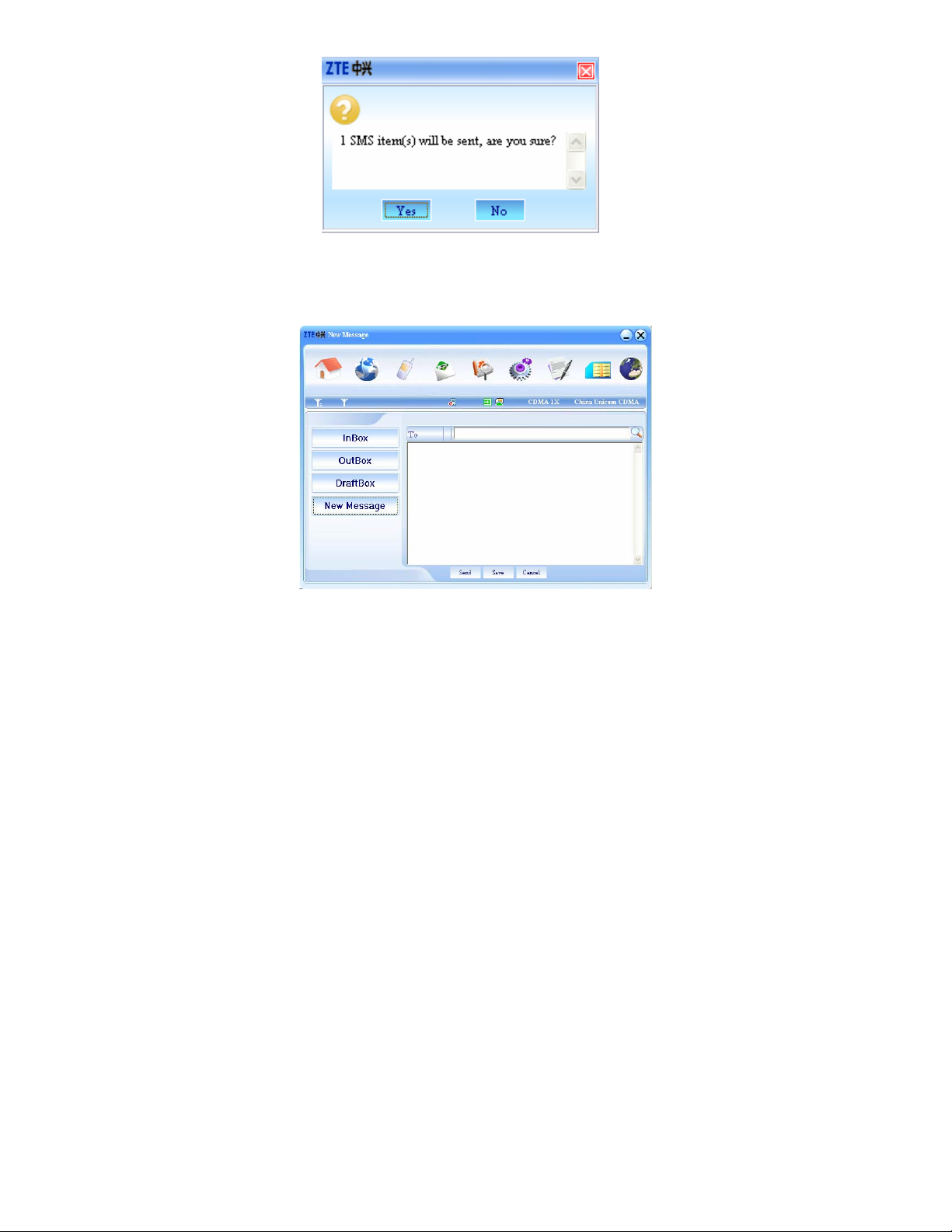

3.4.2 Create new message..............................................24
3.4.3 The SMS box Operating Guide.............................26
2

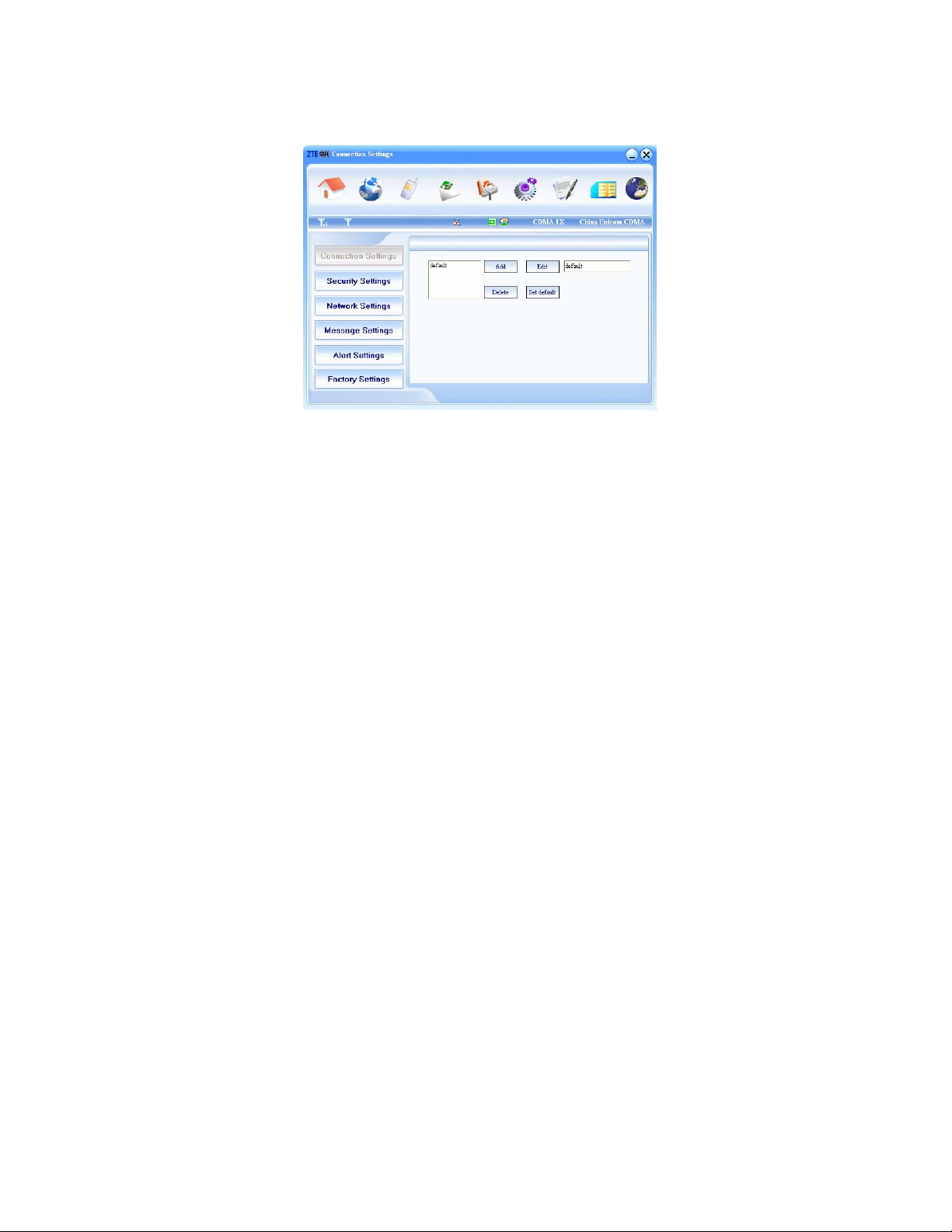

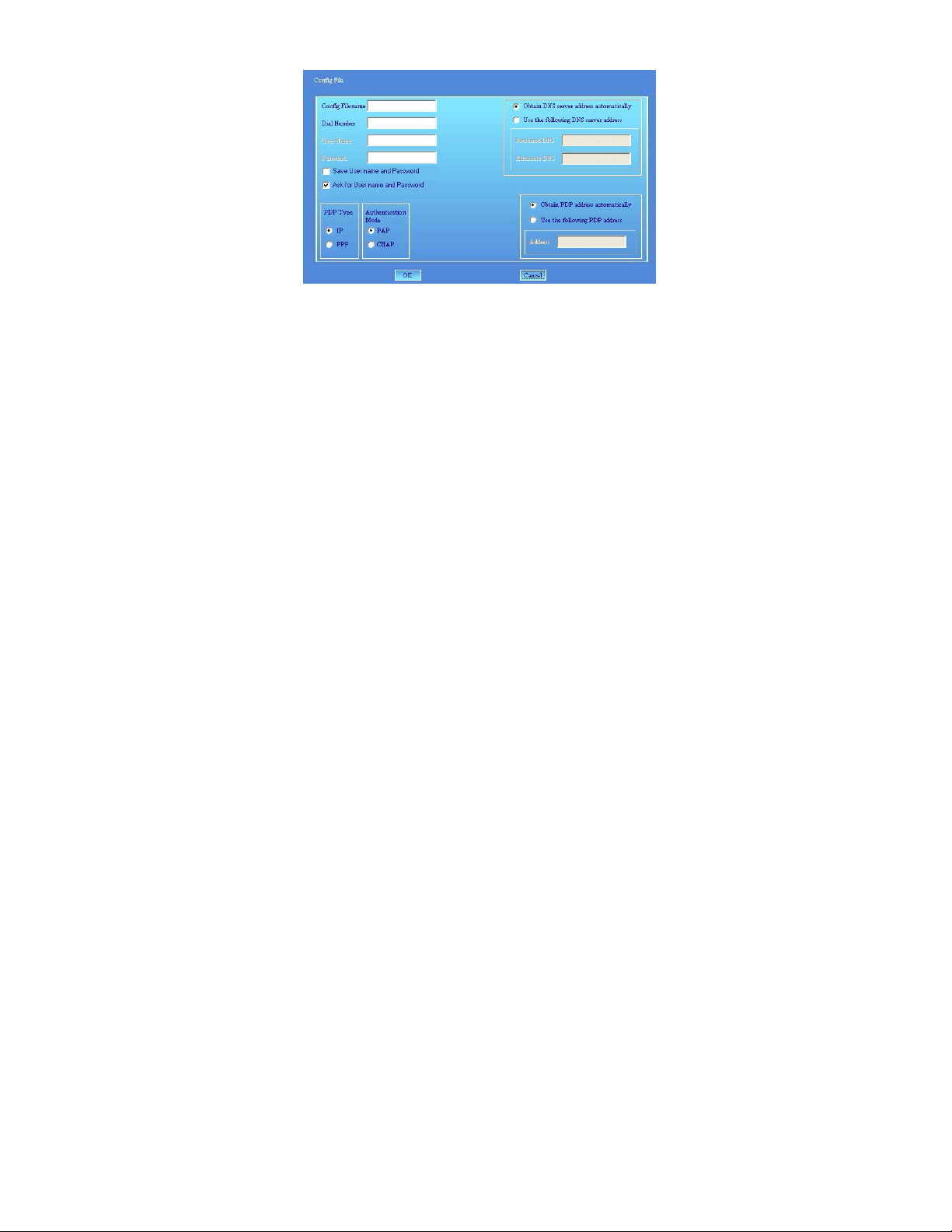

3.5.1 Network Settings...................................................29

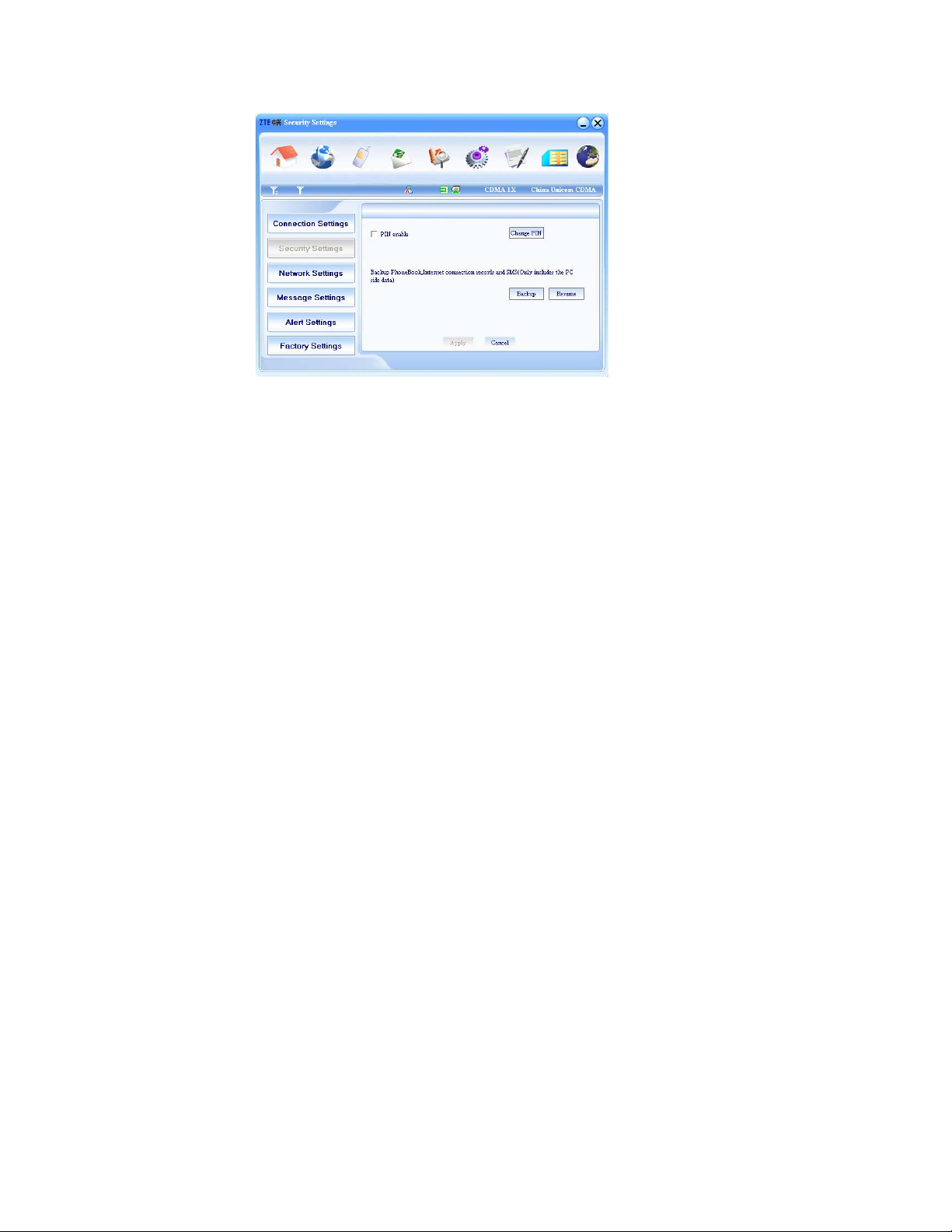

3.5.2 Security Settings....................................................31

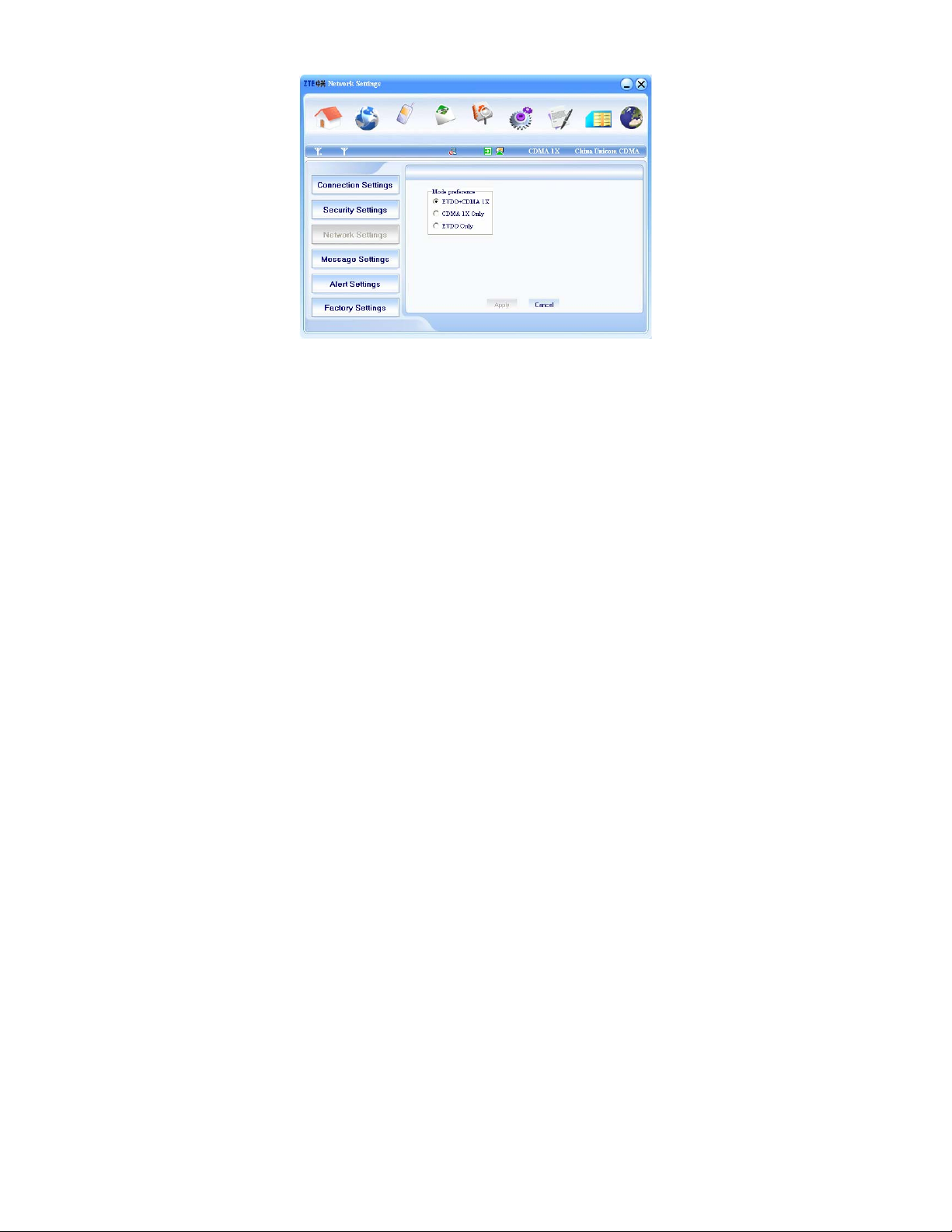

3.5.3 Network Settings...................................................32

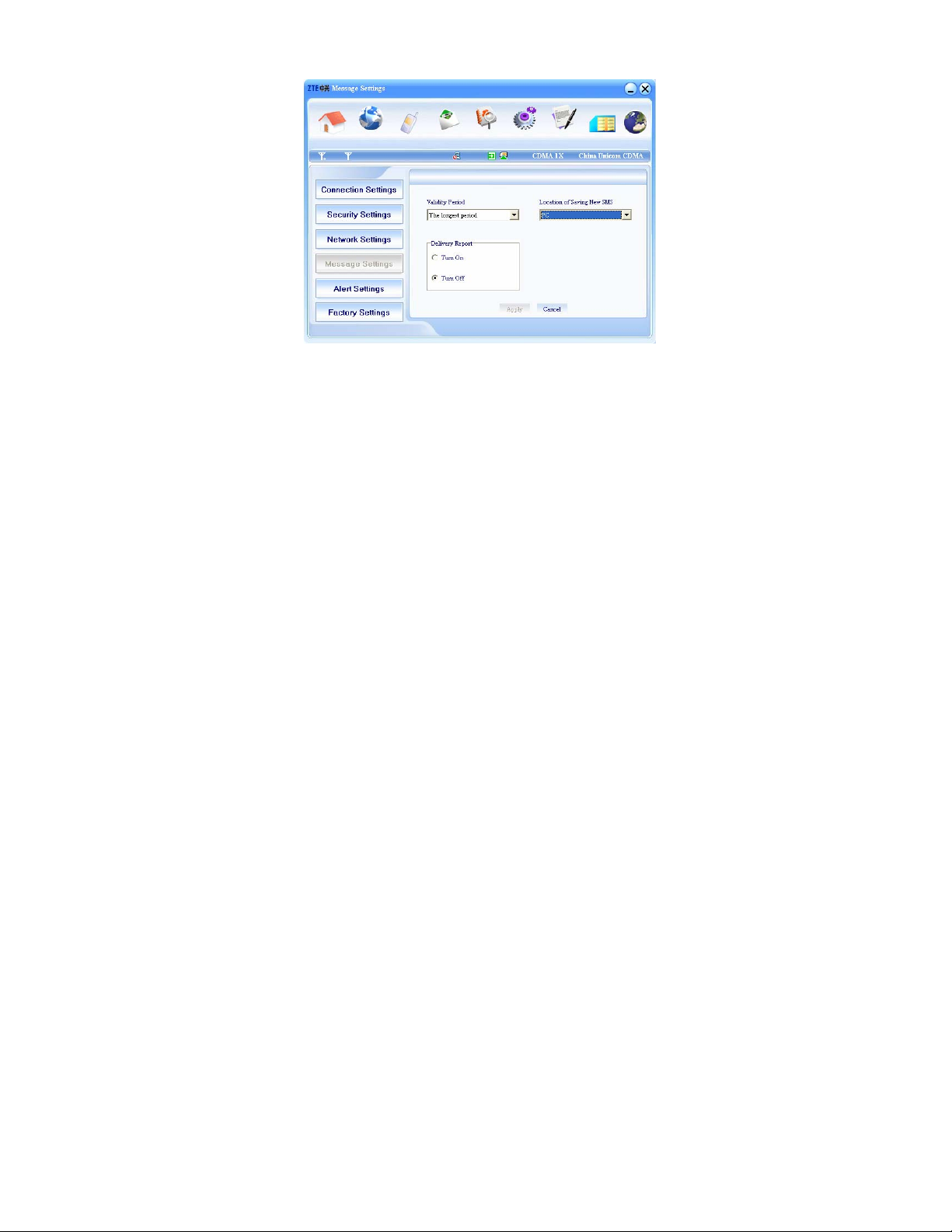

3.5.4 Messages Settings .................................................33

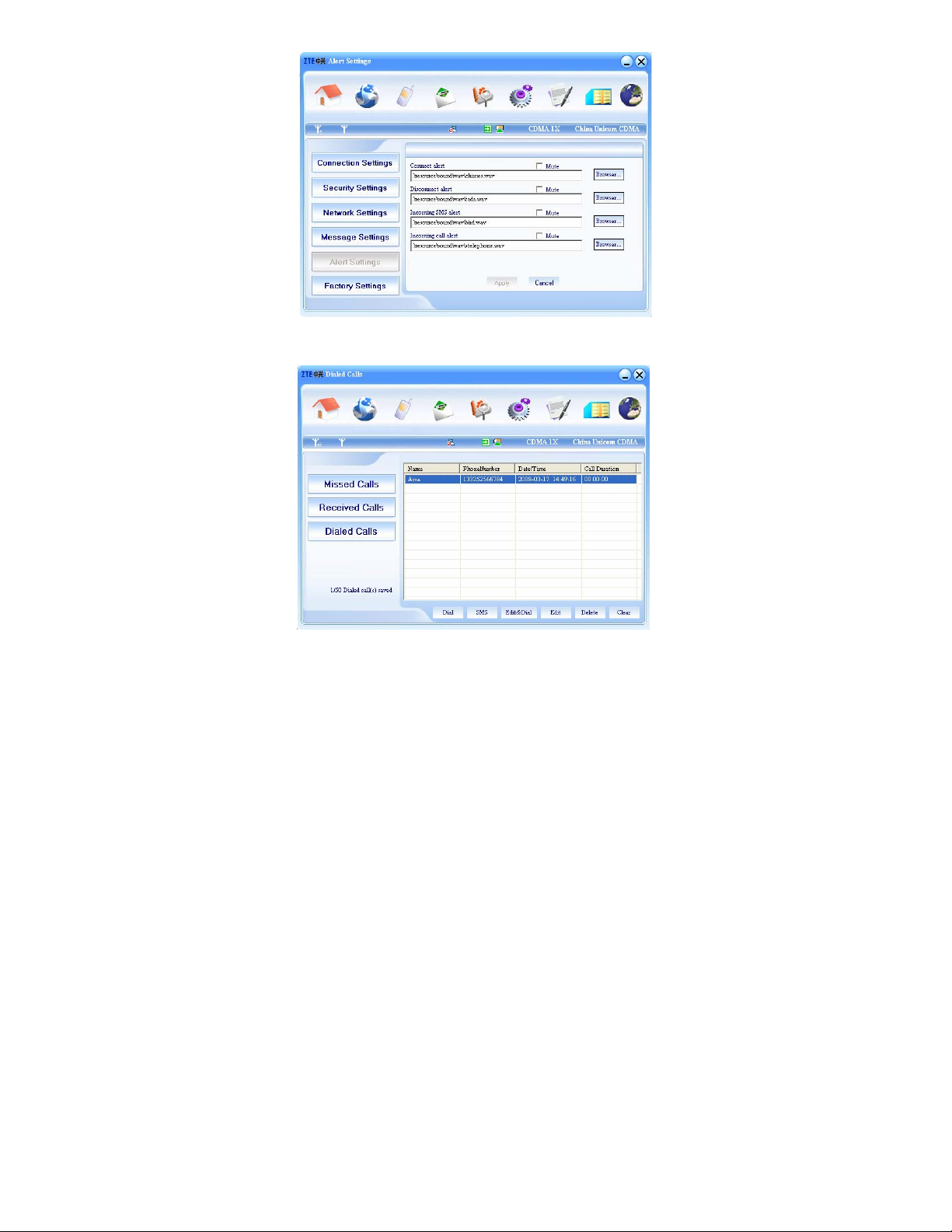

3.5.5 Alert settings .........................................................33

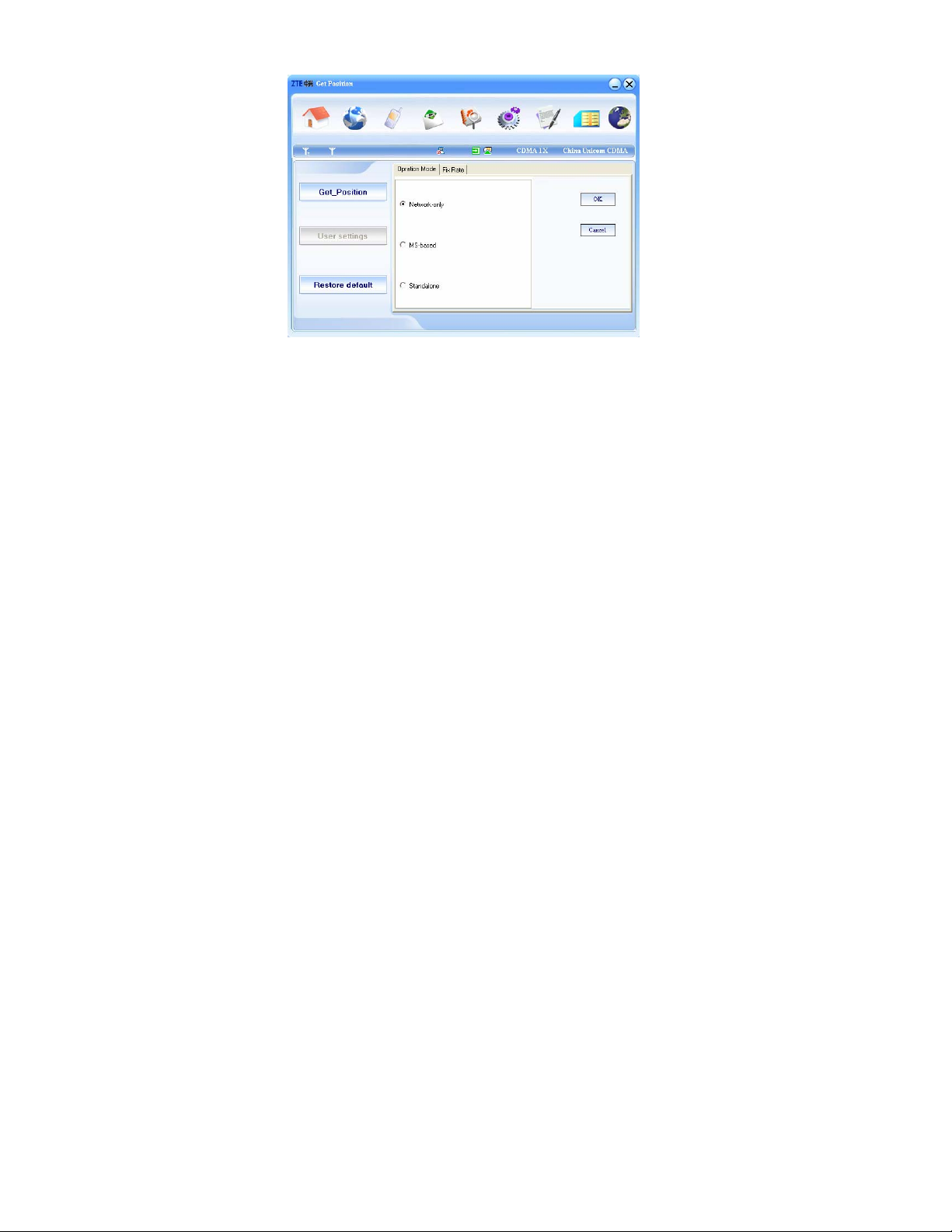

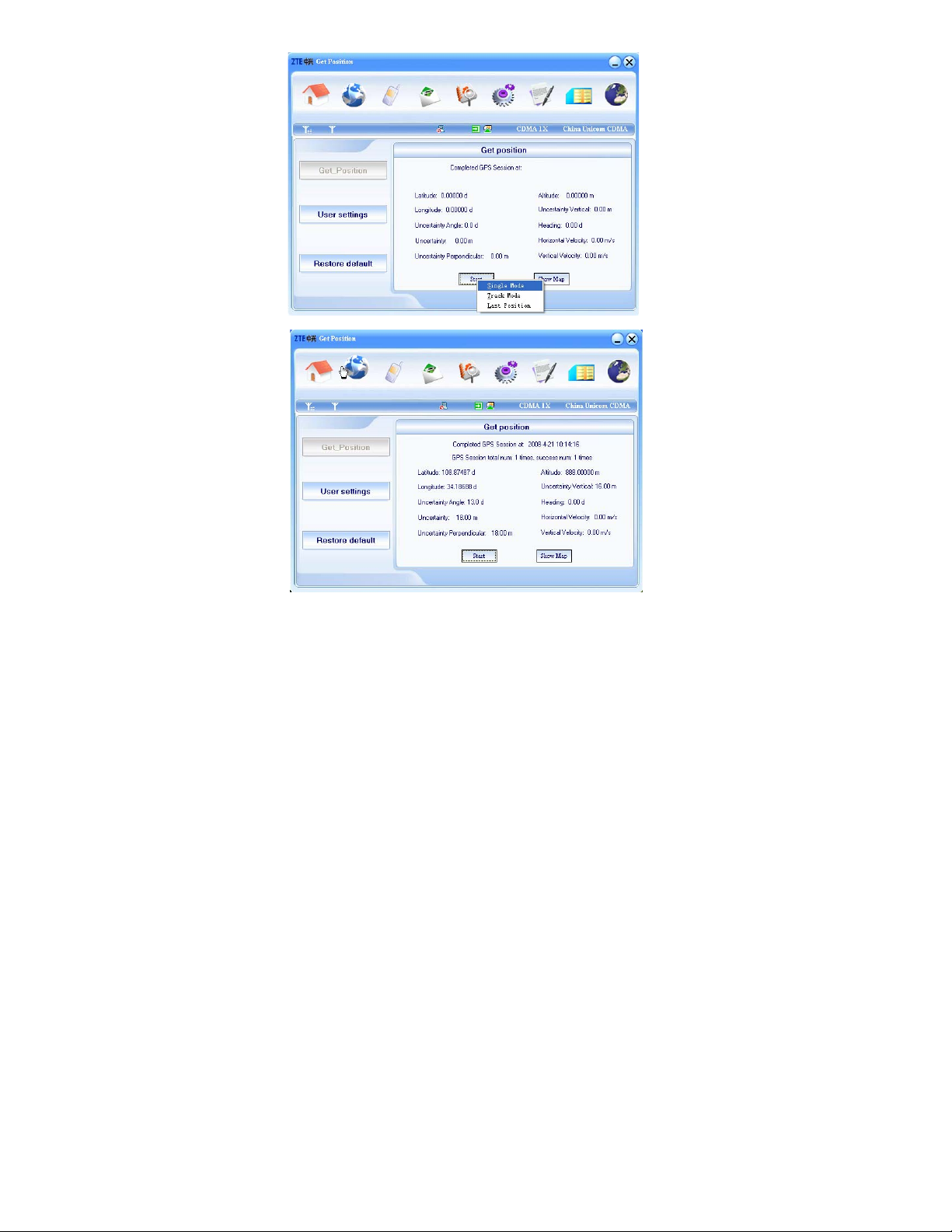

3.8.1 Get Position...........................................................35
3.8.2 User Settings.........................................................37

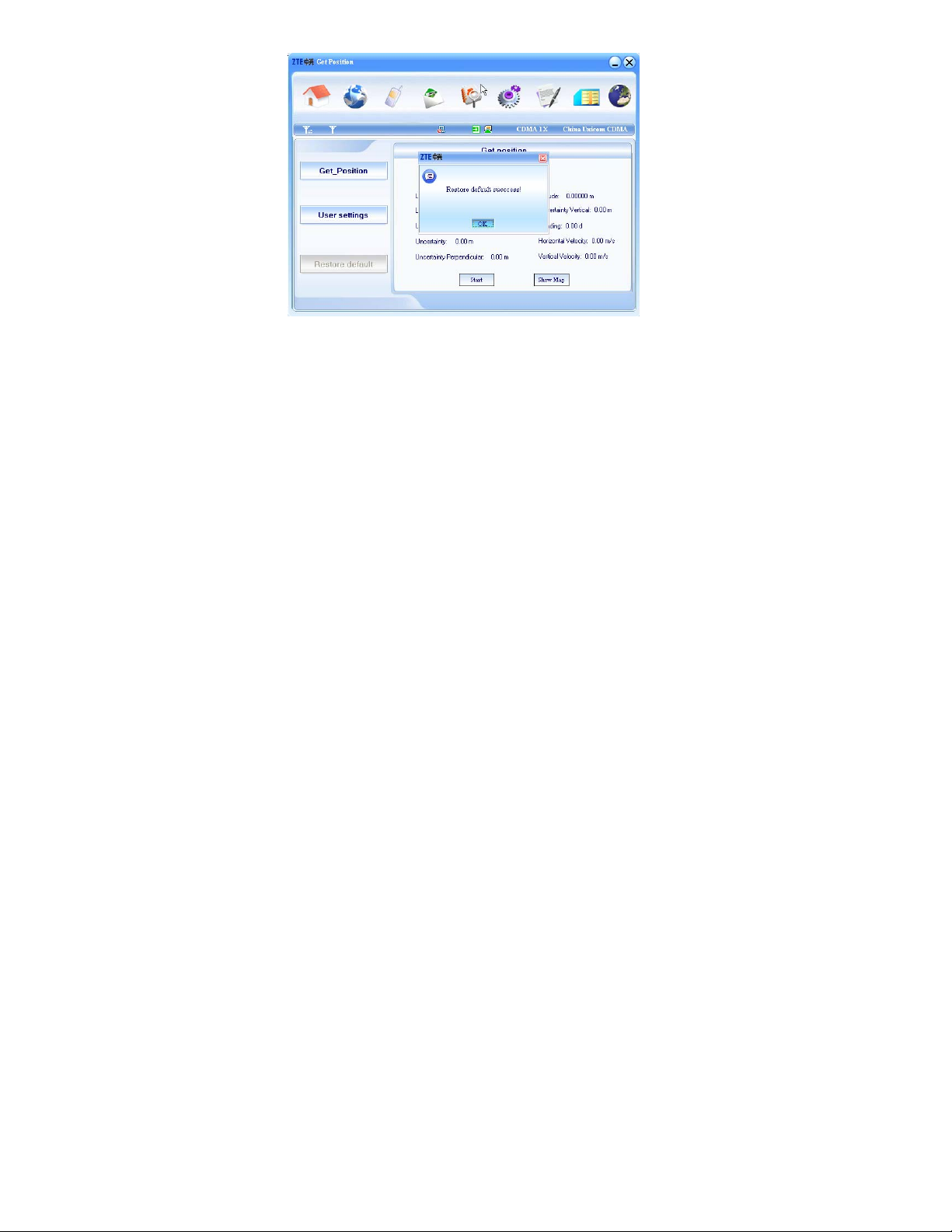

3.8.3 Restore Default......................................................37
4 FAQ & Answers...........................................................39
3
1 Modem Introduction
1.1 Introduction
Thank you for using ZTE MY69 USB Modem. To guarantee the modem always in its best condition, please read this manual carefully and keep it for further use. The pictures, symbols and contents in this manual are just for your reference. They might not be completely identical with your modem. We operate a policy of continuous development. We reserve the right to update the technical specifications in this document at any time without prior notice. The ZTE CDMA2000 1X/EVDO USB Modem is a type modem suitable for CDMA network. It adopts USB interface which provides an easy insert to notebook PC. With the CDMA mobile network, it can help you carry out SMS, data service and will help you break away from the limit of time and zone, and realize wireless communication at any moment everywhere.
1.2 Warning and Notice
To the owner
Some electronic devices are susceptible to electromagnetic interference sent
by modem if inadequately shielded, such as electronic system of vehicles. Please consult the manufacturer of the device before using the modem if necessary.
Operating of notebook PC and modem may interfere with medical devices
like hearing aids and pacemakers. Please always keep them more than 20 centimeters away from such medical devices when they are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the medical device before using the modem.
Be aware of the usage limitation when using a modem at places such as oil
warehouses or chemical factories, where there are explosive gases or explosive products being processed. Therefore, turn off your modem if required.
Don’t touch the inner antenna area if not necessary. Otherwise it will affect
your modem’s performance.
Store the modem out of the reach of little children. The modem may cause
4
injury if used as a toy.
Modem
Please use original accessories or accessories that are authorized. Using
any unauthorized accessories may affect your modem’s performance, and violate related national regulations about telecom terminals.
Avoid using the modem near metallic structure device or establishment that
can emit electromagnet wave. Otherwise it may influence receiving signals.
The modem is non-waterproof type, please keep it dry and store in shady and
cool place.
Don’t use the modem immediately after a sudden temperature change. In
such case, it will produce dew inside and outside the modem, so don’t use it until it becomes dry.
Take the modem carefully. Don’t lose, bend or cause it struck. Otherwise it
will lead to destruct damage.
No dismantling by non-professional and only qualified maintainer can
undertake repair work.
The FCC ID label is placed on the mobile phone clearly visible to all persons at the time of purchase. The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Do not attempt to disassemble the modem by yourself. Non-expert handling of the devices may damage them. For body-worn operation, this phone has been tested and meets FCC RF exposure guidelines when the modem is positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the handset. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
5
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help.
1.3 Applicability Scope
CDMA USB modem supports the present mainstream types of notebook PCs, such as HP, IBM, Toshiba, Lenovo, Dell, Founder, etc.
1.4 System requirements
Operating System：Windows 2000 / XP / Vista Configuration (Recommended)：
CPU 200MHz Pentium or above Hard Disk 30M or above RAM 128M or above
The performance of the modem may be influenced if configuration under recommended requirement.
1.5 Functions
Functions: SMS service, data service, applied management, data concurrence, etc.
6
1.6 Specification
Networks CDMA 2000 1x / EVDO
Frequency Band
Dimension 90.4mm*35mm*12.3mm Weight About 35.2g Data Rate Up to 3.1Mbps
Working Voltage
CDMA 800MHz Cellular (UL824~849,DL869~894)
CDMA 1900MHz PCS (UL1850~1910,DL1930~1990)
5V（Using the notebook PC power supply）
7
2 Installation
2.1 Outline and Part Introduction
1. USB Interface 2. UIM Card Slot 3. Indicator 4. Antenna
2
4
Indicator Light Status:
Indicator Status
Green/Lighting Normal. Red Abnormal/No network signal. Green/Blink An Incoming Call. Green/Blink three times A New Message.
3
1
2.2 Software Installation
The system will automatically detect and recognize the new hardware and display the new icon in the desktop status bar, indicating that the computer and the USB Modem have been connected properly. After a few seconds, there will show the following installation interface if the notebook PC supports automatic installation.
8
If the notebook PC doesn’t support automatic installation, you can run the installation program in path of My Computer → ZTEMODEM → AutoRun.exe. The following installation interface will show how to start installation.

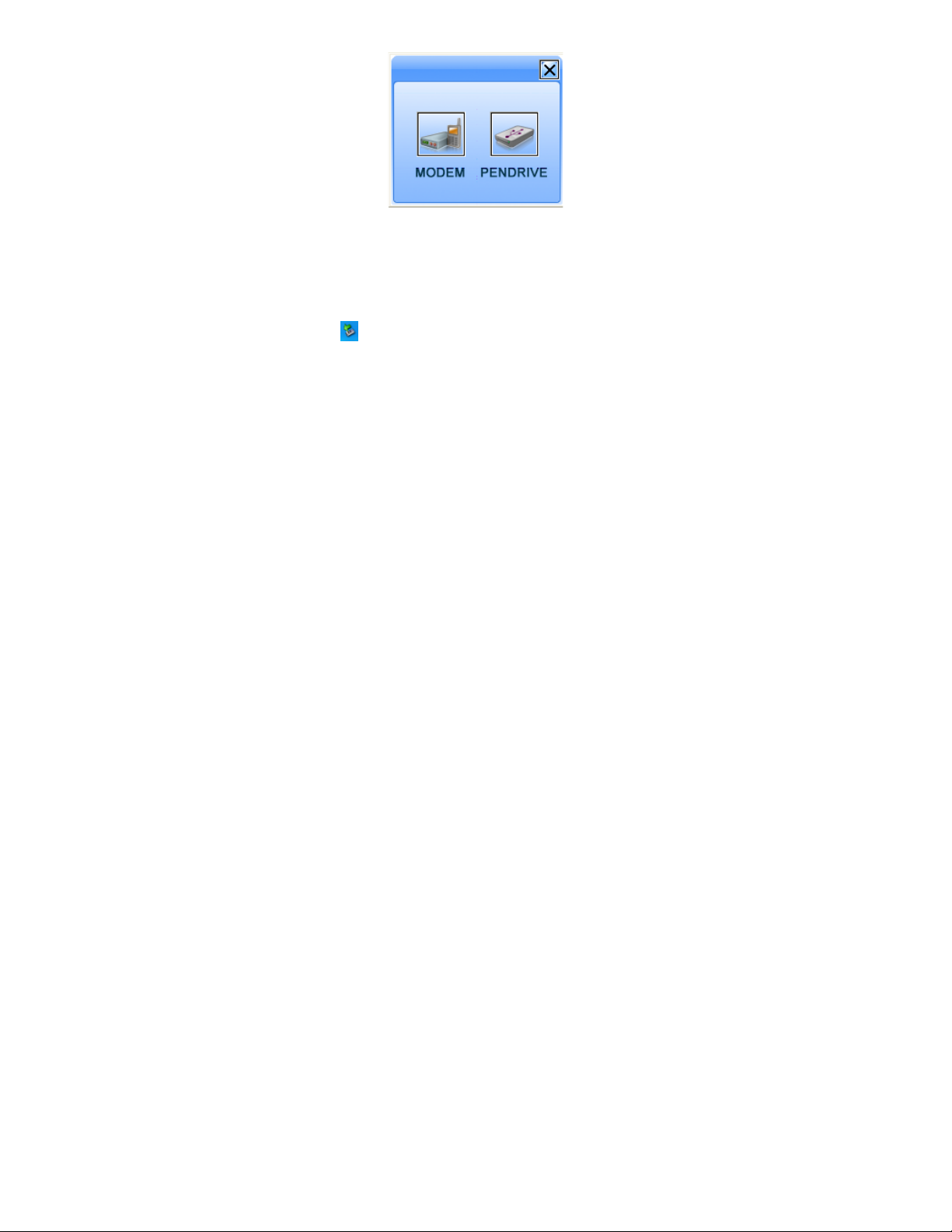

Select PENDRIVE, use the modem as U-Disk. Select MODEM, go to next step.
Recommend you to exit other “Windows” programs, and click “Next”.
9
Read the agreement carefully. If you agree, choose “I agree to the terms of this license agreement”, and then click “Next”.
Select the folder that you want to install the software. You can select a different path by pressing “Change”, and then click “Next”.
10
Installation is in progress, after a while, there will be a tip as follows:
Click “Finish” to finish the software installation.
Note：If you have problems with installation after the upper operation, please
11
contact the service provider for help.
After the installation, select “Start” menu → “Programs” and there will be a “ZTE
Mobile Connection” program group listed in, which includes “ZTE Mobile
Connection” and “ZTE Uninstall”, and a shortcut icon
is also created.
on the desktop
2.3 Hardware Installation
1. Insert the UIM card into the modem:
First, you should insert your UIM card into the USB modem, and confirm that your UIM card support data and CDMA services. If you don’t understand this, please consult your local operator.
As showed in picture below, insert the UIM card with metal contact facing downwards into the slot inside your modem. Ensure that it is tightly inserted.
2. Connect the USB Modem to your PC:
z Connect the USB Modem to the USB port and ensure that it is tightly
inserted.
z Then switch on the computer, otherwise the modem will not be installed
normally.
z The system will automatically detect and recognize the new hardware and
display the new icon in the desktop status bar, indicating that the computer
and the USB Modem have been connected properly. After a few seconds,
12
the installation program will start automatically.
Note: For Microsoft Vista system, to avoid abnormal installation it is suggested to turn off UAC before installation following the path of Start→ Control Panel→ User Accounts→ Turn User Account Control On or Off. Restart your computer when you finish settings.
3. Antenna
When using the Modem, in order to get the good signals, please open the antenna upright.
2.4 Run the Application Software
After the modem is correctly connected, click the Start → Programs→ ZTE
Mobile Connection → ZTE Mobile Connection menu on the PC to run the
application software.
Or double click the shortcut icon application software.
After modem initialized, main interface appears. When the standby icon appears, the modem can work properly.
on the desktop to run the
2.5 Pull out Modem Safely
Close the software application then you can pull out the USB cable directly.

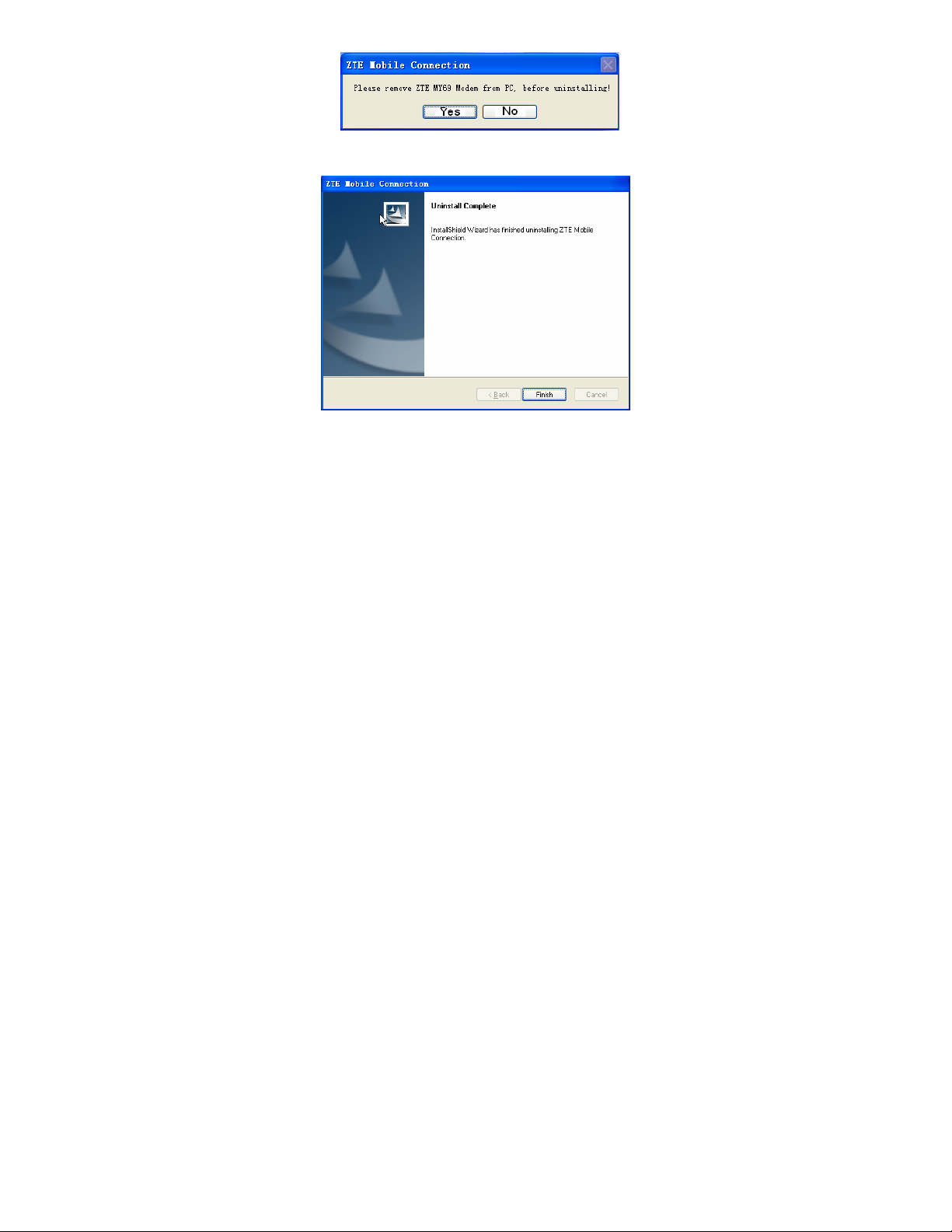

2.6 Software Uninstall
Close the application program before the software uninstalling.
Click ZTE Mobile Connection → ZTE Unistall menu on the notebook PC.
13
