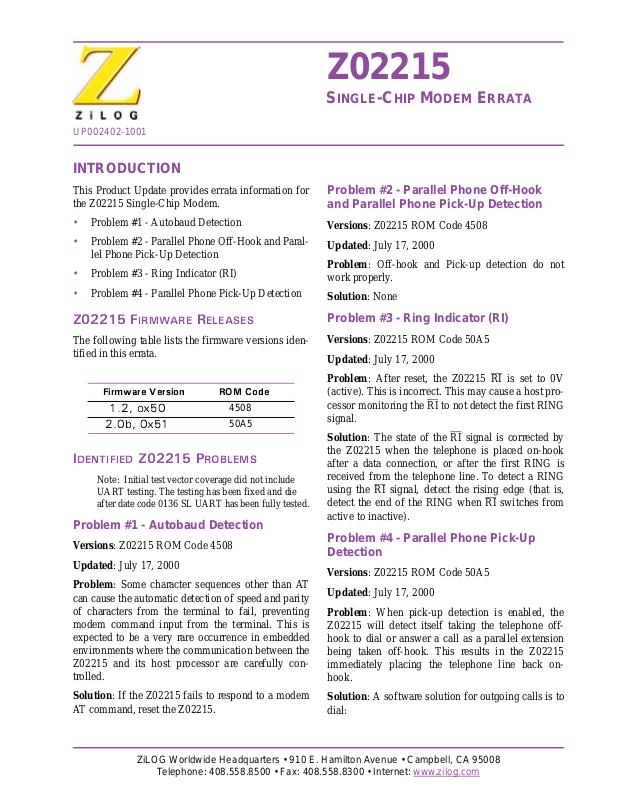

UP002402-1001
INTRODUCTION
Z02215
SINGLE-CHIP MODEM ERRATA
This Product Update provides errata information for
the Z02215 Single-Chip Modem.
• Problem #1 - Autobaud Detection
• Problem #2 - Par allel Phone Off-Hook and Par al-
lel Phone Pick-Up Detection
• Problem #3 - Ring Indicator (RI)
• Problem #4 - Parallel Phone Pick-Up Detec tion
<(
The following table lists the firmware versions identified in t h is e r r ata.
(KTOYCTG8GTUKQP 41/%QFG
DZ
+
&'06+(+'&
Note: Initial tes t vector coverage did not include
UART testing. The testing has been fixed and die
after date code 0136 SL UART has been fully tested.
+4/9#4'4'.'#5'5
QZ
<2
4508
50A5
41$.'/5
Problem #1 - Autobaud Detection
Versions: Z02215 ROM Code 4508
Updated: July 17, 2000
Problem: Some character sequences other than AT
can cause the automatic detection of speed and parity
of characters from the terminal to fail, preventing
modem command input from the terminal. This is
expected to be a very rare occurr ence in embedded
environments where the comm unication between the
Z02215 and its host processor are carefully controlled.
Problem #2 - Parallel Phone Off-Hook
and Parallel Phone Pick-Up Detection
Versions: Z02215 ROM Code 4508
Updated: July 17, 2000
Problem: Off-hook and Pick-up detection do not
work properly.
Solution: None
Problem #3 - R ing Indicator (RI)
Versions: Z02215 ROM Code 50A5
Updated: July 17, 2000
Problem: After reset, the Z02215 RI
(active). This is incorrect. This may cause a host processor monitoring the R I
signal.
Solution: The state of the RI
the Z02215 when the telephone is placed on-hook
after a data connection, or after the first RING is
received from the telephone line. To detect a RING
using the RI
detect the e nd of the RING when RI
active to inactive ).
signal, detect the rising edge (that is,
to not detect the first RING
signal is corrected by
is set to 0V
switches from
Problem #4 - Parallel Phone Pick-Up
Detection
Versions: Z02215 ROM Code 50A5
Updated: July 17, 2000
Problem: When pick-up detection is enabled, the
Z02215 will detect itself taking the telephone offhook to dial or answer a call as a parallel extension
being taken off-hook. This results in the Z02215
immediately placing the telephone line back onhook.
Solution: If the Z02215 fails to respond to a modem
AT command, reset the Z02215.
ZiLOG Worldwide Headquarters • 910 E. Hamilton Avenue • Campbell, CA 95008
Telephone: 408.558.8500 • Fax: 408.558.8300 • Internet: www.zilog.com
Solution: A software solution f or outgoing calls is to
dial:
![](/html/8f/8f77/8f773d6bc3ddff425d8ef4de0b7894ea611545ee915492b7ae7199812008ff51/bg2.png)
ATH1, DT1234567
“H1” takes the telephone off-hook, “,” causes the Z02215 to wait the time in S-Register S8 (default 2 sec-
onds), and “DT1234567” causes the Z02215 to tone dial the number 1234567. Use S-Register S8 to
increase or decrease the delay before dialing.
Similarly, to answer the telephone, use
ATH1,A
Alternatively, design a pick-up detection circuit that does not respond for a sufficient period of time after
the Z02215 has taken the telephone off-hook.
Problem #5 - Unformatted Caller ID
Versions: Z02215 ROM Codes 4508 & 50A5
Updated: October 03, 2001
Problem: When unformatted caller ID option is used (AT#CID=0), the final octet of the caller ID packet
(the checksum octet) is not sent to the host.
Solution: No solution is possible. All data octets are passed onto the host as received but without the
checksum octet it is not possible to ensure the accuracy of the data packet. Use the formatted opt ion if possible.
Information Integrity
The information contained within this document has been verified according to the general principles of
electrical and mechanical engineering. Any applicable source code illustrated in the document was either
written by an authorized ZiLOG employee or licensed consultant. Permission to use these codes in any
form, besides the intended application, must be approved through a license agreement between both
parties. ZiLOG will not be responsible fo r any code(s ) used beyond the intended appl ic ation. Contact the
local ZiLOG Sales Office to obtain necessary license agreements.
