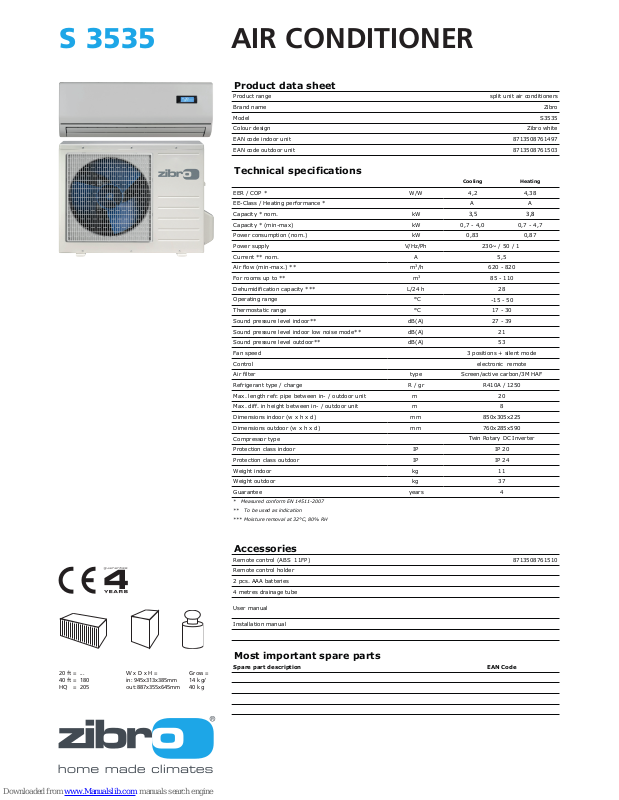

Zibro S 3535 Datasheet
S 3535
Product range
Brand name
Model
Colour design
EAN code indoor unit
EAN code outdoor unit
Cooling Heating
EER / COP * W/W 4,2 4,38
EE-Class / Heating performance * A A
Capacity * nom. kW
3,5 3,8
Capacity * (min-max) kW 0,7 - 4,0 0,7 - 4,7
Power consumption (nom.) kW 0,83 0,87
Power supply V/Hz/Ph
Current ** nom. A
Air flow (min-max.) ** m
3
/h
For rooms up to ** m
3
Dehumidification capacity *** L/24 h
Operating range °C
Thermostatic range °C
Sound pressure level indoor** dB(A)
Sound pressure level indoor low noise mode** dB(A)
Sound pressure level outdoor** dB(A)
Fan speed
Control
Air filter type
Refrigerant type / charge R / gr
Max. length refr. pipe between in- / outdoor unit m
Max. diff. in height between in- / outdoor unit m
Dimensions indoor (w x h x d) mm
Dimensions outdoor (w x h x d) mm
Compressor type
Protection class indoor IP
Protection class outdoor IP
Weight indoor kg
Weight outdoor kg
Guarantee years
* Measured conform EN 14511-2007
** To be used as indication
*** Moisture removal at 32°C, 80% RH
Remote control (ABS 11FP)
Remote control holder
2 pcs. AAA batteries
4 metres drainage tube
Installation manual
Spare part description
Most important spare parts
EAN Code
Accessories
8713508761510
User manual
Twin Rotary DC Inverter
IP 20
IP 24
11
37
4
Screen/active carbon/3M HAF
R410A / 1250
20
8
850x305x225
760x285x590
17 - 30
27 - 39
53
3 positions + silent mode
21
electronic remote
85 - 110
28
-15 - 50
230~ / 50 / 1
5,5
620 - 820
8713508761503
Technical specifications
Product data sheet
split unit air conditioners
Zibro
S3535
Zibro white
8713508761497
air conditioner
20 ft = ...
40 ft = 180
HQ = 205
W x D x H =
in: 945x313x385mm
out: 887x355x645mm
Gross =
14 kg/
40 kg
4
S 3535 air conditioner
Features
"Low sound" Mode:
This high class air conditioning is equipped with a special low sound mode. In
this mode the air conditioner will operate on a whispering quiet level.
My comfort: The remote controller is equipped with a built in temperature sensor. By activating
the "my comfort system" the temperature sensor in the remote controller replaces the temperature
sensor of the indoor unit. This enables you to optimally control your personal comfort.
1 Watt standby mode: Intelligent on/off technology enables the air conditioner to enter
automatically into an energy-saving mode in standby mode. This limits the energy consumption
from 4-5 Watt to 1 Watt, hence 80% of saving.
Self Cleaning mode: The air conditioner is equipped with an self cleaning mode to clean the
internal side of the evaporator. It also prevents the breeding of bacteria inside the air conditioner.
3D Inverter technology; maximum comfort. Like all Inverter systems the Zibro DC Inverter Wall
Mounted Split air conditioner continuously adjusts its cooling and heating capacity according to the
desired room temperature. The 3D Inverter technology provides extra comfort. When the desired
temperature is reached, 1) the compressor speed will be adjusted, 2) the outdoor fan speed is
adjusted and 3) the indoor fan speed is gradually decreased. All this to maintain the desired room
temperature with a minimum of variation. Thanks to the 3D technology, the expected lifetime as
well as the experienced comfort level is increased, since non-Inverter systems will switch on/off
and cause temperature fluctuations.
3D Inverter technology: The injection of refrigerant through an electronic expansion valve (EEV)
is based upon the difference between real room temperature and desired room temperature. With
the combination of the advanced Inverter technology, EEV metering device and the DC-Twin rotary
compressor, an extremely high efficiency with a minimum energy consumption is possible. As a
result, the overall power consumption is reduced significantly (up to 30% less than conventional
Inverter types).
DC-Twin rotary compressor: High-tech energy saving compressor. The rotor of the unit is
optimally balanced which results in less vibrations and therefore less stress on components.
Additional benefit is the reduced sound pressure level of the outdoor unit.
Cooling + dehumidifying + heating (heat pump): The air conditioning is a complete air
treatment system. It can cool, dehumidify and heat the air.
Air conditioning: In COOLING mode the unit produces a pleasant and refreshing cool airflow.
Heating: In HEATING mode the unit produces a warm and comfortable air flow. Because also the
free of charge energy from the outdoor air is used the efficiency of the system can reach up to
440%
Dehumidifying: In DRY mode the unit dehumidifies the air in the room as efficient as possible.
Note: In COOLING mode the air is also dehumidified.
EXTRA: frost protection in outdoor unit: The outdoor unit is provided with a PTC heating cable.
When the system is working as a heater in the wintertime the PTC heating cable will keep the drip
pan in the outdoor unit clear of ice, making sure the condensate water can reach the drain point.
Furthermore also the compressor crankcase is provided with a heating cable. Ensuring the unit can
perform and start up at extreme weather conditions.
EXTRA: anti-corrosion treatment in outdoor unit: The Zibro Golden Fin corrosion treatment on
the outdoor condenser heat exchanger improves the heating efficiency and accelerates the
defrosting process. The unique anti corrosive Golden Fin coating can withstand salty air and rain in
a superb way resulting in a longer expected lifetime of the condenser.
EXTRA: Home Freezing prevention: Upon pressing the FP button the unit will go into the
freezing prevention mode. The unit will overrule the indoor temperature setting and set it to approx
8-10°C. In this way preventing your home from freezing during cold periods at the lowest possible
energy consumption. When this mode is selected the indoor unit display will show “FP”. This button
can only be operated in heating mode.
Environment friendly refrigerant R410A: The most preferred and environmental friendly
refrigerant R410a is used in the air conditioner.
Turbo mode: With the Turbo mode the air conditioner will reach the preset temperature in the
shortest possible time.
3-layer air filter: The air conditioner is equipped with a 3 layer filter package to clean the
circulated room air. The 3M™ HAF air filter delivered together with this unit captures allergens like
bacteria, dust and pollen from the circulated air with an efficiency up to 80%. Pollen are well known
as an important stimulus for hay-fever allergy. The active carbon filter removes unpleasant odours
from the air and the screen filter captures large dust particles. The screen filter can be cleaned with
a vacuum cleaner and/or lukewarm water. Per season 2 to 3, 3M™ HAF and active carbon filters will
be used. These filters are available in a consumer package (including 1 3M™ HAF and 1 active
carbon filter).
Remote control with LCD screen: The unit can be operated with an easy to handle remote
control including LCD-display. Using the remote control the air conditioner can be operated up to a
distance of approx. 8 metres.
Remote control holder: The remote control can be placed in the wall mounted remote control
holder which is delivered together with the unit.
Adjustable airflow: The up-down airflow can be automatically changed by using the SWING
mode. The left-right airflow can be changed manually.
Sleep Mode: This function enables the air conditioner to increase (cooling) or decrease (heating)
automatically 1°C per hour for the first two hours and then maintain the same temperature for five
hours after which the air conditioner will stop operating automatically. It maintains the most
comfortable temperature and saves energy at the same time.
Fan speed setting: Select with FAN speed button: Automatic, Low, Medium or High. The LCD
display on the remote control will show the chosen speed.
Automatic operation: The air conditioning system can be set to automatic operation for the most
suitable MODE: Cooling, Dehumidifying or Heating, monitoring the indoor temperature.
Auto restart function: If there is any power failure during operation, the operation status before
power failure is memorised and the unit starts operating automatically after power recovery.
Timer: Use TIMER or set a working time between 30 minutes and 24 hours. The preset time
appears in the display of the remote control. The unit switches ON or OFF automatically when this
time is passed.
Full colour box: The unit is delivered completely with all auxiliary parts in a full colour box for the
indoor unit showing application and operation information in multiple languages.
Energy efficient 3D
Inverter (save up to 65%)
My comfort system for
guaranteed spot tempe-
rature
3-layer anti-allergy filter
for clean air
Year round high comfort
Sleep well with extremely
low sound mode
Indoor freezing
prevention 8ºC
Extra frost protection in
outdoor unit
