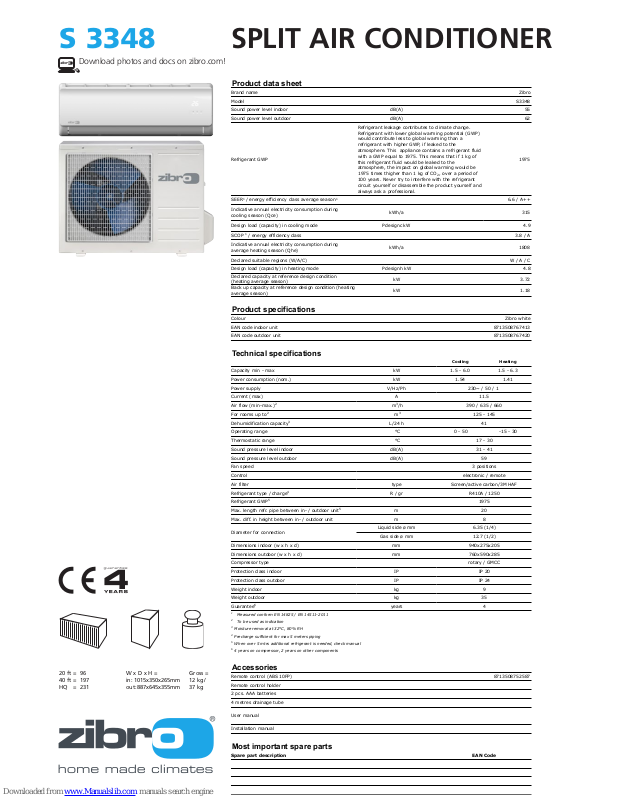

Zibro S 3348 Specifications
S 3348
Brand name
Model
Sound power level indoor dB(A) 55
Sound power level outdoor dB(A) 62
Refrigerant GWP 1975
SEER
1
/ energy efficiency class average season
1
6.6 / A++
Indicative annual electricity consumption during
cooling season (Qce)
kWh/a 315
Design load (capacity) in cooling mode Pdesignc kW 4.9
SCOP
1
/ energy efficiency class 3.8 / A
Indicative annual electricity consumption during
average heating season (Qhe)
kWh/a 1808
Declared suitable regions (W/A/C)
Design load (capacity) in heating mode Pdesignh kW 4.8
Declared capacity at reference design condition
(heating average season)
kW 3.72
Back up capacity at reference design condition (heating
average season)
kW 1.18
Colour
EAN code indoor unit
EAN code outdoor unit
Cooling Heating
Capacity min - max kW 1.5 - 6.0 1.5 - 6.3
Power consumption (nom.) kW 1.54 1.41
Power supply V/Hz/Ph
Current (max) A
Air flow (min-max.)
2
m3/h
For rooms up to
2
m
3
Dehumidification capacity
3
L/24 h
Operating range °C 0 - 50 -15 - 30
Thermostatic range °C
Sound pressure level indoor dB(A)
Sound pressure level outdoor dB(A)
Fan speed
Control
Air filter type
Refrigerant type / charge
4
R / gr
Refrigerant GWP
5
Max. length refr. pipe between in- / outdoor unit
5
m
Max. diff. in height between in- / outdoor unit m
Liquid side ø mm
Gas side ø mm
Dimensions indoor (w x h x d) mm
Dimensions outdoor (w x h x d) mm
Compressor type
Protection class indoor IP
Protection class outdoor IP
Weight indoor kg
Weight outdoor kg
Guarantee
6
years
1
Measured conform EN 14825 / EN 14511-2011
2
To be used as indication
3
Moisture removal at 32°C, 80% RH
4
Precharge sufficient for max 5 meters piping
5
When over 5 mtrs additional refrigerant is needed, check manual
6
4 years on compressor, 2 years on other components
Remote control (ABS 10FP)
Remote control holder
2 pcs. AAA batteries
4 metres drainage tube
Installation manual
Spare part description EAN Code
User manual
Most important spare parts
9
35
4
Accessories
8713508752587
8
940x275x205
760x590x285
rotary / GMCC
IP 20
IP 24
3 positions
electronic / remote
Screen/active carbon/3M HAF
R410A / 1250
1975
20
41
17 - 30
31 - 41
59
11.5
390 / 635 / 660
125 - 145
8713508767413
8713508767420
Technical specifications
230~ / 50 / 1
Diameter for connection
6.35 (1/4)
12.7 (1/2)
Product data sheet
Zibro
S3348
Refrigerant leakage contributes to climate change.
Refrigerant with lower global warming potential (GWP)
would contribute less to global warming than a
refrigerant with higher GWP, if leaked to the
atmosphere. This appliance contains a refrigerant fluid
with a GWP equal to 1975. This means that if 1 kg of
this refrigerant fluid would be leaked to the
atmosphere, the impact on global warming would be
1975 times thigher than 1 kg of CO
2
, over a period of
100 years. Never try to interfere with the refrigerant
circuit yourself or disassemble the product yourself and
always ask a professional.
W / A / C
Product specifications
Zibro white
SPLIT AIR CONDITIONER
20 ft = 96
40 ft = 197
HQ = 231
W x D x H =
in: 1015x350x265mm
out: 887x645x355mm
Gross =
12 kg/
37 kg
4
Download photos and docs on zibro.com!
S 3348 SPLIT AIR CONDITIONER
Features
Cooling + dehumidifying + heating (heat pump): The air conditioning is a complete air treatment system. It
can cool, dehumidify and heat the air.
Air conditioning: In COOLING mode the unit produces a pleasant and refreshing cool airflow.
Heating: In HEATING mode the unit produces a warm and comfortable airflow. Because also the free of charge
energy from the outdoor air is used to increase the efficiency of the system.
Dehumidifying: In DRY mode the unit dehumidifies the air in the room as efficient as possible. Note: In COOLING
mode the air is also dehumidified.
Inverter technology: maximum comfort: The Zibro DC Inverter Wall Mounted Split air conditioner continuously
adjusts the cooling and heating capacity according the desired room temperature. When the desired temperature is
reached, the compressor speed is gradually decreased to maintain the room temperature with a minimum of
variation. By varying gradually the compressor capacity, the expected lifetime as well as the experienced comfort
level will increase. Looking at the experienced comfort level for the user of the inverter system: Non-inverter air
conditioners, which operate at a constant speed, must turn on/off the compressor to control the room temperature
causing less comfortable temperature fluctuations.
Inverter technology: minimum energy consumption: The compressor starts to slow down as the room
temperature reaches the desired temperature. As a result, the over all power consumption is reduced significantly
(up to 35% less than non inverter/ conventional types).
EXTRA: frost protection in outdoor unit: The outdoor unit is provided with a PTC heating cable. When the
system is working as a heater in the wintertime the PTC heating cable will keep the drip pan in the outdoor unit
clear of ice, making sure the condensate water can reach the drain point. Furthermore also the compressor
crankcase is provided with a heating cable. Ensuring the unit can perform and start up at extreme wheather
conditions.
EXTRA: anti-corrosion treatment in outdoor unit: The Zibro Golden Fin corrosion treatment on the outdoor
condenser heat exchanger improves the heating efficiency and accelerates the defrosting process. The unique anti
corrosive Golden Fin coating can withstand salty air and rain in a superb way resulting in a longer expected lifetime
of the condenser.
EXTRA: Home Freezing prevention Button: Upon pressing this button the unit will go into the freezing
prevention mode. The unit will overrule the indoor temperature setting and set it to approx 8-10°C. In this way
preventing your home from freezing during cold periods at the lowest possible energy consumption. When this mode
is selected the indoor unit display will show “FP”. This button can only be operated in heating mode.
Environment friendly refrigerant R410A: The most preferred and environmental friendly refrigerant R410a is
used in the air conditioner.
Turbo mode: With the Turbo mode the air conditioner will reach the preset temperature in the shortest possible
time.
3-layer air filter: The air conditioner is equipped with a 3 layer filter package to clean the circulated room air. The
3M™ HAF air filter delivered together with this unit captures allergens like bacteria, dust and pollen from the
circulated air with an efficiency up to 80%. Pollen are well known as an important stimulus for hay-fever allergy. The
active carbon filter removes unpleasant odours from the air and the screen filter captures large dust particles. The
screen filter can be cleaned with a vacuum cleaner and/or lukewarm water. Per season 2 to 3, 3M™ HAF and active
carbon filters will be used. These filters are available in a consumer package (including 1 3M™ HAF and 1 active
carbon filter).
Remote control with LCD screen: The unit can be operated with an easy to handle remote control including LCDdisplay. Using the remote control the air conditioner can be operated up to a distance of approx. 8 metres.
Remote control holder: The remote control can be placed in the wall mounted remote control holder which is
delivered together with the unit.
Adjustable airflow: The up-down airflow can be automatically changed by using the SWING mode. The left-right
airflow can be changed manually.
Sleep Mode: This function enables the air conditioner to increase (cooling) or decrease (heating) automatically 1°C
per hour for the first two hours and then maintain the same temperature for five hours after which the air
conditioner will stop operating automatically. It maintains the most comfortable temperature and saves energy at
the same time.
Fan speed setting:
Select with FAN speed button: Automatic, Low, Medium or High. The LCD display on the remote
control will show the chosen speed.
Automatic operation: The air conditioning system can be set to automatic operation for the most suitable MODE:
Cooling, Dehumidifying or Heating, monitoring the indoor temperature.
Auto restart function: If there is any power failure during operation, the operation status before power failure is
memorised and the unit starts operating automatically after power recovery.
Timer: Use TIMER or set a working time between 30 minutes and 24 hours. The preset time appears in the display
of the remote control. The unit switches ON or OFF automatically when this time is passed.
Standby mode: This energy saving feature enables the unit to stay in standby mode (only 1 W energy
consumption).
Full colour box: The unit is delivered completely with all auxiliary parts in a full colour box showing application and
operation information in multiple languages.
3 functions in 1
Inverter technology
Anti-corrosion treatment
Home freezing preven-
tion
Extra frost protection in
outdoor unit
Environmental friendly
refrigerant
3-layer filter
Remote control with LCD-
display
