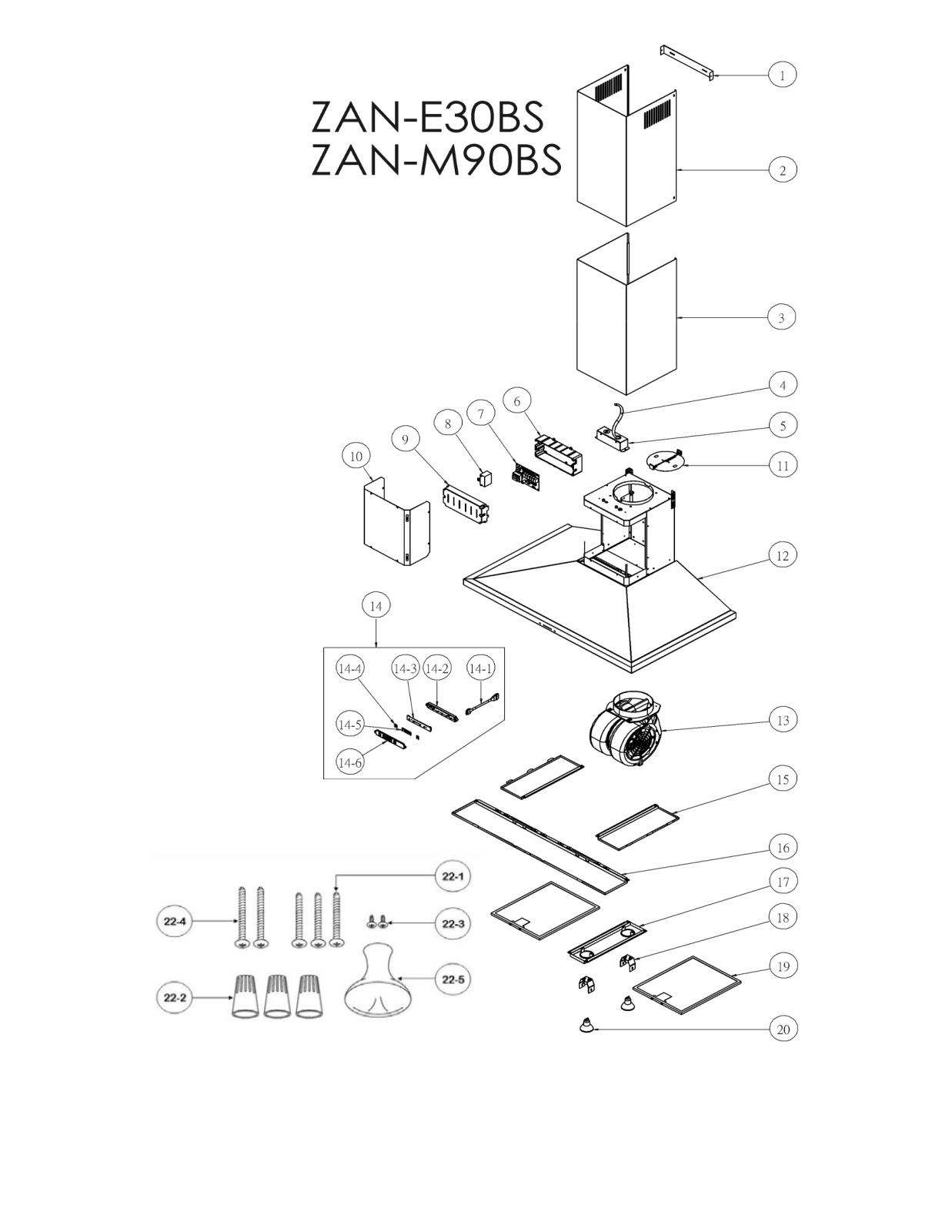

Zephyr ZANM90BS, ZANE30BS Exploded View Diagram

Anzio

14-2

56200082

H

h

1

ZAN-E30BS, ZAN-M90BS

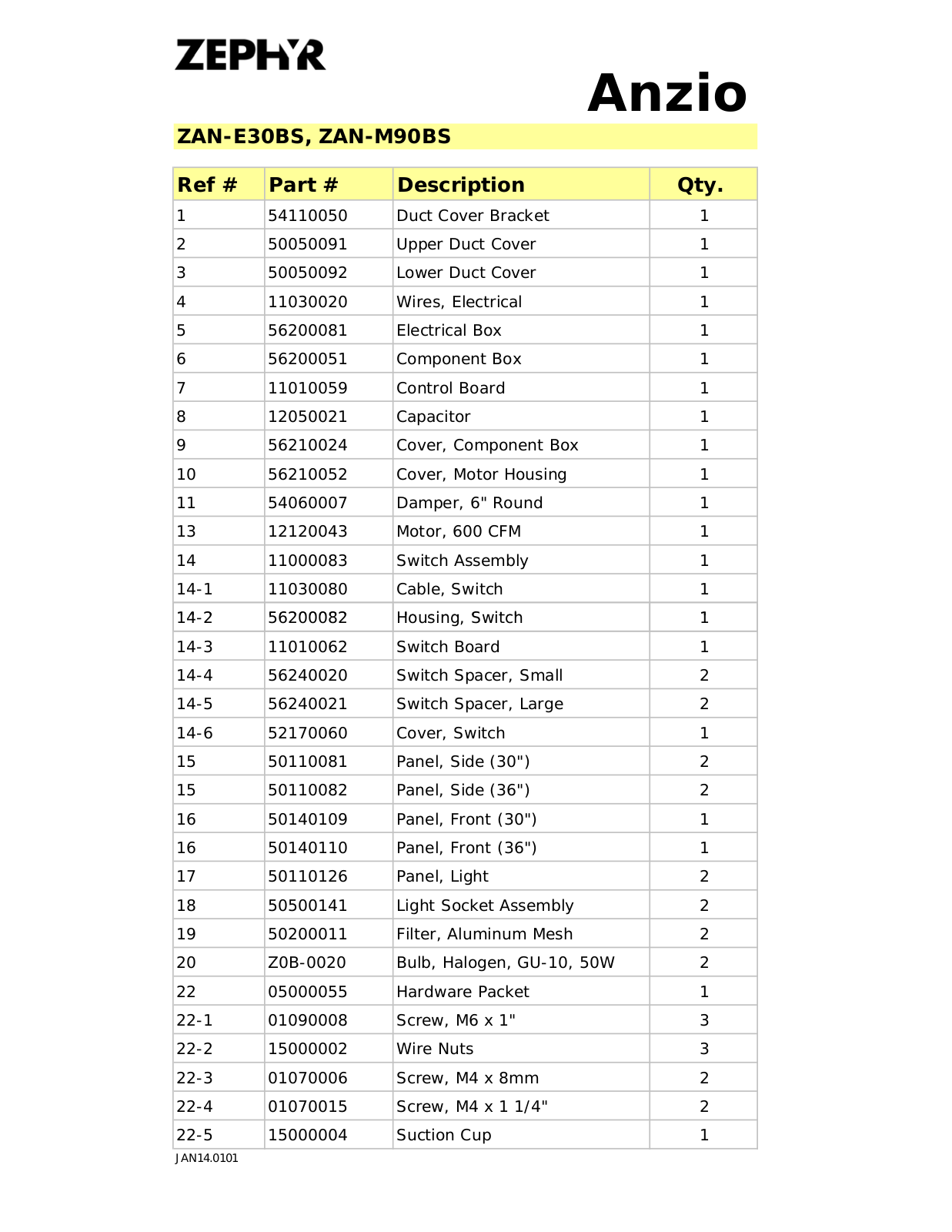

Ref # Part # Description Qty.

1 54110050 Duct Cover Bracket 1
2 50050091 Upper Duct Cover 1
3 50050092 Lower Duct Cover 1
4 11030020 Wires, Electrical 1
5 56200081 Electrical Box 1
6 56200051 Component Box 1
7 11010059 Control Board 1
8 12050021 Capacitor 1
9 56210024 Cover, Component Box 1
10 56210052 Cover, Motor Housing 1
11 54060007 Damper, 6" Round 1
13 12120043 Motor, 600 CFM 1
14 11000083 Switch Assembly 1
14-1 11030080 Cable, Switch 1

ousing, Switc
14-3 11010062 Switch Board 1
14-4 56240020 Switch Spacer, Small 2
14-5 56240021 Switch Spacer, Large 2
14-6 52170060 Cover, Switch 1
15 50110081 Panel, Side (30") 2
15 50110082 Panel, Side (36") 2
16 50140109 Panel, Front (30") 1
16 50140110 Panel, Front (36") 1
17 50110126 Panel, Light 2
18 50500141 Light Socket Assembly 2
19 50200011 Filter, Aluminum Mesh 2
20 Z0B-0020 Bulb, Halogen, GU-10, 50W 2
22 05000055 Hardware Packet 1
22-1 01090008 Screw, M6 x 1" 3
22-2 15000002 Wire Nuts 3
22-3 01070006 Screw, M4 x 8mm 2
22-4 01070015 Screw, M4 x 1 1/4" 2
22-5 15000004 Suction Cup 1

JAN14.0101
