Zephyr Z1C-00LA User Manual
customer service
Duct Cover Extension
Z1C-00LA
For use with Edge, Duo Wall and Layers Wall range hood
1.888.880.8368
Mounting the duct cover Pag. 3
Fixation des cheminees Pag. 4
Fijación de las chimeneas Pag. 5
Fissaggio dei camini Pag. 6
www.zephyronline.com
DUCT COVER EXTENSION SPECIFICATION
4-9/16"
EDGE
10-1/16"
38"-7/8"
Min 44" - Max 80"
3-1/8"
LAYERS WALL
10-1/16"
DUO WALL
10-1/16"
38-7/8"
Min 43" - Max 79"
3-1/2"
- 2 -
38-7/8"
Min 43" - Max 79"
MOUNTING THE DUCT COVER
1. Install the electrical wiring and test hood for functions prior to installing the
duct covers.
2. If using hood in air recirculating mode make sure
to install the air diverter plate prior to mounting
the duct covers. See the manual included with
the recirculating kit for more instructions.

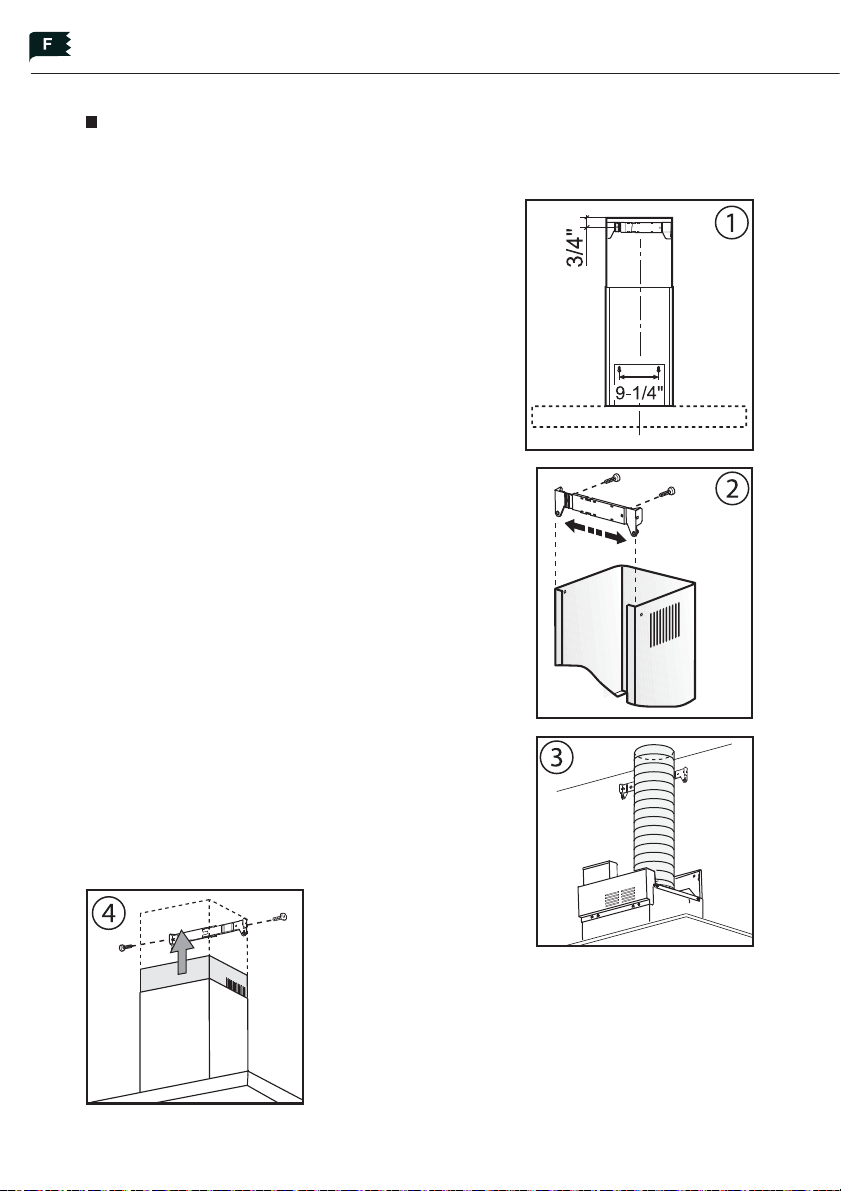

3. Adjust the width of the duct cover support bra-
cket so that it ts inside the top of the chimney
and observing the distance shown in Fig.1
4. Secure duct cover bracket to top of wall just
below the ceiling using (2) screws provided.
See Fig. 2
5. Place ducting from ceiling over the collar on top
of the hood and secure using aluminum duct
tape. See Fig. 3
6. Insert top duct cover into bottom duct cover.
Seat the duct covers correctly on the hood.
7. Extend top duct cover up and secure to the duct
cover bracket using (2) screws. See Fig. 4
- 3 -
