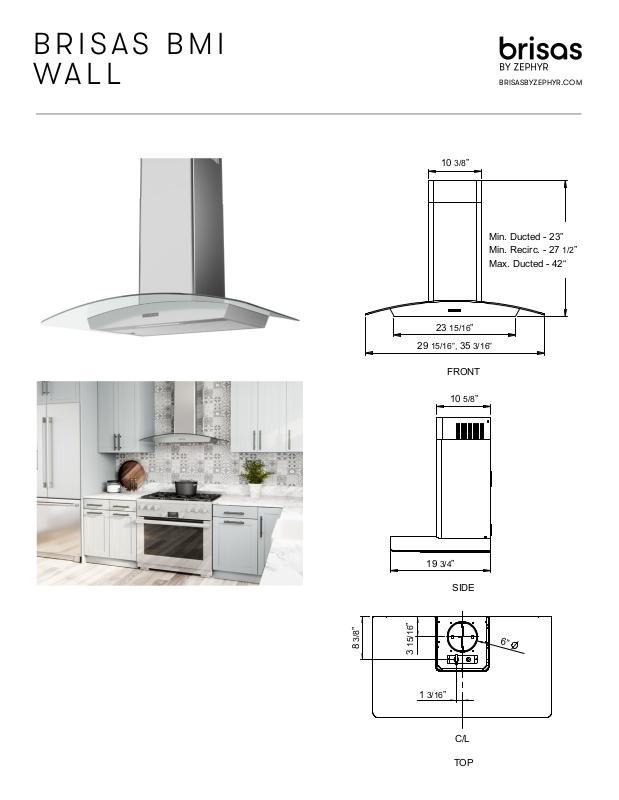

Zephyr W007103968 Specifications
BRISAS BMI
FRONT
SIDE
TOP
10
5/8
”
19
3/4
”
6”
8
3/8
”
3
15/16
”
1
3/16
”
C/L
23
15/16
”
10
3/8
”
Min. Ducted - 23”
Min. Recirc. - 27
1/2
”
Max. Ducted - 42“
29
15/16”, 35 3/16”
WALL
BRISASBYZEPHYR.COM
BRISAS BMI
WALL
MODEL
Stainless Steel w/ Glass canopy
Size
BLOWER PERFORMANCE
Blower CFM
Sones
ACT 390 CFM
ACT 290 CFM
FEATURES
ACT™ Technology
Controls
Speed Levels
Auto Delay-O
Lighting
Dual-Level Lighting
Filters
Recirculating Option
Extension Duct Cover Option
BMI-E30CG
30”
600
6
Yes
Yes
Yes
Capacitive Touch
3
Yes
BriteStrip™ LED, 5W x1
Yes
Aluminum Mesh
Yes
Yes, Up to 12’ Ceiling
BRISASBYZEPHYR.COM
BMI-E36CG
36”
600
6
Yes
Yes
Yes
Capacitive Touch
3
Yes
BriteStrip™ LED, 5W x1
Yes
Aluminum Mesh
Yes
Yes, Up to 12’ Ceiling
DUCT SPECIFICATIONS
Vertical Internal Blower
Horizontal Internal Blower
AC POWER
AC POWER INPUT
OPTIONAL ACCESSORIES
Recirculating Kit
Extension Duct Cover
MOUNTING HEIGHT RANGE*
WARRANTY
*Mounting height refers to distance between top of a 36” tall cooking surface and bottom of hood.
6” Round
NA
320W, 2.6A
120V, 60Hz
BRC-0006
B1C-00MI
24” - 34”
1 years parts, 1 year labor
6” Round
NA
320W, 2.6A
120V, 60Hz
BRC-0006
B1C-00MI
24” - 34”
1 years parts, 1 year labor
AIRFLOW CONTROL TECHNOLOGY
is an exclusive feature built into the hood which can limit the maximum blower CFM to meet local code requirements.
Specications subject to change, check zephyronline.com for up to date information.
Zephyr Ventilation | 2277 Harbor Bay Parkway, Alameda, CA 94502 | 888.880.VENT
