Padova
CPA - E42ASX
CPA - E48ASX
CPA - E54ASX
www.zephyronline.com
Model number:
Numéro de modèle: ____________________________________
Número de modelo:
Serial number:
Numéro de série: _____________________________________
Número de serie:
Date of Purchase:
Date d’achat: _____________________________________
Fecha de compra:
Sales Dealer:
Détaillant: _____________________________________
Distribuidor:
Use, Care, and Installation Guide
Guía de instalación, uso y mantenimiento
Guide d’utilisation, d’entretien et d’installation
LI2ZRA - DEC06.0101
READ AND SAVE THESE INSTRUCTIONS
LISEZ CES INSTRUCTIONS ET CONSERVEZ-LES
LEA Y GUARDE ESTAS INSTRUCCIONES
English page 2
French page 28
Spanish page 56
APPROVED FOR RESIDENTIAL APPLIANCES
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these Instructions for the Local Electrical Inspector’s use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Safety Warning: Turn off power circuit at service panel and lock out panel, before wiring this appliance.
Requirement: 120 V AC, 60 Hz. 15 or 20 A Branch Circuit
2
www.zephyronline.com
Important Safety Notice .................................................................... 5
Electrical & Installation Requirements ............................................ 6
Electrical requirements .............................................................. 6
Before installing the hood ........................................................... 6
List of Materials .................................................................................7
Parts supplied ............................................................................7
Parts not supplied ...................................................................... 7
Dimensions and Clearances ............................................................. 8
Ducting Options and Examples ........................................................9
Venting methods ........................................................................ 9
Preparation ................................................................................ 9
Installation - Ductwork Calculation Sheet ..................................... 10
Installation - Preliminary Operations ............................................. 11
Installation - Internal Blower ..................................................... 12-13
Top discharge (Vertical discharge) ............................................ 12
Rear discharge (Horizontal discharge) ...................................... 12
Internal blower installation ........................................................13
Installation - External Blower Preparation ............................... 14-15
Vertical discharge .................................................................... 14
Horizontal discharge ................................................................ 14
External blower electrical connection-Preliminary operations ....15
Table of Contents
Installation - Front Panel ................................................................ 16
Installation ....................................................................................... 17
Installing the hood onto the wall ............................................... 17
3
Table of Contents
Installation - Installing the Duct Covers ......................................... 18
Installation - Hanging the Hood onto the Wall .............................. 19
Installation - Electrical Connection & Final Installation Steps ..... 20
Electrical connection ................................................................20
Description of the Hood .................................................................. 21
Features & Controls - Touch Controls & Features ........................ 22
Description of control panel ...................................................... 22
Features & Controls - Baffle Filters Change Indicator ................. 23
Maintenance ............................................................................... 24-25
Cleaning ................................................................................... 24
Baffle Filter ...............................................................................24
Replacing the halogen light bulb ............................................... 24
Replacing the mood lighting bulb .............................................. 25
Trouble Shooting .............................................................................26
List of Parts and Accessories .......................................................... 27
4
READ AND SAVE THESE INSTRUCTIONS
www.zephyronline.com
CAUTION
FOR GENERAL VENTILATING USE ONLY.
VAPORS.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning the unit, switch power off at service panel and lock service panel disconnecting means
to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
C. Installation Work and Electrical Wiring Must Be Done By Qualified Person(s) In Accordance With All Applicable Codes
& Standards, Including Fire-rated Construction.
D. Sufficient air is needed for proper combustion and exhausting of gases through the flue (Chimney) of fuel burning
equipment to prevent back- drafting. Follow the heating equipment manufacturers guideline and safety standards
such as those published by the National Fire Protection Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
F. Ducted systems must always be vented to the outdoors.
CAUTION
To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces
within walls, ceilings, attics, crawl spaces, or garages.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK.
Install this hood in accordance with all requirements specified.
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Hood With Any External Solid State Speed Control
Device.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE.
a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (I.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or other metal tray, then turn off the gas burner or the electric
element. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
OPERATION
a. Always leave safety grills and filters in place. Without these components, operating blowers could catch onto hair,
fingers and loose clothing.
The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to
negligence and the warranty of the unit automatically expires due to improper maintenance.
* NOTE: Please check our website for revisions before doing any custom work.
DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS OR
Important Safety Notice
5
ELECTRICAL REQUIREMENTS
IMPORTANT
Observe all governing codes and ordinances.
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 —
latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all
local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the
ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT
Save Installation Instructions for electrical inspector’s use.
The range hood must be connected with copper wire only.
The range hood should be connected directly to the fused disconnect (Or circuit breaker) box through metal electrical
conduit.
Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA
Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and
ordinances.
A U.L.- or C.S.A.-listed conduit connector must be provided at each end of the power supply conduit (At the range hood and
at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association Batterymarch Park Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road Cleveland, Ohio 44131-5575
BEFORE INSTALLING THE HOOD
Electrical & Installation Requirements
1. For the most efficient air flow exhaust, use a straight run or as few elbows as possible.
CAUTION: Vent unit to outside of building, only.
2. At least 3 people are necessary for installation.
3. The hood is fitted with Screws and Drywall Anchors suitable for most surfaces, consult a Qualified Installer, check if they
perfectly fit with your cabinet/wall.
4. Use flex ducting CulUS approved.
5. COLD WEATHER installations should have an additional backdraft damper installed to minimize backward cold air flow
and a thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on
the cold air side of the thermal break.
The break should be as close as possible to where the ducting enters the heated portion of the house.
6. Make up air: Local building codes may require the use of Make-Up Air Systems when using Ducted Ventilation Systems
greater than specified CFM of air movement.
The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.
WARNING!
Don't add to the hood weights of over 10 kg (20.4 Lbs.).
6
www.zephyronline.com
PARTS SUPPLIED
• Hood body, with stainless steel baffle filter and halogen light bulbs and incandescent lamp already installed
• Two telescopic duct covers and support bracket
• Hardware Packet:
- 24x53 T1T2 "L" Male monkey spanner (1 piece)
- 3.5X9.5 screws to fix the internal blower (4 pieces)
- 3.5X9.5 screws to fix the duct cover (4 pieces)
- 3.5X9.5 screws to fix the 8" collar plastic round transition duct cover (4 pieces)
- 4x8 screws to fix the external blower wiring box (4 pieces)
- M4 nut for the grounding screw to connect the grounding screw to the external blower (3 pieces)
- toothed washer to connect the grounding screw to the external blower (3 pieces)
• Wall mounting brackets (1 piece)
• 8" Collar (1 piece)
• Plastic round transition with damper (1 piece)
• Cover round transition (1 piece)
• Rectangular transition air discharge + flange
• External blower wiring box with wires
• Template (1 piece)
• Use, Care and Installation Guide
• Warranty
List of Materials
PARTS NOT SUPPLIED
• Duct, conduit and all tools required for installation.
• Internal blower
To be used only in case of Internal blower installation.
• External blower
To be used only in case of External blower installation.
• Front panel.
CAUTION
To reduce the risk of fire and electric shock, install this rangehood only with integral blowers mod. EBI-600B
manufactured by ZEPHYR or with external blowers mod. CBE-1000, manufactured by ZEPHYR.
And with front panels mod. CPC-0012 (42" SS); mod. CPC-0112 (42" Brass); mod. CPC-0018 (48" SS); mod. CPC0118 (48" Brass); mod. CPC-0015 (54" SS); mod. CPC-0115 (54" Brass).
WARNING
To Reduce The Risk Of Fire, Electric Shock, And Injury To Persons, this rangehood Must Be Installed With Front
Panels That Are Marked (on their cartons) To Indicate The Suitability With This Model. Other Front Panels Cannot
Be Substituted.
7
Dimensions and Clearances
Only for version with top discharge feature:
* Hood with external motor: Over this measurement a hole may be made on the rear section for the passage of the discharge pipe for
connection to the external motor. Consult the template for the passage of pipes under this measurement.
** Hood with external motor: Above this measurement a hole may be made on the rear panel for the outward passage of the
discharge pipe. Consult the template for the passage of pipes under this measurement.
8
www.zephyronline.com
DESCRIPTION
MODEL
HOOD ONLY
INTERNAL BLOWER
42"
98.5 lbs.
48"
54"
9.5 lbs.
105 lbs.
9.5 lbs.
112 lbs.
9.5 lbs.
Closely follow the instructions set out in this manual.
All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in
this manual, is declined.
VENTING METHODS
This range hood is designed to exhaust fumes and vapours towards the outside and is ready to be fitted with an internal
blower and for discharge towards the top side (Vertical discharge).
This range hood can be set for an External Blower and /or to discharge towards the rear side (Horizontal discharge).
Before installation choose type of motor an discharge direction.
Consult paragraph "Dimensions and Clearances" and "Installation - Ductwork Calculation Sheet" for further
informations.
Minimum Duct Size : 8" Round Pipe or 3 1/4 ” x 10” Rect. Pipe (Rect. Pipe can be used for Internal blower installation
only)
PREPARATION
Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be
constructed.
Fitting material is provided to secure the hood to most types of walls/ceilings.
However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling.
Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
Hood installation height above cooktop is the users preference. The lower the hood is above the cooktop, the more
efficient the capturing of cooking odors, grease and smoke.
The hood shall be installed at 28" minimum above the countertop (Distance must be taken from the bottom side of
the hanging rail of the front panel).
Check your ceiling height and the hood height maximum before you select your hood.
Refer to the following table for the weights
:
Ducting Options and Examples
9
Duct pieces Equivalent number
lenght x used = Total
Duct pieces Equivalent number
lenght x used = Total
3 1/4 ” x 10”
Rect.,
straight
6 ” Round,,
straight
7", 8”
Round,,
straight
3 1/4 ” x 10”
Rect.90°
elbow
3 1/4 ” x 10”
Rect.45°
elbow
3 1/4 ” x 10”
Rect.90°
flat elbow
3 1/4 ” x 10”
Rect.
wall cap
with damper
3 1/4 ” x 10”
Rect.to
6 ” round
transition
3 1/4 ” x 10”
Rect.to
6 ” round
transition
90° elbow
1 Ft. x ( ) =
1 Ft. x ( ) =
1 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
24 Ft. x ( ) =
30 Ft. x ( ) =
5 Ft. x ( ) =
15 Ft. x ( ) =
Installation - Ductwork Calculation Sheet
6 ” Round,,
90° elbow
15 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
6" Round
wall cap
with damper
6” Round,
roof cap
6” Round to
3 1/4 ” x 10”
rect.
transition
6” Round to
3 1/4 ” x 10”
rect.
transition
90° elbow
7", 8" round
90° elbow
7", 8" round
45° elbow
7", 8" Round
wall cap
with damper
7", 8"
Round,
roof cap
7” Round to
3 1/4 ” x 10”
rect.
transition
6” Round to
3 1/4 ” x 10”
rect.
transition
90° elbow
30 Ft. x ( ) =
30 Ft. x ( ) =
1 Ft. x ( ) =
16 Ft. x ( ) =
15 Ft. x ( ) =
9 Ft. x ( ) =
30 Ft. x ( ) =
30 Ft. x ( ) =
8 Ft. x ( ) =
15 Ft. x ( ) =
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
6 ” Round,,
45°elbow
9 Ft. x ( ) =
Subtotal column 1 =
Maximum Duct Length: For satisfactory air movement, the
total duct length should not exceed 100 equivalent feet.
Note: Do not use smaller size duct than specified.
Subtotal column 2 =
Ft.
Subtotal column 2 =
Total ductwork =
10
Attention! The installation requires several steps
where is asked to temporarily remove some
particulars and screws, We recommend to record
and keep all of these components in a safe place
ready to be used as required.
• Remove stainless mesh filters (See relative
paragraph on Maintenance section of this manual).
• Release the 4 per side threaded knobs and remove
the internal left-right side covers.
www.zephyronline.com
• Unscrew the 4 screws that fix the cover to the
Junction box, to access mains connection area.
Installation - Preliminary Operations
11
Note: for External blower installation disregard the
instruction in this page and step ahead on page 14.
TOP DISCHARGE
(Vertical discharge)
The hood is ready to be used for vertical discharge,
proceed to install the internal blower (See next page).
REAR DISCHARGE
(Horizontal discharge)
• Remove the internal blower support (Top side)
unscrewing the 4 fixing screws.
• Install the motor support to the body of the hood
(Rear side) with 4 screws in place of the rear cover
previously removed.
Note! Lip of motor support must be towards the
inside of the hood in order for screw holes to line
up.
Installation - Internal Blower
• From the inside of the hood, rear side remove
cover/rectangular transition support from the range
hood body unscrewing the 4 fixing screws.
• Close, from the inside of the hood, the top hole with
the cover/rectangular transition support and fix it to
the body of the hood with 4 screws (Screws holes
disposition is obliged!).
12
INTERNAL BLOWER INSTALLATION
• Fit the blower inside the hood.
www.zephyronline.com
• Install the blower to the support with 4 screws
(Provided), check that the rectangular outlet of the
blower matches with the rectangular slot of the
support.
Note: The 4 fixing screws must be screwed in from
the outside of the hood (See photo below).
• Connect the blower to the range hood.
Installation - Internal Blower
13
Note: for internal blower installation, disregard the
instruction on this next page and consult the instruction
on the previous pages (See pages 12-13).
Note 2: Refer to the CBE-1000 manual for instructions on
mounting the external blower to a roof or exterior wall.
The manual is available on our website and is included
in the external blower packaging.
WARNING!
Do not use the rectangular transition for External
blower installation, the use of this transition is , in this
case, forbidden!
Use only a 8" Round Pipe! See Installation step 9 on
page 17 for further informations.

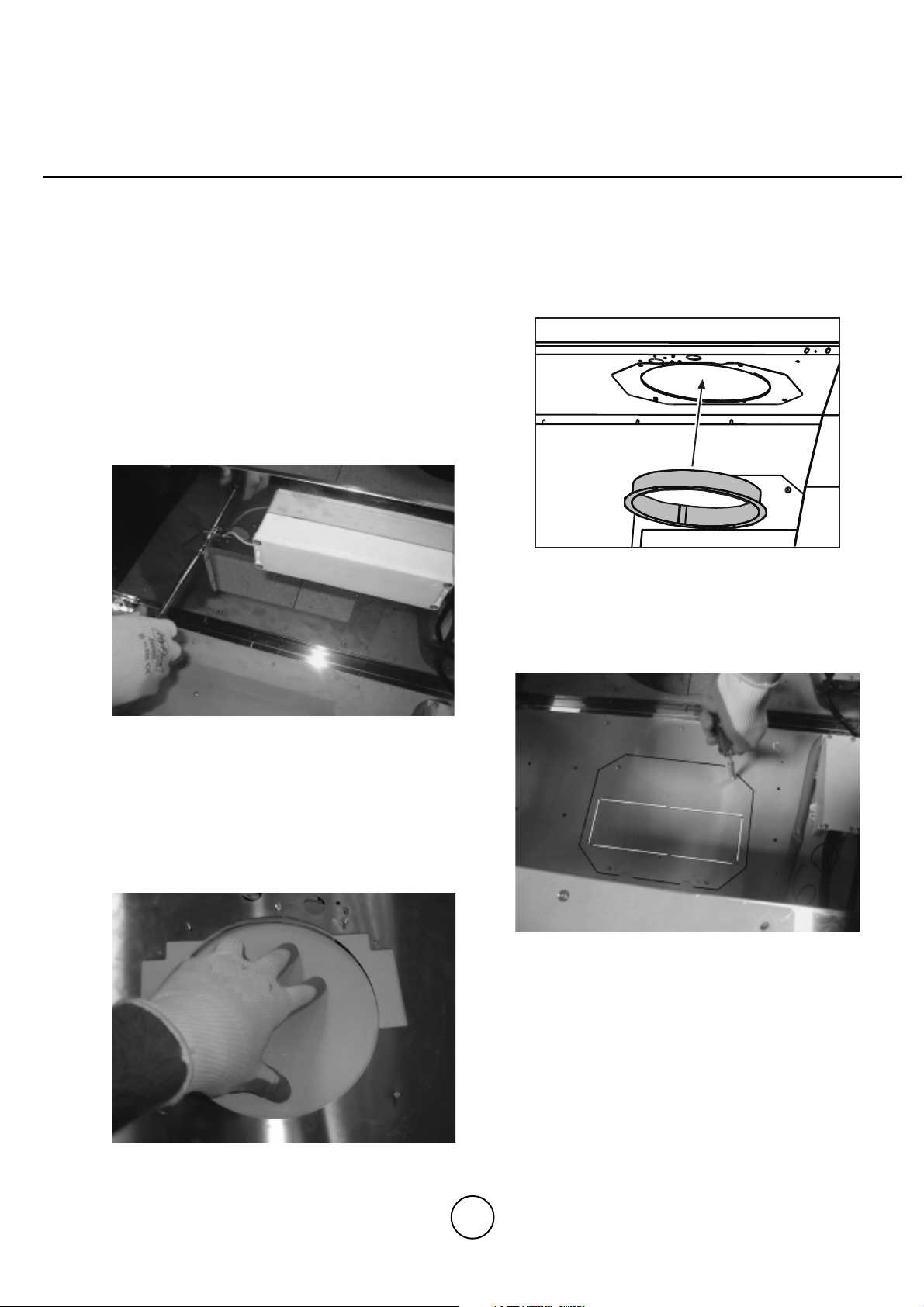

• Install the supplied round transition collar to the
previously installed cover/round transition support
plate from inside the hood. Align and attach with 2
screws securely.
Horizontal discharge
• From the inside of the hood, remove (rear side) the
cover/rectangular transition support unscrewing the 4
screws that fix it to the body of the range hood.
Vertical discharge
• Remove the cover/rectangular transition support plate
from inside the hood on upper panel.
Locate and remove 4 screws that attach it.
• Install the supplied round transition collar to the
previously installed blower support plate. Align the
screw holes and attach securely.
Installation - External Blower Preparation
• Remove the cover/rectangular transition support plate
from inside the hood on back panel.
• Install the supplied cover/round transition support
plate using the previously removed 4 screws to the
same location of the removed internal blower support
plate. Align the screw and attach securely.
• Remove the round knock out.
14
• Install the supplied round transition collar to the
EXT.
BLOWER
REMOTE FAN UNIT
JUNCTION BOX
BLACK (HIGH)
RED (LOW)
WHITE (COMMON)
BLUE (MED)
Y/G (GROUND)
HOOD
= CONNECTION WIRE TO WIRE
BLACK
RED
WHITE
BLUE
Y/G
CONDUIT
WIRES
RED (LOW)
Y/G (GROUND)
BLACK (HIGH)
BLUE (MED)
WHITE (COMMON)
Upper outlet
(Vertical discharge)
Knock-out
Junction box
(Mains connection)
Knock-out
(External Blower
connection)
previously installed cover/round transition support
plate. Align and attach with 2 screws securely.
www.zephyronline.com
• Install the external blower junction box with 4 screws.
• Connect the supplied 9 pin male molex plug from the
external blower wiring to the 9 pin female molex plug on
the control board housing. Route wire end through
hood and terminate in external blower junction box. See
diagram below.
EXTERNAL BLOWER ELECTRICAL CONNECTION
- PRELIMINARY OPERATIONS
Installing the external blower junction box
• Remove the electrical knock out on the upper panel.
See diagram below.
• Connect the eyelet terminal of the yellow/green conductor
to the grounding screw located inside the hood.
Installation - External Blower Preparation
• Remove the cover of the junction box.
Run electrical conduit to junction box and secure with
listed conduit fitting. Carry out the electrical connections.
Reinstall the junction box cover.
15
• To attach front panel to hood body, align the 8 threaded studs through the front bodies corresponding holes.
2
3
1
4
6
5
8
7
1
2
3
4
5
6
7
8
3
4
x 8
Use 8 wing nuts to attach and secure. See diagrams below
Installation - Front Panel
NOTE: The front panel is not supplied with the range hood and must be purchased separately.
16
INSTALLING THE HOOD ONTO THE WALL
Support bracket
Centerline
C
L
Fastener locations
C
L
Framing behind drywall
wood blocking
secured to studs
and located behind
drywall
1. Disconnect and move freestanding or slide-in range
from cabinet opening to provide easier access to
rear wall. Use a thick, protective covering over
countertop, cooktop or range to protect from damage
and debris. Select a flat surface for assembling the
unit. Cover that surface with a protective covering
and place all canopy hood parts and hardware in it.
2. Mark the centerline on the wall/ceiling where the
canopy hood will be installed.
Note: Draw the line on ceiling if is intended to install
the supplied Duct Covers.
3. Select a mounting height comfortable for the user
and mark on wall (minimum 28").
4. Tape template, matching center-line and hood
bottom as shown in Figure below.
5. Place the support bracket on the template to coinci-
de with the outlined rectangle, mark center of all
fastener location (Horizontal rear discharge requires
additional marks for venting passage). Remove
template.
6. Mark wall with horizontal line 1" above highest and 1"
below lowest fastener location. Using a carpenter’s
level.
7. Find studs behind drywall by tapping wall or using a
stud finder. Mark the center of the studs with a
vertical line to the right and left of the marked
fastener location.
8. Note: All fastener locations must attach to studs and/
or blocking, otherwise proceed as follows:
Cutout drywall along marked lines. Install wood
blocking between studs and make sure it is flush
with existing stud front. Make sure all mounting
screws will anchor to added studs. Replace drywall
and refinish.
www.zephyronline.com
Installation
9. Determine and make all necessary cuts in the wall
for the vent system. Install the vent system before
the canopy hood. See „Venting methods“ and
„Dimensions and clearance“ paragraphs.
IMPORTANT - for External blower installation
ONLY: Run 10” round duct work from the external
blower to the ceiling. Before the duct work passes
through the ceiling bracket, use a 10” to 8” transition
adapter (included with external blower) and run 8”
duct work to the opening on the hood. The 8” duct
work run should not exceed 60” in length.
10. Determine the required height for the conduit and
cut a 1-1/4" (3.2 cm) hole at this location.
Run wires through hole according the National
Electrical Code or CSA Standards and local codes
and ordinances.
Note: External blower installation requires and
additional hole/conduit.
There must be enough power supply cable from the
fused disconnect (Or circuit breaker) box to make
the connection in the hood’s Junction box/es.
Use caulking to seal all openings.
Do Not turn on power until installation is completed.
11.Remark center line and hood bottom on same
location as before and tape template on wall as in
step 4 above.
12.Mount the lower support bracket with wood screws
and washers (Supplied in mounting hardware kit)
on locations marked on template, then remove
template.
17
13. Optional duct cover installation:
Conduit
Duct
Position
reference
Position
reference
CenterLine
Duct cover
support barcket
a. Remove the support bracket from the Duct Cover
assembly and attach it to the ceiling with 2 drywall
anchors and screws
Note: The printed index on the bracket must match
the center line previously drawn (See installation
step 2).
Support
Bracket
Upper
section
Lower
section
(Collar)
Unscrew the 4 screws that fix the section of the Duct
Cover (Starting collar) and release all parts.
Install the upper section to the support bracket with
2 screws.
Note: Check that joined seam is positioned towards
the back.
Note2: The lower section (Collar) of the duct cover
assembly must be installed at the end of the
installation with 2 screws.
Installation - Installing the Duct Covers
18
www.zephyronline.com
Rear outlet
(Horizontal
discharge)
Upper outlet
(Vertical discharge)
Knock-out junction box (Mains connection)
Knock-out (External Blower connection)
Hanging bracket
Bottom security
screws hole
Bottom security
screws hole
Upper
security
screw
hole
Upper
security
screw
hole
Lower
support
bracket
CenterLine
Rectangular
transition
14. For internal blower installation ONLY:
a. Horizontal (Rear) discharge:
Install from the outside the 3 1/4 ” x 10” Rect.
transition on the outlet hole of the blower with 3
screws.
b. Vertical (Upper) discharge:
Install from the outside the 8" plastic round
transition, with 4 screws. Install transition so that
little position adjustment are allowed.
Note: Seal with duct tape only when transition is
firmly attached to the range hood.
Do not use duct smaller than the transition, (see
installation step 9) for further instruction about
duct to be used.
15. Hang hood on lower bracket.
WARNING
Excessive Weight Hazard - Use three or more people
to move and install range hood. Failure to do so can
result in back or other injury.
16. Secure hood with screws and washers.
17. Connect the ducting to the transition. Seal with duct
tape.
Note: If Duct has been already fixed to transition
(See installation step 15b), install the transition to
the hood with 4 screws.
Do not use duct smaller than the transition, see
installation step 9 for further instruction about
duct to be used.
19
Installation - Hanging the Hood onto the Wall
18. Electrical connection
J-Box cover
Conduit
WARNING
Electrical Shock Hazard
Warning: Turn off power circuit at the service panel
before wiring this unit.
120 VAC, 15 or 20 Amp circuit required.
ELECTRICAL GROUNDING INSTRUCTIONS
THIS APPLIANCE IS FITTED WITH AN ELECTRICAL
JUNCTION BOX WITH 3 WIRES, ONE OF WHICH
(GREEN/YELLOW) SERVES TO GROUND THE
APPLIANCE. TO PROTECT YOU AGAINST
ELECTRIC SHOCK, THE GREEN AND YELLOW
WIRE MUST BE CONNECTED TO THE GROUNDING
WIRE IN YOUR
HOME ELECTRICAL SYSTEM, AND IT MUST UNDER
NO CIRCUMSTANCES BE CUT OR REMOVED.
Failure to do so can result in death or electrical
shock.
Install the conduit connector (cULus listed) in
junction box.
Run 3 wires; black, white and green, according to the
National Electrical Code and local codes and
ordinances, in 1/2" conduit from service panel to
junction box.
19. Note: disregard this step if the hood has been fitted
with an internal blower.
Purchase and install an External blower (See
paragraph „Before installing the hood - Parts not
supplied“ for model reference).
20. Check all light bulbs to make sure they are secure
in their sockets.
21. Install the internal left-right side covers (See
chapter "Installation-preliminary operations")
22. Install filters.
23. Install the lower section of the Duct Cover (Starting
Collar) with 2 screws and slide it towards the top of
the hood.
Turn power (On) in service panel.
Check lights and blower operation.
Connect black wire from service panel to black or red
in junction box, white to white and green to greenyellow.
Close and secure junction box cover.
Installation - Electrical Connection & Final Installation Steps
If range hood does not operate:
• Check that the circuit breaker is not tripped or the
house fuse blown.
• Disconnect power supply. Check that wiring is
correct.
20
1 Controls
6
2
2
3
3
4
1
5
2 Baffle filter
3 Halogen lamp
4 Incandescent ambient lamp
5 Hood body
6 Duct cover
www.zephyronline.com
Description of the Hood
21
Use the high suction speed in cases of concentrated kitchen vapors. It is recommended that the cooker hood suction is
1 5
2
6
4
3
Blower ON/OFF Display (Speed Level, Delay Off Indicator, Filter Clean)
Adjust 3 Speed Levels
Mood Light ON/OFF
Lights ON/OFF/Hold to Dim
15 Min Delay Off
switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes after
terminating cooking.
Note: Hood retains last speed setting when aspiration switch is turned off.
Description of control panel:
1. Blower On/Off
By pressing ,the blower is switched On and Off.
2. Speed Selection
The 3 speed levels are selected by pressing
The display indicates level selected.
3. Delay Off
This is used for programmed shut down of blower and lights 15 minutes after the function is activated.
Press once,a dot flashes in the lower right hand side of display
The hood will completely shut down in 15 minutes.
4. Lights On/Off/Dim
Switch lights On and Off by pressing once.To dim lights,press and hold it in for 2 seconds.
5. Advance Display Functions
6. Mood Light On/Off
This switch turns the mood lights On and Off.Press IN to turn on,press again to turn OFF.
Filters Clean Reminder (Metal):
to decrease and to increase speed level.
Features & Controls - Touch Controls & Features
indicating the function is on.
22
www.zephyronline.com
Filter Clean Reminder (Standard Baffle Filters fitted):
A set of baffle filters are fitted by the factory. These Baffle Filters are intended to filter out residue from cooking. They
need not be replaced on a regular basis but are required to be kept clean. The Filter Clean Reminder function in
the microprocessor will automatically indicate by a
every 30 hrs. of use. Filters can be cleaned by hand with non-abrasive soap or in a dishwasher.
flashing when the metal filters need to be cleaned after
Filter Clean Reminder:
When
are required to be cleaned.
This will occur after every 30 hours of use.
flashes on display, the baffle filters installed
Re-setting Function:
Reset the Filter Clean Reminder timer when filters are
cleaned and re-installed (with hood off).
Press and hold
appear; hold for approximately 5 seconds until
display disappears
The Filter Clean Reminder function is now re-set and a
new 30 hours elapse cycle is initiated.
for approx. 5 seconds, the display will
on
.
Clean Filters
To Reset
hold 5 secs.
display <A> flashes
display from <A> to < >
23
Features & Controls - Touch Controls & Features
ATTENTION!
Prior to any maintenance operation ensure that the cooker hood is disconnected from the power supply.
CLEANING
The cooker hood should be cleaned regularly internally and externally.
Use a cloth moistened with a neutral liquid detergents. Avoid abrasive detergents.
Warning:
Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire
risks.
Therefore, we recommend oserving these instructions.
Maintenance
BAFFLE FILTER
This must be cleaned once a month using non abrasive detergents, either by hand or in the dish-washer,
which must be set to a low temperature and a short
cycle.
When washed in a dish-washer, the baffle filter may
discolor slightly, but this does not affect its filtering
capacity.
To remove the baffle filter, pull (a) the handle and extract
the filters (b).
REPLACING THE HALOGEN LIGHT BULB:
WARNING
Disconnect the hood from electricity and be sure the
lights are cool.
If new lights do not operate, make sure the light bulb is
inserted correctly before calling service.
• Remove bulb by pressing both ends of the metal
retaining clip together, the light socket will now
protude from the hood allowing you to remove the
bulb.
(Be careful when releasing retain clip as it is under
pressure to hold it in place)
• Replacement halogen bulbs are available at most
stores which sell light bulbs. Purchase type GU-10,
120V, 50W. Follow package directions.
• Reinstall the metal retaining.
b
metal
retaining
a
b
a
24
REPLACING THE MOOD LIGHTING BULB:
To replace mood lighting bulb, remove baffle filter from
hood.
To access lamp area, remove the two threaded knobs
that fix the cover.
Unscrew mood lighting bulb counter-clockwise and
replace with a standard max. 40W, type T10, 125V-130V
medium base bulb.
www.zephyronline.com
Maintenance
25
Issue Cause What to do
After installation, the
unit doesn’t work?
Trouble Shooting
Light works, but motor
is not turning.
The unit is vibrating.
1. The power source is not turned ON.
2. The power line and the cable locking
3. The switch board and control board
4. The switch board or control board is
1. The motor is defective, possible
2. The thermally protected system
3. Damaged condenser.
1. The motor is not secure in place.
2. Damaged blower wheel.
3. The hood is not secured in place.
connector is not connecting properly.
wirings are disconnected.
defective.
seized.
detects if the motor is too hot to
operate and shuts the motor down.
1. Make sure the circuit breaker and the
unit’s power is ON.
2. Check the power connection with the
unit is connected properly.
3. Make sure the wirings between the
switch board and control board are
connected properly.
4. Change the switch board or control
board.
1. Change the motor.
2. The motor will function properly after
the thermally protected system cool
down.
3. Change the condenser.
1. Tighten the motor in place.
2. Change the blower wheel.
3. Check the installation of the hood.
The motor is working,
but the lights are not.
The hood is not venting
out properly.
Metal filter is vibrating.
1. Defective halogen bulb.
2. The light bulb is loose.
1. The hood might be hanging to high
from the cook top.
2. The wind from the opened windows
or opened doors in the surrounding
area are affecting the ventilation of
the hood.
3. Blocking in the duct opening or
ductwork.
4. The direction of duct opening is
against the wind.
5. Using the wrong size of ducting.
1. Metal filter is loose.
1. Change the halogen bulb.
2. Tighten the light bulb.
1. Adjust the distance between the cook
top and the bottom of the hood within
24” and 32” range.
2. Close all the windows and doors to
eliminate the outside wind flow.
3. Remove all the blockage from the duct
work or duct opening.
4. Adjust the duct opening direction.
5. Change the ducting to at least 8” or
higher.
1. Change the metal filter.
26
Part Description Part#
www.zephyronline.com
Halogen Bulb, 120V 50 W
Filter Baffle
Z0B0020S
50210002
Part Description Part#
Internal Blower 600 CFM
External Blower 1000 CFM
Front Panel 42" SS
Front Panel 42" Brass
Front Panel 48" SS
Front Panel 48" Brass
Front Panel 54" SS
Front Panel 54" Brass
EBI-600B
CBE-1000
CPC-0012
CPC-0112
CPC-0018
CPC-0118
CPC-0015
CPC-0115
List of Parts and Accessories
Doluflex 6pc. Blank, 42"
Doluflex 6pc. Blank, 48"
Doluflex 6pc. Blank, 54"
Veneer, 6pc. Copper, 42"
Veneer, 6pc. Copper, 48"
Veneer, 6pc. Copper, 54"
Veneer, 6pc. Stainless, 42"
Veneer, 6pc. Stainless, 48"
Veneer, 6pc. Stainless, 54"
CDO-0042
CDO-0048
CDO-0054
CDO-0142
CDO-0148
CDO-0154
CDO-0242
CDO-0248
CDO-0254
27
Loading...
