Zenith D32D51, D27D51 OPERATING GUIDE

machine numbers D27D51 D32D51 D36D51

enjoy the view

operating guide / warranty

table of contents

page

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

POWER CORD POLARIZATION:

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.

COMPLIANCE:

The responsible party for this product’s compliance is: Zenith Electronics Corporation, 2000 Millbrook Drive, Lincolnshire, IL 60069, USA • Phone: 1-847-391-7000.

RECORD YOUR MODEL NUMBER

The model and serial number of your Entertainment MachineTMare located on the back of the TV cabinet. For your future convenience, we suggest that you record these numbers here:

Model No._________________________ Serial No. __________________________

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Entertainment MachineTMis a trademark of Zenith Electronics Corporation

IMPORTANT SAFETY INSTRUCTIONS

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this operating guide can help you get many years of enjoyment and safe operation that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards Association.

PORTABLE CART WARNING

(Continued on next page)

PAGE 3

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Water and Moisture

Do not use this product near water for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.

7. Accessories, Carts, and Stands

Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

8. Transporting Product

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Power Cord Polarization

This product is equipped with a polarized alternating - current power plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

13. Power Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

206-3706 2-WR-POLZ

PAGE 4

3-WireRev6/00

IMPORTANT SAFETY INSTRUCTIONS

(Continued from previous page)

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A.), ANSI/ NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Lightning

For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

16. Power Lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

18. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the

product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f. If the product exhibits a distinct change in performance.

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.

24. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Antenna Lead in Wire

Antenna Discharge Unit (NEC Section 810-20)

Grounding Conductor (NEC Section 810-21)

Ground Clamps Power Service Grounding

Electrode System (NEC Art 250, Part H)

Ground Clamp

Electric Service

Equipment

Example of Grounding According to National Electrical Code Instructions

NEC - National Electrical Code

206-3594

Table of Contents

Refer to the information below to hook up external equipment and set up the features on your Entertainment Machine

Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Information . . . . . . . . . . . . . . . . . . . . 3 - 4

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Step 1. Hook Up TV

Connection Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . 6

Equipment Connection Options

Antenna, Install batteries in remote control . . . . . . . . . . . . . . 7

Cable Service, Install batteries in remote control . . . . . . . . . . 8

Antenna with VCR, Install batteries in remote control . . . . . . . 9

Cable Service with VCR, Install batteries in remote control . . . 10

S-VHS VCR, Install batteries in remote control . . . . . . . . . . . 11

DVD Component Video Hookup . . . . . . . . . . . . . . . . . . . . . 12

High-Definition Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . 13

High-Definition/RGB Hookup . . . . . . . . . . . . . . . . . . . . . . . 14

Audio/Video Signal Output . . . . . . . . . . . . . . . . . . . . . . . . 15

Front Panel Controls/Inputs . . . . . . . . . . . . . . . . . . . . . . . 16

Remote Control Key Functions in TV mode . . . . . . . . . . . . . . 17

Step 2. Reception Setup and Channel Search

EZ Program: Select Cable service or Air Antenna

and run channel search . . . . . . . . . . . . . . . . . . . . . . . . 18

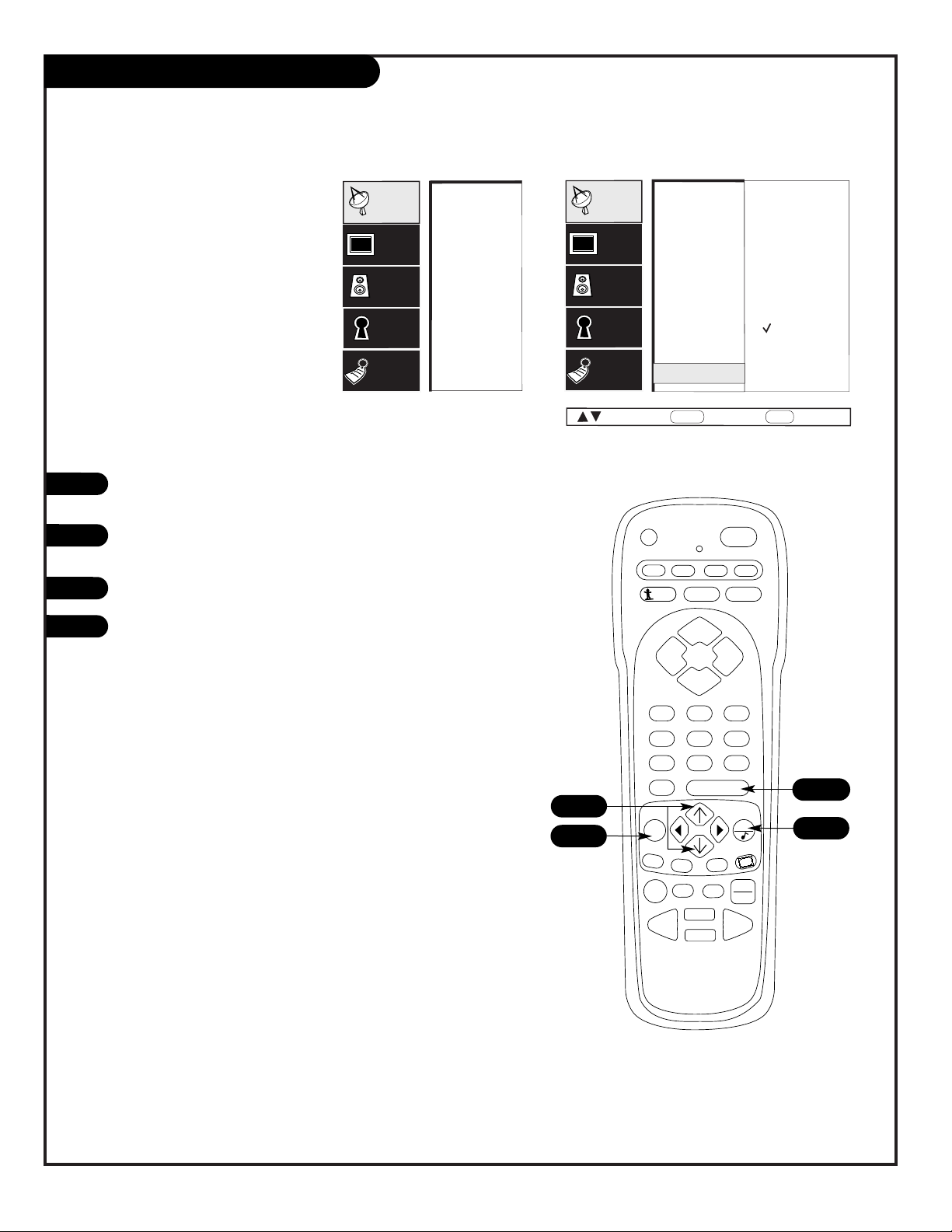

On-Screen Menu Operation with Remote . . . . . . . . . . . . . . . 19

On-Screen Menus/Displays Overview . . . . . . . . . . . . . . . 20 - 21

Other Functions and On-Screen Displays . . . . . . . . . . . . . . . 22

Step 3. Customize the TV’s Features

Setup Menu (Start with page 18, EZ Program)

Add/Del/Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

EZ Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Captions (Caption/Text) . . . . . . . . . . . . . . . . . . . . . . . . 25

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contrast, Brightness, Color, Tint, Sharpness, Color Temp: . . . .

(Cool, Warm), EZ Picture: (Custom, Normal, Movie, Digital

Pres, Video Game, Sports, Night Time, Weak Signal).

Video Sub Menu, Aspect Ratio and other settings . . . . . . 30

Audio Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Bass, Treble, Balance, Audio Mode: (Stereo, Mono, SAP), EZ Bass Front Surround, EZ SoundRite, Speakers, EZ Sound: (Custom, Normal, Stadium, News, Music, Theater).

Lock (Parental Control Menu) . . . . . . . . . . . . . . . 32 - 33 - 34

Restricts viewer programming.

Special Menu

EZ Timer: Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . 35

EZ Timer: On/Off Timer Functions . . . . . . . . . . . . . . . . . 36

Channel Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

XDS Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

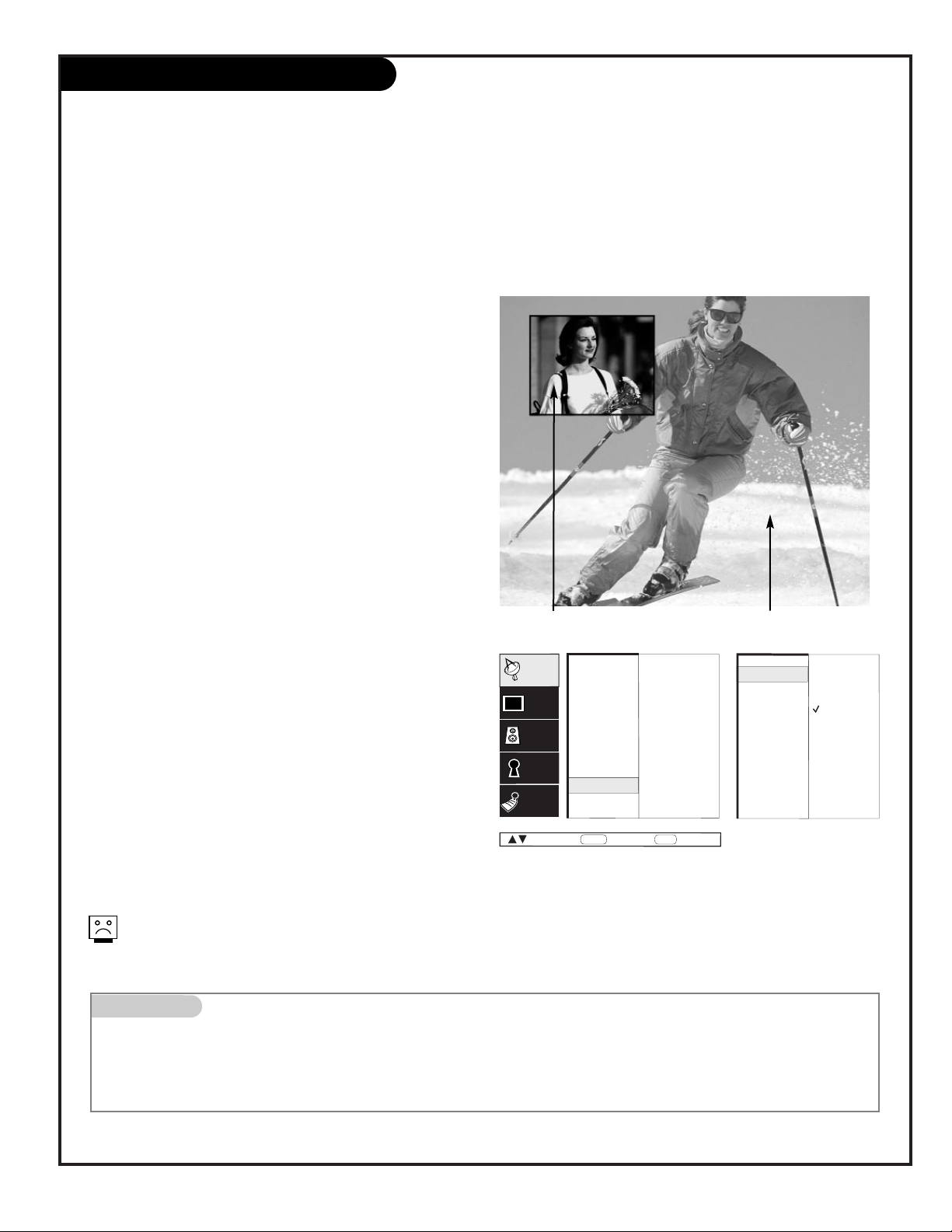

PIP Menu (Setup PIP picture appearance) . . . . . . . . . . . 39

Source Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Source Hookup Options . . . . . . . . . . . . . . . . . . . . . . . 41

EZ Demo (On-screen menus overview) . . . . . . . . . . . . . . 42

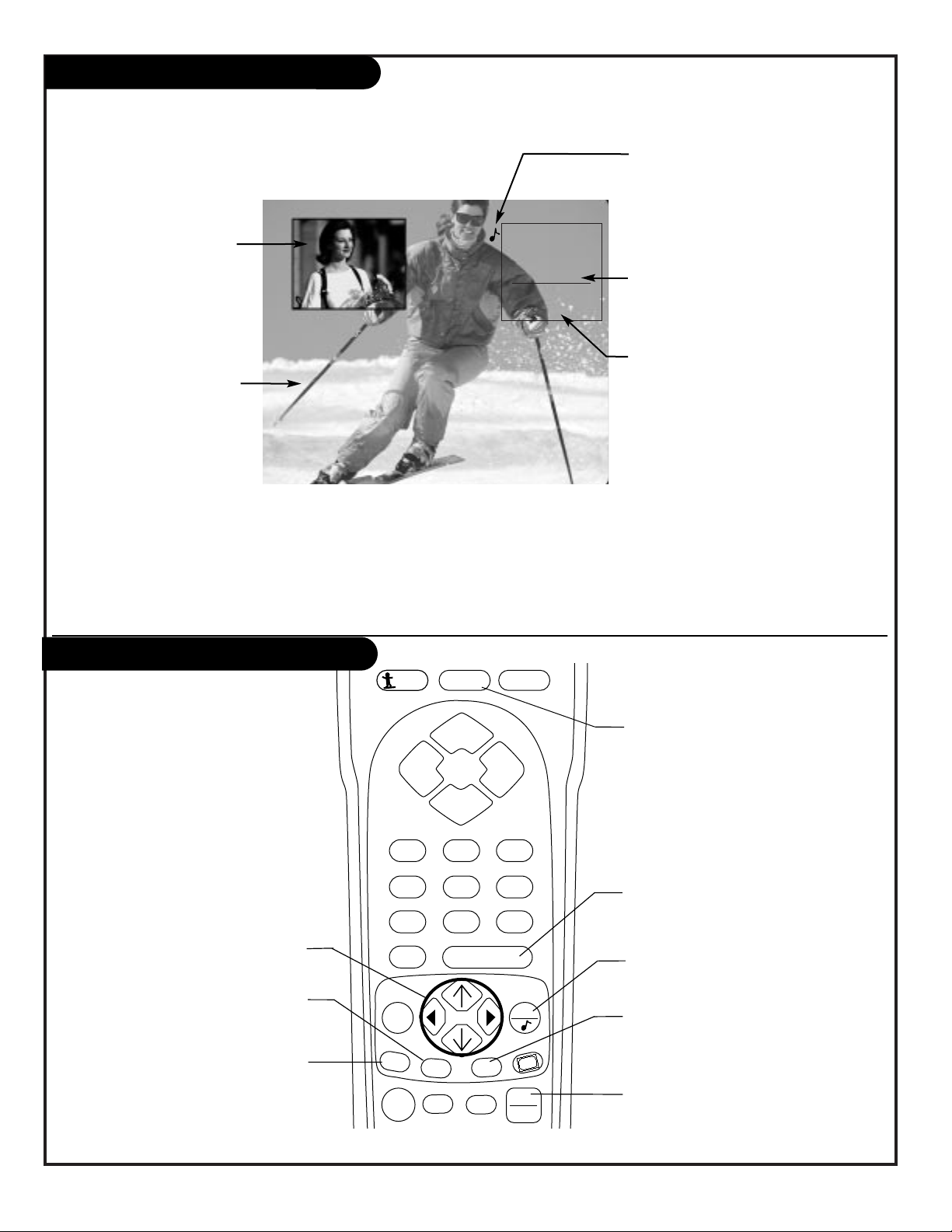

PIP (Picture-in-Picture) . . . . . . . . . . . . . . . . . . . . . . 43 - 44

Remote Control Programming

Set up remote to operate other devices . . . . . . . . . . . . . 45

Amplifier Volume Override . . . . . . . . . . . . . . . . . . . . . . 46

Aux 1 -2 -3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

AutoFind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Programming Product Brand Codes . . . . . . . . . . . . . 49 - 50

Remote Modes Key Functions . . . . . . . . . . . . . . . . . . . . 51

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 53 - 54 - 55

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 - 58

Recommended Accessories . . . . . . . . . . . . . . . . . . . . . . . . 59

Zenith Warranty . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: Design and specifications are subject to change without prior notice.

PAGE 5

Step 1. Hook up external equipment and antenna or cable service wires to the TV. Install batteries in the remote

control. After all connections have been made, plug your TV into standard household power, see pages 7 thru 14.

Step 2. Go to page 18 to EZ program the TV. Step 3. Set up all other TV options see pages listed below.

206-3594

PAGE 6

“Source” Connection Panel Overview

To hook up source equipment,see below and also refer to the Table of Contents on page 5; shows pages to go to for equipment hookup options. Also, see the front connections panel source’s hookup options on page 16.

After you have finished hooking up your source equipment, go to page 18 and use EZ Program to search for and find all the available channels in your area.

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

VIDEO 1 IN VIDEO 2 IN

Connect your Audio/Video or

S-Video equipment to these

jacks.

See pages 9, 10, 11.

HD IN

Connect your high-

definition equipment to

these jacks.

See page 13.

ANTENNA/CABLE

Use to hookup your

antenna or cable system.

See pages 7, 8, 9, 10, 11.

HD-RGB INPUT

Connect HD-RGB output

to this connector.

See page 14.

DVD IN

Connect your DVD

player to these jacks.

See page 12.

VIDEO / R - L AUDIO OUT

Use these output jacks to connect

external audio/video equipment.

See page 15.

206-3594

PAGE 7

Mini glossary

75 OHM RF CABLE The wire that comes from an off-air antenna or cable service provider. Each end looks like a hex shaped nut with a wire

sticking through the middle, and it screws onto the threaded jack on the back of your TV.

A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws on one end and a round opening with a wire sticking out on the other end.

Hook Up an Off-Air Antenna

Connect an off-air antenna

If you have a 75 ohm RF cable, then you don’t need any adapters!

A 300 to 75 ohm adapter is not included with the TV.

300 TO 75 OHM ADAPTER

Typical

TV Back

Flat Wire

(300 ohm)

Antenna

300/75 ohm

Adapter

ANTENNA

CABLE

RF Coaxial Wire

(75ohm)

Antenna

Typical

TV Back

ANTENNA

CABLE

Locate the Antenna/Cable jack on the back of your Entertainment Machine.

Connect the wire that runs from the wall directly to this jack, according to one of the diagrams to the right.

Remove the back of the remote and put in two “AAA” batteries.

Plug in your TV. Do not plug it into an outlet controlled by a switch. Your Entertainment Machine is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

Back of

Remote

120 V AC 60 Hz

206-3489-O

PAGE 8

Hook Up Cable Service (CATV)

If you’re using a cable box, leave the TV on channel 3 or 4 and use your cable box to change channels.

If you’re using a cable box, EZ Program might only find the channel your cable service is on (usually channel 3 or 4). Don’t worry, that’s all you need!

Typical Cable TV Wall Jack

Coaxial Round Wire

(75ohm)

Typical

TV Back

ANTENNA

CABLE

Typical Cable TV Wall Jack

Cable Box

Out

RF Coaxial Wire

(75ohm)

3 4

output

switch

Typical

TV Back

ANTENNA

CABLE

Locate the Antenna/Cable jack on the back of the TV.

Connect the cable service wire that runs from the wall or cable box directly to this jack, according to one of the diagrams to the right.

Remove the back of the remote and put in two “AAA” batteries.

Plug in the TV. Do not plug it into an outlet controlled by a switch. Your TV is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

120 V AC 60 Hz

Connect cable service to your Entertainment Machine

Back of

Remote

206-3594

PAGE 9

Hook Up an Off-Air Antenna and VCR

Connect your off-air antenna and VCR to your Entertainment Machine

No adapters or A/V cables are included with the TV. See your Zenith dealer to purchase any adapters or cables.

Without A/V cables, most VCRs will not play videocassettes in stereo sound.

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

Out

Audio

Video

3 4

VCR Back

VCR Back AV Panel

output switch

Typical

Antennas:

Flat or

Round Wire

Flat Wire (300 ohm)

300/75 ohm

Adapter

RF Coaxial Round Wire

(75ohm)

Connect your VCR to the

Video 1 or Video 2 set of input jacks

Locate the Antenna In jack on the back of the VCR.

Connect the wire that runs from the antenna, according to the diagram to the right. Make any other connections as necessary.

Remove the back of the remote and put in two “AAA” batteries.

Plug in the TV. Do not plug it into an outlet controlled by a switch. The TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

120 V AC 60 Hz

Back of

Remote

PAGE 10

206-3594

Hook Up Cable Service (CATV) and VCR

Connect Cable service and a VCR to the TV

Tune both the VCR and the television to channel 3 or 4 (cable box output channel) and use the cable box to change channels.

No A/V cables are included with your TV. Without A/V cable hookups, most VCRs will not play videocassettes in stereo sound.

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

Out

Audio

Video

3 4

VCR Back

VCR Back AV Panel

output

switch

Typical Cable TV Wall Jack

Cable Box

Out

3 4

output switch

Cable service with or without a cable box

Connect your VCR to the

Video 1 or Video 2 set of input jacks

Typical Cable TV Wall Jack

Locate the Antenna/Cable In jack on the back of the VCR.

Connect the cable service wire that runs from the wall, according to one of the diagrams to the right. Make any other connections necessary for your setup.

Remove the back of the remote and put in two “AAA” batteries.

Plug in the TV. Do not plug it into an outlet controlled by a switch. The TV is designed to operate on standard current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

120 V AC 60 Hz

Back of

Remote

PAGE 11

206-3594

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

Out

Flat Wire

(300 ohm)

300/75 ohm

Adapter

From Antenna or

Cable Service With

or Without a Cable Box

Connect your S-Video VCR to the

S-Video 1 or S-Video 2 set of input jacks

Audio Out

S-Video Out

3 4

VCR Back

VCR Back AV Panel

output

switch

R L

Your Zenith TV may be connected to a Super-VHS VCR through the S-Video Input located on the front or rear source connection panels on your TV

Hook up your S-VHS VCR to your Zenith TV according to the diagram shown at the right.

Remove the back of the remote and put in two “AAA” batteries.

Plug in your TV. Do not plug it into a switched outlet. Your Zenith TV is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

On the remote, press SOURCE repeatedly until “S-Video” is displayed. Or use the Source menu to choose the S-Video input the equipment is connected to.

Back of

Remote

Hook Up S-VHS VCR

120 V AC 60 Hz

PAGE 12

206-3594

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

DVD Player with Component Video

COMPONENT VIDEO OUT

S-VIDEO OUT

VIDEO

R-AUDIO

L-/MONO

Make the connections as indicated. (Appearance of components may vary from those in the illustrations.)

Plug in your TV. Do not plug it into a switched outlet. Your Entertainment Machine is designed to operate on standard household current, 120volt 60 Hertz AC. Do not attempt to operate it on DC power.

Press POWER to turn TV on.

On the remote, press SOURCE repeatedly until “DVD” is displayed. Or use the Source menu to choose DVD.

Hook Up Component Video Equipment

Connecting component video DVD equipment

Component video jacks are sometimes labeled with C

R, CB, or PB, PR. In this case,

connect B to B and the R to R. The “Y” jack is usually labeled “Y”, connect Y to Y.

120 V AC 60 Hz

PAGE 13

206-3594

Make the HD connections as indicated. (Appearance of components may vary from those in the illustrations.)

Plug in your TV. Do not plug it into a switched outlet. Your Entertainment Machine is designed to operate on standard household current, 120-volt 60 Hertz AC. Do not attempt to operate it on DC power.

Press POWER to turn TV on.

On the remote, press SOURCE repeatedly until “HD-In” is displayed. Or use the Source menu to choose HD-In.

Hook Up HD Equipment

Connecting high-definition equipment

120 V AC 60 Hz

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

Set Top Box with Component Video

HD OUT

S-VIDEO OUT

VIDEO

R-AUDIO

L-/MONO

PAGE 14

206-3594

Make the RGB connections as indicated. (Appearance of components may vary from those in the illustrations.)

Press POWER to turn TV on.

On the remote, press SOURCE repeatedly until “HD-RGB In” is displayed. Or use the Source menu to choose HD-RGB In.

Hook Up HD-RGB Equipment

Connecting High-definition RGB output equipment

120 V AC 60 Hz

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

AUDIO

Audio Out

RGB Out

Set Top Box with HD-RGB Output

PAGE 15

206-3594-A

Make the Audio/Video Output connections as indicated. (Appearance of devices may vary from those in the illustrations.)

Video Output

Use the Video Out jack to connect to an external video device.

Audio Output

Use the Left and Right Audio Out jacks to connect an external amplifier and speakers. (Refer to the Audio Menu on page 31 for instructions on how to turn the TV’s internal speakers off and on.)

Select Audio/Video Input on the external device to see the image and hear the sound from the TV.

Audio/Video Signal Output

Output to Audio/Video devices

TV Back

RGB

VIDEO 2

VIDEO 1

DVD IN

HD IN

MONITOR

OUTPUT

AUDIO

MONO

VIDEO

S-VIDEO 1

S-VIDEO 2

ANTENNA

CABLE

Audio/Video Device

VIDEO

R-AUDIO

L-/MONO

PAGE 16

206-3594

Front Panel Controls/Inputs

L-audio-Rvideo

S-video

volume

channel

power

volume

channel

power

Typical TV

Front Panel

Menu Operation

Press MENU to place menus on-screen.

Use Channel Up/Down to select menu option.

Use Volume Left/Right to adjust menu option.

Use MENU to remove menus from screen.

TV Operation

Press POWER to turn TV on and off.

Use the CHANNEL Up/Down buttons to select the next higher/lower channel number

Use the VOLUME Up/Down buttons to adjust the sound level louder or quieter to your preference.

Using the front panel to operate the TV’s basic features and to make temporary connections

Left/Right Audio

Used for stereo sound from external equipment.

S-Video / Video

Connects the video signals from external equipment.

Typical Front Panel Controls

Audio Mini Plug

Audio input from external equipment.

206-3594

PAGE 17

PRG

POWER

CABLE

VCR

AUX

SURF

ENTER

FLASHBK

MUTE

CHANNEL

VOLUME

REWIND

FFWD

RECORD

QUIT

PIP

SWAP

FREEZ

TV/VCR

SOURCE

PAUSE TIMER

PLAY

STOP

TV Mode Remote Key Functions

Note: Pressing TV puts remote into TV operating mode

A quick list of the keys on your remote and what they do in TV mode, see page 44 for remote key functions in the 6 additional programmable modes...

PRG (PROGRAM)

Programs your remote to operate

other products.

See page 45.

FLASHBK (FLASHBACK)

Return to the last channel viewed.

Selects AM/PM in Clock/Timer menus.

POWER

Turns TV On or Off

CABLE/VCR/AUX/TV

Selects remote operating mode.

CHANNEL (UP/DOWN)

Select next available channel.

MUTE

Turns sound Off and On while the picture remains. Press once to quiet sound, press again to mute, press again to restore sound.

ENTER

Shows the Channel/Time

display. Press after channel num-

bers for instant selection.

NUMBER KEYPAD

Selects channels directly and enters numeric values for some options

Shows on-screen

menus for TV mode.

See pages 20 - 21.

UP/DOWN ARROWS

The Up/Down arrows select options.

remote control part number

MBR3457CT

(124-233-05)

TIMER

Displays the Sleep Timer Menu.

See “Timer Setup” on pages

35 - 36 for more information.

VOLUME LEFT/RIGHT

Adjusts the sound levels on your Entertainment Machine.

QUIT

Removes on-screen display from view. If no display is on, switches Surround sound feature On and Off on some TVs.

TV/VCR-SOURCE

Switches between watching TV through your antenna/cable, or through your VCR.

Keys dedicated to VCR functions will still operate your VCR while the remote is in TV mode.

CC (CLOSED CAPTIONING)

Displays the closed caption menu.

LEFT/RIGHT ARROWS

The Left/Right arrows adjust

options.

LED INDICATOR LIGHT

Lights when keys are pressed.

PIP FEATURES

For PIP (Picture-in-Picture)

operation. See page 36.

SURF

Turns on and off custom channel

selection mode.

When Surf mode is active, CHANNEL

Up/Down keys “Surf” through the

channels you’ve selected.

PAGE 18

206-3594

EZ Program (Channel Search)

Cable TV

Air Antenna

EZ Program

Add/Del/Surf EZ Clock Captions Caption/Text Language Source Menu Background

Setup

Video

Audio

Lock

Special

Back

Move

ENTER

Mini glossary

Air Antenna The device receiving the program signal sent over-the-air.

Cable TV Your EZ Program selection, if you subscribe to a cable service.

Use EZ Program to automatically find and store in the TV’s memory, all the channels in your area

Select: CABLE TV, If you subscribe to a cable service. AIR ANTENNA, If you receive over-the-air programs.

EZ Program finds channels being received by the TV tuner.

Cable will not work unless you subscribe to a cable service.

Press MENU, (if not selected, use the Up/Down arrow to choose Setup Menu,) then press ENTER.

Using the Up or Down arrow on the remote control, select EZ Program on your screen, then press ENTER.

Using the Up or Down arrow, select either Cable TV or Air Antenna, on your screen.

Press ENTER to begin the channel search.

When the channel search is complete, press MENU repeatedly until all menus are removed, or press QUIT.

PRG

POWER

CABLE

VCR

AUX

SURF

ENTER

FLASHBK

MUTE

CHANNEL

VOLUME

REWIND

FFWD

RECORD

QUIT

PIP

SWAP

FREEZ

TV/VCR

SOURCE

PAUSE TIMER

PLAY

STOP

1/5

1/2/4

2/3

+ 42 hidden pages
