Zebra ZT510 User Guide

ZT510

Industrial Printer

User Guide

P1095460-04EN

ZEBRA and the stylized Zebra head are trademarks of Zebra Technologies Corporation, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners. © 2019 Zebra Technologies Corporation and/or its affiliates. All rights reserved.

Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements.

For further information regarding legal and proprietary statements, please go to:

SOFTWARE:http://www.zebra.com/linkoslegal COPYRIGHTS:http://www.zebra.com/copyright WARRANTY:http://www.zebra.com/warranty END USER LICENSE AGREEMENT: http://www.zebra.com/eula

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Publication Date

December 23, 2020

Declaration of Conformity

We have determined that the Zebra printers identified as the

ZT510™

manufactured by:

Zebra Technologies Corporation

3 Overlook Point

Lincolnshire, Illinois 60069 U.S.A.

Have been shown to comply with the applicable technical standards of the FCC

For Home, Office, Commercial, and Industrial use

If no unauthorized change is made in the equipment,

and if the equipment is properly maintained and operated.

12/23/20 ZT510 User Guide P1095460-04EN

Declaration of Conformity

Compliance Information

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Note • This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement (for printers with RFID encoders)

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Canadian DOC Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

P1095460-04EN ZT510 User Guide 12/23/20

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Printer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Data Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Standard Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Navigating through Screens in the Standard Display . . . . . . . . . . . . . . . . . . . . . . . . 19

Idle Display, Home Menu, and User Menus in the Standard Display . . . . . . . . . . . . 21

Ribbon Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

When to Use Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Coated Side of Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2 • Printer Setup and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Handling the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Store the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Ship the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Select a Location for the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Select a Print Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Load the Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Insert the Media into the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

12/23/20 P1095460-04EN

Contents

Tear-Off Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Peel-Off Mode or Applicator Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rewind Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Cutter Mode or Delayed Cut Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Load the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Install the Printer Driver and Connect the Printer to the Computer . . . . . . . . . . . . . . . . . 65

Install Zebra Setup Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Connect a Computer to the Printer’s USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Connect a Computer to the Printer’s Serial or Parallel Port . . . . . . . . . . . . . . . . . . . 78

Connect to Your Network through the Printer’s Ethernet Port . . . . . . . . . . . . . . . . . . 86

Connect the Printer to Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Print a Test Label and Make Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

3 • Printer Configuration and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Adjust Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

DARKNESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

PRINT SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

MEDIA TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

PRINT METHOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

TEAR OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

PRINT WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

PRINT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

LABEL TOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

LEFT POSITION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

REPRINT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

LABEL LENGTH MAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

PRINT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

IDLE DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

POWER UP ACTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

HEAD CLOSE ACTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

LOAD DEFAULTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

MEDIA/RIBBON CAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

DIAGNOSTIC MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

CONFIG INFO TO USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

ZBI ENABLED? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

RUN ZBI PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

STOP ZBI PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

PRINT USB FILE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

COPY USB FILE TO E: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

STORE E: FILE TO USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

PRINT STATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

PASSWORD PROTECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

P1095460-04EN ZT510 User Guide 12/23/20

Contents

PRINT TEST FORMAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

ACTIVE PRINT SERVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

PRIMARY NETWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

WIRED IP ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

WIRED SUBNET MASK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

WIRED GATEWAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

WIRED IP PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

WIRED MAC ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

WLAN IP ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

WLAN SUBNET MASK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

WLAN GATEWAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

WLAN IP PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

WLAN MAC ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

ESSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

CHANNEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

SIGNAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

IP PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

IP ALTERNATE PORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

RESET NETWORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

VISIBILITY AGENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

COMMAND LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

COMMAND CHAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

CONTROL CHAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

DELIMITER CHAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

ZPL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

VIRTUAL DEVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

SENSOR TYPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

LABEL SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

TAKE LABEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

BAUD RATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

DATA BITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

PARITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

HOST HANDSHAKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

WML . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

BLUETOOTH ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

DISCOVERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

CONNECTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

BT SPEC VERSION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

MIN SECURITY MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Calibrate the Ribbon and Media Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

12/23/20 ZT510 User Guide P1095460-04EN

Contents

Adjust the Printhead Pressure and Toggle Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Toggle Position Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Printhead Pressure Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Adjust the Transmissive Media Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Remove Used Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Install the Rewind/Liner Take-Up Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Peel Mode/Applicator Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Rewind Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

4 • Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Cleaning Schedule and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Clean the Exterior, the Media Compartment, and the Sensors . . . . . . . . . . . . . . . . 199

Clean the Printhead and Platen Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Clean and Lubricate the Cutter Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Replacing Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Recycling Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Ordering Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

5 • Diagnostics and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

QR Codes and QuickHelp Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Judging Barcode Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Printer Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Print Test Format Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

Optimal Darkness and Speed Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Communication Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Sensor Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Indicator Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Alerts and Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

Printing Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

Ribbon Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

Communications Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Miscellaneous Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

6 • Using a USB Host Port and the NFC Capabilities . . . . . . . . . . . . . . . . . . . 247

Items Required for the Exercises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

Files for Completing the Exercises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248

USB Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Exercise 1: Copy Files to a USB Flash Drive and Perform USB Mirror . . . . . . . . . . 251

Exercise 2: Print a Label Format from a USB Flash Drive . . . . . . . . . . . . . . . . . . . . 253

Exercise 3: Copy Files to/from a USB Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . 254

P1095460-04EN ZT510 User Guide 12/23/20

Contents

Exercise 4: Enter Data for a Stored File with a USB Keyboard and Print a Label . . 256

Near Field Communication (NFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Exercise 5: Enter Data for a Stored File with a Smart Device and Print a Label . . . 258

7 • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266

Wireless Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267

Printing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Media Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269

Ribbon Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

12/23/20 ZT510 User Guide P1095460-04EN

Contents

Notes • ___________________________________________________________________

__________________________________________________________________________

P1095460-04EN ZT510 User Guide 12/23/20

About This Document

This section provides you with contact information, document structure and organization, and additional reference documents.

Contents

Who Should Use This Document. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

12/23/20 P1095460-04EN

About This Document

Who Should Use This Document

This User Guide is intended for use by any person who needs to perform routine maintenance, upgrade, or troubleshoot problems with the printer.

How This Document Is Organized

The User Guide is set up as follows:

Section Description

Introduction on page 13 This section provides a high-level overview of the

printer and its components.

Printer Setup and Operation on page 25

Printer Configuration and Adjustment on page 103

Routine Maintenance on page 197 This section provides routine cleaning and

Diagnostics and Troubleshooting

on page 215

Using a USB Host Port and the NFC Capabilities on page 247

Specifications on page 261 This section lists general printer specifications,

Glossary on page 271 The glossary provides a list of common terms.

This section assists the technician with initial setup and operation of the printer.

This section assists you with configuration of and adjustments to the printer.

maintenance procedures.

This section provides diagnostic tests and other information that may help you to optimize printing or to troubleshoot issues with your printer.

This section will help you to learn how to use an optional USB host port on your Zebra printer and how to use the printer’s Near Field Communication (NFC) capability. The information is presented in the form of exercises with some SGD commands listed for advanced users.

printing specifications, ribbon specifications, and media specifications.

P1095460-04EN ZT510 User Guide 12/23/20

Introduction

This section provides a high-level overview of the printer and its components.

Contents

Printer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Printer Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Standard Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Navigating through Screens in the Standard Display . . . . . . . . . . . . . . . . . . . . . . . . . 19

Idle Display, Home Menu, and User Menus in the Standard Display. . . . . . . . . . . . . . 21

Types of Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Ribbon Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

When to Use Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Coated Side of Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

12/23/20 P1095460-04EN

Introduction

8 9

Printer Components

Note • Some components are highlighted in light blue in the illustrations in this manual for

emphasis or clarity.

Figure 1 shows the components inside the media compartment of a standard printer.

Depending on the printer model and the installed options, your printer may look slightly different. The components that are labeled are mentioned in procedures throughout this manual.

Figure 1 • Printer Components

P1095460-04EN ZT510 User Guide 12/23/20

Media door

Printhead pressure toggles

Control panel display

Printhead assembly

Control panel

Platen roller

Printhead-open lever

Ribbon take-up spindle

Ribbon supply spindle

Media dancer assembly

Media supply guide

Media supply spindle

Printer Options

The available printer options are shown in Figure 2. For information about the print modes that can be used with the printer options, see Select a Print Mode on page 29.

Figure 2 • Printer Options

Introduction

Printer Options

Tear-Off (standard)

Cutter option

Rewind option set for Peel mode

Rewind option set for Rewind mode

12/23/20 ZT510 User Guide P1095460-04EN

Introduction

Communication Interfaces

The available communication interface connectors are shown in Figure 3. Your printer may not have all of the connections shown here, and a ZebraNet wireless print server option may also be present on your printer. You may send label formats to the printer through any communication interface that is available on your printer.

• For detailed information about the types of connections available, see Communication

Interface Specifications on page 262.

• For instructions on when and how to connect your computer to one ore more of these communication interfaces, see Install the Printer Driver and Connect the Printer to the

Computer on page 65.

Figure 3 • Location of Communication Interfaces

Parallel port

Internal wired Ethernet print server

Serial port

USB port

P1095460-04EN ZT510 User Guide 12/23/20

Data Cables

You must supply all data cables for your application. The use of cable strain relief clamps is recommended.

Ethernet cables do not require shielding, but all other data cables must be fully shielded and fitted with metal or metalized connector shells. Unshielded data cables may increase radiated emissions above the regulated limits.

To minimize electrical noise pickup in the cable:

• Keep data cables as short as possible.

• Do not bundle the data cables tightly with the power cords.

• Do not tie the data cables to power wire conduits.

Introduction

Communication Interfaces

12/23/20 ZT510 User Guide P1095460-04EN

Introduction

1 2 3 4 5

Figure 4 • Control Panel

STATUS light These indicator lights

show the current status of the printer. For more information, see

Indicator Lights on page 230.

PAUSE li g ht

DATA light

SUPPLIES light

NETWORK light

The display shows the printer’s current status and allows the user to navigate the menu system.

RIGHT SELECT button

These buttons execute the commands shown directly above them in the display.

LEFT SELECT button

The UP ARROW button changes the parameter values. Common uses are to increase a value or to scroll through choices.

The OK button selects or confirms what is shown on the display.

The LEFT ARROW button, which is active only in the menu system, navigates to the left.

The RIGHT ARROW button, which is active only in the menu system, navigates to the right.

The DOWN ARROW button changes the parameter values. Common uses are to decrease a value or to scroll through choices.

The PAUSE button starts or stops printer operation when pressed.

The FEED button forces the printer to feed one blank label each time the button is pressed.

The CANCEL button cancels label formats when the printer is paused.

• Press once to cancel the next label format.

• Press and hold for 2 seconds to cancel all label

formats.

14 15 16

Standard Control Panel

The standard control panel indicates the printer’s current status and allows the user to control basic printer operation. An optional color touch control panel is available for purchase. Because it functions differently, it is documented in a separate User Guide.

P1095460-04EN ZT510 User Guide 12/23/20

Navigating through Screens in the Standard Display

SETTINGS menu icon

SETTINGS menu icon highlighted

Table 1 shows the following:

• the options available for navigating through the screens in the control panel display

• how to select or modify things shown on the display

Table 1 • Navigation

Idle Display

Introduction

Standard Control Panel

At the Idle Display (Figure 5 on page 21), press LEFT SELECT to go to the printer’s Home menu (Figure 6 on page 21).

Home Menu

To move from icon to icon in the Home menu, press any of the

ARROW buttons.

When an icon is selected, its colors are reversed to highlight it.

To select the highlighted menu icon and enter the menu, press

Press

LEFT SELECT to exit the

OK.

Home menu and return to the Idle Display. The printer automatically returns to the Idle Display after 15 seconds of inactivity in the Home menu.

12/23/20 ZT510 User Guide P1095460-04EN

Introduction

Standard Control Panel

User Menus

Table 1 • Navigation (Continued)

Press LEFT SELECT to return to the Home menu. The printer automatically returns to the Home menu after 15 seconds of inactivity in a user menu.

To scroll through the items in a user menu, press the

LEFT ARROW or RIGHT ARROW.

Menu Shortcuts

▲ and ▼ indicate that a value can be changed. Any changes that you make are saved immediately.

Press the

UP ARROW or DOWN ARROW to scroll

through accepted values.

A word in the bottom-right corner of the display indicates an available action.

Press OK or press RIGHT SELECT to perform the action shown.

To go to the next user menu from a menu shortcut,

OK or press RIGHT SELECT to select GO.

press

P1095460-04EN ZT510 User Guide 12/23/20

To continue to navigate in the same user menu, press the LEFT ARROW or RIGHT ARROW.

Introduction

Standard Control Panel

Idle Display, Home Menu, and User Menus in the Standard Display

The printer’s control panel includes a display, where you can view the printer’s status or change its operating parameters. In this section, you will learn how to navigate through the printer’s menu system and change values for menu items.

Idle Display After the printer completes the power-up sequence, it moves to the Idle Display (Figure 5). The printer displays the current firmware version and its IP address.

Figure 5 • Idle Display

The printer’s current status

The printer’s firmware version (top line) and its

IP address (bottom line) Home menu shortcut

Home Menu Use the Home menu (Figure 6) to access the printer’s operating parameters through the eight user menus (see Adjust Printer Settings on page 104). Click any of the icons in Figure 6 to go to the descriptions of the menu items for that user menu.

Figure 6 • Home Menu

Exit and return to the Idle Display (Figure 5).

12/23/20 ZT510 User Guide P1095460-04EN

Introduction

Outside Inside

Ribbon Overview

Ribbon is a thin film that is coated on one side with wax, resin, or wax resin, which is transferred to the media during the thermal transfer process. The media determines whether you need to use ribbon and how wide the ribbon must be.

When ribbon is used, it must be as wide as or wider than the media being used. If the ribbon is narrower than the media, areas of the printhead are unprotected and subject to premature wear.

When to Use Ribbon

Thermal transfer media requires ribbon for printing while direct thermal media does not. To determine if ribbon must be used with a particular media, perform a media scratch test.

To perform a media scratch test, complete these steps:

1. Scratch the print surface of the media rapidly with your fingernail.

2. Did a black mark appear on the media?

If a black mark... Then the media is...

Does not appear on the media Thermal transfer. A ribbon is required.

Appears on the media Direct thermal. No ribbon is required.

Coated Side of Ribbon

Ribbon can be wound with the coated side on the inside or outside (Figure 7). This printer can only use ribbon that is coated on the outside unless you purchase and install the optional spindle that allows ribbon that is coated on the inside. Contact your authorized Zebra reseller for ordering information.

If you are unsure which side of a particular roll of ribbon is coated, perform an adhesive test or a ribbon scratch test to determine which side is coated.

Figure 7 • Ribbon Coated on Outside or Inside

P1095460-04EN ZT510 User Guide 12/23/20

Adhesive Test

If you have labels available, perform the adhesive test to determine which side of a ribbon is coated. This method works well for ribbon that is already installed.

To perform an adhesive test, complete these steps:

1. Peel a label from its liner.

2. Press a corner of the sticky side of the label to the outer surface of the roll of ribbon.

3. Peel the label off of the ribbon.

4. Observe the results. Did flakes or particles of ink from the ribbon adhere to the label?

Introduction

Ribbon Overview

If ink from the ribbon...

Then...

Adhered to the label The ribbon is coated on the outside and can be used

in this printer.

Did not adhere to the label

The ribbon is coated on the inside and cannot be used in the standard printer. An optional ribbon spindle is available to use ribbon that is coated on the inside. Contact your authorized Zebra reseller for ordering information.

To verify this result, repeat the test on the other surface of the roll of ribbon.

Ribbon Scratch Test

Perform the ribbon scratch test when labels are unavailable.

To perform a ribbon scratch test, complete these steps:

1. Unroll a short length of ribbon.

2. Place the unrolled section of ribbon on a piece of paper with the outer surface of the

ribbon in contact with the paper.

3. Scratch the inner surface of the unrolled ribbon with your fingernail.

4. Lift the ribbon from the paper.

12/23/20 ZT510 User Guide P1095460-04EN

Introduction

Ribbon Overview

5. Observe the results. Did the ribbon leave a mark on the paper?

If the ribbon... Then...

Left a mark on the paper

Did not leave a mark on the paper

The ribbon is coated on the outside and can be used in this printer.

To verify this result, repeat the test on the other surface of the roll of ribbon.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

This section assists the technician with initial setup and operation of the printer.

Contents

Handling the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Store the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Ship the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Select a Location for the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Select a Print Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Load the Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Insert the Media into the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Tear-Off Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Peel-Off Mode or Applicator Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rewind Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Cutter Mode or Delayed Cut Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Load the Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Install the Printer Driver and Connect the Printer to the Computer . . . . . . . . . . . . . . . . . 65

Install Zebra Setup Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Connect a Computer to the Printer’s USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Connect a Computer to the Printer’s Serial or Parallel Port. . . . . . . . . . . . . . . . . . . . . 78

Connect to Your Network through the Printer’s Ethernet Port . . . . . . . . . . . . . . . . . . . 86

Connect the Printer to Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Print a Test Label and Make Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

12/23/20 P1095460-04EN

Printer Setup and Operation

Handling the Printer

This section describes how to handle your printer.

Unpack and Inspect the Printer

When you receive the printer, immediately unpack it and inspect for shipping damage.

• Save all packing materials.

• Check all exterior surfaces for damage.

• Raise the media door, and inspect the media compartment for damage to components.

If you discover shipping damage upon inspection:

• Immediately notify the shipping company and file a damage report.

• Keep all packaging material for shipping company inspection.

• Notify your authorized Zebra reseller

Important • Zebra Technologies is not responsible for any damage incurred during the

shipment of the equipment and will not repair this damage under warranty.

Store the Printer

If you are not placing the printer into immediate operation, repackage it using the original packing materials. You may store the printer under the following conditions:

• Temperature: –40°F to 140°F (–40° to 60°C)

• Relative humidity: 5% to 85% non-condensing

Service the Printer

If you have a problem using the printer, contact your facility's technical or systems support. If there is a problem with the printer, they will contact the Zebra Global Customer Support Center at: http://www.zebra.com/support.

When contacting Zebra Global Customer Support, have the following information available:

• Serial number of the unit

• Model number or product name

• Firmware version number

Zebra responds to calls by e-mail, telephone, or fax within the time limits set forth in service agreements. If your problem cannot be solved by Zebra Global Customer Support, you may need to return your equipment for servicing and will be given specific directions.

If you purchased your product from a Zebra business partner, please contact that business partner for support.

P1095460-04EN ZT510 User Guide 12/23/20

Ship the Printer

Zebra is not responsible for any damages incurred during shipment if an approved shipping container is not used. Shipping the units improperly can possibly void the warranty.

If you must ship the printer:

Printer Setup and Operation

Handling the Printer

• Turn off (

O) the printer, and disconnect all cables.

• Remove any media, ribbon, or loose objects from the printer interior.

• Close the printhead.

• Carefully pack the printer into the original container or a suitable alternate container to avoid damage during transit. A shipping container can be purchased from Zebra if the original packaging has been lost or destroyed.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Select a Location for the Printer

Select a location for the printer that meets these conditions:

• Surface: The surface where the printer will be located must be solid, level, and of sufficient size and strength to hold the printer.

• Space: The area where the printer will be located must include enough space for ventilation and for accessing the printer components and connectors. To allow for proper ventilation and cooling, leave open space on all sides of the printer.

Caution • Do not place any padding or cushioning material behind or under the printer

because this restricts air flow and could cause the printer to overheat.

• Power: The printer should be within a short distance of an appropriate power outlet that is easily accessible.

• Data communication interfaces: The printer must be within range of your WLAN radio (if applicable) or within an acceptable range for other connectors to reach your data source (usually a computer). For more information on maximum cable lengths and configuration, see General Specifications on page 262.

• Operating conditions: Your printer is designed to function in a wide range of environmental and electrical conditions, including a warehouse or factory floor. Table 2 shows the temperature and relative humidity requirements for the printer when it is operating.

Table 2 • Operating Temperature and Humidity

Mode Temperature Relative Humidity

Thermal Transfer 40° to 104°F (5° to 40°C) 20 to 85% non-condensing

Direct Thermal 32° to 104°F (0° to 40°C)

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Select a Print Mode

Use a print mode that matches the media being used and the printer options available. The media path is the same for roll and fanfold media. To set the printer to use an available print mode, see PRINT MODE on page 112.

Table 3 • Print Modes and Printer Options

Print Mode Description

TEAR OFF This mode (default) can be used with any printer options and most media

types.

The printer prints label formats as it receives them. The printer operator can tear off the printed labels any time after they print.

PEEL-OFF This mode can be used if the printer has a rewind option.

The printer peels the label from the liner during printing and then pauses until the label is removed. The backing is wound on the rewind spindle without using the rewind plate.

REWIND This mode can be used only if the printer has a rewind option.

The printer prints without pausing between labels. The media is wound onto a core after printing. The rewind plate is used to keep the labels from separating from the backing.

CUTTER This mode can be used only if the printer has a cutter option.

The printer cuts between labels after each one is printed.

DELAYED CUT This mode can be used only if the printer has a cutter option.

The printer waits for a delayed cut ZPL command ( last printed label.

LINERLESS PEEL* * Reserved for future use.

LINERLESS REWIND*

LINERLESS TEAR*

APPLICATOR This mode is for use with a machine that applies labels.

The printer prints when it receives a signal from the applicator. Refer to the Advanced User Information section of the Maintenance Manual for additional information about the applicator interface.

~JK) before it cuts the

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media

Insert the Media into the Printer

To load media, complete these steps:

Use the instructions in this section for loading roll or fanfold media in the appropriate print mode for your needs.

Caution • While performing any tasks near an open printhead, remove all rings, watches,

hanging necklaces, identification badges, or other metallic objects that could touch the printhead. You are not required to turn off the printer power when working near an open printhead, but Zebra recommends it as a precaution. If you turn off the power, you will lose all temporary settings, such as label formats, and you must reload them before you resume printing.

The majority of the illustrations in this section show roll media because the media loading path is the same for both roll and fanfold media.

1. Raise the media door.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Rear Feed

Bottom Feed

Load the Media

2. Remove and discard any tags or labels that are torn or dirty or that are held by adhesives or

tape.

3. Insert roll or fanfold media into the printer.

Roll Media

a. Pull out the media supply guide as far as it

goes.

b. Place the roll of media on the media supply

hanger. Push the roll back as far as it will go.

Fanfold Media

a. Fanfold media can be stored behind or under

the printer. Depending on where the media is stored, feed the media from behind or through the bottom access slot.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media

Roll Media (Continued)

c. Slide in the media supply guide until it

touches the edge of the roll.

Fanfold Media (Continued)

b. Pull out the media supply guide as far as it

goes.

c. Drape the media over the media supply

hanger.

d. Slide in the media supply guide until it

touches the edge of the media.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media

4. In which print mode will your printer be operating? (For more information on print

modes, see Select a Print Mode on page 29.)

If using… Then…

TEAR OFF Continue with Tear-Off Mode

on page 34.

PEEL-OFF or APPLICATOR Continue with Peel-Off Mode or

Applicator Mode on page 39.

REWIND Continue with Rewind Mode

on page 47.

CUTTER or DELAYED CUT Continue with Cutter Mode or

Delayed Cut Mode on page 55.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Tear-Off Mode

Tear-Off Mode

1. If you have not already done so, follow the instructions in the section Insert the Media into

the Printer on page 30.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by rotating the printhead-open lever upward.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Tear-Off Mode

3. Loosen the thumb screw that is located on the bottom of the outer media guide (1).

4. Slide the outer media guide all the way out.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Tear-Off Mode

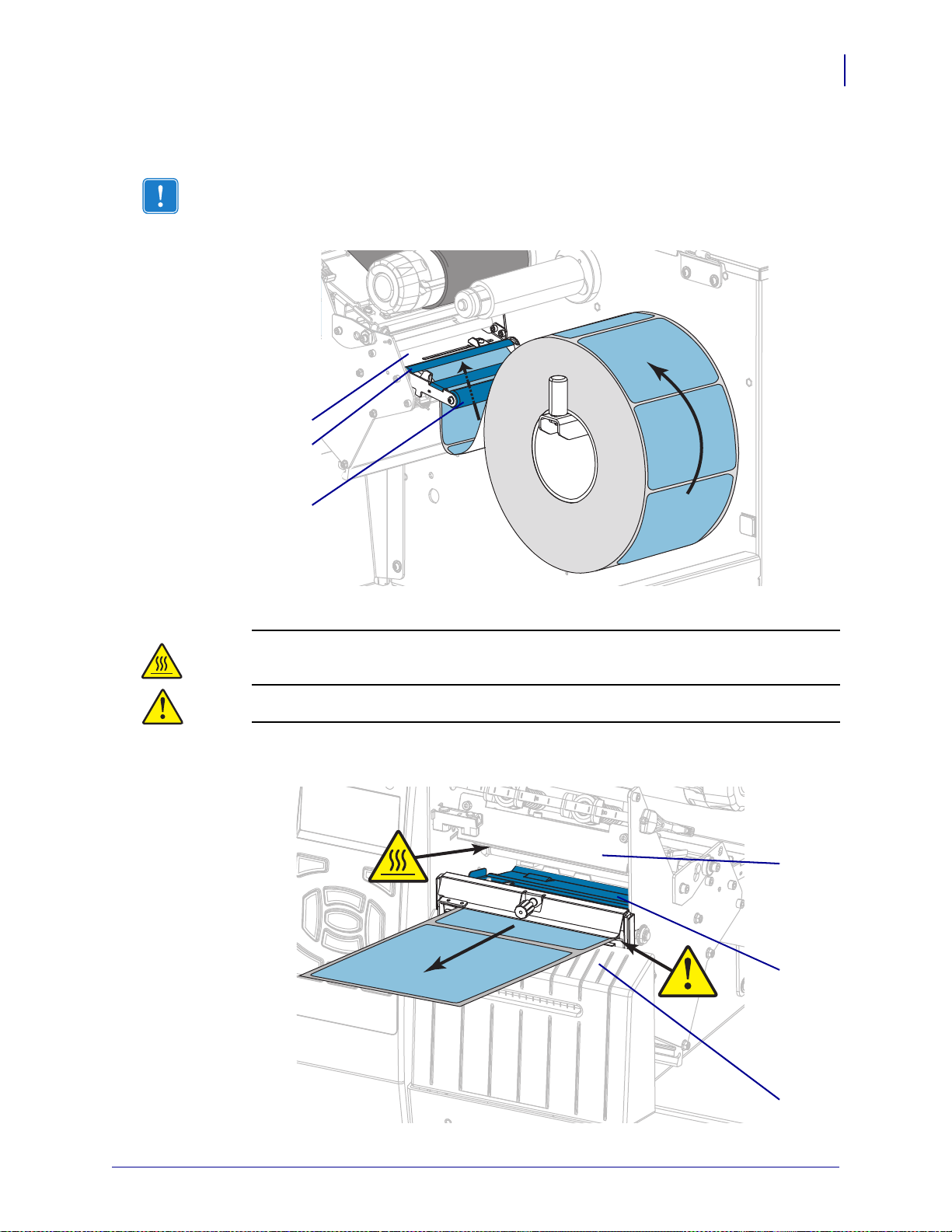

5. Thread the media under the media dancer assembly roller (1), the media guide roller (2),

and then the upper media sensor (

3).

Important • Make sure that you thread the media under these components. If you thread

the media over them, the media obstructs the ribbon sensor and causes a false RIBBON OUT error.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Push the media forward until it passes under the printhead assembly (1), under the snap plate (

2), and then over the platen roller (3).

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Tear-Off Mode

7. Does the media that you are using require ribbon for printing? If you are not sure, see

When to Use Ribbon on page 22.

If using… Then…

Direct Thermal media (no ribbon needed) Continue with step 8.

Thermal Transfer media (ribbon needed)

a. If you have not already done so,

load ribbon in the printer. See

Load the Ribbon on page 60.

b. Continue with step 8.

8. Push back the media as far as it goes, and then slide in the outer media guide until it just

touches the edge of the media.

9. Tighten the thumb screw that is located on the bottom of the outer media guide.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Tear-Off Mode

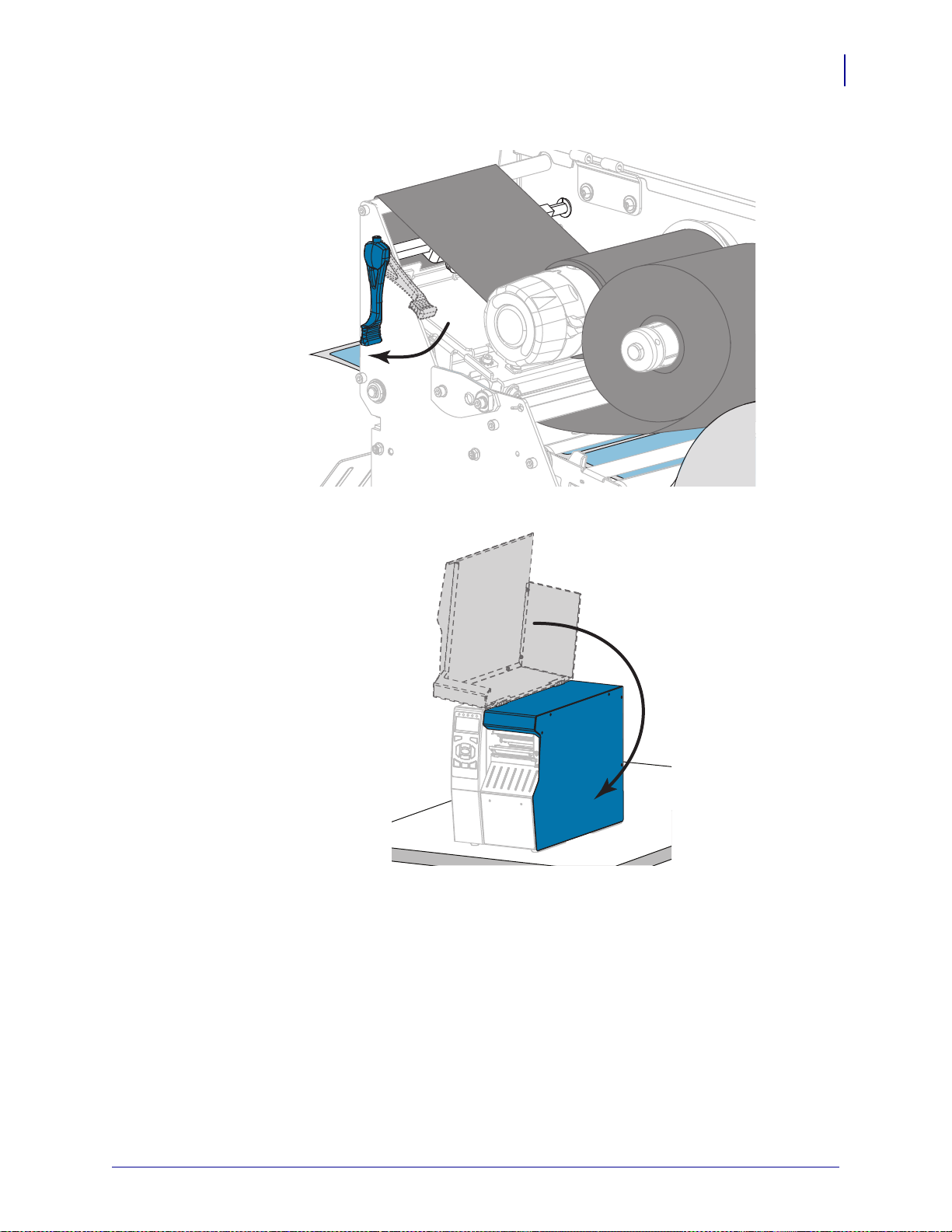

10. Rotate the printhead-open lever downward until it locks the printhead in place.

11. Close the media door.

12. Set the printer to the appropriate print mode (see PRINT MODE on page 112).

13. Press PAUSE to exit pause mode and enable printing.

The printer may perform a label calibration or feed a label, depending on your settings.

14. For best results, calibrate the printer. See Calibrate the Ribbon and Media Sensors

on page 177.

15. If desired, print a configuration or other label to verify that your printer is able to print.

(See PRINT INFORMATION on page 117.)

Media loading in Tear-Off mode is complete.

P1095460-04EN ZT510 User Guide 12/23/20

Peel-Off Mode or Applicator Mode

1. If you have not already done so, follow the instructions in the section Insert the Media into

the Printer on page 30.

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

2. If necessary, install the rewind/liner take-up plate in the peel-off position as shown. See

Install the Rewind/Liner Take-Up Plate on page 193 for instructions.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by rotating the printhead-open lever upward.

Loosen the thumb screw that is located on the bottom of the outer media guide.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

5. Slide the outer media guide all the way out.

6. Thread the media under the media dancer assembly roller (1), the media guide roller (2),

and then the upper media sensor (

3).

Important • Make sure that you thread the media under these components. If you thread

the media over them, the media obstructs the ribbon sensor and causes a false RIBBON OUT error.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Push the media forward until it passes under the printhead assembly (1), under the snap plate (

2), and then over the platen roller (3).

Extend approximately 18 in. (500 mm) of media out of the printer. Remove and discard the labels from this exposed media, leaving just the liner.

P1095460-04EN ZT510 User Guide 12/23/20

Load the Media—Peel-Off Mode or Applicator Mode

9. Feed the liner behind the rewind/liner take-up plate.

Printer Setup and Operation

10. If desired, slide a core onto the rewind spindle until it is flush against the guide plate. A

core is not necessary for liner take-up.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

11. Remove the hook from the rewind spindle.

12. Wind the liner around the rewind spindle as shown. Rotate the rewind spindle several

turns to tighten the liner and remove any slack.

13. Reinstall the spindle hook over the liner. Insert the long end of the hook into the small hole

on the guide plate ( adjusting nut (

1). Insert the short end of the hook into the hole in the center of the

2).

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

14. Does the media that you are using require ribbon for printing? If you are not sure, see

When to Use Ribbon on page 22.

If using… Then…

Direct Thermal media (no ribbon needed) Continue with step 15.

Thermal Transfer media (ribbon needed)

a. If you have not already done so,

load ribbon in the printer. See

Load the Ribbon on page 60.

b. Continue with step 15.

15. Push back the media as far as it goes, and then slide in the outer media guide until it just

touches the edge of the media.

16. Tighten the thumb screw that is located on the bottom of the outer media guide.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Peel-Off Mode or Applicator Mode

17. Rotate the printhead-open lever downward until it locks the printhead in place.

18. Close the media door.

19. Set the printer to the appropriate print mode (for more information, see PRINT MODE

on page 112).

20. Press PAUSE to exit pause mode and enable printing.

The printer may perform a label calibration or feed a label, depending on your settings.

21. For best results, calibrate the printer. See Calibrate the Ribbon and Media Sensors

on page 177.

22. If desired, print a configuration or other label to verify that your printer is able to print.

(See PRINT INFORMATION on page 117.)

Media loading in Peel-Off mode is complete.

P1095460-04EN ZT510 User Guide 12/23/20

Rewind Mode

1. If you have not already done so, follow the instructions in the section Insert the Media into

the Printer on page 30.

Printer Setup and Operation

Load the Media—Rewind Mode

2. If necessary, install the rewind/liner take-up plate in the rewind position as shown. See

Install the Rewind/Liner Take-Up Plate on page 193 for instructions.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Rewind Mode

3. Slide a core onto the rewind spindle until it is flush against the guide plate.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by rotating the printhead-open lever upward.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Rewind Mode

5. Loosen the thumb screw that is located on the bottom of the outer media guide (1).

6. Slide the outer media guide all the way out.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Rewind Mode

7. Thread the media under the media dancer assembly roller (1), the media guide roller (2),

and then the upper media sensor (

3).

Important • Make sure that you thread the media under these components. If you thread

the media over them, the media obstructs the ribbon sensor and causes a false RIBBON OUT error.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Push the media forward until it passes under the printhead assembly (1), under the snap plate (

2), and then over the platen roller (3).

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Rewind Mode

9. Extend approximately 18 in. (500 mm) of media out of the printer.

10. Feed the media over the rewind/liner take-up plate.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Rewind Mode

11. Wind the media around the rewind spindle as shown. Rotate the rewind spindle several

turns to tighten the media and remove any slack.

12. Does the media that you are using require ribbon for printing? If you are not sure, see

When to Use Ribbon on page 22.

If using… Then…

Direct Thermal media (no ribbon needed) Continue with step 13.

Thermal Transfer media (ribbon needed)

a. If you have not already done so,

load ribbon in the printer. See

Load the Ribbon on page 60.

b. Continue with step 13.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Rewind Mode

13. Push back the media as far as it goes, and then slide in the outer media guide until it just

touches the edge of the media.

14. Tighten the thumb screw that is located on the bottom of the outer media guide.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Rewind Mode

15. Rotate the printhead-open lever downward until it locks the printhead in place.

16. Close the media door.

17. Set the printer to Rewind mode (for more information, see PRINT MODE on page 112).

18. Press PAUSE to exit pause mode and enable printing.

The printer may perform a label calibration or feed a label, depending on your settings.

19. For best results, calibrate the printer. See Calibrate the Ribbon and Media Sensors

on page 177.

20. If desired, print a configuration or other label to verify that your printer is able to print.

(See PRINT INFORMATION on page 117.)

Media loading in Rewind mode is complete.

P1095460-04EN ZT510 User Guide 12/23/20

Cutter Mode or Delayed Cut Mode

1. If you have not already done so, follow the instructions in the section Insert the Media into

the Printer on page 30.

Printer Setup and Operation

Load the Media—Cutter Mode or Delayed Cut Mode

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by rotating the printhead-open lever upward.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Cutter Mode or Delayed Cut Mode

3. Loosen the thumb screw that is located on the bottom of the outer media guide (1).

4. Slide the outer media guide all the way out.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Cutter Mode or Delayed Cut Mode

5. Thread the media under the media dancer assembly roller (1), the media guide roller (2),

and then the upper media sensor (

3).

Important • Make sure that you thread the media under these components. If you thread

the media over them, the media obstructs the ribbon sensor and causes a false RIBBON OUT error.

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Caution • The cutter blade is sharp. Do not touch or rub the blade with your fingers.

Push the media forward until it passes under the printhead assembly (1), under the snap plate (

2), and then through the cutter assembly (3).

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Media—Cutter Mode or Delayed Cut Mode

7. Does the media that you are using require ribbon for printing? If you are not sure, see

When to Use Ribbon on page 22.

If using… Then…

Direct Thermal media (no ribbon needed) Continue with step 8.

Thermal Transfer media (ribbon needed)

8. Push back the media as far as it goes, and then slide in the outer media guide until it just

touches the edge of the media.

a. If you have not already done so,

load ribbon in the printer. See

Load the Ribbon on page 60.

b. Continue with step 8.

9. Tighten the thumb screw that is located on the bottom of the outer media guide.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Media—Cutter Mode or Delayed Cut Mode

10. Rotate the printhead-open lever downward until it locks the printhead in place.

11. Close the media door.

12. Set the printer to the appropriate print mode (for more information, see PRINT MODE

on page 112).

13. Press PAUSE to exit pause mode and enable printing.

The printer may perform a label calibration or feed a label, depending on your settings.

14. For best results, calibrate the printer. See Calibrate the Ribbon and Media Sensors

on page 177.

15. If desired, print a configuration or other label to verify that your printer is able to print.

(See PRINT INFORMATION on page 117.)

Media loading in Cutter mode is complete.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Ribbon

Note • This section applies only to printers that have the Thermal Transfer option installed.

Ribbon is used only with thermal transfer labels. For direct thermal labels, do not load ribbon in the printer. To determine if ribbon must be used with a particular media, see When to Use

Ribbon on page 22.

Caution • While performing any tasks near an open printhead, remove all rings, watches,

Important • Use ribbon that is wider than the media to protect the printhead from wear.

Ribbon must be coated on the outside.

To load ribbon, complete these steps:

1. Raise the media door.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Caution • The printhead may be hot and could cause severe burns. Allow the

printhead to cool.

Open the printhead assembly by rotating the printhead-open lever upward.

Load the Ribbon

Align the segments of the ribbon supply spindle.

4. Place the roll of ribbon on the ribbon supply spindle with the loose end of the ribbon

unrolling as shown. Push the roll back as far as it will go.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

4 - 6 in.

Load the Ribbon

5. A ribbon leader makes ribbon loading and unloading easier. Does your roll of ribbon have

paper or something else attached to the end to serve as a ribbon leader?

If… Then…

Yes Continue with the next step.

a. Cut or tear about 4–6 in. (100–150 mm) of media from the roll.

100 - 150 mm

b. Peel a label from the media strip.

c. Use this label to attach the end of the ribbon to the media strip. The media

strip acts as a ribbon leader.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Load the Ribbon

6. Thread the ribbon leader under the ribbon guide roller (1) and the printhead assembly (2).

7. Bring the ribbon leader over the upper ribbon roller (1) and then under the ribbon take-up

spindle (

2). Wrap the leader and the ribbon around the ribbon take-up spindle as shown.

Rotate the spindle several turns to wind the ribbon and remove any slack.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Load the Ribbon

8. Is media already loaded in the printer?

If... Then...

No Continue with Load the Media on page 30 to load media in the printer.

Ye s

a. Rotate the printhead-open lever downward until it locks the

printhead in place.

b. Close the media door.

c. If necessary, press PAUSE to enable printing.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

In this section, you are shown how to use the Zebra Setup Utilities program to prepare a computer running Microsoft Windows any of the computer’s data communication interfaces. Use this section for directions to install this program if you have not already done so. You may connect your printer to your computer using any of the connections that you have available.

Important • You must use the Zebra Setup Utilities program or the Zebra Printer Setup

Utility app for Android devices (available for free from Google Play™ at

https://play.google.com/store/apps/details?id=com.zebra.printersetup) before connecting the

printer to your computer. Your computer will not install the correct printer drivers if you connect the printer to it without the Zebra Setup Utilities program or the Zebra Printer Setup Utility app.

Install Zebra Setup Utilities

Follow the directions in this section if you do not have Zebra Setup Utilities installed on your computer or if you want to update an existing version of the program. You do not need to uninstall any older versions or any Zebra printer drivers to do so.

To install the Zebra Setup Utilities program, complete these steps:

Download the Zebra Setup Utilities Installer

for the printer driver before connecting the printer to

1. Go to http://www.zebra.com/setup.

The Zebra Setup Utilities page displays.

2. On the DOWNLOADS tab, click Download under the ZEBRA SETUP UTILITIES

option.

You are prompted to read and accept the End User License Agreement (EULA).

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

3. If you agree with the terms of the EULA, click

ACCEPT AND BEGIN DOWNLOAD NOW

Depending on your browser, you are given options to run or save the executable file.

Run the Zebra Setup Utilities Installer

4. Save the program to your computer. (Optional if your browser gave you the option to run

the program instead of saving it.)

5. Run the executable file. If your computer prompts you for permission to run the file, click

the appropriate button to allow it to run.

What the computer displays next depends on whether Zebra Setup Utilities was already installed. Follow the instructions based on what your computer prompts you to do.

If your computer... Then...

Did not previously

a. The Zebra Setup Utilities - InstallAware Wizard displays the following.

have the Zebra Setup Utilities installed

b. Go to New Installations of Zebra Setup Utilities on page 67.

P1095460-04EN ZT510 User Guide 12/23/20

If your computer... Then...

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

Did previously have the Zebra Setup Utilities installed

New Installations of Zebra Setup Utilities

6. Click Next.

You are prompted again to read and accept the End User License Agreement (EULA).

a. The Zebra Setup Utilities - InstallAware Wizard displays the following.

b. Go to Updating Existing Installations of Zebra Setup Utilities on page 69.

7. If you agree with the terms of the EULA, check the box that says

I accept the terms of the license agreement

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

8. Click Next.

You are prompted to select where the files will be installed.

9. Change the destination folder, if necessary, and then click Next.

You are prompted to select a location for program shortcuts.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

10. Change the location, if desired, and then click Next.

You are prompted to complete the InstallAware wizard.

11. Skip to Continuing with New or Updated Installations on page 70.

Updating Existing Installations of Zebra Setup Utilities

12. Click Next.

You are prompted to choose the features that you would like to install.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

13. Click Next.

You are prompted to complete the InstallAware wizard.

Continuing with New or Updated Installations

14. Click Next.

Installation begins.

P1095460-04EN ZT510 User Guide 12/23/20

Install the Printer Driver and Connect the Printer to the Computer

During installation, you are presented with information about drivers.

15. Read the information, and then check the box that says

“I have read the information above”.

Printer Setup and Operation

16. Click Next.

You are shown options that can take place when the wizard exits the installation.

17. Check the box that says “Run Zebra Setup Utilities now.”

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

18. Click Finish.

What the computer displays next depends on whether any Zebra printer drivers are already installed on your computer. Follow the instructions based on what your computer displays.

If your computer... Then...

Did not previously have any Zebra printer drivers installed

The System Prepare Wizard displays.

To connect by... Then...

USB port Continue with Connect a Computer to the Printer’s USB

Port on page 74.

Serial or optional parallel port

Continue with Connect a Computer to the Printer’s Serial or

Parallel Port on page 78.

P1095460-04EN ZT510 User Guide 12/23/20

If your computer... Then...

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer

Did previously have any Zebra printer drivers installed

The Zebra Setup Utilities screen displays.

To connect by the...

Then...

USB port Continue with Connecting the printer to a USB port on your

computer on page 75.

Serial or optional parallel port

Continue with Adding a Printer from the Zebra Setup

Utilities Screen on page 81.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—USB

Connect a Computer to the Printer’s USB Port

Complete the steps in this section only after you have installed the Zebra Setup Utilities program. If necessary, complete the steps in Install Zebra Setup Utilities on page 65 before continuing.

Important • You must install the Zebra Setup Utilities program before connecting the printer

to your computer. Your computer will not install the correct printer drivers if you connect the printer to it without the Zebra Setup Utilities program.

Caution • Ensure that the printer power is off (O) before connecting data communications

cables. Connecting a data communications cable while the power is on ( printer.

To connect the printer to your computer by USB, complete these steps:

Running the System Prepare Wizard

If you are at the Zebra Setup Utilities screen, you do not need to complete this section. Continue with Connecting the printer to a USB port on your computer on page 75.

I) may damage the

The first time that you install the Zebra Setup Utilities program and printer drivers, you are prompted to follow the System Prepare Wizard.

Figure 8 • System Prepare Wizard

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—USB

1. Click Next.

The System Prepare Wizard prompts you to connect the printer to the USB port on your computer.

2. Click Finish.

The Zebra Setup Utilities screen displays.

Connecting the printer to a USB port on your computer

Complete the steps in this section only after the System Prepare Wizard prompts you to do so or after you have opened the Zebra Setup Utilities program. If necessary, complete the steps in

Install Zebra Setup Utilities on page 65 before continuing.

Figure 9 • Zebra Setup Utilities Screen

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

100 – 240 VAC

50 – 60 Hz

Install the Printer Driver and Connect the Printer to the Computer—USB

3. Connect one end of the USB cord to the USB port on your printer and the other end to

your computer.

4. Plug the female end of the A/C power cord into the A/C power connector on the back of

the printer.

5. Plug the male end of the A/C power cord into an appropriate power outlet.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—USB

6. Turn on (I) the printer.

As the printer boots up, your computer completes the driver installation and recognizes your printer.

The installation for the USB connection is complete.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

Connect a Computer to the Printer’s Serial or Parallel Port

Complete the steps in this section only after you have installed the Zebra Setup Utilities program. If necessary, complete the steps in Install Zebra Setup Utilities on page 65 before continuing.

Important • You must install the Zebra Setup Utilities program before connecting the printer

to your computer. Your computer will not install the correct printer drivers if you connect the printer to it without the Zebra Setup Utilities program.

Caution • Ensure that the printer power is off (O) before connecting data communications

cables. Connecting a data communications cable while the power is on ( printer.

To connect the printer to your computer by USB, complete these steps:

If you are at the Zebra Setup Utilities screen, you do not need to complete this section. Continue with Adding a Printer from the Zebra Setup Utilities Screen on page 81.

I) may damage the

Running the System Prepare Wizard

The first time that you install the Zebra Setup Utilities program and printer drivers, you are prompted to follow the System Prepare Wizard.

Figure 10 • System Prepare Wizard

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

1. Select “Other computer ports (Parallel Port, Serial Port, TCP-IP Port, ...), and then click

Next.

The new printer wizard prompts you to begin the installation procedure.

2. Click Finish.

The printer driver wizard displays.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

3. Click Next.

You are prompted to select an installation option.

4. Continue with step 6 on page 82.

P1095460-04EN ZT510 User Guide 12/23/20

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

Adding a Printer from the Zebra Setup Utilities Screen

Figure 11 • Zebra Setup Utilities Screen

Printer Setup and Operation

5. On the Zebra Setup Utilities screen, click Install New Printer.

You are prompted to select an installation option.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

6. Click Install Printer.

You are prompted to select a printer type.

7. Select your printer model and resolution.

The model and resolution are on a part number sticker on the printer, usually located below the media spindle. The information will be in the following format:

Part Number: XXXXXxY – xxxxxxxx

where

XXXXX = the printer model Y = the printer resolution (2 = 203 dpi, 3 = 300 dpi)

For example, in the part number ZT510x3 – xxxxxxxx

ZT510 indicates that the printer is a ZT510 model 3 indicates that the printhead resolution is 300 dpi

8. Click Next.

You are prompted for a printer name, the port to which the printer will be connected, and the language for the program.

9. Change the printer name (if desired), and select the appropriate port and language.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

10. Click Next.

You are prompted to launch other setup wizards.

11. Check the desired options, and then click Finish.

The printer driver is installed. If you are prompted that other programs might be affected, click Next.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Serial Connector Parallel Connector

100 – 240 VAC

50 – 60 Hz

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

Connecting the printer to a serial or parallel port on your computer

12. Connect one or both cords to the appropriate ports on your printer.

13. Connect the other end of the cord to the appropriate port on your computer.

14. Plug the female end of the A/C power cord into the A/C power connector on the back of

the printer.

15. Plug the male end of the A/C power cord into an appropriate power outlet.

P1095460-04EN ZT510 User Guide 12/23/20

Install the Printer Driver and Connect the Printer to the Computer—Serial or Parallel

16. Turn on (I) the printer.

The printer boots up.

Configuring the printer (if necessary)

Printer Setup and Operation

17. If necessary, adjust the printer’s port settings to match those of your computer. For more

information, see PORTS on page 105.

The installation for serial or parallel connections is complete.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

100 – 240 VAC

50 – 60 Hz

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

Connect to Your Network through the Printer’s Ethernet Port

If you wish to use a wired print server (Ethernet) connection, you may need to connect the printer to your computer using one of the other available connections. While the printer is connected via one of those connections, you would configure the printer to communicate with your Local Area Network (LAN) through the printer’s wired print server.

For additional information about Zebra print servers, refer to the ZebraNet Wired and Wireless Print Server User Guide. To download the latest version of this guide, go to http://www.zebra.com/zt500-info.

To connect the printer to your computer by a wired print server, complete these steps:

1. Install Zebra Setup Utilities as instructed in Install Zebra Setup Utilities on page 65.

2. Plug the female end of the A/C power cord into the A/C power connector on the back of

the printer.

3. Plug the male end of the A/C power cord into an appropriate power outlet.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

4. Turn on (I) the printer.

The printer boots up.

5. Connect the printer to an Ethernet cable that is connected to your network.

The printer attempts to communicate with your network. If it is successful, it fills in your LAN’s gateway and subnet values and gets an IP address. The printer display will alternate between the printer’s firmware version and its IP address.

6. Check the display to see if an IP address was assigned to the printer. See WIRED IP

ADDRESS on page 139.

If the printer’s IP address is... Then...

0.0.0.0 or

000.000.000.000

Continue with Configuring the printer

with your LAN information (if necessary) on page 88.

any other value Continue with Adding a Printer from the

Zebra Setup Utilities Screen on page 89.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

Configuring the printer with your LAN information (if necessary)

If your printer connected to your network automatically, you do not need to complete this section. Continue with Adding a Printer from the Zebra Setup Utilities Screen on page 89.

7. Connect the printer to your computer using a USB, serial, or optional parallel port as

instructed in Connect a Computer to the Printer’s USB Port on page 74 or Connect a

Computer to the Printer’s Serial or Parallel Port on page 78.

8. Configure the following printer settings. You can change the values through the Zebra

Setup Utilities (click Configure Printer Connectivity on the Zebra Setup Utilities screen) or by the ways listed at the following links. Contact your network administrator for the proper values for your network.

• WIRED IP PROTOCOL on page 142 (change the value from ALL to PERMANENT)

• WIRED GATEWAY on page 141 (match the gateway value of your LAN)

• WIRED SUBNET MASK on page 140 (match the subnet value of your LAN)

• WIRED IP ADDRESS on page 139 (assign a unique IP address to the printer)

9. After the print server settings have been configured, reset the network to apply the

changes. See RESET NETWORK on page 154.

P1095460-04EN ZT510 User Guide 12/23/20

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

Adding a Printer from the Zebra Setup Utilities Screen

10. If necessary, open the Zebra Setup Utilities program.

The Zebra Setup Utilities screen displays.

Figure 12 • Zebra Setup Utilities Screen

Printer Setup and Operation

11. Click Install New Printer.

The printer driver wizard displays.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

12. Click Next.

You are prompted to select an installation option.

13. Click Install Printer.

You are prompted to select a printer type.

14. Select your printer model and resolution.

The model and resolution are on a part number sticker on the printer, usually located below the media spindle. The information will be in the following format:

Part Number: XXXXXxY – xxxxxxxx

where

XXXXX = the printer model Y = the printer resolution (2 = 203 dpi, 3 = 300 dpi)

For example, in the part number ZT510x3 – xxxxxxxx

ZT510 indicates that the printer is a ZT510 model 3 indicates that the printhead resolution is 300 dpi

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

15. Click Next.

You are notified that the printer is already installed.

16. Click Add new printer.

You are prompted for a printer name, the port to which the printer will be connected, and the language for the printer display.

17. Click Add Port.

The wizard prompts you for a name for the port and the IP address of your printer.

Note • If you have other applications open, you may be prompted that the driver is

locked by another process. You may click Next to continue or Exit to allow you to save your work before continuing with this installation.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

18. Give the port a name that you can recognize when it appears in the list of available ports.

19. Enter the printer’s IP address. This could be one that was assigned automatically or one

that you specified manually in the previous section.

20. Click OK.

A printer driver is created with the port name that you assigned. The new printer port appears in the list of available ports.

21. Click Next.

You are prompted to launch other setup wizards.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Ethernet

22. Check the desired options, and then click Finish.

The printer driver is installed. If you are prompted that other programs might be affected, click the appropriate option to continue.

The installation for wired (Ethernet) connections is complete.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Wireless

Connect the Printer to Your Wireless Network

If you wish to use the printer’s optional wireless print server, you must first connect the printer to your computer using one of the other available connections. While the printer is connected via one of those connections, you configure the printer to communicate with your Wireless Local Area Network (WLAN) through the wireless print server.

To connect the printer to your computer by an optional wireless print server, complete these steps:

1. Install Zebra Setup Utilities as instructed in Install Zebra Setup Utilities on page 65.

2. Connect the printer to your computer using a USB, serial, or optional parallel port as

instructed in Connect a Computer to the Printer’s USB Port on page 74 or Connect a

Computer to the Printer’s Serial or Parallel Port on page 78.

3. Configure the following printer settings. You can change the values through the Zebra

• WLAN IP PROTOCOL on page 147 (change the value from ALL to PERMANENT)

• WLAN GATEWAY on page 146 (match the gateway value of your WLAN)

• WLAN SUBNET MASK on page 145 (match the subnet value of your WLAN)

• WLAN IP ADDRESS on page 144 (assign a unique IP address to the printer)

4. After the print server settings have been configured, reset the network to apply the

changes. See RESET NETWORK on page 154.

P1095460-04EN ZT510 User Guide 12/23/20

Install the Printer Driver and Connect the Printer to the Computer—Wireless

Adding a Printer from the Zebra Setup Utilities Screen

5. If necessary, open the Zebra Setup Utilities program.

The Zebra Setup Utilities screen displays.

Figure 13 • Zebra Setup Utilities Screen

Printer Setup and Operation

6. Click Install New Printer.

The printer driver wizard displays.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Wireless

7. Click Next.

You are prompted to select an installation option.

8. Click Install Printer.

You are prompted to select a printer type.

9. Select your printer model and resolution.

The model and resolution are on a part number sticker on the printer, usually located below the media spindle. The information will be in the following format:

Part Number: XXXXXxY – xxxxxxxx

where

XXXXX = the printer model Y = the printer resolution (2 = 203 dpi, 3 = 300 dpi)

For example, in the part number ZT510x3 – xxxxxxxx

ZT510 indicates that the printer is a ZT510 model 3 indicates that the printhead resolution is 300 dpi

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Wireless

10. Click Next.

You are notified that the printer is already installed.

11. Click Add new printer.

You are prompted for a printer name, the port to which the printer will be connected, and the language for the printer display.

12. Click Add Port.

The wizard prompts you for a name for the port and the IP address of your printer.

Note • If you have other applications open, you may be prompted that the driver is

locked by another process. You may click Next to continue or Exit to allow you to save your work before continuing with this installation.

12/23/20 ZT510 User Guide P1095460-04EN

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Wireless

13. Give the port a name that you can recognize when it appears in the list of available ports.

14. Enter the printer’s IP address. This could be one that was assigned automatically or one

that you specified manually in the previous section.

15. Click OK.

A printer driver is created with the port name that you assigned. The new printer port appears in the list of available ports.

16. Click Next.

You are prompted to launch other setup wizards.

P1095460-04EN ZT510 User Guide 12/23/20

Printer Setup and Operation

Install the Printer Driver and Connect the Printer to the Computer—Wireless

17. Check the desired options, and then click Finish.

The printer driver is installed. If you are prompted that other programs might be affected, click the appropriate option to continue.

The installation for wireless communication is complete.

12/23/20 ZT510 User Guide P1095460-04EN

100

Printer Setup and Operation

Print a Test Label and Make Adjustments

After you have loaded media, loaded ribbon (if using Thermal Transfer media), installed the printer driver, and connected your printer to your computer, use the directions in this section to print a test label. Printing this label allows you to see if your connection is working and if you need to adjust any of the printer settings.

To print a test label and adjust the printer (if necessary), complete these steps:

1. Open the Zebra Setup Utilities to return to the Zebra Setup Utilities screen.

2. Click on one of the available print drivers for your printer.

3. Click Open Printer Tools.

The Tools window displays the available printer commands.

P1095460-04EN ZT510 User Guide 12/23/20
