Zebra TTP2110, TTP2130 Technical Manual

Zebra® TTP2100

Kiosk Printer

Technical Manual

P1003640-001

therein are owned by ZIH Corp. Unauthorized reproduction of this manual or the software and/or firmware in the printer may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.

This product may contain ZPL

, ZPL II®, and ZebraLink™ programs; Element Energy Equalizer® Circuit; E3®; and

ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo, ZPL, ZPL II, Element Energy Equalizer Circuit, and E

All other brand names, product names, or trademarks belong to their respective holders. For additional trademark information, please see “Trademarks” on the product CD.

Proprietary Statement This manual contains proprietary information of Zebra Technologies Corporation and its

subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the express, written permission of Zebra Technologies Corporation.

Product Improvements Continuous improvement of products is a policy of Zebra Technologies Corporation.

All specifications and designs are subject to change without notice.

Liability Disclaimer Zebra Technologies Corporation takes steps to ensure that its published Engineering

specifications and manuals are correct; however, errors do occur. Zebra Technologies Corporation reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability In no event shall Zebra Technologies Corporation or anyone else involved in the creation,

production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies Corporation has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

P1003640-001 TTP2100 Technical Manual 10/22/08

Contents

1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

The Americas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Europe, Africa, Middle East, and India . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Asia Pacific . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 • Product Presentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Presenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Eject Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Hold Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Feed Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Voltage Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 • Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installing a Paper Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Top of Form (TOF) Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting Fork or Reflex TOF Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Positioning the TOF Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Calibrating the TOF Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Quick-Fit Hubs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Design Your Own Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Electrostatic Discharges and Earth Currents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Ambient Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

10/22/08 TTP2100 Technical Manual P1003640-001

Contents

Installing a Paper-low Sensor (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Connecting to the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TTP 2110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TTP 2130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Making a Test Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Customizing the Self-Test Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Installing a Printer Driv er . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Status Monitoring Through Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Settings Available in the Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4 • Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Loading Fanfold Ticket Stock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Installing a Paper Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

5 • Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Text Oriented . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Driver Oriented . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

How the Commands are Described . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Summary of Control Codes and Escape Sequences . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Software command syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Black-mark (To p- o f-Form) Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Text Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Barcode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Graphics commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Print Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Cut and Present Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

System Related Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Status Reporting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Font Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Character Bitmap Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Logotypes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Erasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Status Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

P1003640-001 TTP2100 Technical Manual 10/22/08

Contents

6 • Default Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

How the Parameters are Described . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Default Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Summary of Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Serial Interface Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Print Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Fixed Document Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

7 • Page Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Printable Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Aligning Preprint and Thermal Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Simple Calibration Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Parameters Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Parameter n35 – Document Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Parameters n37 and n38 – Page Length Minimum . . . . . . . . . . . . . . . . . . . . . . . . 103

Parameter n39 – Max Black-markLength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Parameter n40 – Min Black-mark Length (Garbage Filter) . . . . . . . . . . . . . . . . . . . 103

Garbage, Black-mark, and Out of Paper Detection . . . . . . . . . . . . . . . . . . . . . . . . . 104

Parameters n41 and n42 – Black-mark Cut Offset . . . . . . . . . . . . . . . . . . . . . . . . . 105

FF (Form Feed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Black-Mark Sensing from Within Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

8 • Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Serial, TTP 2110 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

USB, TTP 2130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

9 • Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Fault Finding / Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Cleaning the Printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Firmware History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117

10 • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Ticket Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

TOF Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Print Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Ticket Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Presenter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

10/22/08 TTP2100 Technical Manual P1003640-001

Contents

Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Text Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Basic Character Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Ordering Number List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Printer Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Media Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

70W Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

150W Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

P1003640-001 TTP2100 Technical Manual 10/22/08

About this Manual

This manual will be updated as, from time to time, printer functions and features may be added

or amended. You will always find the latest edition on our web site (http://www.zebra.com

If you require functions not found in the manual edition at your disposal, you are welcome to consult one of our representatives for information.

1

Introduction

10/22/2008 TTP2100 Technical Manual P1003640-001

Introduction

Contacts

You can contact Zebra Technologies at the following:

Web Site

http://www.zebra.com

Technical Support via the Internet is available 24 hours per day, 365 days per year. Go to

http://www.zebra.com/support.

http://www.tycoelectronics.com/cust.stm

The Americas

Regional Headquarters Technical Support Customer Service Dept.

Zebra Technologies International, LLC 333 Corporate Woods Parkway Vernon Hills, Illinois 60061-3109 U.S.A T: +1 847 793 2600 Toll-free +1 800 423 0422 F: +1 847 913 8766

T: +1 866 322 5202 F: +1 847 913 2578

E: kiosksupport@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +1 877 ASK ZEBRA (275 9327) E: clientcare@zebra.com

Europe, Africa, Middle East, and India

Regional Headquarters Technical Support Internal Sales Dept.

Zebra Technologies Europe Limited Dukes Meadow Millboard Road Bourne End Buckinghamshire, SL8 5XF, UK

T: +44 (0) 1628 556000 F: +44 (0) 1628 556001

T: +44 (0) 1628 556039 F: +44 (0) 1628 556003 Germany: Tsgermany@zebra.com France: Tsfrance@zebra.com Spain/Portugal: Tsspain@zebra.com All other areas: Tseurope@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +44 (0) 1628 556032 F: +44 (0) 1628 556001 E: cseurope@zebra.com

Asia Pacific

Regional Headquarters Technical Support Customer Service

Zebra Technologies Asia Pacific, LLC 120 Robinson Road #06-01 Parakou Building Singapore 068913 T: +65 6858 0722 F: +65 6885 0838

T: +65 6858 0722 F: +65 6885 0838 E: China: tschina@zebra.com All other areas: tsasiapacific@zebra.com

For printers, parts, media, and ribbon, please call your distributor, or contact us.

T: +65 6858 0722 F: +65 6885 0836

P1003640-001 TTP2100 Technical Manual 10/22/08

Product Presentation

The TTP 2100 series of ticket printers are available both for kiosk integration and desktop use.

They print on most ticket media from 50 mm to 82.5 mm wide using direct thermal printing, The ticket media can be up to 0.25 mm thick, fanfold, roll, or single cut handfed.

The printers have integrated guillotine cutter, straight presenter, and control board. The print speed is 150 mm per second, and the eject speed 300 mm/s to ensure high throughput.

The cut can be synchronized with :

• Gaps between tickets, or punched holes

• Black-marks on the non thermal side of the ticket stock

• Foil opacity (for labels on opaque foil backing)

• Ticket corner radius

10/22/2008 TTP2100 Technical Manual P1003640-001

Product Presentation

Straight Presenter

Tickets fall

(into tray)

Control board

Paper entry

Printhead

Cutter

Ticket

taken/fallen)

sensor

(

Ticket load sensor

TOF sensor adjustable

sideways

Light source for light barrier position adjustable sideways

Top release lever

Light barrier / Reflex

detector selection Switch

Control panel on both sides

You can also print fixed- or variable-length tickets without synchronization. The presenter can be set to eject the ticket into a tray or hold it by the back edge until the customer takes it. The top can easily be opened to give the operator access to the paper path, and print head, for maintenance purposes.

Figure 1 • Principle of Operation

The printer is available with two different control boards; the TTP 2110 with serial interface and the TTP 2130 with USB interface.

Printer drivers for Microsoft Windows™ and Linux are available, and the printer is compatible with the Plug and Play standard.

The extensive text capability makes it easy to print directly from the ticket software without using a driver. This is especially useful for the serial interface version with its limited data transfer rate.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Presenter

Print and drop

Print and take

Eject Mode

Hold Mode

Product Presentation

Presenter

The straight presenter takes care of the ticket after it is printed and cut.

The ticket is ejected after being cut. The printer is designed so that the ticket always drops down. A sensor is located outside the grip-point of the presenter roller to ensure that the sensor can verify that the ticket drops down. To get this functionality you set “Clear presenter after print” in the driver printing preferences.

When presented, only the very end of the printout is held by the printer so the customer can easily take the printout no matter how long or short it is. If one customer should have several tickets, the printer can detect when he takes one ticket and directly print the next and hold that one until he takes it, and so on.

Figure 2 • The Presenter

10/22/2008 TTP2100 Technical Manual P1003640-001

Product Presentation

Cover lock

Interface Connector

Power Connector

Paper low Connector

Feed Button

Status Indicator

Power Indicator

Earth Screw

Controls

Figure 3 • Rear View

The buttons and indicators are duplicated on both sides of the printer so that they are easily accessible regardless of how the printer is installed.

Feed Button

The Blue feed-button has several functions:

• Press and release will feed, cut, and present a complete page. Any data in the print buffer will be printed. If the buffer is empty the page will be blank. In black-mark mode, the page will be synchronized with the black-mark.

• Press and hold FF while turning on the power, or press and hold FF just after closing the

print head, will print a self-test printout (see Making a Test Printout on page 31).

• With no paper in the printer, holding FF pressed while closing print head to enter black-

mark calibration mode (see Print Setup on page 88).

P1003640-001 TTP2100 Technical Manual 10/22/2008

Status Indicator

● The status indicator has several functions:

• ON constantly — the printer is operational

• Flashes rapidly — indicates error. Hold down the feed button and the number of blinks will reflect the status-code.

Table 1 • Status Indicator Flash Codes

Product Presentation

Controls

Number of

Flashes

1 Presenter jam, paper cannot be ejected

2 Cutter cannot return to home position

3 Out of paper

4 Printhead lifted

5 Paper did not reach presenter sensor in time

6 Temp error, printhead is above 60

11 Black mark calibration error

Fast flashes Checksum error at firmware loading

Steady light Wrong firmware type or target at firmware loading

Constantly off Waiting for paper in black mark calibration mode

Status-Codes are reset:

• When the conditions causing them are removed

• When the printer is turned off/on

Description

°C

• When the printhead is lifted and then lowered.

Blink, blink, pause, blink, blink — is the warning-code for paper low[1]

The warning-code is reset automatically when the condition causing it is removed.

Voltage Indicator

● Green indicator constantly ON — 24 V present

10/22/2008 TTP2100 Technical Manual P1003640-001

Product Presentation

Notes • ___________________________________________________________________

__________________________________________________________________________

Controls

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installation

Note • Configuration cards describing how to set the printer up for a specific ticket formats

are available on http://www.zebra.com

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Installing a Paper Guide

The TTP 2100 printers are delivered without paper guide fitted.

1. Open the printhead by pushing green printhead lock plate backwards and lifting up the

printhead, see Clearing Paper Jams on page 41.

2. Enter the T-shaped tabs of the paper guide into the “T”-holes, and press the rear of the

guide down/in.

3. Fasten the nut using the 5 mm wrench supplied.

4. Close the printhead.

Figure 4 • Fitting the Paper Guide

Primary input guide

T-tabs

Screw

Nut

When a guide is fitted the print with should be set with parameter n48, and sensor selected with parameter n63.

5. If not already done, install a printer driver, see Installing a Printer Driver on page 33.

6. Start the utility program TTPLoader.exe. This application is available from

www.zebra.com.

7. Select the parameters tab.

8. Enter 48 as parameter number and the value in millimeters of the print width you want.

Recommended values are:

Paper Width Setting

82.5 mm n48 = 78

80 mm n48=72

76 mm n48=70

60 mm n48=54

54 mm n48=50

50 mm n48=46

9. Press SET.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installing a Paper Guide

10. Enter 63 as parameter number. Recommended values are:

Value When Used

2 (center sensor) for ISO tickets and most other tickets

4 (12.5 mm from center sensor) for baggage tags according to IATA 740

1 (edge sensor) for ATB tickets without hole in the perforation.

11. Press SET.

12. Press STORE.

13. Wait for the printer to buzz as a confirmation of that the new value is stored.

Installation

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Top of Form (TOF) Sensor

The TTP 2100 has a flexible top of form detection system. When delivered the printer is configured with fork sensor to detect holes / gaps between tickets. The holes / gaps should be in the paper center, 12.5 mm to the right of the center (according to IATA resolution 740) or at the edge of 82.5 mm wide tickets (Boarding cards).

If the TOF mark is at a suitable position, an auto calibration routine will configure everything for you.

You can move the sensor to other positions, force the printer to use a specific sensor, switch to reflex sensor for black-mark detection by setting up the parameters in the printer.

Selecting Fork or Reflex TOF Sensor

The TTP 2100 can use a fork sensor that looks for holes between tickets, or a reflex sensor that looks for black-marks on the back of the ticket stock. Sensor mode is selected with parameter

n61, see Summary of Parameter Settings on page 85.

Positioning the TOF Sensor

The sensor board sits on a bracket that can slide left/right in a grove. When delivered the bracket is positioned to the very right. In this position Sensor 1 is at the right side ready to detect the corner radius of Boarding cards, Sensor 2 is at the very center of the page and sensor 4 is 12.5 mm to the right of the center at the position determined for baggage tags in IATA resolution 740. To configure the printer for other papers that do not fall into any of the three categories do as follows:

1. Loosen the screw holding the sensor 1 ½ turn.

2. Press the screw in with the screwdriver and carefully slide it to the new position making

sure the cables to the sensor does not obstruct the movement.

3. Tighten the screw.

4. Move the light source to the same position, right above the sensor.

Note • The standard ticket guides have holes for the following sensor positions: Center,

Edge, and 12.5 mm from center, and the sensor position must correspond to these holes.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Calibrating the TOF Sensor

1. Open the printhead.

2. Remove ticket stock.

3. Hold the Feed button pressed and close the printhead (keeping the button pressed all the

time).

4. Release the button, the Status LED should be off.

5. Load ticket stock (just slide into the slot and let the printer auto load the paper).

Note • To ensure good calibration conditions, lightly press the ticket stock towards the

bottom of the input guide during calibration.

The printer will forward the paper until it finds two TOF marks and then stop and save all TOF-mark parameters

6. Now open the printhead and remove the ticket stock, close and feed the tickets in again

and the printer is ready for use.

Installation

Top of F orm (TOF) Sensor

Repeat this procedure if the procedure fails or if the printer should be used with tickets that differ from the original specification.

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Installation Considerations

The TTP 2100 Kiosk is for embedded applications and should be installed in an enclosure such as a self-service kiosk.

Caution • NEVER use screws that go into the printer more than 4 mm! Longer screws will

destroy the electronics inside.

The “TTP 2100 Desktop” is a stand alone printer in a housing. The housings can be stacked so two or more printers can reside on top of each other to save space.

Orientation

The TTP 2100 can be installed at any angle. Horizontal is the most common use but vertical with the ticket presenting upwards can be used if you want the ticket to come up from the desk surface. Vertical with the ticket presented downwards can be used if you want to stack many tickets before picking them up.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installation Considerations

Figure 5 • Printer Installation Orientation Options

Installation

Quick-Fit Hubs

The printers attach to the kiosk in three ways:

• using two screws

• using four screws

• using slides in place using the quick-fit hubs.

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Installation Considerations

Ticket exit

Figure 6 • Front, Bottom View

Push down

Quick-fit hubs

Optional quick-fit hubs

Keyholes

Lock spring

Push Forward

Fixed!

Design Your Own Mounting

The illustration below gives an example of a printer-mounting shelf. See Dimensions

on page 126, and the 3D solid models and outline drawings for CAD that are available on

http://www.zebra.com

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installation

8 mm

Paper width

+ 10 mm

44 mm

∅12 mm

∅6.5 mm

10 mm

90.8 m m

110 m m

134 mm

Leaf spring 01473-000

10 mm

Add material for corner radius

Min. 100 mm

Center

10 mm

Inner corner of bend

Installation Considerations

Figure 7 • Example of A Simple Shelf For Fastening a Standard Printer Using

Quick-fit Hubs and a Leaf Spring Retainer (Order No. 01473-000)

Additional space is required for paper loading and paper jam removal. Consider mounting the printer on a movable platform so that the printer can be maintained outside the printer enclosure.

Note • We recommend you to make the output slot 97 mm wide. This way you will be able to

use all paper widths that the TTP 2100 series of printers can handle.

Caution • NEVER use screws that go into the printer more than 4 mm! This will destroy the

electronics inside.

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Earth Screw

Installation Considerations

Electrostatic Discharges and Earth Currents

Preventing ESD and earth currents from affecting the printer operation requires proper

connection of the printer chassis to protective earth through a mounting platform or through a separate earth conductor. A threaded hole for an M4 earth screw is provided on the back of the printer. Use an M4 x 10 screw and two lock washers when fastening the ground cable.

Figure 8 • Locatoin of Earth Grounding Screw

Note • An optional antistatic brush can be fitted to the front of the printer if required.

Ambient Light

There is an optical sensor at the paper exit at the front of the printer.

To ensure proper printer operation, design the kiosk so that it prevents direct sunlight or light from indoor lamps from reaching the sensor through the paper exit.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installing a Paper-low Sensor (Optional)

Paper-low sensor

J10

PL SENSE

SW97081F

200 ohm

100 pF

Paper roll

New

Near end

Roll holder shaft

Gray = Connection inside printer

Paper low Connector

A paper-low sensor alerts the system when a certain length of paper remains on the roll. The purpose of this sensor is to get an early alert so that you can replace the ticket stock in time in remotely located kiosks.

Ticket cassettes and roll holders supplied by Zebra can be equipped with paper-low sensors. Just attach the sensor, and connect the cable to the paper low connector at the back of the printer.

Figure 9 • Paper-low Sensor Connection

Installation

Installing a Paper-low Sensor (Optional)

Figure 10 • Location Of Paper-low Connector

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Interface Connector

Printer

Female

594837261

Female

594837261

2RxDRxD2

3TxDTxD3

9RIRI9

6DSRDS R6

8CTSCTS8

4DTRDTR4

7RTSRTS7

1DCDDCD1

5GNDGND5

Serial Cable 10825-000

Connecting to the Computer

Figure 11 • Location of Interface Connector

TTP 2110

Connect a Zebra serial cable, ordering No. 10825-000, between the printer and the computer to be used. We strongly recommend using the Zebra cable because many incompatible cables are available.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Figure 12 • Serial Interface Cable 10825-000.

TTP 2130

Installation

Connecting to the Computer

Dotted leads are not connected in the printer. To be able to connect the cable in any direction, make symmetrical cables.

Connect the printer to the USB port of the computer or the USB hub to be used. USB connectors can be recognized by the following symbol:

The connector on the printer is a 4-pin USB type B connector. See Table 4 , USB Connector

(J13) Pin Assignment on page 111 for pin assignment.

A suitable cable is available from Zebra, ordering number 01542-000.

Figure 13 • USB Cable with Type A and Type B Connectors

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Power Connector

Connecting the Power

Caution • Using a non-Zebra power supply may cause excessive EMC interferences and

void the EMC certifications of the printer.

Caution • To avoid electrical shock and printer damage, wiring of a non-Zebra power

supply should only be done by qualified service personnel. Use ONLY a power supply which meets the following requirements:

• 24 VDC ±5%

• 70W average (2.92A) and 284W peak (11.8A) power supply

Figure 14 • Location of Power Connector

Caution • On power supplies with line voltage selector, make sure it is set to your local line

voltage.

Using the Zebra 70 W power supply for TTP 2100 Desktop, or Embedded (70W Power Supply on page 128):

1. Connect the cable from the power supply the power connector on the back of the printer.

2. Connect the power cable to the line outlet.

3. Turn ON the power.

In kiosk applications you may draw power from common PSU in the kiosk if the characteristics are suitable. In such case, cables that fit the connector on the back of the TTP 2100 is available from Zebra, part No. 01370-000. If you make cables of your own, connect the voltages according to the following illustration.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installation

GND

+24 V

Connecting the Power

Note • Protective ground and minus output should not be interconnected in the power supply.

At the printer end of the cable, use an AMP Mate-N-Lok connector housing and two contactsockets.

Figure 15 • Power Connection

Housing: AMP No. 350777-1 Socket: AMP No. 350689-1

Table 2 • Current Consumption

Mode 58-60 mm paper width 80 – 82.5 mmpaper width

Idle 150 mA 150 mA

Standard text printing 0.7 A average 1 A average

All black printing 4 A 6 A

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

The arrows above indicate printing direction

Connecting the Power

Table 3 • Current Consumption for the Printout on the Left

Oscilloscope Setting 2A/div.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Making a Test Printout

Self-test

Installation

Making a Test Printout

1. Is a power button available for the printer?

If… Then…

No a. With paper loaded, press FF just after closing the print head to print a self-

test printout.

b. The printer exits self-test mode and goes on-line.

Ye s

a. Switch OFF the power. b. Hold the Feed button depressed while powering ON the printer. Keep the

button depressed until printing starts. This produces a printout showing the firmware version and date, control

board revision number and serial number, name of loaded fonts and logotypes, and the parameter settings.

a. Each successive press of the button will produce a test printout. b. Switch the printer OFF and ON again or open/close the print head to exit

self-test mode .

Customizing the Self-Test Printout

The self test printout starts with a text line, and then a Zebra logotype. This logotype is just a printout of logotype No. 0., so if you want to personalize the self test printouts in your installation, delete all logotypes and store your own logotype as No. 0.

See also Logotypes on page 79.

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Making a Test Printout

Figure 16 • Logotype No. 0 is Printed on the Self-Test Printout

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installing a Printer Driver

Printer drivers for Linux, and Microsoft Windows™ are available on the Zebra web site

http://www.zebra.com

accompany the drivers.

Status Monitoring Through Windows

Status can be fetched from a language monitor (21x0mon.dll) that is installed into Windows with the driver. Documentation of the language monitor is available on the drivers’ page on the Zebra web site.

If you want to monitor status through the language monitor, make sure that the printer is selected as default printer, and that bi-directional support is enabled in the port section of the driver settings.

Settings Available in the Driver

The looks of the dialogue boxes vary between driver versions, but essentially the same settings can be made.

, or on disk from Zebra. Please follow the installation instructions that

Installation

Installing a Printer Driver

You start with the Printing Preferences window. Here you find the portrait/landscape setting, and an advanced button.

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Installing a Printer Driver

The Paper/Quality tab shows the tray selection.

This is an information window - no settings can be change here.

• Lower Paper Tray is when paper is loaded in the primary input guide.

• Upper Paper Tray is when paper is loaded in the secondary input guide.

• If no tray contains ticket material, the printer indicate out of paper.

Note • You cannot load paper in both guides and select tray with this setting. The trays are

only used by the status monitoring to report what paper is loaded.

P1003640-001 TTP2100 Technical Manual 10/22/2008

The advanced button contains the Zebra specific settings:

Installation

Installing a Printer Driver

Paper/Output

• Paper size : A TB1 ticket, 50.8, 54,60, 66, 80, and 82.5 mm tickets, 16in., 19 in., and 21 in.

bag tags

• Copy Count: 1 to 9999

Document Options

• Advanced printing features: Enabled / disabled

Printer Features

• Page Type: Page based/Roll based/Black-mark

• Printing Speed: 1 to 19

• Burn Time: 1 to 15

• Partial cut or full cut: Full cut, and 10-80% cut

10/22/2008 TTP2100 Technical Manual P1003640-001

Installation

Installing a Printer Driver

Advanced Features

• Paper Cut Mode: No Cut / Cut per document / Cut per page

• Clear Presenter After Print: On / Off

• Hold Page After Print: On / Off

• Vertical mount: On / Off

• Slow present: On / Off

• Advance After Print: 0-100 mm (10 mm)

• Paper Eject: 0-100 mm (30 mm)

• Reverse Before Print: 0-100 mm (0 mm)

]

Black-mark Settings:

• Minimum black-mark: 0-100 mm (3 mm)

• Maximum black-mark: 0-100 mm (16 mm)

• Cut position: 0-100 mm (0 mm)

• Scaling: 10-400% (100%)

• Contrast/brightness

P1003640-001 TTP2100 Technical Manual 10/22/2008

Operation

10/22/2008 TTP2100 Technical Manual P1003640-001

Operation

Loading Fanfold Ticket Stock

1. Turn the tickets so that the surface to be printed (temperature sensitive side) faces

upwards. Put the first ticket on the input guide and slide it up the guide into the printer.

2. The printer will grab the paper, locate the edge and reverse to printing position.

3. When ready, the yellow status led will be ON indicating that the printer is ready to be

used.

Note • Remember that the thermal coating should be upwards and black-marks (if used)

should face down. The printer will automatically load the tickets when the sensors detect it’s presence.

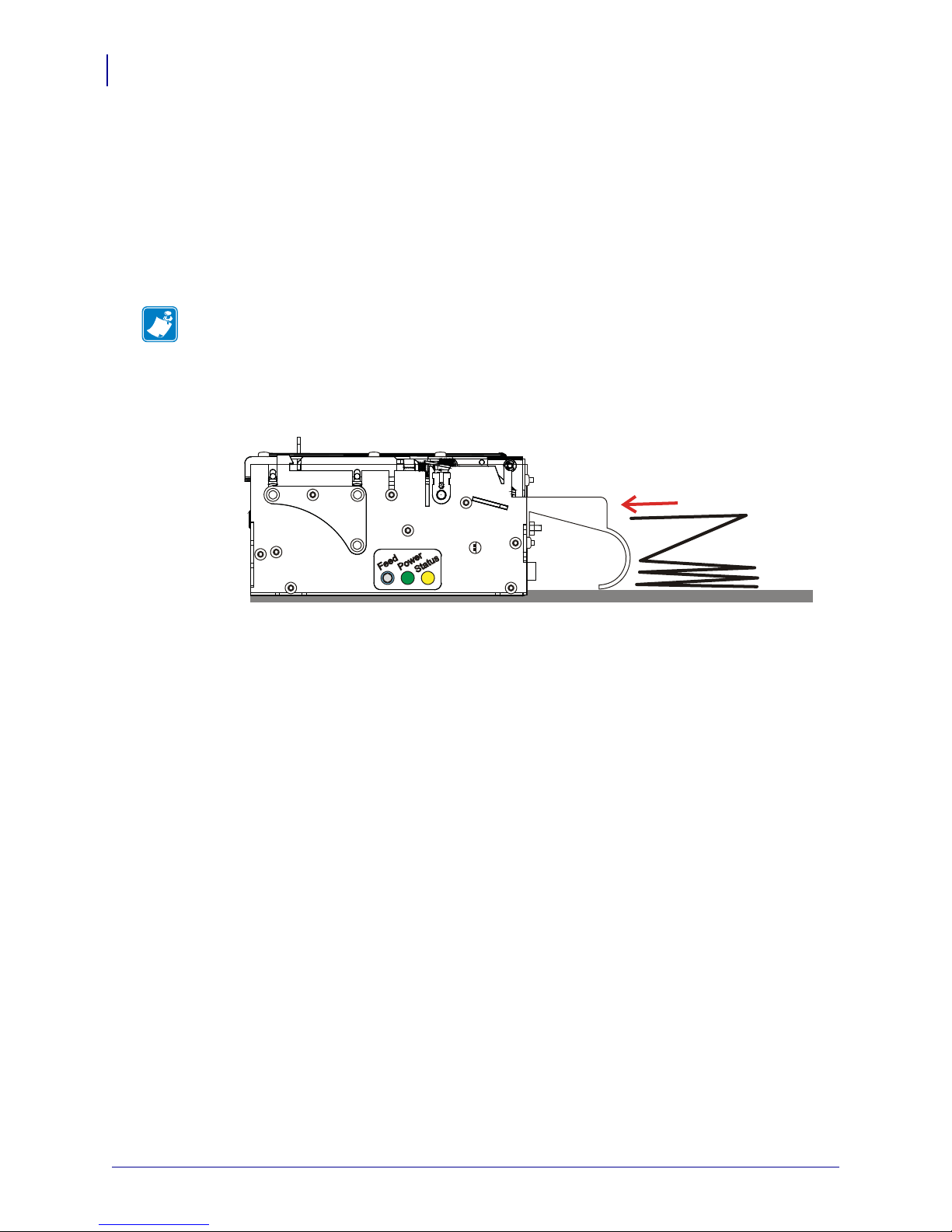

Figure 17 • Loading Ticket Stock

P1003640-001 TTP2100 Technical Manual 10/22/2008

Installing a Paper Roll

Temperature-sensitive coating

SW96074C

SW96075C

Glue or similar substance

1. Turn the new paper roll as shown. The paper should be inserted into the printer with the

temperature-sensitive side up so that the paper leaves the roll from the top.

Figure 18 • Installing a Paper Roll

Operation

Installing a Paper Roll

2. Tear off a full turn of the paper from the new paper roll.

Caution • This is important since the outer end of the paper is usually fixed to the roll with

some type of glue or self-adhesive substance that might otherwise cause paper jam or even print head damage.

Figure 19 • Remove Outer Layer of Paper Roll

3. Make sure the printer is turned ON.

4. Insert the ticket stock through the paper entry opening at the back of the printer.

Note • The ticket sensor is at the center of the print width. If the ticket edge is torn off in such

a way that the sensor does not see it, auto load will not be triggered. If so, reshape the edge so that the sensor sees the ticket stock.

10/22/2008 TTP2100 Technical Manual P1003640-001

Operation

OK OK

Wrong! Wrong! Wrong!

Installing a Paper Roll

5. Press the Feed button so that the printer feeds, cuts, and ejects a page. This ensures that the

first ticket printed will have a straight edge.

Figure 20 • Example of Bad Page Edges

P1003640-001 TTP2100 Technical Manual 10/22/2008

Clearing Paper Jams

Should a paper jam occur, follow the procedure below:

1. Open the printer lid. a. Press the green release lever toward the rear of the printer. b. Lift the lid.

Figure 21 • Opening the Lid

Operation

Clearing Paper Jams

2. Remove any paper trash and close the lid.

Figure 22 • Remove Paper Trash

10/22/2008 TTP2100 Technical Manual P1003640-001

Operation

Notes • ___________________________________________________________________

__________________________________________________________________________

Clearing Paper Jams

P1003640-001 TTP2100 Technical Manual 10/22/2008

There are two ways of setting up the printout: Text oriented and driver oriented style.

Text Oriented

Programming

The printout can be seen as the page of a simple word processor. You send text and graphics to the printer, which prints the information in the same sequence as the data is received. Design features are limited to the font stored in the flash PROM of the printer.

There are two text cursors, one for portrait, and one for landscape. The start positions of the cursors are the upper left corner for the portrait cursor, and the upper left corner for the

landscape cursor, see Figure 23, Printout Styles, on page 44. You can switch between these

cursors at any time; the cursor will retain its last position on the ticket.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Sw98073

Text can be printed in

any orientation, font, and size.

Graphics can be rotated, color images converted to gray scale, etc.

Lines can be added.

Text

text

text text text text text text text text

text

1 234

567890128

Bar codes can be added.

Text text

text te x t

Text text text text text text text text text text

Text receipt

Driver (Windows) receipt

Text text te x t text te x t te x t text te x t text te x t

text te x t text te x t te x t text te x t te x t text te x t

text te x t text

text te x t text te x t te x t text te x t te x t text te x t

Driver Oriented

All TTP 2100 printers can print documents through a driver. When a Windows driver is used, you can use any Windows program to design the ticket with text, graphics, bar codes or whatever you want to print and in any orientation you want.

The Windows driver issues all the necessary commands. By setting up printing preferences in the driver you select how the printer should cut and present the printout.

Figure 23 • Printout Styles

P1003640-001 TTP2100 Technical Manual 10/22/2008

How the Commands are Described

ESC ! n1

1B 21 n1 Hex 27 33 n1 Dec

Select font

Mnemonic

Hex representation of command

Decimal representation of command

Purpose of command

SW 03002

Mnemonic

Is the popular command name that should be easy to remember.

Hex

Programming

How the Commands are Described

Give the command in hex representation

Decimal

Give the command in decimal representation

Values

n1, n2, etc. represents values that you set with the commands. What you should enter here depends on what you want the command to do.

Examples

Command examples are formatted in Courier and typed in the same way as used in the Zebra TTP editor:

Where <ESC> means the escape character 27 decimal (hex 1B). Numbers between less-than and greater-than characters, for example <001><019>, means 1 and 19 decimal. When the numbers indicate a hex value, h is appended to the number (<01h><13h>).

Example • The examples below are four different ways of expressing the character A.

• <065>

• <65d>

• <41h>

•A

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Summary of Control Codes and Escape Sequences

Command Hex Decimal Function Page

CAN

EM n1

ENQ

ESC ACK n1

ESC |

ESC ! n1

ESC #

ESC & 000

ESC & 001

ESC & 004

ESC & C

ESC & D

ESC & F

ESC & L

ESC & P n1...n2

ESC & s n1

ESC ?

ESC @

ESC b n1...n5

ESC B n1

ESC B C

ESC B S n1...n11

ESC BW

ESC d n1

ESC ENQ 001

ESC ENQ 002

ESC ENQ 004

ESC ENQ 005

ESC ENQ 006

ESC ENQ 007

ESC ENQ 009

ESC ENQ 010

ESC ENQ 011

08 8 Backspace 52

18 24 Cancel 52

0D 13 Carriage return 52

19 n1 25 n1 Enforced Clear Presenter 64

05 5 Clear Presenter 64

1B 06 n1 27 6 n1 Acknowledge Marker 76

1B 7C n1…nx 27 124 n1…nx Barcode print 57

1B 21 n1 27 33 n1 Select Font 49

1B 23 27 35 Calibrate TOF Sensor 48

1B 26 00 27 38 0 Load Font 65

1B 26 01 27 38 1 Load Logotype 65

1B 26 04 27 38 4 Store current Parameter Values 65

1B 26 43 27 38 67 Erase all Fonts 66

1B 26 44 27 38 68 Erase Fonts 4 to 7 66

1B 26 46 27 38 70 Recall Parameter Profile 66

1B 26 4C 27 38 76 Erase all Logotypes 65

1B 26 50 n1...n2 27 38 80 n1...n2 Set Parameter Value 66

1B 26 73 27 38 115 Load SPI slave firmware 67

1B 3F 27 63 Reset (full) 64

1B 40 27 64 Reset (initialize) 64

1B 62 n1...n5 27 98 n1...n5 Print Bitmap at XY-position 58

1B 42 n1 27 66 n1 Bold 50

1B 42 43 n1 27 66 67 n1 Barcode Clear 56

1B 42 53 n1...n11 27 66 83 n1...n11 Barcode field Specify 55

1B 42 57 n1 27 66 87 n1 Barcode Write 56

1B 64 n1 27 100 n1 Make n Linefeeds 53

1B 05 01 27 5 1 Status Enquiry 68

1B 05 02 27 5 2 Paper-near-end Enquiry 69

1B 05 04 27 5 4 Fonts and Logotype Enquiry 70

1B 05 05 27 5 5 Sensor Enquiry 70

1B 05 06 27 5 6 Status Report 71

1B 05 07 27 5 7 Firmware-version Enquiry 72

1B 05 09 27 5 9 Serial-number Enquiry 73

1B 05 0A 27 5 10 Control board revision Enquiry 73

1B 05 0B 27 5 11 Head temperature Enquiry 73

P1003640-001 TTP2100 Technical Manual 10/22/2008

Programming

Summary of Control Codes and Escape Sequences

Command Hex Decimal Function Page

ESC ENQ 012

ESC ENQ c

ESC ENQ E

ESC ENQ P n1

ESC FF n1

ESC g n1...n5

ESC h n1

ESC i n1

ESC j n1

ESC J n1

ESC L n1

ESC N n1

ESC NUL

ESC o n1

ESC p

ESC P n1

ESC Q n1 n2

ESC r n1...n9

ESC RS

ESC s n

ESC t n1...n5

ESC T n1

ESC u n1

ESC w n1

ESC Z

1B 05 0C 27 5 12 Bootware version Enquiry 74

1B 05 63 27 5 99 Device ID Enquiry 74

1B 05 45 27 5 69 Read extended status 75

1B 05 50 n1 27 5 80 n1 Parameter-setting data Enquiry 76

1B 0C n1 27 12 n1 Eject (run presenter) 63

1B 67 n1...n5 27 103 n1...n5 Print Logotype 60

1B 68 n1 27 104 n1 Text Height 51

1B 69 n1 27 105 n1 Italics 50

1B 6A n1 27 106 n1 Paper Reverse 62

1B 4A n1 27 74 n1 Paper Advance 61

1B 4C n1 27 76 n1 Print Logotype at Current

Position

1B 4E n1 27 78 n1 Align Text 49

1B 00 27 0 Load Firmware 67

1B 6F n1 27 111 n1 Text and logotype orientation 49

1B 70 27 112 Print 61

1B 50 n1 27 80 n1 Print Self-test Printout 61

1B 51 n1...n2 27 81 n1...n2 Quick Advance 62

1B 72 n1...n9 27 114 n1...n9 Print Ruler Line 59

1B 1E 27 30 Cut only, no Eject 63

1B 73 n1 27 115 n1 Send dot-line, 203 dpi 58

1B 74 n1...n5 27 116 n1...n5 Print Text at XY 51

1B 54 n1 27 84 n1 Reversed/Inversed Text 50

1B 75 n1 27 117 n1 Underline 50

1B 77 n1 27 119 n1 Text Width 51

1B 5A 27 90 Go to next Top of Form 48

0C 12 Form Feed 53

09 9 Horizontal Tabulation 53

0A 10 Linefeed 52

1E 30 Cut and Eject 62

1F 031 Partial cut 63

Note • In all responses from the printer the most significant byte (MSB) is transmitted first.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

The commands in this section are grouped after what they do, and these groups are sorted in a theoretical usage sequence. It starts with commands for specifying the printed page — through text-and-graphics commands — to cut-and-present commands. System and status commands are presented at the end.

Black-mark (Top-of-Form) Commands

See also Aligning Preprint and Thermal Print on page 101.

ESC #

1B 23 Hex 27 35 decimal

In Variable and fixed page modes the calibration measures the out of paper level and the

whiteness of the paper, and stores these values in parameter n51 and n58.

In black mark mode it also determines if it should trigger on black-marks or holes, then

measures the contrast and distances, then sets parameters n37 -n40, n51, n57 bit 3, n58, n61, and n62 to suitable values for the analyzed ticket.

Calibrate TOF Sensor

To make the calibration permanent, send ESC & 4h, store parameter values. See also Simple Calibration Process on page 102

Note • If black-mark calibrations fails, the printer will indicate error code 11 by blinking 11

times when you hold the FF button pressed, and by answering NAK 0Bh to the status enquiry.

Note • The printer must not be in self-test mode when calibrating.

ESC Z

1B 5A Hex 27 90 Decimal

In black mark mode, an ESC Z starts looking for a black mark at the current position and continues for one page length. If no black mark is found, bit 3 in status byte 1 is set to 1 and the printer will report NAK 0A on the next status query.

When black-mark mode is disabled, ESC Z will perform a form feed.

Text Commands

Go to next Top of Form

Text received by the printer is printed with the currently selected font and font attributes. Text exceeding the page width is wrapped with the line spacing selected.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Programming

Software command syntax

ESC o n1

1B 6F n1 hex

27111 n1 decimal

ESC N n1

1B 4E n1 hex

27 78 n1 decimal

Text and Logotype Orientation

Changes the orientation of text and logotypes.

n = 0 Gives portrait orientation

n = 1 Gives landscape orientation

Portrait and landscape can be mixed on the same printout. There are two cursors, one for portrait and one for landscape. The cursor always starts at the top left corner of the document. Looking at the paper when it exits the printer, the portrait cursor is at the top left corner of the printout, moving to the right as text is typed, while the landscape cursor is at the top right corner, moving downwards.

Note • Landscape orientation can only be used with Fixed Document Mode.

Align Text

Changes the alignment of text and logotypes on the current line; on subsequent lines, it defaults back to Left align.

ESC ! n1

1B 21 n1 hex 27 33 n1 decimal

ESC N 0 Left ESC N 1 Center ESC N 2 Right

Select Font

This command selects one of eight fonts. The font design depends on which fonts have been loaded into the printer. Make a test printout to see which fonts are available in your printer.

ESC ! 0 selects normal font (font 0) ESC ! 4 selects font 4 ESC ! 1 selects font 1 ESC ! 5 selects font 5 ESC ! 2 selects font 2 ESC ! 6 selects font 6 ESC ! 3 selects font 3 ESC ! 7 selects font 7

Lines, too long to be printed in the selected font, are automatically wrapped around.

Different fonts can be used on the same line.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

ESC B n1

1B 42 n1 Hex 27 66 n1 decimal

Selecting an empty font location, will set bit 4 of byte 1 in the status enquiry response to ”1".

See Parameter-Setting Data Enquiry on page 76

Note • If more than 379 characters are sent to the printer before an LF, the first part of the

buffer contents is printed-out automatically. The text is formatted according to the already received formatting commands.

Bold Normal Bold

n = 0 Turns OFF bold (Normal)

n = 1 Turns ON bold

Bold is designed for normal character width and shows less and less as the width increases.

ESC i n1

1B 69 n1 Hex

27 105 n1 decimal

ESC T n1

1B 54 n1 Hex 27 84 n1 decimal

Italics Normal Italics

n = 0 Turns OFF Italics (Normal)

n = 1 Turns ON Italics

Reversed/Inversed Text

Selects normal or reversed print.

Single words, characters, or complete text lines can be reversed.

n = 0 Gives normal print, black on white

n = 1 Gives reversed print, white on black

Note • Reverse text and underline XOR's the background with the foreground. This means

that the order in which the commands are issued affect the printout if one text overlaps another.

ESC u n1

1B 75 n1 hex

27 117 n1 decimal

Characters, single words, or complete text lines can be underlined.

n = 0 Turns OFF underline

n = 1 Turns ON a 1 pixel wide underline

n = 2 Turns ON a 2 pixel wide underline, etc. up to n=7.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Underline

Programming

Software command syntax

ESC h n1

1B 68 n1 hex

27 104 n1 decimal

ESC w n1

1B 77 n1 hex

27 119 n1 decimal

Text Height

Applicable n values are 000 — 015.

n = 1 Increases the character height to 2 times the basic character height.

n = 2 Increases the character height to 3 times the basic character height etc.

n = 0 Resets the character height to the basic character height.

In combination with variable character width (ESC w n), give highly legible characters depending on the font to which the command has been applied.

Different fonts and heights can be mixed on the same print line.

Note • DO NOT use multiple height/width attributes when printing bar codes .

Text Width

Applicable n values are 000 — 007.

n = 1 Increases the character width to 2 times the basic character width.

n = 2 Increases the character width to 3 times the basic character width etc.

n = 0 Resets the character width to the basic character width.

In combination with variable character height (ESC h n), give highly legible characters depending on the font to which the command has been applied.

Different fonts and widths can be mixed on the same print line.

Important • DO NOT use multiple height/width attributes when printing bar codes .

ESC t n1...n5

1B 74 n1...n5 data hex

27 116 n1...n5 data decimal

data 

Prints a text string at the specified X-Y position. The string will use the formatting set by font, reversed, width, height, bold, italics, and underline commands.

n1n2 Two byte definition of the X print position (in pixels).

n3n4 Two byte definition of the Y print position (in pixels).

n5 The number of characters in the string. To avoid having to count characters

Print Text at XY

you can set n5 to 00h (null) and then terminate the text string with null.

data The text string. If text string length is specified with n5, the length must be

10/22/2008 TTP2100 Technical Manual P1003640-001

exactly the number of characters specified; otherwise the printer will stop, waiting for more characters.

Programming

Software command syntax

After the string has been printed, the cursor will return to the position it had before the string command was issued.

Note • ESC t only works with fixed document mode (p36=0).

Note • ESC t clears any text preceding it on the same line. Commands will not be cleared.

08 Hex

8 Decimal

CAN

18 hex 24 decimal

0D  hex

13 decimal



Backspace

Moves the print-position one step to the left. Backspace can be used to combine characters. For instance to print a Ø, send text commands O BS / to the printer, and the slash will overprint the O.

Only one backspace can be used at a time. Excessive backspaces will be ignored.



Cancel

Cancels text and attributes sent before the CAN command on the same line. Commands are not cancelled.

Carriage Return

By default, carriage return is ignored. By changing the default settings, you can:

• Interpret it as CR which returns print position to beginning of line without line feed.

• Interpret CR as CR/LF which inserts line space as specified by the line spacing setting

(see parameter p13), and returns the print position to beginning of the line.

See CR on page 52.

0A hex

10 decimal



Linefeed is interpreted as CR/LF by default. This inserts line spaces as specified by the line spacing setting (see parameter p13), and returns the print position to beginning of the line. LF also converts text from the input buffer to pixel lines and stores them in the line buffer, ready to be printed.

By changing the default settings, you can:

• Interpret LF as Linefeed. This inserts line space as specified by the line spacing setting

(see parameter p13), without returning the print position to the beginning of the line.

• Ignore LF.

See CR on page 52.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Linefeed

ESC d n1

1B 64 n1 hex

27 100 n1 decimal

0C hex 12 decimal

Programming

Software command syntax

Make n Linefeeds

Executes the number of linefeeds as defined by variable n1. The length of each line feed is

determined by the default value for selected font (see parameter 13 on page 89).

The print position is returned to the beginning of the line. Any text on the line is lost. To avoid losing text, send an LF before sending ESC d n.



Form Feed

Prints data from the input buffer and feeds the paper to the top of the next page.

In fixed document length (FORM-mode) this command prints data in the input buffer and feeds the paper to the top of next page.

In variable document length mode FF advances to the minimum page length. If the printout already is longer than the minimum page length, FF does not feed the paper at all.

In black-mark mode, the FF command looks for a black-mark, see ESC Z. If "Auto cut" is set to 1 (see Auto Cut After FF on page 90), FF effects form-feed, cut, and

eject.

Note • Use parameter p37 and p38 to define page length.

09 hex

9 decimal



Shifts the current print position to the next Tab position.

Set tab positions with parameters p15 – p30.

Barcode Commands

TTP 2100 can print EAN 8, EAN 13, EAN128, UPC, 2-of-5 Interleaved, ISBN, Code39 and Code128 barcodes with it’s standard firmware. A special firmware is available where the

barcodes are replaced with the PDF 417 2D barcode. See Firmware on page 116, and Barcode print (PDF 417) on page 57.

Horizontal Tabulation

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

Figure 24 • Samples of Barcodes

Example • This example will print an EAN barcode with height = 10 mm, 15 mm in from

the right margin.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Code 128 / EAN128

The following codes select function codes in Code 128:

Name Dec Hex

FNC1 193 C1h

FNC2 194 C2h

FNC3 195 C3h

FNC4 196 C4h

Starting the data string starts with FNC1 generates an EAN128 code.

Should you want to print barcodes without human readable characters you must load font 1x1.swf and select that font before you specify the barcode, then go back to your normal font after the barcode.

ESC B S n1...n11

1B 42 53 n1...n11 hex 27 66 83 n1...n11 decimal

Barcode field Specify

Programming

Software command syntax

Bar codes can only be printed in portrait mode unless Fixed Document Mode is selected with parameter n36.

The command reserves an information field as a bar code field. The command also identifies the type, number of digits, and the configuration of bars to be placed in the bar code field.

n1 Specifies the bar code field No. (0—15). Bar code fields may be specified

in any order.

n2n3 <x_msb> <x_lsb> Sets the X-coordinate of the bar code field origin.

n4n5 <y_msb> <y_lsb> Sets the Y-coordinate of the bar code field origin. The Y-

coordinate values are only used in fixed document mode but must always be specified.

n6 Specifies the number of bar code digits, but is ignored by the printer.

n7n8 Specifies the height of the bars.

n9 Specifies the type of bar code. The following types are supported.

n9 = 0 EAN 8 or 13 (auto detect). The printer calculates the necessary check digit.

n9 = 1 UPC

b9 = 2 2/5 Interleaved (even number of characters must be sent)

n9 = 3 ISBN

n9 = 4 Code128 (Start data string with C2h to encode EAN128)

n9 = 6 Code39

n10 Specifies the thickness of the narrow bar 0=1 pixel, 1=2 pixel, and so on.

n11 Specifies the wide-bar-to-narrow-bar ratio. Only used in Code 39 and 2-of-

10/22/2008 TTP2100 Technical Manual P1003640-001

5 interleaved where different ratios are allowed

Programming

Software command syntax

ESC BW n1 nx

1B 42 57 n1 nx Hex

027 066 087 n1 nx Decimal



Barcode Write

Writes data to the bar code field reserved by the ESC BS command.

n1 Specifies the field No. Range 0 to 15. Fields can be specified in any order

but other values than 0 to 15 are ignored.

n2 . . . nx Specifies bar code data bytes.To create a bar code add-on, insert a space

character and then the data for the add-on. Two of five characters are allowed of the add-on.

NUL Must be placed at the end of the bar code data.

Any invalid bar code character terminates the command, and print <Invalid barcode> on the printout.

Example • This example will print one barcode with a height = 10 mm and moved 10 mm to

the right.

ESC>BS<h00><h00><h32><h00><h00><h0C><h00><h50><h00><h02><h00>«»

ESC B C

1B 42 43 n1 hex 27 66 67 n1 decimal

<ESC>BW<h00>733104000099<h00>«»

<RS>«»



Barcode Clear

Clears the bar code field reserved by command ESC BS.

n Specifies which bar code field to clear. The range is 0 to 15. The fields may

be cleared in any order.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Programming

Software command syntax

ESC | n1 nx

1B 7C n1 nx Hex

027 124 n1 nx Decimal

This command positions and prints a PDF 417 2D barcode.

n1 Specifies the type of bar code. The following types are supported: n1 = 5

n2n3 <x_msb> <x_lsb> Sets the X-coordinate of the bar code field origin.

n4n5 <y_msb> <y_lsb> Sets the Y-coordinate of the bar code field origin. The Y-

n6 Rows

n7 Columns

n8 Error level, 0=auto, 1=Level0, 2=Level1, etc.

n9 Dot Height, sets how many pixel lines each row consists of.

n10 Scale

n11n12 Len. If set to 00h, <nul> indicates the end of the data block <data>. If <len

<data> data to be encoded

Barcode print (PDF 417)

PDF417

coordinate is discarded in variable document mode.

is set to other values the value indicates the no of bytes in <data>

Note • If <rows> and <cols> are 0 the printer will automatically create a barcode where the

width is about twice the height.

Example • This example will print Zebra as a PDF 417 barcode.

Send the following to the printer:

<ESC><124><005><000><000><000><000><000><000><000><003><003><000><000> Zebra<000>

The barcode will look like this:

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

Graphics commands

ESC b n1...n5 data

1B 62 n1...n5 Data hex 27 98 n1...n5 Data decimal

Prints a black & white (1-bit color depth) Windows bitmap (BMP-file) at the specified X-Y position. The bit-map must be a complete uncompressed Windows bitmap where the data starts with BM. Max size is limited to the free RAM printed on the self-test printout.

n1 Always 0

n2n3 Two byte definition of the X print position (in pixels).

n4n5 Two byte definition of the Y print position (in pixels).

data Bitmap data.

After the bitmap has been printed, the cursor will return to the X-position that it had before the bitmap command was issued.

Selecting horizontal mode (with ESC o 0h) prints the image in portrait orientation, while selecting the vertical mode (with ESC o 1h) prints the image in landscape orientation.

Note • The Y print-position and horizontal/vertical orientation only works if Fixed

Document Mode is set with parameter n36.

ESC s n data

1B 73 nDataHex

27 115 n Data Decimal



Print Bitmap at XY-position

Send Dot-line, 203 dpi

Sends one line of dot data. This command is used to build images one dot line at a time by the printer driver and should not be combined with text commands.

n Determines the number

of bytes.

Range: 1-255.

The printhead width is 80 mm and with 8 dots per mm this corresponds to 80 bytes. The print width can be limited by setting parameter n48. If n is set to less than the value of n48 the printer will fill the rest of the line with white pixels.

<data> n bytes of data. Bits with the value 1 will produce black pixels.

Caution • Always send the No. of bytes that you specify in n! If more than the specified No.

of bytes are received, the rest of the bytes will be interpreted as text or commands. This can cause any kind of problems in the printer as graphics data can contain any hex value.

P1003640-001 TTP2100 Technical Manual 10/22/2008

ESC r n1...n9

1B 72 n1...n9 hex 27 114 n1...n9 decimal

Programming

Software command syntax

Print Ruler Line

Prints a ruler line across the paper.

A ruler line is normally used to divide the printout into logical parts to make it easier to read. A ruler line is actually an area defined by a start X-Y position and a stop X-Y position. This area is filled with black or a checkered pattern.

n1n2 Two byte definition of the X start position

n3n4 Two byte definition of the Y start position

n5n6 Two byte definition of the X stop position (must be larger than x1x2)

n7n9 Two byte definition of the Y stop position (must be larger than y1y2)

n9 Fill pattern:

0=black  1=fine  2=medium  3=coarse

          

         

          

           

            

           

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

X start Y start

X stop Y stop

Fill:

0=black

1=ﬁne

2=medium

3=coarse

SW99006

Software command syntax

Figure 25 • Printout with checkered ruler line

ESC g n1...n5

1B 67 n1...n5 hex

27 103 n1...n5 decimal

Print Logotype

Prints a customized logotype stored in the flash PROM. See also Logotypes on page 79.

n1 One-byte logotype identification No. (0—15) n2n3 Two-byte definition of desired print position in X-direction measured from

left-hand edge of the page (see Figure 28, Def ini tio n of Page Size,

on page 91 regarding definition of “page”). X-direction is perpendicular to

the paper transport direction.

ESC L n1

1B 4C n1 Hex

27 76 n1 Decimal

Print Logotype at Current Position

Prints a customized logotype stored in the flash PROM at the position of the cursor. The bottom line of the logotype is positioned at the baseline of the text on the line. If the logotype is higher than the text, the line spacing is increased.

See also Status Reporting on page 81.

Note • All status commands except for the acknowledge marker are immediate. That is they

pass the print queue and are answered directly.

Status-codes are reset:

1. When the conditions causing them are removed.

2. When the printer is turned off/on or a reset command is received.

3. When the printhead is lifted and then lowered.

ESC ENQ 001

1B 05 01 Hex

27 5 1 decimal



Status Enquiry

A status enquiry results in response ACK (06h) if all sensors are clear, but NAK (15h) + code if one or more sensors report some condition.

Status Code Meaning

ACK OK (printer is operable)

NAK 01h Paper left in presenter module. Attempt to clear the paper path failed.

NAK 02h Cutter jammed

NAK 03h Out of paper

NAK 04h Printhead lifted

NAK 05h Paper-feed error. No paper detected in presenter although 10 cm has

been printed. Paper might be wound around the platen or, in some way, has been forced above the presenter module.

NAK 06h Temperature error. The printhead temperature has exceeded the 60 °C

maximum limit.

NAK 07h Presenter not running

NAK 08h Not used

NAK 0Ah Black-mark not found

NAK 0Bh Black-mark calibration error

NAK 0Ch Index error

NAK 0Dh Checksum error

NAK 0Eh Wrong firmware type or target for firmware loading

NAK 0Fh Firmware cannot start because no firmware is loaded or firmware

NAK 10h Presenter timed out. If the customer doesn’t take the paper and the

P1003640-001 TTP2100 Technical Manual 10/22/2008

checksum is wrong.

printer clears the presenter due to a timeout, the pending error bit is set and error code NAK 10h is reported.

Programming

Software command syntax

Status Code Meaning

NAK 11h Paused (ex. To avoid overheating of stepper motors)

NAK FFh Undefined error

Note • Errors 02h, 05h, and FFh are terminal faults that require you to reset the printer before

it will be operable again. A reset means that any data in the buffer is lost. The printer automatically recovers from the other conditions as soon as the condition is corrected, without data loss.

A status enquiry command can only return one status code at a time. If there are two or more simultaneous conditions, each condition should be cleared and the status enquiry repeated in order to get a complete report of all status codes.

ESC ENQ 002

1B 05 02 hex

27 5 2 decimal

The host computer cannot be certain that all conditions have been cleared until an

ACK is

received.

The possible conditions are reported in the above order.

Note • If you want to read out all status information directly, use ESC ENQ E.



Paper-near-End Enquiry

This command requests a paper-near-end sensor (paper low) status from the printer in a 1-byte format.

Value = (01h) indicates “No paper”

Value = (00h) indicates “Paper present” at the sensor position

Note • The status of the sensor is sampled every time the printout is cut. If three succeeding

samples show "no paper", the status reply changes to 00. This is to prevent false alarm if the side of the paper roll is not clean. If you want the momentary status of the sensor, use ESC ENQ 6 and extract the paper-near-end bit.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

ESC ENQ 004

1B 05 04 hex

27 5 4 decimal



Fonts and Logotype Enquiry

Requests multiple bytes of information regarding loaded fonts and logotypes.

Example • (↵ = CR LF)

Send→ ESC ENQ 04d

Read← 0:7862 ATM9

↵

1: ↵ 2: ↵ 3: ↵ 4: ↵ 5: ↵ 6: ↵ 7: ↵ Free font memory:123082↵ 00:38 117 Zebra Logo ↵ 01: ↵ 02: ↵ 03: ↵ 04: ↵ 05: ↵ 06: ↵ 07: ↵ 08: ↵

ESC ENQ 005

1B 05 05 hex

27 5 5 decimal

09:

↵

10: ↵ 11: ↵ 12: ↵ 13: ↵ 14: ↵ 15: ↵ 16: ↵ Free logo memory:126352↵



Sensor Enquiry

Results in a 2-byte response, reflecting the status of all virtual sensors. Virtual sensors maintain their functionality in all configurations of this printer, while physical sensors reported by ESC ENQ 6 signals differently in printers where you can select for example horizontal or vertical mode.

The same physical sensor give several virtual statuses depending on when, in the print cycle, the sensor is activated.

First Byte:

Reserved for future use.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Programming

Cutter

Paper entry

Printout exit

Software command syntax

Second Byte:

7654321 0 Bit

   

     

Sensor 7, in retract

Sensor 6, retract ready

Sensor 5, presenter

Sensor 4, loop ready

Sensor 3, Paper after head

Sensor 2, Black-mark

Sensor 1, Paper before head

Sensor 8, at bin



Figure 26 • Physical-to-virtual sensor mapping

ESC ENQ 006

1B 05 06 hex

27 5 6 decimal



Status Report

Note • The sensor status reported it the status report are for compatibility with older printers.

Please use ESC ENQ 5 in new applications.

Results in a 2-byte response, reflecting the status of each sensor. This command is intended as a go/no go indication.

First Byte:

7654321 0Bit

   

    

10/22/2008 TTP2100 Technical Manual P1003640-001



Status code available*

Print data exists**

Power has been OFF***

 -

Error black-mark

Do not use!

 -

Do not use!

Programming

Software command syntax

Second Byte:

7654321 0Bit

   

     

 -

Printhead lifted

Cutter stuck

Paper at presenter

 -

Paper-near-end****

Out of paper

Note • Mask away the undefined bits in your application program to avoid having to change

the application, if future firmware releases starts using them.

Mask first reply byte with E8h.

Mask second reply byte with BBh.

* This bit indicates that a status code is available. Use ESC ENQ 1 or ESC

ENQ E to fetch it.

ESC ENQ 007

1B 05 07 Hex

27 5 7 decimal

** This bit tells you that there are data in the printer that have not yet been

printed. There are two possible reasons for that:

1. The last command received by the printer was not a command that

triggers a printout.

2. The printer is printing.

*** When parallel cable is connected, both printer and host computer must have

been off to set this bit. This is because the interface powers the RAM in the printer.

**** This paper-near-end bit differs from the ESC ENQ 2 response, see ESC

ENQ 002 on page 69.

Bit 4 and 5 in the first byte are reset when read.



Firmware-Version Enquiry

Results in a 2-byte response representing the version of the installed firmware.

The first byte represents major versions, and the second byte minor versions.

If no firmware is loaded, the printer will answer with 00h.

Example •

Send→ ESC ENQ 07d

Read← <02h><29h>

That is, a response with the value <02h><29h> indicates version 2.41.

P1003640-001 TTP2100 Technical Manual 10/22/2008

ESC ENQ 009

1B 05 09 hex

27 5 9 decimal

Programming

Software command syntax



Serial-Number Enquiry

Results in an 6-byte response representing the serial number.

Example •

Send→ ESC ENQ 09d

Read← 00h 00h 02h 2Bh C6h 28h (hex), or 000 000 002 043 198 040 (dec)

ESC ENQ 010

1B 05 0A hex

27 5 10 decimal

ESC ENQ 011

1B 05 0B hex

27 5 11 decimal



Control Board Revision Enquiry

Results in a 1-byte response representing the control board revision. A minus sign indicates that no revision has been made, while A indicates the first revision, and so on.

Example •

Send→ ESC ENQ 10d

Read← n



Where n can be ‘A’ (ASCII) or41h (hex) or 065 (dec)

Head Temperature Enquiry

Results in a 1-byte response representing the temperature of the Printhead.

Example •

Send→ ESC ENQ 11d

Read← n

Where n is a value representing the approximate temperature in Celsius.

The answer is an signed byte (two's complement). If bit7 is 1 than it’s a negative value, invert all bits and add 1 the get the value.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

ESC ENQ 012

1B 05 0C hex

27 5 12 decimal

ESC ENQ c

1B 05 63 hex

27 5 99 decimal



Bootware Version Enquiry

Results in a 2-byte response representing the version of the installed bootware.

The first byte represents major versions, and the second byte minor versions.

Example •

Send→ ESC ENQ 12d

Read← <001><030>

That is, a response with the value <01h><30h> indicates version 1.48.

Note • TTP 2100 does not store the bootware in the printer so this query will always return

<000><000>.



Device ID Enquiry

Results in a string containing the device ID in the Windows Plug and Play string format. The two first bytes represent the string length.

Example •

Send→ ESC ENQ 99d

Read← 00d 106d

This indicates that the string is 104 characters (plus two characters

indicating the string length).

P1003640-001 TTP2100 Technical Manual 10/22/2008

Programming

Software command syntax

ESC ENQ E

1B 05 45 hex

27 5 69 decimal

Short message status examples



Read Extended Status

Extended status is status from the printer together with devices connected to the I2C options-

bus available in some Zebra printers (the TTP 2100 series does not have any I

C bus so these parts of the command are superfluous). The short message protocol gives replies up to 255 bytes. Other protocols may be defined in the future. Protocols are described in separate documents.

ESC ENQ E results in a variable length reply:

n1 Protocol version, 11h = Short Message Protocol

n2 Protocol length in bytes

n3-n255 Data specified by the protocol

Example 1 • Out of paper presenter Jam, and shutter open error.

11 07 01 05 20 83 87 21 81 Hex

   Status code 1 (shutter device) Device Shutter Status code 7 (printer device) Status code 3 (printer device) Device local host (printer) Tag message length (bytes) Tag ID: Status messages Protocol Length in bytes

Protocol SM, version 1 (short message)

Example 2 • No errors in any device.

11 02 01 00 Hex 

 Tag message length (bytes) Tag ID: Status messages Protocol Length in bytes

Protocol SM, version 1 (short message)

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Software command syntax

ESC ENQ P n1

1B 05 50 n1 Hex

27 5 80 n1 Decimal

ESC ACK n1

1B 06 n1 hex

27 6 n1 decimal

Parameter-Setting Data Enquiry

This command requests information about the setting of parameter n1, that is, the parameter value stored in EEPROM or any parameter value temporarily set by other ESC commands.

n1= 1 gives the setting of parameter 1, etc. The parameter names are listed under

Summary of Parameter Settings on page 85.

n1 = 0 gives a response where the first two bytes specifies the length of data to

come, and then follows a block of data for all parameters in the temporary setup.



Acknowledge Marker

n1 = One-byte marker. Range 1h to 255h

The "acknowledge marker" n is placed in the command queue and when the execution of commands reaches the marker it is sent back to the host computer. This is an addition to the status commands that pass the queue and are answered immediately when received.

Example •

"Print data" <LF><esc>p<ESC><ACK><01h>

Wait for <01h>

Wait for <02h>

The printer will send <01h> when <print data> has executed and

<02h> when the ejecting

has been performed.

Note • You must wait for the acknowledge marker to return before sending any more data to

the printer.

Note • Acknowledge marker cannot be used for events that write to the flash PROM, for

instance font loading. This is because the writing procedure erases the buffer, including the markers, and uses all RAM in the printer.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Font Loading

The printer can store 8 fonts in its flash PROM. The memory available for fonts is printed on the self-test printout. The character size is fixed, so you must load one font file for each character size you require. The fonts are given font numbers when they are loaded into the printer. The first font is assigned number 0 and the next font 1 etc. up to font 7. Parameter p14 “Font Selection” will determine what font to use when no font selection command has been

received (see Font Selection on page 89).

Programming

Font Loading

You cannot erase a single font, but must erase font 4-7 with command ESC & D fonts with ESC & C, then reload the fonts you wanted to keep.

Windows software for font generation and management is available on the Zebra web site. If you need to load fonts in a non-Windows environment, use the ESC & NUL command.

The time required for processing the font data that is loaded is typically 15–20 seconds per font, excluding transfer time. During this time, any data sent to the printer will be lost.

Note • The font processing ends with a reset. The presenter motor runs momentarily to

indicate that the printer is ready to be used.

Caution • Loading to the flash PROM will erase the RAM completely since the RAM is

used during the loading process. Any print data residing in RAM will thus be lost.

File Format

A font consists of a header describing the font, then data for every character in the font. The header has to be downloaded even if the font consists of a single character only. Below is a description of the font header.

1 byte Reserved Should always be 0 (zero)

, or all eight

1 byte Reserved Should always be 0 (zero)

1 byte Char. width (X) The number of bytes required for the width of one character,

1 byte Character pitch The maximum width of one character in the set. This value is

1 byte Char. height (Y) The maximum height of one character matrix measured in

27 byte Font name String of characters used to identify the character set. This will

Char_matrix table: 256 records, each containing 3 bytes.

3 byte Char_width (pixels) + Char_Ystart(pixels) + Char_Yheight(pixels)

Char_bitmap data: Bitmap data for all characters that are to be defined.

10/22/2008 TTP2100 Technical Manual P1003640-001

usually 2 or 3. Range 1 to 8.

used for tab position calculation. Range 1 to 255.

pixels. This is also the minimum line spacing for this character set.

be printed on status printouts. (E.g. Swiss 10 cpi.)

Programming

Font Loading

Character Bitmap Data

A character is made up of a bitmap the size of which is:

Char. width (X) * Char. Height (Y) bytes.

The bitmap data consists of bitmap patterns for each character in a character set for which the parameter Char_width in the Char_matrix table is set to a value between 1 and 24. A character that has its Char_width set to zero, is not included in the bitmap data.

The bitmap for one character is then defined according to the following table:

Example • In this example, each row consists of 3 columns equal to 3 bytes.

(COL 0, ROW Ystart) , (COL 1, ROW Ystart) , (COL 2, ROW Ystart)

(COL 0, ROW Ystart+1) , (COL 1, ROW Ystart+1) , (COL 2, Ystart+1)

(COL 0, ROW Ystart+Yheight), (COL 1, ROW Ystart+Yheight ), (COL 2, ROW Ystart+Yheight)

In order to minimize the required storage space, only rows between Ystart and Ystart+Yheight are included in the character bitmap.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Logotypes

Up to 16 logotypes can be stored in the flash PROM of the printer. The logotypes can be positioned and printed out with commands ESC g

The exact number of logotypes and their sizes is determined by the total amount of memory used for fonts, logotypes and loaded firmware. Make a test printout to see how much memory is available.

Note • Logotype No. 0 is printed in the top of the self test printout, so this can be used to

customize the self test printout.

Windows software that converts black and white BMP bitmap files to logotypes and load them into the printer is available on the Zebra web site. If you need to load logotypes in a nonWindows environment, use the ESC & 1 command.

The time required by the printer to process logotype data, excluding transfer time from the PC, is typically 15 to 20 seconds, per logotype. During this time, any data sent to the printer will be lost.

or ESC L.

Programming

Logotypes

File Format

A header containing information about the logotype number, size and logotype name shall define each loaded logotype. Immediately after the header follows the actual bitmap of the logotype.

ESC & 01H <Header><Bitmap>

Header

Byte 0 Logotype number used to identify the logotype when printing.

Byte 1 X size measured in bytes.

Byte 2 Y size measured in pixels.

Byte 3—15 A logotype name that will be printed on test printouts.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Logotypes

Bitmap

The bitmap must have exactly (X size * Y size) number of bytes. 1=black, 0=white dot.

Bit No. 7 in byte 0 represents the top left corner of the logotype.

Printing

To print a logotype you can use two commands, ESC L n1, prints the logotype at the current cursor position, just like any character. ESC g n1 n2n3 n4n5 prints the logotype at a specified X-Y position.

Erasing

n1 One byte logotype number, (0—15)

n2n3 Two byte X position measured in pixels from the left hand edge of the print

window.

n4n5 Two byte Y position in pixels from top of the page. These bytes must

always be inserted but they are ignored in variable-page-length mode where logotypes are always printed at the current Y-position.

All logotypes are erased with the ESC & L command.

Caution • Loading to the flash PROM will erase the RAM completely since the RAM is

used during the loading process. Any print data residing in RAM will thus be lost.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Status Reporting

Paper entry

Cutter

Ticket

taken/fallen)

sensor

(

Ticket load sensor

TOF sensor

Light source

Printhead closed sensor

Cutter hom e sensor

The printer is equipped with a number of sensors that report the printer status and various conditions such as out-of-paper, previous printout not removed, etc.

Figure 27 • Sensor placement in the printer

Programming

Status Reporting

A good practice in unattended printer applications is to check for errors and paper availability before printing.

1. Send a Status Report Query (ESC ENQ 6) and check that the answer is "No errors"

2. If “Status codes available” is indicated, read out the status message with Status Request

(ESC ENQ 1), and take appropriate actions.

3. Send a paper-near-end query (ESC ENQ 2) to see if the sensor reports low paper level.

4. If paper-near-end is indicated, report the condition to the systems supervisor so that he can

schedule a service visit to the printer.

5. Print the printout.

Note • A status reply must be read! Sending a second status query without reading the reply

of the first query may lock the printer.

Note • When using a multitask OS, status queries and responses may not be transferred

immediately from your application to the printer and vice versa. So write your program in such a way that it repeats the query if it gets a timeout or an invalid reply. Good practice is to ask once every ten seconds, five times before giving up.

Note • You should construct your application in such a way so as not to request status while

printing, as this can result in loss of data.

10/22/2008 TTP2100 Technical Manual P1003640-001

Programming

Notes • ___________________________________________________________________

__________________________________________________________________________

Status Reporting

P1003640-001 TTP2100 Technical Manual 10/22/2008

Default Parameter Settings

Some of the printer settings can be stored in an EEPROM so that they will be used also after power OFF.

The stored parameter settings are printed out on the self-test printout.

The number in front of the function is the parameter number (n) used when setting the parameter with the command ESC & Pnv.

You can use the parameter settings pretty much like normal commands. Either send the parameter values with each printout, or set them up once and then send ESC & 4h to store all settings in the EEPROM.

You can always return to factory default settings by sending ESC&F, and then storing those settings with ESC&4h

Note • The parameters can be locked so that no changes are possible. Check parameter 53 on

the self-test printout to find out.

Note • If you try to set a parameter to an invalid value, the parameter will be set to the nearest

valid value below.

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

40 Default

0 Min

255 Max

Wall compenration (mm)

DRV

Parameter num ber

Default value

Range

Description as printed on self test printout

DRV indicates that the

Windows driver overrides setting

SW 02001

How the Parameters are Described

Default Value

The default values indicated are "factory default settings" you get by sending ESC & F . These are not necessarily the settings that your printer was originally delivered with because many printers have customized settings when delivered.

Examples

Command examples are formatted in Courier and typed in the same way as used in the Zebra TTP editor:

Where <ESC> means the escape character 27 decimal (hex 1B). Numbers between less-than and greater-than characters, for example <001><015>, means 1 and 15 decimal (hex 1 and

13).

P1003640-001 TTP2100 Technical Manual 10/22/2008

Default Parameter Settings

Summary of Parameter Settings

Parameter Description ESC&F Default Page

TTP model

2110 2130

15 to 30

37 & 38

Baud rate 96 (9600 Baud)

Data bits 8

Parity 0 (No parity)

Flow control 2 (Hardware)

Burn time 9

Print speed 17 (123 mm/s)

Pulse control 3 (2 burn pulses)

Font attributes 0 (off)

Line spacing 0 (Auto)

Font selection 0 (ATM9)

Tab stop 4, 8, 12 etc.

CR/LF 0 (LF = CR/LF, CR=Ignored)

Auto cut after FF 1 (Off)

Black mark sync 1 (On)

Document mode 1 (Variable)

Page length, Minimum / fixed / BM2, 88 (75 mm)

87 X

88 XX

89 XX

90 XX

41 & 42

43 & 44

10/22/2008 TTP2100 Technical Manual P1003640-001

Max black-mark length 80 (10 mm)

Min black-mark length 24 (3 mm)

Black-mark cut offset 0, 0 (0 mm)

Black-mark top margin 0, 0 (Disabled)

Cut position calibration 128 (no adjustment)

Wall compensation 0

Paper width 0 (Auto)

Advance before cut 0 (Off)

Black-mark level 75

Warning level 0 (Off)

Max status code 255

Lock parameters 0 (Unlocked)

System 247 (Gap sensor)

Out of paper level 0

92 XX

93 XX

94 XX

95 XX

96 XX

Default Parameter Settings

Summary of Parameter Settings

Parameter Description ESC&F Default Page

TTP model

2110 2130

Vendor class mode 0 (Disabled)

Partial cut length 10

TOF Sensor Mode 2 (Gap sensor)

TOF Sensor Mask 0 (Masks away sensor 2 and 3)

BM Sensor 0 (auto selection between 1 and

96 XX

97 XX

Note • When the printer is set up the way you like it to be, you send ESC & 4h, and all

settings will be stored.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Serial Interface Set-up

96 Default 11 Min

96 Max

Stores the communication speed on the serial interface.

<ESC>&P<001><024> 2400 bps <ESC>&P<001><048> 4800 bps <ESC>&P<001><096> 9600 bps <ESC>&P<001><019> 19200 bps <ESC>&P<001><038> 38400 bps <ESC>&P<001><057> 57600 bps <ESC>&P<001><011> 115200 bps

Note • If you set an invalid value, the baud rate will return to the previous value.

Baud Rate

Default Parameter Settings

Serial Interface Set-up

8Default 7 Min 8Max

Selects if 7-bit ASCII, or 8-bit, is used on the serial interface.

<ESC>&P<002><008> 8-bits (characters 0-255) <ESC>&P<002><007> 7-bits (characters 0-127)

Note • In 7-bit mode you can not print graphic, read status or set parameters because no

value can ever be greater than 127.

0Default

0 Min 2Max

Select what parity to use on the serial interface.

<ESC>&P<003><000> No parity <ESC>&P<003><001> Odd parity <ESC>&P<003><002> Even parity

2Default

0 Min 2Max

Data Bits

Parity

Flow-control

Select what handshaking to use on the serial interface.

<ESC>&P<004><000> No flow control <ESC>&P<004><001> Xon / Xoff <ESC>&P<004><002> Hardware

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Print Setup

9Default

1 Min

15 Max

19 Default

1 Min

19 Max

Burn Time

DRV

A long burn time gives darker print. On insensitive paper types you may have to increase the burn time to get an acceptable print quality.

Max Print Speed

DRV

The main reason to decrease the print speed is to enhance print quality, and to reduce average current consumption. nics

3Default

3 Min 7Max

n mm/s

12345678910111213141516171819

47 48 49 50 51 52 53 55 57 61 65 70 77 86 96 107 123 136 150

Note • With firmware version 3.50, do not use settings 18 and 19.

Note • Settings below 15 result in printer chassis resonance causing increased noise and

deteriorated print quality.

Printhead Pulse Control

Controls how the printhead burns the pixels. Four burn pulses give a more even blackness over the width of the paper and a lower peak current consumption. Two burn pulses give faster printouts at high burn times. At normal burn times the speed is the same for both settings.;

<ESC>&P<010><003> 2 burn pulses <ESC>&P<010><007> 4 burn pulses

Caution • 3 and 7 are the only allowed setting, do not set anything else!

0Default

0 Min

255 Max

Selects which font attributes are selected at power ON or after reset. Font attributes bold, height and width are stored in this parameter.

bits 0-3 Height Multiplier

bits 4-6 Width Multiplier

bit 7 Bold enable

P1003640-001 TTP2100 Technical Manual 10/22/2008

Font Attributes

15 to 30

0Default

0 Min

30 Max

0Default

0 Min 7Max

-Default

1 Min

255 Max

Default Parameter Settings

Print Setup

Line Spacing

The line spacing is normally set by the font height. With this parameter you can set a line spacing that is higher that the font height. Line spacing settings lower than the font height will be ignored.

<ESC>&P<013><030> 30 pixels or font height, whichever is the largest

Font Selection

Store which font number is used if no font is specified. Font is selected using the "Select Font " command ESC ! n. Selecting an invalid font gives a software error status message (invalid index).

Tab Stop

Stores 16 different TAB stop positions. The position is set in increments of 2.5-mm.

0Default

0 Min 4Max

Tab position 255 sets a tab stop on the last position of the line. Use this if you want underline or reversed text to extend across the full paper width.

To set all tab stops at once, follow the procedure Set Several Parameters at Once on page 67.

To move a single tab stop, use the set parameter command <ESC>&P. for example:

Example • This example sets the first tab stop 25 mm from the left margin.

Default positions are one TAB on each cm; that is parameter values 4, 8, 12 etc.

CR/LF Behavior

Carriage Return and Line Feed can be interpreted in five different ways to suit different operating systems.

<ESC>&P<033><000> LF = CR/LF CR = Ignored <ESC>&P<033><001> LF = CR/LF CR = CR <ESC>&P<033><002> LF = LF CR = CR <ESC>&P<033><003> LF = LF CR = CR/LF <ESC>&P<033><004> LF = Ignored CR = CR/LF

Note • The character currently interpreted as LF converts text from the input buffer to pixels

on the paper. If no such character has been received after 379 characters, a linefeed is inserted automatically.

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Print Setup

1Default

0 Min 1Max

1Default

0 Min 1Max

Auto Cut After FF

Decides if the printer should cut after executing an FF command, or if it should just feed the form length.

<ESC>&P<034><000> No cut <ESC>&P<034><001> Cut

Black Mark Sync

DRV

Determines what should control the page length:

<ESC>&P<035><000> No synchronization <ESC>&P<035><001> Cuts will be synchronized with black marks /

gaps.

This parameter also determines the function of auto sensor calibration:

37 & 38

1Default

0 Min 1Max

2 , 88 Default

0 , 0 Min

255 , 255 Max

• If black mark / gap sync is enabled, the auto calibration will set n37 - n40, n51, n57 bit 3, n58, n61, and n62.

• If set to zero, only the BM level n51, and out of paper level n58 will be set.

Document Mode

Determines what should control the page length:

<ESC>&P<036><000> Fixed Document Mode. Shorter documents will automatically be

extended, while longer documents will be divided into several pages of the desired length. Page length will be the length set by parameters 37 and 38

<ESC>&P<036><001> Variable Document Mode. The length of the page varies with the

contents (printouts shorter than the value specified by parameters 37 and 38 will be extended to that length)

Note • Max page length in Fixed Document Mode is A5-size, which is 148.5 mm.

Page Length

DRV

Defines three different things:

1. The minimum length of a page in variable document mode

2. The actual page length in fixed document mode

3. The distance between black-marks in black-mark mode

P1003640-001 TTP2100 Technical Manual 10/22/2008

Default Parameter Settings

SW97063-R5

TE X T Te x t t e x t

TE X T

Te x t t e x t

Page length

(minimum 40 mm)

Page width = applicable print window width

Paper transport

direction

Top m a rg in

(Distance between cut and print line, 9 mm)

marginbottommargintop

widthPaper

bytesinRAMFree

lengthPage ×−

×=1024

mmlinespixellengthPage 147118080160

1024114627

==×

Print Setup

One step is 0.125 mm. Settings shorter than 37 mm, will be extended to 37 mm when printing.

<ESC>&P<037><006><ESC>&P<038><090> Set page length to 203 mm.

Figure 28 • Definition of Page Size

Length p37 p38

40 mm <001> <064>

75 mm <002> <088>

85.6 mm <002> <173>

156 mm <004> <224>

203 mm <006> <090>

16” <012> <180>

19” <015> <021>

Fixed Document Mode

21” <016> <171>

Max fixed document mode page length is depends of the amount of free ram. Make a self-test

printout to check how much is available in your printer. (Depends on firmware version).

Paper length, top, and bottom margins are in pixel lines. Paper width is in bytes or mm. (1 byte = 1 mm.).

Example • If Free RAM on a TTP 2100 is 114627 bytes, print width is 80 mm = 80 bytes, top

margin is 20 mm, and bottom margin 10 mm (20 x 8 =160 and 10 x 8 = 80 pixel lines).

If a too large fixed page is specified the printout will be blank from memory full to the cut.

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Print Setup

50 Default

41 & 42

1 Min

160 Max

30 Default

1 Min

159 Max

0 , 0 Default

0 , 0 Min

255 , 255 Max

BM (Black-Mark) Length

DRV

Specifies the length of the black-mark in 0.125-mm steps. Measure the length of the blackmark on your paper and enter that value here.

Marks 5 mm longer than this value are interpreted as paper out. The default value of 80 equals 10 mm.

<ESC>&P<039><040> Sets max black-mark length to 5 mm.

Min BM (Black-Mark) Length “Garbage Filter”

DRV

Specifies the minimum length of the black-mark in 0.125-mm steps. Shorter marks are ignored. The default value of 24 equals 3 mm.

<ESC>&P<040><036> Sets min black-mark length to 4 mm.

BM (Black-Mark) Cut Offset

DRV

43 & 44

Defines the paper feed between the black-mark detection and cut. One step is 0.125 mm.

<ESC>&P<041><001><ESC>&P<042><144> Feeds 50 mm between black-mark

and cut.

<ESC>&P<041><000><ESC>&P<042><000> Automatically sets cut offset so the

printer cut is in the

middle of the black mark.

0 , 0 Default

0 , 0 Min

255 , 255 Max

Top Margin (mm)

Defines the distance between the cut in Black-mark mode and the top of the first text line in

0.125 mm steps. The top margin feed is effectuated when the presenter is cleared from the previous page.

0 Disabled top margin. This gives the physical top margin of the printer, which is

9 mm.

Settings that give a shorter margin than 9 mm will be extended to 9 mm so this parameter can only be used to extend the margin, not reduce it.

<ESC>&P<043><000><ESC>&P<044><240> Add 30-mm top margin.



P1003640-001 TTP2100 Technical Manual 10/22/2008

Kiosk

wall

n47

Eject n

Printer

0Default

0 Min

255 Max

Default Parameter Settings

Print Setup

Cut Position Calibration



Calibrates the cut position. The value is a signed byte.

A change of 1 moves the cut 1/8 of a mm more than normal. A change of –1 moves the cut 1/8 of a mm less than normal. -1 is entered as 256-1=255

The positive range is 1-127. The negative range is 128-256

This parameter can be individually set for each printer and is not affected by the driver or reset commands. It is used to compensate for differences in sensor position in production. After moving or replacing the TOF-sensor, the calibration may have to be done again.

Note • The cut is not 100% repetitive because the paper may be closer to the sensor for one

ticket than it is for the next. So do not expect a perfect synchronization between perforation and cut.

It is better to cut slightly after a perforation than before because cutting before perforation leaves a flap that is pushed through the printer and that may cause paper jam.

40 Default

0 Min

255 Max

Wall Compensation (mm)

DRV

When the printout is printed and cut, the presenter ejects 50 mm of the page so that the customer can grab it. If the kiosk wall is thick, or if you just want a longer part of the printout to be visible, this parameter adds extra eject length.

<ESC>&P<047><050> Adds 50 mm extra eject = 100 mm in total.

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Print Setup

0Default

0 & 20 Min

80 Max

Paper Width (mm)

DRV

Sets the width of the paper loaded into the printer. The range is 20 to 80 mm. This can also be used to get left and right margins, for instance if you load 80 paper but set the paper width to 60 mm you get a 10 mm margin on both sides of the page.

Note • You should not change paper width within a page.

<ESC>&P<048><000><ESC>&<004> Position of sensor selector switch on TOF

sensor board selects

width (54 or 72 mm)

<ESC>&P<048><060><ESC>&<004> Sets 60 mm print width

Note • We recommend you to set a somewhat narrower print width than the loaded paper width

to allow the paper to wander a bit sideways without losing print.

1Default

0 Min 1Max

50 Default

0 Min

255 Max

0Default

0 Min

255 Max

Advance Before Cut

DRV

Selects if the cut command cuts at the position where the paper is at, or if the printer should advance the paper before cutting.

<ESC>&P<049><000> Off <ESC>&P<049><001> Automatic Distance Calculation

Set to 1 if the printer is used in text mode and 0 if it is used from a driver that takes care of this in the driver.

Note • The paper is advanced before the FF command calculates the page length to see if the

page length is longer than the set minimum length.

Black-Mark Sensitivity



Sets the lever at which the sensor output is interpreted as paper or as black-mark.

0 is white and 255 is pitch black.

Warning Level



Turns on/off indication of Paper near end level on the status indicator. This affects only the status indicator, not the status enquiries

<ESC>&P<052><000> No indication <ESC>&P<052><001> Paper Near End indication

P1003640-001 TTP2100 Technical Manual 10/22/2008

0Default

0 Min 1Max

255 Default

0 Min

255 Max

Default Parameter Settings

Print Setup

Lock Parameters



You can lock the parameters so that they cannot be changed by the ESC & P command.

<ESC>&P<053><000> Unlocked <ESC>&P<053><001> Locked

Max Status Code



This will control the highest status code that is reported by ESC ENQ x06 and ESC ENQ x01 (Pending-status-code bit). You use this if your kiosk software is not written so it masks away unknown status messages.

Example • If you want the TTP 2100 to be compatible with software written for TTP 1020,

set parameter 56 to 6h and error codes 7 and up will not be reported.

247 Default

0 Min

255 Max

System

The system parameter will control up to eight system components in the printer.

The bits specified so far are these:

Bit 0 Clear presenter at reset

Bit 1 Pull detector

Bit 2 -

Bit 3 Standard BM

Bit 4 Disable USB reconnect

Setting a bit to 1 enables the function and setting it to 0 disables it.

Note • Bits whose function are not yet specified must always be set to 1.

Examples •

<ESC>&P<057><254> Presenter will not be cleared at power ON and reset.

<ESC>&P<057><253> The pull detector is disabled.



<ESC>&P<057><252> The presenter will not be cleared at power ON and reset and the pull detector is disabled.

<ESC>&P<057><239> The printer will monitor USB heartbeat, and thus try to reconnect if it disappears.

<ESC>&P<057><247> The printer is reset to normal behavior (gap sensor)

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Print Setup

0Default

0 Min

255 Max

0Default

0 Min 1Max

10 Default

1 Min

40 Max

Out-of-Paper Level



Sets the level at which the TOF sensor detects out of paper. The out-of-paper level may differ from the black-mark level on label stock where the foil opacity indicates top of form.

This parameter is set automatically when you run the “Calibrating the TOF sensor procedure” (manually or using ESC #).

Vendor Class



Switches identity of the device from Printer Class (0x07) to Vendor Class (0xFF).

Caution • When not set to “Printer Class”, no programs that rely on the Windows printer

driver will be able to communicate with the printer, and thus not be able to reset the parameter to Printer Class again.

Partial Cut Length



2Default

0 Min 2Max

Sets the length of the partial cuts in mm from the edges of the paper (the blade cuts from the paper edges towards the middle).

The paper width parameter n48 is used to specify the edges of the paper so the printer knows where to start to cut. If parameter n48 is set to auto width, the setting of the TOF sensor selector switch determines the print width and thus also the start position for the partial cut.

Caution • A too large partial cut may cause problems with the presenter, so stay with the

default setting if possible.

TOF Sensor Mode



0 All transmitters OFF

1 Reflex sensor mode

2 Gap sensor mode

P1003640-001 TTP2100 Technical Manual 10/22/2008

9Default

0 Min

255 Max

1Default

0 Min 4Max

Default Parameter Settings

Print Setup

TOF Sensor Mask



The sensor mask is set automatically at calibration. It will mask away all sensors seeing the guide and is used for the virtual sensor “Paper before head” and will affect paper loading and calibration start. Any raw value will not be affected by the mask.

bit 0 Sensor BM1 in use (edge sensor for 82.5 mm paper)

bit 1 Sensor BM2 in use (center sensor)

bit 2 Sensor BM3 in use (sensor 17.5 mm from center)

bit 3 Sensor BM4 in use (sensor 12.5 mm from center)

bit 4 7 Reserved, shall be 0.

BM Sensor



Selects which sensor should be used for black mark / Gap detection.

<ESC>&P<063><000> Auto, selects sensor BM1 or BM4 depending on paper width. <ESC>&P<063><001> Force the use of sensor BM1 (edge sensor for 82.5 mm paper) <ESC>&P<063><002> Force the use of sensor BM2 (center sensor) <ESC>&P<063><003> Force the use of sensor BM3 (sensor 17.5 mm from center) <ESC>&P<063><004> Force the use of sensor BM4 (sensor 12.5 mm from center)

10/22/2008 TTP2100 Technical Manual P1003640-001

Default Parameter Settings

Notes • ___________________________________________________________________

__________________________________________________________________________

Print Setup

P1003640-001 TTP2100 Technical Manual 10/22/2008

Page Setup

10/22/2008 TTP2100 Technical Manual P1003640-001

100

n49

n37+n38

n39

n43+n44

1st Text line

Page Setup

Printable Area

Top margin, bottom margin, page length, and synchronization with preprint are set up with parameters in the printer. In addition to the above, n41+n42 are used if the hole or black-mark is not on the desired cut position.

P1003640-001 TTP2100 Technical Manual 10/22/2008

Zebra TTP2110, TTP2130 Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
