Zebra TLP2824-Z Users Guide

Zebra® TLP 2824-Z™

User Guide

The copyrights in this manual and the label printer described therein are owned by Zebra Technologies. Unauthorized reproduction of this manual or the software in the label printer may result in imprisonment of up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.

All other brand names, product names, or trademarks belong to their respective holders.

Customer Order # 980533-001 A

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties operating and maintaining the equipment described herein. Such proprietary information may not be used, reproduced, or disclosed to any other parties for any other purpose without the expressed written permission of Zebra Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications and designs are subject to change without notice.

FCC Compliance Statement

This device complies with Part 15 rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for Class B Digital Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the product manuals, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to do one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

980533-001 A TLP 2824-Z User Guide 3

Proprietary Statement

The user is cautioned that any changes or modifications not expressly approved by Zebra Technologies could void the user’s authority to operate the equipment. To ensure compliance, this printer must be used with Shielded Communication Cables.

Canadian DOC Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and manuals are correct; however, errors do occur. Zebra Technologies reserves the right to correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production, or delivery of the accompanying product (including hardware and software) be liable for any damages whatsoever (including, without limitation, consequential damages including loss of business profits, business interruption, or loss of business information) arising out of the use of, the results of use of, or inability to use such product, even if Zebra Technologies has been advised of the possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

4 TLP 2824-Z User Guide 980533-001 A

Contacts

Preface

This section provides you with contact information, document structure and organization, and additional reference documents.

You can contact Zebra Technologies at any of the following:

Visit us at: www.zebra.com

Our Mailing Addresses:

Zebra Technologies Corporation

333 Corporate Woods Parkway

Vernon Hills, Illinois 60061.3109 U.S.A

Telephone: +1 847.634.6700

Fax: +1 847.913.8766

Zebra Technologies Europe Limited

Zebra House

The Valley Centre, Gordon Road

High Wycombe

Buckinghamshire HP13 6EQ, UK

Telephone: +44 (0)1494 472872

Fax: +44 (0)1494 450103

980533-001 A TLP 2824-Z User Guide 5

Preface

Environmental Management

Support

You can contact Zebra support at:

Web Address: www.zebra.com/SS/service_support.htm

Note • The web address is case-sensitive.

US Phone Number +1 847.913.2259

UK/International Phone Number +44 (0) 1494 768289

Environmental Management

Do not dispose of this product in unsorted municipal waste. This product is recyclable, and should be recycled according to your local standards.

For more information, please see our website at:

Web address: www.zebra.com/environment

Document Conventions

The following conventions are used throughout this document to convey certain information:

Alternate Color (online only) Cross-references contain links to other sections in this guide. If you are viewing this guide online, click the blue text

Command Line Examples All command line examples appear in Courier New font. For example, type the following to get to the Post-Install scripts in the

to jump to its location.

bin directory:

Ztools

Files and Directories All file names and directories appear in Courier New font. For example, the

Cautions, Important, Note, and Example

Caution • Warns you of the potential for electrostatic discharge.

Caution • Warns you of a potential electric shock situation.

Zebra<version number>.tar file and the /root directory.

6 TLP 2824-Z User Guide 980533-001 A

Preface

Introduction

This section describes what you get in your shipping box and provides an overview of printer parts. This section also has procedures that describe how to open and close the printer and report any problems.

Hello!

Thank you for choosing a Zebra® desktop printer, a high-quality on-demand printer manufactured by the industry leader in quality, service, and value—Zebra Technologies Corporation. For over 25 years, Zebra Technologies Corporation has provided customers with the highest caliber of products and support.

Your printer is a high-quality on-demand printer. The printer provides thermal-transfer printing (which uses ribbon) and direct-thermal printing.

This manual provides all of the information you will need to operate your printer on a daily basis. To create label formats, refer to your programming guide. This guide is available by contacting your distributor or dealer.

Your printer, when connected to a host computer, functions as a complete system for printing labels and tags.

Note • Many printer settings may also be controlled by your printer’s driver or label

preparation software. Refer to the driver or software documentation for more information.

980533-001 A TLP 2824-Z User Guide 11

Introduction

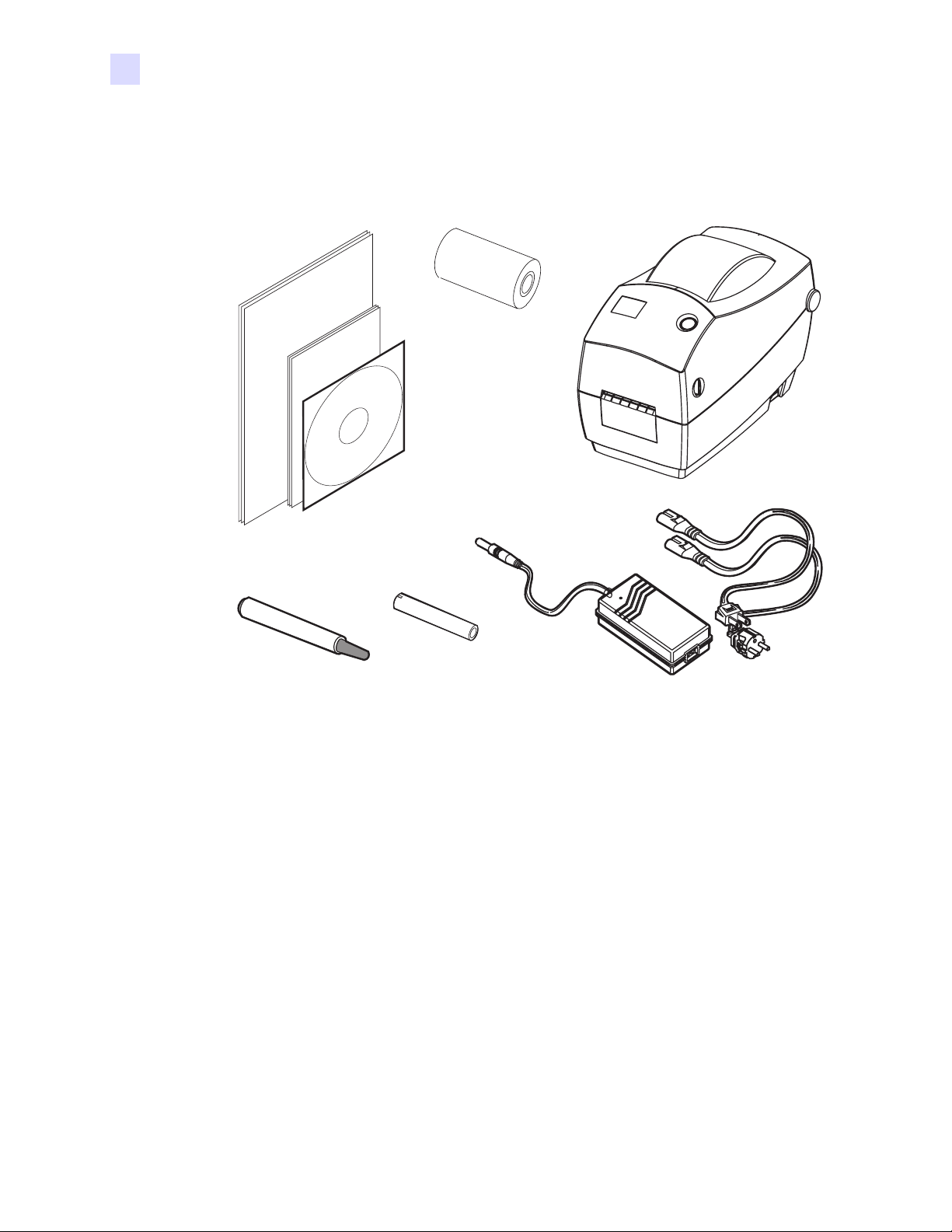

What’s in the Box?

Save the carton and all packing materials in case you need to ship or store the printer later. After unpacking, make sure you have all parts. Follow the procedures for inspecting the printer to familiarize yourself with printer parts so you can follow the instructions in this book.

Sample

Labels

Cleaning

Pen

Documentation

and Warranty

Ribbon

Take-Up Core

Printer

Power Supply

and Cords

12 TLP 2824-Z User Guide 980533-001 A

Inspecting the Printer

Look at the outside of the printer and make sure that all parts are present.

Feed

Button

Introduction

Inspecting the Printer

Status

Light

Opening the printer

To access the media compartment, you must open the printer. Pull the release levers towards you and lift the cover.

Release Latches

Power

Switch

Power

Supply

Receptacle

Interface

Connectors

(vary by option)

980533-001 A TLP 2824-Z User Guide 13

Introduction

Inspecting the Printer

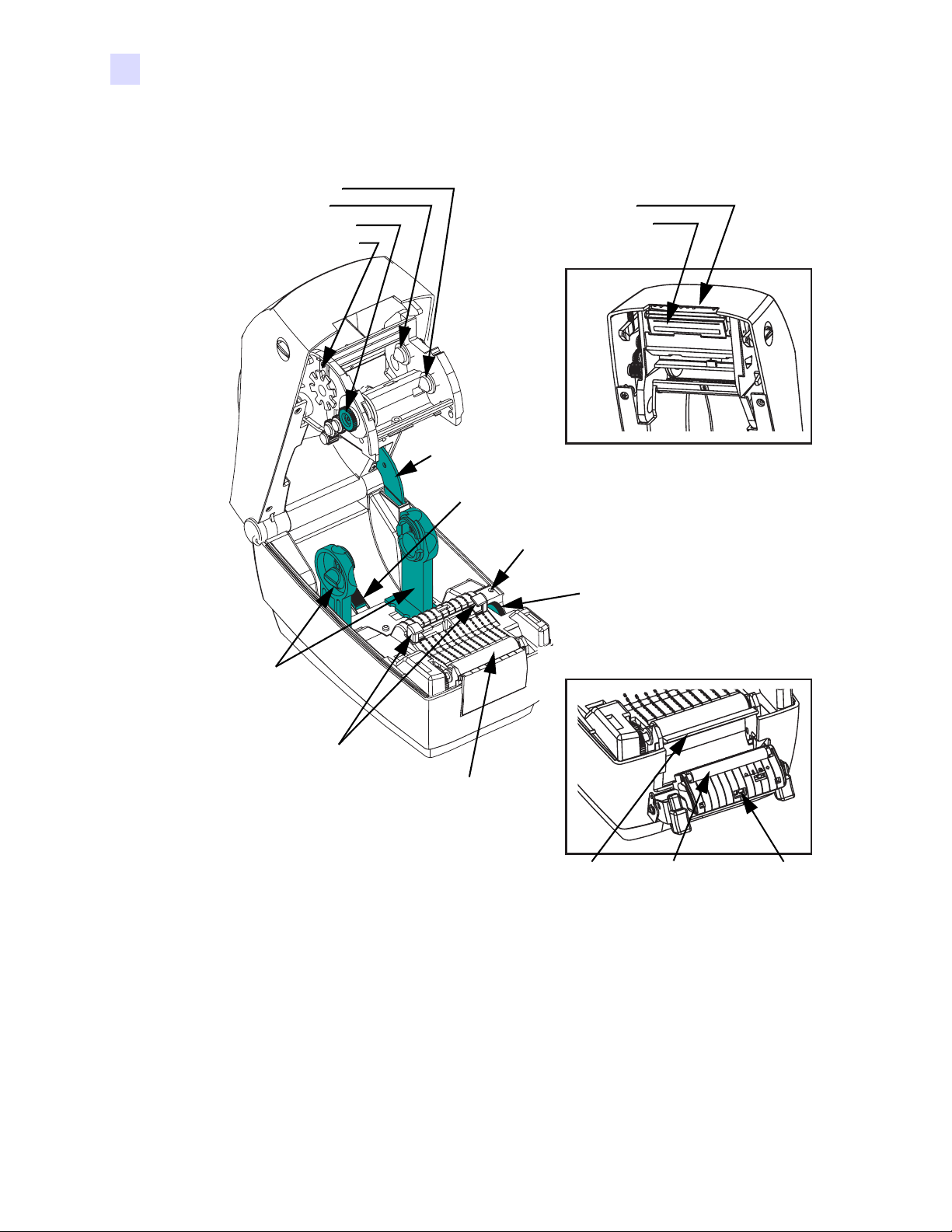

After opening the printer, check the media compartment.

Ribbon Carriage

Take-Up Hub Supply Hub Take-Up Gear Ribbon Sensor

Tear Bar Print Head

Cover Lock

Open-Hanger Lock

Media Hangers

Media Guides

Platen Roller

Head-Up Sensor

Peel-Off Option

Bar

Media Guide Adjuster

Roller

Sensor

14 TLP 2824-Z User Guide 980533-001 A

Closing the printer

1. Hold the top cover and press the “kick-stand” cover lock to release.

2. Lower the top cover. The ribbon carriage automatically folds up into place.

Introduction

Inspecting the Printer

3. Press down until the cover snaps closed.

Reporting Damage

If you discover damage or missing parts:

• Immediately notify and file a damage report with the shipping company. Zebra Technologies Corporation is not responsible for any damage incurred during shipment of the printer and will not cover the repair of this damage under its warranty policy.

• Keep the carton and all packing material for inspection.

• Notify the authorized reseller.

980533-001 A TLP 2824-Z User Guide 15

Introduction

Inspecting the Printer

16 TLP 2824-Z User Guide 980533-001 A

Getting Started

This section describes how to set up your printer for the first time and use the most common operating procedures for loading media in tear-off mode and loading ribbon.

Modes of Printing

You can operate this printer in different modes:

• Standard tear-off mode allows you to tear off each label (or a strip of labels) after it is printed.

• In optional peel-off mode, the backing material is peeled away from the label as it is printed. After this label is removed, the next one is printed.

• In optional cutter mode, an attached unit cuts through the media.

The printer typically uses roll media, but you can use fan-fold or other continuous media as well.

For procedures to use optional modes and features, refer to the Operation and Options section.

980533-001 A TLP 2824-Z User Guide 17

Getting Started

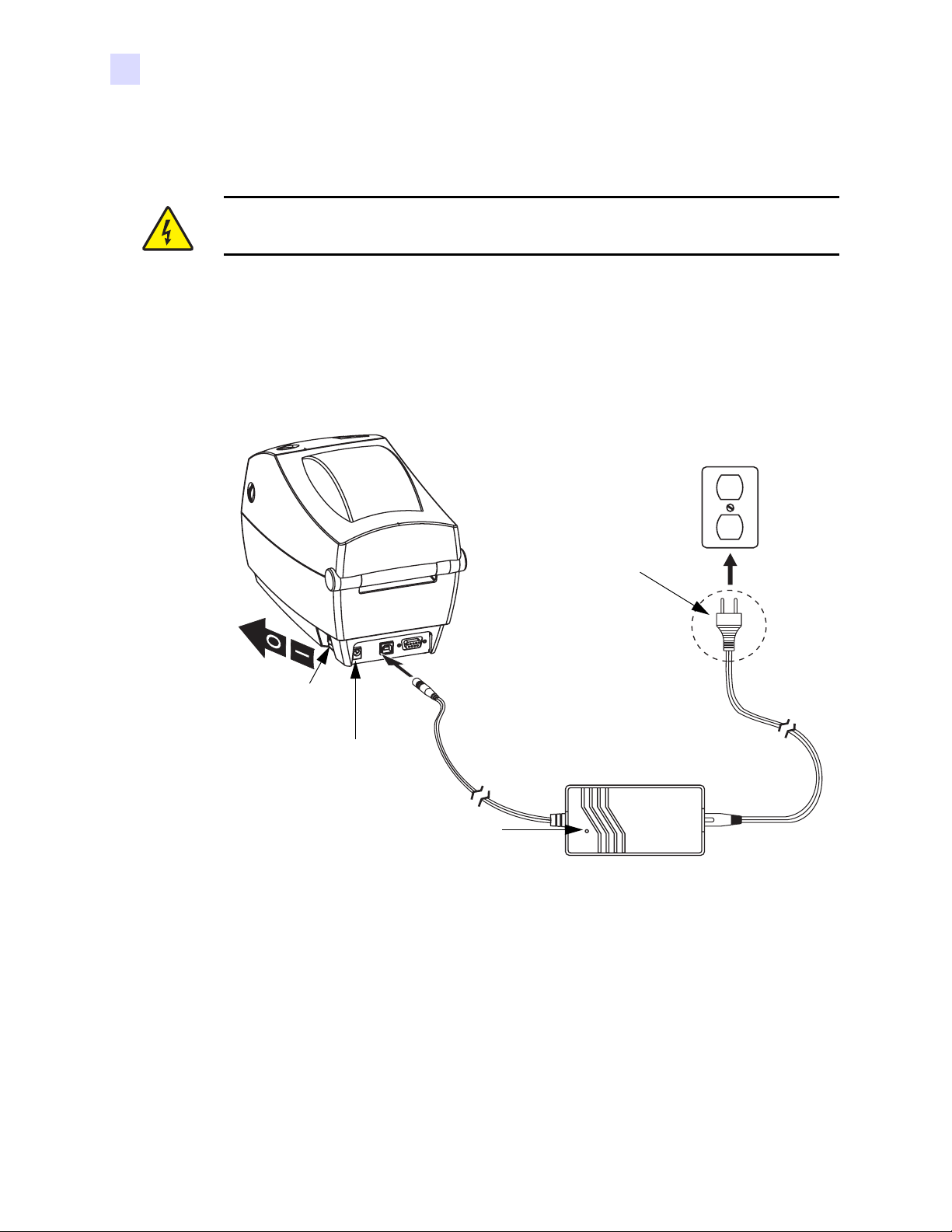

Attaching Power Supply

Check the power supply to make certain it is appropriate for your input voltage.

Caution • Use the power supply that came with your printer. Never operate the printer and power supply in an area where they can get wet. Serious personal injury could result!

1. Make sure the power switch is in the off position (forward).

2. The DC power supply has a barrel connector on one end that must be inserted into the

power supply receptacle on the back of the printer.

3. Insert the separate AC power cord into the power supply.

4. Plug the other end of the cord into an appropriate AC electrical outlet.

Power

Switch

Power

Supply

Receptacle

Barrel

Connector

Power

Indicator

Plug Varies by Country

AC Power

Cord

Power

Supply

18 TLP 2824-Z User Guide 980533-001 A

Loading Roll Media

When you load media, you must place the roll on the media hangers and then adjust the media guides.

You must use the correct media for the type of printing you require. When printing without a ribbon, you must use direct thermal media. When using ribbon, you must use thermal transfer media. The printer's ribbon sensor detects motion of the supply spindle.

Adjusting the Roll Holders

Check the core of the media roll and adjust the holders if necessary.

• For a narrow core, lift the adjusters up.

• For a wide core, press the adjusters down.

Getting Started

Loading Roll Media

980533-001 A TLP 2824-Z User Guide 19

Getting Started

Loading Roll Media

Placing the Roll in the Media Compartment

Whether your roll media is inside or outside wound you load it into the printer the same way.

1. Open the printer. Remember that you need to pull the release levers toward the front of

the printer.

2. Remove the outside length of media. During shipment, the roll may become dirty when

handled or dusty when stored. Removing the outside length avoids dragging adhesive or dirty media between the print head and platen.

3. Separate and hold open the media hangers.

4. Orient the media roll so that its printing surface will be up as it passes over the platen.

5. Lower the roll between the hangers and close them onto the core.

20 TLP 2824-Z User Guide 980533-001 A

Adjusting the Guides

The adjustable guides direct the media toward the platen and print head.

1. Open the media guides by turning the guide adjuster knob to the rear.

2. Thread the media through the guides.

3. Close the media guides by turning the guide adjuster knob to the front. They should just

touch, but not restrict, the edges of the media.

4. Unless you need to load ribbon, close the top cover. Remember that you need to release

the cover lock, lower the top cover, and press down until the latches snap into place

Getting Started

Loading Roll Media

980533-001 A TLP 2824-Z User Guide 21

Getting Started

Loading Ribbon

You must use thermal transfer media (accepts wax and/or resin transferred off a ribbon) when you use a ribbon. When loading ribbon, you install the supply and take-up rolls, then tighten the ribbon on the carriage.

Install the Ribbon Supply Roll

Before following these steps, prepare the ribbon by removing its wrapping and pulling its adhesive strip free.

1. Thread the ribbon through the carriage.

2. Press the right side onto the supply hub.

3. Align the notches on the left side and mount onto the spokes of the left hub.

Install the Take-Up Core

1. Press the right side onto the take-up hub.

2. Align the notches on the left side and mount onto the spokes of the left hub.

You can find your first ribbon take-up core in the packing box. Subsequently, use the empty supply core to take up the next roll of ribbon.

22 TLP 2824-Z User Guide 980533-001 A

Attach and Tighten the Ribbon

You must align the ribbon so that it will be taken straight onto the core.

1. Attach the ribbon to the take up core. Use the adhesive strip on new rolls; otherwise, use

tape.

2. Turn the ribbon take-up gear counter-clockwise (top moves toward rear) to remove slack

from the ribbon.

3. Close the top cover. Remember that you need to release the cover lock, lower the top

cover, and press down until the latches snap into place.

Getting Started

Loading Ribbon

980533-001 A TLP 2824-Z User Guide 23

Getting Started

Operator Controls

Power Switch

Press backward to turn ON or forward to OFF the printer.

Caution • The power should be turned off before connecting or disconnecting the communications and power cables.

Feed Button

• Tapping the Feed button forces the printer to feed one blank label.

• Holding the Feed button forces the printer to feed continuously.

• Pressing the Feed button takes the printer out of a “pause” condition. The printer is put into “pause” by either a programming command or an error condition. See “What the Status Light is Telling You” in the Troubleshooting chapter.

• Use the Feed button for printer setup and status (see “Feed Button Modes” in the Troubleshooting chapter).

Status Light

Functions as a printer operational indicator (see “What the Status Light is Telling You” in the Troubleshooting chapter).

Feed

Button

Status

Light

Power

Switch

24 TLP 2824-Z User Guide 980533-001 A

Printing a Test Label

Before you connect the printer to your computer, make sure that the printer is in proper working order.

You can do this by printing a configuration label.

1. Make sure the media is properly loaded and the top cover of the printer is closed. Then,

turn the printer power on if you have not already done so.

2. When the status light is solid green, press and hold the feed button until the status light

flashes once.

3. Release the feed button. A configuration label will print.

If you cannot get this label to print, refer to the Troubleshooting chapter.

Getting Started

Printing a Test Label

980533-001 A TLP 2824-Z User Guide 25

Getting Started

Hooking Up the Printer and Computer

Your printer will have one of these combinations of interfaces:

• Parallel

• Universal Serial Bus (USB) and DB-9 serial

• Ethernet and RJ-11 serial

Each specific interface option—USB, parallel, ethernet, serial—is discussed individually.

You must supply the required interface cable for your application.

Caution • Keep the power switch in the OFF position when attaching the interface cable. The power supply barrel connector must be inserted into the power supply receptacle on the back of the printer before connecting or disconnecting the communications cables.

Important •

Equipment, using fully shielded six-foot data cables. Use of longer cables or unshielded cables may increase radiated emissions above the Class B limits.

This printer complies with FCC “Rules and Regulations,” Part 15, for Class B

Interface Cable Requirements

Data cables must be of fully shielded construction and fitted with metal or metalized connector shells. Shielded cables and connectors are required to prevent radiation and reception of electrical noise.

To minimize electrical noise pickup in the cable:

Keep data cables as short as possible (6’ [1.83 m] recommended).

Do not tightly bundle the data cables with power cords.

Do not tie the data cables to power wire conduits.

USB Interface Requirements

Universal Serial Bus (version 1.1) provides a high-speed interface that is compatible with your existing PC hardware. USB’s “plug and play” design makes installation easy. Multiple printers can share a single USB port/hub.

Parallel Interface Requirements

The required cable (IEEE 1284-compliant is recommended) must have a standard 36-pin parallel connector on one end, which is plugged into the parallel port located on the back of the printer. The other end of the parallel interface cable connects to the printer connector at the host computer.

For pinout information, refer to Parallel Interface on page 58.

26 TLP 2824-Z User Guide 980533-001 A

Ethernet Interface Requirements

Ethernet provides a powerful networking capability that can be of use in a variety of internet/ intranet printing solutions. After you load media and close the top cover, you can press the test button next to the connector on the rear of the printer to get an ethernet configuration label.

Serial Interface Requirements

The standard cable must have a nine-pin “D” type (DB-9P) male connector on one end, which is plugged into the mating (DB-9S) serial port located on the back of the printer.

On Ethernet boards, there is an optional serial interface used for factory tests.

The other end of the signal interface cable connects to a serial port at the host computer. Depending on the specific interface requirements, this will most likely be a straight-through cable.

For pinout information, refer to Serial (RS-232) Connector on page 60.

Communicating with the Printer

Getting Started

Hooking Up the Printer and Computer

Universal Serial Bus (USB) Communications

The printer is a terminal device when using a universal serial bus interface. You can refer to the Universal Serial Bus Specification for details regarding this interface.

Parallel Communications

When using the parallel port, typically there is no setup is required once the cable is plugged in. If you should encounter any problems, consult the user’s guide that came with your computer.

Internal ZebraNet® PrintServer II™ Ethernet Communications

You can refer to the ZebraNet® PrintServer II™ for Ethernet Networks Installation and Operation Guide for details regarding this interface.

Serial Communications

Serial communications between the printer and the host computer can be set by either autobaud synchronization or the

Autobaud

^SC command.

Autobaud synchronization allows the printer to automatically match the communication parameters of the host computer. To autobaud:

1. Press and hold the feed button until the green status LED flashes once, twice, and then

three times.

2. While the status LED flashes, send a ZPL II format to the printer.

980533-001 A TLP 2824-Z User Guide 27

Getting Started

Adjusting the Print Width

3. When the printer and host are synchronized, the LED changes to solid green. (No labels

will print during autobaud synchronization.)

^SC Command

Use the Set Communications (^SC) command to change the communications settings on the printer.

4. With the host computer set at the same communications settings as the printer, send the

^SC command to change the printer to the desired settings.

5. Change the host computer settings to match the new printer settings.

Refer to the ZPL II Programming Guide for more information about this command.

Default the Serial Parameters

To reset the communications parameters on the printer to the factory defaults (9600 baud, 8 bit word length, no parity, 1 stop bit, and XON/XOFF), do the following:

6. Press and hold the feed button until the green status LED flashes once, twice, and then

three times.

7. While the status LED rapidly flashes amber and green, press the feed button.

Adjusting the Print Width

Print width must be calibrated when:

• You are using the printer for the first time.

• There is a change in the width of the media.

Print width may be set by way of the five-flash sequence in “Feed Button Modes” (see page ) or refer to the Print Width (

^PW) command (consult your ZPL II Programming Guide).

Adjusting the Print Quality

Print quality is influenced by the heat of the print head, the speed of the media and the type of media you are using. Only by experimenting will you find the optimal mix for your application.

The relative darkness setting is controlled by either the six-flash sequence in “Feed Button Modes” (see page ) or the Set Darkness ( ZPL II Programming Guide).

If you find that the print speed needs to be adjusted, refer to the Print Rate ( the ZPL II Programming Guide.

~SD) ZPL II command (follow the instructions in the

^PR) command in

28 TLP 2824-Z User Guide 980533-001 A

Operations & Options

This section helps you get the most from your printer.

You must use programming to control many of the printer’s functions.

Example • The ~JL command controls label length.

^XA^MTD^XZ command changes the printing mode to direct thermal; the

The

^XA^MTT^XZ command changes the printing mode to thermal transfer.

^XA^JUS^XZ command saves the new settings to flash memory

The

For detailed information about creating labels using ZPL II, refer to the ZPL II Programming Guide or visit our web site at www.zebra.com.

To improve print quality, changing both print speed and density may be required to achieve the desired results. Your application’s printer driver provides control of the speed and heat (density).

980533-001 A TLP 2824-Z User Guide 29

Operations & Options

Thermal Printing

Caution • The print head becomes hot while printing. To protect from damaging the print

head and risk of personal injury, avoid touching the print head. Use only the cleaning pen to perform maintenance.

Caution • The discharge of electrostatic energy that accumulates on the surface of the human body or other surfaces can damage or destroy the print head or electronic components used in this device. You must observe static-safe procedures when working with the print head or the electronic components under the top cover.

You must use the correct media for the type of printing you require. When printing without a ribbon, you must use direct thermal media. When using ribbon, you must use thermal transfer media. The printer’s ribbon sensor detects motion of the supply spindle.

30 TLP 2824-Z User Guide 980533-001 A

Replacing Supplies

If labels or ribbon run out while printing, leave the printer power on while reloading (data loss results if you turn off the printer). After you load a new label or ribbon roll, press the Feed button to restart.

Always use high quality, approved labels, tags and ribbons. If adhesive backed labels are used that don’t lay flat on the backing liner, the exposed edges may stick to the label guides and rollers inside the printer, causing the label to peel off from the liner and jam the printer. Permanent damage to the print head may result if a non-approved ribbon is used as it may be wound incorrectly for the printer or contain chemicals corrosive to the print head. Approved supplies can be ordered from your dealer.

Adding a New Transfer Ribbon

If ribbon runs out in the middle of a print job, the indicator lights red and the printer waits for you to add a fresh roll.

1. Keep the power on as you change ribbon.

2. Open the top cover, then cut the used ribbon so you can remove the cores.

Operations & Options

Replacing Supplies

3. Load a new ribbon roll. If necessary, review the Ribbon Loading steps.

4. Close the top cover.

5. Press the Feed button to restart printing.

Replacing a Partially Used Transfer Ribbon

To remove used transfer ribbon, perform the following steps.

1. Cut the ribbon from the take-up roll.

2. Remove the take-up roll and discard used ribbon.

3. Remove the supply roll and tape the end of any fresh ribbon to prevent it from

unwrapping.

When reinstalling a partially used supply roll, tape the cut end onto the empty take-up roll.

980533-001 A TLP 2824-Z User Guide 31

Operations & Options

Printing in Peel-Mode

The optional dispenser allows you to print in “peel-mode” where the label backing follows a different path and the labels are presented one at a time for subsequent placement.

Before using peel-mode, you must send the programming commands to the printer.

Refer to your ZPL II Programmer’s Manual.

1. Remove several labels from the backing material.

2. Open the top cover.

3. Open the dispenser door.

4. Using a stylus, switch on the label-taken sensor.

5. Insert the backing in front of the peel bar and behind the peel roller.

6. Close the dispenser door.

7. Close the top cover.

8. Press the Feed button to advance the label.

^XA ^MMP ^XZ ^XA ^JUS ^XZ

9. During the print job, the printer will peel off the backing and present a single label. Take

the label from the printer so it will print the next label.

32 TLP 2824-Z User Guide 980533-001 A

Operations & Options

Printing in Peel-Mode

980533-001 A TLP 2824-Z User Guide 33

Operations & Options

Printing on Fan-Fold Media

Printing on fan-fold media requires you to set both the media hangers and the media guides in position.

1. Open the top cover.

2. Open the hangers to their widest position.

3. Snap the holder-open lock towards the front of the printer.

4. With a sample of your media, adjust the guides to the width of the media. The guides

should just touch, but not restrict, the edges of the media.

5. Insert the media through the slot at the rear of the printer.

6. Run the media between the hangers and guides.

7. Close the top cover.

34 TLP 2824-Z User Guide 980533-001 A

Using the Cutter Option

Printers that have a bezel with a motorized blade can dispense one or more forms that are then automatically cut from the media supply. This option cuts through continuous paper from rolls and liner between labels. Keep the cutter dry. Never use any solutions or solvents to clean the blade.

Operations & Options

Using the Cutter Option

Use the gap distance. See the ZPL II Programmer's Manual.

If the blade cuts through labels, adhesive can jam the cutter.

^MM command to activate the cutter and the ^LL command to set the form length and

1. Turn OFF (O) printer power and unplug the power and interface cables before clearing the

cutter.

2. After removing debris, plug in the power and interface cables, turn on the printer, then test

for normal operation.

980533-001 A TLP 2824-Z User Guide 35

Operations & Options

Using the Cutter Option

36 TLP 2824-Z User Guide 980533-001 A

Cleaning

Maintenance

When you clean the printer, use one of the following supplies that best suits your needs:

Cleaning Supplies

Cleaning pens (12)

Cleaning swabs (25)

The cleaning process takes just a couple of minutes using the steps outlined below.

Printer Part Method Interval

Print head Let the print head to cool for a minute, then use a

new cleaning pen to swab the the thin gray line on the print head from end to end.

NOTE: You do not have to turn off the printer to do this.

Platen roller See “Platen Considerations” in the Maintenance

chapter. Manually rotate the platen roller. Clean it thoroughly with 95% medical-grade alcohol and a cleaning swab, cleaning card, or lint-free cloth.

Peel bar Clean it thoroughly with 95% medical-grade

Tear bar

Media path

Exterior Water-dampened cloth.

alcohol and a cotton swab.

When using ribbon: after every roll of ribbon; when using direct thermal: after every roll of media.

As needed.

Interior Brush or air blow.

Cutter Use tweezers to remove scraps.

980533-001 A TLP 2824-Z User Guide 37

Maintenance

Cleaning

Caution • Adhesives and coatings of media can over time transfer onto the printer components along the media path including the platen and print head. This build-up can accumulate dust and debris. Failure to clean the print head, media path and platen roller could result in inadvertent loss of labels, label jams and possible damage to the printer.

Important •

Using too much alcohol can result in contamination of the electronic components

requiring a much longer drying time before the printer will function properly.

Print Head Considerations

Always use a new cleaning pen on the print head (an old pen carries contaminants from its previous uses that may damage the print head).

Caution • The print head becomes hot while printing. To protect from damaging the print head and risk of personal injury, avoid touching the print head. Use only the cleaning pen to perform maintenance.

When you load new media, you can also clean the print head.

1. Rub the cleaning pen across the dark area of the print head.

2. Wait one minute before closing the printer.

Do not clean the platen roller.

38 TLP 2824-Z User Guide 980533-001 A

Media Guide Considerations

Use a cleaning swab or pen to remove debris, dust or crust that has built-up on the holders, guides and media path surfaces.

1. Use the alcohol in the cleaning swab or pen to soak the debris so that it breaks up.

2. Wipe the knobs to remove accumulated debris.

3. Wipe the inside edges of both edge guides to remove any built-up residue.

4. Wait one minute before closing the printer.

Discard the cleaning swab or pen after use.

Maintenance

Cleaning

Platen

Knobs

Edge

Guides

980533-001 A TLP 2824-Z User Guide 39

Maintenance

Cleaning

Sensors

Dust can accumulate on the media and head-up sensors.

1. Gently blow away dust; if necessary, use a dry swap to brush away dust. If adhesives or

other contaminates remain, use an alcohol moistened swab to break up.

2. Use a dry swab several times to remove any residue that may be left from the first cleaning

Media

Sensors

Head-Up

Sensor

40 TLP 2824-Z User Guide 980533-001 A

Platen Considerations

The standard platen (drive roller) normally does not require cleaning. Paper and liner dust can accumulate without effecting print operations. Contaminates on the platen roller can damage the print head or cause the media to slip when printing. Adhesive, dirt, general dust, oils and other contaminates should be cleaned immediately off the platen.

Keep a new platen available as a spare and install it whenever the printer has significantly poorer performance, print quality or media handling. If sticking or jamming continues even after cleaning, you must replace the platen.

The platen can be cleaned with a fiber-free swab (such as a Texpad swab) or a lint free, clean, damp cloth very lightly moistened with medical grade alcohol (95% pure or better).

1. Open the media door and remove the media.

2. Remove the platen from the printer (refer to the replacement procedure in this section).

3. Clean the platen surface with the alcohol moistened swab. Rotate the platen while

swabbing. Repeat this process two to three times with a new swab to remove residual contaminates. Adhesives and oils, for example, may be thinned by the initial cleaning but not completely removed.

4. .Install the platen in the printer (refer to the replacement procedure in this section).

Maintenance

Lubrication

5. Discard the cleaning swab or pen after use.

Allow the printer to dry for one minute before loading labels.

Lubrication

Caution • No lubricating agents of any kind should be used on this printer. Some

commercially available lubricants, if used, will damage the finish and the mechanical parts inside the printer.

980533-001 A TLP 2824-Z User Guide 41

Maintenance

Replacing the Platen

Tools • You will need to use a pointed stylus (such as tweezers, small slot-head screwdriver or

razor-knife during this procedure.

Removal

Open the printer and remove any media.

1. Using a pointed stylus (such as tweezers, small slot-head screwdriver, or razor-knife),

unhook the tabs on the right and left sides. Then rotate them forward.

2. Lift the platen out of the printer’s bottom frame.

Assembly

Make sure the right bearing is on the shaft of the platen.

1. Align the platen with the gear to the left and lower it into the printer’s bottom frame.

2. Rotate the tabs back and snap them into place.

42 TLP 2824-Z User Guide 980533-001 A

Replacing the Print Head

In the event you need to replace the print head, read the procedure and review the removal and installation steps before actually replacing the print head.

Caution • Prepare your work area by protecting against static discharge. Your work area must be static-safe and include a properly grounded conductive cushioned mat to hold the printer and a conductive wrist strap for yourself.

Caution • Turn the printer power off and unplug the power cord before replacing the print head.

Tools • You will need to use a #2 Phillips driver during this procedure.

Maintenance

Replacing the Print Head

980533-001 A TLP 2824-Z User Guide 43

Maintenance

Replacing the Print Head

Thermal-Transfer TLP Model

Before following the steps in this procedure, open the printer by pulling the release latches forward then lifting the top cover. Remove any ribbon from the carriage.

Removal

1. Grasp the print head spring and pull it to the left; then, slide it free of the carriage.

2. Use the spring to pry the print head clip off the right side of the carriage.

3. Pull the print head and bracket forward.

4. Use a #2 Phillips driver to remove the screw that holds the ground wire.

5. Unplug both bundles of print head wires from their connectors.

A B

44 TLP 2824-Z User Guide 980533-001 A

Maintenance

Replacing the Print Head

Replacing the TLP Print Head (Continued)

Assembly

The new print head comes with the clip and ground screw attached.

1. Detach the wire cover.

2. Detach the ribbon take-up hub.

3. Align the print head and bracket to plug the left and right connectors into the black and

white wire bundles.

4. Attach the ground wire and secure it with the screw). Use a #2 Phillips driver to tighten it.

5. Insert the bracket pegs into the left side of the carriage.

6. Align the right side of the bracket and insert the print head clip through the right side of

the ribbon carriage into the bracket.

7. Slip the left end of the print head spring into the left side of the ribbon carriage; then slide

the right end into the other side. The angle of the "v" fits into the indent on top of the print head bracket.

8. Attach the ribbon take-up hub.

9. Attach the wire cover.

10. Clean the print head with the cleaning pen.

Reload media and ribbon. Plug in the power cord. Print a status report to ensure proper function.

980533-001 A TLP 2824-Z User Guide 45

Maintenance

Replacing the Print Head

46 TLP 2824-Z User Guide 980533-001 A

Troubleshooting

What the Status Light is Telling You

LED Status and Color Printer Status

Off Off 1

Solid Green On 2

Flashing Amber Stopped 3

Flashing Green Normal Operation 4

Flashing Red Stopped 5

Double Flashing Green Paused 6

Solid Amber Various 7

Alternately Flashing Green and Red Needs Service 8

Resolutions

1. The printer is not receiving power.

• Have you turned on the printer power?

• Check power connections from the wall outlet to the power supply, and from the power supply to the printer.

For a Resolution, Refer to Number:

2. The printer is on and in an idle state.

No action necessary.

980533-001 A TLP 2824-Z User Guide 47

Troubleshooting

Resolutions

3. The printer has failed its power on self test (POST).

• If this error occurs right after you turn on the printer, contact an authorized reseller for assistance.

There is a shortage of memory.

• If this error occurs after you have been printing, turn the printer power off and on. Then, resume printing.

4. The printer is receiving data.

• As soon as all of the data has been received, the status LED will turn green; then, the printer will automatically resume operation.

5. Either the media or ribbon is out.

• Load a roll of media, following the instructions in “Loading the Media” in the Getting Started chapter. Then, press the feed button to resume printing.

• Load a roll of ribbon, following the instructions in “Loading the Ribbon” in the Getter Started chapter. Then, press the feed button to resume printing.

The print head is open.

• Close the top cover. Then, press the feed button to resume printing.

6. The printer is paused.

• Press the feed button to resume printing.

48 TLP 2824-Z User Guide 980533-001 A

7. The print head is under temperature.

• Continue printing while the print head reaches the correct operating temperature.

The print head is over temperature.

• Printing will stop until the print head cools to an acceptable printing temperature. When it does, the printer will automatically resume operation.

8. FLASH memory is not programmed.

• Return the printer to an authorized reseller.

Troubleshooting

Resolutions

980533-001 A TLP 2824-Z User Guide 49

Troubleshooting

Print Quality Problems

No print on the label.

• You must use the correct media for the method of printing you require. When printing without a ribbon, you must use direct thermal media. When using ribbon, you must use thermal transfer media. The printer's ribbon sensor detects motion of the supply spindle.

• Is the media loaded correctly? Follow the instructions in “Loading the Media”in the Getting Started chapter.

The printed image does not look right.

• The print head is dirty. Clean the print head.

• The print head is under temperature.

• Adjust the print darkness and/or print speed. Refer to the six-flash sequence in “Feed Button Modes” later in this chapter, or the Programming Guide.

• The media being used is incompatible with the printer. Be sure to use the recommended media for your application, and always use Zebra-approved labels and tags.

^PR and ~SD commands in the ZPL II

There are long tracks of missing print (blank vertical lines) on several labels.

• The print head is dirty. Clean the print head.

• The print head elements are damaged. Replace the print head (see “Replacing the Print Head” in the Maintenance chapter).

The ribbon sensor settings did not print.

• The printer is set for direct thermal printing; use the ^XA^MTT^XZ command to reset the printer for thermal transfer printing and calibrate again.

50 TLP 2824-Z User Guide 980533-001 A

Troubleshooting

Print Quality Problems

The printing does not start at the top of the label, or misprinting of one to three labels.

• The media may not be threaded under the media guides. Refer to “Loading the Media” in the Getting Started chapter.

• The printer needs to be calibrated. Refer to “Auto Calibration” in the Getting Started chapter.

• The correct media sensor may not be activated. Manual calibration selects the media sensing method for the labels being used (refer to the Programming Guide).

• Verify that the Label Top ( ZPL II Programming Guide).

^LT) command is correctly set for your application (consult the

^MN command in the ZPL II

A label format was sent to, but not recognized by, the printer.

• Is the printer in pause mode? If so, press the feed button.

• If the status LED is on or flashing, refer to “What the Status Light is Telling You” in this chapter.

• Make sure the data cable is correctly installed.

• A communications problem has occurred. First, make sure that the correct communications port on the computer is selected. Refer to “Communicating with the Printer” in the Getting Started chapter.

980533-001 A TLP 2824-Z User Guide 51

Troubleshooting

Manual Calibration

Manual calibration is recommended whenever you are using pre-printed media or if the printer will not correctly auto calibrate.

1. Make sure media is loaded.

2. Turn on the printer power.

3. Press and hold the feed button until the green status LED flashes once, then twice.

Release the feed button.

4. The printer will set the media sensor for the label backing being used. After it is done

making this adjustment, the roll will automatically feed until a label is positioned at the print head.

5. A profile of the media sensor settings (similar to the example below) will print. Upon

completion, the printer will save the new settings in memory and the printer is ready for normal operation.

6. Press the feed button. One entire blank label will feed. If this does not happen, try

defaulting (refer to the four-flash sequence in “Feed Button Modes” later in this chapter) and recalibrating the printer.

Note • Performing a manual calibration disables the auto calibration function. To return to

auto calibration, default the printer (see the four-flash sequence in “Feed Button Modes” later in this chapter).

52 TLP 2824-Z User Guide 980533-001 A

Troubleshooting Tests

Printing a Configuration Label

To print out a listing of the printer’s current configuration, refer to the one-flash sequence in “Feed Button Modes” later in this chapter.

Troubleshooting

Troubleshooting Tests

Recalibration

Recalibrate the printer if it starts to display unusual symptoms, such as skipping labels. See “Printing a Test Label” in the Getting Started chapter.

980533-001 A TLP 2824-Z User Guide 53

Troubleshooting

Resetting the Factory Default Values

Sometimes, resetting the printer to the factory defaults solves some of the problems. Follow the four-flash sequence instructions in “Feed Button Modes” later in this chapter

Communications Diagnostics

If there is a problem transferring data between the computer and printer, try putting the printer in the communications diagnostics mode. The printer will print the ASCII characters and their respective hexadecimal values (a sample is shown below) for any data received from the host computer. To find out how, refer to the power off mode procedure in “Feed Button Modes” later in this chapter.

54 TLP 2824-Z User Guide 980533-001 A

Feed Button Modes

With the printer power off, press and hold the feed button while you turn on the power. The printer prints out a listing of its current configuration. After printing the label, the printer will automatically enter a diagnostic mode in which the printer prints out a literal representation of all data subsequently received. To exit the diagnostic mode and resume printing, turn off and then turn on the printer.

With the printer power on and top cover closed, press and hold the feed button for several seconds. The green status LED will flash a number of times in sequence. The explanation at the right (Action) shows what happens when you release the key after the specific number of flashes

Flash Sequence Action

* **

* ** ***

* ** *** ****

* ** *** **** *****

* ** *** **** ***** ******

Troubleshooting

Feed Button Modes

Power Off Mode (Communications Diagnostics Mode)

Power On Modes

A configuration label prints.

The media sensor calibrates and a media sensor profile prints (see “Manual Calibration” earlier in this chapter).

To reset the communication parameters. Press and release the feed button while the LED rapidly flashes amber and green.

For autobaud synchronization: Send a ZPL II format to the printer while the LED rapidly flashes amber and green. When the printer and host are synchronized, the LED changes to solid green. NOTE: No labels will print during autobaud synchronization.

Resets the factory defaults, auto calibrates, and saves settings into memory.

The print width calibrates. While the status LED alternately flashes green and amber, a series of stacking rectangles print on the label. When the rectangle prints to the outer edges of the label, press and release the feed button. The label width and current communication parameters will be saved into memory.

The print darkness calibrates. A series of nine samples print, starting with the lightest and ending with the darkest image. When the desired print darkness is achieved, press and release the feed button. The print darkness will be saved into memory

If the feed button remains pressed after a 7-flash sequence, the printer will ignore the button when it is released

980533-001 A TLP 2824-Z User Guide 55

Troubleshooting

Battery

The optional Real Time Clock requires a three-volt lithium battery on the main printed circuit board. You can discern a low or flat battery if the printer provides a consistently delayed date stamp. Only a qualified technician observing precautions against both static discharge and electric shock can replace the battery.

Caution • Risk of explosion if battery is replaced with an incorrect type.

Important •

Recycle batteries according to local your guidelines and regulations.

56 TLP 2824-Z User Guide 980533-001 A

Interfaces

Universal Serial Bus (USB) Connector

The figure below displays the cable wiring required to use the printer’s USB interface.

Pin No. Description

1 Vbus

2 D–

3 D+

4 Ground

Shell Shield/Drain Wire

For printer supported operating systems and drivers, see the software and documentation CD or visit the Zebra printer web site at:

www.zebra.com

For information on the USB interface, go to the USB web site at:

www.usb.org

980533-001 A TLP 2824-Z User Guide 57

Interfaces

Parallel Interface

The maximum current available through the interface port is not to exceed a total of 0.75 amps.

Pin No. Description

1 NStrobe/Host Clk

2-9 Data Bits 1-8

10 nACK/PtrClk

11 Busy/Per Busy

12 PError/ACK Dat Req.

13 Select/Xflag

14 NAuto Fd/Host Busy

15 Not Used

16-17 Ground

18 +5 V @ 0.75 A Fused

19-30 Ground

31 nInit

32 NFault/nData Avail.

33-34 Not Used

35 +5 V throught 1.8 K Ohms Resistor

36 NSelectin/1284 active

58 TLP 2824-Z User Guide 980533-001 A

ZebraNet® PrintServer II for Ethernet Networks

This interface uses an RJ-45 straight-through cable type. The table below provides the pinout assignments.

Signal Pin Pin Signal

Tx+ 11Tx+

Tx- 22Tx-

Rx+ 33Rx+

--- 44---

--- 55---

Rx- 66Rx-

--- 77---

--- 88---

Interfaces

The figure above has the perspective looking into the printer RJ-45 modular connector.

You can refer to the ZebraNet® PrintServer IITM for Ethernet Networks Installation and Operation Guide for details regarding this interface.

The RJ-11 jack on Ethernet boards is used for factory tests only.

980533-001 A TLP 2824-Z User Guide 59

Interfaces

Serial (RS-232) Connector

Pin No. Description

1 Not used

2 RXD (receive data) input to the printer

3 TXD (transmit data) output from printer

4 DTR (data terminal ready) output from the printer -- controls when the

host may send data

5 Chassis ground

6 DSR (data set ready) input to the printer

7 RTS (request to send) output from the printer -- always in the ACTIVE

condition when the printer is turned on

8 CTS (clear to send) input to the printer

9 +5 V @ 0.75 A fused

The maximum current available through the serial and/or parallel port is not to exceed a total of 0.75 Amps.

When XON/XOFF handshaking is selected, data flow is controlled by the ASCII control codes DC1 (XON) and DC3 (XOFF). The DTR control lead will have no effect.

Interconnecting to DTE Devices —The printer is configured as data terminal equipment (DTE). To connect the printer to other DTE devices (such as the serial port of a personal computer), use an RS-232 null modem (crossover) cable.

Interconnecting to DCE Devices —When the printer is connected via its RS-232 interface to data communication equipment (DCE) such as a modem, a STANDARD RS-232 (straightthrough) interface cable must be used.

60 TLP 2824-Z User Guide 980533-001 A

Connecting the Printer to a DTE Device

DB-25S Connector to DTE Device (PC)

DB-9P

Connector

to Printer

Connecting the Printer to a DCE Device

DB-25S Connector to DCE Device (PC)

DB-9P

Connector

to Printer

Serial (RS-232) Connector

DB-9S Connector to DTE Device (PC)

DB-9S Connector to DCE Device (PC)

Interfaces

DB-9P

Connector

to Printer

DB-9P

Connector

to Printer

980533-001 A TLP 2824-Z User Guide 61

Interfaces

Serial (RS-232) Connector

62 TLP 2824-Z User Guide 980533-001 A

Zebra Technologies Corporation

333 Corporate Woods Parkway Vernon Hills, Illinois 60061.3109 U.S.A. Telephone: +1 847.634.6700 Facsimile: +1 847.913.8766

Zebra Technologies Europe Limited

Zebra House The Valley Centre, Gordon Road High Wycombe Buckinghamshire HP13 6EQ, UK Telephone: +44 (0) 1494 472872 Facsimile: +44 (0) 1494 450103

Zebra TLP2824-Z Users Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Proprietary Statement

Contacts

Preface

Environmental Management

Support

Document Conventions

Related Documents

Contents

Introduction

What’s in the Box?

Inspecting the Printer

Getting Started

Modes of Printing

Attaching Power Supply

Loading Roll Media

Adjusting the Roll Holders

Placing the Roll in the Media Compartment

Adjusting the Guides

Loading Ribbon

Install the Ribbon Supply Roll

Install the Take-Up Core

Attach and Tighten the Ribbon

Operator Controls

Printing a Test Label

Hooking Up the Printer and Computer

Interface Cable Requirements

Communicating with the Printer

Adjusting the Print Width

Adjusting the Print Quality

Operations & Options

Thermal Printing

Replacing Supplies

Adding a New Transfer Ribbon

Replacing a Partially Used Transfer Ribbon

Printing in Peel-Mode

Printing on Fan-Fold Media

Using the Cutter Option

Cleaning

Maintenance

Print Head Considerations

Media Guide Considerations

Platen Considerations

Lubrication

Replacing the Platen

Replacing the Print Head

Thermal-Transfer TLP Model

Troubleshooting

Resolutions

Print Quality Problems

Manual Calibration

Troubleshooting Tests

Printing a Configuration Label

Recalibration

Resetting the Factory Default Values

Communications Diagnostics

Feed Button Modes

Battery

Interfaces

Universal Serial Bus (USB) Connector

Parallel Interface

ZebraNet® PrintServer II for Ethernet Networks

Serial (RS-232) Connector
