The Zebra Fonts and Graphics Downloader is a software package dedicated to preparing and
downloading TrueType fonts to the memory installed in printers. Fonts that are downloaded to
the memory card are treated as internal printer objects. This enables much faster printing
because there is no need to transfer text to the printer at print time.
Zebra Fonts and Graphics Downloader can:
• Add, edit, and view data prepared for download on memory.
• Check the available memory space before downloading.
• Share the information about the contents of the memory card with the ZebraDesigner Pro
labeling software.
Print the downloaded data from the memory.
13859L-002 ZebraDesigner™ Fonts and Graphics Downloader User Guide 10/08/2009
2
Setting Up the Zebra Fonts
and Graphics Downloader
Contents
User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Main Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Font and Graphic List Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Memory Card Slot Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Preview Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Status Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Customizing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10/08/2009 ZebraDesigner™ Fonts and Graphics Downloader User Guide 13859L-002
Setting Up the Zebra Fonts and Graphics Downloader
10
User Interface
User Interface
Main Window

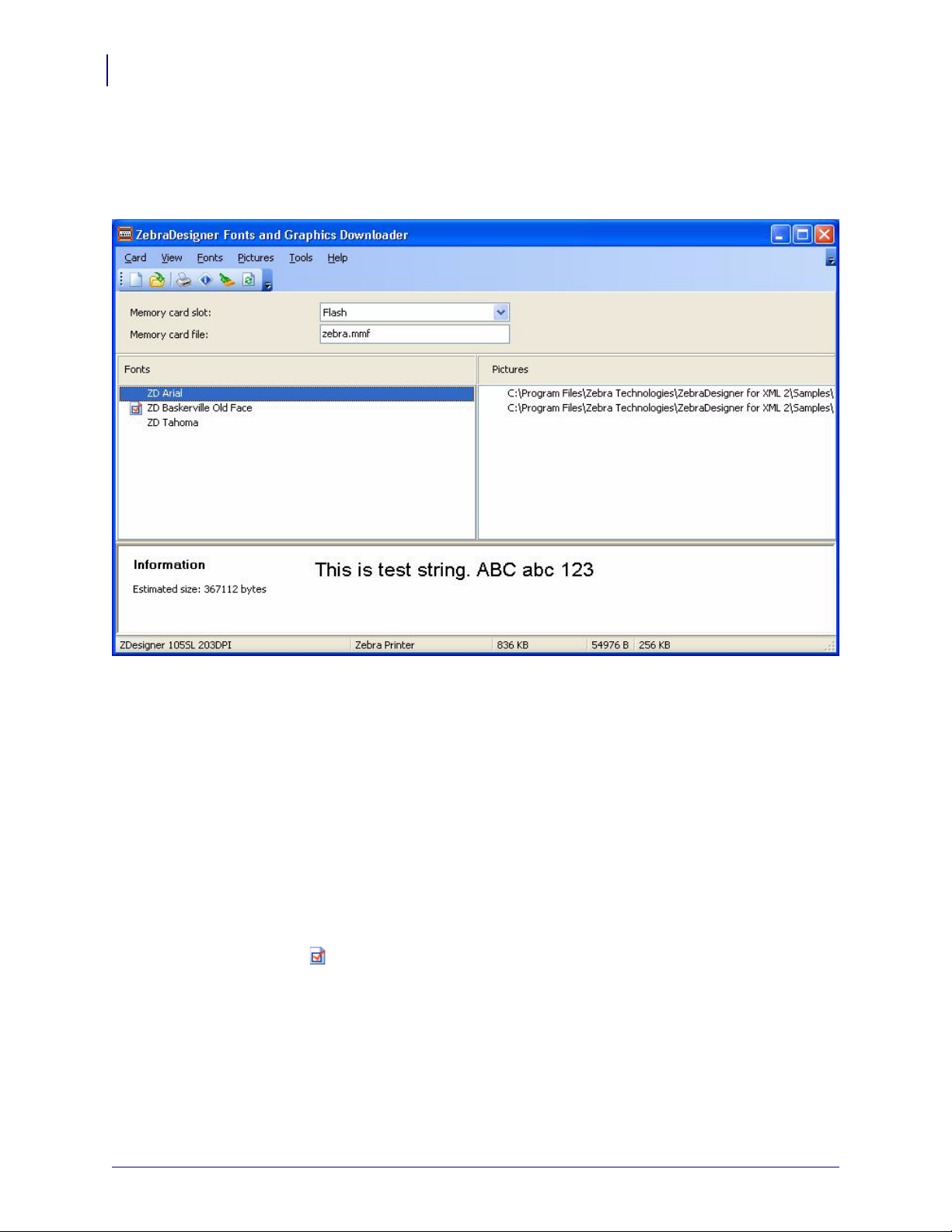

Figure 1 • Fonts and Graphics Downloader window
